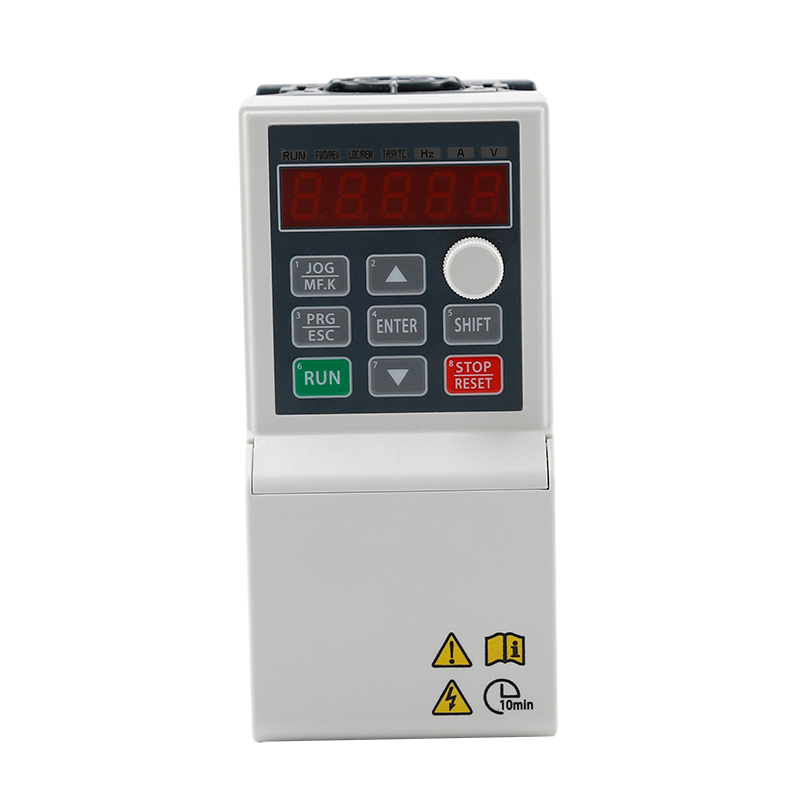

SHBF700
SNTOOM
Product advantages and features
Versatile Power Configuration & Wide Application
Energy Efficiency & Motor Protection
Flexible Control & Precise Regulation
User-Friendly Interface & Real-Time Monitoring
Robust Design & Enhanced Durability
Intelligent Safety & Multi-Protection
Installation and Instructions
Ensure a dry, well-ventilated environment free from corrosive gases and dust for SHBF700 installation. Use its brackets to secure the unit on a stable surface, maintaining clearance around the built-in cooling fan for efficient heat dissipation and stable operation under the thickened three-proof coating protection.
Connect the input power according to the model’s voltage specification (single/three-phase ±15%) using properly rated cables, ensuring reliable grounding. Verify voltage stability within the specified range to prevent operational faults or overload tripping during use.

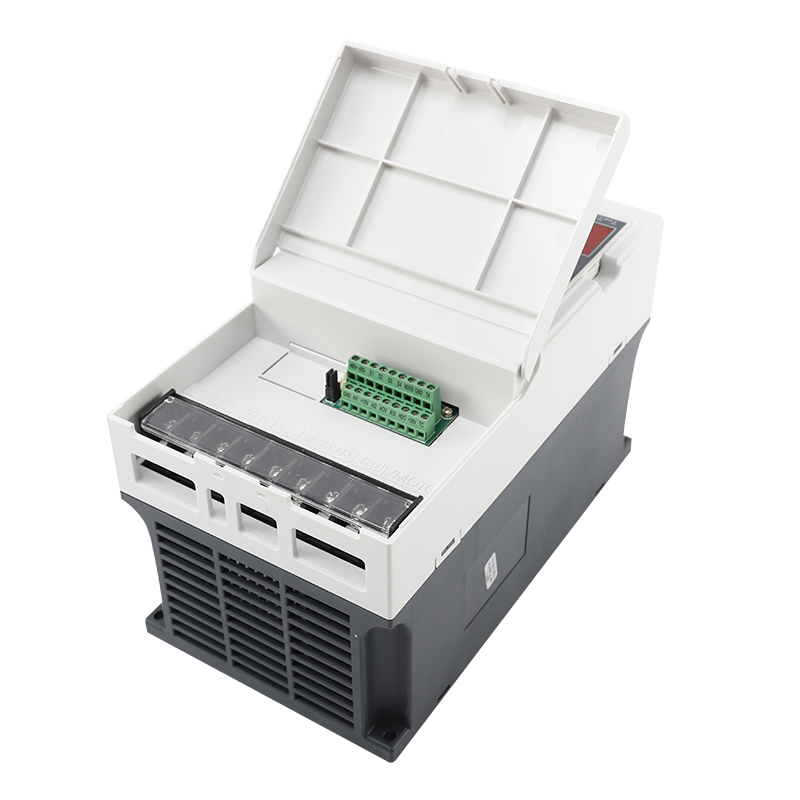

Wire the motor (U, V, W) with correct phasing to avoid reverse rotation and integrate control signals (e.g., PLC, start/stop) via shielded cables for interference-free operation. Match cable specifications to the inverter’s rated current and application needs for secure linkage.

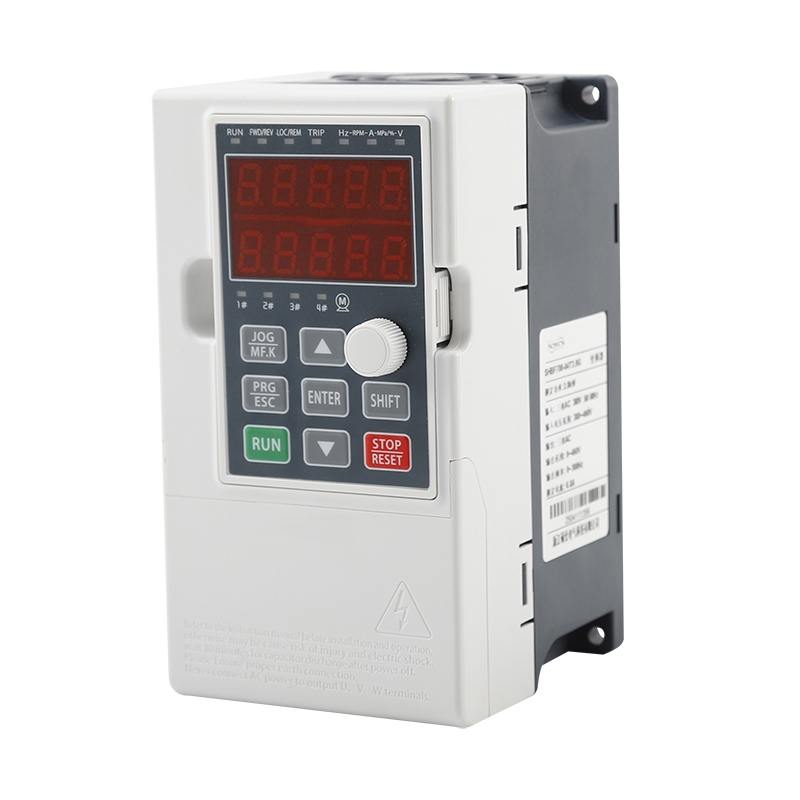

Configure parameters via the LED panel by setting motor specs (power, current), control mode (vector/V/F), and frequency range (0–400Hz). Activate protective functions (overcurrent, overheating) and save settings. Conduct a brief no-load test to confirm stable operation and accurate display readings.
Perform a loaded functional test while monitoring performance via the Smart Guardian diagnostics. Validate energy efficiency, safety protections, and compliance with operational requirements (e.g., constant pressure or speed regulation). Document readings to verify warranty terms and system reliability
Note:Ensure the SHBF700 operates within the specified input voltage range (±15% of rated value) and in a dry, well-ventilated environment. Proper grounding, correct cable sizing, and activated protection functions are essential. Avoid humid/flammable areas and conduct regular inspections for reliable performance.

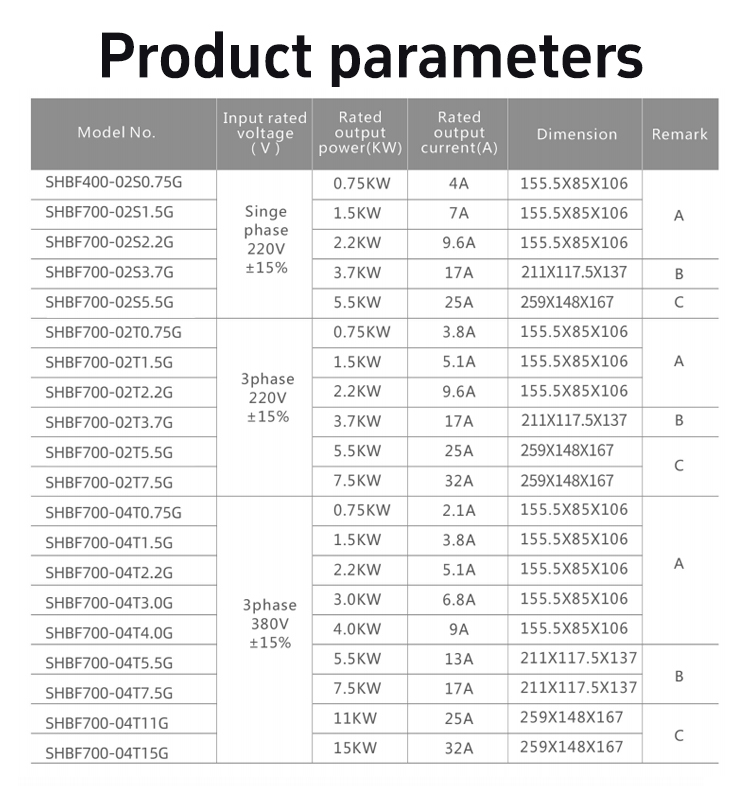

Product parameters

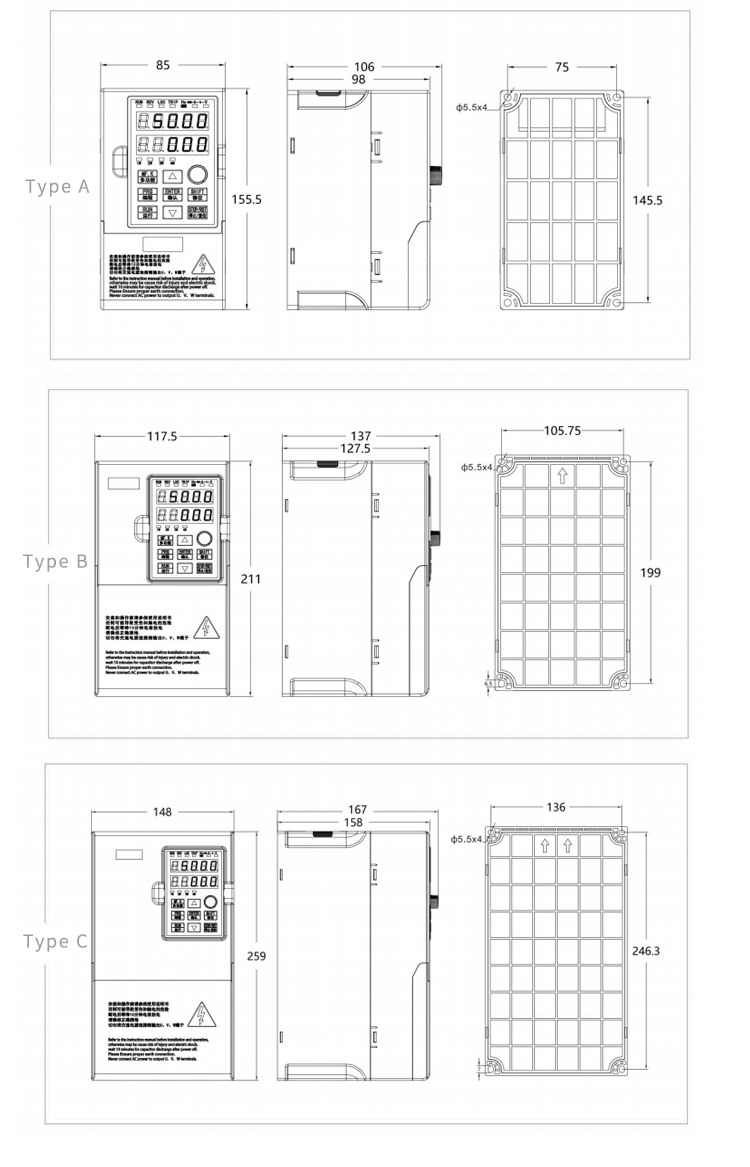

| Model No. | Input rated voltage (V) | Rated output power (KW) | Rated output current (A) | Dimension | Remark |
| SHBF400-02S0.75G | Single phase 220V ±15% | 0.75KW | 4A | 155.5X85X106 | A |
| SHBF700-02S1.5G | 1.5KW | 7A | 155.5X85X106 | ||
| SHBF700-02S2.2G | 2.2KW | 9.6A | 155.5X85X106 | ||
| SHBF700-02S3.7G | 3.7KW | 17A | 211X117.5X137 | B | |
| SHBF700-02S5.5G | 5.5KW | 25A | 259X148X167 | C | |
| SHBF700-02T0.75G | 3phase 220V ±15% | 0.75KW | 3.8A | 155.5X85X106 | A |
| SHBF700-02T1.5G | 1.5KW | 5.1A | 155.5X85X106 | ||
| SHBF700-02T2.2G | 2.2KW | 9.6A | 155.5X85X106 | ||
| SHBF700-02T3.7G | 3.7KW | 17A | 211X117.5X137 | B | |
| SHBF700-02T5.5G | 5.5KW | 25A | 259X148X167 | C | |
| SHBF700-02T7.5G | 7.5KW | 32A | 259X148X167 | ||
| SHBF700-04T0.75G | 3phase 380V±15% | 0.75KW | 2.1A | 155.5X85X106 | A |
| SHBF700-04T1.5G | 1.5KW | 3.8A | 155.5X85X106 | ||
| SHBF700-04T2.2G | 2.2KW | 5.1A | 155.5X85X106 | ||
| SHBF700-04T3.0G | 3.0KW | 6.8A | 155.5X85X106 | ||
| SHBF700-04T4.0G | 4.0KW | 9A | 155.5X85X106 | ||
| SHBF700-04T5.5G | 5.5KW | 13A | 211X117.5X137 | B | |
| SHBF700-04T7.5G | 7.5KW | 17A | 211X117.5X137 | ||
| SHBF700-04T11G | 11KW | 25A | 259X148X167 | C | |
| SHBF700-04T15G | 15KW | 32A | 259X148X167 |

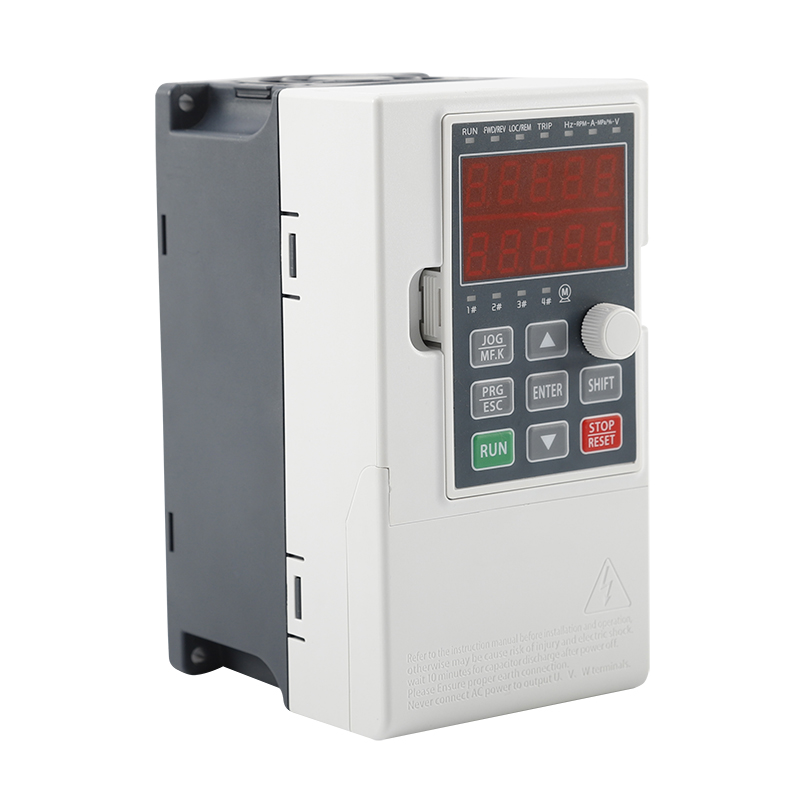

HBF700 Series Frequency Converter: High-Efficiency, Energy-Saving, and Multifunctional Performance with Rapid Heat Dissipation
The SHBF700 series frequency converter stands out as a cutting-edge solution in industrial automation, combining advanced technology with robust performance. Designed as a High efficiency frequency converter, it optimizes energy consumption while delivering precise motor control. This series supports both single-phase (220V±15%) and three-phase (220V/380V±15%) input voltages, with rated output power ranging from 0.75kW to 15kW, catering to diverse application demands. Its vector control technology ensures stable and responsive operation, making it ideal for motors requiring adaptive speed and torque adjustments.

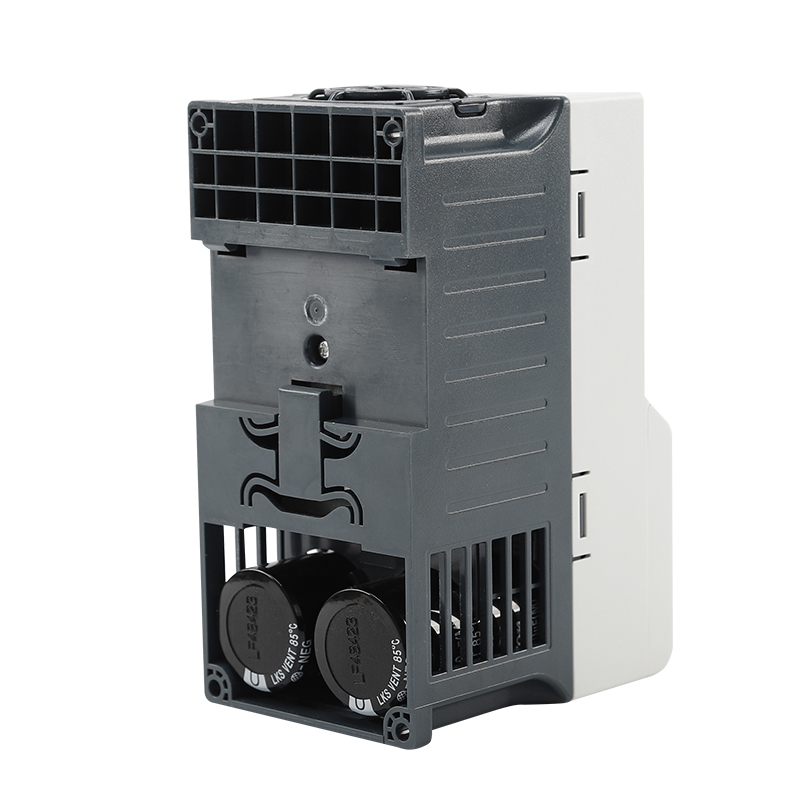

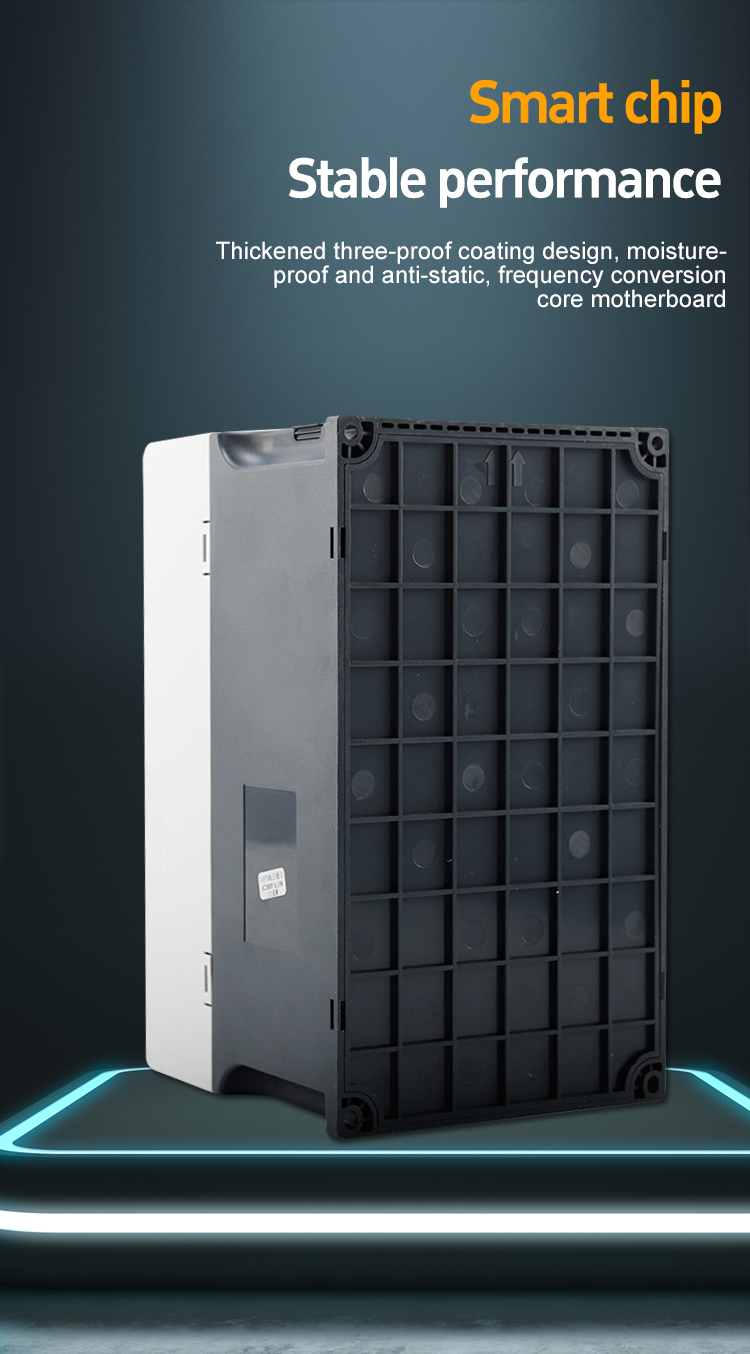

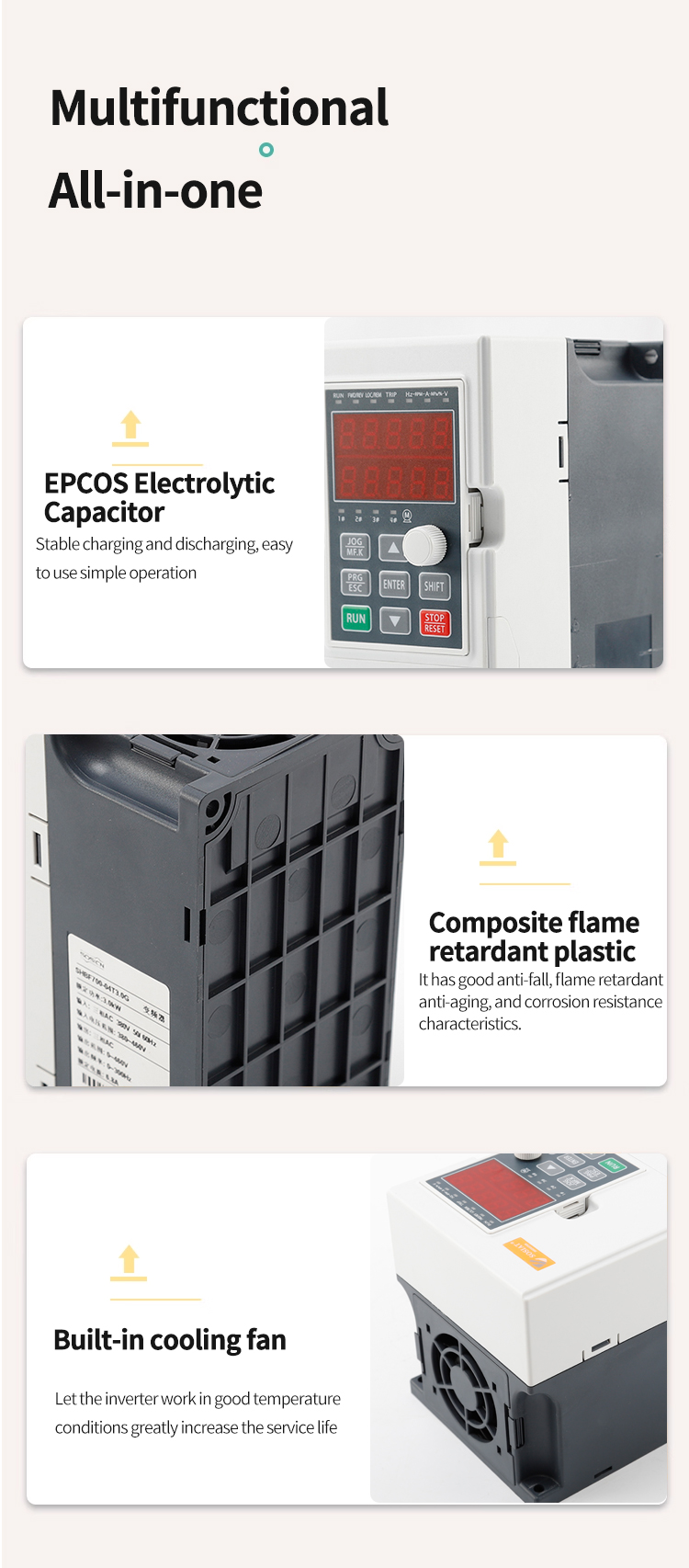

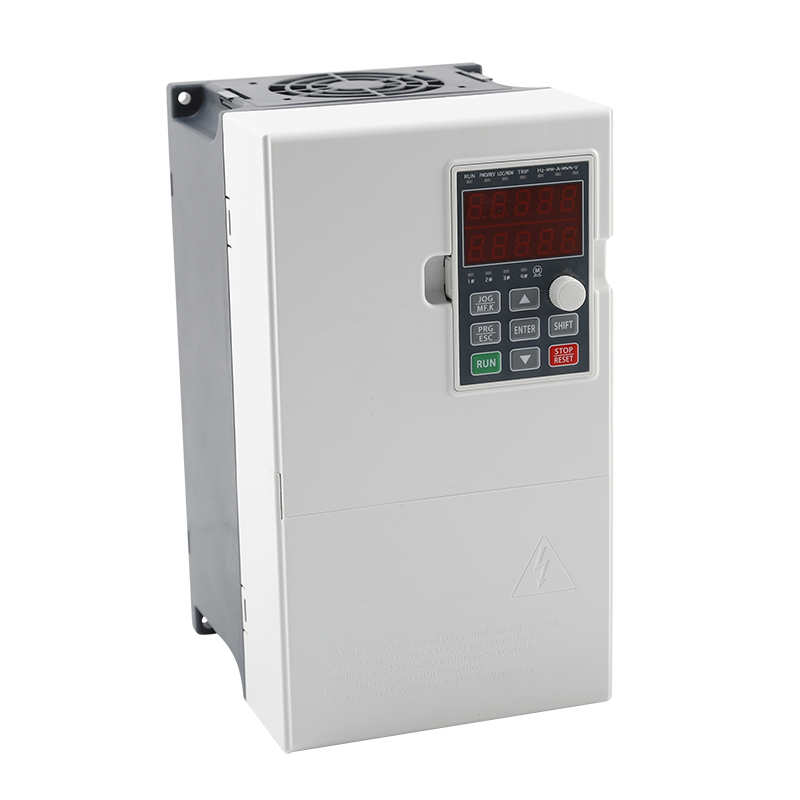

One of its standout features is the Rapid Heat Dissipation Converter design. Equipped with a built-in cooling fan and a thickened three-proof coating motherboard, the device efficiently manages thermal buildup during prolonged operation. This enhances reliability and extends the product’s lifespan, even in challenging environments. Combined with its compact dimensions (e.g., 155×85×106mm for smaller models), it offers flexible installation without compromising on performance.

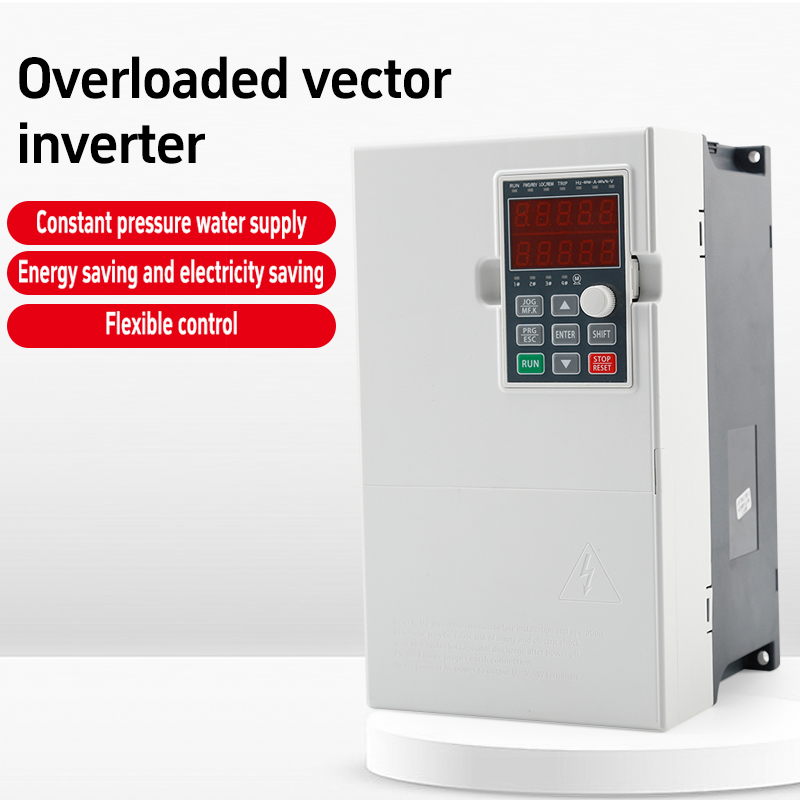

As an Energy saver frequency converter, the SHBF700 series integrates intelligent functions like constant pressure water supply control and multi-mode regulation. These features minimize power waste by adjusting output based on real-time demands, reducing operational costs. The Multifunctional frequency converter further impresses with its PLC compatibility, torque-speed control, and comprehensive protection mechanisms (overcurrent, overvoltage, overheating), ensuring safe and versatile use across industries.

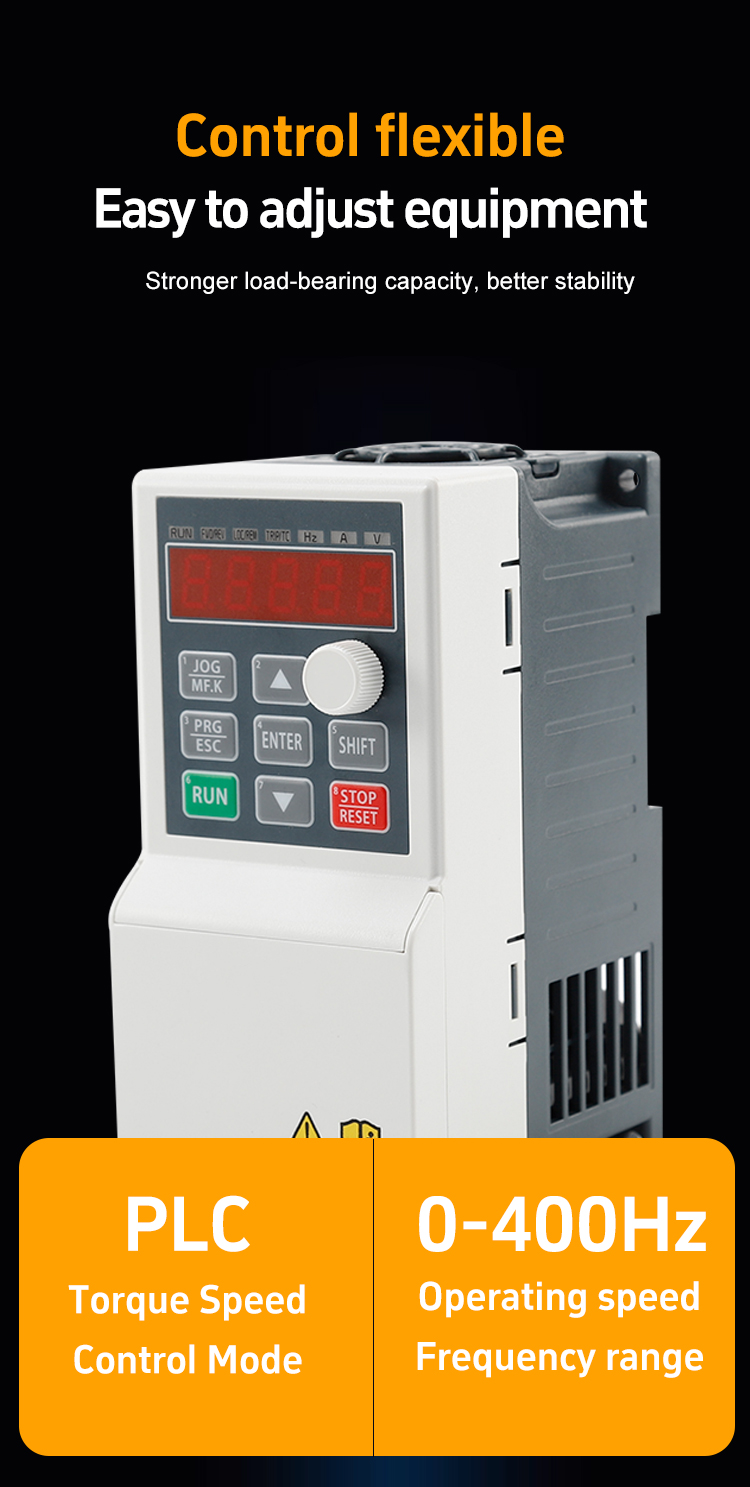

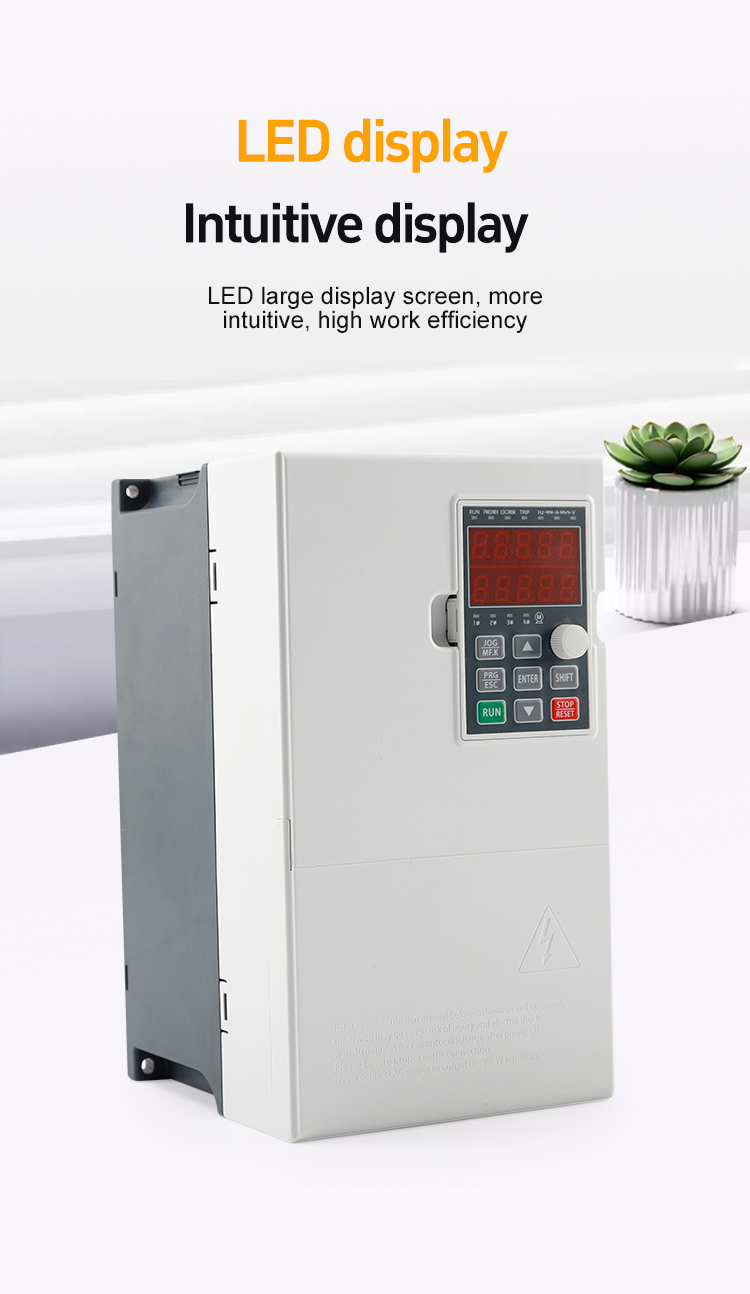

The series also functions as a Frequency Drive Inverter, enabling seamless speed regulation from 0–400Hz. Its intuitive LED display and user-friendly interface simplify parameter configuration, while the EPCOS electrolytic capacitor ensures stable charging/discharging cycles. Whether applied in pump systems for intelligent pressure control or industrial machinery requiring stepless speed adjustments, this converter delivers consistent efficiency.
In summary, the SHBF700 series merges precision, energy conservation, and durability. Its Frequency Converter capabilities, coupled with rapid heat management and multifunctional adaptability, make it a smart choice for modern industrial applications seeking efficiency and reliability.
