SNTOOM
Product advantages and features

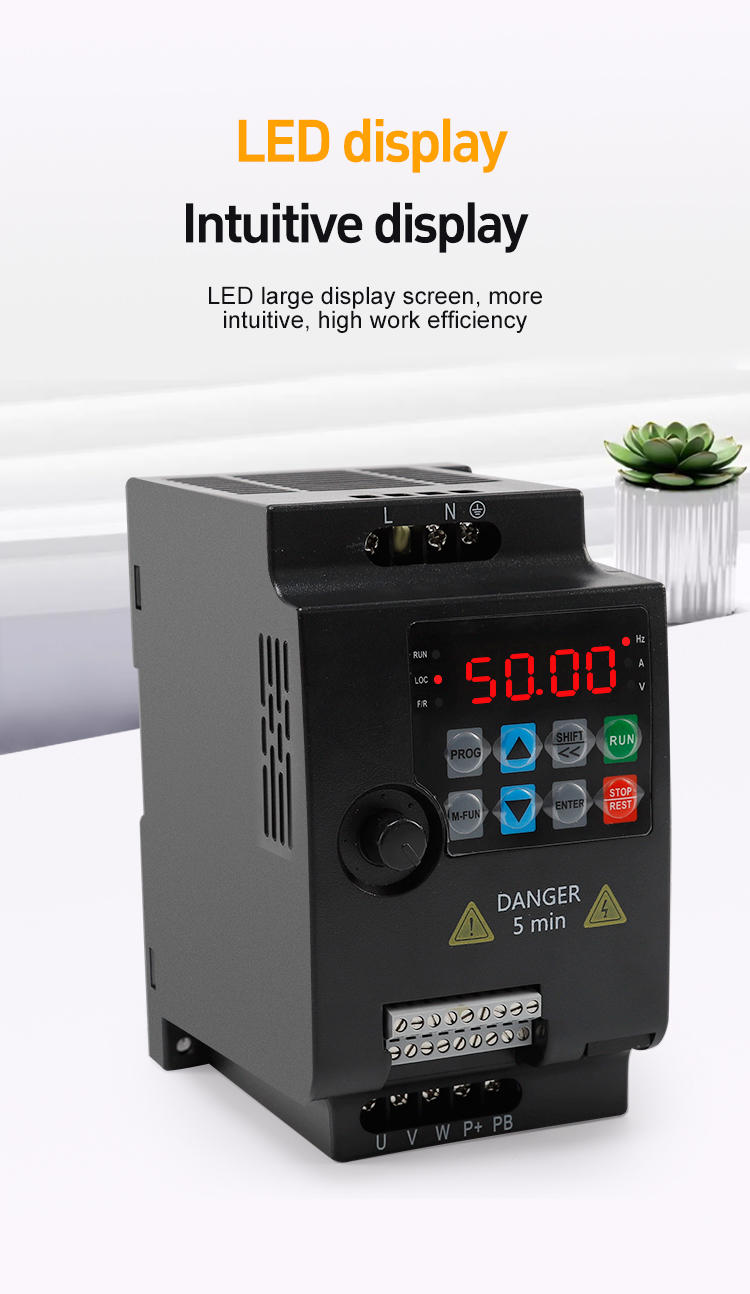

Advanced LED Display

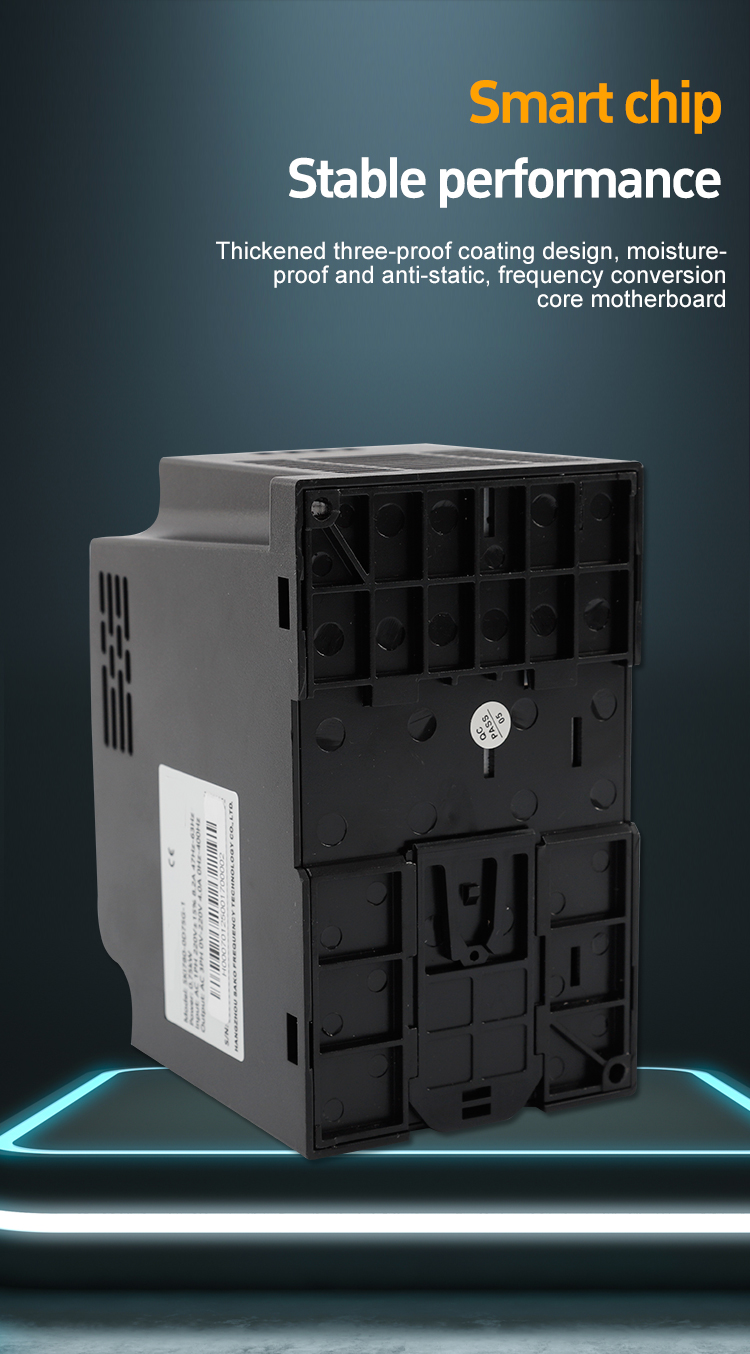

Smart Chip Integration

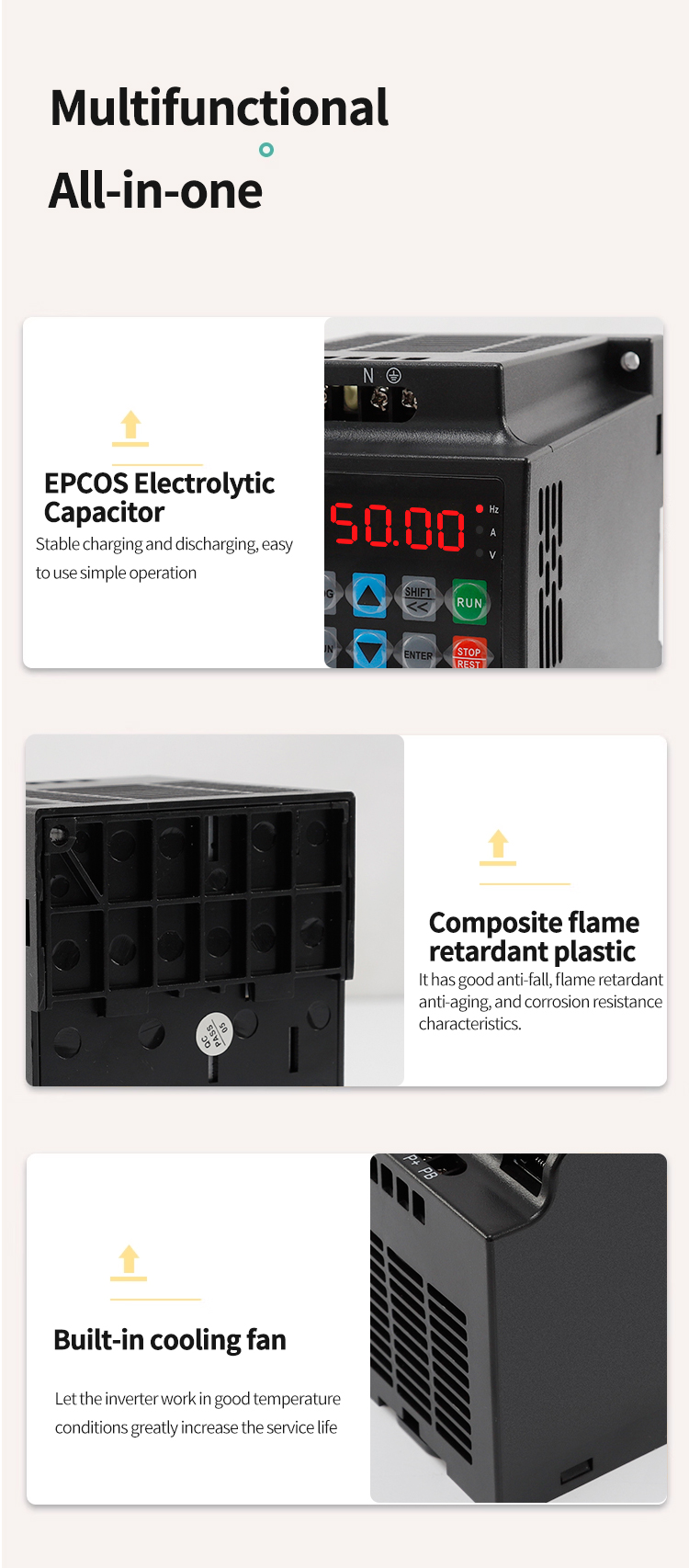

Multifunctional Capabilities

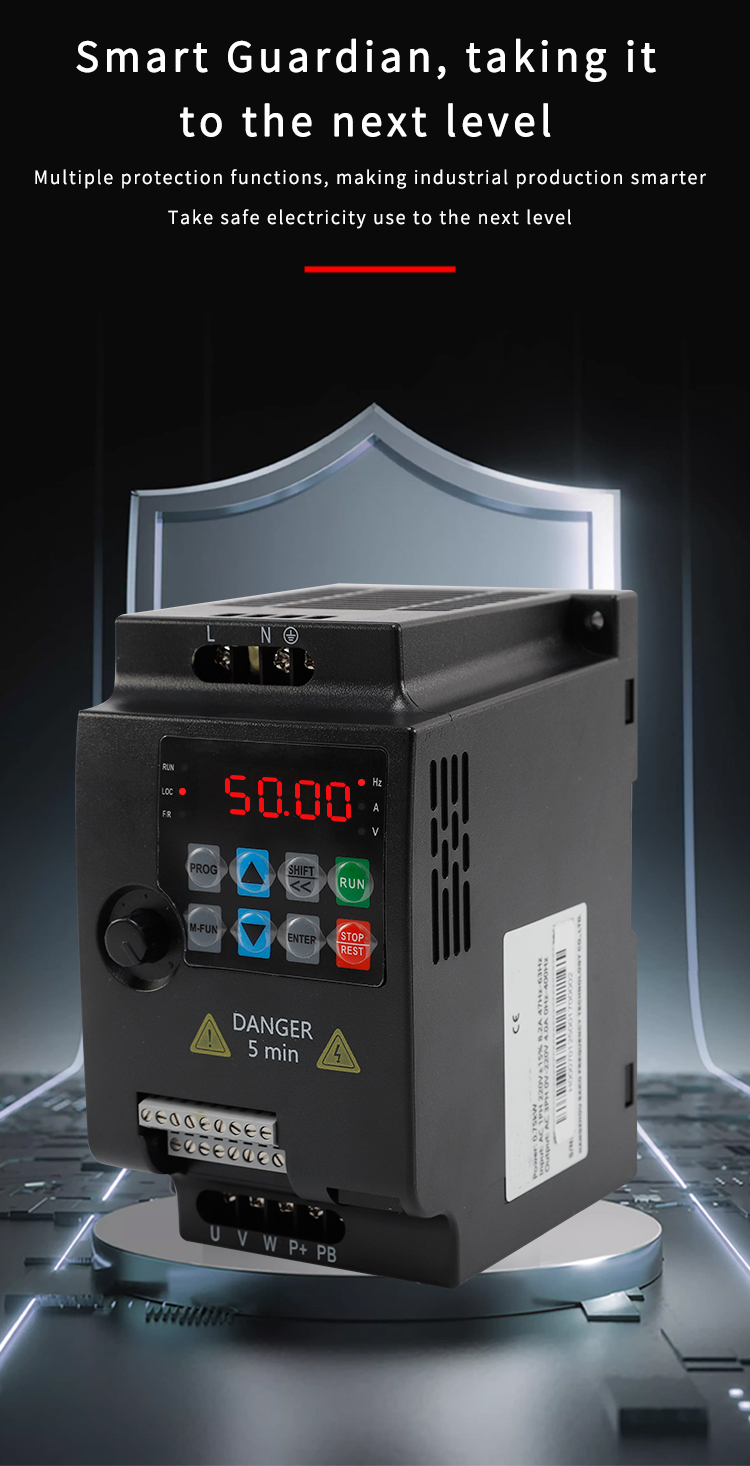

Comprehensive Safety Protections
High-Performance Vector Control

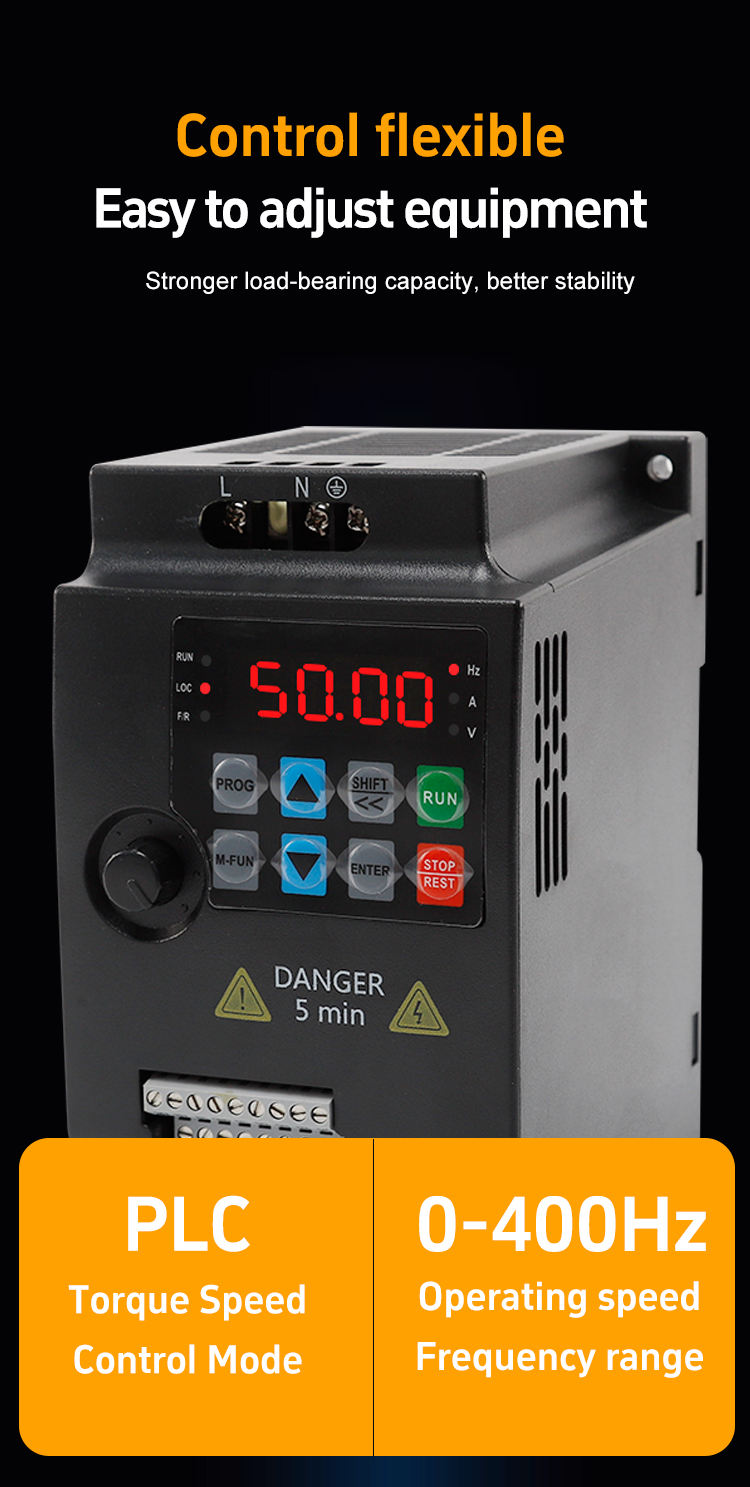

Flexible Control and Broad Frequency Range
Installation and Instructions
Select Installation Location: Choose a well-ventilated, dry location with sufficient space around the inverter for heat dissipation and future maintenance.
Mount the Inverter: Securely fix the inverter on a stable surface using screws and anchors, ensuring it is level and firmly in place.
Connect Power and Load: Carefully connect the input power cables to the corresponding terminals and the motor cables to the output terminals, ensuring all connections are tight and secure.
Ground the Inverter: Connect the grounding wire to the designated grounding terminal on the inverter, ensuring a safe and reliable ground connection to prevent electrical hazards
Note:For the 780 series frequency inverters, ensure proper installation by experienced personnel. Avoid operating in damp or extreme temperature environments. Regularly inspect and maintain to prevent dust accumulation and ensure optimal performance and longevity.

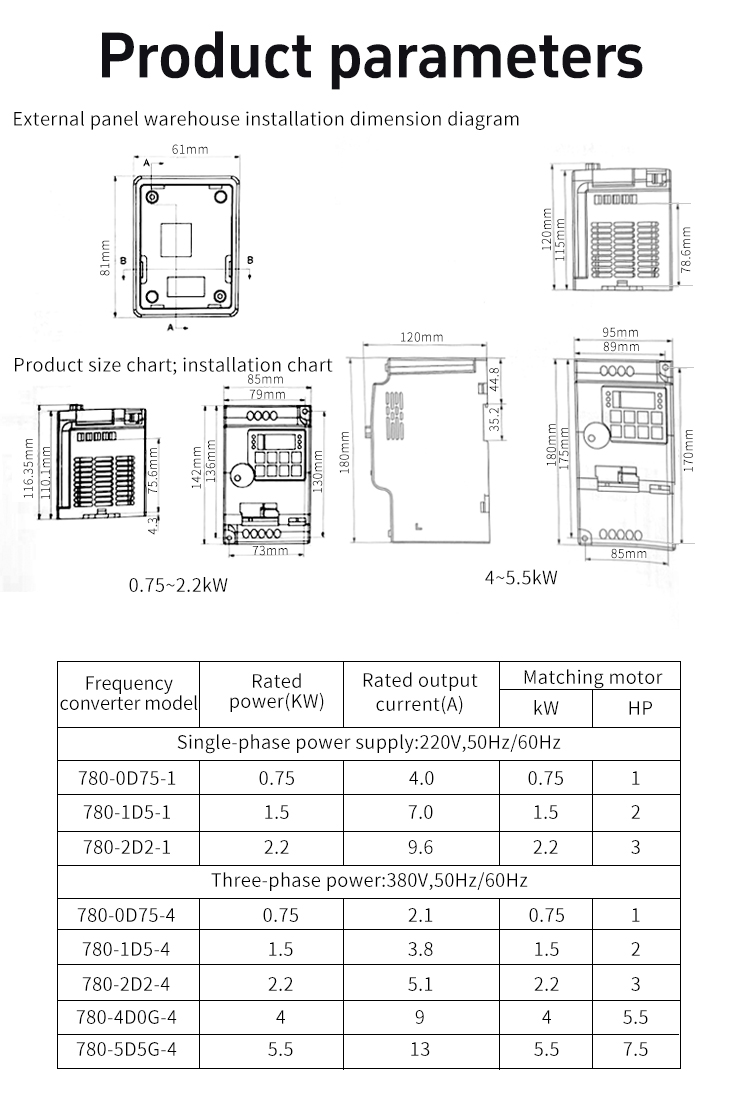

Product parameters
| Frequency Converter Model | Rated Power (KW) | Rated Output Current (A) | Matching Motor | |
| kW | HP | |||
| Single-phase power supply: 220V, 50Hz/60Hz | ||||
| 780-0D75-1 | 0.75 | 4 | 0.75 | 1 |
| 780-1D5-1 | 1.5 | 7 | 1.5 | 2 |
| 780-2D2-1 | 2.2 | 9.6 | 2.2 | 3 |
| Three-phase power: 380V, 50Hz/60Hz | ||||
| 780-0D75-4 | 0.75 | 2.1 | 0.75 | 1 |
| 780-1D5-4 | 1.5 | 3.8 | 1.5 | 2 |
| 780-2D2-4 | 2.2 | 5.1 | 2.2 | 3 |
| 780-4D0G-4 | 4 | 9 | 4 | 5.5 |
| 780-5D5G-4 | 5.5 | 13 | 5.5 | 7.5 |
780 Series Frequency Converters: The Pinnacle of Efficiency and Versatility
The 780 series Frequency Converter stands at the forefront of modern motor control technology, offering unparalleled efficiency and versatility. As a Vector frequency converter, it provides precise control over motor speed and torque, making it ideal for applications requiring high performance and accuracy.
One of the standout features of the 780 series is its Rapid Heat Dissipation Converter design. This innovative approach ensures efficient cooling, even under heavy loads or prolonged operation, thereby maintaining optimal performance and preventing overheating.
The series also excels as an Energy saver frequency converter. By optimizing motor control and reducing power consumption, it significantly cuts energy costs, making it a cost-effective solution for industrial applications. Its high efficiency is further enhanced by the High efficiency frequency converter capabilities, ensuring minimal energy loss and maximum output.
Moreover, the 780 series acts as an Extend Machine Life Converter. By reducing mechanical stress and wear on motors, it prolongs equipment lifespan, reducing maintenance costs and downtime.
As a Multifunctional frequency converter, it integrates multiple protection functions and supports various operating modes, catering to diverse application needs.
In conclusion, the 780 series frequency converters represent a leap forward in motor control technology, combining efficiency, versatility, and durability in one comprehensive package.
