AE200N
SNTOOM

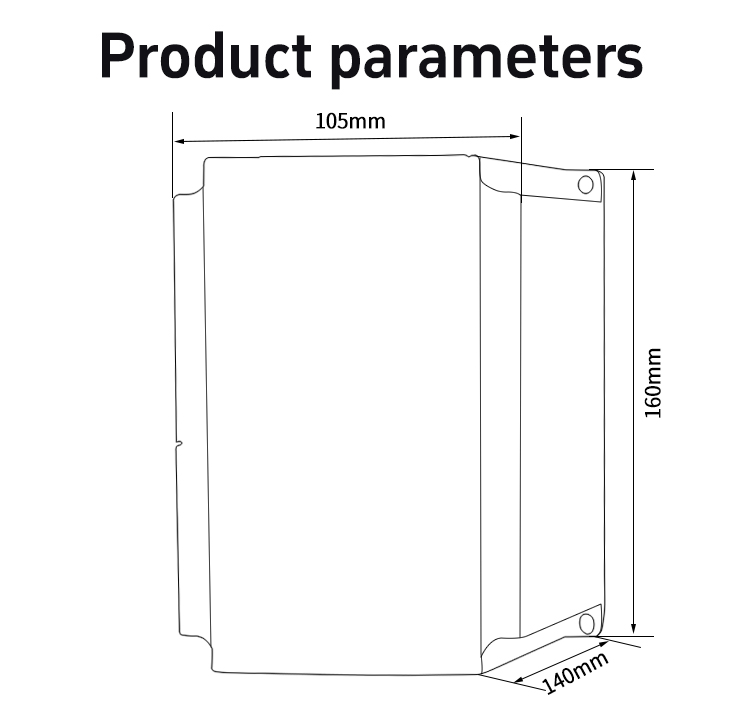

Product parameters
| Voltage(V) | Motor power(KW) | Resistance value(Ω) | Resistance power(W) |
| 220 | 0.4 | 200 | 80 |
| 0.75 | 200 | 80 | |
| 1.5 | 100 | 250 | |
| 2.2 | 75 | 250 | |
| 3.7 | 40 | 400 | |
| 380 | 0.75 | 750 | 80 |
| 1.5 | 400 | 250 | |
| 2.2 | 250 | 250 | |
| 4.0 | 150 | 400 | |
| 5.5 | 100 | 500 | |
| 7.5 | 75 | 800 | |
| 11 | 50 | 1500 | |
| 15 | 40 | 1500 | |
| 18.5 | 30 | 4000 | |
| 22 | 30 | 4000 | |
| 30 | 20 | 6000 | |
| 37 | 16 | 9000 | |
| 45 | 13.6 | 9000 | |
| 55 | 10 | 12000 | |
| 75 | 6.8 | 18000 | |
| 90 | 6.8 | 18000 | |
| 110 | 6 | 18000 |
| Motor drive control mode | |||
| V/F control vector control | |||
| Input/output characteristics | |||
| Input voltage range | 380/220V±15% | Input frequency range | 40~65HZ |
| Output voltage range | 0~rated input voltage | Output frequency range | 0~600HZ |
| Input/output characteristics | |||
| Programmable analog input | 0~10V input, 0/4~20mA input | ||
| Relay output | 2 channel output (1 channel optional 2 channels for 5.5kw and below) | ||
| Analog quantity output | 0~10V/（0~10V/0~20mA 5.5kw below default 0~10V (optional 0~20ma ~20ma) | ||
| Technical performance characteristics | |||
| Overload capacity | 150% rated current 60s, 180% rated current 10s | ||
| Gear Ratio | 1:100 | Carrier frequency wave | 3~15.0kHZ |
| Functional characteristics | |||
| Frequency setting method | Digital setting, analog setting, 485 communication setting, multi-speed setting and simple PLC setting, PID setting, etc., can achieve the setting and switching of methods. | ||
| PID control; Terminal identification function | |||
| PID control function | Frequency control function | Length, time control function | |
| Simple PLC, multi-speed control function | 16-speed speed control | ||
| Automatic voltage adjustment function | Automatically maintain a constant output voltage when the grid voltage changes | ||
Key Features & Benefits:
Easy to adjust equipment
Stronger load-bearing capacity, better stability
LED large display screen
Built-in cooling fan
Thickened three proof coating design, moisture-proof and anti- static
retardant plastic

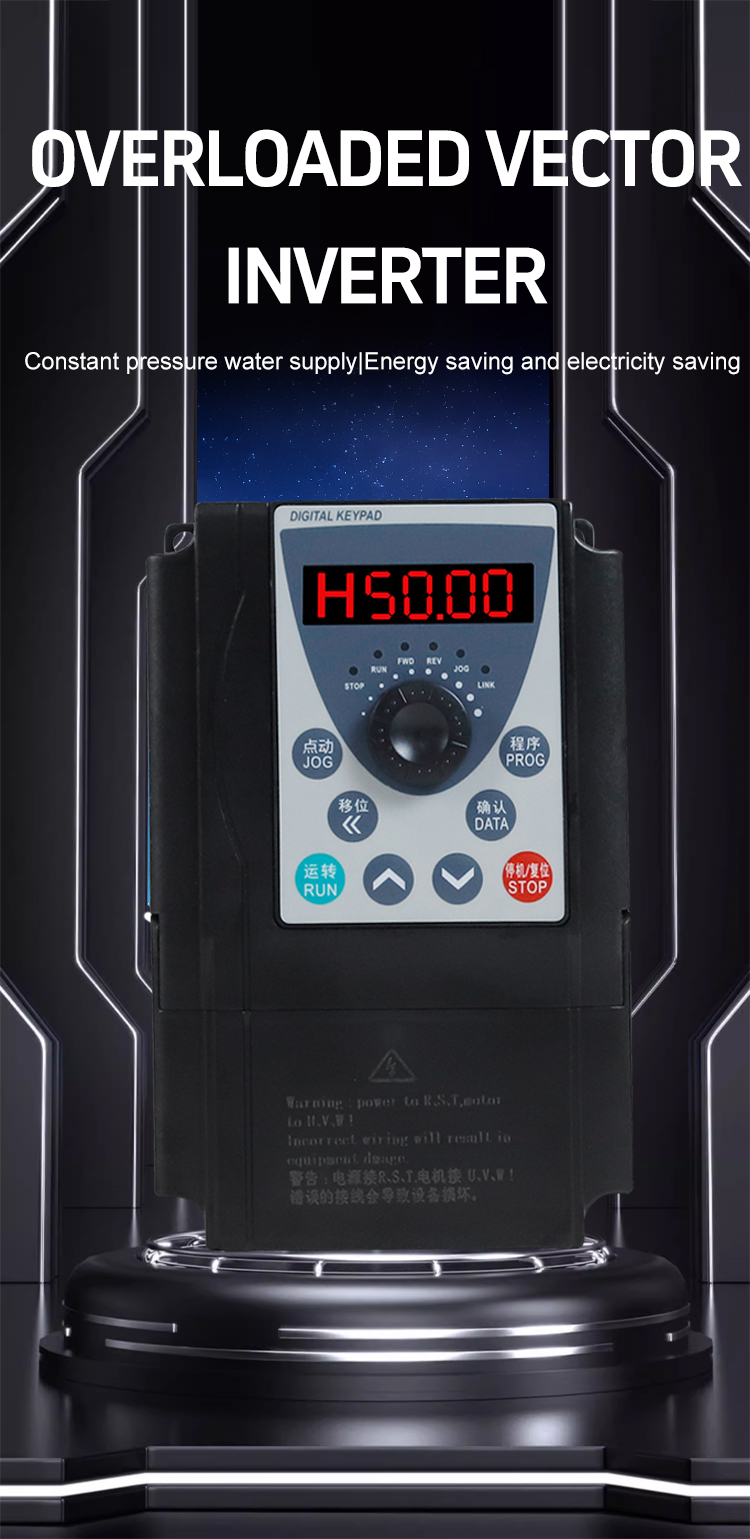

The AE200N overloaded vector inverter stands as a pinnacle of innovation in the realm of industrial motor control, integrating cutting-edge technology with practical design to meet diverse operational demands. Engineered for constant pressure water supply systems, it ensures seamless pressure regulation while delivering substantial energy savings, reducing operational costs and enhancing sustainability.
One of its standout features is its flexible control architecture, enabling effortless equipment adjustments to suit varying load conditions. This adaptability is complemented by a strong load-bearing capacity and exceptional stability, making it ideal for demanding applications that require consistent performance under heavy loads.

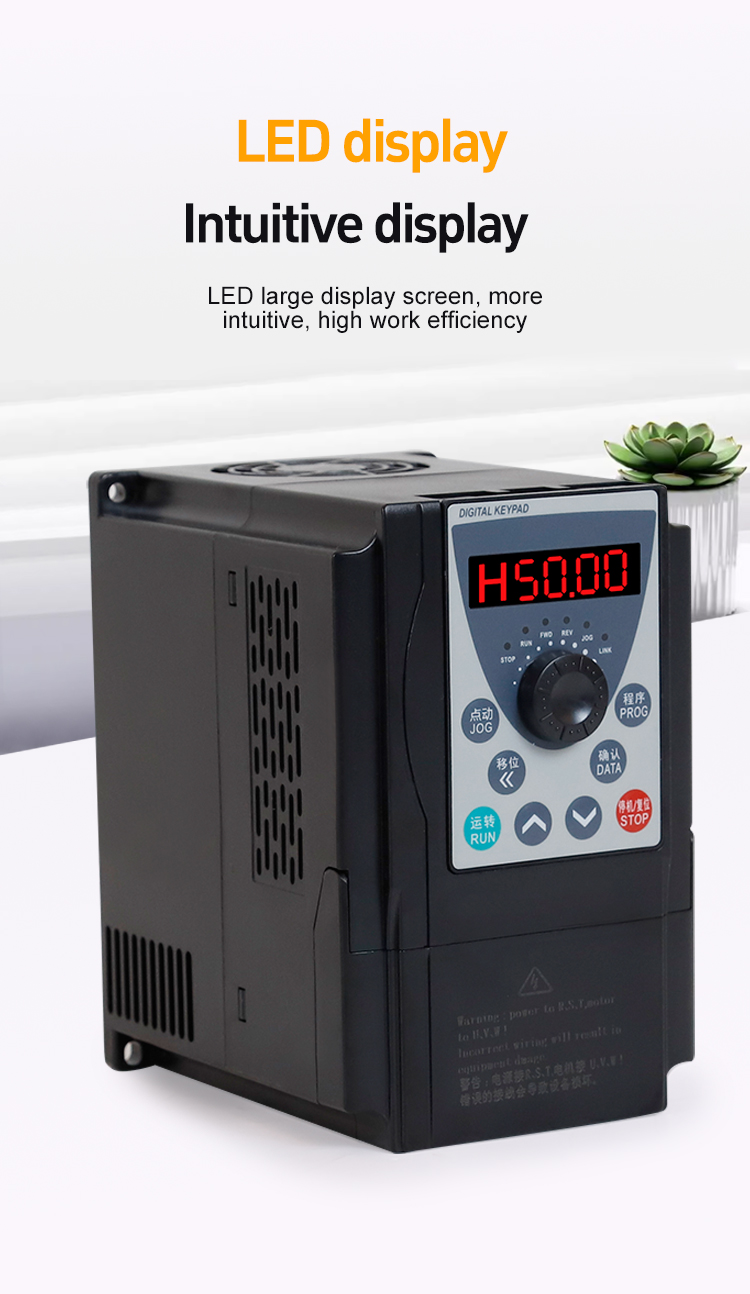

The inverter supports a wide frequency range of 0-400Hz, facilitating precise control over motor speed and torque. Its PLC and Torque Speed Control Mode empower users with granular operational control, optimizing efficiency and productivity. The LED large display screen provides an intuitive interface, displaying real-time data for enhanced monitoring and troubleshooting, thereby boosting work efficiency.

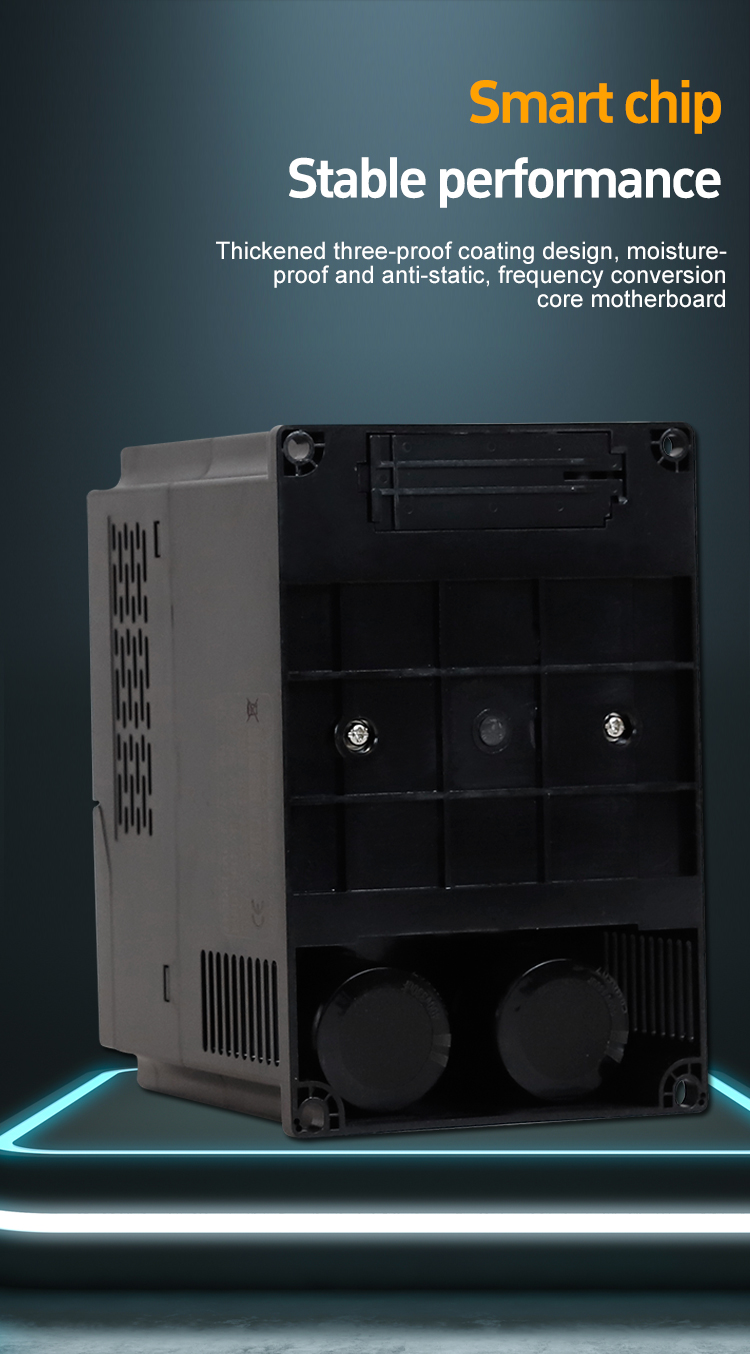

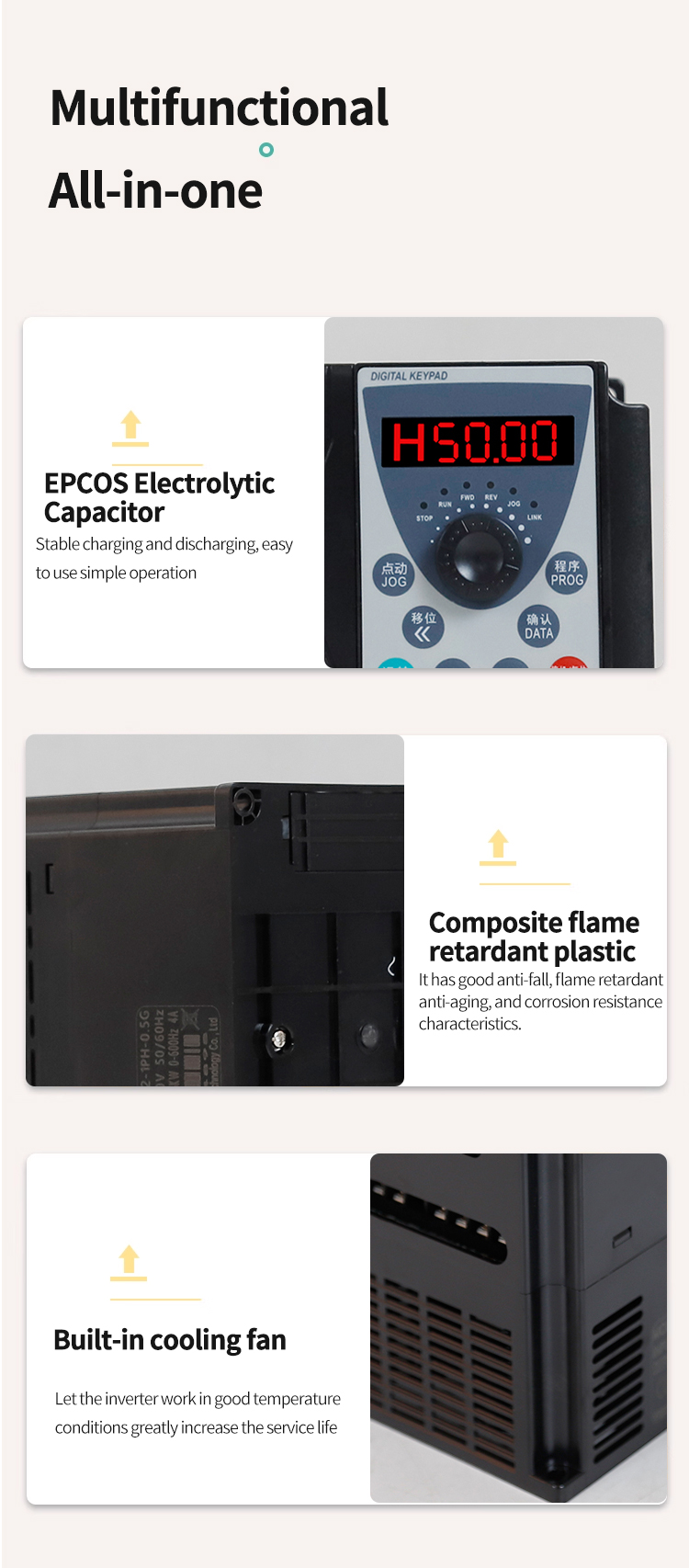

At its core, the AE200N features a smart chip for stable performance, coupled with a thickened three-proof coating design that protects against moisture, static, and environmental wear, ensuring longevity in harsh conditions. The EPCOS electrolytic capacitor guarantees stable charging and discharging, enhancing reliability.
Constructed with composite flame-retardant plastic, the inverter exhibits excellent anti-fall, flame-retardant, anti-aging, and corrosion-resistant properties, safeguarding it against physical and chemical damage. Additionally, the built-in cooling fan maintains optimal operating temperatures, significantly extending the inverter's service life.
In summary, the AE200N overloaded vector inverter is a comprehensive solution that combines energy efficiency, flexible control, and robust design, making it an indispensable asset for modern industrial applications.
