Mine Transformer Overview
Our Mine Transformer solutions deliver safe, reliable step-down distribution for underground coal, metal/nonmetal mines, and tunnel projects. Designs follow national standards and emphasize durability, efficiency, and protection in humid, dusty, and vibration-prone environments.
Mine Transformer Types & Configurations
Select by area classification (non-hazard vs. explosion-prone), then choose the installation method to fit mobility and space.
| Type | Environment | Setup | Key Notes |
|---|
| Non-explosion-proof dry-type | Non-hazard zones | Floor/skid | Low maintenance, moisture resistance, optional temperature monitoring |
| Explosion-proof transformer | Methane/coal dust | Compact skid | Overload, short-circuit, leakage, temperature protection; low losses |
| Explosion-proof mobile substation | Hazardous zones with frequent moves | Tracked/wheeled/skid | Integrated HV/LV, full protections, rapid deployment |

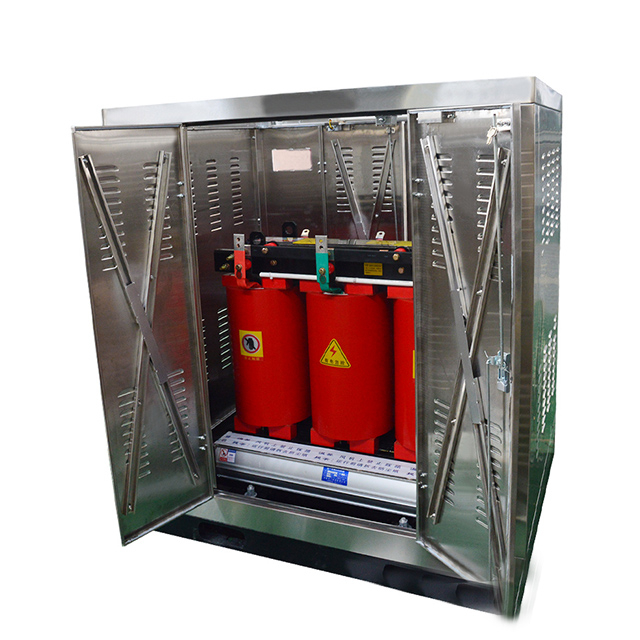

Non-explosion-proof Dry-type Mine Transformers
Ideal for highways, rail tunnels, and metal/nonmetal mines without explosion requirements. Flame-retardant insulation, strong environmental resistance, and optional remote alarms support dependable operation and easy upkeep.

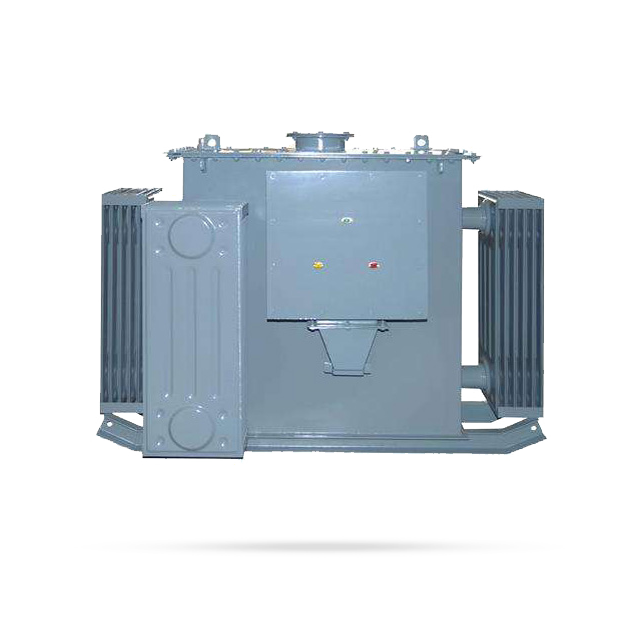

Explosion-proof Mine Transformers and Mobile Substations
For coal mines and explosive atmospheres, explosion-proof models provide robust construction and coordinated protection. Mobile substations add fast relocation with integrated switching and distribution for advancing faces and headings.
Applications and Environments
These units support underground and surface mining, mineral processing, and large tunnel works. Conditions often include humidity, dust, vibration, thermal cycling, and tight clearances. For complementary equipment, view our complete transformer range.
Advantages & Support
Established in 2009 in Liushi Town, we focus on transformer R&D, manufacturing, and service. Designs target low losses, stable operation, and compact footprints. We offer a one-year warranty, lifetime paid service, 1-hour response, and on-site support within 12h (Wenzhou), 24h (Zhejiang), and 48–72h (outside province). Customers are welcome to supervise production, testing, and commissioning.
Mine Transformer Selection Guide
Confirm area classification and environmental severity.
Match capacity to load profile, starting currents, and future growth.
Define HV level, LV feeders, and tap requirements; coordinate protection settings.
Check footprint, ventilation, and mobility needs; verify test protocols before energization.
Get a Mine Transformer Quote
Share voltage, capacity, area classification, protection functions, and layout constraints. Our engineering team will optimize specification and lead time. As a dedicated transformer manufacturer, we deliver tailored Mine Transformer configurations, fast quotations, and technical consultations for your project.
