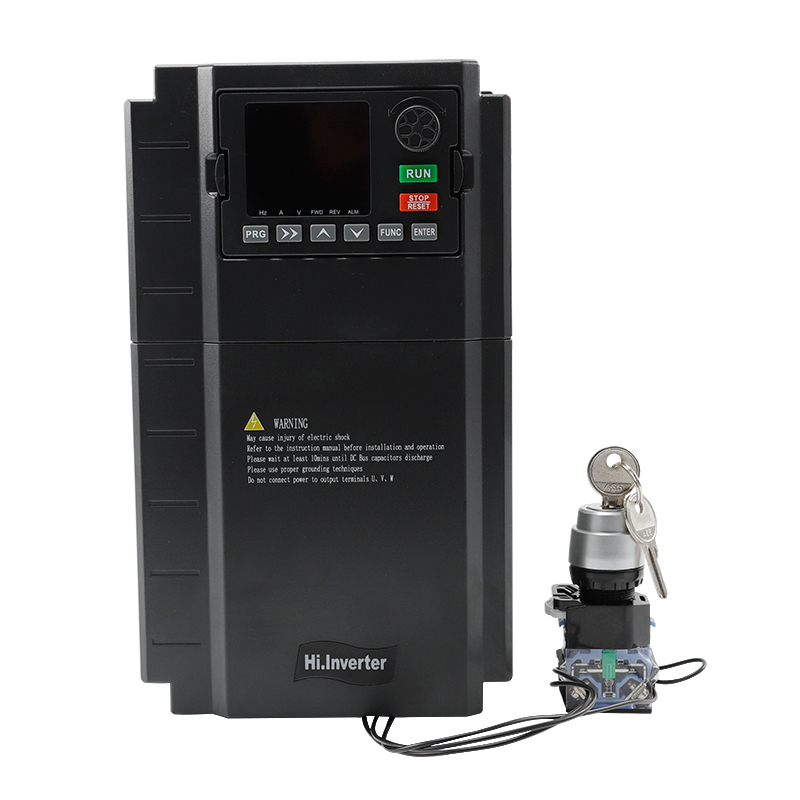

frequency converter
SNTOOM
Product parameters
| Voltagelevel | Power | Size and weight data | Case style | |||
| Gross weight(kg) | External dimensions (High * wide * deep) | Installation dimensions (High * wide ) | Packing box size (High * wide * deep) | |||
| 380V | 0.75kW | 2.0 | 180*120*158 | 110.4*170.2 | 240*173*220 | Plastic Shell |
| 380V | 1.5kW | 2.0 | Plastic Shell | |||
| 380V | 2.2kW | 2.0 | Plastic Shell | |||
| 380V | 4.0kW | 3.8 | 250*160*183 | 147.5*237.5 | 315*207*246 | Plastic Shell |
| 380V | 5.5kw | 3.9 | Plastic Shell | |||
| 380V | 7.5kW | 4.2 | Plastic Shell | |||
| 380V | 11kW | 6.6 | 320*220*190 | 205*305 | 380*275*245 | Plastic Shell |
| 380V | 15kW | 6.7 | Plastic Shell | |||
| 380V | 18.5kW | 11.5 | 395*250*190 | 200*380 | 455*340*275 | Sheet metal in and out |
| 380V | 22kW | 17.3 | 465*290*220 | 175*445 | 547*380*300 | Sheet metal in and out |
| 380V | 30kW | 18.5 | Sheet metal in and out | |||
| 380V | 37kW | 19.0 | 470*290*250 | 175*450 | 545*385*330 | Sheet metal in and out |
| 380V | 45kW | 20.9 | Sheet metal in and out | |||
| 380V | 55kW | 22.0 | Sheet metal in and out | |||
| 380V | 75kW | 29.6 | 550*290*275 | 230*565 | 650*380*370 | Sheet metal in and out |
| 380V | 90kW | 53.0 | 670*330*325 (Hang up) 870*330*325(cabinet) | 240*640 | 680*380*375 | Sheet metal in and out |
| 380V | 110kW | 53.0 | Sheet metal in and out | |||
| 380V | 132kW | 55.0 | Sheet metal in and out | |||
| 380V | 160kw | 73.5 | 750*460*330(Hang up) 950*460*330(cabinet) | 315*725 | 780*530*370 | Sheet metal in and out |
| 380V | 185kW | 89.0 | 860*500*360(Hang up) 1210*500*360(cabinet) | 400*830 | 880*570*390 | Sheet metal in and out |
| 380V | 200kW | 90.6 | Sheet metal in and out | |||
| 380V | 220kW | 175（Not accurately measured） | 1160*660*370Hang up) 1510*660*370(cabinet) | 400*1130 | 1185*745*420 | Sheet metal in and out |
| 380V | 250kw | Sheet metal in and out | ||||
| 380V | 285kW | Sheet metal in and out | ||||
| 380V | 315kW | Sheet metal in and out | ||||
| 380V | 355kW | 225（Not accurately measured） | 1340*700*435Hangup) 1690*700*435(cabinet) | 400*1300 | 1355*780*470 | Sheet metal in and out |
| 380V | 400kW | Sheet metal in and out | ||||
| 380V | 450kW | Sheet metal in and out | ||||
| 380V | 500kW | Sheet metal in and out | ||||
Key Features & Benefits:

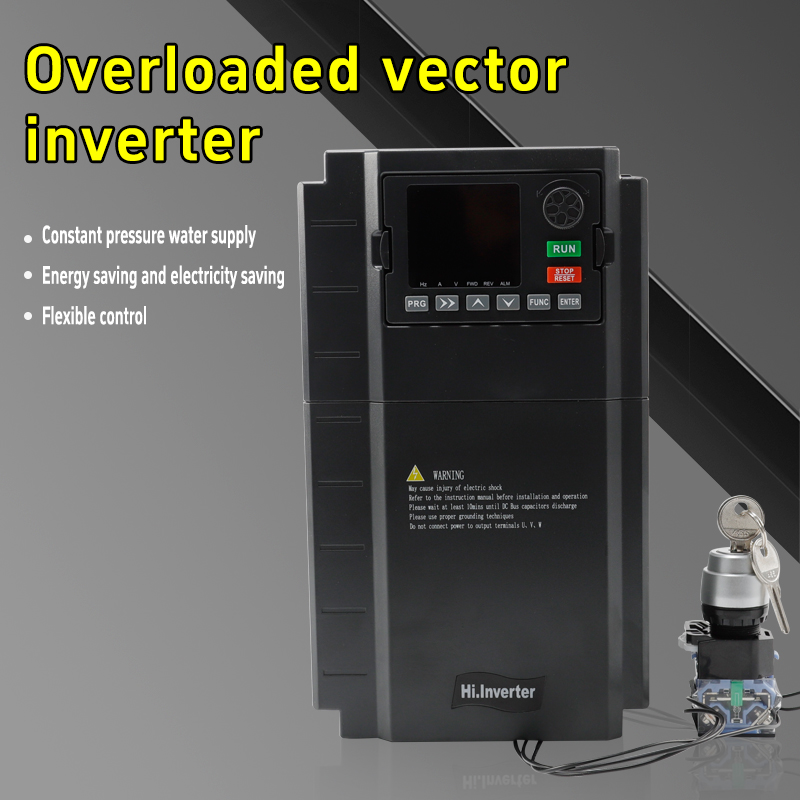

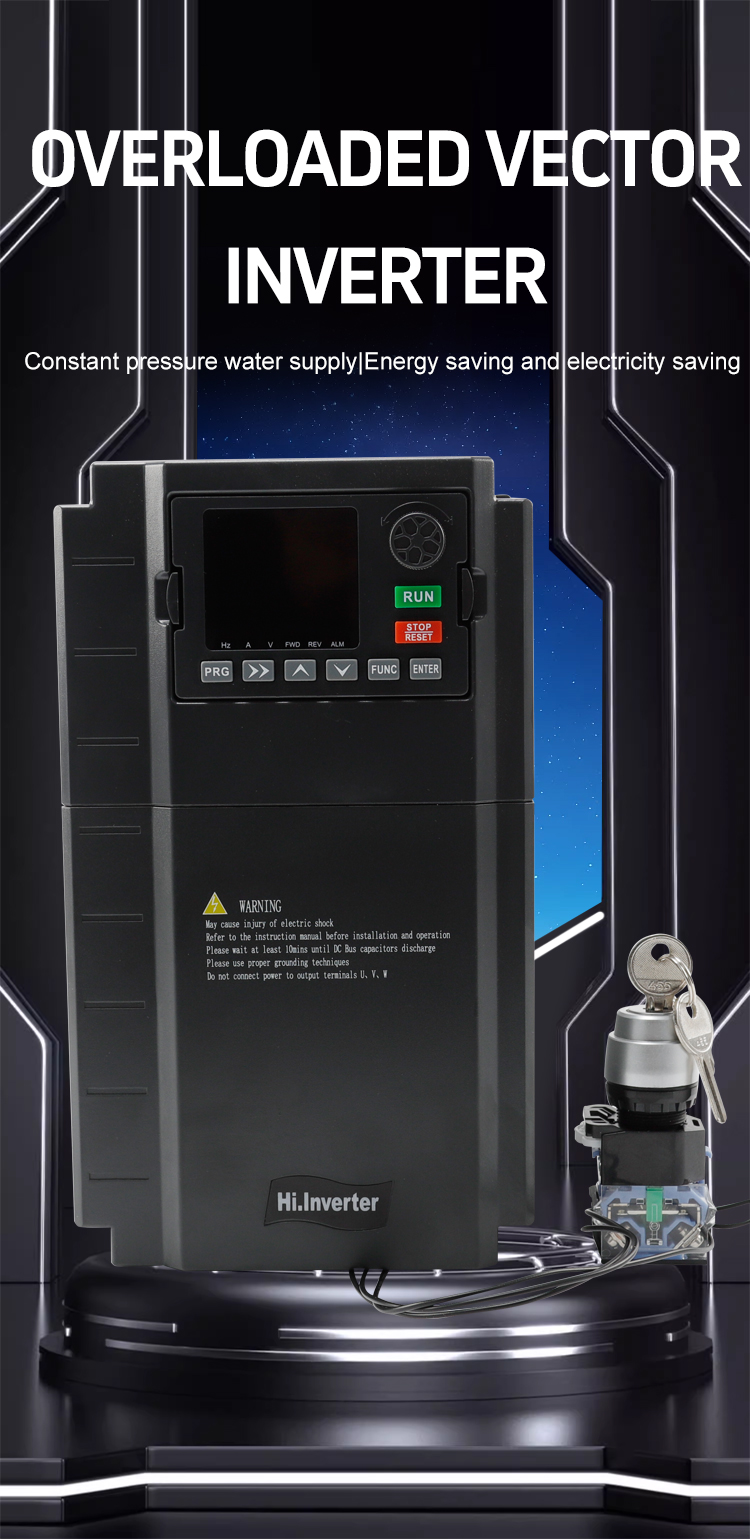

Constant pressure water supply.
Energy saving and electricity saving.

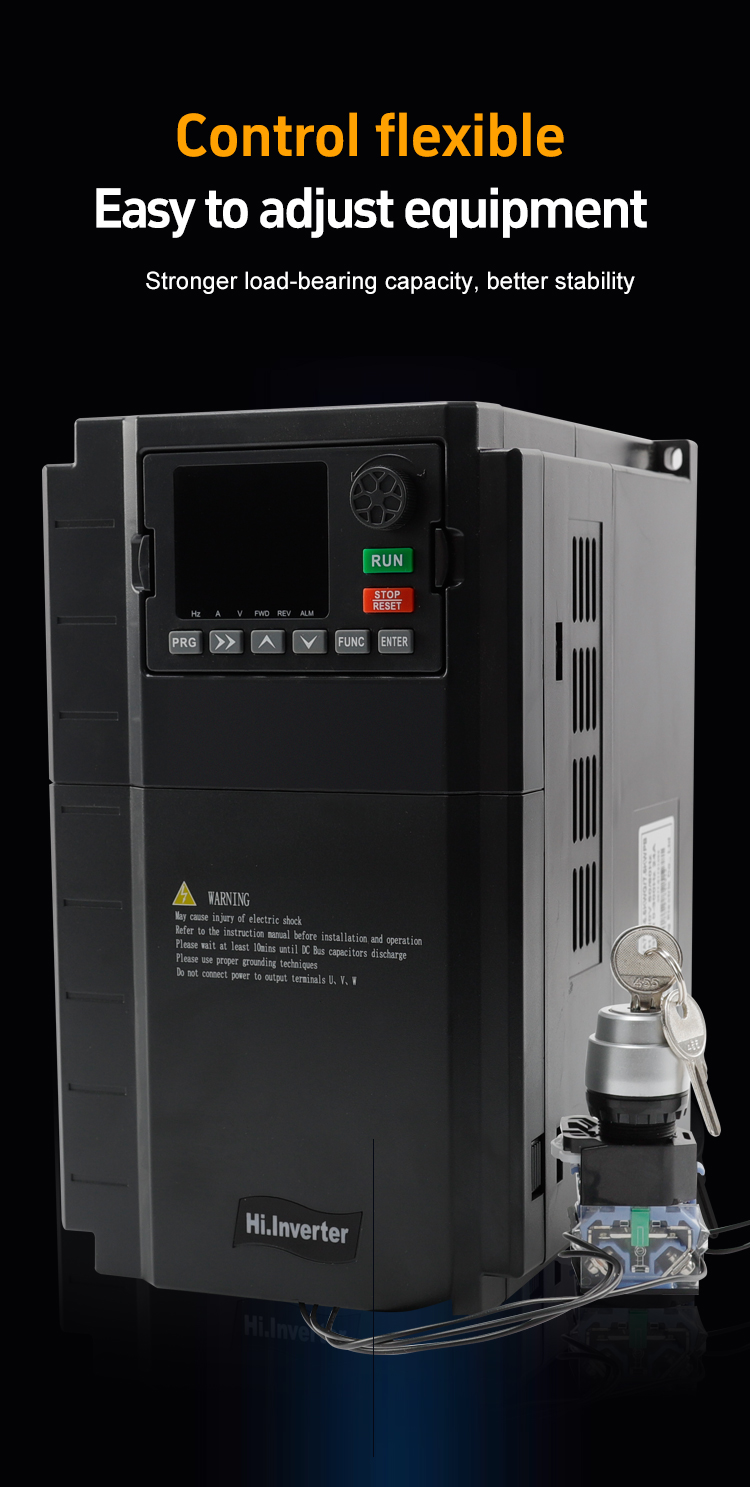

Flexible control.

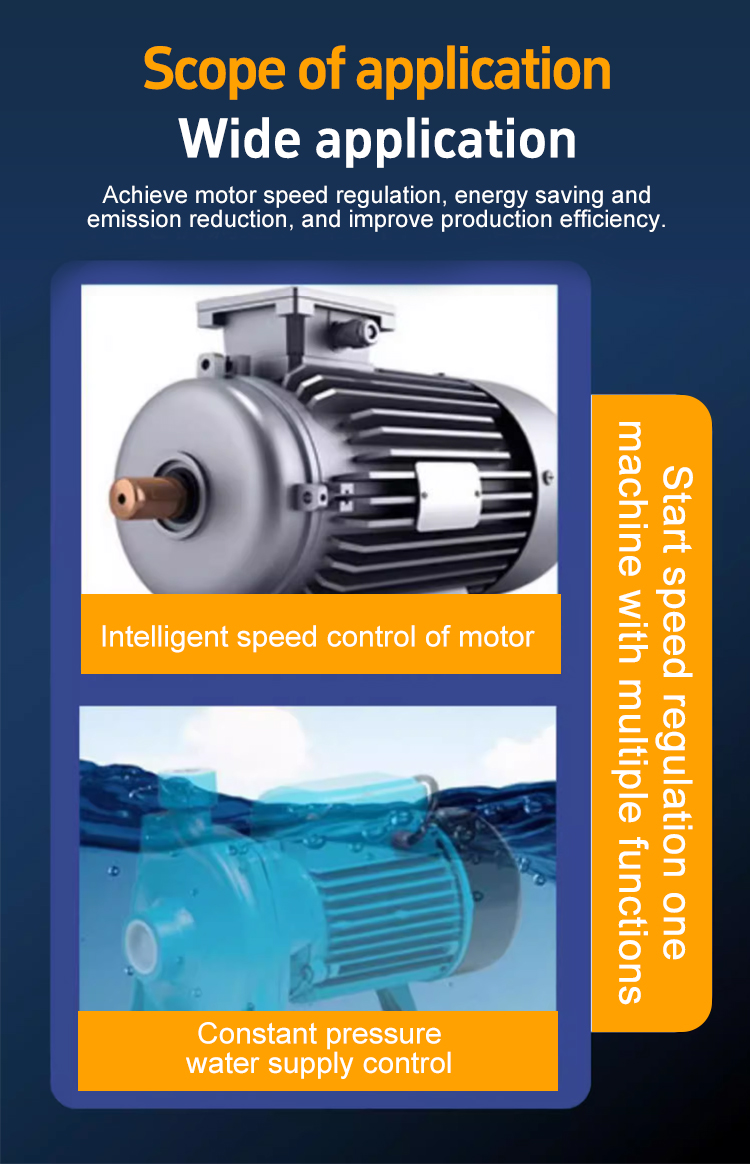

Intelligent speed control of motor.
Multi-moderegulation and Steplessspeed regulation.

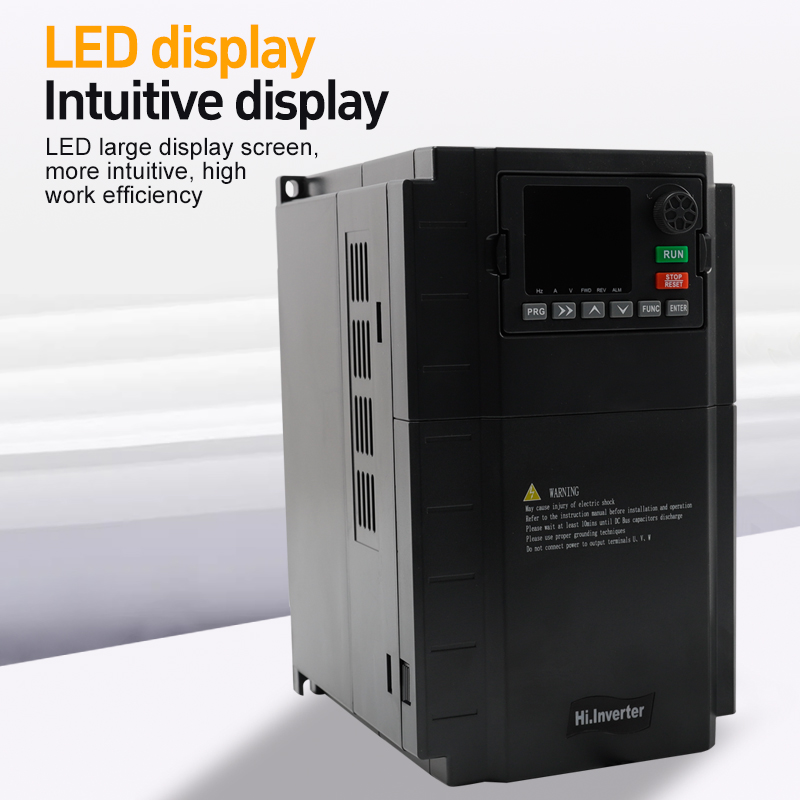

LED large display screen, moreintuitive, high work efficiency.

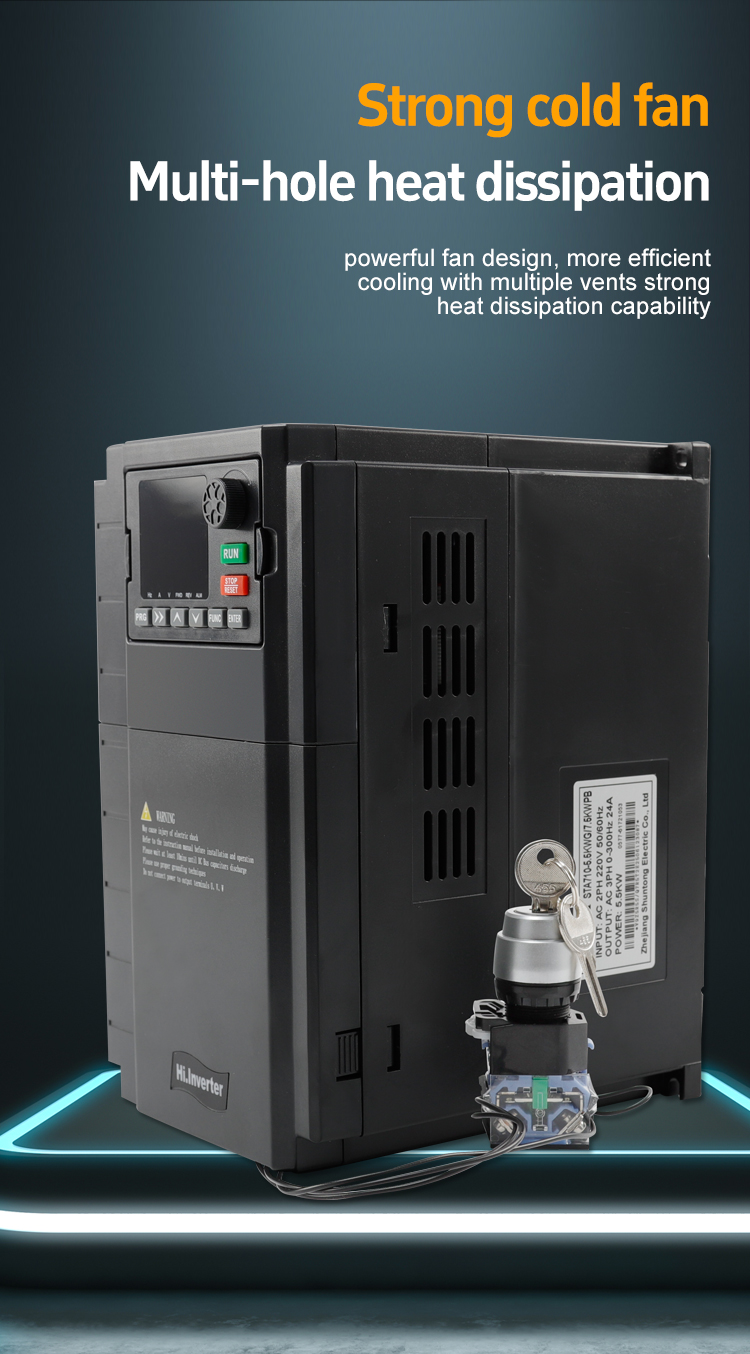

Strong cold fanMulti-hole heat dissipation.

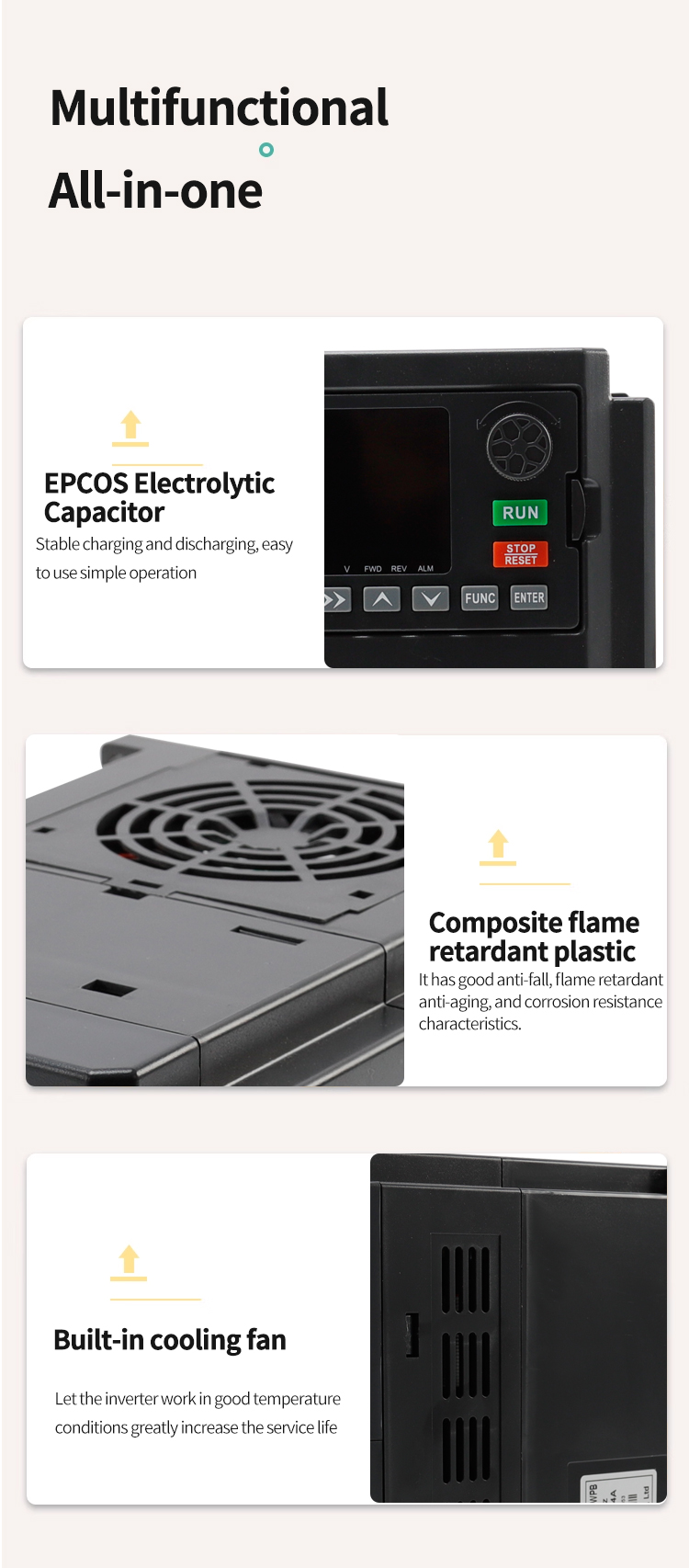

EPCOS Electrolytic Capacitor,Stable charging and discharging, easy to use simple operation.
Composite flameretardant plastic,It has good anti-fall, flame retardantanti-aging, and corrosion resistancecharacteristics.
Built-in cooling fan,Let the inverterwork in good temperatureconditions greatly increase the service life.
Why Choose Our ustomized overload vector frequency converter?
Advanced vector control technology for precise motor control and increased efficiency.
Seamless conversion from single-phase to three-phase power, simplifying installation and reducing costs.
Dynamic performance and fast response time for optimal motor operation under varying conditions.
Energy-efficient design for long-term cost savings and environmental sustainability.
User-friendly interface and comprehensive protection system for hassle-free operation and maintenance.
Customized Overload Vector Frequency Converter: The Pinnacle of Motor Control Efficiency
In the realm of industrial motor control, our Customized Overload Vector Frequency Converter stands out as a game - changer. It is specifically engineered to deliver unparalleled performance in a wide range of applications, particularly in constant - pressure water supply systems.
One of its standout features is its remarkable energy - saving capability. By intelligently adjusting the motor speed according to actual demand, it significantly reduces power consumption, leading to substantial cost savings over time. The flexible motor speed control allows for multi - mode and stepless speed regulation, enabling precise adaptation to various working conditions.
The large LED display provides a clear and intuitive interface, making operation and monitoring a breeze. With its user - friendly design, even non - technical personnel can quickly master its use.
To ensure long - term reliability, the converter is equipped with a powerful cooling system. The strong cold fan with multi - hole heat dissipation keeps the internal temperature in check, while the EPCOS electrolytic capacitor guarantees stable charging and discharging. The use of composite flame - retardant plastic enhances safety, offering excellent resistance to falling, combustion, aging, and corrosion.
Overall, our Customized Overload Vector Frequency Converter combines cutting - edge technology with robust construction, providing an efficient and durable solution for all your motor control needs.
