| Quantity: | |
|---|---|
SNTOOM

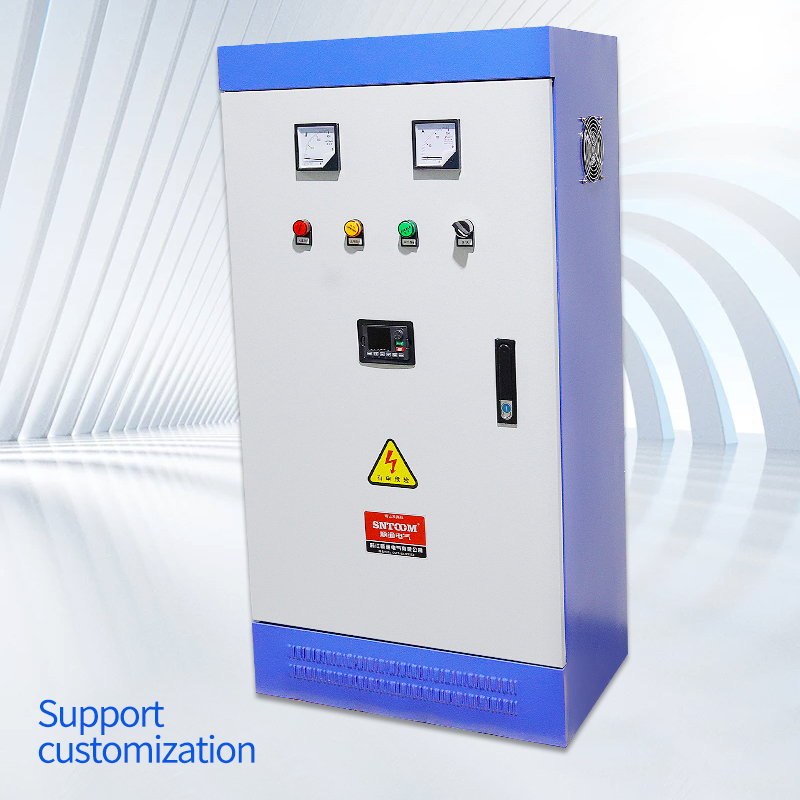

As a flagship industrial control product from Zhejiang Shuntong Electric Co., Ltd. (established in 2009), the 37kw-200kw Floor Type Variable Frequency Conversion Cabinet is engineered to redefine motor control efficiency and reliability for modern industrial operations. Designed under the brand SNTOOM, this cabinet integrates advanced variable frequency drive (VFD) technology to deliver precise speed regulation for motors, directly addressing the core needs of energy conservation and operational optimization in high-demand environments.
With a power range spanning 37kW to 200kW, the cabinet caters to diverse industrial loads—from small-scale production line motors to large HVAC systems and water treatment pumps. Its space-saving floor-mounted design eliminates the need for complex ceiling or wall installations, making it ideal for factories, warehouses, and processing facilities with limited vertical space. Beyond standard configurations, the cabinet supports full customization to match specific system requirements, such as voltage compatibility, control logic, and integration with existing automation setups.
Compliant with international quality standards, the SNTOOM 37kw-200kw Floor Type Variable Frequency Conversion Cabinet ensures consistent performance even in harsh industrial conditions (e.g., dust, temperature fluctuations). By reducing energy waste through real-time motor speed adjustment, it helps businesses lower operational costs while extending the lifespan of connected equipment—making it a sustainable choice for long-term industrial productivity.

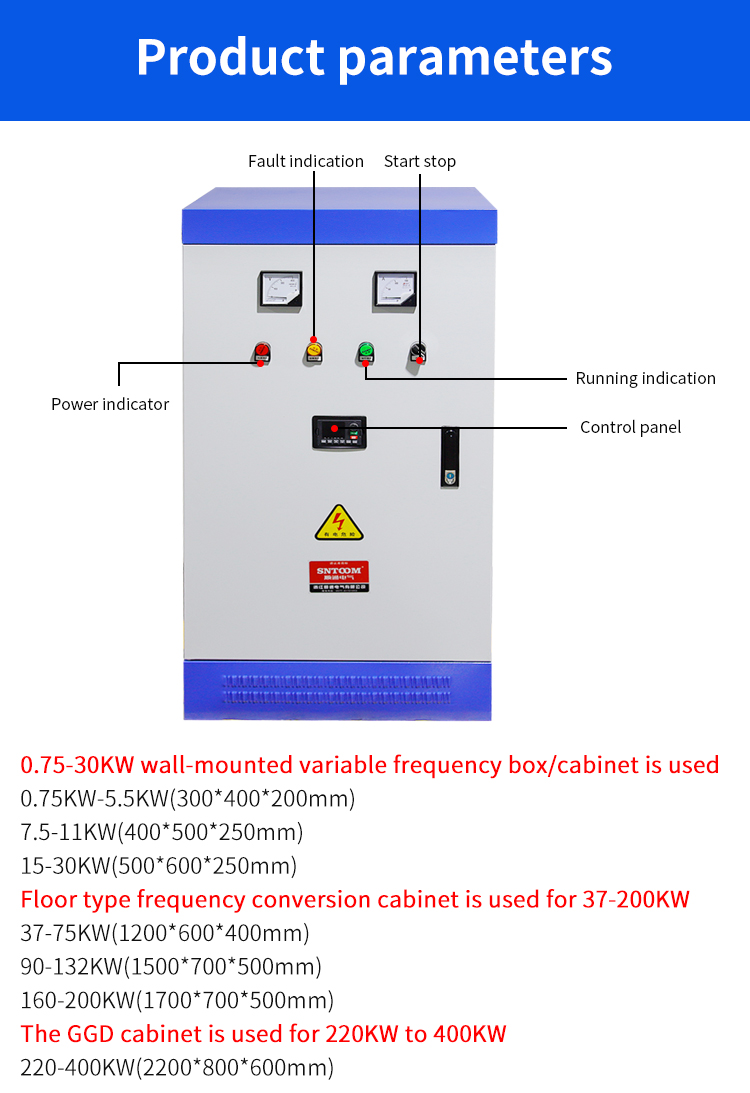

The following table outlines key technical parameters of the 37kw-200kw Floor Type Variable Frequency Conversion Cabinet, tailored to meet industrial performance and safety requirements:
Parameter | Specification |
Power Range | 37kW – 200kW (customizable for higher/lower loads upon request) |
Mounting Type | Floor-mounted (compact design for space efficiency) |
Control Technology | Advanced variable frequency drive (VFD) with vector control |
Compatible Motors | AC induction motors (fans, pumps, compressors, conveyors, and more) |
Protection Class | IP54 (dust-tight, splash-proof; IP65 optional for wet environments) |
Energy Efficiency | IE2+ (exceeds standard industrial energy efficiency benchmarks) |
Operating Temperature | -10℃ to 40℃ (with optional cooling systems for extreme temperatures) |
Input Voltage | 380V/400V/415V 3-phase (customizable for 220V single-phase or high-voltage) |
Brand | SNTOOM |
Manufacturer | Zhejiang Shuntong Electric Co., Ltd. |
Customization Options | Voltage, control panel, safety features, communication ports (Modbus, Profinet) |
At its core, the cabinet leverages variable frequency drive (VFD) technology to match motor speed with real-time load demands—eliminating the "full-speed operation" waste common in traditional fixed-speed systems. This translates to 15-30% lower energy consumption for most applications (e.g., pumps, fans), directly cutting electricity costs for businesses. The IE2+ energy efficiency rating ensures compliance with global sustainability regulations, making it a viable choice for green manufacturing initiatives.
Constructed with high-grade electrical components (e.g., industrial-grade capacitors, heat-resistant wiring) and a reinforced steel enclosure, the cabinet withstands vibration, dust, and temperature variations typical in factories and processing plants. Its design minimizes component wear, reducing unplanned downtime and extending the cabinet’s service life to 8-10 years under normal operation—lowering long-term maintenance and replacement costs.
The cabinet features an intuitive digital control panel with a backlit LCD screen, allowing operators to adjust parameters (e.g., speed, torque, protection settings) without specialized training. Built-in diagnostic tools provide real-time alerts for faults (e.g., overload, short-circuit), enabling quick troubleshooting and reducing downtime. Additionally, the cabinet’s modular design simplifies component replacement, ensuring maintenance tasks are completed in minutes rather than hours.
Safety is prioritized through multiple built-in protections, including overload protection, short-circuit prevention, over-voltage/under-voltage protection, and thermal overload shutdown. A dedicated system monitoring module continuously tracks cabinet temperature, current, and voltage, automatically triggering safeguards to protect both the cabinet and connected motors. These features comply with IEC 61800-5-1 (industrial drive safety standards), ensuring workplace safety for operators.
In manufacturing (e.g., automotive, electronics, food processing), the cabinet regulates conveyor belts, mixers, and extruders—maintaining consistent speed for product quality while reducing energy use during low-load periods. Its compatibility with multiple motor types makes it a versatile solution for diverse production processes.
For commercial and industrial HVAC (heating, ventilation, air conditioning), the cabinet optimizes fan and blower speeds based on temperature or occupancy—cutting energy waste in large buildings (e.g., warehouses, shopping malls) while ensuring comfortable indoor environments.
In water and wastewater treatment plants, the cabinet controls pump speeds to match water demand (e.g., peak vs. off-peak hours). This not only saves energy but also reduces stress on pump systems, minimizing maintenance and extending equipment life.
For industrial pumps (e.g., irrigation, oil transfer) and air compressors, the cabinet adjusts speed to avoid "on-off cycling"—a major cause of energy waste and component wear. This results in smoother operation, lower noise levels, and significant cost savings over time.
A1: Unlike fixed-speed controllers, it uses VFD technology to adjust motor speed based on load, reducing energy consumption by 15-30%. It also includes built-in diagnostics and safety features that traditional systems lack, improving reliability and reducing downtime.
A2: Yes— it is compatible with most AC induction motors, including fans, pumps, compressors, conveyors, and mixers. Custom voltage and control settings ensure seamless integration with your current system.
A3: Absolutely. We offer customization for power range (beyond 37kW-200kW), input voltage, protection class (e.g., IP65 for wet areas), communication ports (e.g., Modbus for IoT integration), and control logic—tailored to your specific application.
A4: It uses VFD technology to avoid full-speed motor operation when loads are low. For example, a fan running at 70% speed consumes only ~34% of the energy it uses at full speed—delivering significant long-term savings.
A5: It is widely used in manufacturing, HVAC, water treatment, agriculture (irrigation), and mining—any industry relying on motor-driven equipment where energy efficiency and reliable performance are critical.
