Product advantages and feature
Versatile Functionality
Flexible Control
Intuitive Display
Stable and Reliable Performance
All-in-One Design
Advanced Soft Starting Features
Installation and Instructions
Mounting: Securely fix the U08 series soft starter on a stable surface using appropriate screws and ensure proper ventilation around the device.
Wiring: Connect the motor and power supply cables to their respective terminals as per the wiring diagram, ensuring all connections are tight and secure.
Control Connections: Link the control terminals to any external control devices, such as PLCs or switches, for remote operation and monitoring.
Grounding: Ensure the soft starter is properly grounded to prevent electrical hazards and ensure safe operation.
Power On and Test: After completing all connections, power on the device and conduct a test run to verify all functions are operating correctly.
Note:Before installing and using the U08 series soft starter, carefully read the user manual to understand the product specifications and safety precautions. Ensure the power supply complies with the rated voltage requirements of the soft starter to avoid damage. Regularly inspect and maintain the device to extend its service life and ensure operational safety.
Product parameters

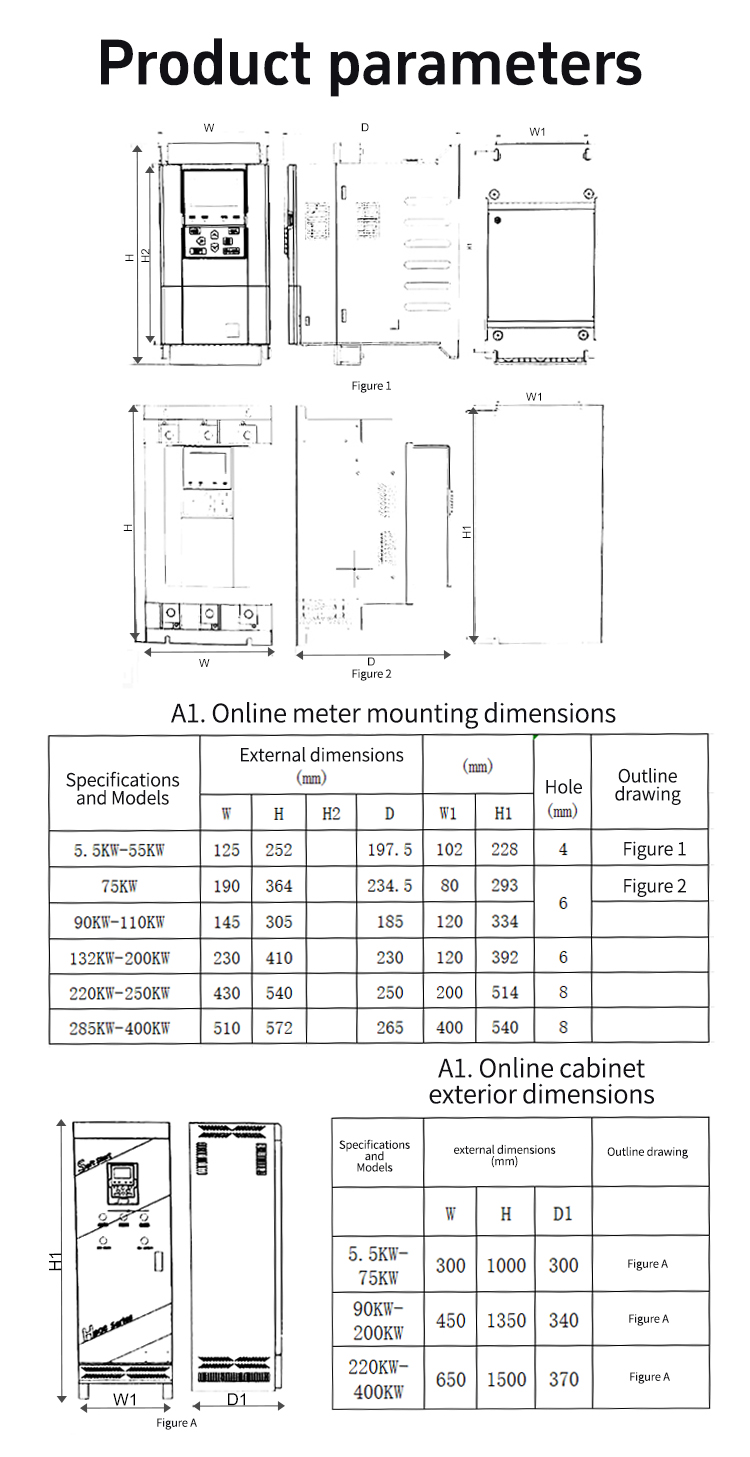

A1: Online meter mounting dimensions
| Specifications and Models | External dimensions (mm) | (mm) | Hole (mm) | Outline drawing | ||||
| W | H | H2 | D | W1 | H1 | |||
| 5.5KW - 55KW | 125 | 252 | 197.5 | 102 | 228 | 4 | Figure 1 | |
| 75KW | 190 | 364 | 234.5 | 80 | 293 | 6 | Figure 2 | |
| 90KW - 110KW | 145 | 305 | 185 | 120 | 334 | |||
| 132KW - 200KW | 230 | 410 | 230 | 120 | 392 | 6 | ||
| 220KW - 250KW | 430 | 540 | 250 | 200 | 514 | 8 | ||
| 285KW - 400KW | 510 | 572 | 265 | 400 | 540 | 8 | ||
A1：Online cabinet exterior dimensions
| Specifications and Models | External dimensions (mm) | Outline drawing | ||
| W | H | D1 | ||
| 5.5KW - 75KW | 300 | 1000 | 300 | Figure A |
| 90KW - 200KW | 450 | 1350 | 340 | Figure A |
| 220KW - 400KW | 650 | 1500 | 370 | Figure A |
U08 Series Intelligent Motor Soft Starter: The Premier Solution for Industrial Motor Control
The U08 series intelligent motor soft starter is a state-of-the-art solution designed to revolutionize motor control in industrial settings. This advanced device is an integral part of any Motor Soft Starter Control Cabinet, providing seamless and efficient motor starting capabilities. Its intelligent design ensures that motors start smoothly, reducing mechanical stress and extending equipment lifespan.
As a key component in a Soft Starter Control Cabinet, the U08 series offers unparalleled flexibility and control. Its user-friendly interface allows for easy adjustment of equipment settings, ensuring optimal performance in various operating conditions. The device's robust construction and smart chip technology guarantee stable and reliable operation, making it an ideal choice for demanding industrial environments.
For applications requiring 380VAC, the 380VAC Motor Soft Starter Control Cabinet equipped with the U08 series is the perfect solution. It not only provides smooth motor starting but also incorporates energy-saving features, contributing to reduced operational costs and enhanced energy efficiency.
In the realm of Industrial Soft Starter Control Cabinets, the U08 series stands out for its multifunctional capabilities. It integrates seamlessly into existing systems, offering comprehensive protection functions and supporting 485 communication for remote monitoring and control.
Overall, the U08 series intelligent motor soft starter is a versatile and choice for any industrial motor control application, ensuring smooth operation and enhanced productivity.
