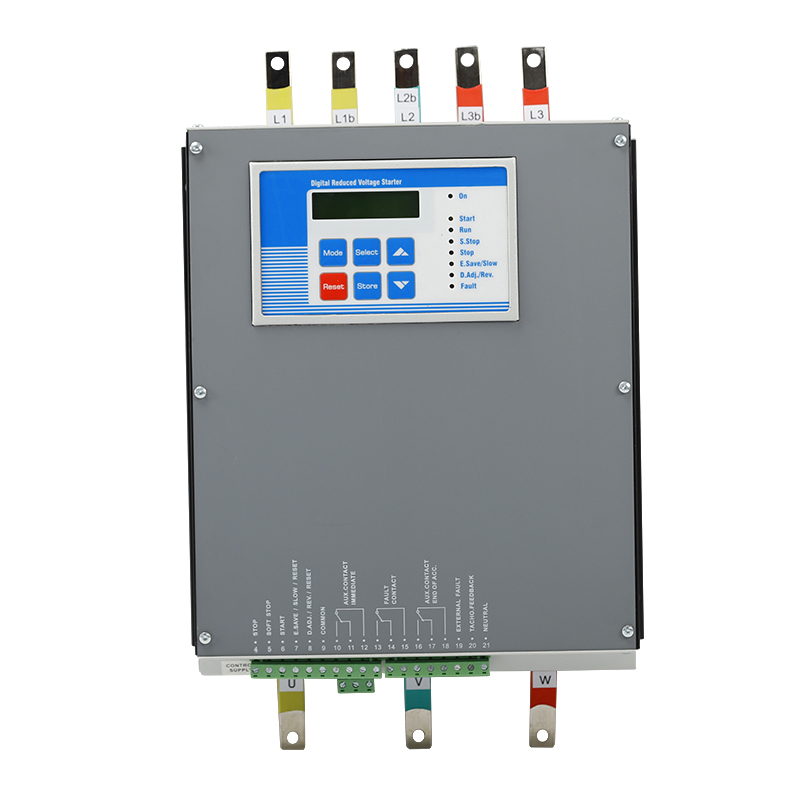

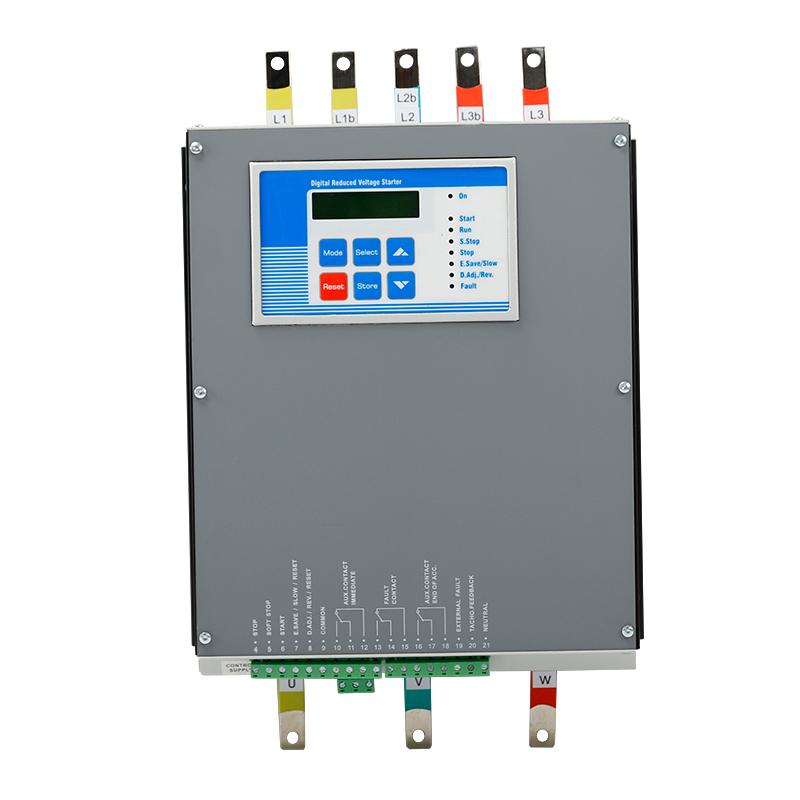

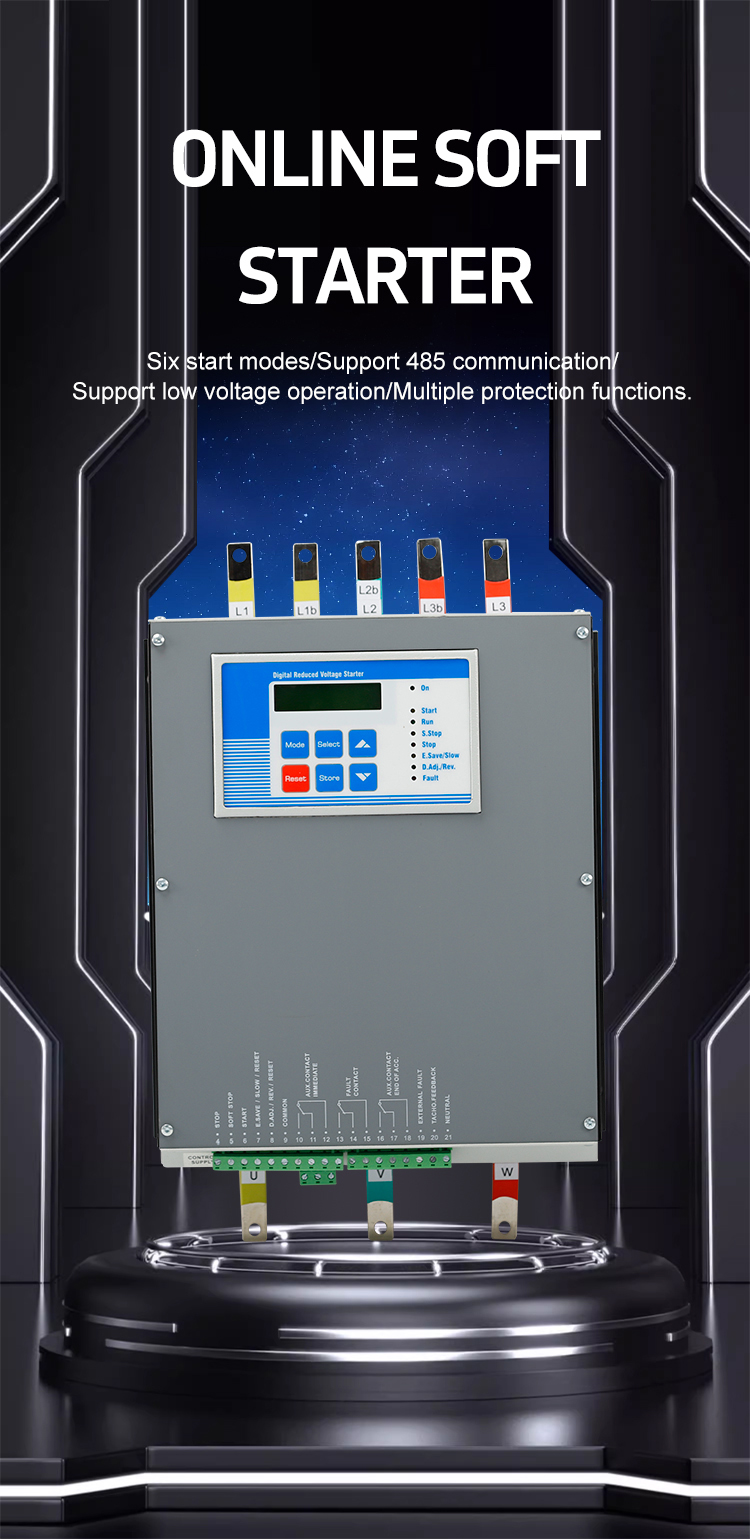

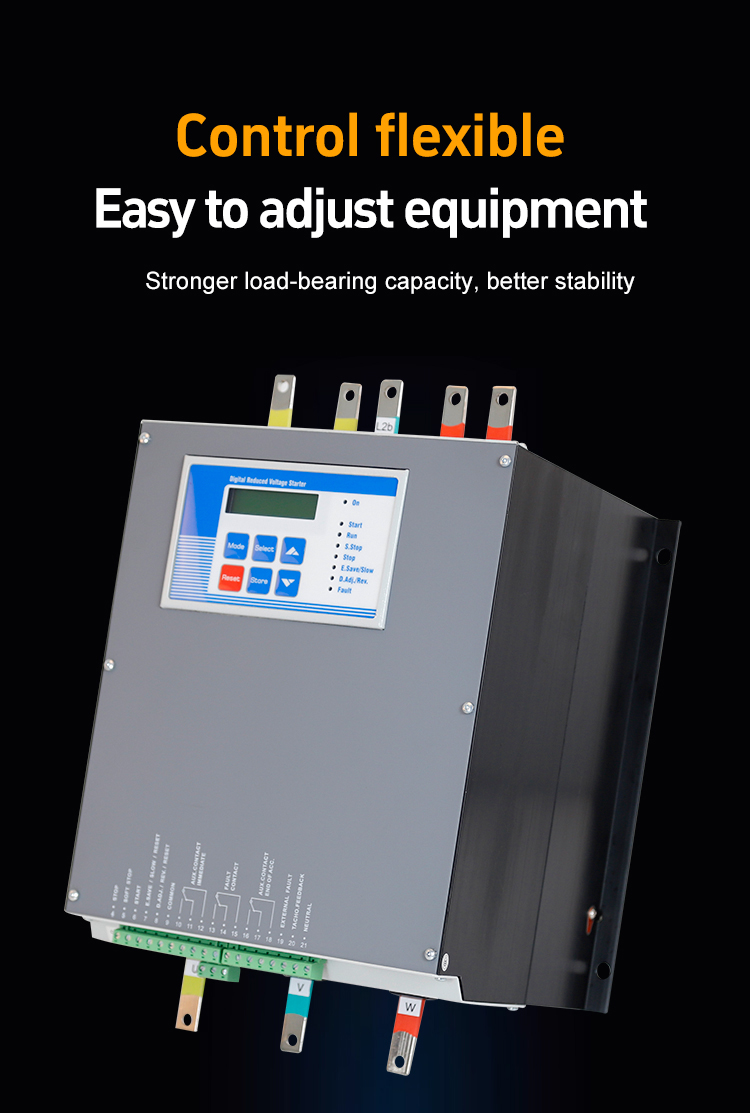

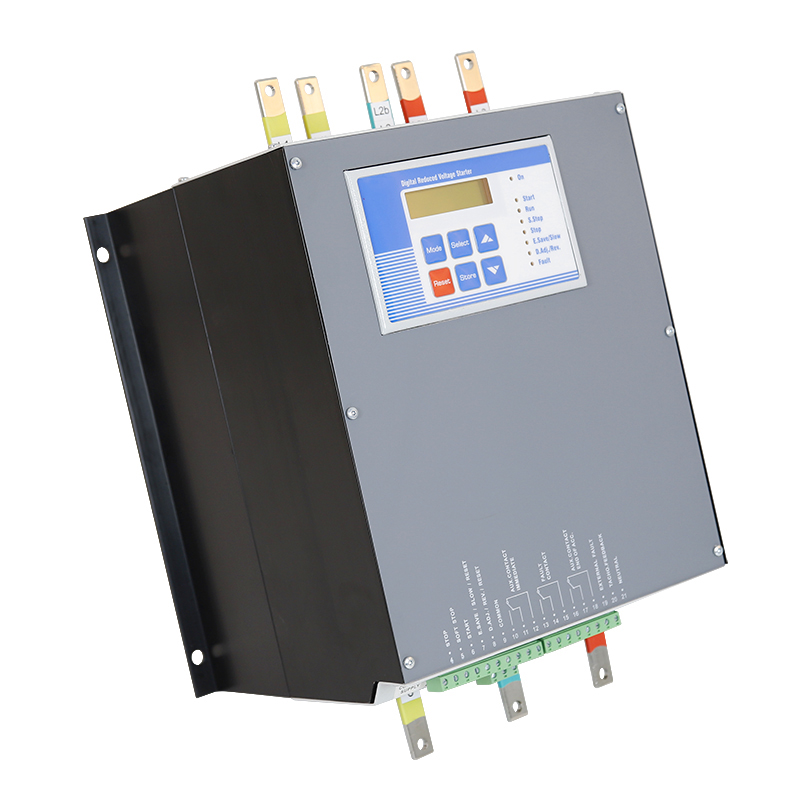

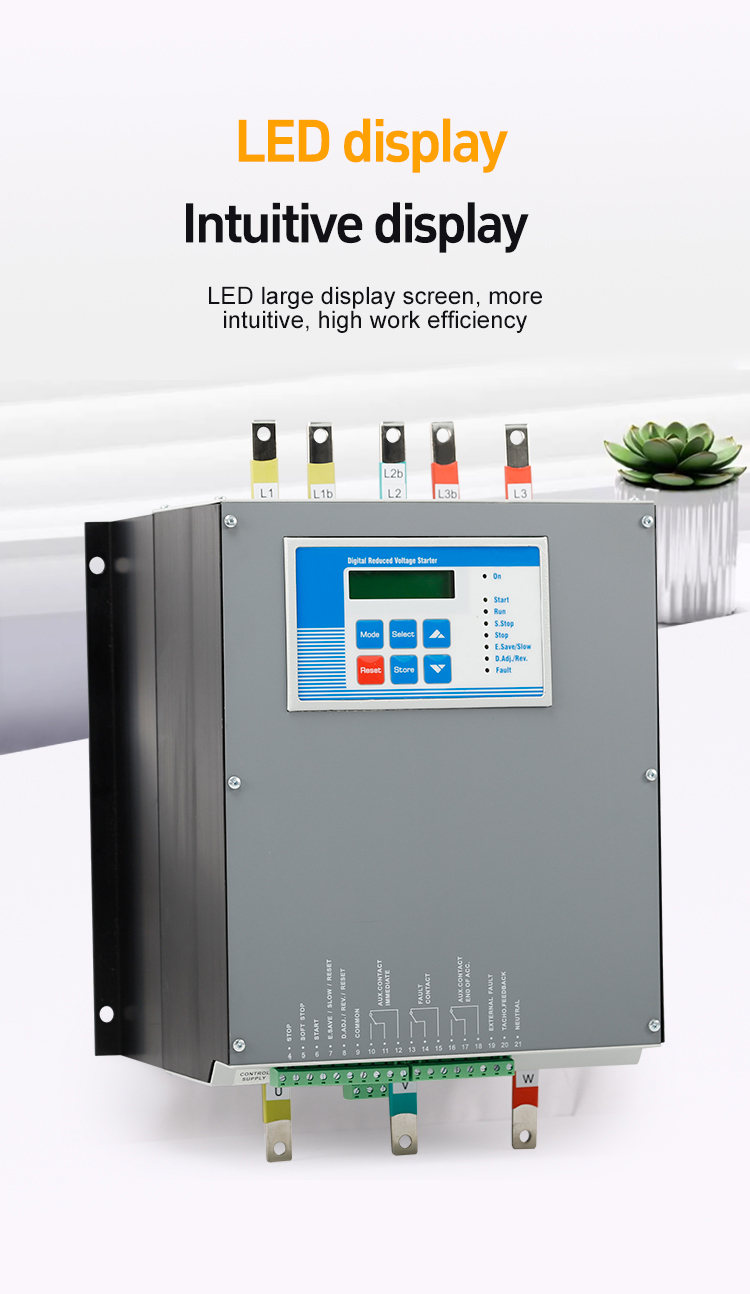

SHR2DN
SNTOOM

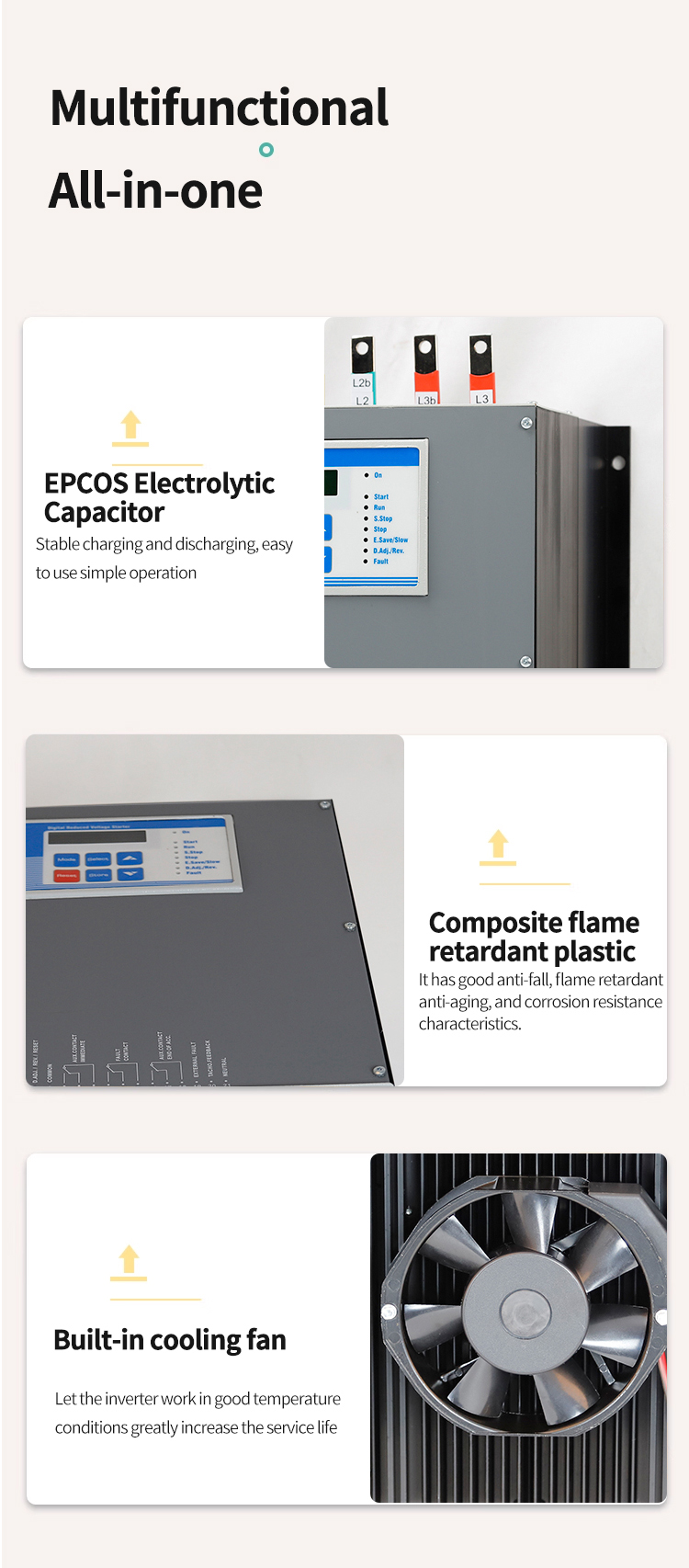

Product advantages and feature
Versatile Global Compatibility
Advanced Motor Starting Control
Comprehensive Safety and Protection

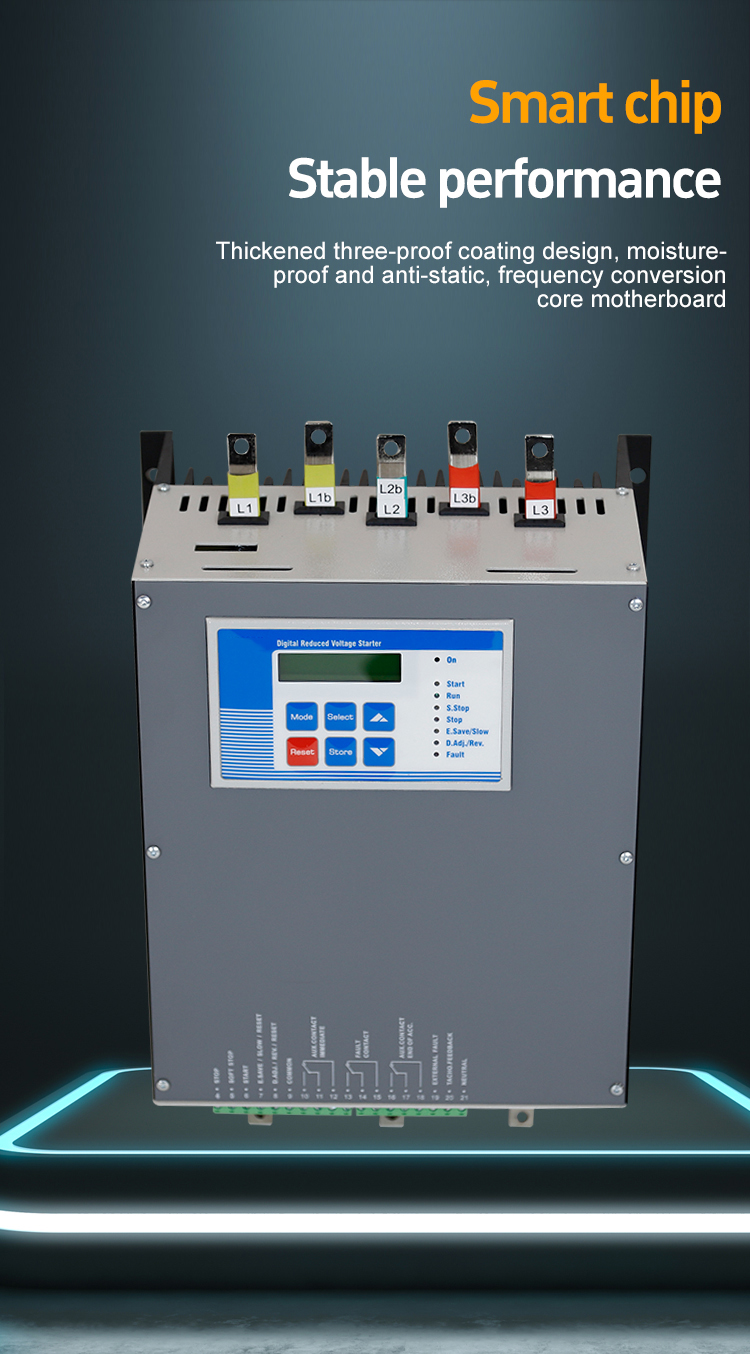

Intelligent Performance Optimization
User-Centric Design and Operability

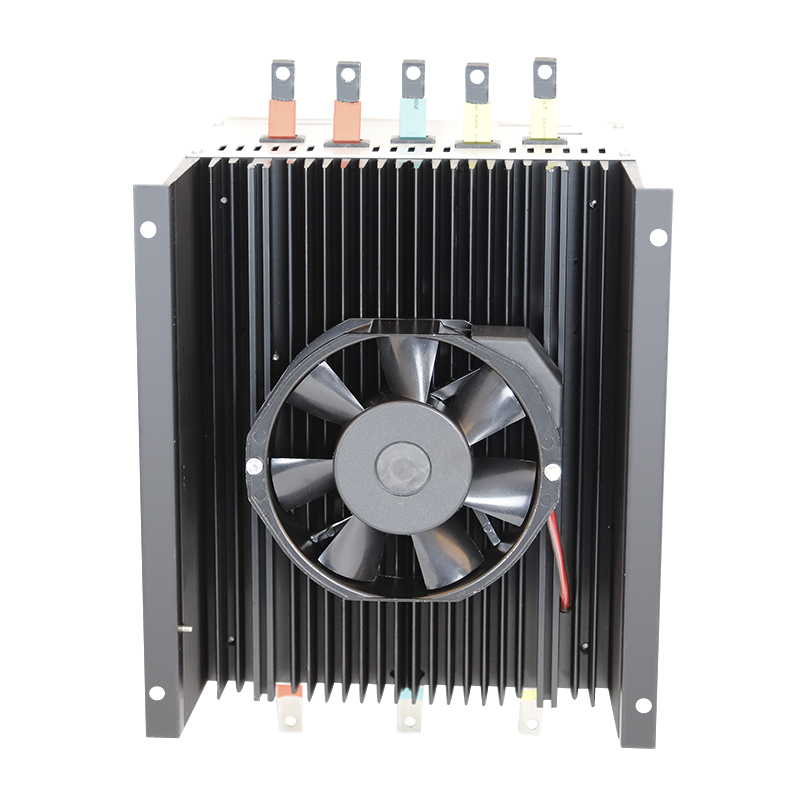

Energy-Efficient and Durable Construction
Installation and Instructions
Begin by disconnecting all power sources to ensure a safe installation environment. Inspect the soft starter unit and accessories for any physical damage. Choose a well-ventilated, dry location away from excessive heat or moisture. Ensure the mounting surface is stable and level to support the device securely before proceeding.

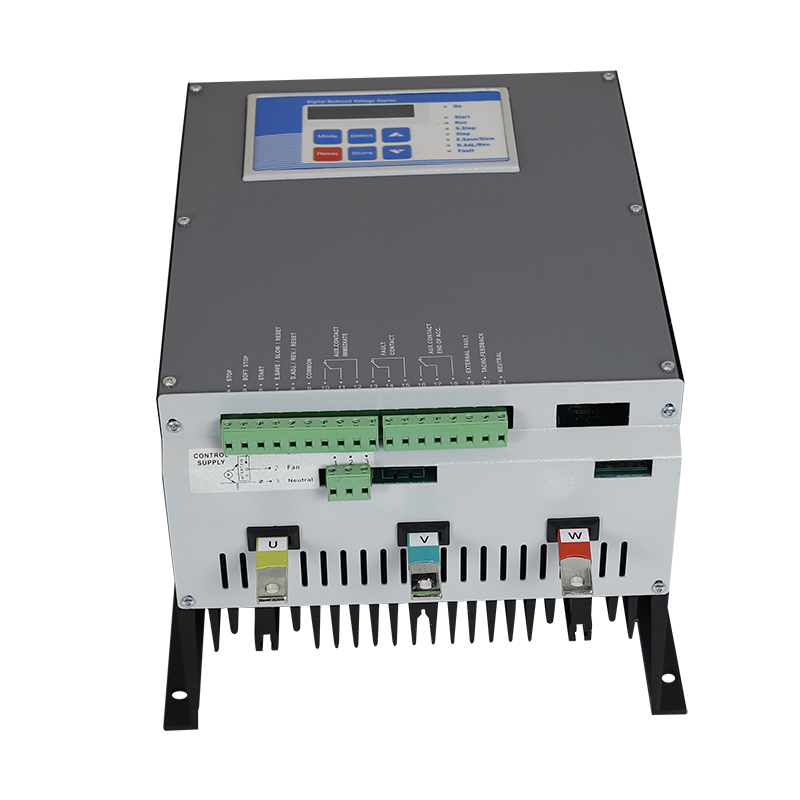

Connect the main power supply to the designated input terminals, ensuring proper insulation and secure fastening. Link the motor’s output terminals (U/V/W) to the soft starter’s corresponding output ports. Double-check all connections for reliability and confirm correct grounding to prevent electrical hazards during operation.

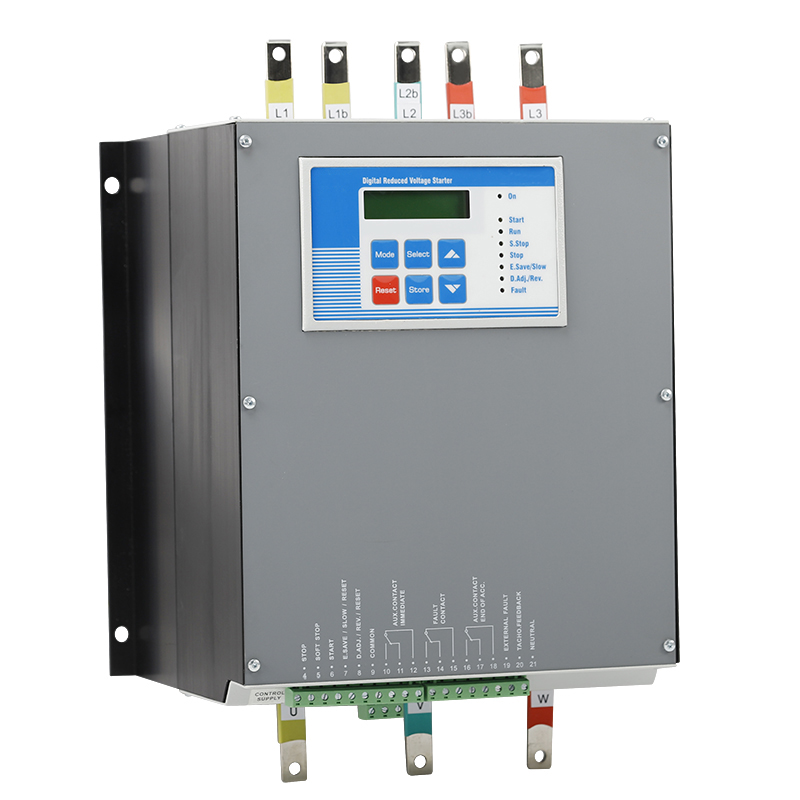

Wire the control input signals (e.g., start/stop commands) to the designated control terminals, following the unit’s wiring diagram. If remote control or communication is required, integrate the 485 interface or other optional modules. Ensure all control wires are neatly organized and shielded to minimize interference.

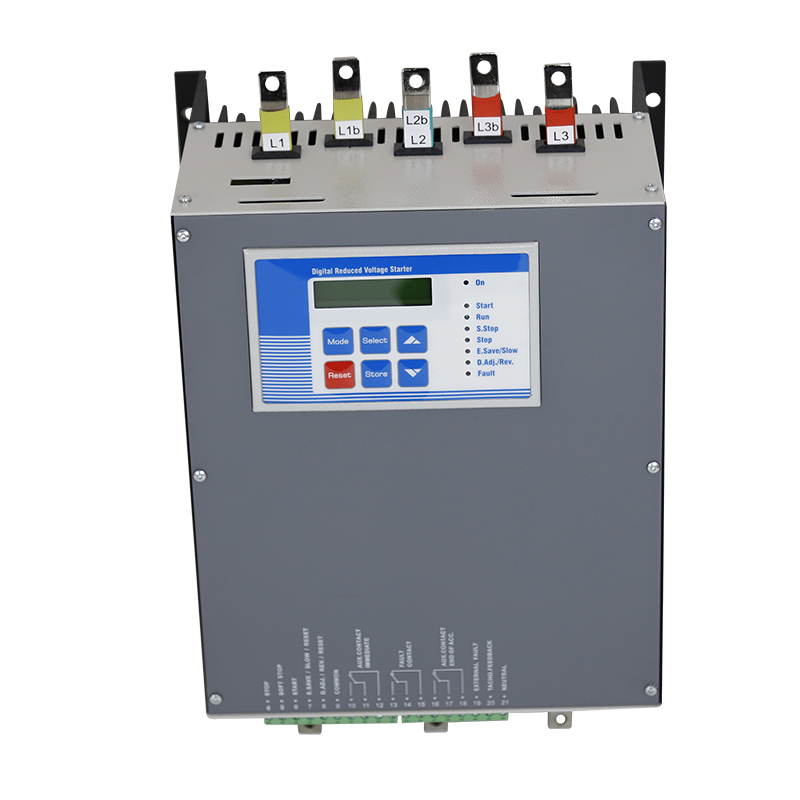

Power on the device and access the intuitive LED display interface. Configure fundamental settings such as start/stop modes and operational preferences using the keypad. Select from available control options (e.g., voltage ramping) and save configurations. Verify that all settings align with the motor’s operational requirements.
Conduct an initial no-load test to observe the startup sequence, ensuring smooth acceleration and deceleration. Monitor for unusual noises, vibrations, or overheating. Validate the effectiveness of protective features and confirm stable performance. Adjust settings if necessary before proceeding to full-load operation
Note:For SHR2DN series online soft starters, pay attention to proper installation per the manual. Ensure correct wiring to avoid short circuits. Regularly inspect for overheating. Operate within rated voltage and current limits.

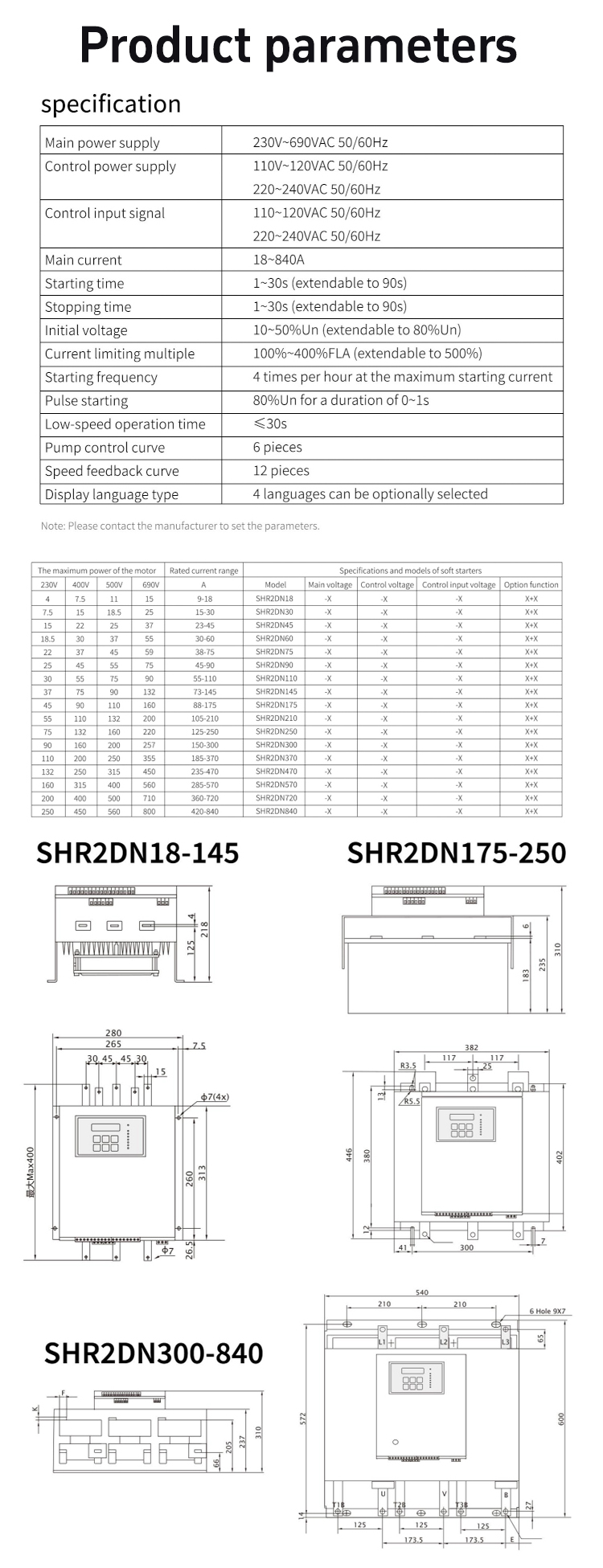

Product parameters
| Main power supply | 230V~690VAC 50/60Hz |
| Control power supply | 110V~120VAC 50/60Hz |
| 220~240VAC 50/60Hz | |
| Control input signal | 110~120VAC 50/60Hz |
| 220~240VAC 50/60Hz | |
| Main current | 18~840A |
| Starting time | 1~30s (extendable to 90s) |
| Stopping time | 1~30s (extendable to 90s) |
| Initial voltage | 10~50%Un (extendable to 80%Un) |
| Current limiting multiple | 100%~400%FLA (extendable to 500%) |
| Starting frequency | 4 times per hour at the maximum starting current |
| Pulse starting | 80%Un for a duration of 0~1s |
| Low-speed operation time | ≤30s |
| Pump control curve | 6 pieces |
| Speed feedback curve | 12 pieces |
| Display language type | 4 languages can be optionally selected |
| The maximum power of the motor | Rated current range | Specifications and models of soft starters | |||||||
| 230V | 400V | 500V | 690V | A | Model | Main voltage | Control voltage | Control input voltage | Option function |
| 4 | 7.5 | 11 | 15 | 9-18 | SHR2DN18 | -x | -x | -x | x+x |
| 7.5 | 15 | 18.5 | 25 | 15-30 | SHR2DN30 | -x | -x | -x | x+x |
| 15 | 22 | 25 | 37 | 23-45 | SHR2DN45 | -x | -x | -x | x+x |
| 18.5 | 30 | 37 | 55 | 30-60 | SHR2DN60 | -x | -x | -x | x+x |
| 22 | 37 | 45 | 59 | 38-75 | SHR2DN75 | -x | -x | -x | x+x |
| 25 | 45 | 55 | 75 | 45-90 | SHR2DN90 | -x | -x | -x | x+x |
| 30 | 55 | 75 | 90 | 55-110 | SHR2DN110 | -x | -x | -x | x+x |
| 37 | 75 | 90 | 132 | 73-145 | SHR2DN145 | -x | -x | -x | x+x |
| 45 | 90 | 110 | 160 | 88-175 | SHR2DN175 | -x | -x | -x | x+x |
| 55 | 110 | 132 | 200 | 105-210 | SHR2DN210 | -x | -x | -x | x+x |
| 75 | 132 | 160 | 220 | 125-250 | SHR2DN250 | -x | -x | -x | x+x |
| 90 | 160 | 200 | 257 | 150-300 | SHR2DN300 | -x | -x | -x | x+x |
| 110 | 200 | 250 | 355 | 185-370 | SHR2DN370 | -x | -x | -x | x+x |
| 132 | 250 | 315 | 450 | 235-470 | SHR2DN470 | -x | -x | -x | x+x |
| 160 | 315 | 400 | 560 | 285-570 | SHR2DN570 | -x | -x | -x | x+x |
| 200 | 400 | 500 | 710 | 360-720 | SHR2DN720 | -x | -x | -x | x+x |
| 250 | 450 | 560 | 800 | 420-840 | SHR2DN840 | -x | -x | -x | x+x |
SHR2DN Series Online Motor Soft Starter Control Cabinet: A Revolutionary Solution for Industrial Motor Control
The Motor Soft Starter Control Cabinet has become an indispensable component in modern industrial automation, and the SHR2DN series stands out as a cutting-edge solution designed to optimize motor starting processes. This advanced Soft Starter Control Cabinet integrates intelligent electronics and robust protection mechanisms, ensuring seamless motor operation while minimizing electrical and mechanical stress.
The SHR2DN 380VAC Motor Soft Starter Control Cabinet is engineered to handle three-phase asynchronous motors up to 320 kW, operating reliably under altitudes below 1,000 meters and ambient temperatures ranging from -30°C to 45°C. Its core functionality lies in its ability to gradually increase voltage and current during motor startup, eliminating the inrush current spikes that traditional starters generate. This not only protects the motor and connected equipment but also enhances grid stability, making it a preferred choice for industries seeking energy-efficient and reliable motor control.
For applications like fans, pumps, and conveyors, the Soft Starter Control Cabinet for Fan offers tailored starting modes, such as linear acceleration and pump-specific control. These modes adapt to varying load conditions, ensuring smooth startups even in demanding environments. The SHR2DN series also supports pre-set low-speed operation, enabling precise speed control during initial phases and reducing mechanical wear.
As an Industrial Soft Starter Control Cabinet, the SHR2DN series prioritizes safety and durability. It incorporates comprehensive protection functions, including overcurrent, short-circuit, phase-loss, and overheating safeguards. Additionally, its motor insulation detection and electronic overload protection prevent premature motor failure, extending equipment lifespan. The RS485 communication interface enables remote monitoring and integration with PLC systems, enhancing operational flexibility and reducing downtime.
From manufacturing plants to water treatment facilities, the SHR2DN series excels in applications requiring reliable motor control. Its compact design and high cost-performance ratio make it a cost-effective solution for industries aiming to optimize energy consumption and reduce maintenance costs. By mitigating electrical stress and mechanical wear, this soft starter control cabinet ensures long-term operational efficiency and safety, setting a new standard for reliability and adaptability in industrial motor control.
