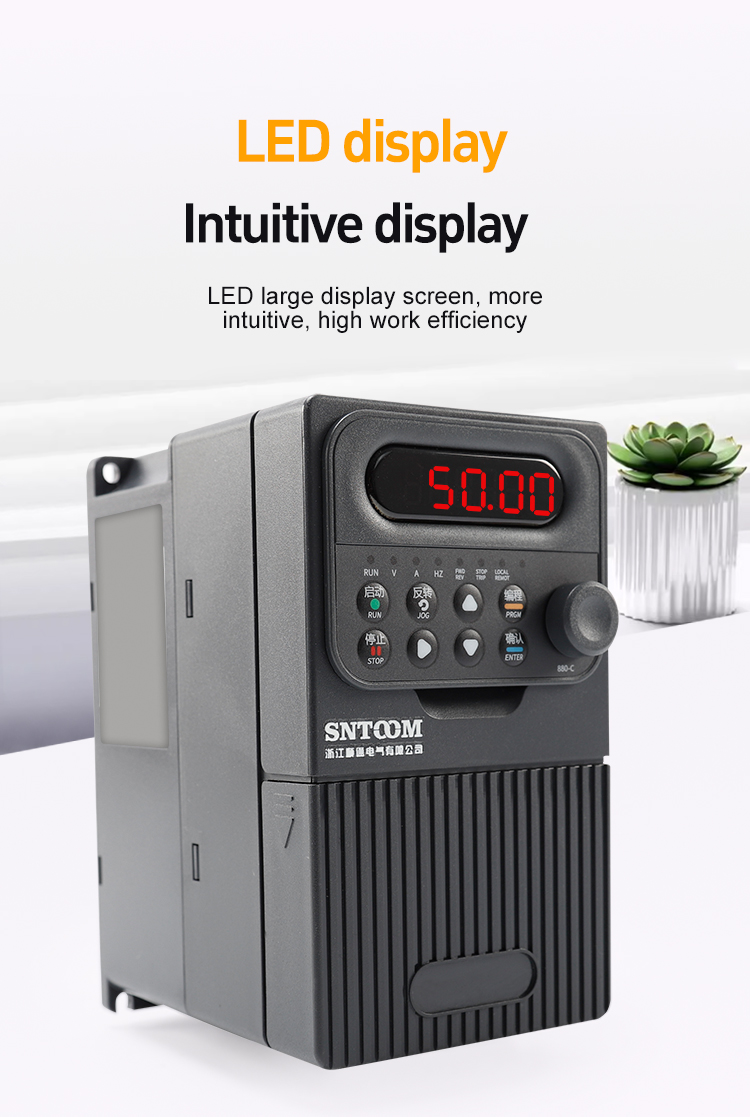

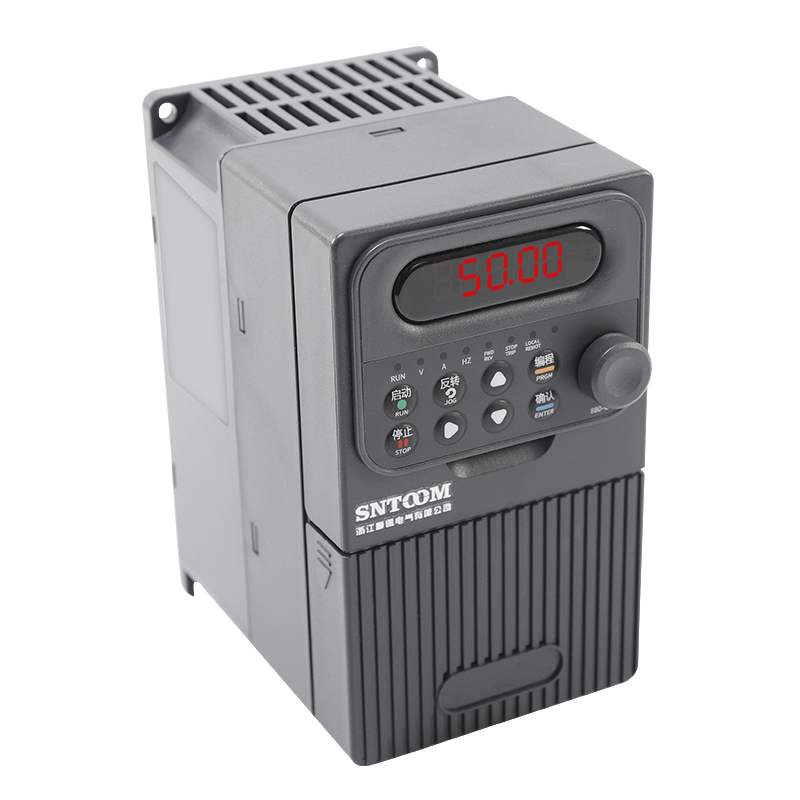

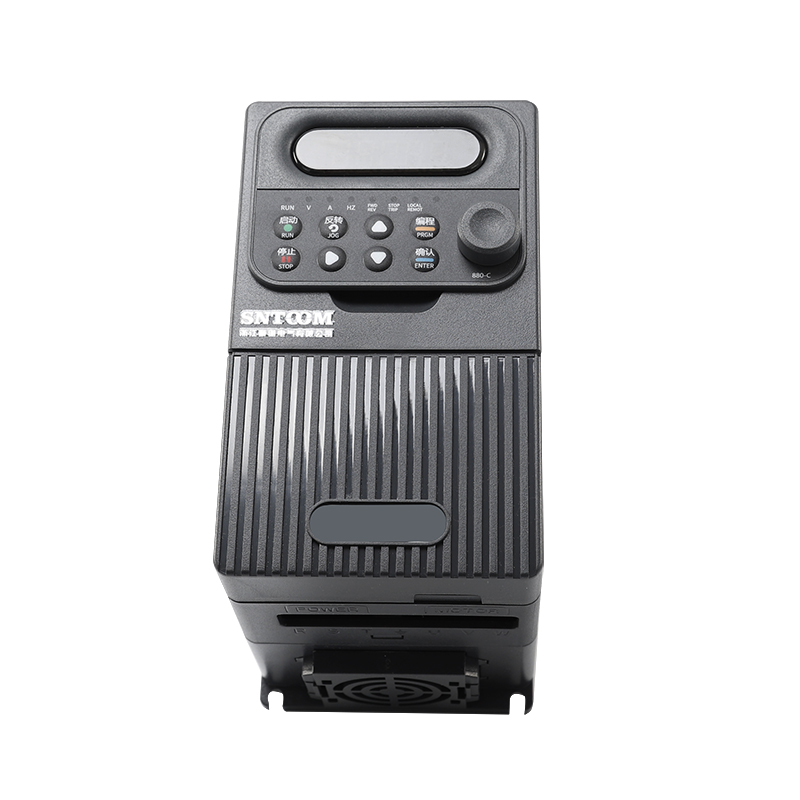

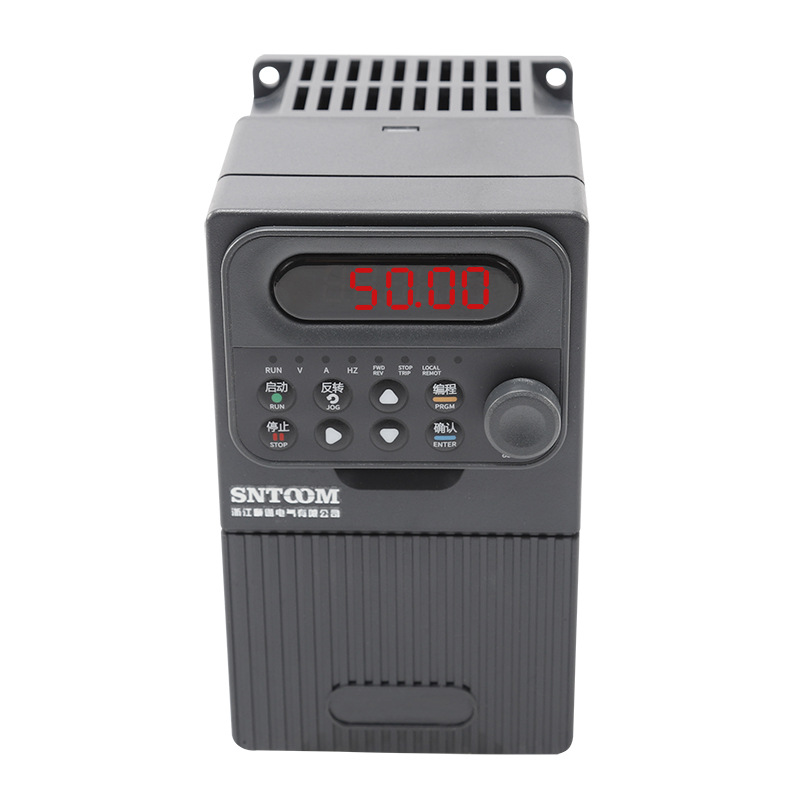

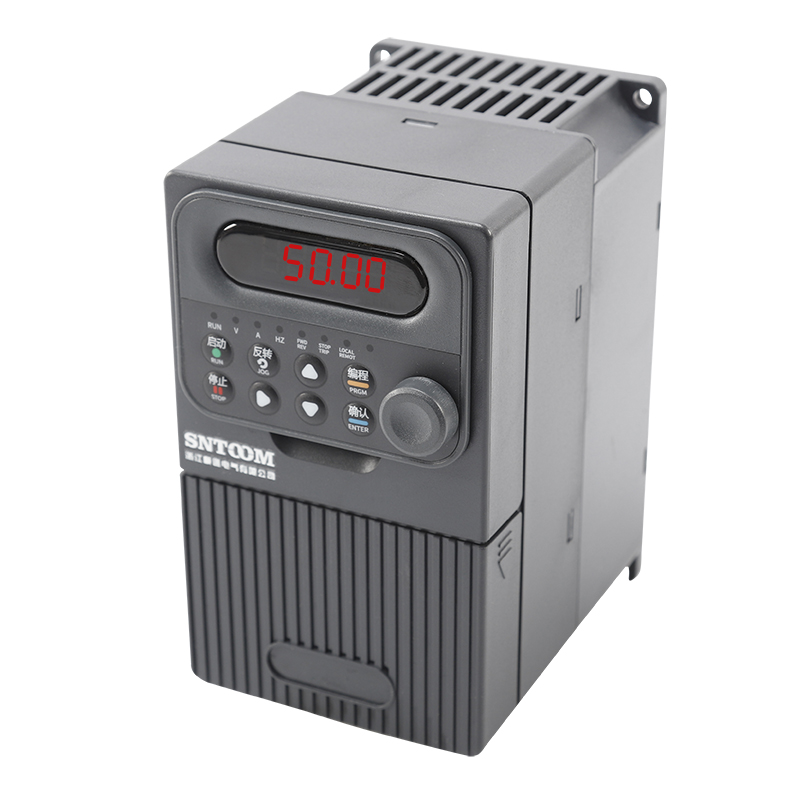

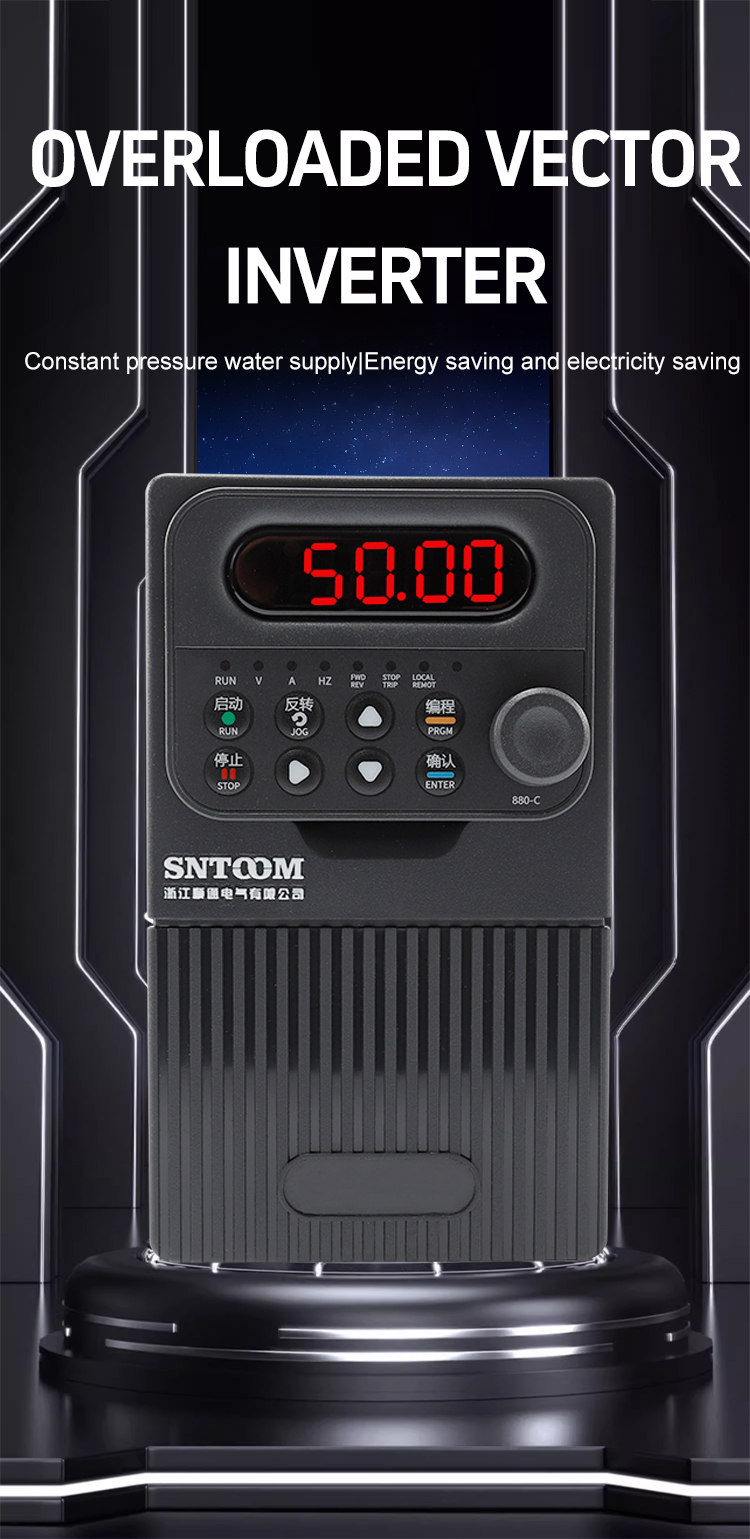

Intuitive Display Convenience

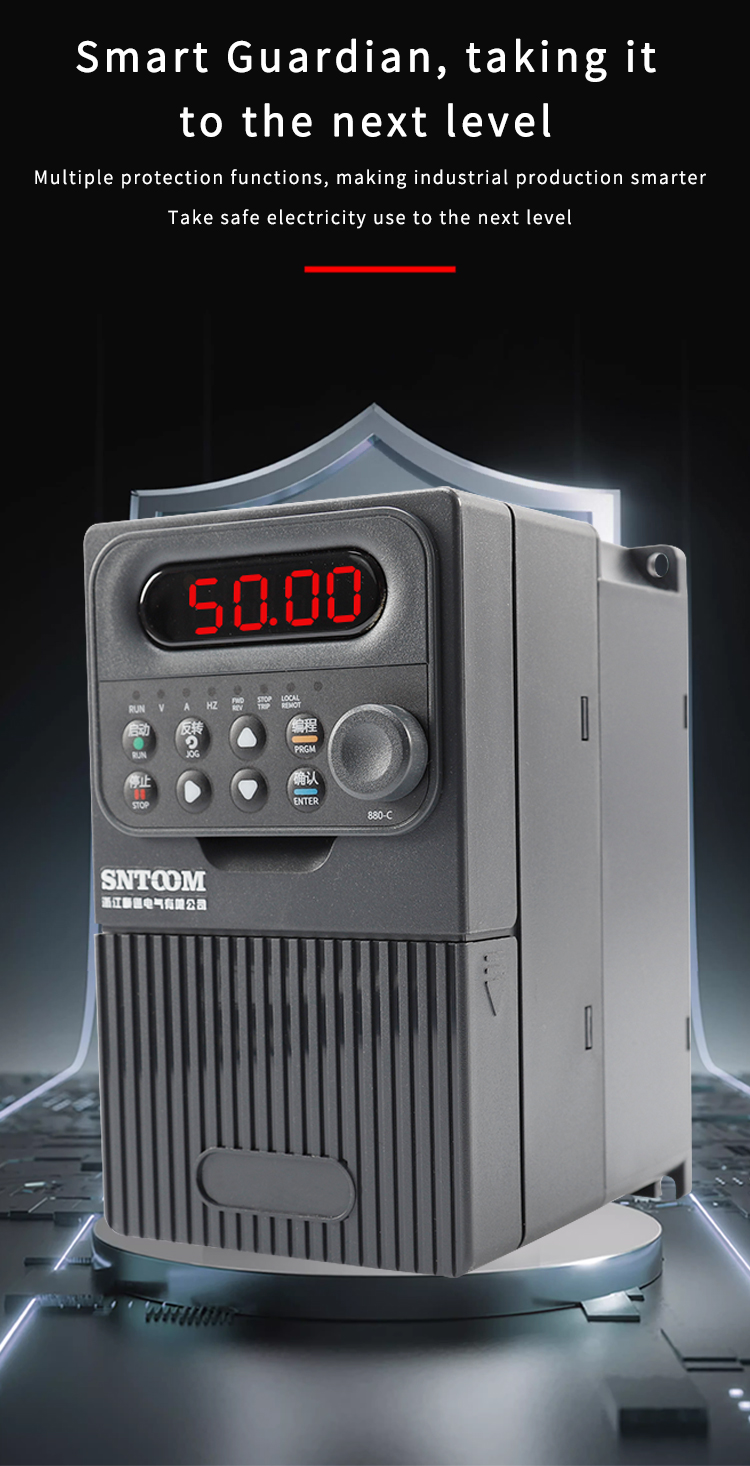

Stable Performance Assurance

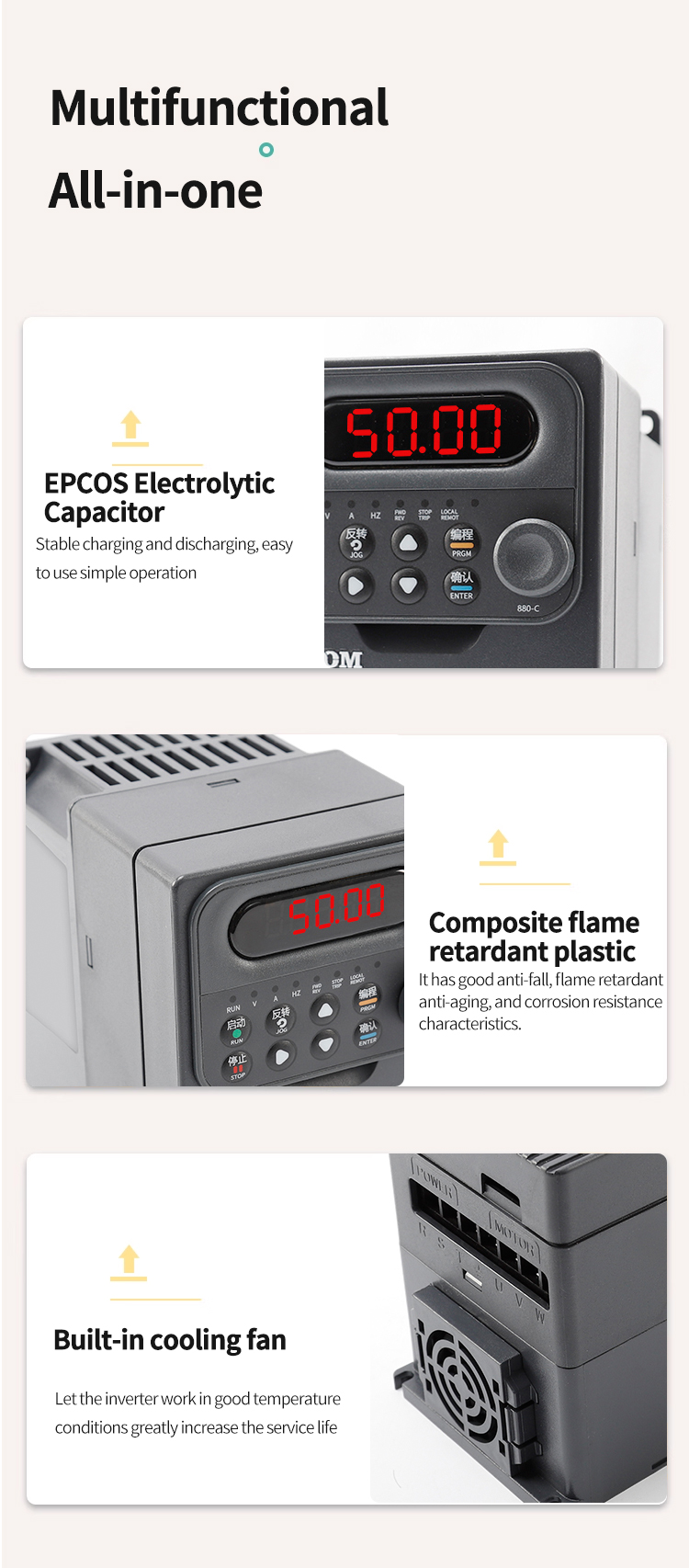

Multifunctional Integration
Wide Application Scope
Comprehensive Functionality and Warranty
Installation and Instructions
First, select a stable and well - ventilated installation location to ensure proper heat dissipation for the 880 series over - load vector inverter.
Fix the inverter firmly on the mounting surface using suitable screws and mounting brackets to prevent vibration and displacement.

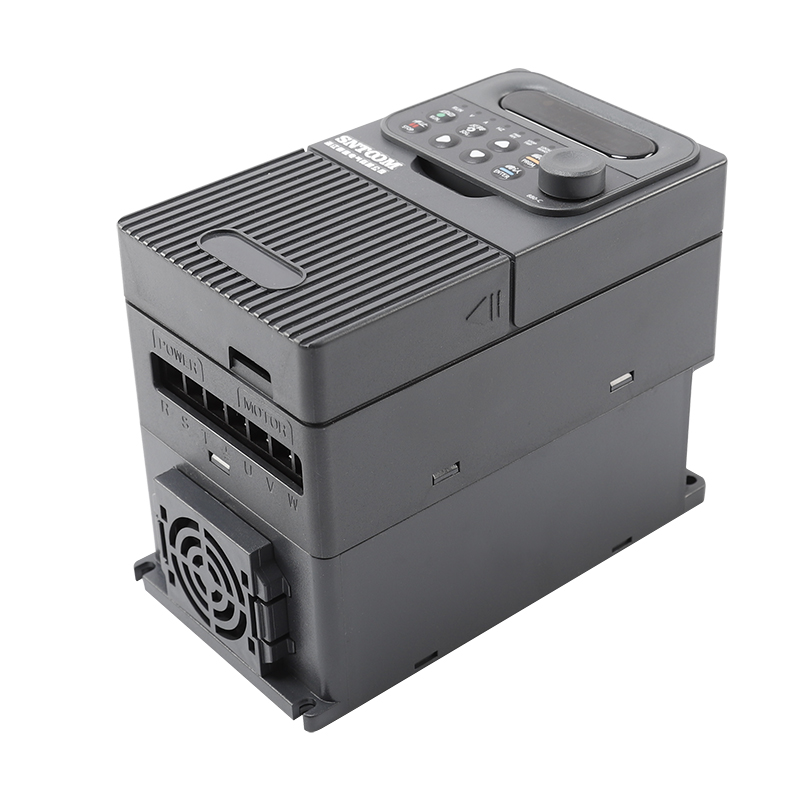

Connect the power cables correctly according to the marked terminals on the inverter, ensuring a secure and reliable power supply connection.
Link the motor cables to the corresponding output terminals of the inverter, making sure the connections are tight to avoid poor contact.
Finally, check all connections once more, and then power on the inverter for initial testing and commissioning to ensure normal operation
Note:For the 880 series over-load vector inverter, ensure installation in a well-ventilated area. Avoid over-tightening cables during connection. Regularly inspect for dust accumulation and clean gently. Never disassemble it without professional guidance.

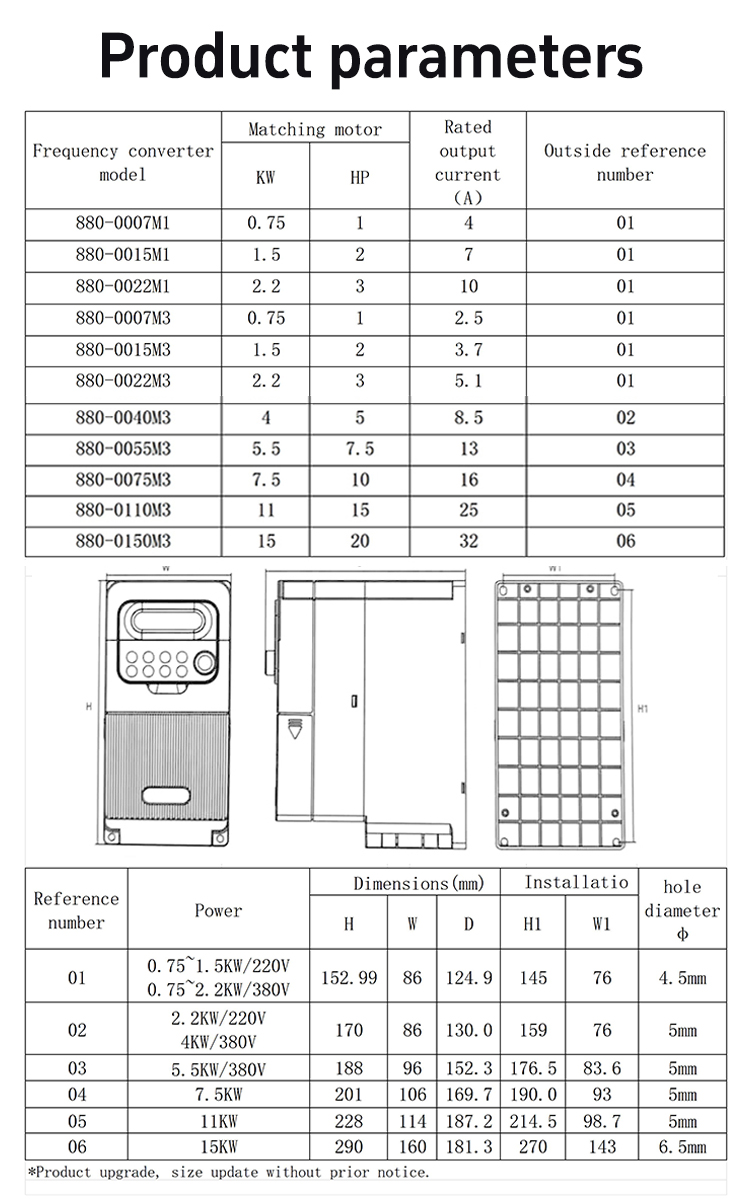

Product parameters
| Frequency Converter Model | Matching Motor | Rated Output Current (A) | Outside Reference Number | |
| KW | HP | |||
| 880-0007M1 | 0.75 | 1 | 4 | 01 |
| 880-0015M1 | 1.5 | 2 | 7 | 01 |
| 880-0022M1 | 2.2 | 3 | 10 | 01 |
| 880-0007M3 | 0.75 | 1 | 2.5 | 01 |
| 880-0015M3 | 1.5 | 2 | 3.7 | 01 |
| 880-0022M3 | 2.2 | 3 | 5.1 | 01 |
| 880-0040M3 | 4 | 5 | 8.5 | 02 |
| 880-0055M3 | 5.5 | 7.5 | 13 | 03 |
| 880-0075M3 | 7.5 | 10 | 16 | 04 |
| 880-0110M3 | 11 | 15 | 25 | 05 |
| 880-0150M3 | 15 | 20 | 32 | 06 |
| Reference Number | Power | Dimensions (mm) | Installation | Hole Diameter φ | |||
| H | W | D | H1 | W1 | |||
| 01 | 0.75~1.5KW/220V 0.75~2.2KW/380V | 152.99 | 86 | 124.9 | 145 | 76 | 4.5mm |
| 02 | 2.2KW/220V 4KW/380V | 170 | 86 | 130.0 | 159 | 76 | 5mm |
| 03 | 5.5KW/380V | 188 | 96 | 152.3 | 176.5 | 83.6 | 5mm |
| 04 | 7.5KW | 201 | 106 | 169.7 | 190.0 | 93 | 5mm |
| 05 | 11KW | 228 | 114 | 187.2 | 214.5 | 98.7 | 5mm |
| 06 | 15KW | 290 | 160 | 181.3 | 270 | 143 | 6.5mm |
| *Product upgrade, size update without prior notice. | |||||||

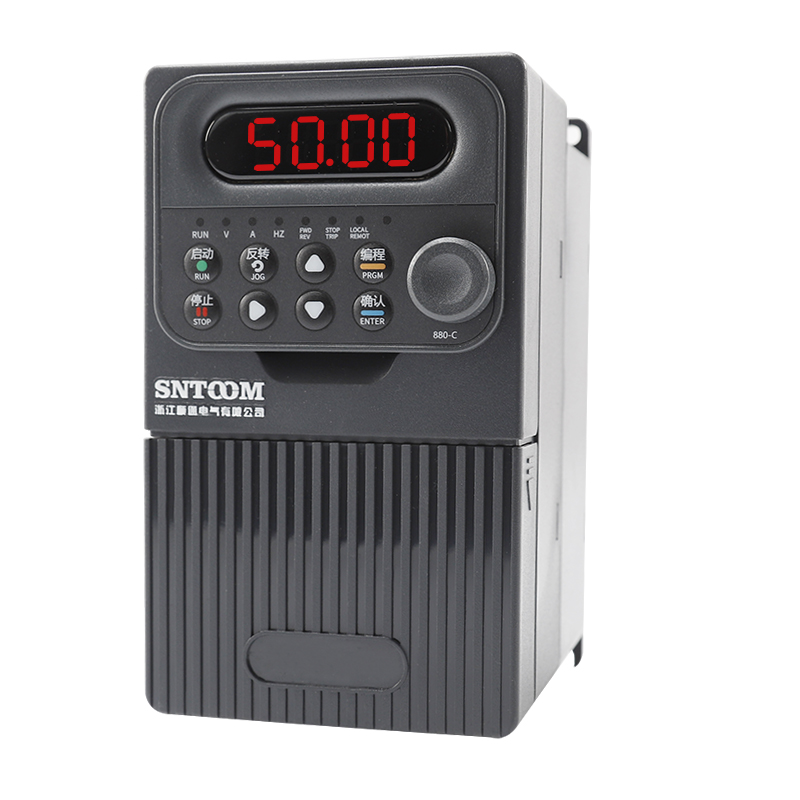

The 880 Series Over-load Vector Frequency Converter: A Powerhouse of Performance
In the realm of industrial automation, the 880 series over-load vector frequency converter stands out as a remarkable innovation. It belongs to the category of Vector frequency converters, which are known for their precise control capabilities.
This Frequency Converter is designed to handle demanding applications with ease. Its over-load feature ensures stable operation even under heavy loads, providing a reliable solution for various industrial scenarios.
One of the key highlights of this device is its high efficiency. As a High efficiency frequency converter, it effectively reduces energy consumption, which not only cuts down on operational costs but also contributes to a greener environment. The intelligent design optimizes power usage while maintaining top-notch performance.
Moreover, it is a Multifunctional frequency converter. With a wide range of built-in functions, it can adapt to different motor control requirements. Whether it's speed regulation, torque control, or other complex operations, this converter can handle them all.
The 880 series also functions as a Frequency converter inverter, enabling the conversion of fixed-frequency power to variable-frequency power. This feature is crucial for achieving smooth motor operation and precise speed adjustments.
Overall, the 880 series over-load vector frequency converter combines advanced technology, high efficiency, and multifunctionality, making it an ideal choice for modern industrial applications seeking reliable and efficient motor control solutions.
