Transformers move electricity safely and efficiently. Their windings impact performance and lifespan. Wire winding and foil winding differ in design. In this article, you will learn their key differences. We compare efficiency, thermal behavior, and applications.

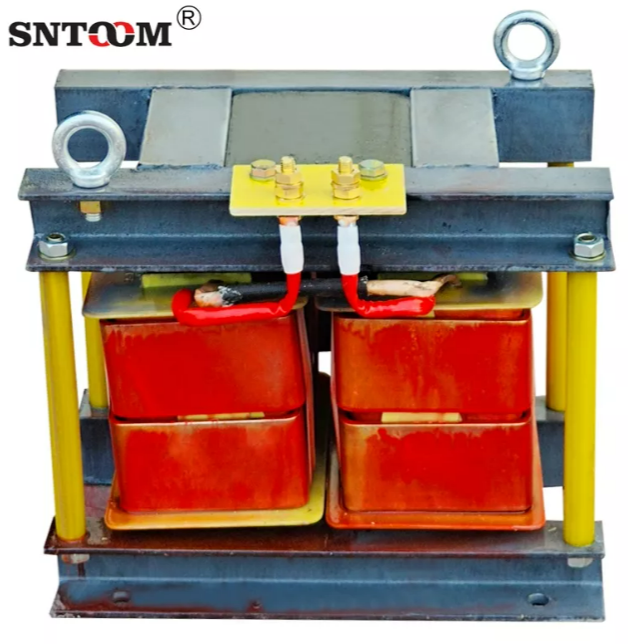

Wire winding is the most traditional technique for creating transformer coils. It uses insulated copper or aluminum wires, wound into spiral layers around a magnetic core. This construction forms primary and secondary windings, allowing voltage transformation between circuits. Wire winding is especially common in small to medium-power transformers, providing reliable performance at a lower manufacturing cost. Its coil arrangement is straightforward, which simplifies insulation requirements and assembly procedures. Despite its simplicity, wire winding may experience higher resistive losses at higher power ratings.

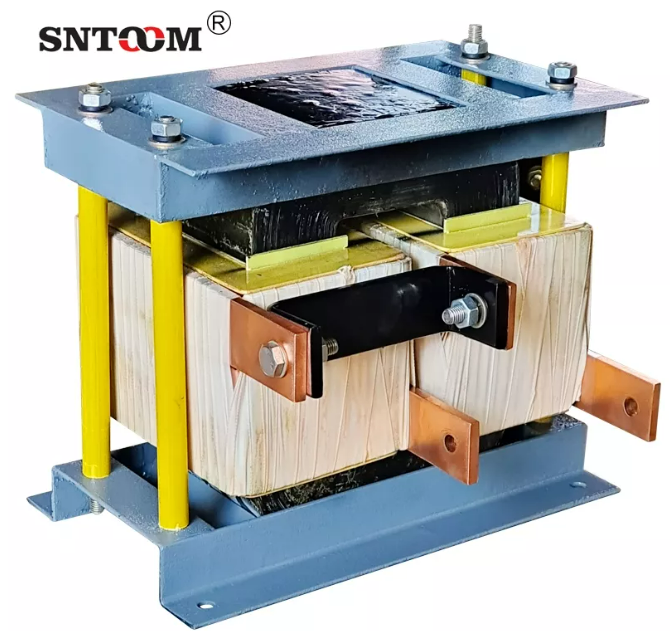

Foil winding employs thin metal strips instead of traditional wires. These foils, usually made of copper or aluminum, are stacked in parallel layers to create windings. This method increases the effective cross-sectional area for electrical conduction, reducing current density and resistive losses. Foil winding is typically used in high-power transformers where efficiency is critical. The construction requires precise layering and additional insulation between foils to prevent short circuits. Though more complex, this technique allows transformers to handle larger currents and maintain superior voltage regulation.
The type of winding influences electromagnetic induction, voltage transformation, and current handling. In both wire and foil methods, the turns ratio—number of loops in primary versus secondary coils—determines the voltage ratio. Foil winding allows a larger cross-sectional area, lowering resistive losses and improving thermal performance. Wire winding, while simpler, may require more layers for equivalent performance, potentially increasing space and weight requirements. Understanding these principles is crucial when evaluating transformer winding methods comparison for industrial projects.
Wire and foil windings differ in current density and electrical efficiency. Foil winding reduces resistive losses due to its broader conductor area, improving overall transformer efficiency. Voltage regulation is also enhanced in foil-wound transformers, making them more suitable for sensitive applications. Wire winding remains effective for low to medium power devices but may experience higher internal resistance, leading to minor voltage drops during peak loads.
Feature | Wire Winding | Foil Winding |
Current Density | Higher | Lower |
Resistive Losses | Moderate | Low |
Voltage Regulation | Adequate | Excellent |
Typical Power Rating | Small to Medium | Medium to High |
Heat dissipation varies significantly between the two methods. Foil winding allows for wider paths, which reduce hotspots and improve thermal efficiency. Wire winding may concentrate heat in certain coil sections, requiring careful cooling design. By maintaining lower operating temperatures, foil-wound transformers often enjoy longer lifespans and reduced risk of insulation failure.
Mechanically, wire winding involves simple spiral coils, which are easier to assemble and repair. Foil winding features stacked layers requiring specialized equipment for alignment and insulation. Although foil winding is more complex, it supports higher mechanical stability under heavy current loads, making it suitable for industrial-scale transformers. Proper insulation is critical in foil windings to prevent short circuits, adding to assembly complexity.
Foil winding is generally more space-efficient due to its larger conductive area per layer. This allows designers to reduce transformer dimensions while maintaining performance. Wire-wound transformers, in contrast, may require more space for equivalent electrical capacity. Foil-wound transformers are ideal for high-power compact applications, whereas wire-wound designs remain practical for smaller, cost-sensitive setups.
Wire winding is commonly used in residential transformers, commercial low-power devices, and medium industrial equipment. Its lower manufacturing cost makes it suitable for budget-conscious projects. Wire-wound transformers are effective for step-down applications and scenarios where efficiency demands are moderate. Maintenance is straightforward due to the simplicity of coil construction.
Foil winding excels in high-power transformers used in substations, data centers, and specialized machinery. It minimizes losses, improves thermal management, and supports high efficiency. Applications that require precise voltage regulation or extended transformer lifespan benefit from foil-wound designs. They are also suitable for environments with high current fluctuations, ensuring reliable operation.
Deciding between wire and foil winding involves weighing power ratings, efficiency requirements, and budget constraints. Foil winding provides superior performance but comes with higher production costs. Wire winding is cost-effective and simpler to manufacture but may not meet high-performance needs. Evaluating trade-offs helps ensure the selected transformer meets operational and financial goals.
Wire winding typically employs copper or aluminum conductors, chosen based on conductivity and cost. Insulation types vary, affecting transformer efficiency and thermal tolerance. Proper insulation prevents short circuits and ensures long-term reliability. Wire winding benefits from simpler manufacturing techniques and lower material costs.
Foil winding uses copper or aluminum foils, stacked carefully with insulating layers between. Layer alignment and insulation quality are crucial for performance. Specialized equipment is often necessary, increasing labor and production costs. Despite higher complexity, foil winding achieves lower electrical losses and better thermal management.
Foil winding requires precise stacking and additional insulation steps, leading to higher production time and labor requirements. Wire winding is simpler and faster to produce, making it cost-effective for low to medium-power transformers. Manufacturers must consider the total cost of ownership, including efficiency gains versus initial manufacturing expenses.
Both winding methods require rigorous testing. Wire winding may suffer from coil misalignment, while foil winding may experience insulation failure if improperly stacked. Common tests include turns ratio verification, insulation resistance, and thermal cycling. Ensuring reliability is critical, especially for high-power or industrial applications.
Foil winding minimizes resistive and eddy current losses compared to wire winding. Its larger conductor area reduces resistance, improving overall transformer efficiency. Wire winding, though effective for smaller transformers, may exhibit higher losses under increased load conditions, affecting long-term performance.
Foil winding dissipates heat more evenly, lowering hotspot formation. Wire winding may require additional cooling mechanisms to achieve similar thermal performance. Effective heat management extends transformer lifespan and reduces maintenance frequency.
The choice of winding affects maintenance schedules and operational costs. Foil-wound transformers typically last longer under high-load conditions. Wire-wound transformers are easier to service but may experience slightly higher wear under heavy usage. Considering lifecycle costs is crucial when selecting a winding method.
Wire winding is generally cheaper to manufacture due to lower material and labor requirements. Foil winding incurs higher upfront costs but offers efficiency gains that may reduce operational expenses. Evaluating both initial and long-term costs is necessary for informed procurement decisions.
Efficiency gains from foil winding can offset higher production costs over a transformer's lifetime. Lower energy losses reduce electricity expenses, which may justify investment in higher-quality foil-wound transformers. Wire winding provides lower initial costs but may have higher operational costs in energy-intensive applications.
Wire-wound transformers are simpler to inspect and repair due to straightforward coil construction. Foil-wound transformers, while more complex, require careful handling during maintenance. Regular inspection and testing ensure long-term reliability for both winding methods.
Modern foil winding techniques have advanced significantly, improving stacking accuracy, layer alignment, and insulation reliability. New high-performance materials, such as advanced copper alloys and improved dielectric insulation, enhance both electrical efficiency and thermal management. These developments allow foil-wound transformers to handle higher currents, reduce losses, and maintain stable operation under demanding industrial conditions, making them increasingly preferred for high-power applications. Manufacturers are also adopting automated production processes, reducing human error and ensuring consistent quality across large-scale transformer production.
Hybrid winding strategies combine the benefits of wire and foil windings to optimize both cost and performance. In such designs, foil windings are used in high-current or high-efficiency sections, while wire windings handle lower-current areas, balancing production complexity and electrical performance. Case studies demonstrate that hybrid transformers achieve reduced energy losses, improved thermal stability, and manageable manufacturing times. These solutions are particularly useful for medium-to-large power transformers, where a purely foil or wire design might be either too expensive or less efficient, offering engineers a flexible approach to meet diverse project requirements.
Choosing the optimal winding type requires a careful assessment of power ratings, efficiency goals, space constraints, and long-term operational considerations. Industry guidelines increasingly favor foil winding for high-power and high-efficiency applications, while wire winding continues to be suitable for smaller or cost-sensitive projects. Modern best practices also emphasize sustainability, energy efficiency, and thermal optimization. Engineers are encouraged to consider hybrid designs when balancing performance and production cost, while adhering to quality control standards, rigorous testing, and maintenance protocols to ensure reliable operation throughout the transformer’s lifespan.
Wire and foil winding differ in transformer design. Wire winding is simple and cost-effective for smaller power needs. Foil winding improves efficiency and reduces losses in high-power applications. Choosing the right method depends on performance and budget. Fineco New Energy Technology Co., Ltd. offers advanced transformers that maximize efficiency and reliability, providing valuable solutions for diverse electrical projects.
A: Wire winding uses insulated wires, suitable for small to medium transformers, while foil winding uses metal strips, offering higher efficiency and lower losses.
A: Foil winding transformer advantages include reduced resistive losses, improved thermal performance, and suitability for high-power applications.
A: Wire winding is ideal for residential and low-power industrial uses, while foil winding transformer applications include high-power substations and specialized machinery.
A: Transformer winding methods comparison shows foil winding reduces current density and losses, improving energy efficiency over wire winding.
A: Foil winding provides better voltage regulation, lower thermal hotspots, and higher reliability for demanding electrical systems.
A: Yes, wire winding is easier to repair, while foil winding requires more careful handling but offers long-term performance benefits.
