Can a 1000 kVA transformer power 1000 kW? This question matters for industries and energy systems. We will explore kVA vs kW, power factor, and safe limits. You will learn how transformer sizing affects efficiency and reliability. Understanding these factors ensures proper power delivery and protection.
A transformer's kVA rating represents its apparent power capacity, which is a combination of real power and reactive power. Unlike kW, which measures actual energy consumption, kVA indicates the total amount of electrical energy the transformer can handle. Selecting a transformer without understanding kVA can lead to overloads, overheating, or inefficiencies. For practical purposes, engineers must consider the difference between kVA and kW when sizing a transformer to avoid unexpected failures.
Power factor (PF) is a measure of how effectively electrical power is converted into useful work output. Industrial systems commonly operate around 0.8 PF. The real load a transformer can carry is the product of its kVA rating and the power factor. For instance, a 1000kVA transformer at a 0.8 PF can only deliver 800kW safely. Ignoring PF can risk overloading the transformer and reduce its lifespan. Power factor correction, such as adding capacitor banks, can improve efficiency and maximize usable load.
The relationship between kVA and kW is expressed by the formula:
kW = kVA × PF.
For example, a 1000kVA transformer operating at PF 1.0 can theoretically support 1000kW. At PF 0.8, it only supports 800kW. Engineers should always factor in operational margins, typically 80–90% of rated kVA, to prevent overheating and extend service life. This calculation is essential for precise transformer sizing and avoids costly downtime.
Transformers should not operate continuously at full rated capacity. Running at 80–90% of kVA reduces stress on the core and windings, minimizing insulation degradation and thermal damage. Overloading may temporarily meet demand, but it accelerates wear and increases energy losses. In practice, planning a transformer’s load with safety margins ensures reliability and supports long-term performance. Proper sizing and operational limits are crucial for high-power applications.

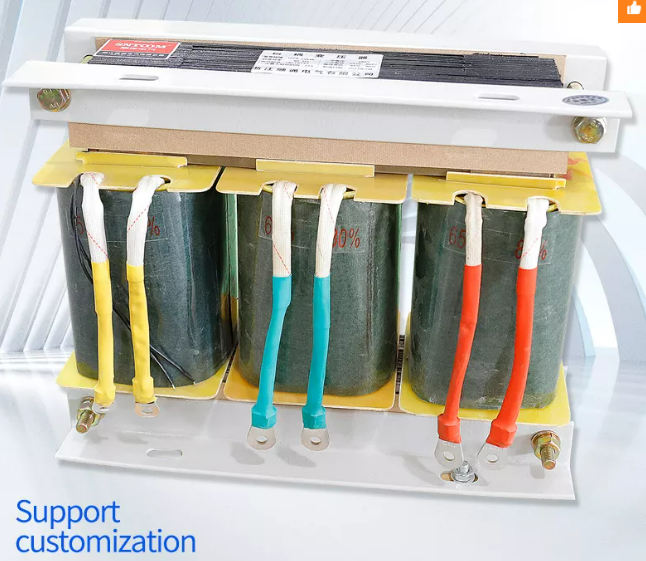

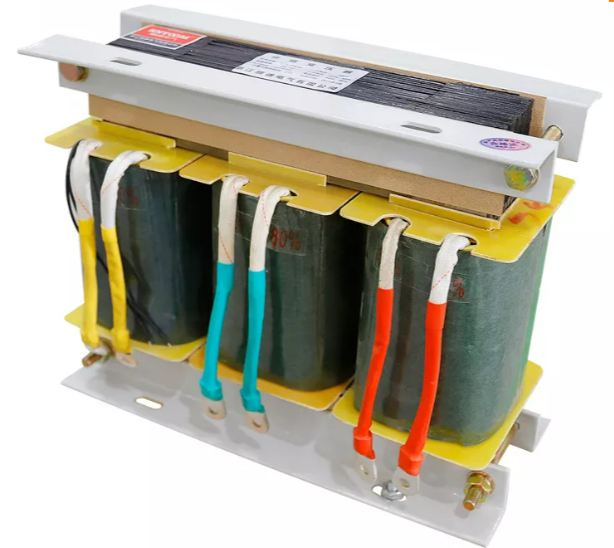

The iron core directs magnetic flux, enabling efficient energy transfer between primary and secondary windings. Primary windings receive input voltage, while secondary windings provide output at the desired voltage. Material quality, lamination, and winding design influence losses and overall efficiency. Both core and windings must handle the thermal and electrical stresses of a 1000kW load to maintain stability under continuous operation.
The turns ratio is the ratio of primary coil turns to secondary coil turns, determining voltage transformation. For example, a 10:1 ratio converts 12000V primary voltage to 1200V secondary voltage. Correct turns ratio ensures voltage output matches load requirements. Misalignment or incorrect ratio can lead to insufficient voltage, overheating, or damage. Accurate calculation is part of standard 1000kVA transformer sizing calculation protocols.
Transformer impedance affects voltage drop under load. High impedance reduces short-circuit currents but may cause voltage variations during high load periods. Proper impedance ensures stable voltage for sensitive equipment. Engineers should review load regulation ratings when sizing transformers for heavy industrial loads, particularly when aiming to support a 1000kW load.
Transformers generate heat during operation. Oil-filled transformers offer superior cooling, allowing higher overload tolerance, whereas dry-type transformers have limited thermal capacity. Temperature rise directly impacts the safe continuous load. Selecting the right cooling type is crucial for achieving full-rated capacity without risking insulation failure or thermal stress.
In ideal conditions (PF = 1.0), a 1000kVA transformer can theoretically support a 1000kW load. Realistically, most industrial loads operate around PF 0.8, reducing effective power to 800kW. This discrepancy highlights the importance of factoring in the power factor when assessing transformer capacity. Overestimating capacity may cause frequent overloads and reduced lifespan.
Power Factor | Transformer kVA | Maximum kW Supported |
1.0 | 1000 | 1000 |
0.9 | 1000 | 900 |
0.8 | 1000 | 800 |
0.7 | 1000 | 700 |
Resistive loads, like heating elements, do not affect PF, whereas inductive loads, like motors, reduce it. Industrial environments often have variable loads, meaning the transformer may support less than its rated capacity at times. Understanding load characteristics ensures safe operation and avoids exceeding thermal limits.
Capacitor banks, synchronous condensers, and automatic PF correction devices can improve transformer efficiency. By raising PF closer to 1.0, a 1000kVA transformer may safely handle a 1000kW load. Power factor correction is particularly valuable for facilities with heavy motor loads or fluctuating demand, maximizing the utility of existing transformers without costly replacements.
Transformers incur core and copper losses, reducing usable power. Real-world efficiency is typically 95–98%. Proper derating accounts for these losses, ensuring that transformer sizing decisions reflect practical conditions rather than theoretical maximums. Engineers must include these factors in load calculations to prevent unintended overloads.
Dry-type transformers are low-maintenance and environmentally safer, with no oil handling or fire risk. They are suitable for indoor installations but may have lower overload tolerance and limited temperature handling. Ideal for commercial buildings where safety is a priority.
Oil-filled transformers provide better cooling and higher overload capacity. They require regular maintenance and pose fire risk but are preferred for high-demand industrial applications. Their ability to manage thermal stress makes them suitable for supporting 1000kW loads under variable conditions.
Pad-mounted transformers are compact and suitable for outdoor installations with limited space, whereas substation transformers support higher voltages and larger distribution networks. Choosing between them depends on load type, installation site, and maintenance accessibility.
Three-phase transformers are standard for heavy industrial loads, providing balanced voltage and reduced current per phase. Single-phase transformers suit smaller commercial or residential applications. Matching configuration to load type ensures efficiency and reliability.
Transformer nameplates provide critical details such as kVA rating, voltage levels, phase configuration, frequency, and insulation class. These specifications are essential for understanding the operational limits and safe load capacity of the transformer. Regularly reviewing these details ensures correct installation, prevents mismatched connections, and maintains compliance with electrical codes and industry standards. It also helps engineers anticipate how the transformer will perform under varying load conditions.
Tap changers allow adjustments to the secondary voltage to match the actual load requirements. Correct tap settings are crucial to avoid overvoltage or undervoltage situations, which could reduce equipment lifespan or cause operational inefficiency. They enable transformers to maintain stable voltage under fluctuating load conditions, especially in industrial applications where load patterns change frequently. Proper understanding of tap positions also supports long-term operational reliability.
Impedance ratings indicate how much voltage drop will occur under load, while load loss ratings estimate energy losses during operation. Evaluating these parameters helps in designing efficient power distribution systems and anticipating the real-world performance of a transformer. Ignoring these ratings can lead to unexpected voltage fluctuations, reduced efficiency, and higher operational costs. It also informs decisions about parallel operation and coordination with other transformers.
The vector group defines the phase displacement between primary and secondary windings, which is essential for parallel operation and phase alignment. Ensuring the transformer’s vector group is compatible with existing systems prevents phase imbalance, minimizes harmonic distortion, and reduces the risk of damage to both the transformer and connected equipment. Proper vector group selection is particularly critical in three-phase industrial applications.
Adequate site preparation, including proper pad installation, sufficient clearance, and accessibility, is vital for safe and efficient transformer operation. Incorrect mounting can restrict airflow, complicate maintenance, and shorten the transformer’s operational life. Ensuring the transformer is properly positioned also facilitates safe inspections, oil sampling, and any future upgrades or adjustments to its connections.
Effective heat dissipation is essential to maintain transformer performance and prevent overheating. Poor ventilation can accelerate insulation degradation, reduce lifespan, and increase the risk of thermal overload. Both oil-filled and dry-type transformers require careful attention to airflow, ambient temperature, and placement relative to other equipment to ensure continuous and safe operation under full load conditions.
Routine maintenance, including visual inspections, oil testing, and winding condition checks, is critical for early detection of issues. Preventive maintenance prevents costly downtime and unplanned outages, while also extending the service life of the transformer. A consistent maintenance schedule helps detect anomalies such as partial discharge, oil leaks, or abnormal temperature rise, ensuring reliable long-term operation.
Transformers rely on monitoring devices such as pressure release valves, fuses, gauges, and temperature sensors to prevent failures. These safety mechanisms protect against overloads, short circuits, and overheating. In industrial settings, continuous monitoring is vital to detect abnormal conditions promptly, minimize risks, and ensure uninterrupted power supply for critical operations.
The total cost of a transformer extends beyond the purchase price to include installation, energy losses, and ongoing maintenance. Evaluating the life cycle cost helps decision-makers select a transformer that balances upfront investment with long-term operational expenses. Considering energy efficiency, expected load patterns, and maintenance needs ensures the transformer remains a cost-effective and reliable asset throughout its service life.
Operating a transformer near its optimal load maximizes efficiency and minimizes energy losses. Oversized transformers often operate under partial load, leading to lower efficiency and higher operational costs over time. Proper sizing based on kVA ratings, expected kW load, and power factor ensures the transformer delivers energy efficiently while maintaining reliability and reducing waste.
For a 1000 kW load, choosing a 1250 kVA transformer can provide a safer operational margin, accommodating variations in power factor and potential load growth. Oversizing ensures the transformer can handle unexpected peak loads without stress, prolongs its lifespan, and provides flexibility for future expansions. It also reduces the risk of voltage drops and overload-related failures in demanding industrial applications.
Selecting the right transformer involves balancing initial cost, energy efficiency, and maintenance requirements. Properly sized transformers optimize ROI by ensuring efficient power delivery while minimizing losses and operational risks. Engineers must weigh the benefits of oversizing against increased capital expenditure, considering the long-term performance, safety margins, and adaptability to changing load conditions.
A 1000kVA transformer can power 1000kW only at ideal PF. Most loads run at PF 0.8, limiting usable capacity. Factors like cooling, type, and safety margins shape performance. Proper sizing improves efficiency, prevents losses, and extends life. Fineco New Energy Technology Co., Ltd. delivers reliable transformers with advanced features, helping industries achieve safe and efficient power solutions.
A: A transformer can support 1000kW only if the power factor is near 1.0. At typical PF 0.8, it delivers about 800kW, so careful sizing is essential.
A: The transformer power factor impact on sizing is key, along with cooling, load type, and operational margins. These directly influence safe performance.
A: Apply the kVA to kW conversion formula transformer (kW = kVA × PF) and include safety margins. This ensures efficiency and prevents overload.
A: Using a 1250kVA unit provides reserve capacity, matching guides on how to size a transformer for 1000kW load and future growth.
A: A 1000kVA transformer sizing calculation with load data, PF correction, and efficiency checks helps optimize performance and reduce energy losses.
