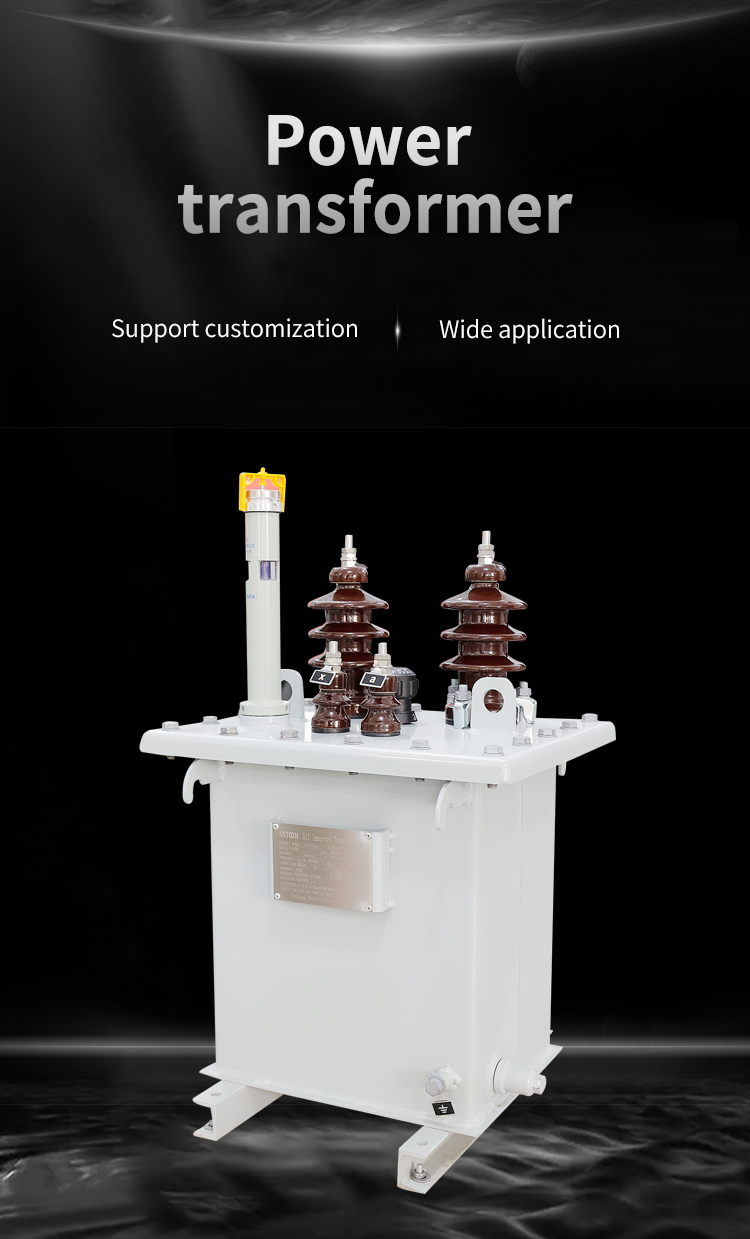

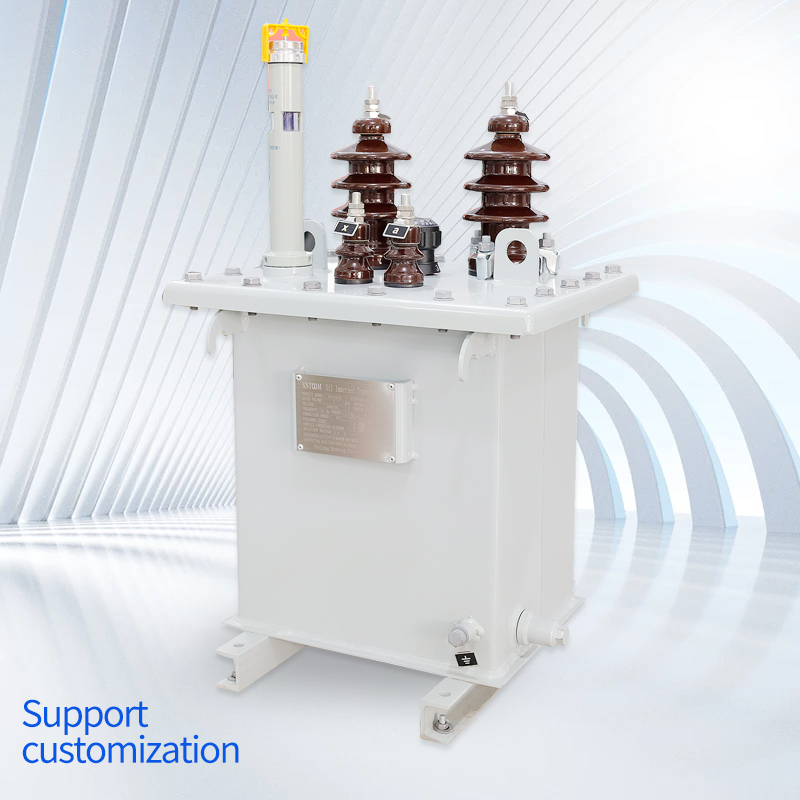

Single-phase oil-immersed transformer
A single-phase oil-immersed transformer, also known as a single-phase oil-filled transformer, is a type of transformer that uses oil as a coolant and ins ulating medium. It is commonly used in various electrical power distribution systems and industrial applications.
The main components of a single-phase oil-immersed transformer include a core, wind ings, and an oil tank. The core is made of lamin ated iron sheets and provides a path for the magnetic flux. The wind ings, consisting of primary and secondary coils, are wound around the core and connected to the power source and load respectively. The oil tank houses the core and wind ings and is filled with ins ulating oil to provide cooling and insulation.
The ins ulating oil used in a single-phase oil-immersed transformer serves multiple purposes. Firstly, it acts as a coolant, dissip ating heat generated during transformer operation. The oil absorbs heat from the wind ings and transfers it to the tank through con vection. This helps to maintain the transformer at a safe operating temperature. Secondly, the oil serves as an ins ulating medium, preventing electrical breakdown and ensuring the safe operation of the transformer.
One of the advantages of a single-phase oil-immersed transformer is its high efficiency. The oil coolant helps to dissip ate heat effectively, allowing the transformer to operate at optimal temperature and minimize energy losses. This results in improved energy efficiency and reduced operating costs.
Another adv
antage is the compact design and robust construction of the transformer. The oil-immersed design allows for better heat diss ipation and insulation compared to dry-type transformers. Additionally, the oil-filled tank provides protection against external factors like moisture, dust, and contaminants, enhancing the transformer 's durability and reliability.In conclusion, a single-phase oil-immersed transformer is a reliable and efficient solution for electrical power distribution and industrial applications. With its effective cooling and insulation properties, it provides stable and safe operation, ensuring the smooth functioning of electrical systems.
Reliable Structure
Our company has implemented several enhancements to the traditional structure and mature technology, including:
1 ) Incorporating a spiral coil design with longitudinal oil passages to enhance internal heat dissipation capabilities.
2 ) Strengthening the effective support of the coil end surface to improve resistance against short-circuit currents.
3 ) Introducing a new ho isting structure and body positioning system to ensure reliable transportation and operation overlong distances.
4 ) Offering a range of unique and reliable structural options to meet your specific needs.
5 ) Opting for transformers with higher performance levels, resulting in increased technical content.
Service Condition

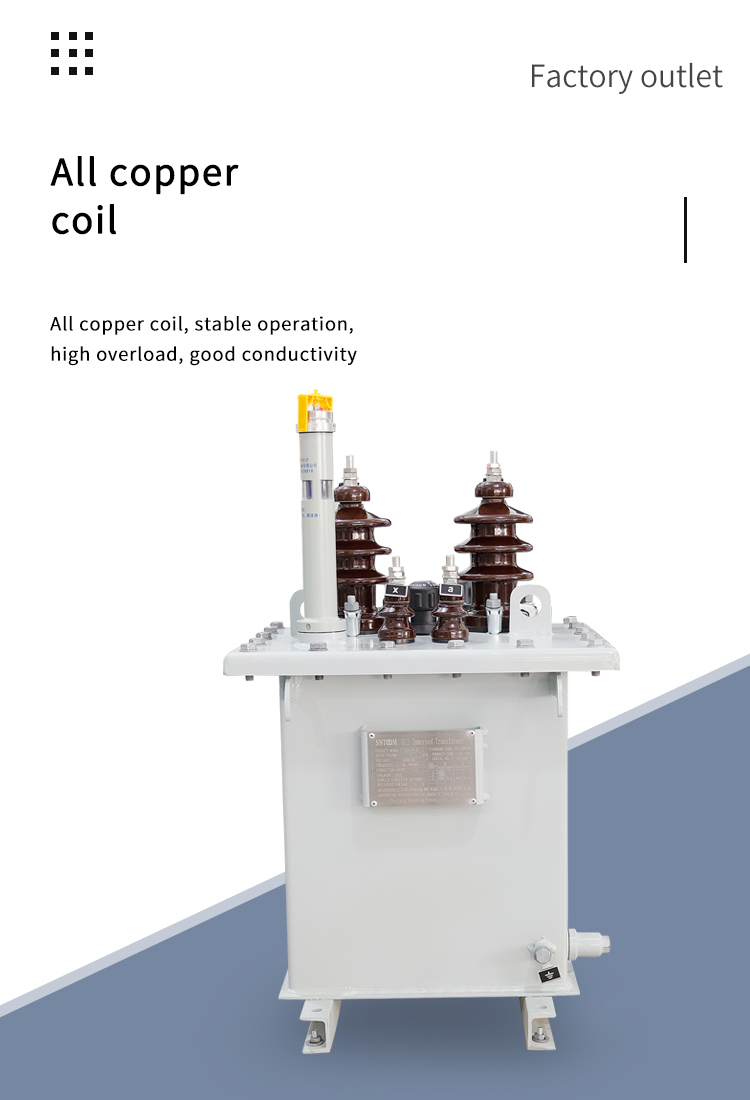

1 ) We carefully choose oxygen-free copper wire with lower resist ivity and subject it to additional surface treatments to ensure a smoother and bur r-free finish. This results in reduced load loss and enhanced electrical performance, making the transformer more reliable.
2 ) Our transformers are equipped with high-quality silicon steel sheets. We continuously improve the performance level by utilizing silicon steel sheets with lower unit loss, which significantly lowers the no-load loss of the transformer.
3 ) We prioritize the use of high-quality lamin ated wood insulation parts that are resistant to cracking. Even under the impact of short-c ircuit currents, the wire remains securely in place, ensuring the longevity and stability of the transformer.
4 ) Our transformers are filled with transformer oil that undergo es deep filtration. This process reduces the levels of water, gas, and imp urities, resulting in a more reliable performance of the transformer.
5 ) We exclusively use high-quality rubber sealing materials that effectively prevent aging and leakage, ensuring the long-term integrity and safety of the transformer.
6 ) All our raw materials undergo stringent quality inspections, and our suppliers are carefully reviewed in accordance with the national standard ISO9000. This ensures that we maintain high standards of quality and reliability throughout our manufacturing process.
we are proud to present our state-of-the-art Outdoor 380V/220V Single-Phase Pad-Mounted Insulation Oil-Immersed Transformer, designed to meet the rigorous demands of modern power distribution systems. Engineered for durability, safety, and efficiency, our transformers are the ideal choice for a wide range of outdoor applications, including commercial, industrial, and residential settings.
Key Features & Benefits:
Rugged Construction for Outdoor Use:
Crafted from high-grade materials, our transformers are built to withstand harsh environmental conditions, including extreme temperatures, moisture, dust, and corrosion. The pad-mounted design ensures easy installation and maintenance, while minimizing ground space requirements.
Insulation Oil Immersion for Enhanced Performance:
Featuring an insulation oil-immersed system, our transformers provide superior thermal stability and cooling capabilities. The oil acts as both an insulator and a coolant, effectively dissipating heat generated during operation, thus prolonging the life of the transformer and ensuring optimal performance.
Single-Phase Design for Versatility:
Designed for both 380V and 220V applications, our single-phase transformers offer unparalleled versatility. Whether it's powering streetlights, small industrial equipment, or residential neighborhoods, our transformers are tailored to meet specific voltage requirements with precision and reliability.
Efficient Energy Conversion:
Equipped with advanced winding technology, our transformers ensure minimal energy loss during power transmission. This not only results in cost savings for our customers but also contributes to a greener environment by reducing carbon emissions.
Safety & Compliance:
Compliant with international safety standards and regulations, our transformers incorporate robust safety features such as explosion-proof designs, overload protection, and short-circuit prevention mechanisms. This ensures the safety of personnel and equipment alike.
Easy Maintenance & Monitoring:
Our transformers are designed for ease of access, allowing for quick and efficient maintenance. Additionally, optional monitoring systems can be integrated to provide real-time data on transformer health and performance, enabling proactive maintenance and reducing downtime.
Applications:
Utilities & Power Grids: Ideal for reinforcing and extending power grids in urban and rural areas.
Commercial Complexes: Perfect for powering shopping malls, offices, and other commercial establishments.
Industrial Facilities: Suitable for factories, warehouses, and other industrial settings requiring reliable and efficient power supply.
Residential Areas: Ensures a stable and safe power supply for homes, apartments, and neighborhoods.
Why Choose Us?
At [Your Company Name], we have a long history of delivering high-quality transformers that exceed customer expectations. Our commitment to innovation, quality control, and customer satisfaction sets us apart in the industry. With a global network of distributors and a dedicated team of technical experts, we are well-positioned to support your power distribution needs, wherever they may be.
Contact us today to learn more about our Outdoor 380V/220V Single-Phase Pad-Mounted Insulation Oil-Immersed Transformer and how it can enhance your power distribution system. Let's work together to power a brighter future.
