TDGC2

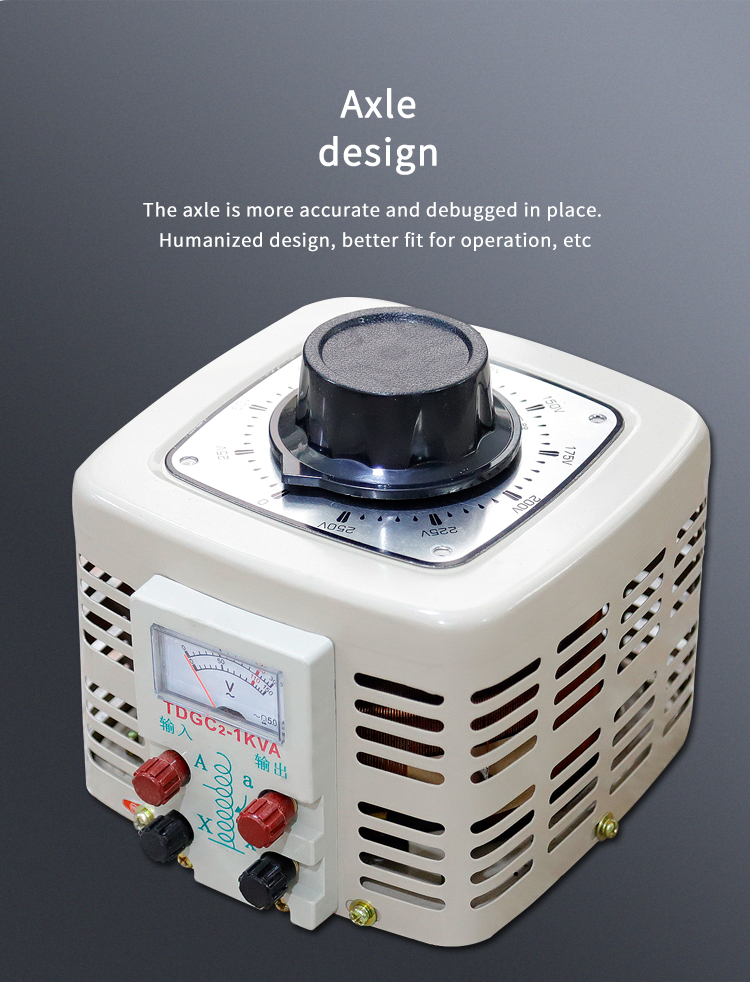

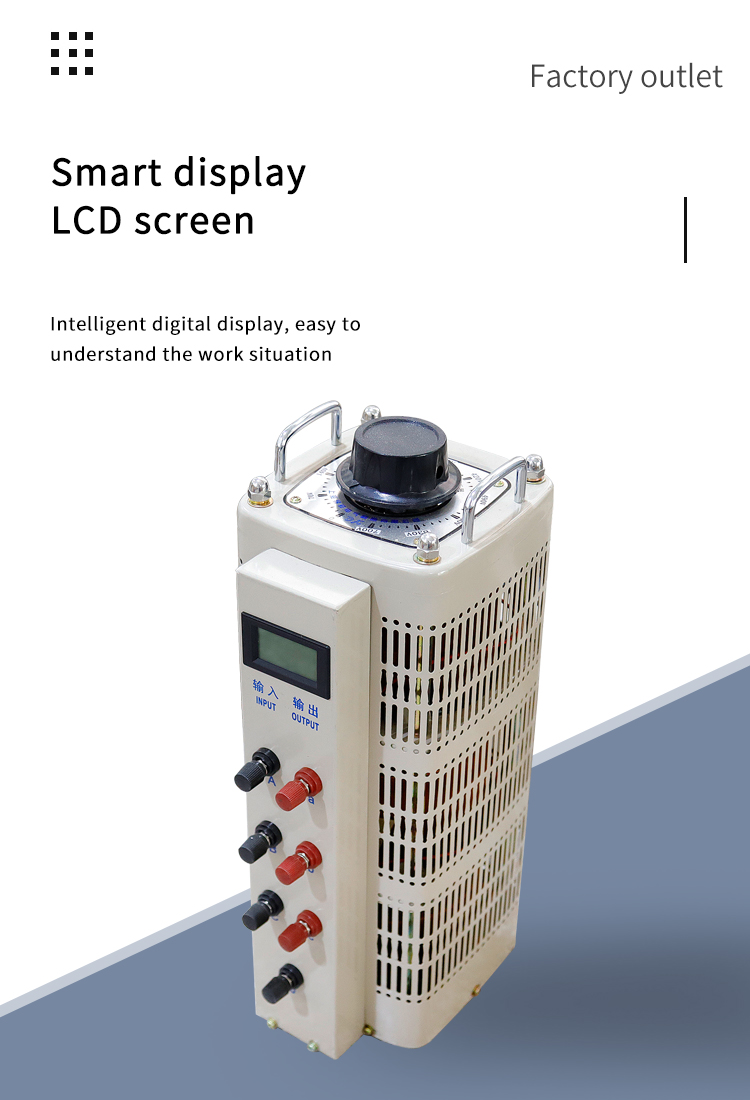

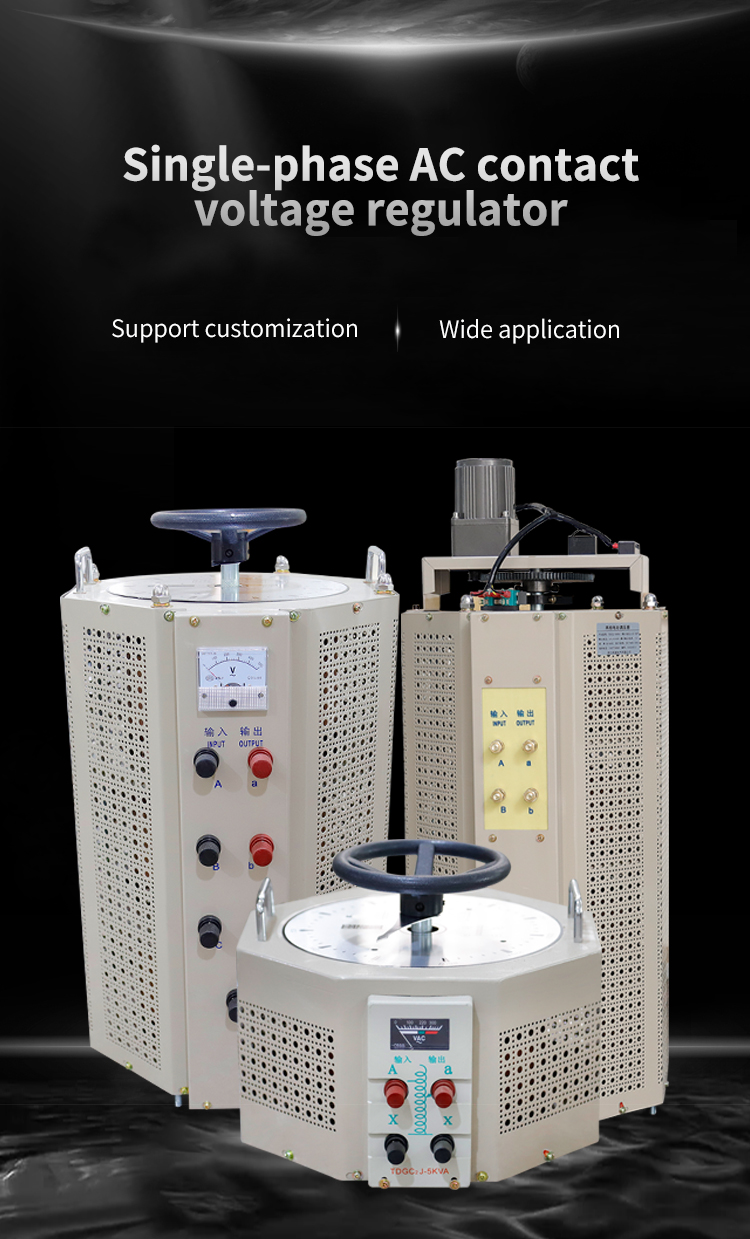

Single-phase Contact Voltage Regulator
The single-phase contact voltage regulator, also known as a single-phase tap changer, is a device used to regulate and control the voltage in single-phase electrical systems. It ensures a stable and reliable power supply by adjusting the voltage output based on the input voltage fluctuations.
The single-phase contact voltage regulator operates by employing a contact-based mechanism that taps into different points of the transformer winding. By changing the tap position, the regulator can increase or decrease the voltage output to maintain it within a desired range.
This type of voltage regulator is commonly used in residential and commercial applications where voltage fluctuations can occur frequently. It provides protection to connected electrical devices by stabil izing the voltage and preventing damage caused by over v oltage or und erv oltage conditions.
The single-phase contact voltage regulator offers several advantages, including simplicity, efficiency, and reliability. It requires minimal maintenance and is designed to withstand various environmental conditions.
In conclusion, the single-phase contact voltage regulator plays a crucial role in maintaining a stable voltage supply in single-phase electrical systems. Its ability to regulate voltage fluctuations ensures the safe and efficient operation of electrical devices, making it an essential component in many residential and commercial applications.
| Model | Rate capacity | Number of phase | Rated frequency | Rated input voltage | Rated voltage range | Rate output current |
| TDGC2/TDGC2J-0.2 | 0.2kva | 1 | 50Hz | 220V | 0-250V | 0.8A |
| TDGC2/TDGC2J-0.5 | 0.5kva | 2A | ||||
| TDGC2/TDGC2J-1 | 1kva | 4A | ||||
| TDGC2/TDGC2J-2 | 2kva | 8A | ||||
| TDGC2/TDGC2J-3 | 3kva | 12A | ||||
| TDGC2/TDGC2J-4 | 4kva | 16A | ||||
| TDGC2/TDGC2J-5 | 5kva | 20A | ||||
| TDGC2/TDGC2J-7 | 7kva | 28A | ||||
| TDGC2/TDGC2J-10 | 10kva | 40A | ||||
| TDGC2/TDGC2J-15 | 15kva | 60A | ||||
| TDGC2/TDGC2J-20 | 20kva | 80A | ||||
| TDGC2/TDGC2J-30 | 30kva | 120A | ||||
| TDGC2/TDGC2J-40 | 40kva | 160A | ||||
| TDGC2/TDGC2J-50 | 50kva | 200A | ||||
| TDGC2/TDGC2J-60 | 60kva | 240A | ||||
| TDGC2/TDGC2J-80 | 80kva | 320A | ||||
| TDGC2/TDGC2J-100 | 100kva | 400A |

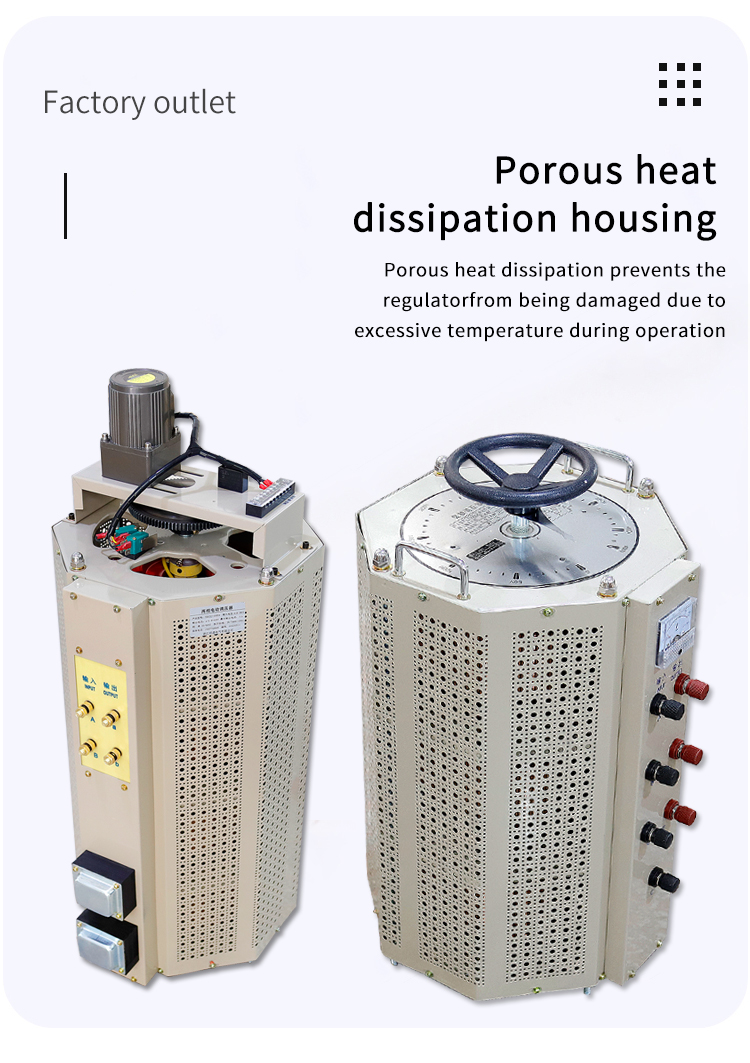

Automatic A.C voltage stabilizer consists of contact voltage regulator,sampling control circuit and servo motor. When input voltage or load changes,sampilng control circuit will sample and amplify the voltage,and the servo motor will rotate in the desired direction,which turns the arm,adjusting voltage until the output voltage is regulated into the rated output votage.
The product is of small size,light weight,less output waveform distortion and reliable performance.To guarantee its quality,foreign advanced technology and main parts are introduced and imported. It is widely used in eleictrical appliances which need constant voltage power supply,and in fields of industry producing,scientific research and medical hygiene.
The product itself consumes little and can be continuously used for a long time.
