Is Transformer in AC Or DC

Transformers play a vital role in modern electrical systems, efficiently changing voltage levels. But many wonder: are transformers used with AC or DC?

In this post, we’ll discuss the essential differences between AC and DC transformers, exploring how transformers work with AC and why DC requires special handling. You’ll also learn about the practical applications of transformers in both systems.

What is a Transformer?

A transformer is a vital electrical device that transfers electrical energy between two or more circuits by changing the voltage. It works on the principle of electromagnetic induction, allowing it to step up or step down the voltage levels in an alternating current (AC) system. Transformers are essential for efficiently transmitting electrical power over long distances, ensuring that voltage levels are appropriate for both power transmission and usage.

The main components of a transformer include:

• Primary coil: This is where the electrical power is initially supplied to the transformer. It receives the alternating current (AC) and generates a magnetic field.

• Secondary coil: This coil is responsible for delivering the transformed voltage. The number of turns in the secondary coil determines whether the voltage is stepped up or down.

• Core: A magnetic core, usually made of iron or steel, is placed between the primary and secondary coils. It enhances the efficiency of the electromagnetic induction process by directing the magnetic flux between the two coils.

Transformers are commonly used in power transmission systems, where the voltage is stepped up for long-distance travel and then stepped down to a safer level for use in homes and businesses.

Transformers and AC (Alternating Current)

Why Do Transformers Work with AC?

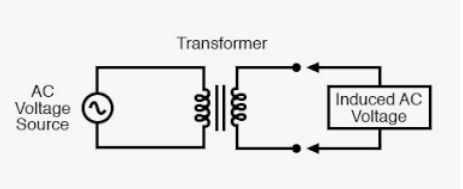

Transformers rely on the property of electromagnetic induction to work, which is the process by which a changing magnetic field induces an electric current in a nearby coil. This only happens when the current in the primary coil alternates, creating a fluctuating magnetic field. Since alternating current (AC) continually changes direction, it creates a dynamic magnetic field that can transfer energy to the secondary coil through induction.

Direct current (DC), on the other hand, creates a constant magnetic field. A constant field cannot induce a fluctuating current in the secondary coil, rendering the transformer ineffective with DC. Thus, the changing magnetic field in AC is essential for the transformer to function.

How Does a Transformer Work with AC?

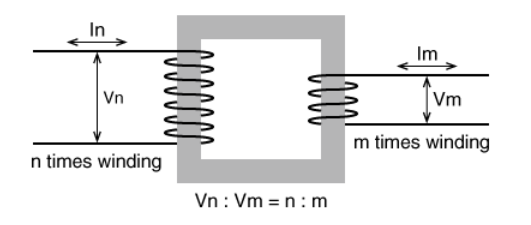

A transformer functions by changing the voltage of AC according to the turns ratio between the primary and secondary coils. The turns ratio is the relationship between the number of turns of wire in the primary coil and the number of turns in the secondary coil. This ratio determines the voltage change:

• Step-up transformer: Increases the voltage by having more turns in the secondary coil than the primary coil. For example, if the primary coil has 100 turns and the secondary coil has 500 turns, the voltage will increase by a factor of 5.

• Step-down transformer: Decreases the voltage by having fewer turns in the secondary coil. If the primary coil has 500 turns and the secondary coil has 100 turns, the voltage will decrease by a factor of 5.

The efficiency of the transformer depends on the turns ratio, ensuring that energy is transmitted at the desired voltage level. The core material helps concentrate the magnetic flux and improve the efficiency of the transformer.

Can Transformers Be Used with DC (Direct Current)?

Why Are Transformers Not Used Directly with DC?

Transformers do not work directly with DC because DC does not create a changing magnetic field. In order for a transformer to function, the magnetic field needs to change continuously, which is a feature of AC. When a DC supply is connected to the primary coil, it generates a constant magnetic field, which does not induce any current in the secondary coil once the field stabilizes. Therefore, there is no voltage transformation, and the transformer would not function properly.

This lack of a changing magnetic field is why transformers are unsuitable for use directly with DC. For DC to be transformed by a transformer, additional components are needed to create an alternating current from the direct current.

How is DC Voltage Changed Using Transformers?

Although transformers cannot directly work with DC, they can be used in systems where DC is first converted into AC. This conversion is typically done using an inverter, which takes the DC input and changes it into AC before passing it through the transformer.

Once the current is alternating, the transformer can step it up or step it down according to the turns ratio. After voltage transformation, the AC can then be rectified back into DC if needed using a rectifier. This process is common in solar power systems, where DC generated by solar panels is first converted to AC for transmission and then converted back into DC for use in homes.

Differences Between Transformers in AC and DC

• AC: Transformers are specifically designed for AC systems because AC provides the fluctuating magnetic field necessary for electromagnetic induction. The power is efficiently transferred between the primary and secondary coils through this dynamic field. AC transformers are highly efficient and are widely used in power transmission and distribution.

• DC: Transformers cannot be directly used with DC because DC does not produce a changing magnetic field. In DC circuits, transformers are ineffective unless the DC is first converted to AC. This requires additional components like inverters to create the fluctuating magnetic fields required by the transformer.

The practicality and efficiency of transformers are far higher in AC systems than in DC systems. Transformers are a crucial part of electrical grids, where AC is the dominant form of power transmission. In DC systems, extra steps must be taken to make DC suitable for transformation.

Applications of Transformers in AC Systems

Transformers have a wide range of applications in AC systems, particularly in power transmission and distribution. These include:

• Power grids: Transformers are used to step up voltage at power stations, enabling efficient transmission of electricity over long distances. The high voltage reduces energy loss during transmission.

• Household use: Step-down transformers reduce the high voltage from the electrical grid to a safe, usable level for homes and businesses.

• Power adapters: Many electronic devices, such as laptops and phone chargers, use transformers to convert AC from wall outlets into lower voltage DC for the device.

Transformers also have applications in industries that require high-voltage equipment, such as manufacturing plants, where large amounts of power are needed for machinery.

Can Transformers Work with DC for Specific Applications?

While transformers cannot directly function with DC, they can be used in specialized systems where DC is first converted to AC. In these systems, the transformer performs its role of adjusting voltage levels. Once the voltage is transformed, it may be converted back into DC using a rectifier for applications such as powering electronic devices or charging batteries.

For example, in solar power systems, DC produced by solar panels is converted to AC, transformed using a transformer, and then converted back to DC if needed. Similarly, DC-powered motors often require AC to DC conversion before they can be used in systems that involve transformers.

The ability to use transformers with DC, through inverters and rectifiers, expands their utility, but the process is more complex than when working directly with AC.

Conclusion

Transformers work with AC because of fluctuating magnetic fields, but DC requires inverters and rectifiers. Understanding how transformers function with different currents is essential for various applications, including power transmission and electronic devices. Recognizing these differences ensures better use of transformers in everyday and industrial settings.

FAQ

Q: Why do transformers work with AC and not DC?

A: Transformers rely on a changing magnetic field to function, which is created by alternating current (AC). Direct current (DC) creates a constant magnetic field, preventing voltage transformation in the transformer.

Q: Can transformers be used with DC?

A: Transformers cannot directly work with DC. However, DC can be converted to AC using an inverter before passing through the transformer, where it can then be stepped up or down.

Q: How is DC voltage changed using transformers?

A: DC voltage is changed by first converting DC to AC using an inverter. Once the current is alternating, it passes through the transformer for voltage transformation, and then can be rectified back to DC if needed.

Q: What are the differences between transformers in AC and DC systems?

A: Transformers are designed for AC systems, where the fluctuating magnetic field enables energy transfer. DC requires additional components like inverters to create alternating current, making transformers ineffective without this conversion.

Q: Can transformers work with DC for specific applications?

A: Transformers can be used in systems where DC is first converted to AC. In these systems, transformers adjust voltage levels before converting it back to DC, such as in solar power systems and certain electronic devices.
