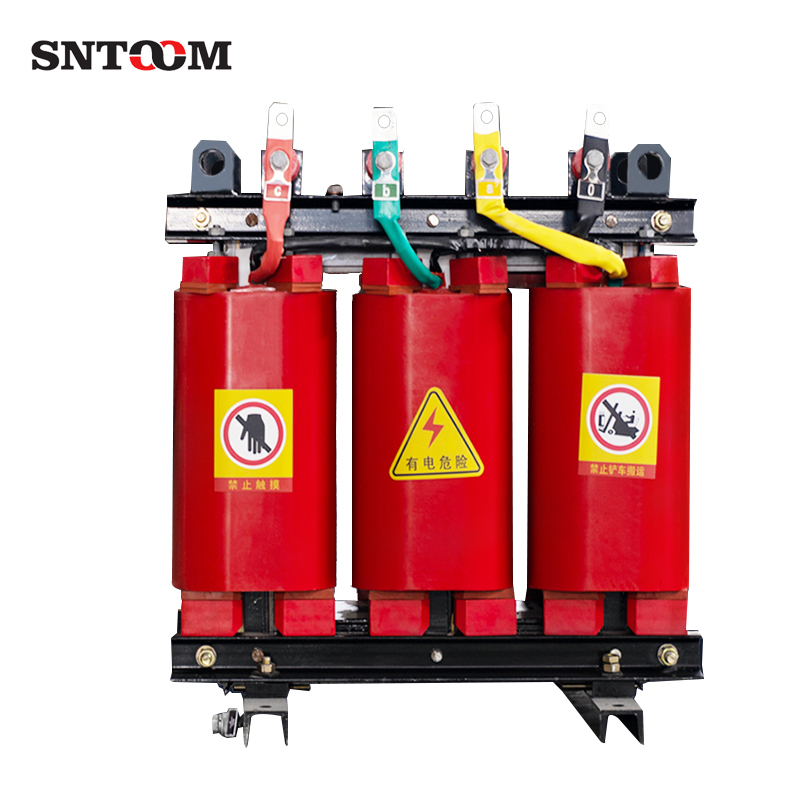

SCB-13
SNTOOM
Resin-insulated dry-type transformers are safe, non-flammable, fireproof, and pollution-free. It can be directly installed in the load center, is maintenance-free, easy to install, has a low overall operating cost, and low loss, has good moisture-proof performance, can operate normally under 100% humidity, and can be put into operation after a shutdown without pre-drying. Low partial discharge, low noise, strong heat dissipation capacity, 120% rated load operation under forced air cooling. Equipped with a complete temperature protection and control system, it provides a reliable guarantee for the safe operation of the transformer with high reliability.
| Name | SCB13 Series Resin Insulated Dry-type Transformer |
| Rated Capacity | 10KVA-4000KVA |
| High voltage | 6KV-11KV |
| Low voltage | 0.4 KV |
| Connection symbol | Yyn0 / Dyn11 |
| Short circuit Impedance | 4%-8% |
| Tapping range of high-voltage | ±5% ± 2 ×2.5% |
| Phases | Three phase |
| No-load current(%) | 1%-2.6% |
| Insulating level | LI75AC35/L I0AC5 |
Class F coil insulated copper wire as conductor, glass fiber, and epoxy resin composite materials for insulation, its coefficient of expansion is similar to the copper conductor. Good impact resistance, temperature changes, and crack resistance. Glass fiber and epoxy resin constituent all have self-extinguishing, it does not continue to burn, it does not produce toxic gases, and pollutes the environment. Epoxy resin has good insulating properties, particularly suitable for the production of high-voltage level manufacturing process: The winding wound on the high-accuracy winding machine, when winding pave cast grass fiber around the external and internal of the winding, there be armed air passage for transformer of large ca Then dry it in a vacuum. The whole casting and solidifying process is performed according to the pi curve of the casting control terminal, which is transferred through a computer network by the process department every process can be monitored momentarily and adjusted for the various surroundings. The precise process ensures free bubbles and free holes of winding.
