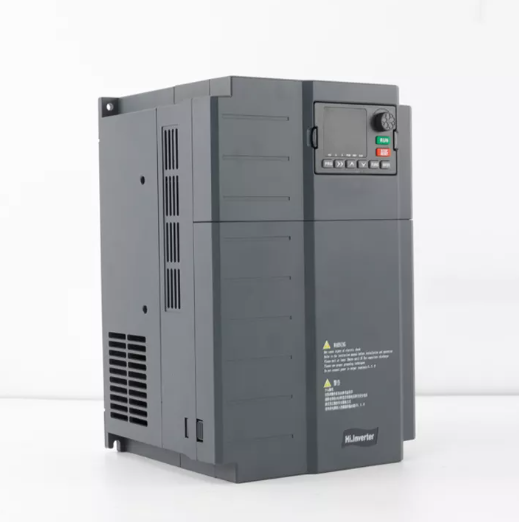

Frequency converters change how often electricity flows to fit equipment. These devices are very important in factories, planes, and ships. They help save energy and support green power systems. There are three main types: rotary, solid-state, and static. People also group them by how they work, how they are controlled, and how they store energy. Picking the right frequency converter helps companies save money and follow rules.
Rotary frequency converters use electric motors and generators together. They change the frequency of electrical power. These machines have moving parts that link the input and output. Rotary converters can handle a lot of power. They work well in hard places like railways and heavy factories. People use them where power must be steady and reliable.
Rotary converters help keep power systems stable. They use energy stored in their spinning parts. Studies show rotary converters break down less than static types. For example, in Sweden’s railway, rotary converters worked better and lasted longer. But, they can have problems like twisting in the shaft. Engineers fix these with special control systems.
Key Features:
Handles lots of power and tough jobs
Reliable with fewer breakdowns
Needs regular care because of moving parts
Typical Applications:
Railways
Factories
Power stations
Solid-state frequency converters use electronic parts like transistors and diodes. They change the frequency of electricity. These converters do not have moving parts. This makes them smaller, lighter, and easier to take care of. Solid-state converters became popular in the 1980s. Now, they are used a lot, especially for 400 Hz power in the United States.
Solid-state frequency converters cost less to buy and run than rotary types. They do not make emissions and need less space. New designs use smart control systems. They can connect to networks for real-time checks and early repairs. AI tools help guess how long these converters will last. This makes them good for electric car chargers and green energy systems.
Key Features:
Small and light
Needs little care and no emissions
AI tools help predict how long they last
Typical Applications:
Airports and planes
Data centers
Green energy systems
Static frequency converters, sometimes grouped with solid-state types, use power electronics to change frequencies. They do not have moving parts. These converters are now the most common type. In 2023, they made up 68.2% of the market. Their design focuses on being reliable, efficient, and easy to care for.
Tests show static frequency converters can start big machines with less power. They use special filters to cut down electrical noise and work better. Static converters also let you control start-up force very well. This helps protect machines.
Key Features:
No moving parts, so very reliable
Needs little care
Works efficiently and controls well
Typical Applications:
Factories
Process industries
Big motors and pumps

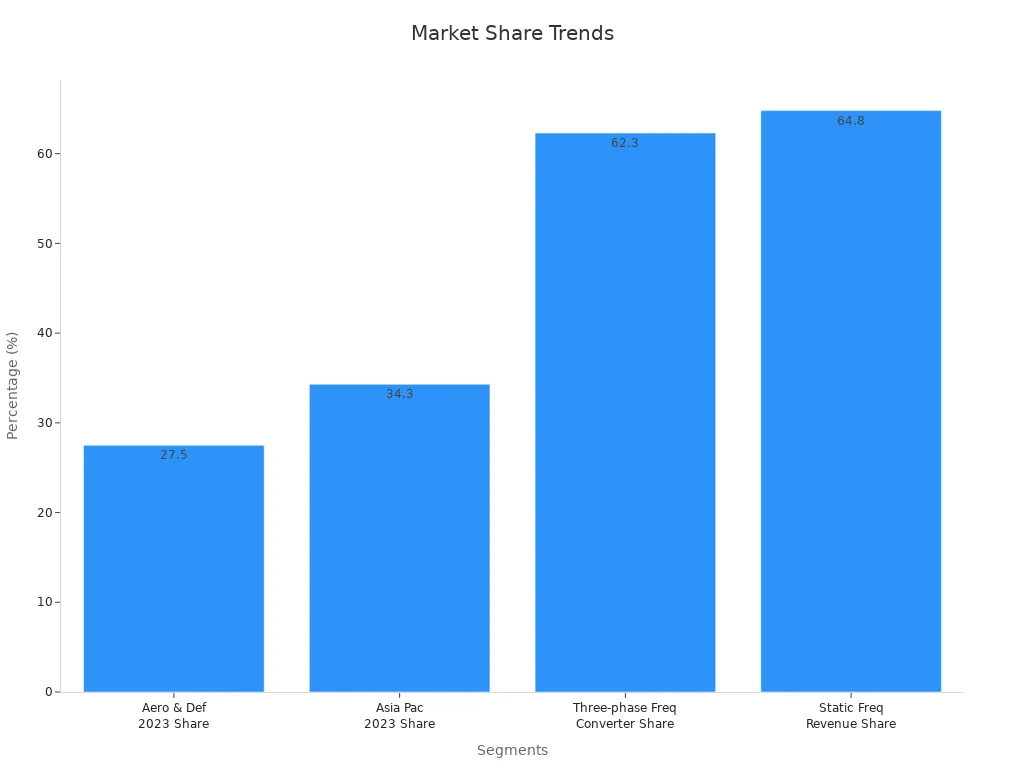

Metric / Segment | Value / Insight |
|---|---|
Static Frequency Converters | Biggest market share: 68.2% (2023); reliable with fewer moving parts; needs little care |
Rotary Frequency Converters | Fastest growth: 10.3%; handles more power; strong in tough places |
Three-Phase Converters | Market share: 65.4%; better motor control; used a lot in factories |
Single-Phase Converters | Growth: 8.2%; used in homes and small businesses; saves money |
Aerospace & Defense Sector | Biggest user: 28.6%; needs high-performance, reliable converters |
Process Industry | Fastest growth: 11.0%; wants energy savings and automation |
North America Market | Growth: 9.6%; new technology and more green energy |
Asia Pacific Market | Biggest revenue: 35.1%; more factories and upgrades |
Europe Market | Growth from strict rules and green goals |
Global Market Size | USD 24.18 billion in 2023; expected growth 9.4% (2024-2030) |
IoT & Industry 4.0 Integration | Allows real-time checks, early repairs, and network links |
Note: Static frequency converters, including 50 hz frequency converters, are very important in today’s industry. They are reliable and easy to care for, so many companies choose them.
An AC-AC frequency converter changes one AC voltage and frequency into another. It does not turn AC into DC first. This converter uses special switches to link the input and output. Matrix converters are a common kind. They use a grid of switches to control electricity flow.
AC-AC converters are good for controlling motor speed. They also help power supplies in factories. These converters can help send power over medium distances.
A new study showed a new AC-AC converter design worked at 98% efficiency. It had a power factor of 0.97. The study also found low total harmonic distortion and less power loss. This means the converter saves energy and works better with motors.
Advantages:
High efficiency and power factor
Direct conversion, so fewer parts
Compact size
Disadvantages:
Complex control system
Needs precise switching
Higher cost for advanced designs
Common Uses:
Motor drives
Industrial power supplies
Medium-distance power transmission
Metric | Value / Description |
|---|---|
Converter Efficiency | 98% |
Power Factor (P.F.) | 0.97 |
Total Harmonic Distortion (THD) | Low THD in output voltage and current |
Voltage Gain (G) | 2.13 |
Component Count | Fewer switches and passive parts |
Power Losses | Lower due to optimized design |
Cost | Reduced by fewer components |
An AC-DC-AC frequency converter first changes AC power to DC. Then it changes DC back to AC at a new frequency and voltage. This process uses a rectifier and an inverter. Many frequency converters use this method, especially for variable speed drives.
AC-DC-AC converters let you control voltage and frequency easily. This helps run motors at different speeds. They also make power quality better and lower voltage drops.
AC systems can change voltage with transformers. DC systems need more steps and are harder to control. AC-DC-AC converters are more complex but give better control and efficiency sometimes.
Studies show AC-DC-AC converters can make power quality better and fix power factor. For example, a single-phase AC-DC-AC converter can lower transformer current and keep output voltage steady. These converters are often used in uninterruptible power supplies and voltage regulators.
Advantages:
Flexible voltage and frequency control
Good for variable speed drives
Can improve power quality
Disadvantages:
More complex design
Higher cost due to extra parts
Needs careful cooling and control
Common Uses:
Variable speed motor drives
UPS systems
Voltage regulators
Converter Type | Design Features | Performance Metrics | Application Focus |
|---|---|---|---|
Single-phase AC-DC-AC interleaved converter | High-frequency isolation, interleaved technique | Power factor correction, voltage sag mitigation | UPS, voltage regulators |
Four high-frequency isolated AC-DC converters | Discontinuous Current Mode | Power quality improvement at AC mains | Power supplies, industrial drives |
Tip: Pick the right frequency converter for the job. AC-AC converters are best for simple, direct changes. AC-DC-AC converters are better when you need more control and better power quality.
A voltage type frequency converter uses a DC link with a big capacitor to hold energy. The capacitor sits between the rectifier and inverter. It helps smooth out the current and keeps voltage steady. This stops voltage spikes that could hurt sensitive parts. For example, in traction inverters, the DC link capacitor cuts down voltage ripple and keeps the system safe.
The DC link capacitor also makes the system work better and last longer. In wind turbines, the DC link smooths the DC voltage before it goes to the inverter. This steady voltage lets the inverter make a clean AC output. The capacitor also lowers electrical noise and keeps power quality high.
Engineers pick DC link capacitors by looking at a few things. These include how much charge it can hold, how much ripple current it can take, its voltage rating, and how long it lasts. They often use different types of capacitors together for the best results. The table below shows important things about DC link capacitors:
Aspect | Details |
|---|---|
Role | Stores energy, keeps voltage steady, handles ripple, cuts EMI |
Types | Film, electrolytic, ceramic |
Selection Parameters | Capacitance, ripple current, voltage rating, ESR, ESL, temperature, lifetime |
Design Tips | Use banks in parallel, mix types, control heat |
A current type frequency converter uses an inductor in the DC link to store energy as current. This design keeps current steady and controls how it flows to the inverter. The inductor helps stop power surges and cuts down current ripple. Current type converters are good for big power and factory use.
New research shows that modern current type converters use special semiconductors like SiC and hybrid switches. These changes make them work better and pack more power in less space. For example, a study on high-frequency converters with hybrid switches showed better cooling and less energy loss. Engineers also use special inductors to lower eddy current losses, which helps the converter stay cool and work well.
Current type converters can work at very high frequencies, sometimes up to hundreds of kilohertz. This means smaller parts and better performance. In real power systems, like ship shore connections, current type converters help match power frequencies and handle big loads safely.
A dc frequency inverter can use either voltage or current type energy storage, depending on what it needs to do. The choice changes the converter’s size, how well it works, and how long it lasts.
V/f control is also called volts-per-hertz control. It keeps voltage and frequency in the same ratio. This method is good for simple motor jobs. People use it in fans, pumps, and conveyors. Engineers like V/f control because it is easy to use. It does not need special sensors. It helps motors run at different speeds. But it cannot control torque very well. So, it is not best for tough jobs.
Vector control is sometimes called field-oriented control. It uses math to control speed and torque. This method checks the motor’s position and current. Vector control gives fast and accurate results. It works even if the load changes quickly. Factories use it for robots, cranes, and elevators. It is good when you need strong and exact motor control.
Differential frequency control changes output frequency as needed. It looks at the difference between what you want and what you get. This helps keep the system steady when things change fast. Power plants and big grids use this method. It helps balance power supply and demand. Engineers check how much the frequency and voltage change. They also look at how fast the system reacts. They check reserve power too.
Pulse Width Modulation (PWM) uses fast switches to control voltage and frequency. Other methods like SPWM, SVPWM, and PAM work in similar ways. PWM changes how wide each voltage pulse is. This helps control power. Studies show picking the right PWM frequency saves energy. It also makes the system work better. For example, a new controller made the system react much faster. It also lowered current ripple. Synchronous PWM made torque better and motors quieter. Engineers found that a PWM frequency near 1 kHz works best for many drives.
Tip: PWM and its advanced types help converters run quietly and cool. They also make it easier to control speed and torque in electric motors.
Low-voltage frequency inverters are used in homes and small businesses. They also work in light industry. These inverters connect to low-voltage grids. They usually handle loads under 6 kW. They must follow strict rules for voltage control. They often use reactive power to keep the grid steady. Efficiency is better at lower DC voltage levels. This fits what most homes and small businesses need. High-voltage frequency inverters are for big factories and power plants. They are also used in heavy industry. These inverters manage bigger loads. They must deal with more complex voltage and power factor changes. Both types help match power supply to what each place needs.
Tip: Pick low-voltage or high-voltage inverters based on load size and grid type.
Single-phase inverters give power to small loads. They are used for things like home appliances and small machines. They use a single-phase AC input. This makes them simple and cheap. Three-phase inverters power bigger machines and factory equipment. They use three-phase AC. This gives smoother running and better load handling. The table below shows the main differences:
Aspect | Single-Phase Inverters | Three-Phase Inverters |
|---|---|---|
Power Supply | Single-phase AC (120V/230V) | Three-phase AC (industrial standard) |
Typical Applications | Homes, small offices | Factories, large motors |
Efficiency | Lower | Higher, smoother operation |
Load Handling | Limited, less suitable for high torque | Handles high torque and load imbalances |
Control Features | Simple | Advanced (PID, droop-control, protection) |
General purpose inverters are made for normal factory jobs. They give basic control. They work well for pumps, fans, and conveyors. High-performance inverters are for tough jobs in planes, the military, and heavy industry. These inverters give advanced control and more power. They also work at wider frequency ranges. For example, high-performance models can go up to 400 Hz or more. General purpose inverters usually stay near 50-60 Hz. Factories pick high-performance inverters for exact speed and torque control.
The parts inside inverters affect how they work. IGBT-based inverters are good for voltages over 400 V. They work best at frequencies below 100 kHz. They can handle lots of power and stay cool. MOSFET-based inverters are better at high frequencies and lower voltages. This makes them great for switching power supplies and fast electronics. High-frequency inverters use these parts to give clean, steady power in labs and research. They are also used in aerospace. Engineers choose the right part based on voltage, frequency, and the job.
Note: Studies show that things like voltage, current, and temperature help sort and improve inverter performance. Machine learning now helps watch and make inverters work better in solar plants and other places.
Knowing about the types of frequency converters helps people pick the right one. Each type is best for certain jobs. People should think about what they need and local rules before buying. Experts can help with hard projects. New technology makes these devices better and easier to use.
A frequency converter changes how often electricity flows. This lets machines work at the right speed or power. Factories and homes use them to save energy. They also help protect equipment from damage.
A rotary frequency converter has moving parts like motors and generators. A solid-state converter uses electronic parts and has no moving pieces. Rotary types can handle more power. Solid-state types are smaller and easier to care for.
People use frequency converters in factories, trains, ships, and airplanes. They also help in data centers and green energy systems. These devices keep machines working well and help save energy.
Yes, frequency converters help save energy. They let motors and machines run only as fast as needed. This cuts down on wasted power and lowers electric bills.
