A frequency converter changes how often electric power cycles. This helps control how fast motors spin. It lets people control motor speed very exactly. This makes machines work better and use less energy. Frequency converters are very important in factories today. Many factories use them to save energy and money. In 2023, the world market for frequency converters was about USD 24.18 billion. This big number shows that saving energy matters to many companies. By changing speed, frequency converters help follow energy laws and protect the environment.
A frequency converter working principle shows how the device changes electrical power. It helps control how fast a motor spins. The process uses several main parts. These parts work together to make adjustable frequency ac power for machines.
The frequency converter working principle needs three main parts:
Rectifier: Turns AC power into DC power.
Intermediate Circuit: Holds and smooths the DC power.
Inverter: Changes DC back to adjustable frequency ac power.
Control Circuit: Watches and manages the whole process.
The table below explains what each part does and why it is important:
Component | Function |
|---|---|
Rectifier | Changes AC into DC |
Intermediate Circuit | Stores and smooths DC |
Inverter | Makes DC into adjustable frequency ac power |
Control Circuit | Checks, adjusts, and protects the system |
The frequency converter working principle uses a step-by-step process:
The rectifier takes AC from the grid and makes it DC.
The intermediate circuit stores and smooths the DC.
The inverter uses switches to turn DC into AC with a new frequency.
The control circuit sets the output frequency and voltage.

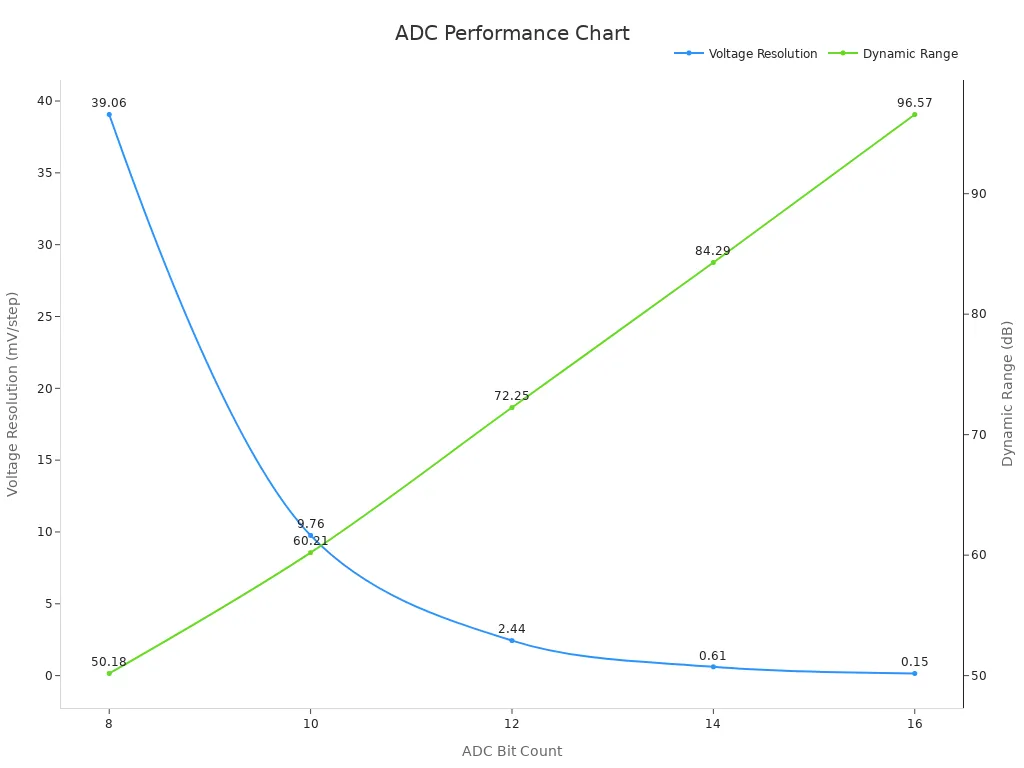

This process lets the converter make the right frequency and voltage. Modern converters use digital signal processors to make signals better and lower noise. The chart below shows how better analog-to-digital conversion helps voltage resolution and dynamic range:
The control circuit is like the brain of the frequency converter working principle. It uses sensors and smart programs to watch the system and make quick changes. It can find problems like too much current or heat and turn off the converter to keep it safe. The control circuit also helps the converter follow grid rules and keeps motors running well, even if the power supply changes. This careful control makes sure the converter gives safe, steady, and efficient adjustable frequency ac power.
Frequency converters do many helpful things in today’s factories. These devices help machines work better and last longer. The main benefits are precise speed control, energy efficiency, energy saving, and adaptability. Each function helps equipment run better.
Frequency converters let people control how fast motors go. By changing the frequency, they set the right speed for each job. This helps control motor speed in many machines. Workers can pick the best speed for the task. This stops waste and keeps machines from going too fast or too slow. Machines can also handle different loads without stopping. This makes production lines work better and more reliably.
Tip: Precise speed control lowers wear on gears and belts. This means less fixing and longer equipment life.
Energy saving is one of the biggest benefits of frequency converters. When machines run at the right speed, they use less power. This saves energy and lowers electric bills. Frequency converters change the speed to fit what is needed. For example, a pump does not always need to go full speed. Slowing it down uses less energy. This helps with energy efficiency and helps companies reach green goals.
Function | Benefit |
|---|---|
Energy saving | Lower power use and costs |
Energy efficiency | Less waste, more output |
Frequency converters let motors start and stop gently. This soft start/stop keeps machines safe from sudden shakes. If a motor starts too fast, it can get damaged. A gentle start helps stop this problem. The same thing happens when stopping a machine. Soft stops keep parts safe and help avoid accidents. This keeps equipment safe and helps it last longer.
Machines often get different loads while working. Frequency converters help them adjust to these changes. They sense when loads go up or down and change the speed. This keeps things steady and stops overloads. It also means machines only use the energy they need. This helps with energy saving and energy efficiency. Workers can trust their machines to handle different jobs easily.
Note: Load adaptability helps control the process and stops costly downtime.
A frequency inverter helps many industries work better. Workers use it in pumps, fans, conveyors, and cranes. In construction, it controls cranes and hoists. This makes them safer and more exact. HVAC systems in big buildings use a frequency inverter. It changes fan and pump speeds to save energy and make people comfortable. Oil and gas companies use it for pumps and compressors. This keeps flow steady and saves power. The marine industry uses a frequency inverter for ship motors. This lowers fuel use and cuts pollution. Railways use it for regenerative braking. This turns braking energy into electricity.

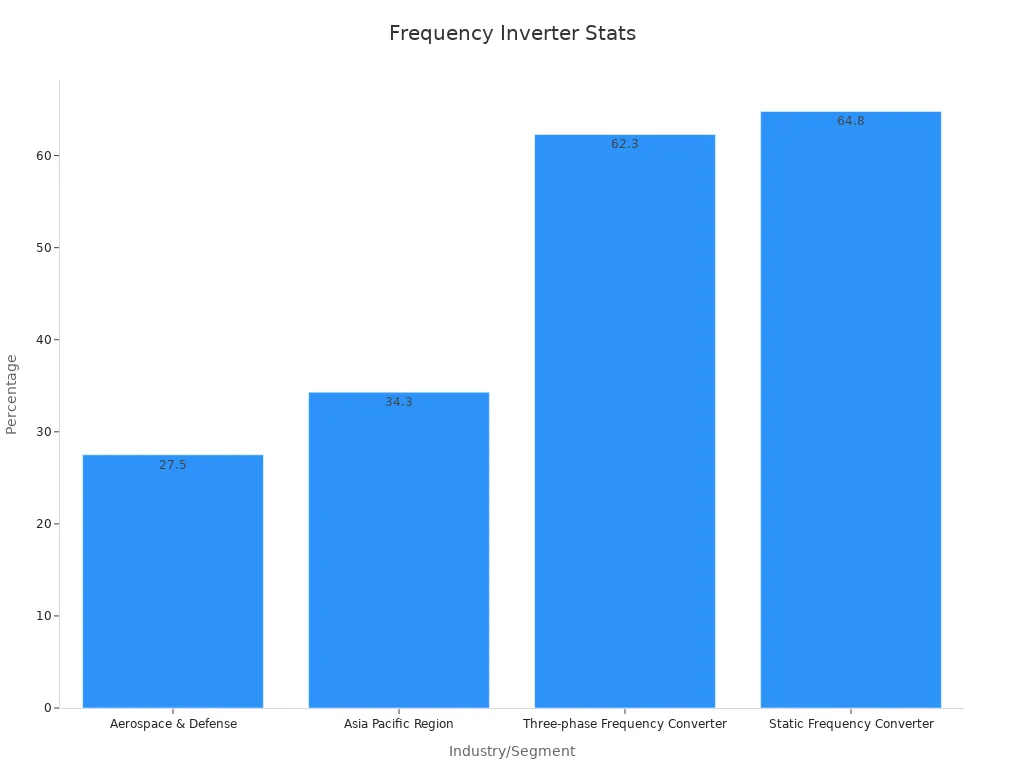

Industry/Segment | Statistic/Metric | Value/Projection |
|---|---|---|
Aerospace & Defense | Market share in 2023 | 27.5% |
Process Industry | Projected CAGR (2024-2032) | Fastest growth |
Asia Pacific Region | Market share in 2023 | 34.3% |
North America Region | Projected CAGR (2024-2032) | Fastest growth |
Three-phase Frequency Converter | Market share in 2023 | 62.3% |
Static Frequency Converter | Revenue share in 2023 | 64.8% |
A frequency inverter works with automation systems. It links to sensors and controllers. This lets people watch and control machines from far away. It helps factories keep machines working well and find problems early. In a test with LabVIEW and a fast digitizer, engineers saw something good. A frequency inverter with smart troubleshooting kept 83.4% of its output during faults. This is much better than old ways. The system also kept power quality high. It balanced voltages and cut unwanted signals. These things make a variable frequency drive important in modern factories.
Engineers look at different frequency inverter models to see how they handle problems.
They check power output, voltage, and frequency to see how the inverter works.
Tests show smart inverters can change fast. This keeps machines safe and working well.
Some jobs need very exact motor control. A frequency inverter with vector control can split the current. One part is for magnetizing and one is for torque. This lets it control speed and torque very well. Closed-loop vector control can give up to 200% torque even if the motor is not moving. This matters for robots, lab tools, and medical equipment. Direct torque control and advanced methods help the inverter react fast and keep motors steady. Variable frequency inverters use sensor feedback to adjust right away. This makes them great for high-precision work.
Note: High-precision control helps make products better and keeps sensitive equipment safe.
Buying a frequency converter costs more at first. Companies need to think about the price and how much it costs to set up. But looking at the costs and savings over time can show big benefits. Here is an easy way to check if it is worth it:
Write down all costs and savings, like buying, setting up, saving energy, and fixing.
Guess when each cost or saving will happen.
Use a discount rate to figure out what future savings are worth today.
Add up these values to get the net present value (NPV).
Compare the NPV with other choices. If the NPV is positive, it is a good investment.
Many companies see that frequency converters save money in the long run. These devices help motors use only the speed they need, so they use less energy. They also help machines last longer, so companies do not spend as much fixing or replacing them.
Tip: Frequency converters often pay for themselves by lowering energy bills and cutting downtime.
Frequency converters can make electrical noise. This noise happens because the device switches on and off very fast. It can cause voltage spikes, harmonics, and other problems. Sensitive electronics, like computers, may not work right if there is too much noise. The main types of noise are:
Spikes from switching
Harmonic distortions in the power line
Notching from power semiconductor devices
To stop noise, companies use shields, filters, and careful wiring. Keeping noisy machines away from sensitive ones also helps. Good planning and design can stop most noise problems.
Not every job needs a frequency converter. These devices work best when motors must change speed or handle different loads. For example, water pumps, fans, and conveyor belts use frequency converters to match speed to what is needed. This saves energy and helps motors last longer. There are different types for different jobs, like AC-DC-AC drives for factories or micro drives for small machines.
When picking a frequency converter, companies should:
Check the type of load and how much control is needed
Make sure the converter fits the system
Look at the vendor’s reputation and support
Think about special features for unique needs
Industries like manufacturing, HVAC, water treatment, and renewable energy get the most from these devices. Careful checking makes sure the right one is picked for each job.
Note: The good things about frequency converters are usually more than the bad, but each case should be checked before choosing.

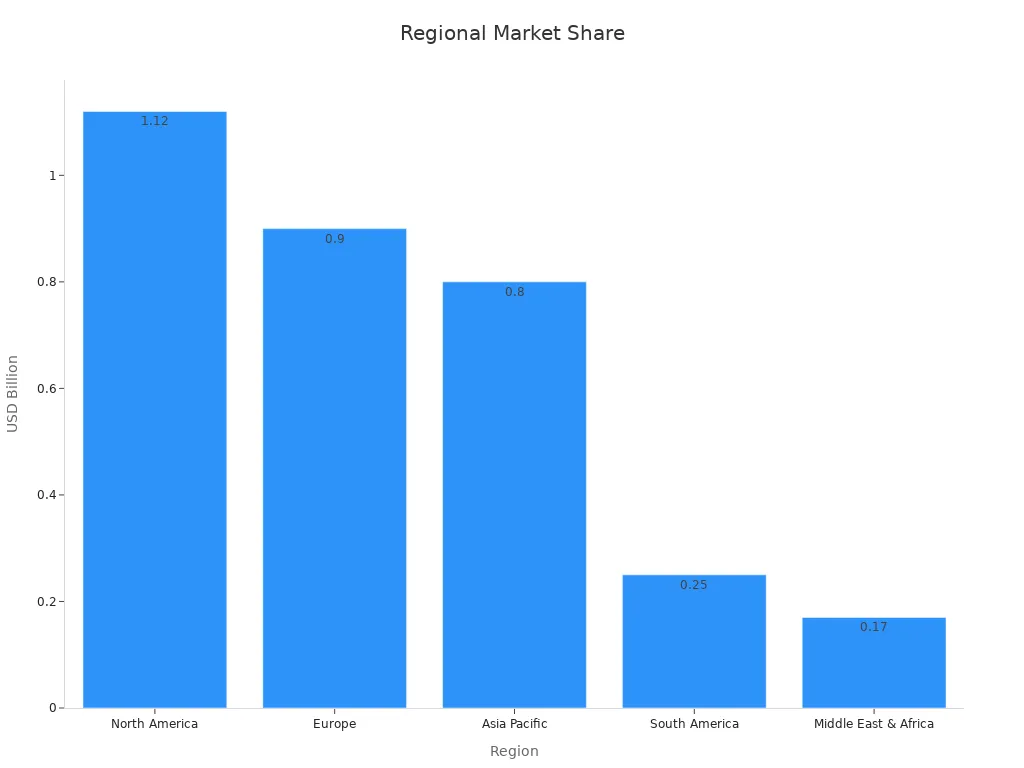

A frequency converter helps control how fast a motor goes. It changes electrical power to do this job. This makes machines work better and last longer. Many industries use this technology, like manufacturing and aerospace. Static models are very efficient and do not need much fixing. In 2023, the market was worth 3.24 USD Billion. This shows more people want to save energy and have reliable machines. Companies pick a frequency inverter for exact speed, good energy use, and longer machine life.
A frequency converter changes how often electricity cycles. This lets people change how fast a motor turns. It helps machines run better and saves power.
Most frequency converters work best with AC motors. Some motors need special settings or extra parts. Always check what kind of motor you have first.
Factories use frequency converters to save power and control speed. These devices help machines last longer and lower power bills.
Frequency converters can make electrical noise. This noise can bother other devices. Good wiring, filters, and shields help stop this problem.
A frequency converter helps the environment by saving power. Machines only use the energy they need. This cuts pollution and helps green goals.
