Product Description

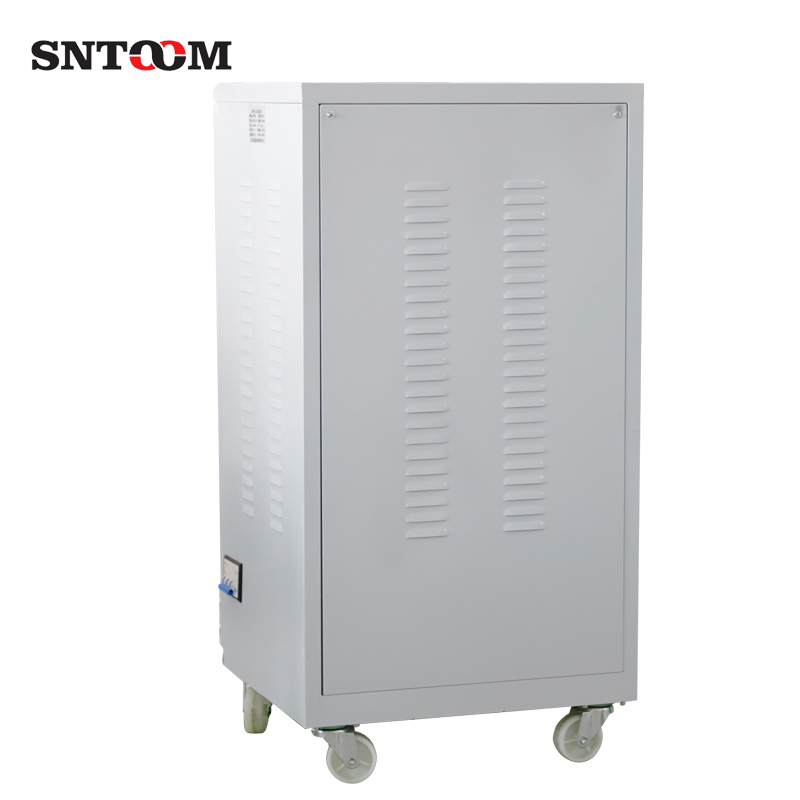

TNS series three-phase high-precision automatic AC voltage stabilizer is a combination of the performance of SVC series single-phase products. Its input phase system is three-phase four-wire system, output voltage is 220V phase voltage and 380V line voltage. Within the range of rated capacity, it can be used for electrical equipment with a single-phase 220V or three-phase 380V at the same time, without overvoltage protection.
Products can be widely used in office equipment, testing equipment, medical equipment, industrial automation equipment, household appliances, lighting systems, communication systems and other places where electricity is used.
Technical Parameters
Input Voltage | Phase voltage 160V~250V Line voltage 277V~430V | Effectiveness | >90% |
Output voltage | Phase voltage 220V Line voltage 380V | Relative Humidity | ≤90% |
Stabilization accuracy | 220V ±3% , 380V±3% | Working Frequency | 50 / 60Hz |
Wave Distortion | No additional waveform distortion | Load Power Factor | 0.8 |
Adjust Time | ≤1s (When the input voltage changes 10%) | Electric Strength | 1500/min |
Ambient Temperature | -5℃ ~ +40℃ | Insulation Resistance | ≥2MΩ |
Specification
Model(KVA) | Product Size L×W×H(cm) | Packing L×W×H(cm) | Weight(KG) | Package (Set/carton) |
SVC/TNS-1.5 | 40×36×17 | 52×48×28 | 7 | 1 |
SVC/TNS-3 | 42×38×17 | 54×50×31 | 10 | 1 |
SVC/TNS-4.5 | 42×38×19 | 54×50×31 | 15 | 1 |
SVC/TNS-6 | 37×28×69 | 48×40×78 | 39 | 1 |
SVC/TNS-9 | 35×33×78 | 48×45×90 | 48 | 1 |
SVC/TNS-15 | 43×38×73 | 55×51×90 | 85 | 1 |
SVC/TNS-20 | 43×51×91 | 64×55×106 | 124 | 1 |
SVC/TNS-30 | 43×51×91 | 64×55×106 | 131 | 1 |
SVC/TNS-45 | 65×43×95 | 78×55×110 | 197 | 1 |
SVC/TNS-80 | 77×55×100 | 90×67×115 | 290 | 1 |
SVC/TNS-100 | 77×55×100 | 90×67×115 | 350 | 1 |
