Product Description

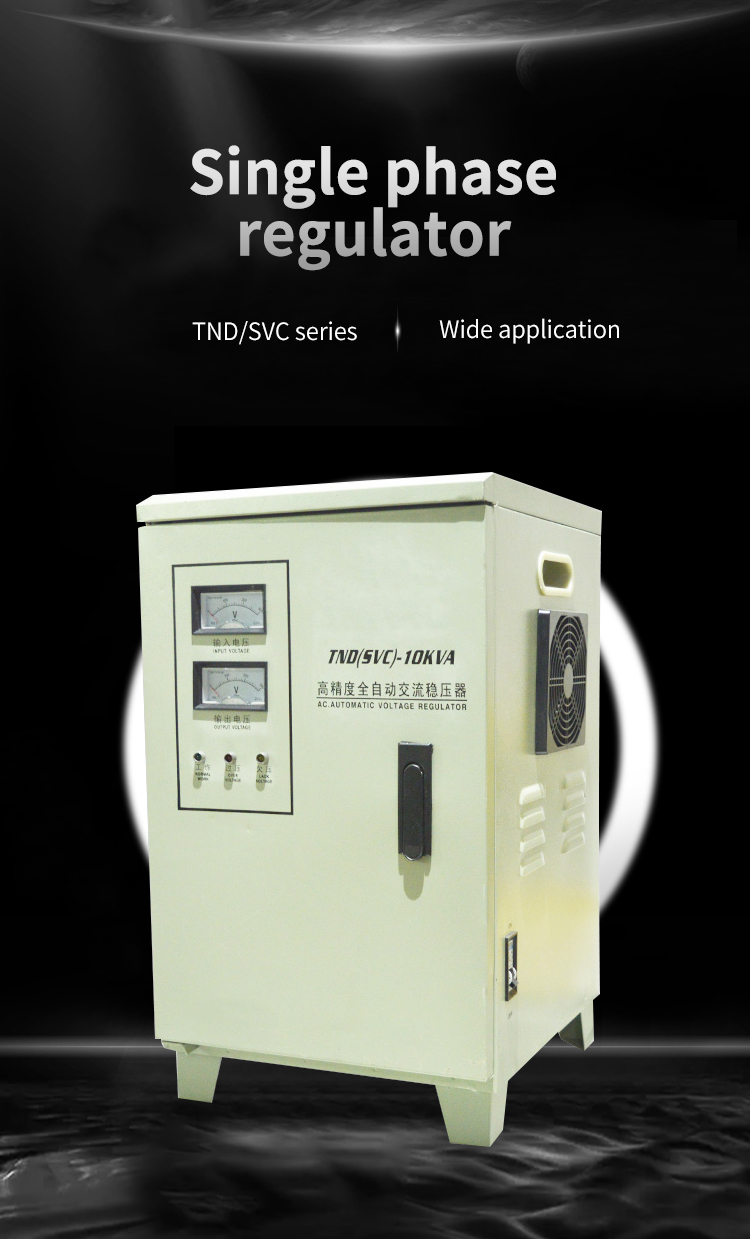

The notable feature of SVC/TND series single-phase voltage stabilizer is the use of digital display technology, which can automatically display delay time, output voltage, protection status, etc., with delay protection, over-voltage, under-voltage protection, automatic alarm, and comprehensive protection And other excellent features. (Note: Only products above 2kVA have no delay, over-voltage, and under-voltage protection functions.)
Products can be widely used in office equipment, testing equipment, medical equipment, industrial automation equipment, household appliances, lighting systems, communication systems and other places where electricity is used.
Technical Parameters
Input Voltage | Single-phase 140V ~250V, Three-phase 277V~430V | ||
Output Voltage | ① 0.5KVA ~ 3KVA :Single-phase 220V & 110V, ② 5KVA ~ 30KVA : Single-phase 220V,Three-phase 380V | ||
Stabilization Accuracy | 220V ±3% & 110V±6%, 380V±3% | ||
Adjust Time | ≤1.5s (When the input voltage changes 10%) | ||
Over-voltage Protection | 246±4V ,380V±4V | Load Power Factor | 0.8 |
Ambient Temperature | -5℃ ~ +40℃ | Relative Humidity | ≤90% |
Wave Distortion | No additional waveform distortion | Insulation Resistance | ≥2MΩ |
Delay Time | 5s±2s,5min±2min | Electric strength | 1500/min |
Working Frequency | 50 / 60Hz | Effectiveness | >90% |
Specification
Model(KVA) | Product Size L×W×H(cm) | Packing L×W×H(cm) | Weight(KG) | Package (Set/carton) |
TND-0.5 | 19×18×14.5 | 44×25×35 | 4.8 | 4 |
TND-1 | 22.5×20.5×15.5 | 50×28×40 | 6.1 | 4 |
TND-1.5 | 22.5×20.5×15.5 | 50×28×40 | 6.4 | 4 |
TND-2 | 23.5×27×19.5 | 32×30×24 | 10.4 | 1 |
TND-3 | 23.5×29.5×23 | 36×30×32 | 13 | 1 |
TND-5 | 23.5×32.5×28 | 54×32×27 | 18.3 | 1 |
TND-10 | 39×24×42 | 40×35×52 | 40 | 1 |
TND-15 | 40×33×65 | 48×45×90 | 75 | 1 |
TND-20 | 58×35×68 | 68×48×90 | 110 | 1 |
TND-30 | 53×43×129 | 64×53×112 | 165 | 1 |
TND-45 | 79×43×29 | 90×65×140 | 200 | 1 |
TND-60 | 79×43×29 | 90×65×140 | 250 | 1 |
