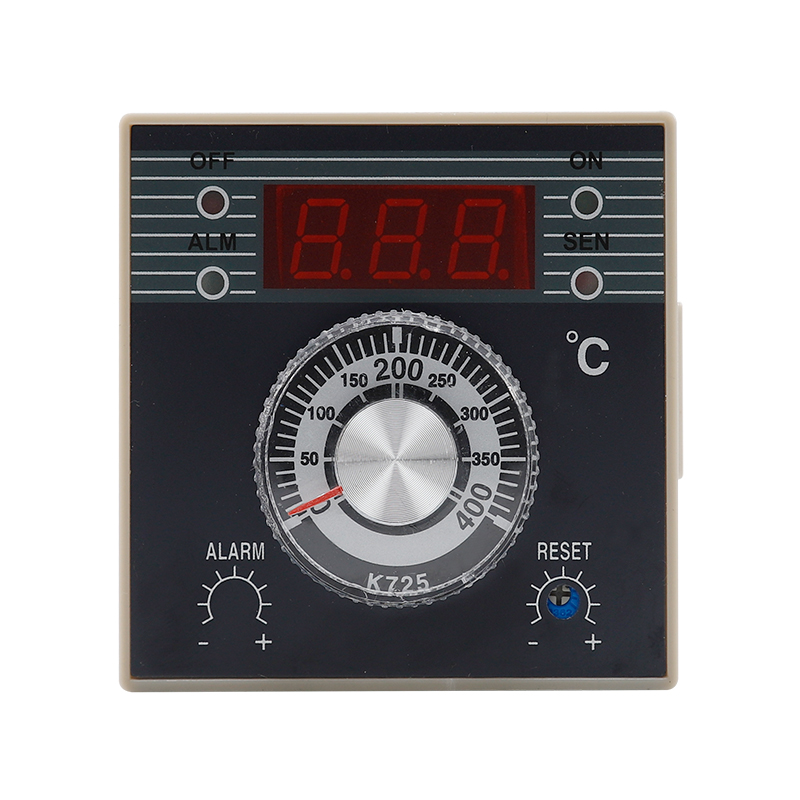

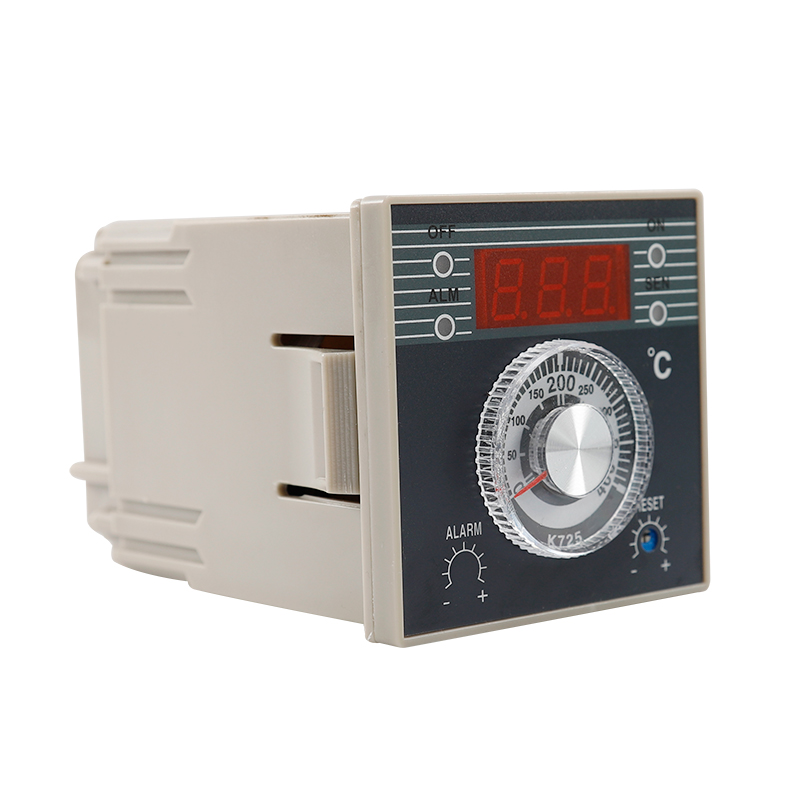

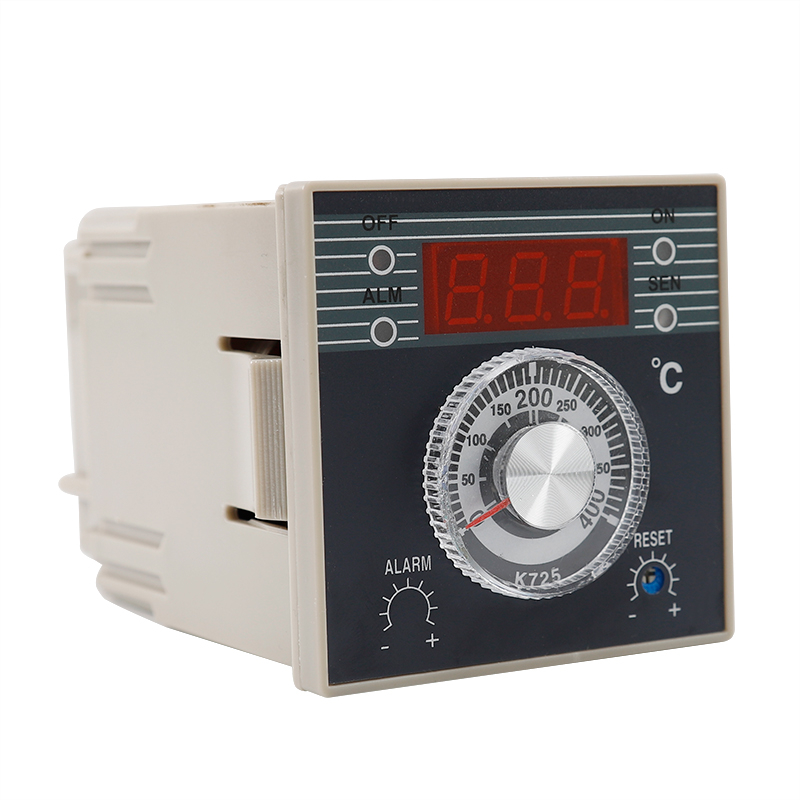

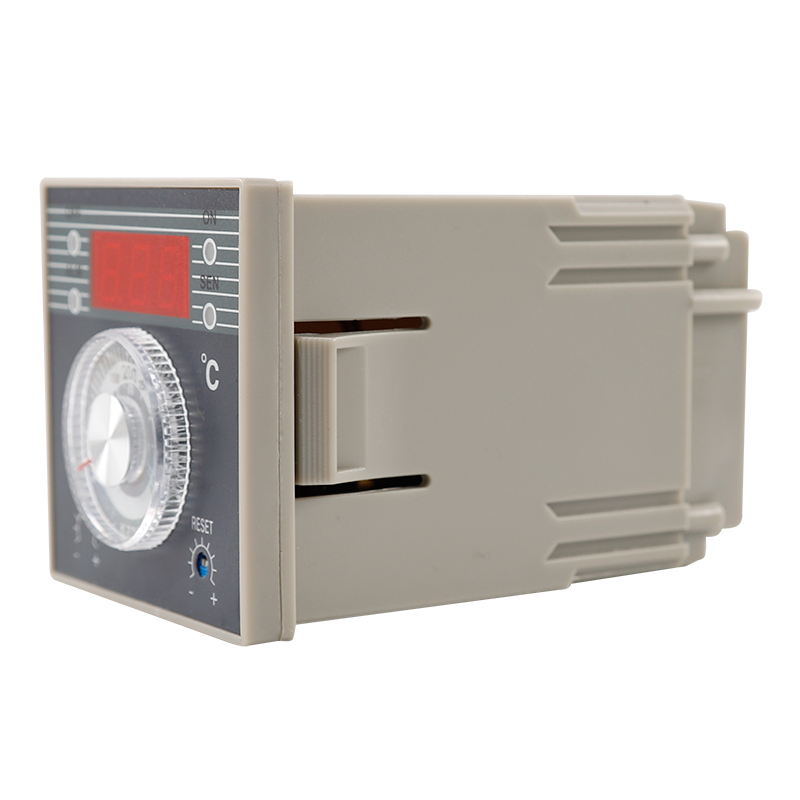

Digital Display Temperature Controller K725

Product advantages and features

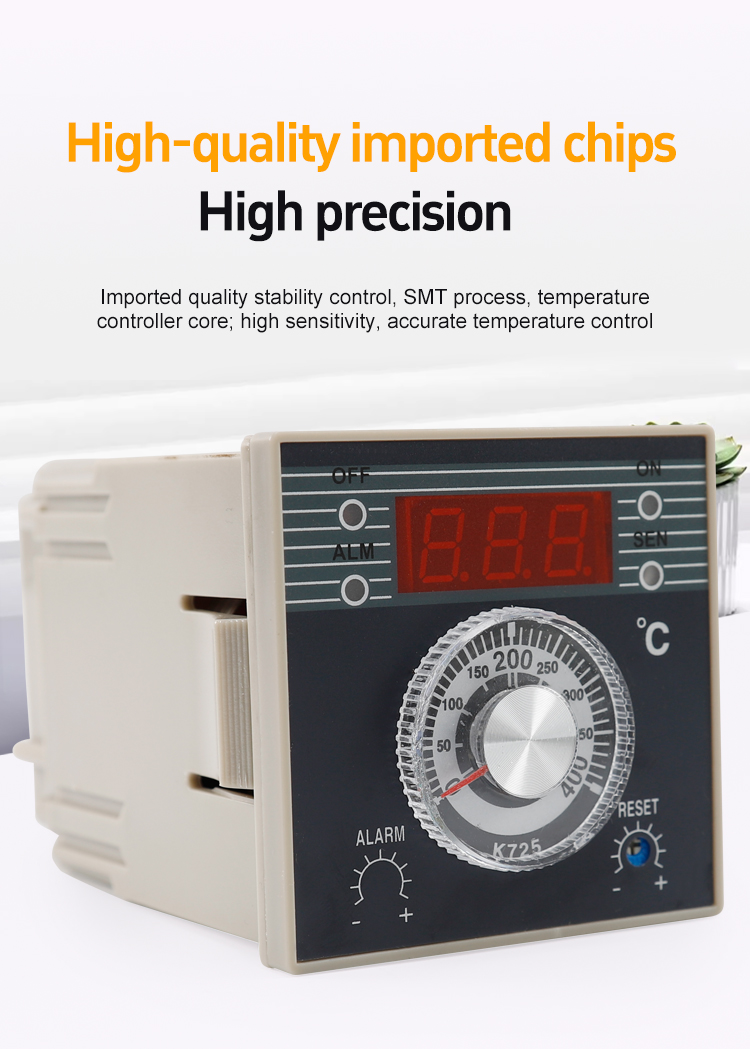

• High-Precision Temperature Control
  Supports K-type, J-type, and Pt100 input signals with 0.5 or 1.0 grade accuracy for reliable and stable control.

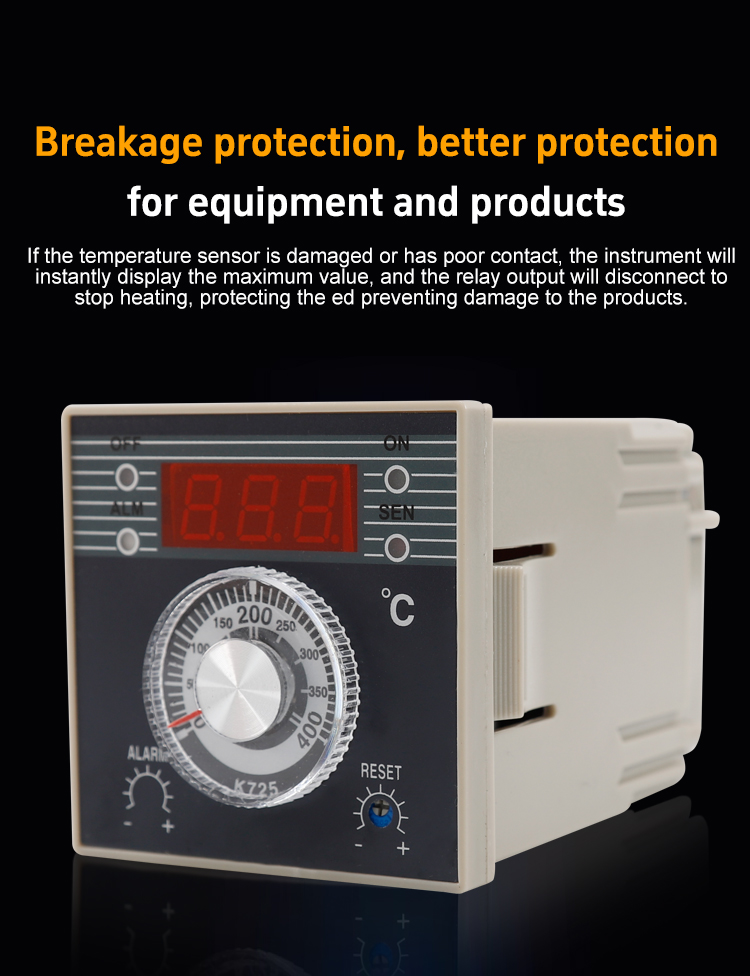

• Break Protection for Safety
  Automatically stops heating and disconnects relay output if the temperature sensor is damaged or has poor contact, protecting both equipment and products.

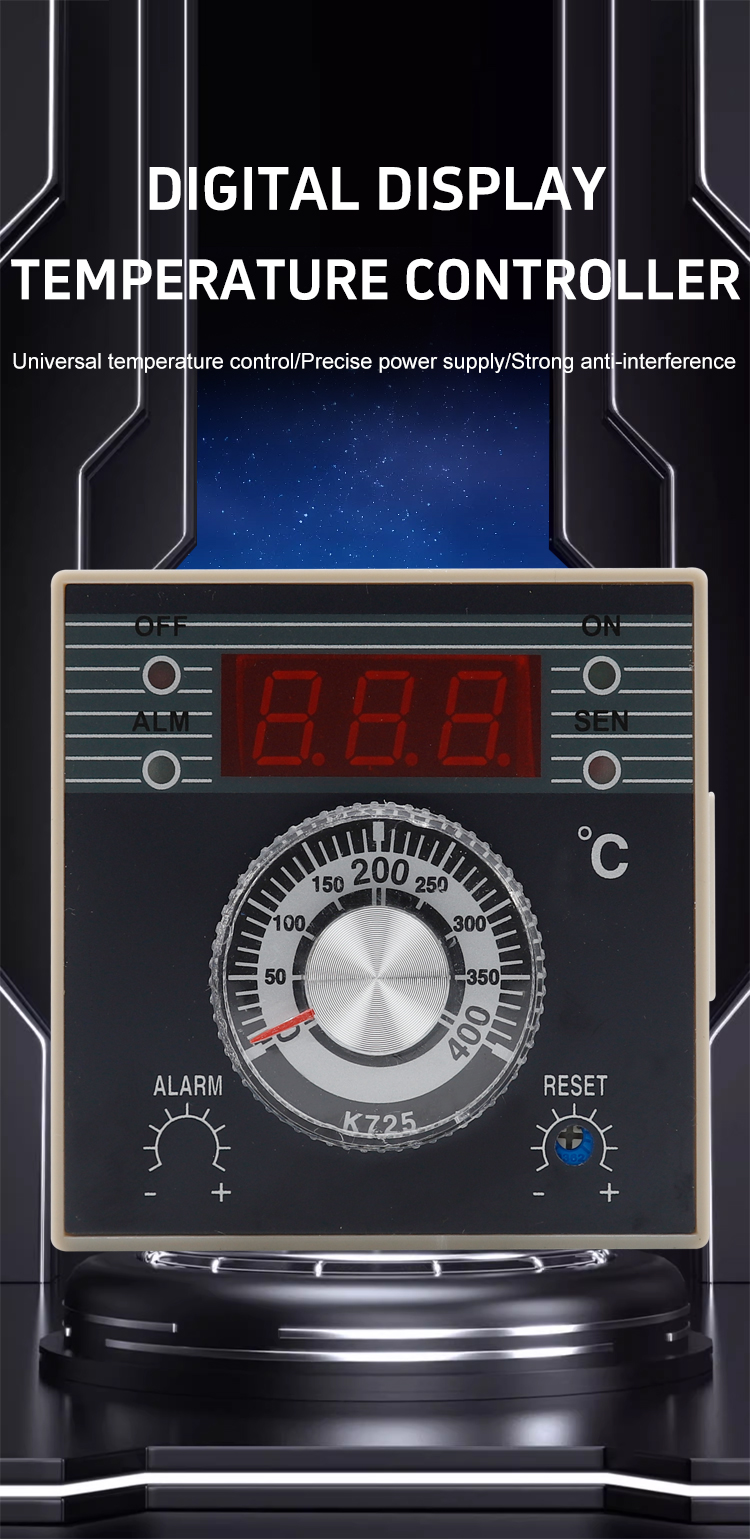

• Dual LED Display
  Real-time display of working voltage and current for easy monitoring.

• Multiple Output Options
  Compatible with SSR, relay (4-20mA), and alarm output, suitable for various control needs.

• Wide Power Compatibility
  Works with AC110V and AC220V, 50/60Hz, making it adaptable to different power environments.

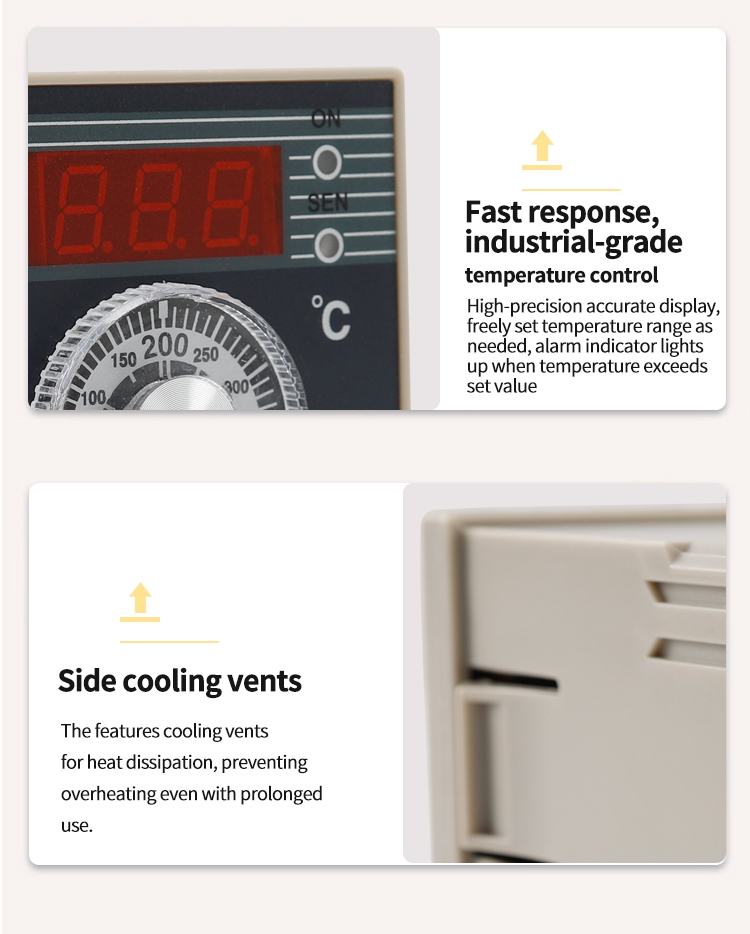

• Efficient Heat Dissipation
  Side cooling vents prevent overheating during prolonged use, ensuring long-term reliability.

Installation and Instructions

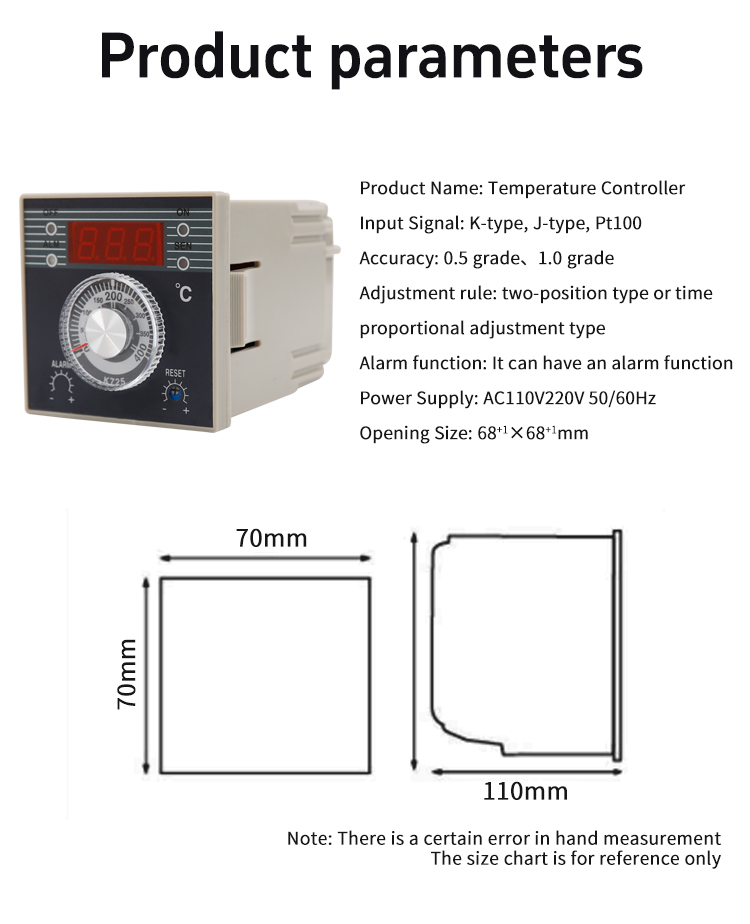

• Cut a mounting hole of 68mm × 68mm on the panel based on the product dimensions.

• Insert the temperature controller into the hole and secure it with the mounting brackets.

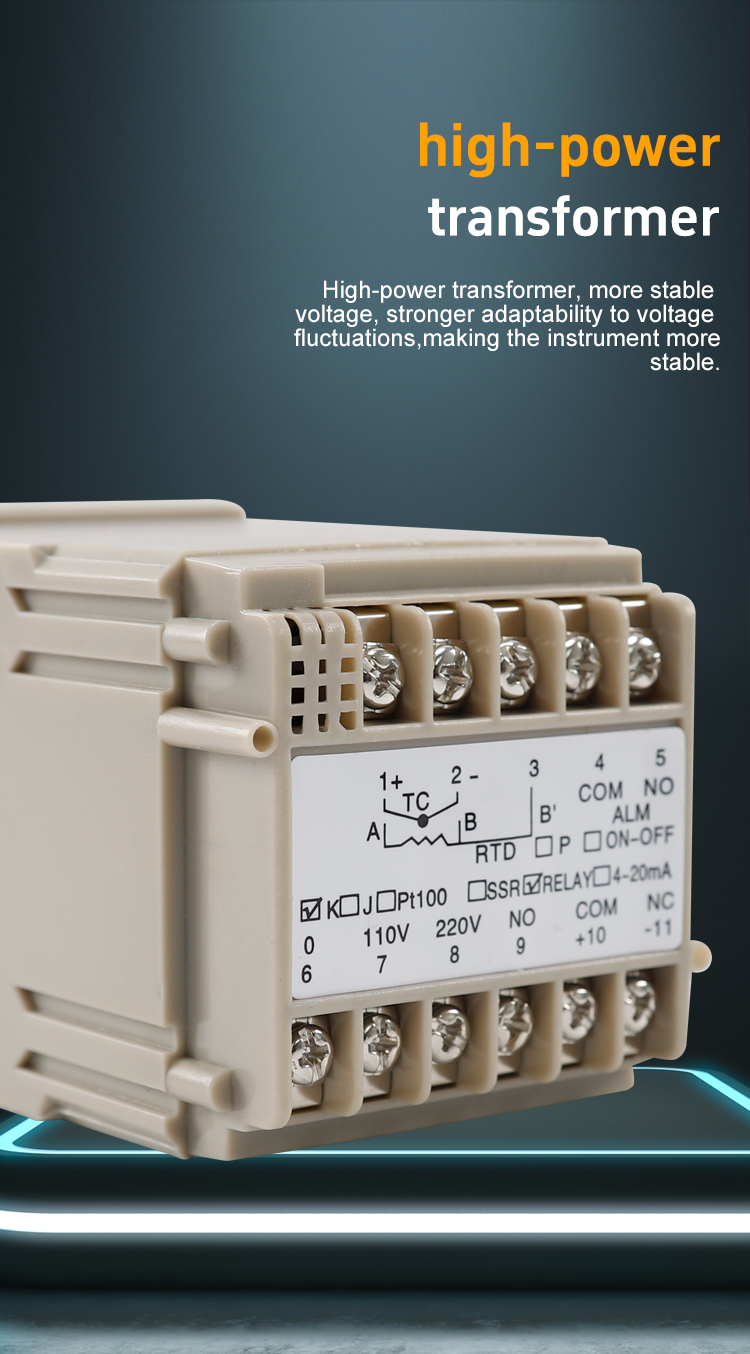

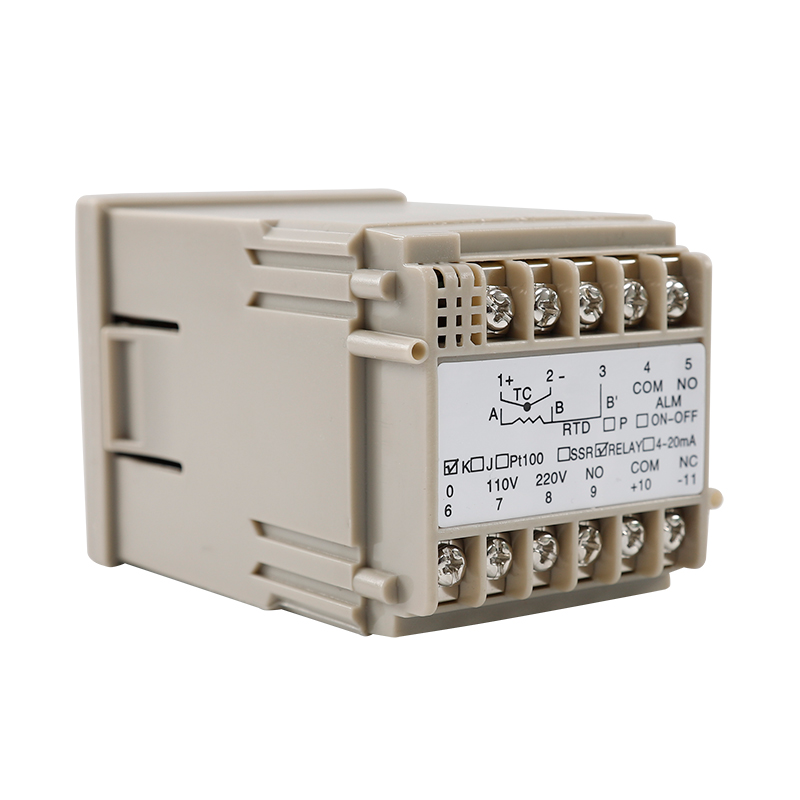

• Connect the power supply (AC110V or AC220V) to the corresponding terminals (110V / 220V).

• Connect the temperature sensor (K-type, J-type, or Pt100) to the input terminals.

• Connect the load (heater, relay, SSR, or alarm device) to the output terminals as required.

• Power on the unit and set the desired temperature parameters using the front panel buttons.

Note:
Ensure power is turned off before installation or wiring to prevent electric shock. Do not exceed the rated voltage or current specifications. Hand measurement of dimensions has a slight tolerance (±1mm for opening size). Refer to the actual product for precise installation. Regularly check sensor connections to avoid poor contact.

K725 Digital Display Temperature Controller: A Reliable Industrial Temperature Control Solution

The K725 digital display temperature controller is designed for precise and stable temperature regulation across industrial and commercial applications. It combines real-time monitoring, alarm functions, and output control to keep your equipment running safely.

One standout feature is break protection. If the temperature sensor is damaged or has poor contact, the controller instantly stops heating and disconnects the relay output, protecting both equipment and products.

The K725 supports K-type, J-type, and Pt100 inputs with 0.5 or 1.0 grade accuracy, making it suitable for ovens, cold storage, factories, and engineering equipment.

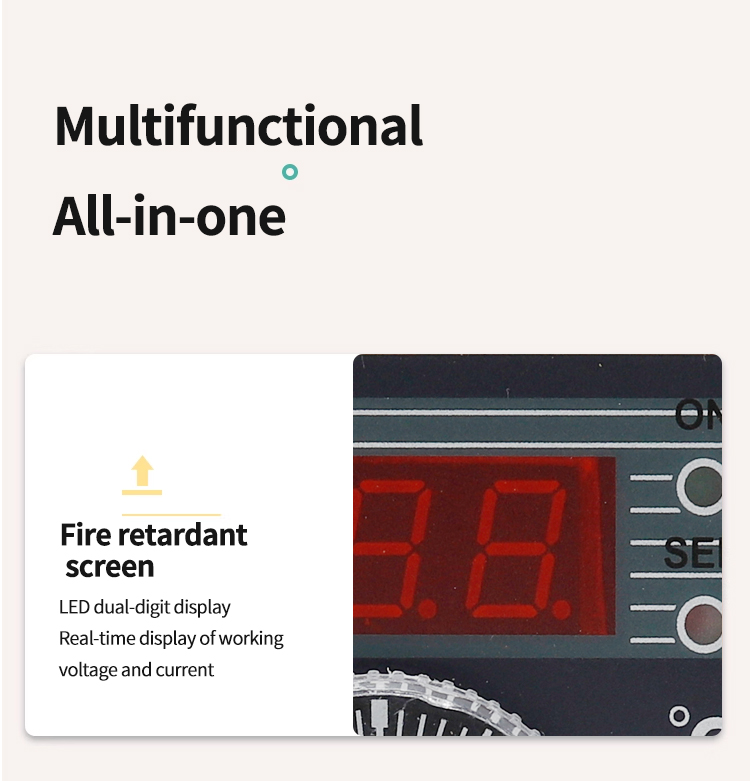

The LED dual-digit display shows real-time working voltage and current, while the alarm indicator lights up when temperature exceeds the set range. Side cooling vents prevent overheating during prolonged use.

In conclusion, the K725 is a robust, versatile solution for industrial temperature control. Its precision, break protection, and durable design make it a smart choice for any temperature-critical environment.
