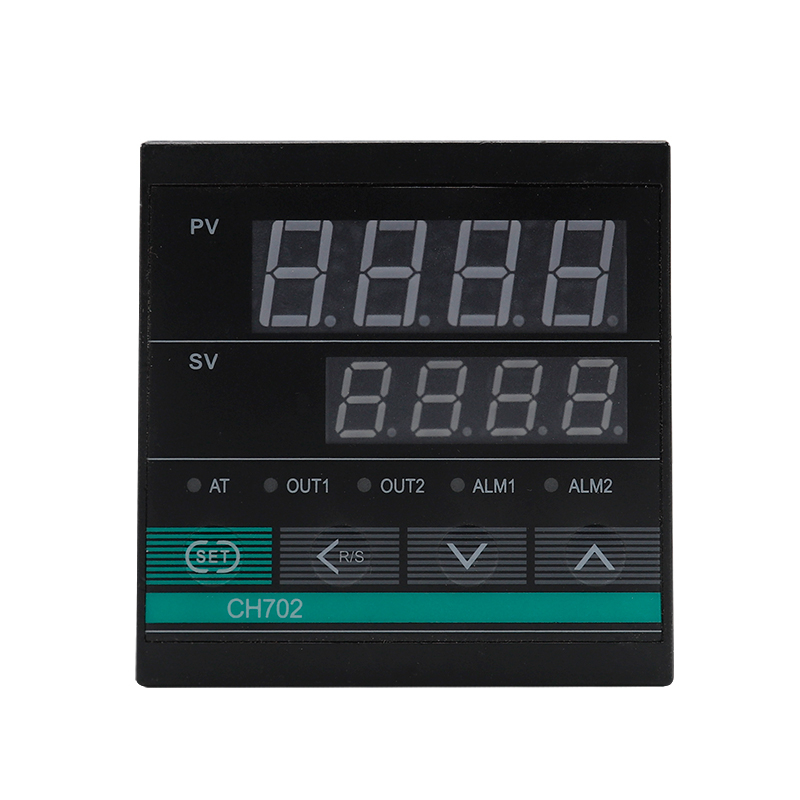

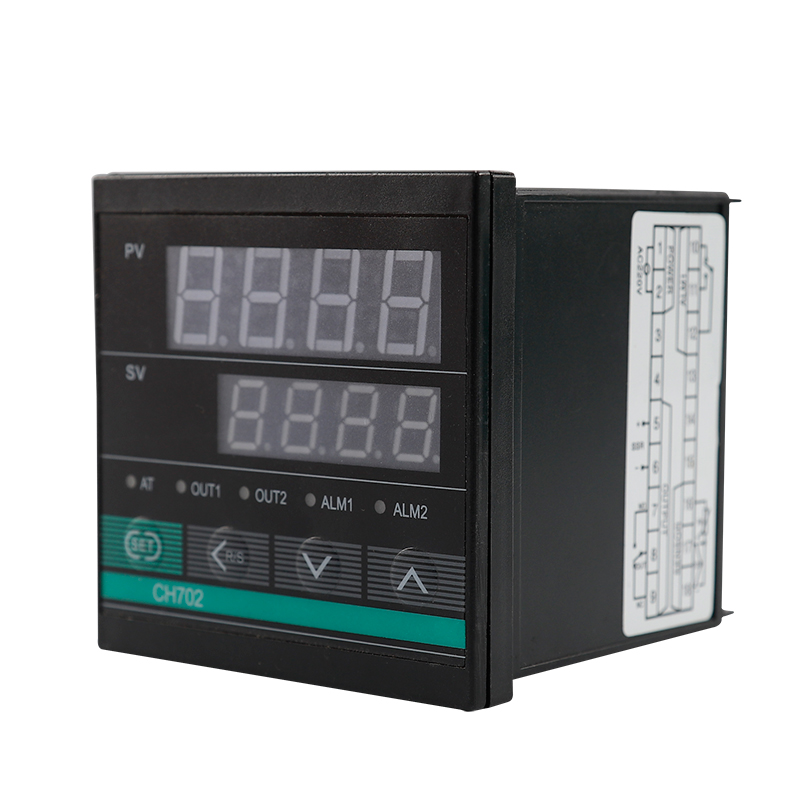

CH-702
SNTOOM
Breakage protection – Automatically disconnects relay output and stops heating if the temperature sensor is damaged or has poor contact, protecting both equipment and products.
High-precision control – Built with imported quality chips and SMT process, delivering high sensitivity and accurate temperature regulation.
Dual output modes – Supports relay and SSR solid-state dual output, offering flexible integration with different systems.
Industrial-grade temperature response – Fast response with PID or self-tuning control; alarm indicator lights up when temperature exceeds set range.

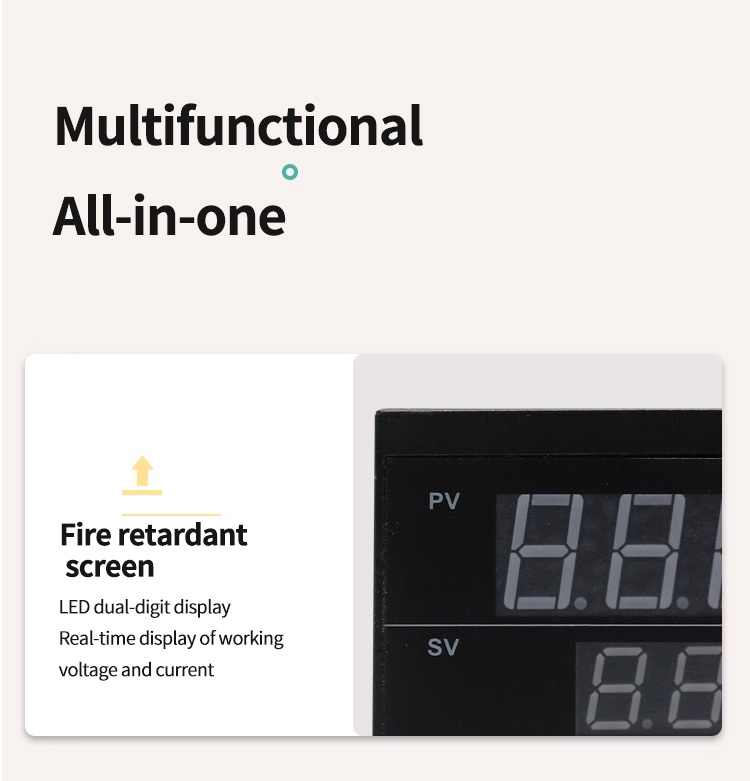

LED dual-digit display – Real-time display of working voltage and current, making it easy to monitor at a glance.

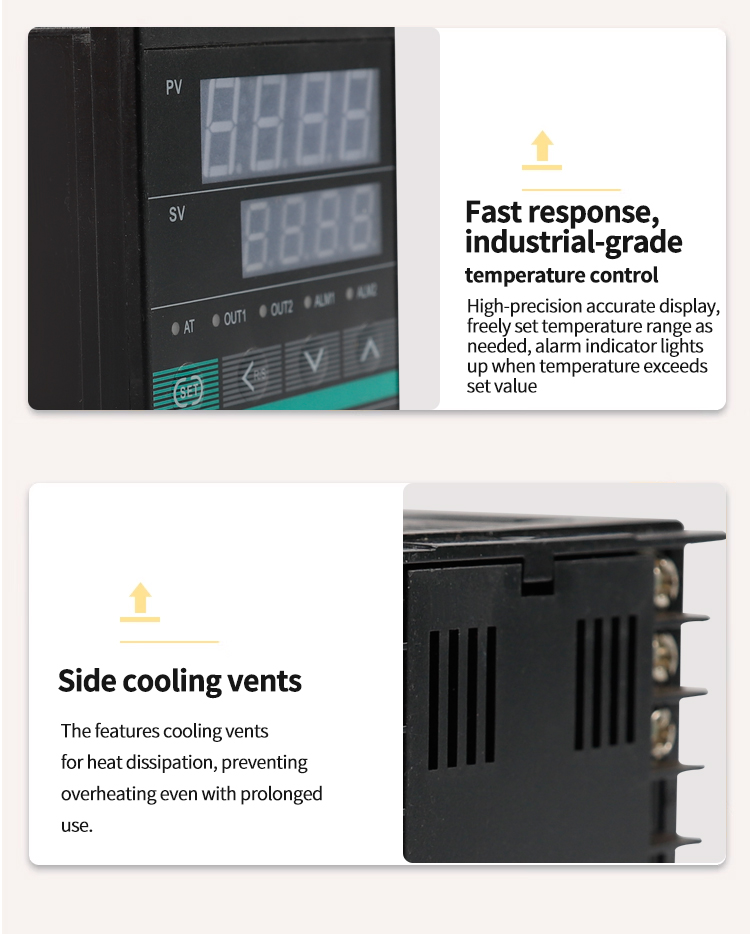

Safe and durable design – Flame-retardant screen with side cooling vents for efficient heat dissipation, preventing overheating even with prolonged use.
Wide application – Suitable for factories, ovens, cold storage, engineering, and various power usage scenarios.
Cut a 68x68mm opening on the panel where the controller will be installed.
Insert the controller through the panel opening and secure it with the mounting bracket.
Connect the temperature sensor (K type or PT100 optional) to the input terminal.
Connect the load (heater, cooling device, etc.) to the relay or SSR output terminal according to your control mode.
Connect the operating power supply (100–240VAC) to the designated terminals, ensuring correct wiring.
Power on the device; the LED display will show real-time PV (process value) and SV (set value). Adjust the temperature setpoint as needed.

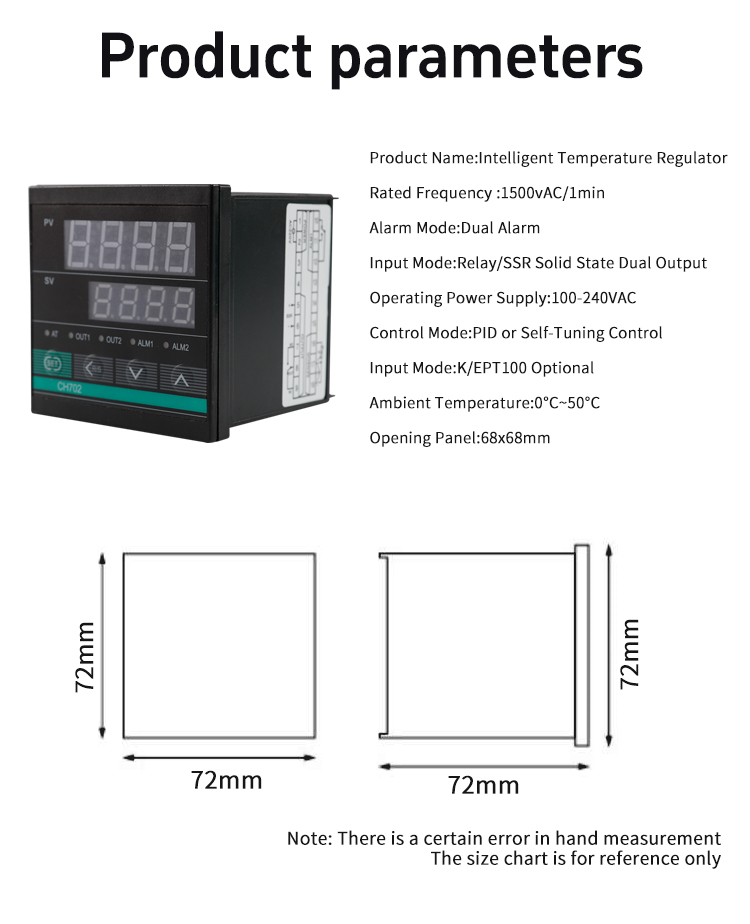

Ensure power is disconnected before installation or wiring to prevent electric shock. Do not exceed the rated frequency of 1500VAC/1min. Keep the ambient temperature between 0°C and 50°C for proper operation. Hand-measured installation dimensions may have slight errors; refer to the 72x72mm overall dimensions and 68x68mm panel cutout. Regularly check the sensor connection to avoid poor contact or damage. Do not disassemble or modify the unit, as this may affect performance and void the warranty.
The Smart Temperature Regulator STC-7000 is built for precise and stable temperature control across factories, ovens, cold storage, and engineering applications.

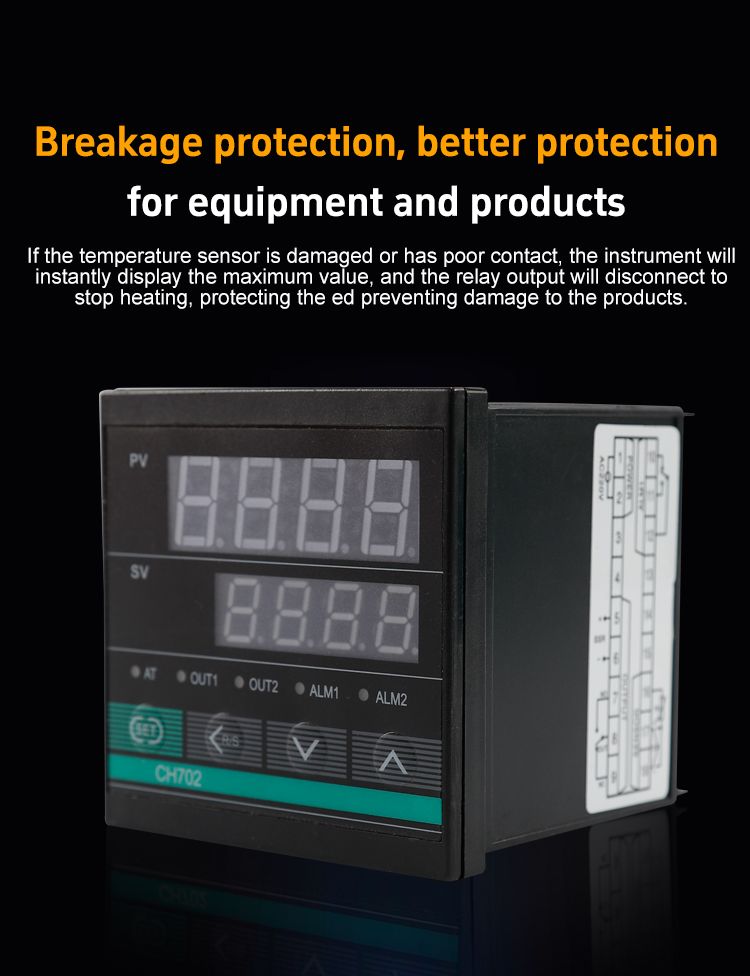

A key feature is its breakage protection. If the temperature sensor fails or has poor contact, the unit instantly displays the maximum value and disconnects the relay output to stop heating. This protects both your equipment and products.

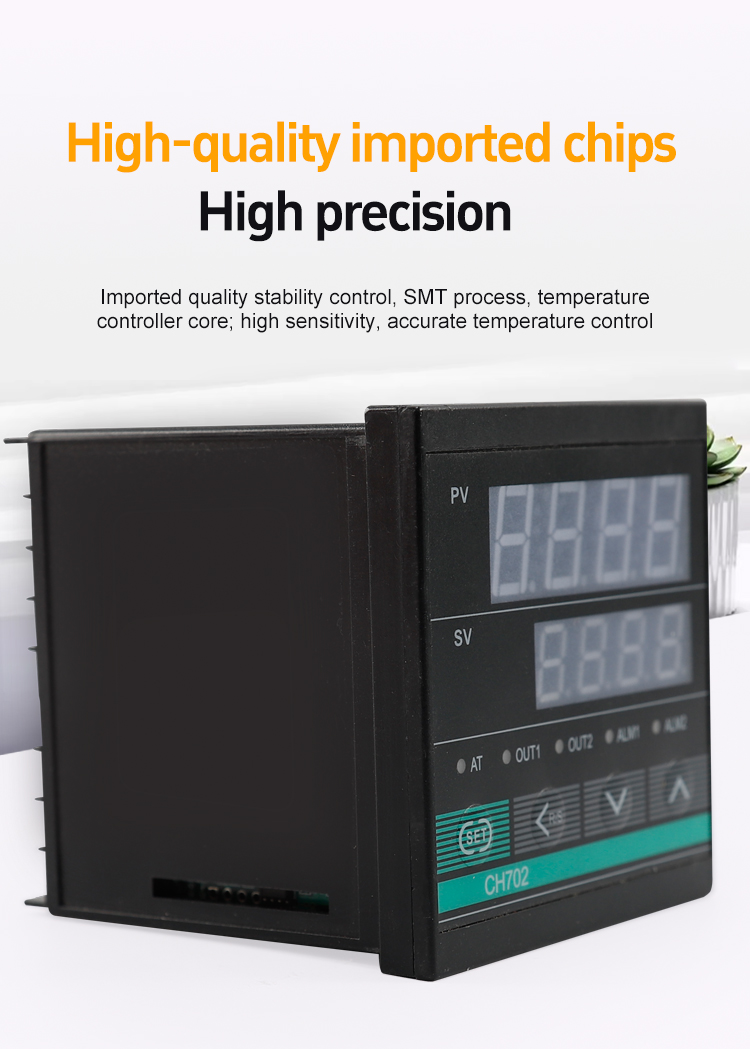

The STC-7000 uses high-quality imported chips with an SMT process for high sensitivity and accurate control. You can choose between PID or self-tuning modes, and the fast response time ensures real-time adjustments without lag.
The LED dual-digit display shows real-time voltage and current. Front panel indicators (AT, OUT1, OUT2, ALM1, ALM2) let you monitor system status at a glance. The flame-retardant screen and side cooling vents ensure safe, long-term operation.
It supports K-type or PT100 sensors, relay/SSR dual output, and operates on 100–240VAC. The panel opening size is 68x68mm (72x72mm overall). Simple to install and built to last, the STC-7000 is a solid choice for any setting that demands reliable temperature regulation.
