Product advantages and features

• Significantly reduced noise
  Thickened silencer lowers engine noise from 85dB to 70dB, much quieter than ordinary gasoline engines.

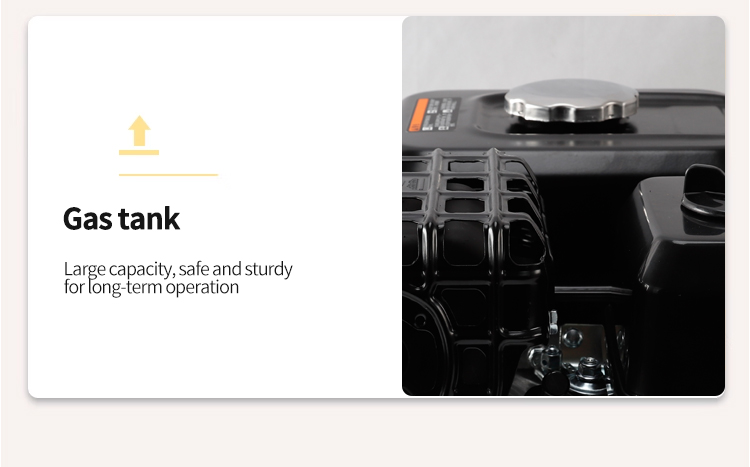

• Large fuel tank for long operation
  4.2L fuel capacity + 0.6L oil capacity, reduces refueling stops during field work.

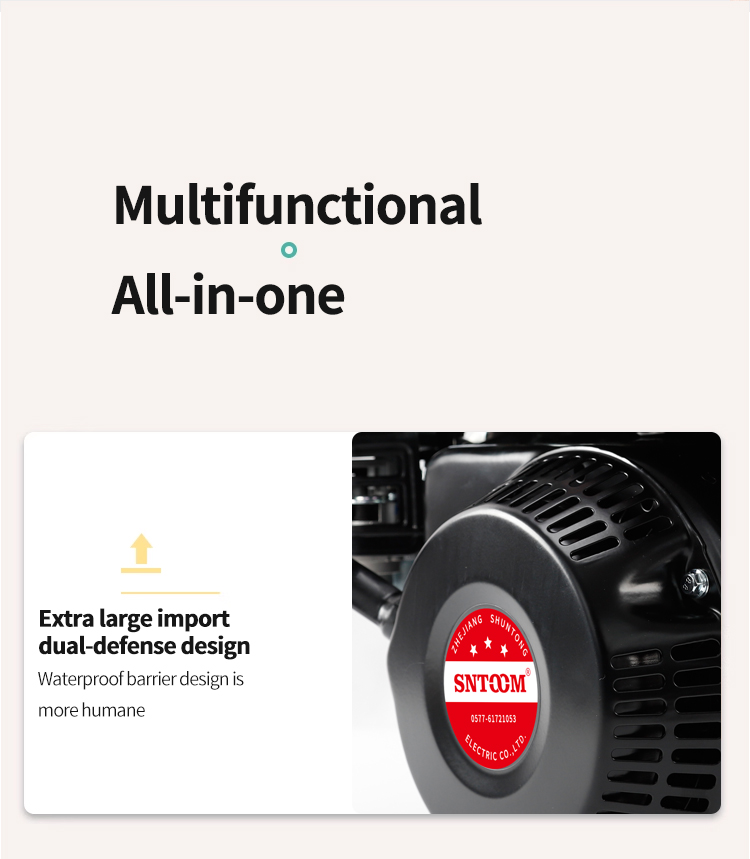

• Dual-defense intake design
  Extra-large intake with waterproof barrier, effective against dust and water splashes.

• Strong and reliable power

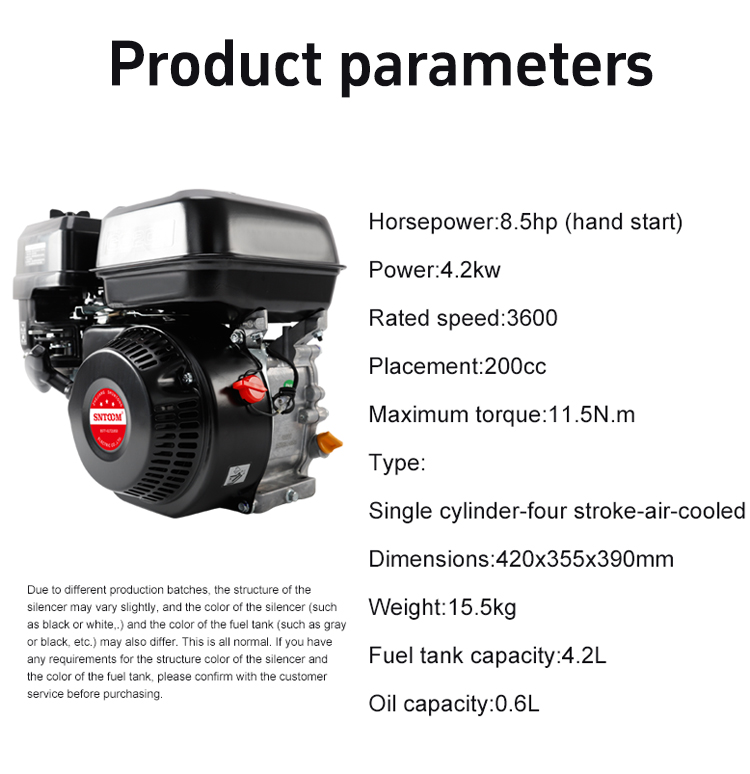

  8.5hp / 4.2kW output, 11.5N·m max torque, handles sprayers, pumps, outboards, and tillers with ease.

• Single cylinder 4-stroke air-cooled
  Stable running, low fuel consumption, low maintenance.

• Compact and portable
  Only 15.5kg, dimensions 420×355×390mm, easy to carry and mount on different machines.

Installation and Instructions

• Ensure the engine is mounted on a sturdy, level surface before operation. Use proper bolts to fix it securely.

• Check oil level before first start. Fill with recommended 4-stroke engine oil (0.6L capacity).

• Fill fuel tank with clean, unleaded gasoline (4.2L max). Do not overfill.

• Connect the throttle control and, if applicable, the equipment linkage (sprayer pump / water pump / tiller drive).

• Pull the hand start cord firmly to start. Adjust throttle to desired speed.

• Allow the engine to warm up for 1–2 minutes before applying load.

Note:
Always turn off the engine and let it cool before refueling. Do not operate indoors or in unventilated areas. Check oil level regularly and change after every 25 hours of use for first run, then per maintenance schedule. Keep air filter clean to ensure intake efficiency. Do not modify the governor or silencer; this may affect performance and safety. Store in a dry place when not in use.

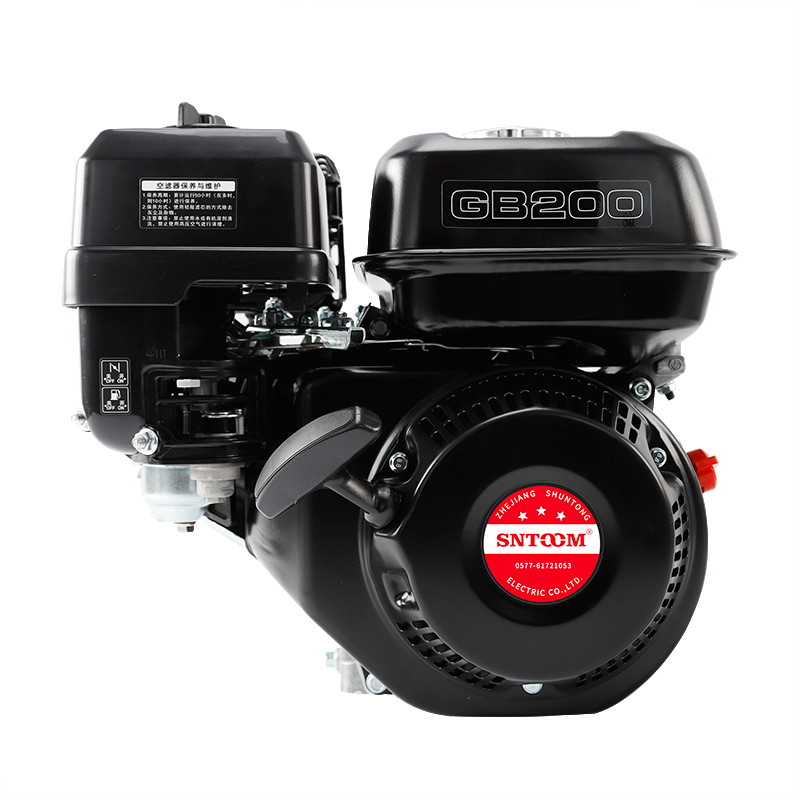

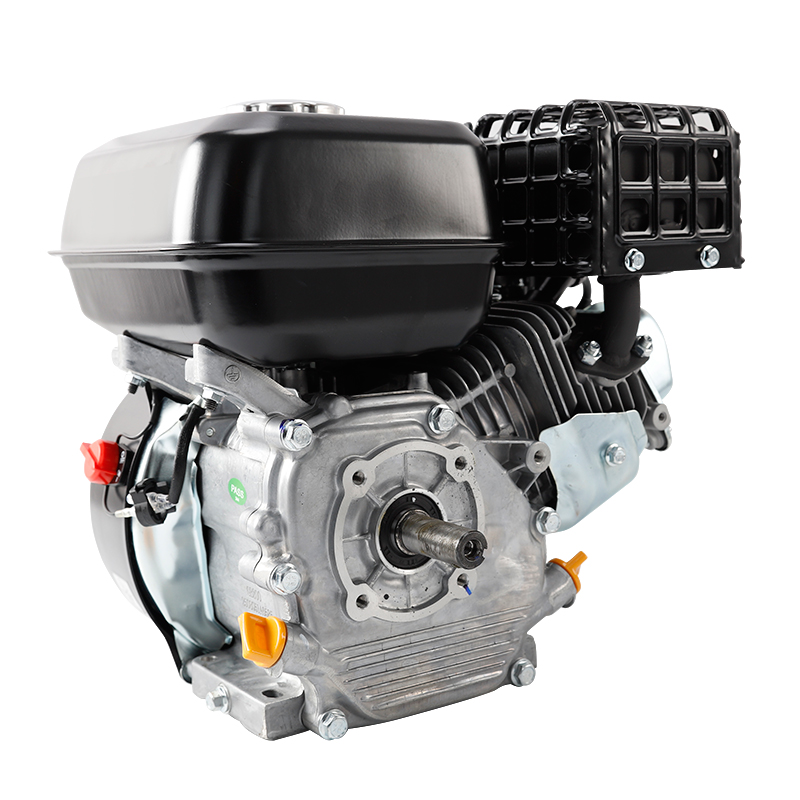

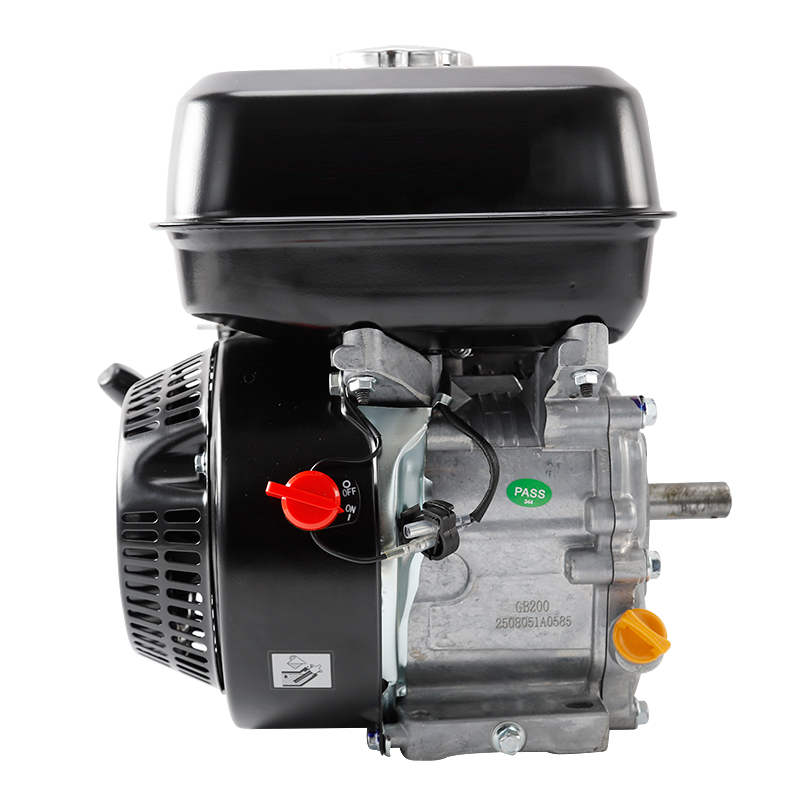

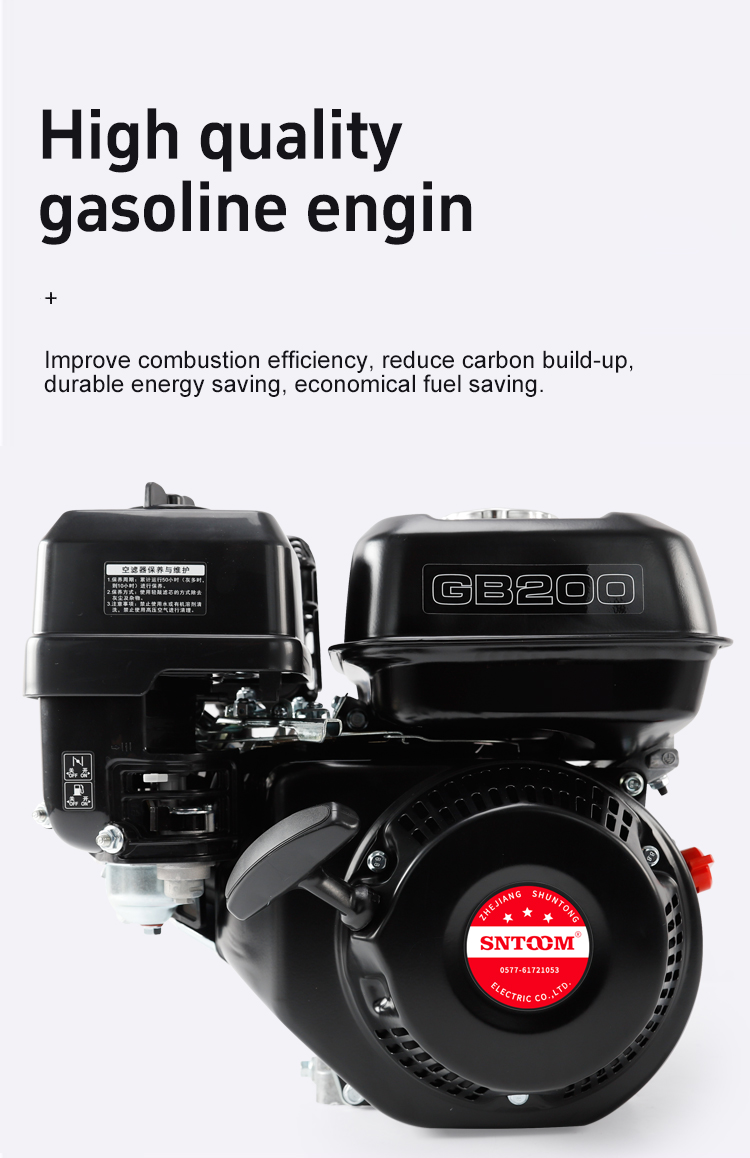

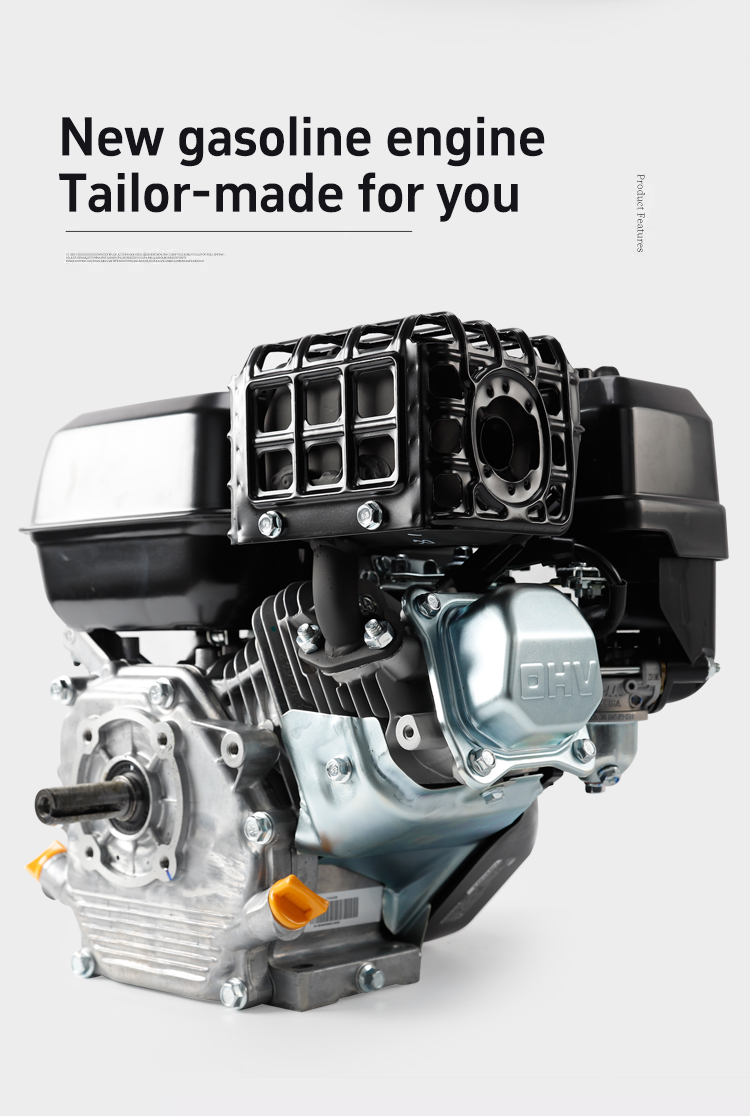

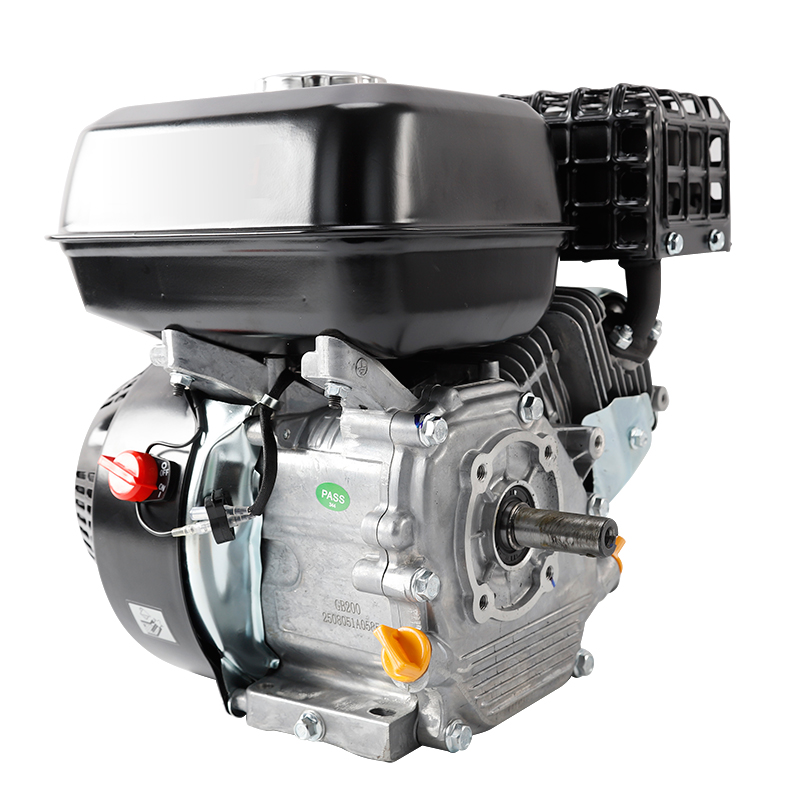

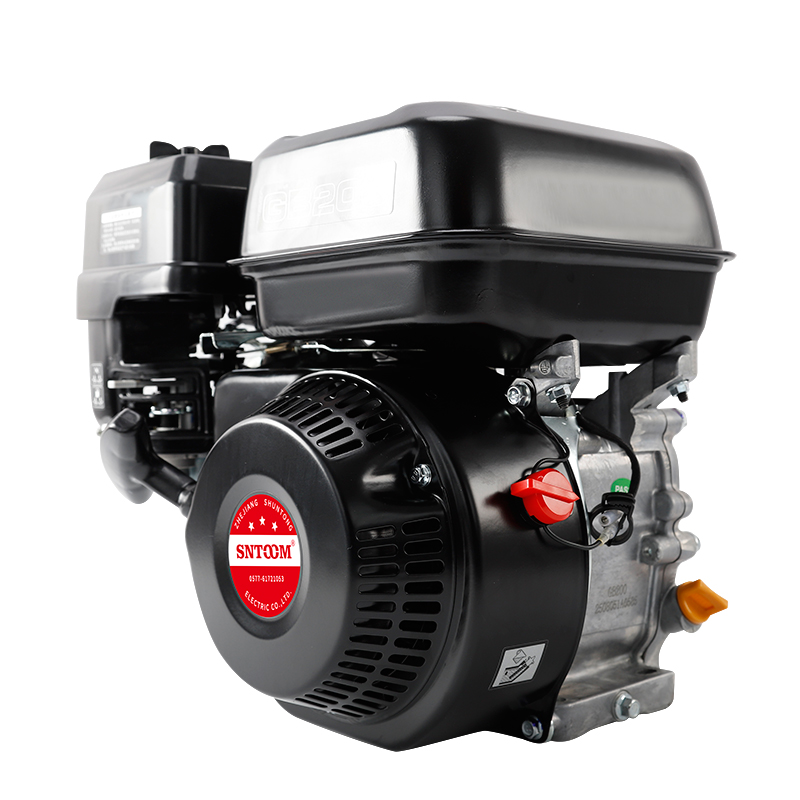

GB200 Gasoline Engine: A Reliable Power Solution for Agricultural and Industrial Equipment

The GB200 gasoline engine is a practical and durable power unit designed for a wide range of agricultural and light industrial applications. Built for sprayers, outboard motors, water pumps, and micro tillers, this engine delivers consistent performance where you need it most.

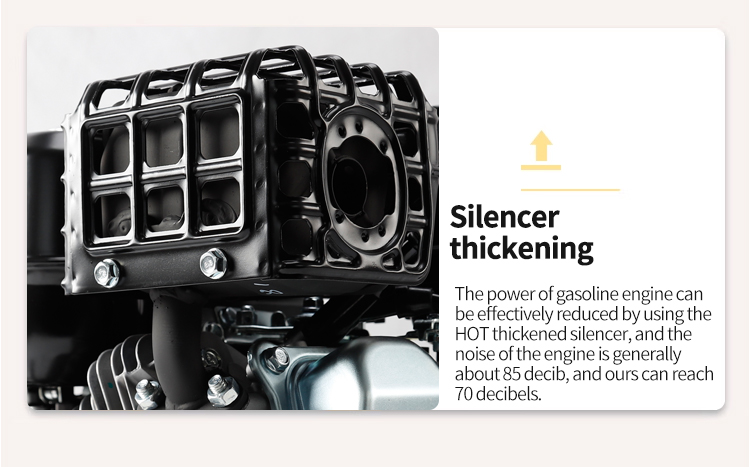

One of the standout features of the GB200 is its thickened silencer design. While many ordinary gasoline engines run at around 85 decibels, the GB200 brings noise levels down to just 70dB. This makes long-hour operation much more comfortable for the user, especially in farmland or residential-adjacent work environments.

The engine comes with an extra-large intake and dual-defense design, including a waterproof barrier. This feature effectively reduces dust and water intrusion, significantly improving reliability when working in dusty fields, humid conditions, or near spray applications.

As a single-cylinder, four-stroke, air-cooled engine, the GB200 offers a good balance between power and fuel efficiency. With 8.5 horsepower, 4.2kW output, and a maximum torque of 11.5N·m at 3600rpm, it provides ample pulling power for pumps, tillers, and small vessels. The 4.2L large-capacity fuel tank supports extended operation without frequent refueling.

In conclusion, the GB200 gasoline engine is a solid and versatile choice for farmers, equipment operators, and small machine manufacturers. Its combination of reduced noise, durable intake protection, stable four-stroke performance, and practical power output makes it a dependable workhorse for daily field use.
