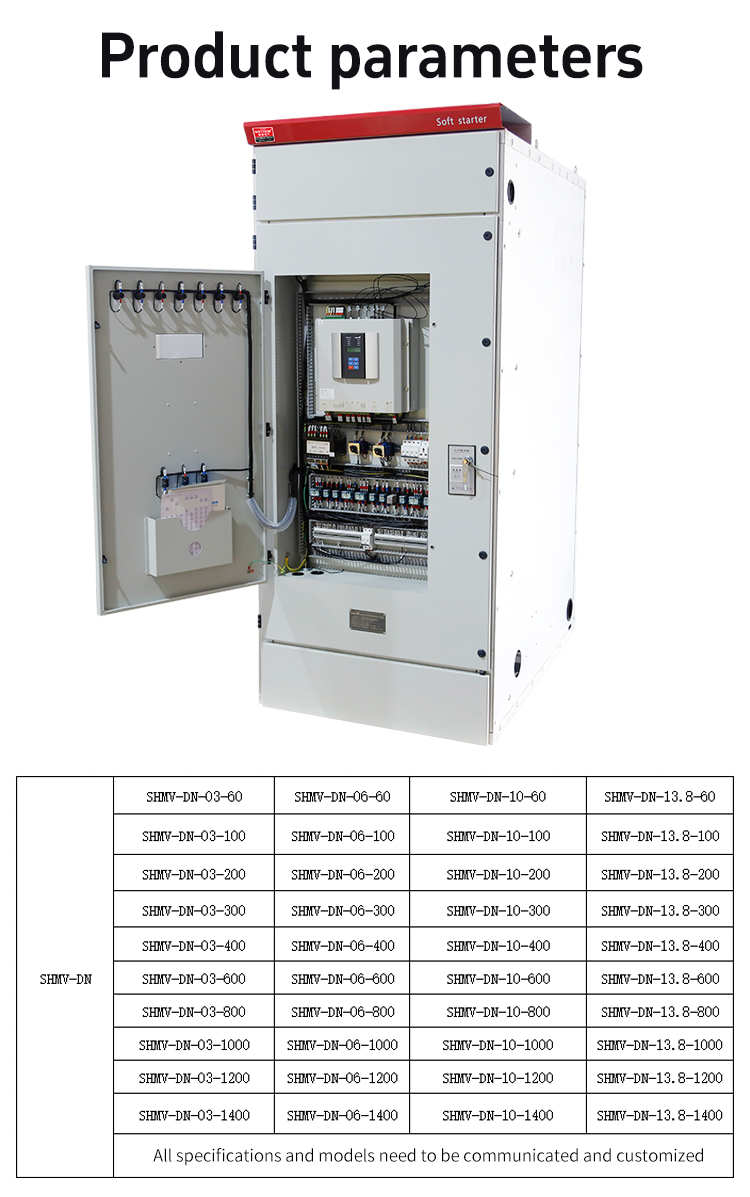

SHMW-DN
SNTOOM

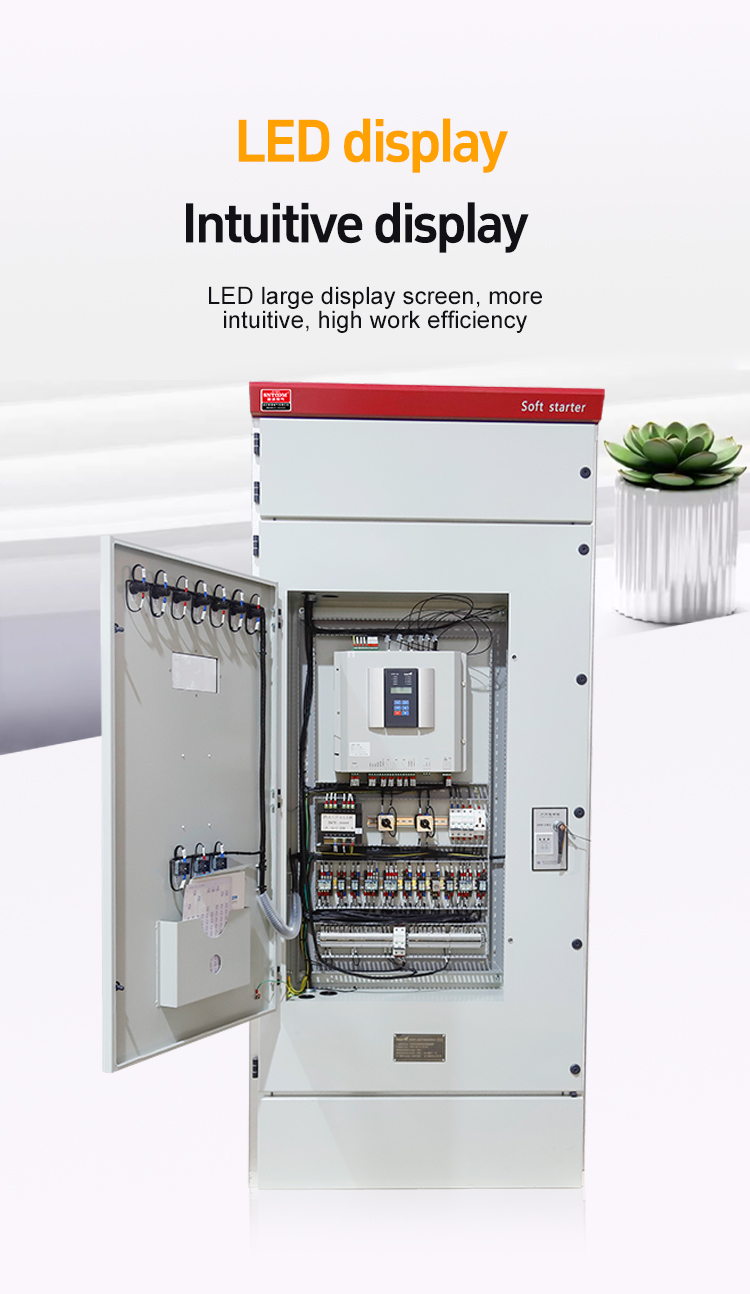

LED Intuitive Display – Real-time status, high work efficiency
Smart Chip with Three-Proof Coating – Moisture-proof, anti-static, stable performance
EPCOS Electrolytic Capacitor – Stable charge/discharge, simple operation
Built-in Cooling Fan – Temperature control, extends service life
Composite Flame Retardant Plastic – Anti-fall, flame retardant, anti-aging, corrosion resistant

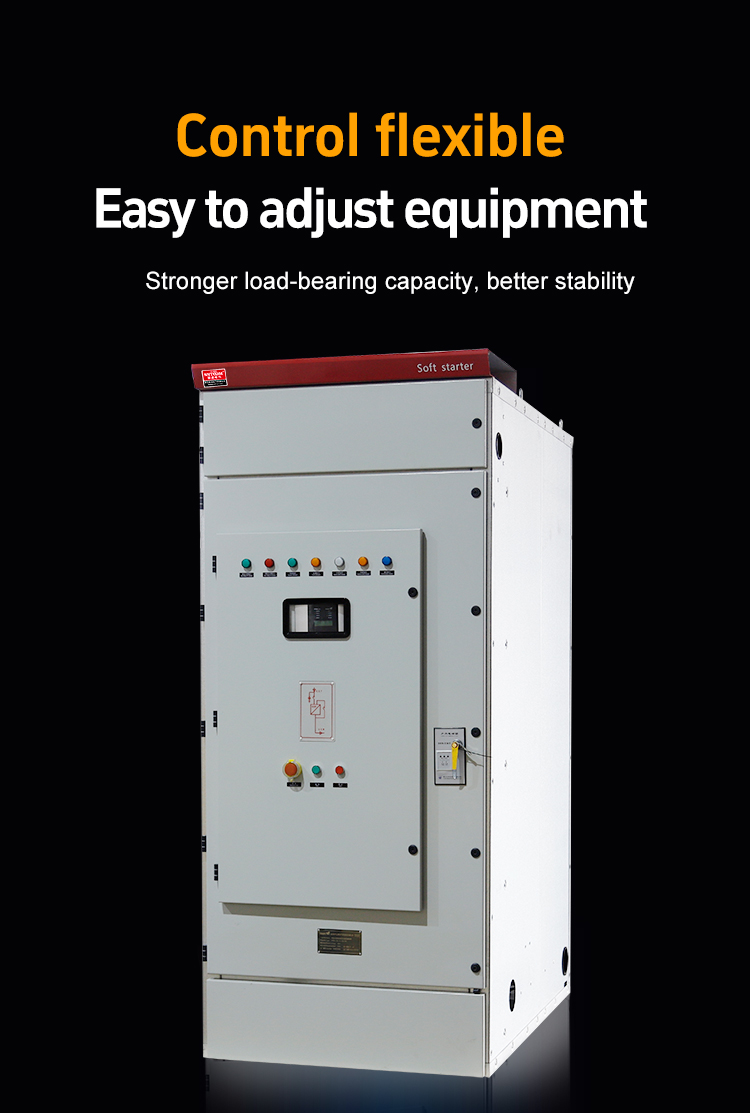

Six Start Modes – Flexible control for different equipment
Support 485 Communication – Remote monitoring and data exchange
Multiple Protection Functions – Motor protection, low voltage support
Explosion Proof Box Optional – Suitable for power, petrochemical, aerospace, pharmaceutical
Stepless Speed Regulation – Smooth adjustment, energy saving
Choose a dry, well-ventilated, stable location for installation.
Secure the cabinet firmly with brackets or bolts, ensure proper grounding.
Connect input/output cables according to the wiring diagram, check phase sequence.
Connect 485 line if remote monitoring is needed, set communication parameters.
Power on, set start mode and protection parameters based on motor specs.
Test start the motor, check LED display and smooth operation.

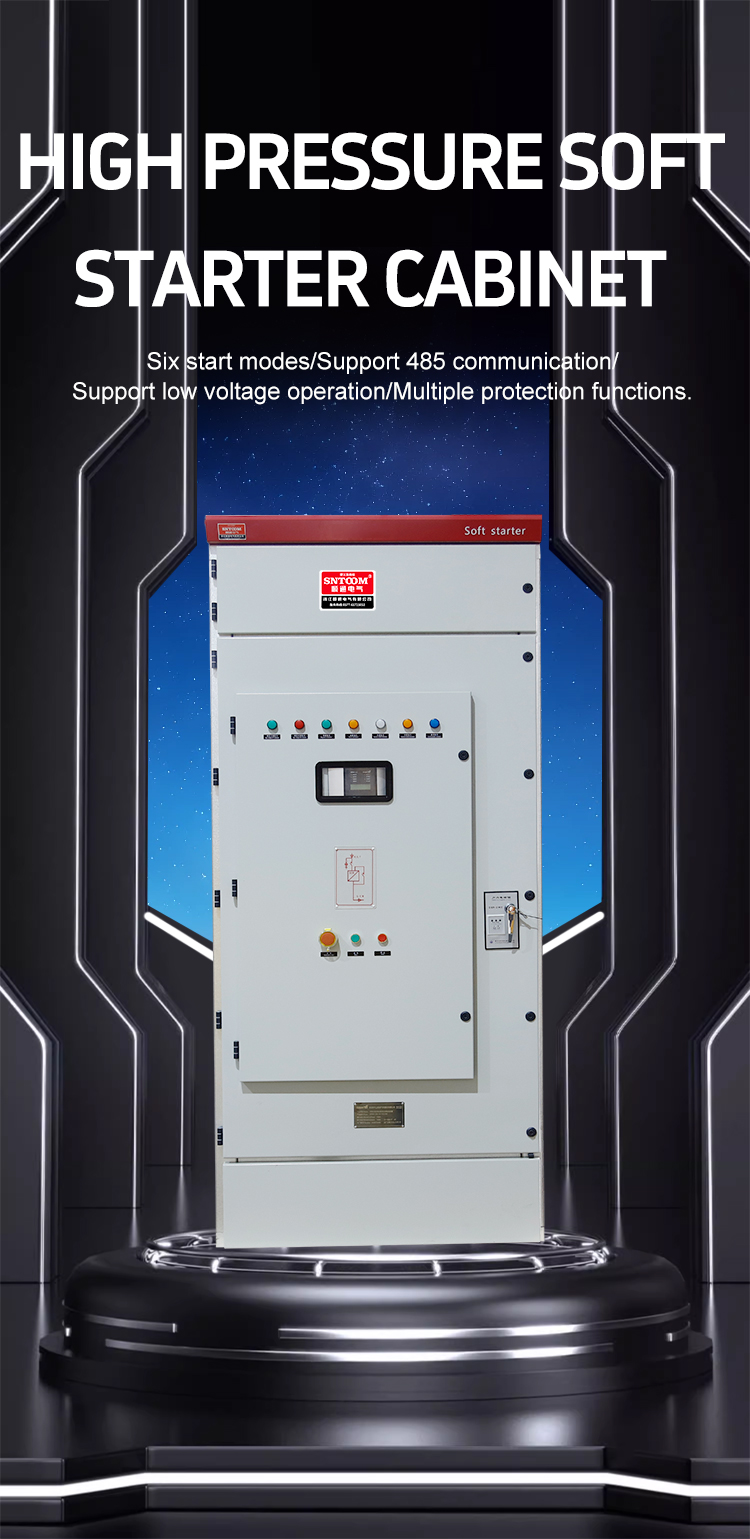

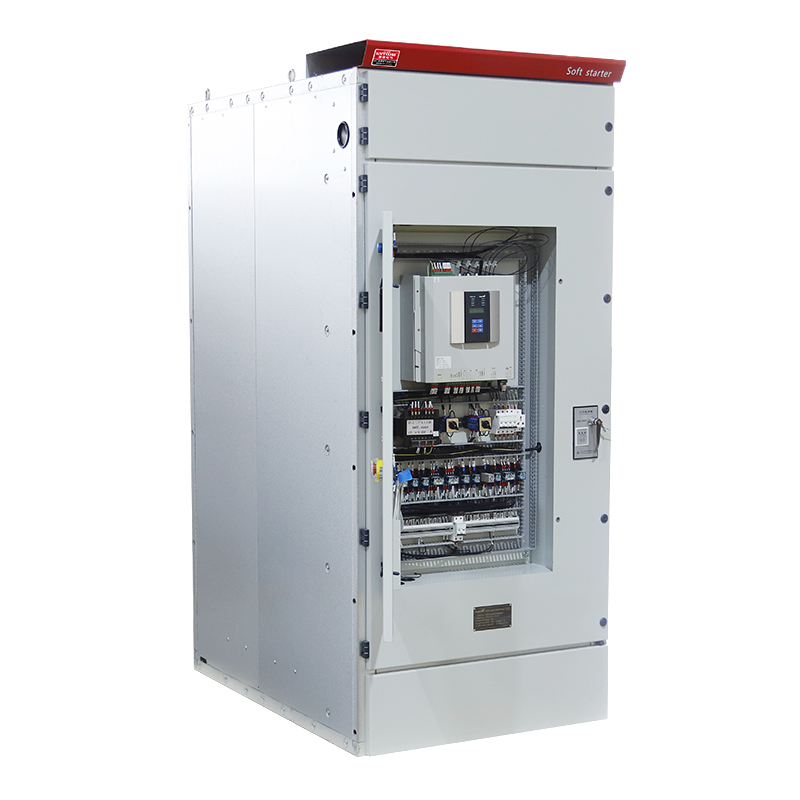

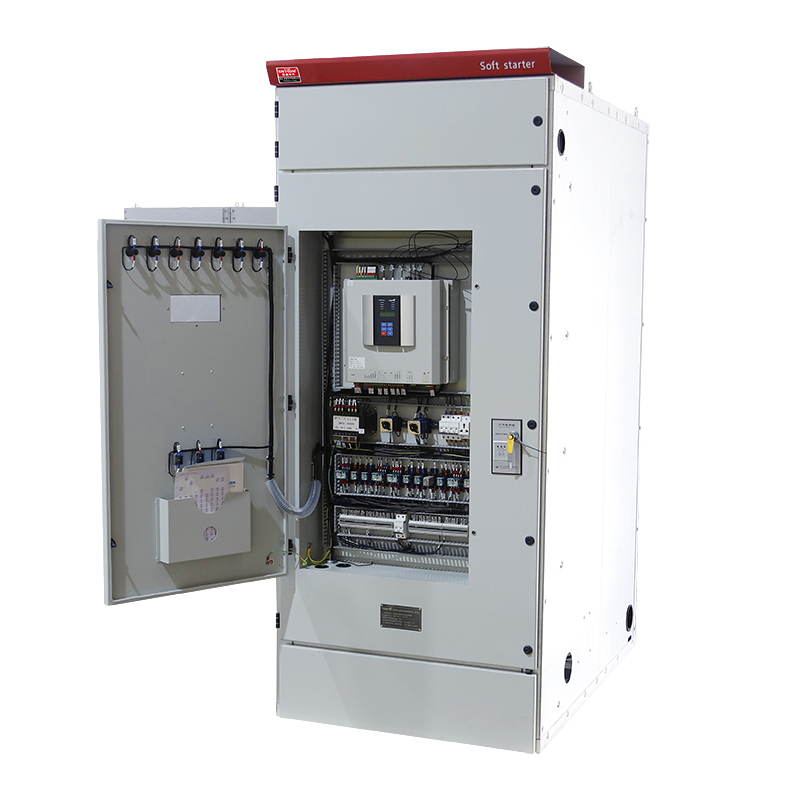

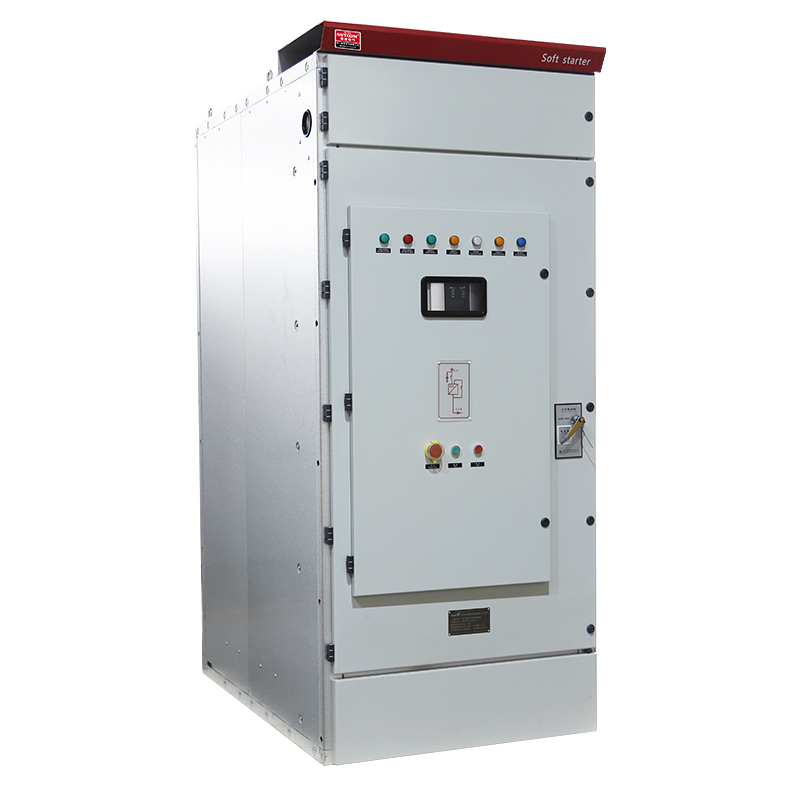

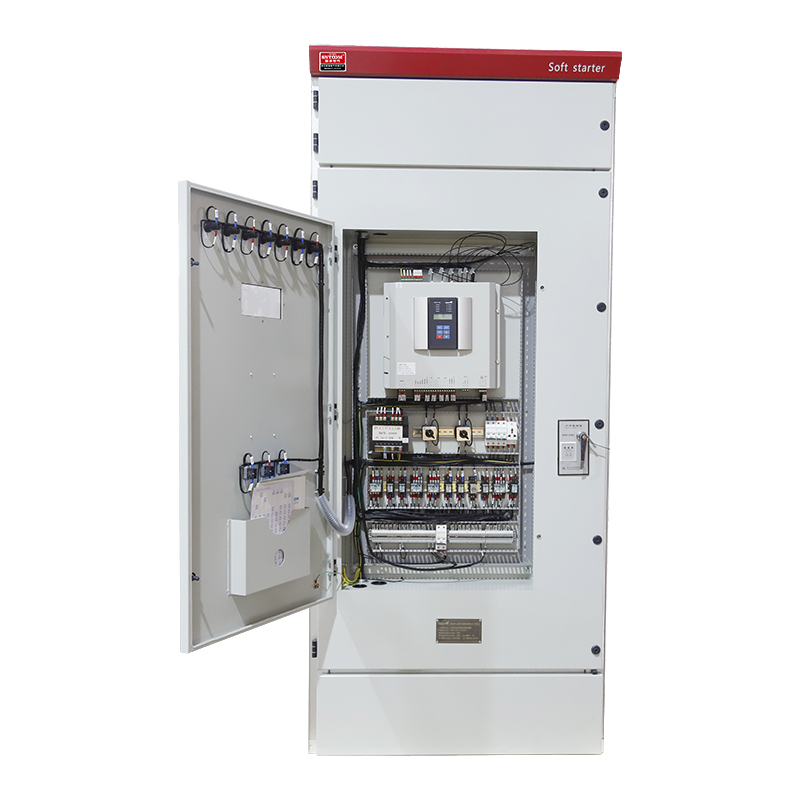

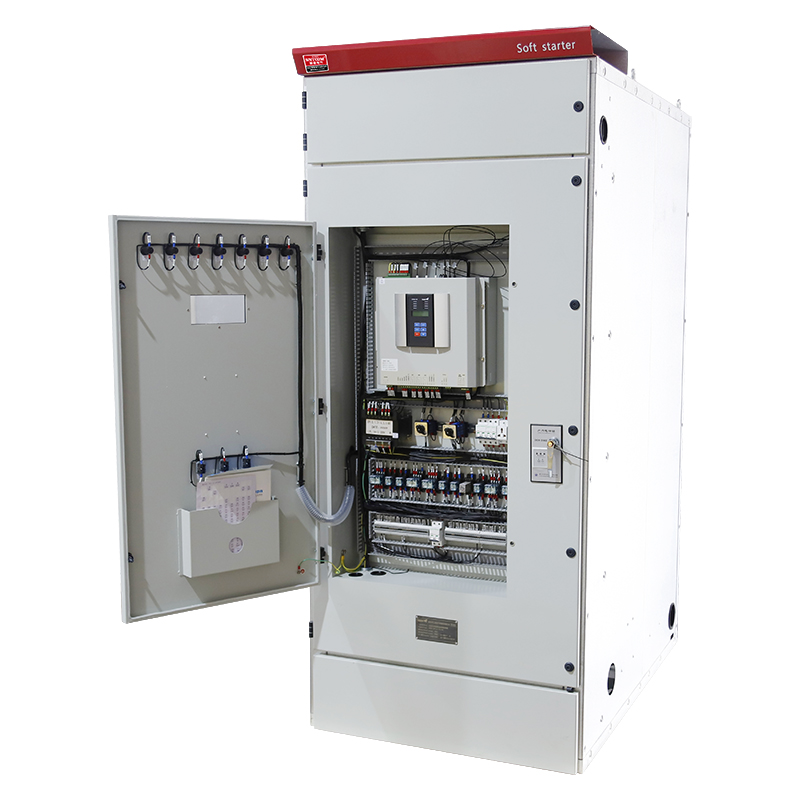

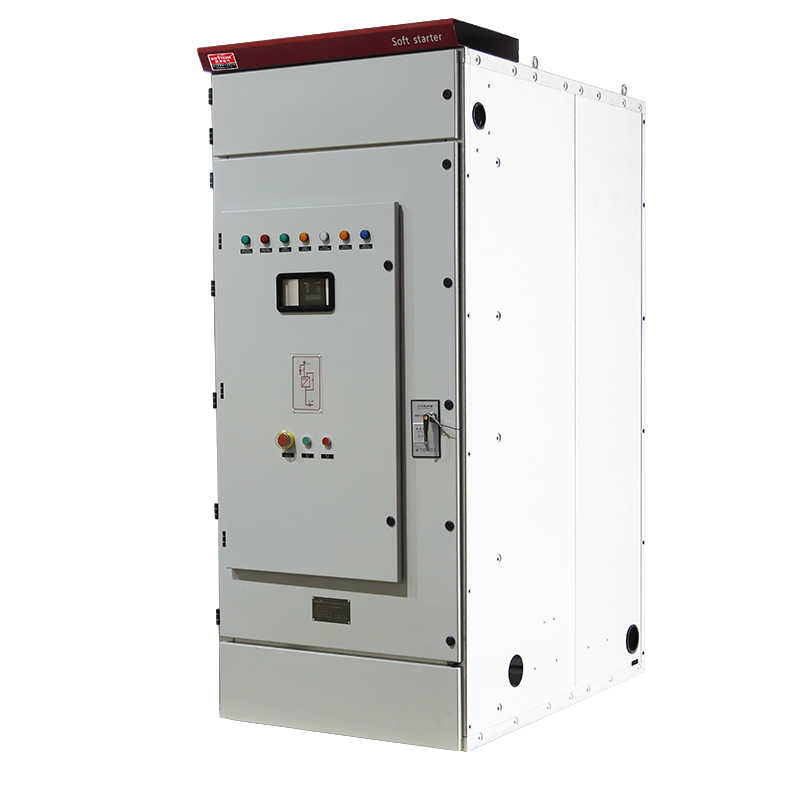

The SHMW-DN series high voltage soft starter cabinet is designed to provide smooth motor starting and reliable protection in various industrial environments. It combines multiple start modes, intelligent control, and robust protection to ensure safe and efficient operation.

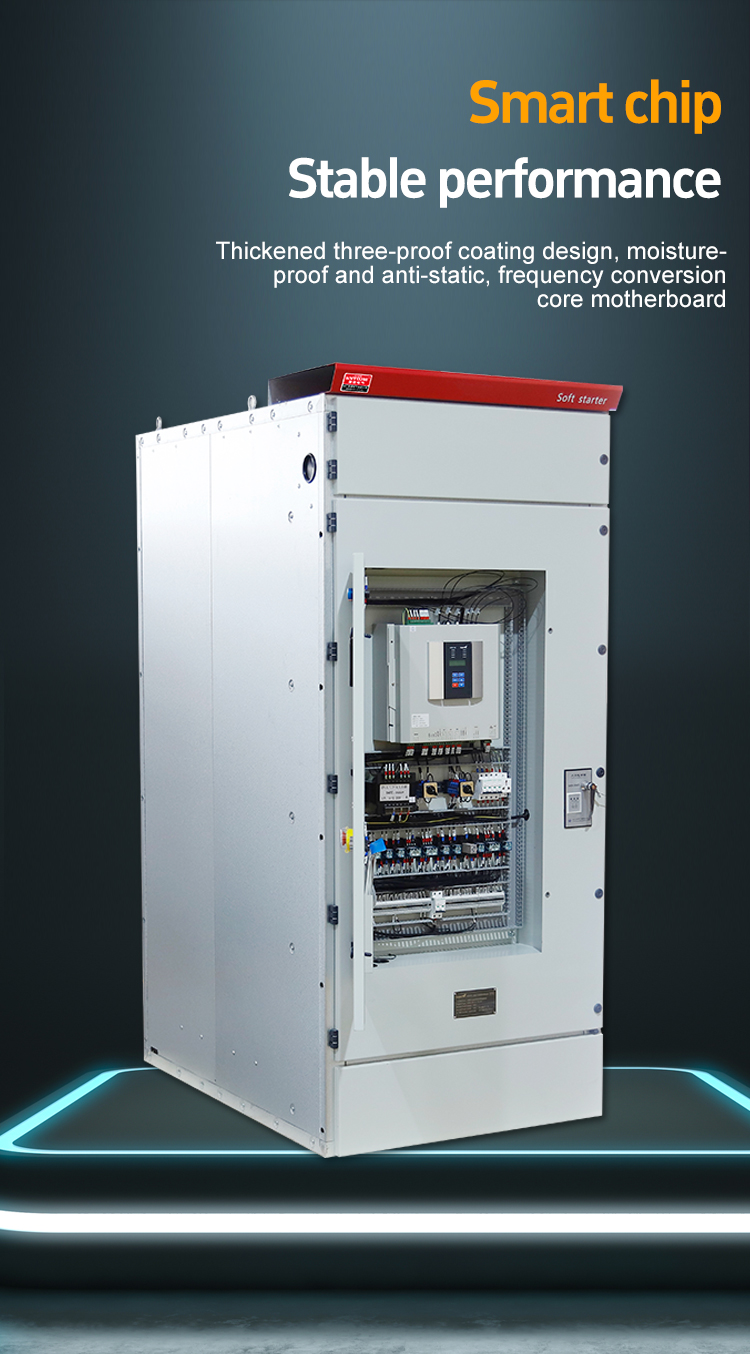

One of the standout features is the Smart Chip with Thickened Three-Proof Coating. It protects against moisture, static electricity, and dust, making it suitable for power plants, petrochemical facilities, and aerospace applications where reliable motor control is critical.
The device comes with EPCOS electrolytic capacitor and built-in cooling fan, ensuring stable charging and discharging while maintaining good temperature conditions. This greatly extends the service life of the equipment in harsh industrial environments.
As a multifunctional high voltage soft starter cabinet, it integrates seamlessly into existing control systems. The LED intuitive display shows real-time status, while 485 communication support enables remote monitoring. Six start modes and stepless speed regulation offer flexible control.
The explosion proof box option makes it suitable for power industry, mechanical equipment, aerospace, petrochemical, environmental protection, and pharmaceutical industry. The composite flame retardant plastic housing provides anti-fall, flame retardant, anti-aging, and corrosion resistance.
In conclusion, the SHMW-DN series is a robust and versatile solution for industrial motor starting. Its combination of intelligent chip protection, cooling system, multiple start modes, and communication support makes it an essential device for enhancing efficiency and safety.
