Zw32
SNTOOM
Thickened & Anti-Corrosive Housing – Made from excellent material cutting and welding, surface treated for rust prevention.
Large Breaking Capacity – High interrupting capacity with long contact life and many allowable breaking times.
Modular Structure – Easy maintenance, stable performance, and safe electricity use.
High/Low Temperature Resistance – Silicone rubber components resist heat, cold, and ozone aging.
Low-Noise Operation – Precision voltage regulation and energy-saving design.

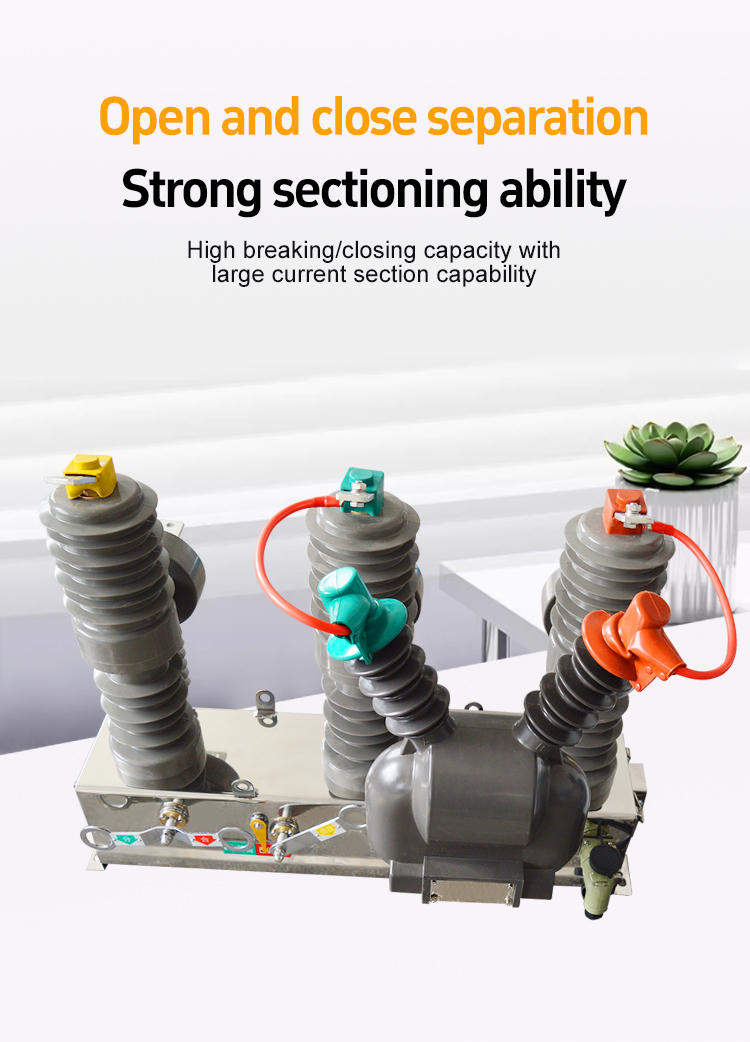

Open & Close Separation – Strong sectioning ability with high breaking/closing capacity.
Select a dry, well-ventilated outdoor location with ambient temperature not exceeding 40℃ (daily average between -25℃ and 35℃).
Securely mount the ZW32 breaker on a sturdy pole or mounting bracket using appropriate hardware.

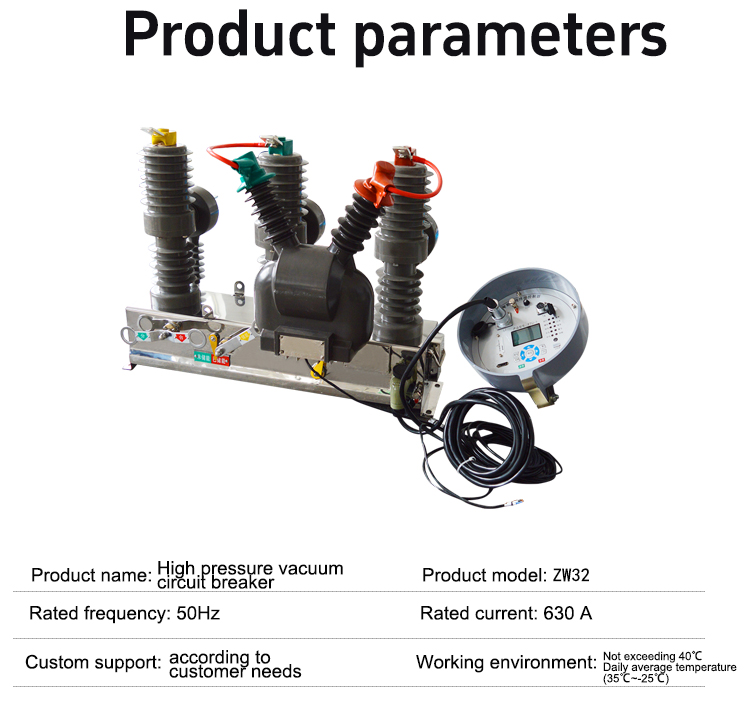

Connect the rated frequency 50Hz, rated current 630A power lines following standard electrical diagrams. Ensure correct polarity and grounding.
Before energizing, verify that the mechanism is in the de-energized (未储能) position. Perform a manual open/close test to confirm smooth operation.
After installation, conduct a full functional test under no-load conditions before putting into service.
Ensure power is completely disconnected before installation or maintenance to prevent electric shock. Do not exceed the rated current of 630A or operate in ambient temperatures above 40℃. Regularly inspect the vacuum tube and contact points for wear or damage. Keep the housing clean to maintain surface protection. Any disassembly or modification not authorized by the manufacturer may affect performance and void the warranty.
The ZW32 high pressure vacuum circuit breaker is a top-tier device designed for reliable power distribution and circuit protection in outdoor and industrial environments. This device combines robust construction with advanced switching technology to ensure stable operation even under demanding conditions.

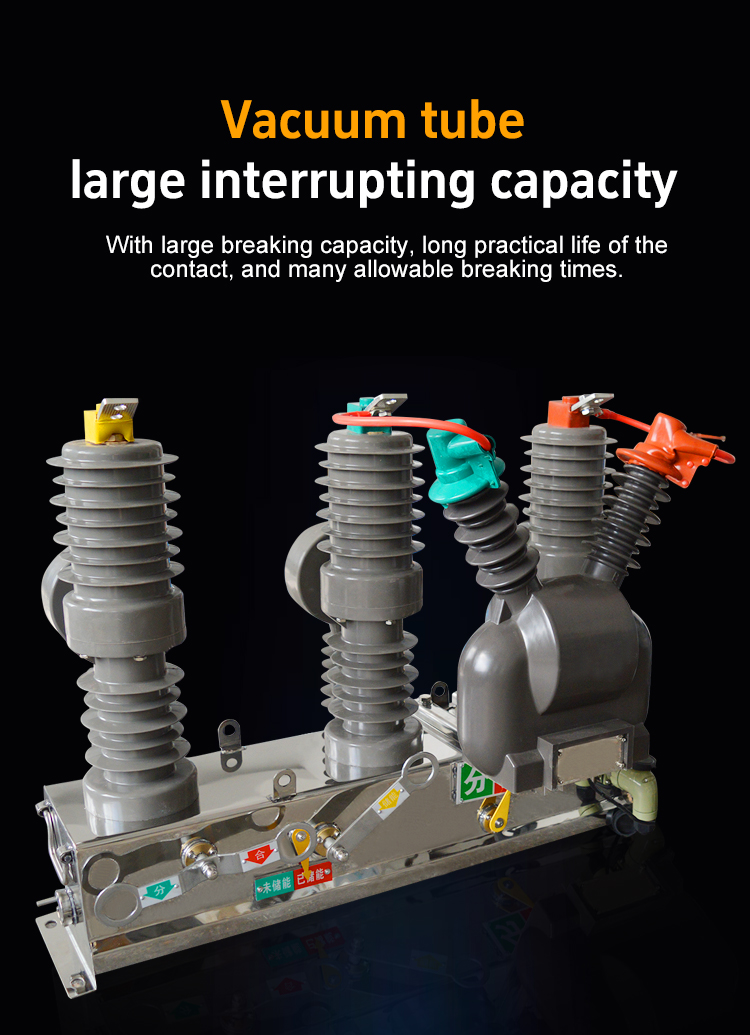

One of the standout features of the ZW32 is its large breaking capacity. The high-quality vacuum tube ensures long contact life and many allowable breaking times, making it suitable for applications where frequent switching or fault interruption is required. This capability significantly enhances the safety and reliability of power systems.

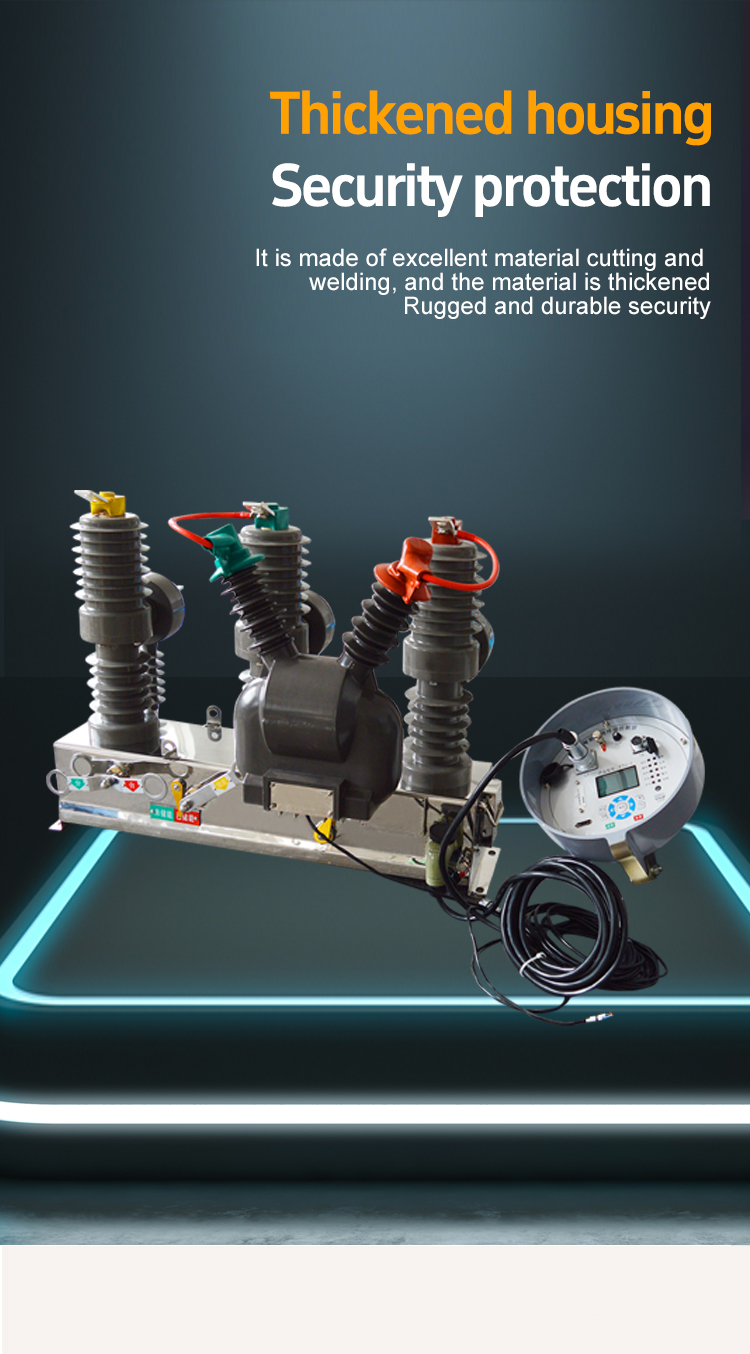

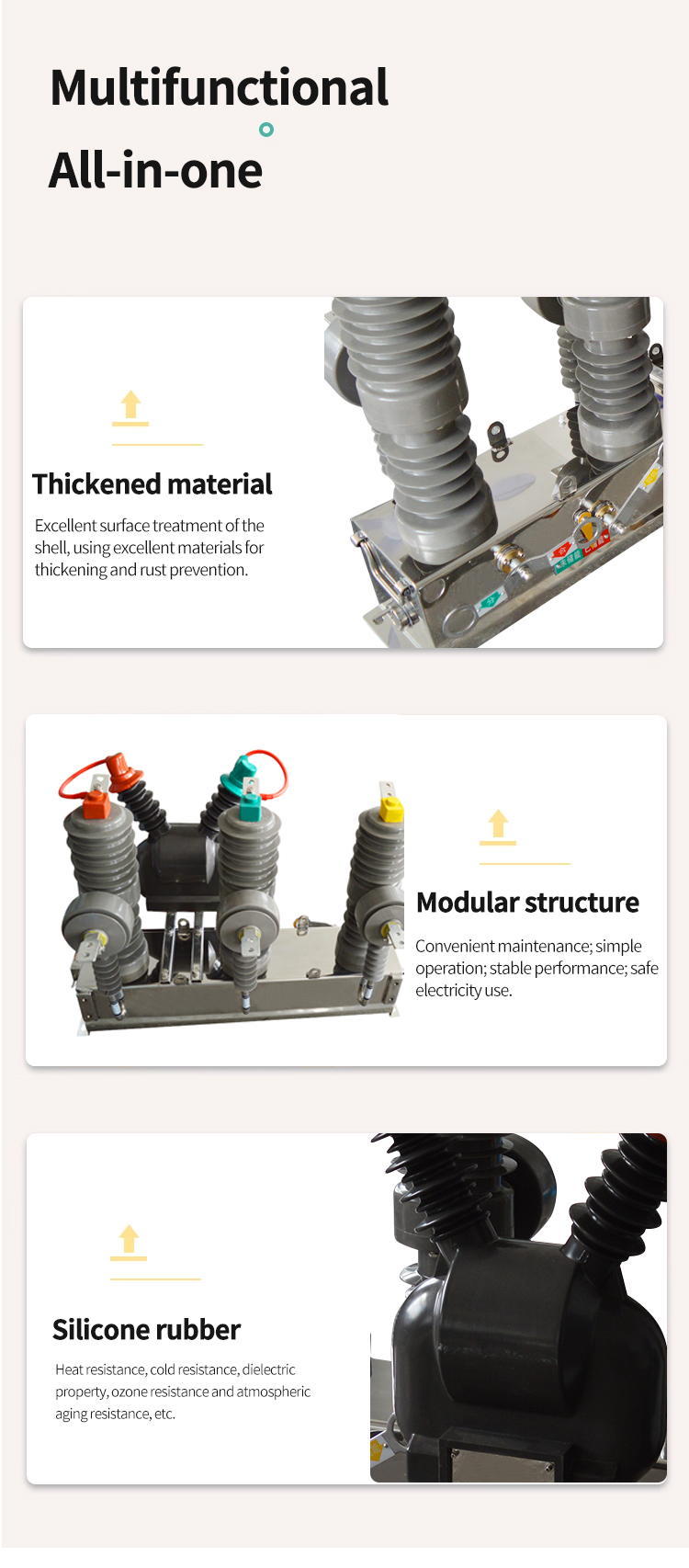

The device comes with a thickened and anti-corrosive housing, made from excellent material cutting and welding. The surface treatment provides effective rust prevention, while the modular structure allows for convenient maintenance and simple operation. These features make the ZW32 a durable choice for harsh outdoor environments.

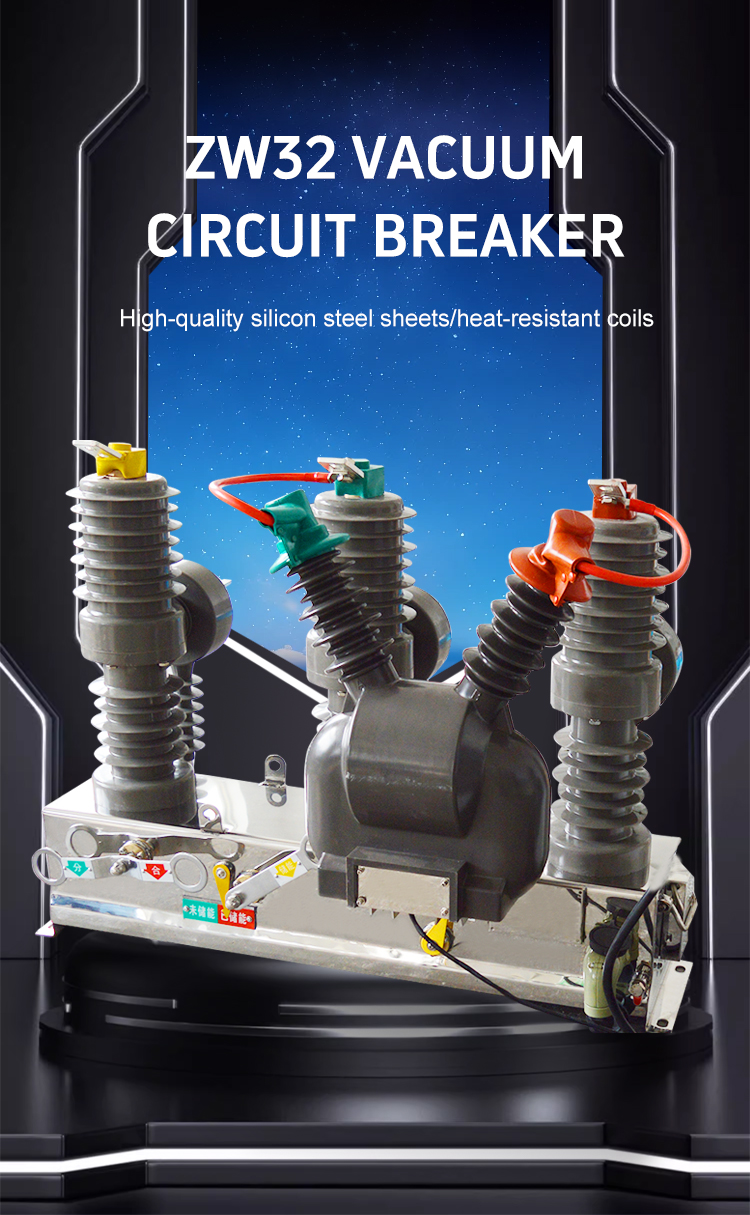

As a multifunctional all-in-one circuit breaker, the ZW32 integrates high-quality silicon steel sheets and heat-resistant coils. Its silicone rubber components offer excellent heat resistance, cold resistance, dielectric properties, and ozone aging resistance. The low-noise operation and precision voltage regulation further contribute to its energy-saving performance.
In conclusion, the ZW32 high pressure vacuum circuit breaker is a robust and versatile solution for outdoor power distribution needs. Its combination of large breaking capacity, thickened durable housing, modular design, and temperature-resistant materials makes it an essential device for enhancing the reliability and safety of any electrical system.
