S13 Series Three-phase Oil-immersed Distribution Transformer

Quantity:

1.Features


The three-phase oil-immersed distribution transformer produced by our company adopts a new insulation structure to improve the short-circuit resistance; the iron core is made of high-quality cold-rolled silicon steel sheets; high-voltage windings are made of high-quality oxygen-free copper wire as the material , and adopts multi-layer cylindrical structure; all sturdy parts adopt special anti-loosening treatment.

The product has the characteristics of high efficiency and low loss, can save a lot of power consumption and operating costs, and has significant social benefits. It is a popularized new technology product.




2.Reliable Structure


Based on the traditional structure and mature technology, our company has made many improvements, such as:

1) Spiral coil with longitudinal oil passage, better internal heat dissipation;

2) Improved the effective support of the coil end surface, and the ability to resist short-circuit current is stronger;

3) The new hoisting structure and body positioning structure are adopted to ensure more reliable in long-distance transportation and operation;

4) We have many unique and reliable structures to serve you;

5) Selecting a transformer with a higher performance level will have a higher level of technical content.




3.Excellent Materials


1) Oxygen-free copper wire with lower resistivity is selected, and after a series of additional surface treatments, it is smoother and free of burrs and sharp corners, making the load loss of the transformer lower and the electrical performance more reliable.

2) Select high-quality silicon steel sheets. With the improvement of performance level, use silicon steel sheets with lower unit loss to make the transformer no-load loss lower.

3) Select high-quality laminated wood insulation parts, never crack, even under the action of short-circuit current, the wire will not move.

4) Transformer oil after deep filtration is selected. The lower water, gas and impurity levels make the transformer work more reliable.

5) Select high-quality rubber sealing materials to effectively prevent aging and prevent leakage.

6)  All raw materials have passed the quality inspection, and all raw material manufacturers have undergone strict review in accordance with the national standard ISO9000.



4.Good technical and economic performance


Based on the S11 series, S13 series products have further reduced no-load loss, no-load current ratio, temperature rise, and noise, and further optimized their performance.

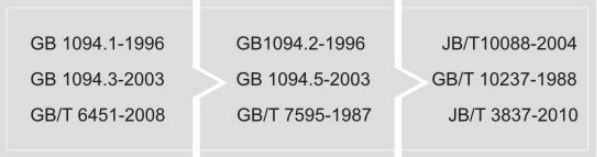

5.Product Standards


QQ截图20210324194944QQ截图20210324194944



6.Service Condition


  • Transformer normal use conditions

      The altitude does not exceed 1000m;

      Ambient temperature:

      Maximum temperature +40℃

      The average temperature of the hottest month is +30°C

      The highest annual average temperature +20℃

      Outdoor minimum temperature -25℃


  • Transformer special use conditions

      The altitude exceeds 1000m;

      Ambient temperature:

      Maximum temperature +40℃

      Minimum temperature -25℃

      (Specify when ordering)

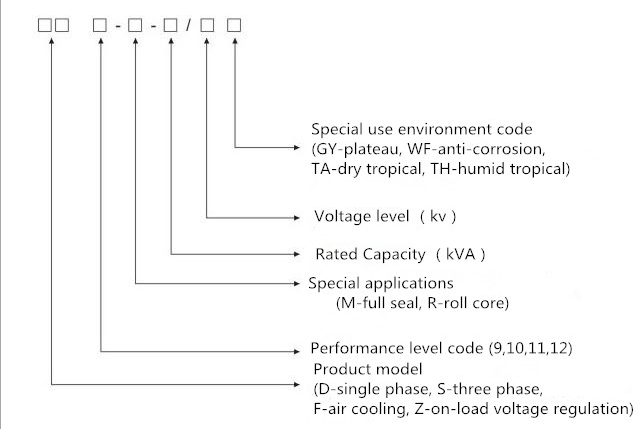

Model meaning

QQ截图20210324195047

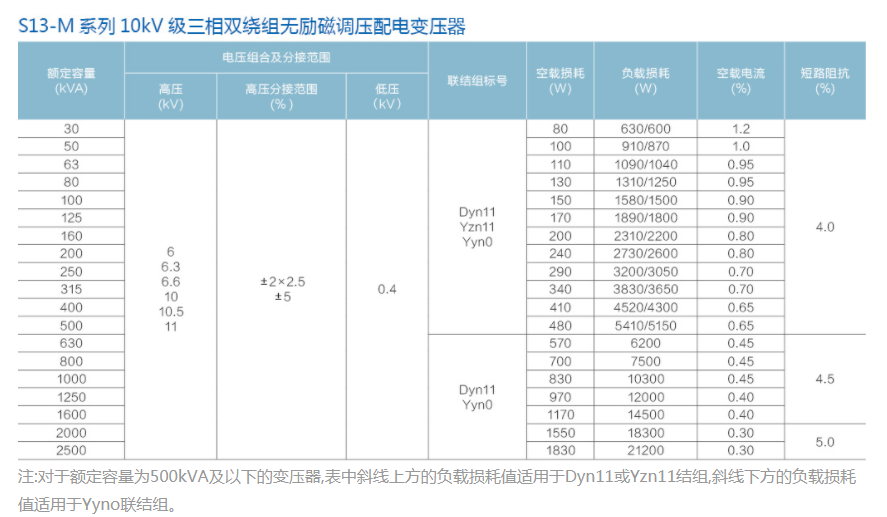

S13 series 10kv three-phase dual-winding non-excitation voltage regulating distribution transS13 series 20kv three-phase dual-winding non-excitation voltage regulating distribution transS13 series 35kv three-phase dual-winding non-excitation voltage regulating distribution trans
