SZ20-3150/35 is a three-phase oil-immersed on-load regulating power transformer rated 3150 kVA, stepping 35 kV down to 10.5 kV with a Yd11 vector group. Its on-load tap changer offers nine positions at ±4×2.5% (38500 V to 31500 V) so output voltage can be corrected while the transformer stays energised. ONAN cooling, a sealed steel tank with TIG-welded seams, multi-fin radiators and a dual-pointer temperature display suit continuous outdoor duty in factory distribution, construction temporary power and rural grid renovation.
| Quantity: | |
|---|---|

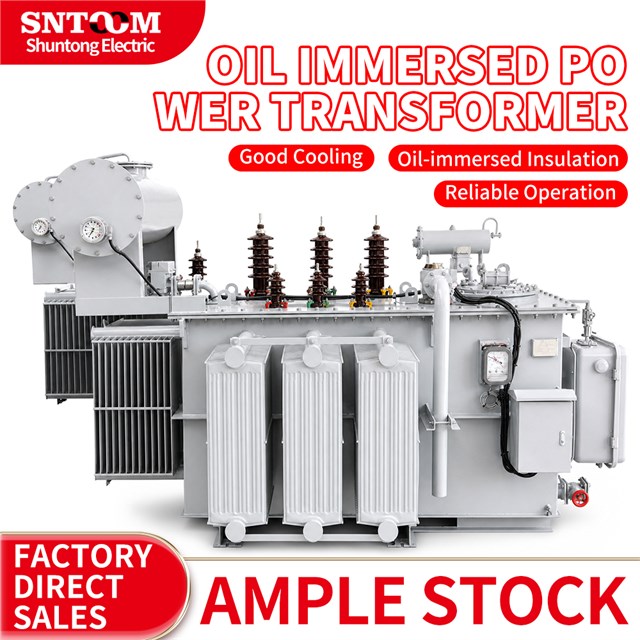

SZ20-3150/35
SNTOOM

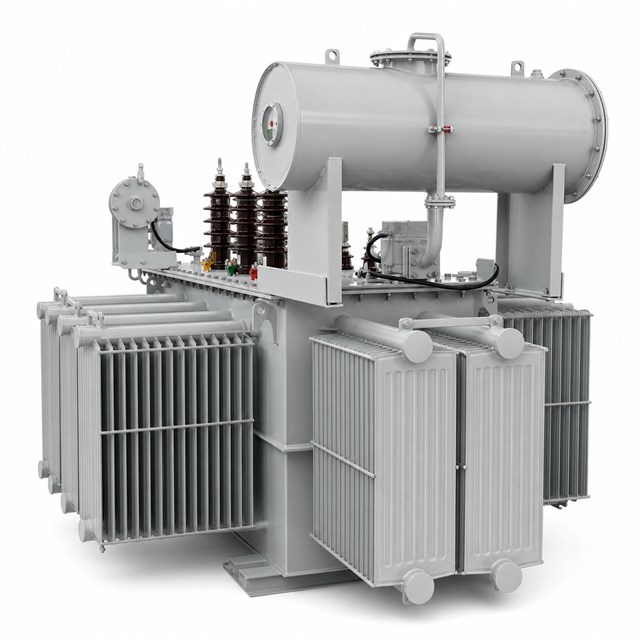

SZ20-3150/35 is a three-phase oil-immersed on-load regulating power transformer built for 35 kV distribution networks. It delivers 3150 kVA at a 35000 V / 10500 V ratio with a Yd11 vector group, and its on-load tap changer moves between nine positions while the unit stays energised, so the downstream voltage is corrected without a shutdown.
On-load voltage regulation — nine tap positions from 38500 V to 31500 V in 875 V steps, changed under load with no interruption to supply.

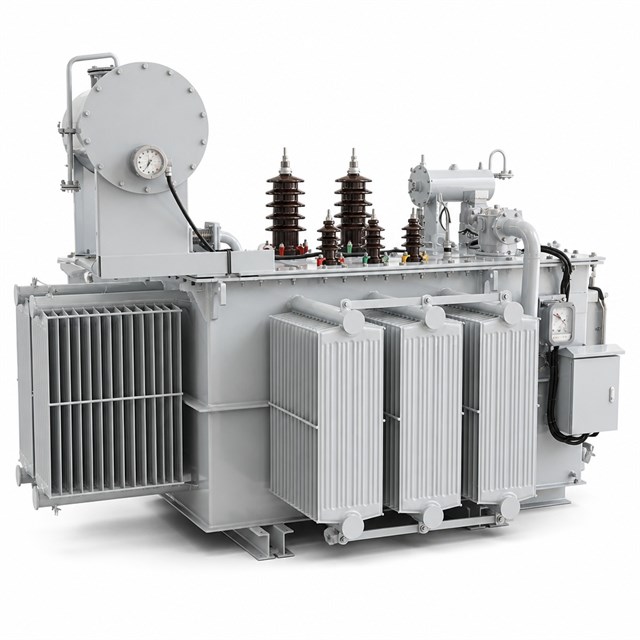

ONAN oil-immersed cooling — oil-immersed coils and core with multi-fin radiators keep the temperature rise low and support stable full-load operation.

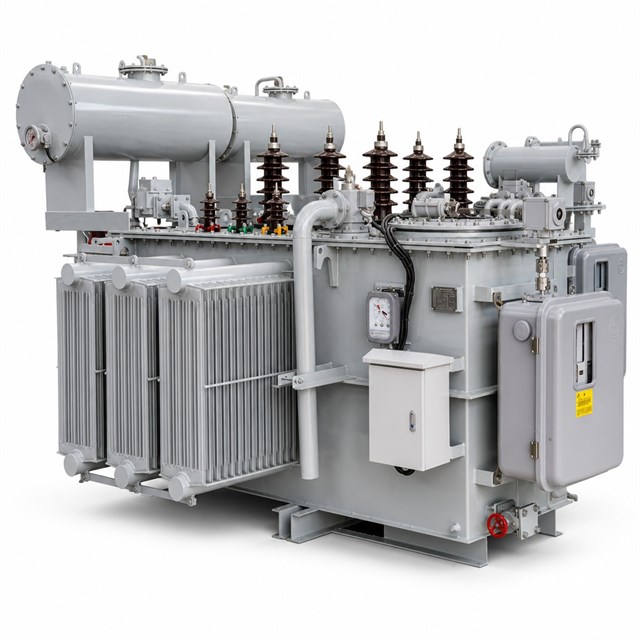

Sealed tank — steel welded tank with tight TIG seams, oil-resistant gasket and a bottom drain valve for long-term leak-free service and easy oil changes.
Ceramic HV insulators — dark brown ceramic bushings with a smooth surface for stable high-voltage insulation.

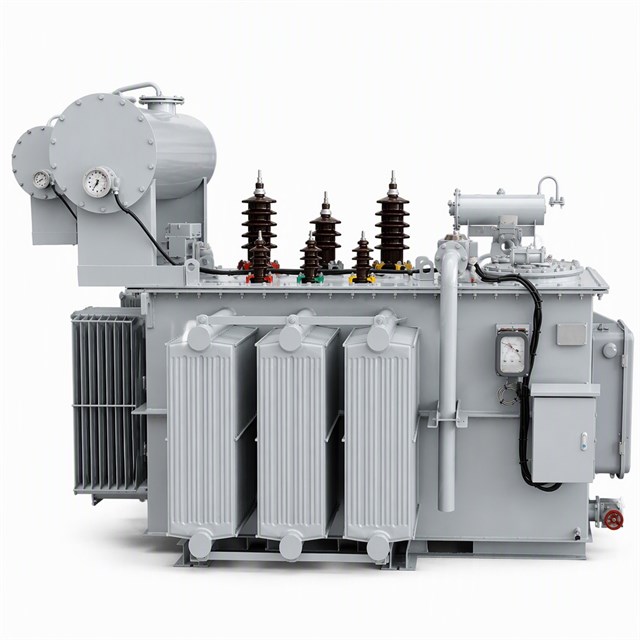

Dual-pointer temperature display — a black needle shows the current oil temperature and a red needle marks the set limit for quick visual monitoring.

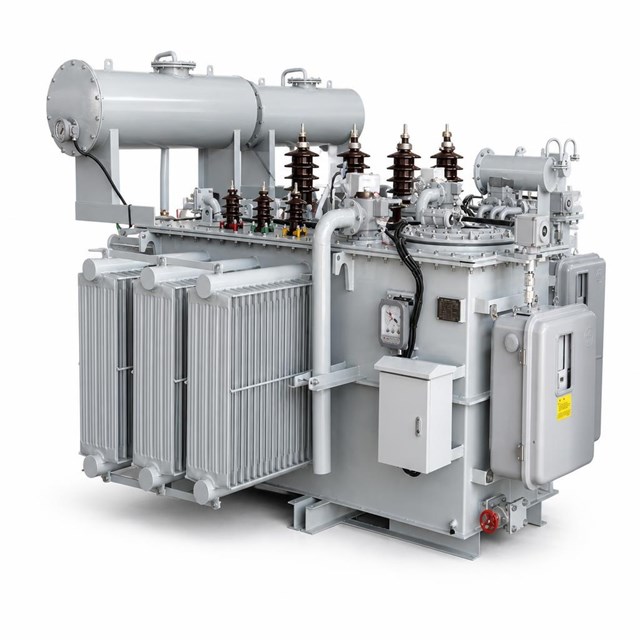

Outdoor construction — rated for outdoor operating conditions, with a red handwheel drain valve that allows oil changes without disassembly.
Tap Position | HV Voltage (V) | HV Current (A) | LV Voltage (V) | LV Current (A) |
|---|---|---|---|---|
1 | 38500 | - | - | - |
2 | 37625 | - | - | - |
3 | 36750 | - | - | - |
4 | 35875 | - | - | - |
5 (rated) | 35000 | 51.96 | 10500 | 173.2 |
6 | 34125 | - | - | - |
7 | 33250 | - | - | - |
8 | 32375 | - | - | - |
9 | 31500 | - | - | - |
Item | Value |
|---|---|
Product Model | SZ20-3150/35 |
Rated Capacity | 3150 kVA |
Rated Voltage | 35000 ± 4×2.5% / 10500 V |
Rated Frequency | 50 Hz |
Phases | 3 |
Vector Group | Yd11 |
No-Load Loss | 2743 W |
Load Loss | 22321 W |
Cooling Method | ONAN |
Operating Condition | Outdoor |
Impedance Voltage | 6.80 % |
Insulation Level | LI 200 AC 85 / LI 75 AC 35 |
Active Part Lifting Weight | 3750 kg |
Oil Weight | 1650 kg |
Total Weight | 7590 kg |
Factory power distribution
Residential power supply
Construction temporary power
Rural grid renovation
All ratings above are taken from the SZ20-3150/35 data sheet. For a different capacity, voltage ratio or vector group, send us the required rating and we will confirm the design and quotation.
