STFD-NO1.0

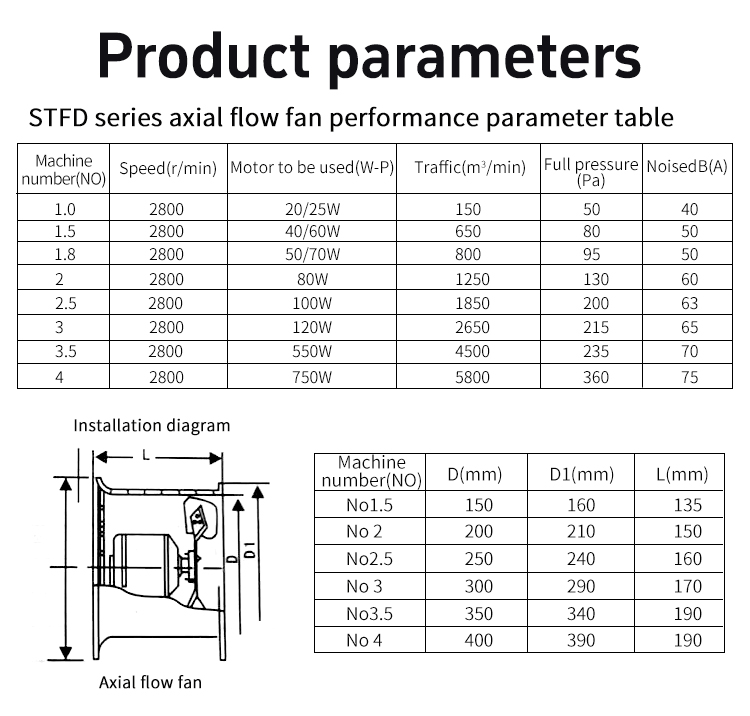

Machine number (NO) | D (mm) | D1 (mm) | L (mm) |
No1.5 | 150 | 160 | 135 |
No 2 | 200 | 210 | 150 |
No2.5 | 250 | 240 | 160 |
No 3 | 300 | 290 | 170 |
No3.5 | 350 | 340 | 190 |
No 4 | 400 | 390 | 190 |
Machine number (NO) | Speed (r/min) | Motor to be used (W-P) | Traffic (m³/min) | Full pressure (Pa) | Noised B (A) |
1.0 | 2800 | 20/25W | 150 | 50 | 40 |
1.5 | 2800 | 40/60W | 650 | 80 | 50 |
1.8 | 2800 | 50/70W | 800 | 95 | 50 |
2 | 2800 | 80W | 1250 | 130 | 60 |
2.5 | 2800 | 100W | 1850 | 200 | 63 |
3 | 2800 | 120W | 2650 | 215 | 65 |
3.5 | 2800 | 550W | 4500 | 235 | 70 |
4 | 2800 | 750W | 5800 | 360 | 75 |
High-Performance Motor
Efficient Airflow
Versatile Applications
Robust Construction
Enhanced Safety and Stability
Industrial-Grade Performance

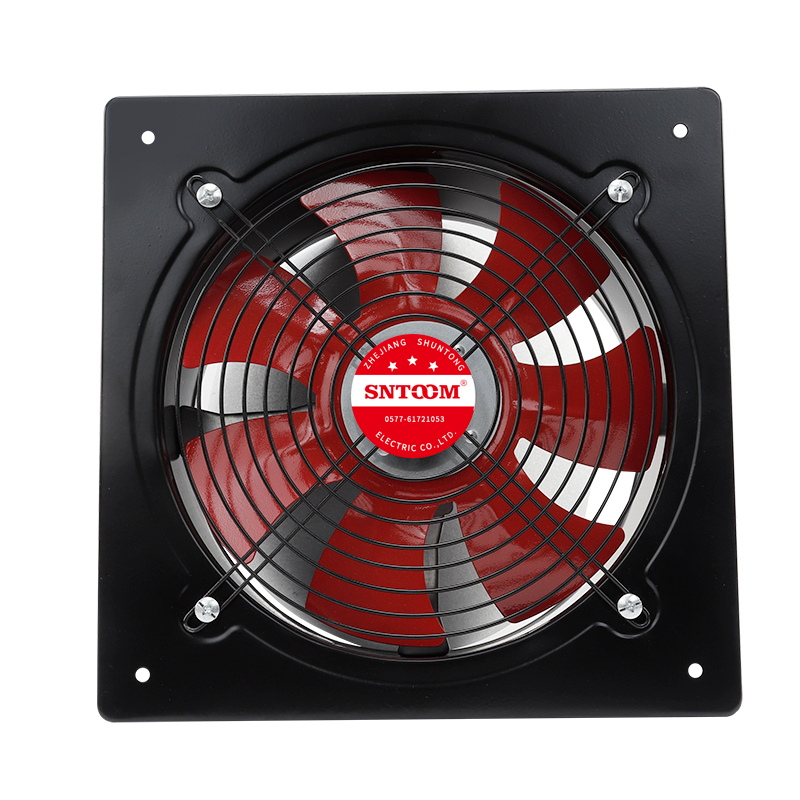

STFD Powerful Axial Flow Fan: Engineered for Efficiency and Versatility
The STFD series axial flow fan is a high-performance ventilation solution designed to meet diverse industrial and domestic needs. With its robust construction and advanced features, this fan ensures efficient air movement, making it ideal for a wide range of applications.

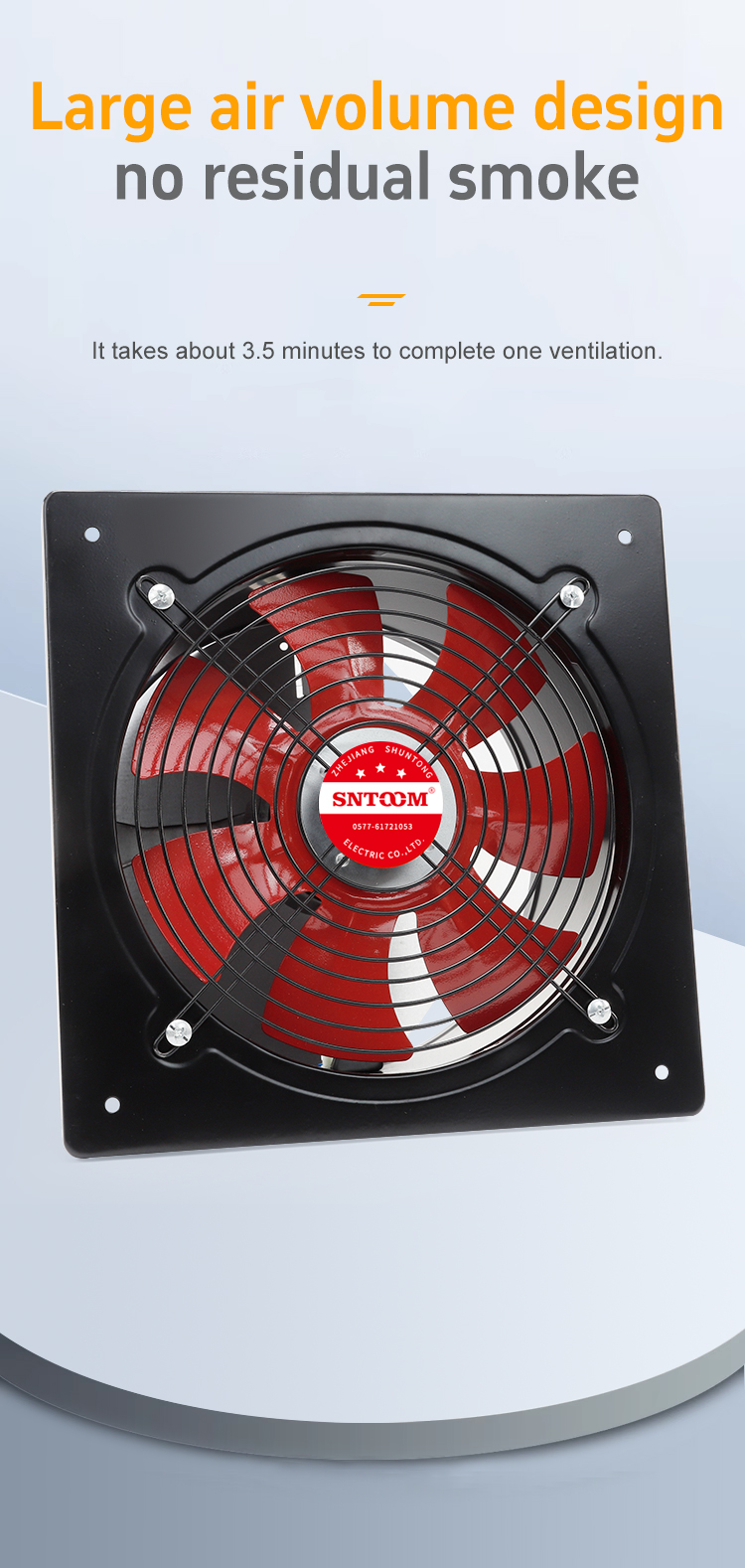

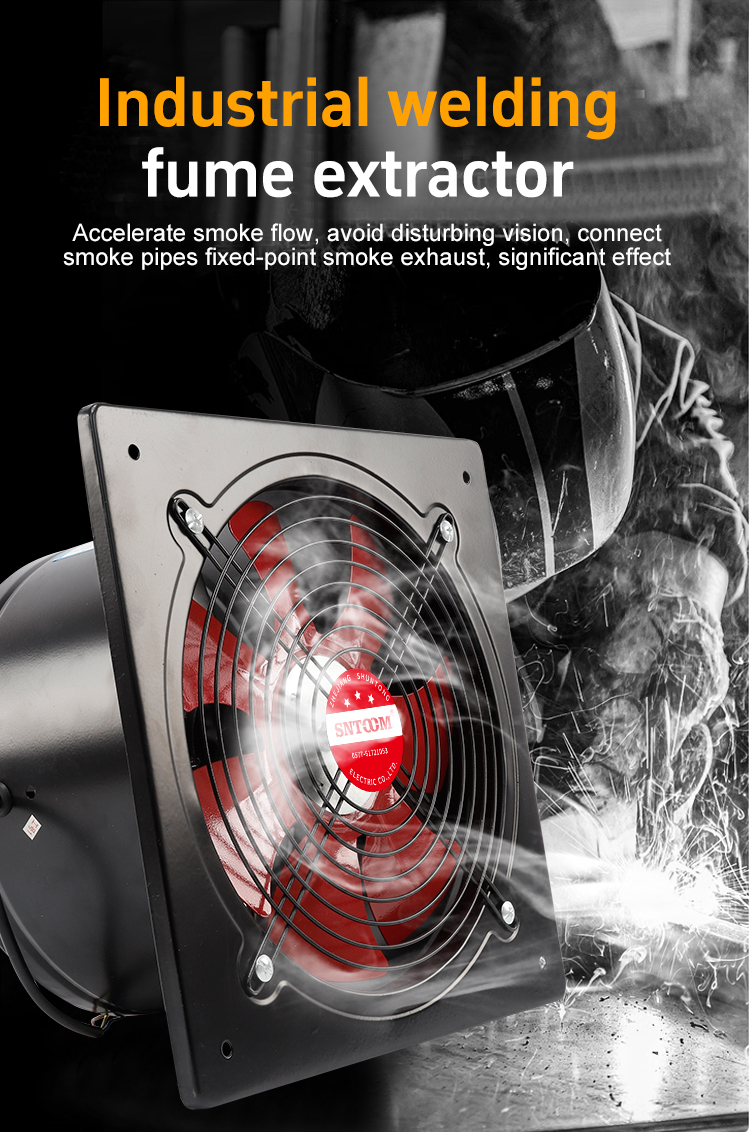

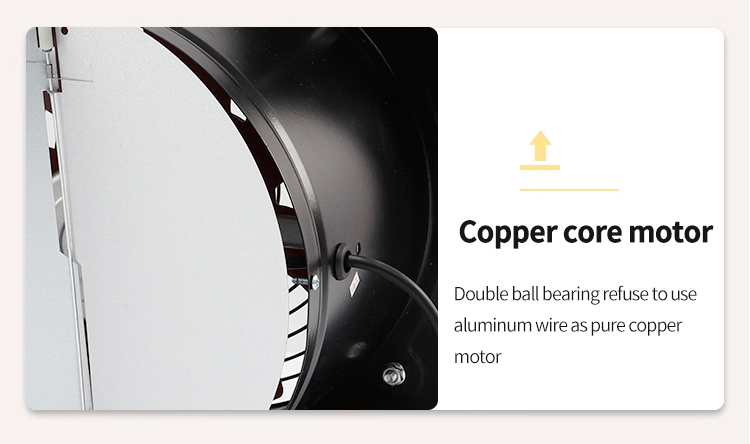

At the heart of the STFD fan lies a copper core motor, renowned for its durability and reliability. This motor operates at a consistent speed of 2800 rpm, delivering powerful airflow even under demanding conditions. The fan's large air volume design ensures no residual smoke, making it perfect for environments where clean air is critical, such as industrial welding areas.

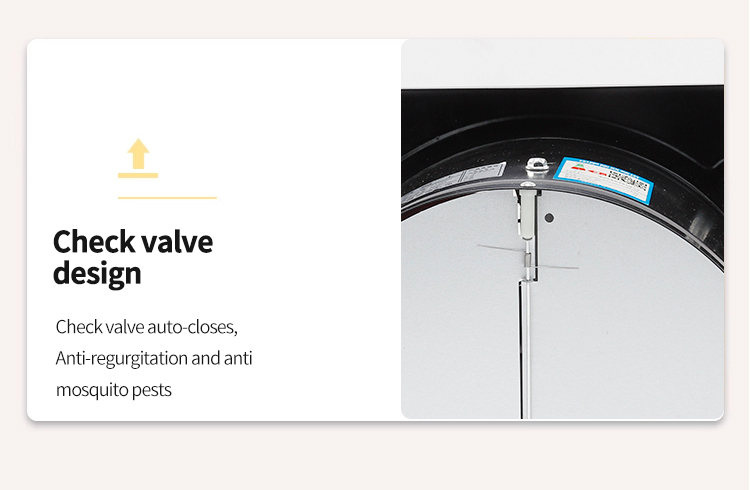

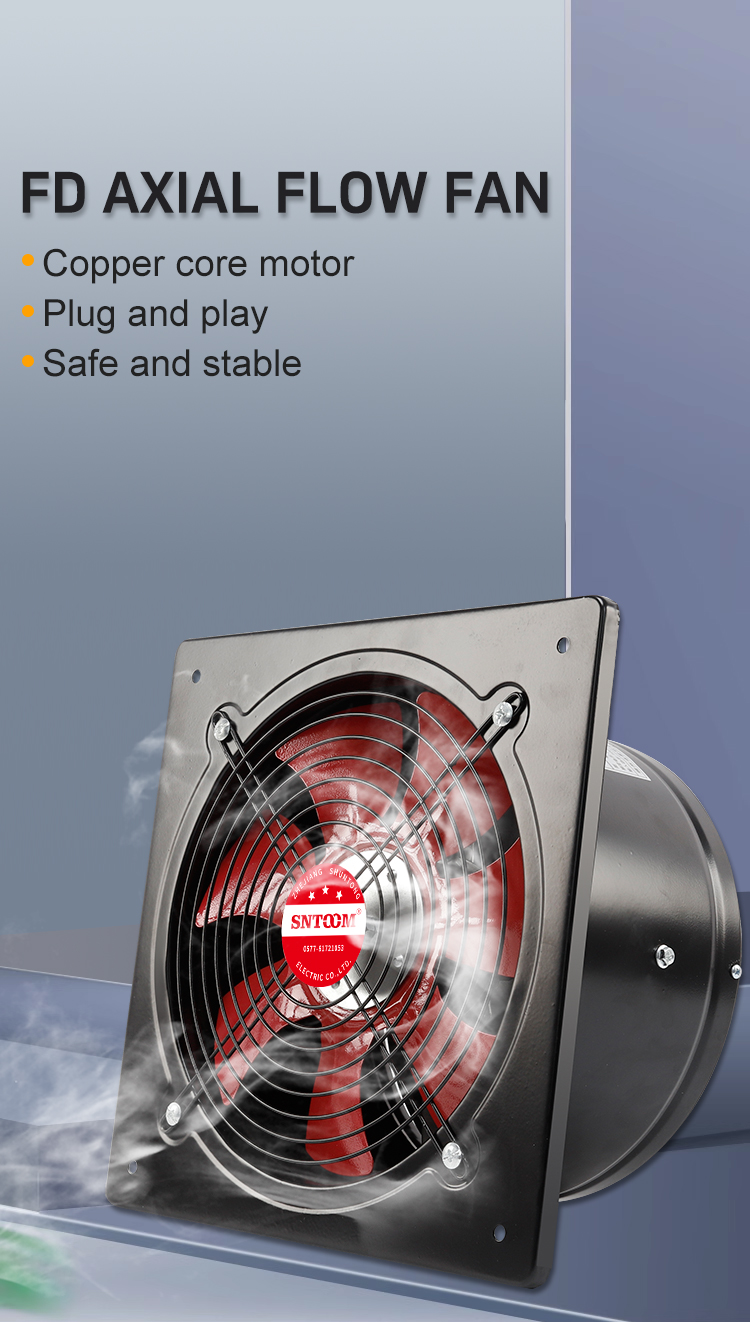

One of the standout features of the STFD fan is its plug-and-play functionality, allowing for easy installation and immediate use. Additionally, its safe and stable operation provides peace of mind, with a check valve design that prevents backflow and keeps out pests.

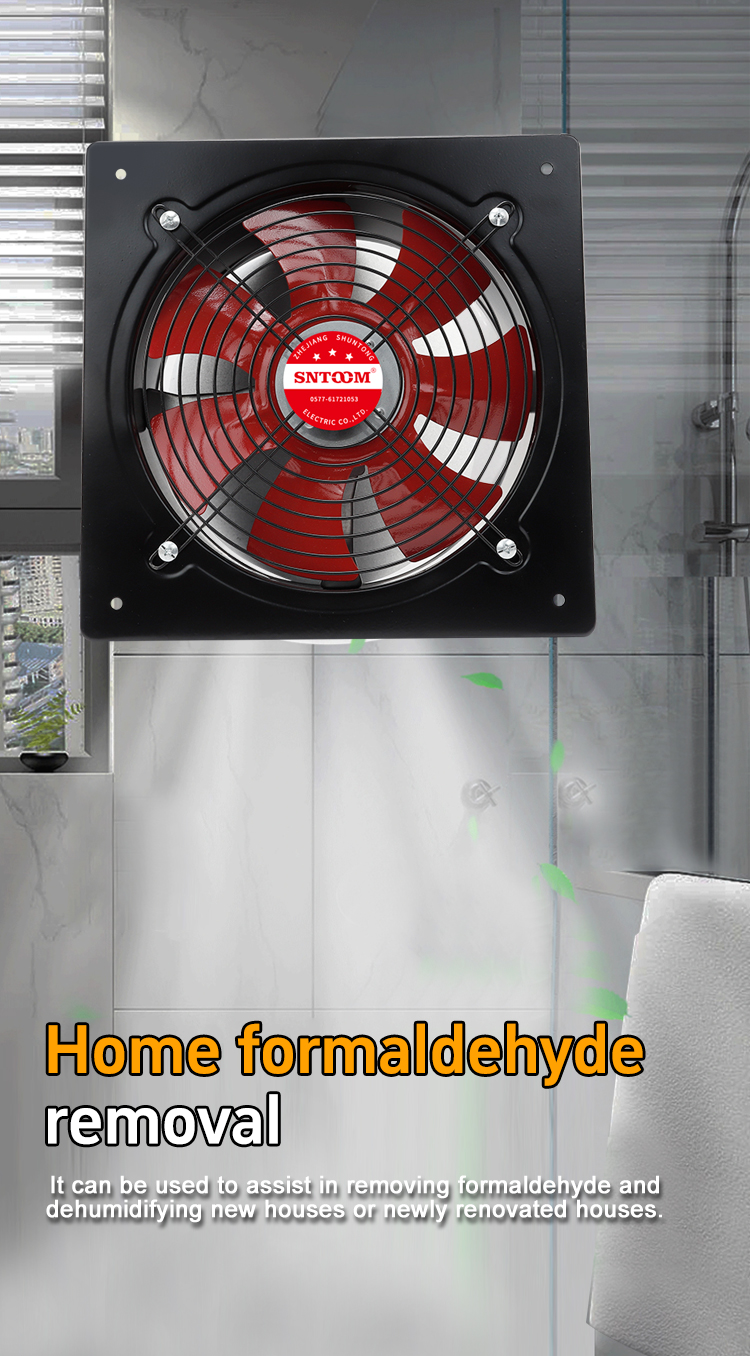

The STFD series is not only powerful but also versatile. It is suitable for various settings, including kitchens, living rooms, bathrooms, and bedrooms. The fan's ability to assist in home formaldehyde removal and dehumidification makes it an essential appliance for newly renovated houses.
With six major core upgrades, including resistance to high temperatures, waterproof and oil-proof capabilities, and balanced air delivery, the STFD fan is built to last. Its ultra-high RPM and all-copper motor ensure optimal performance, while its compact design allows for easy storage.
Choose the STFD axial flow fan for a reliable, efficient, and versatile ventilation solution.
