SF
SNTOOM

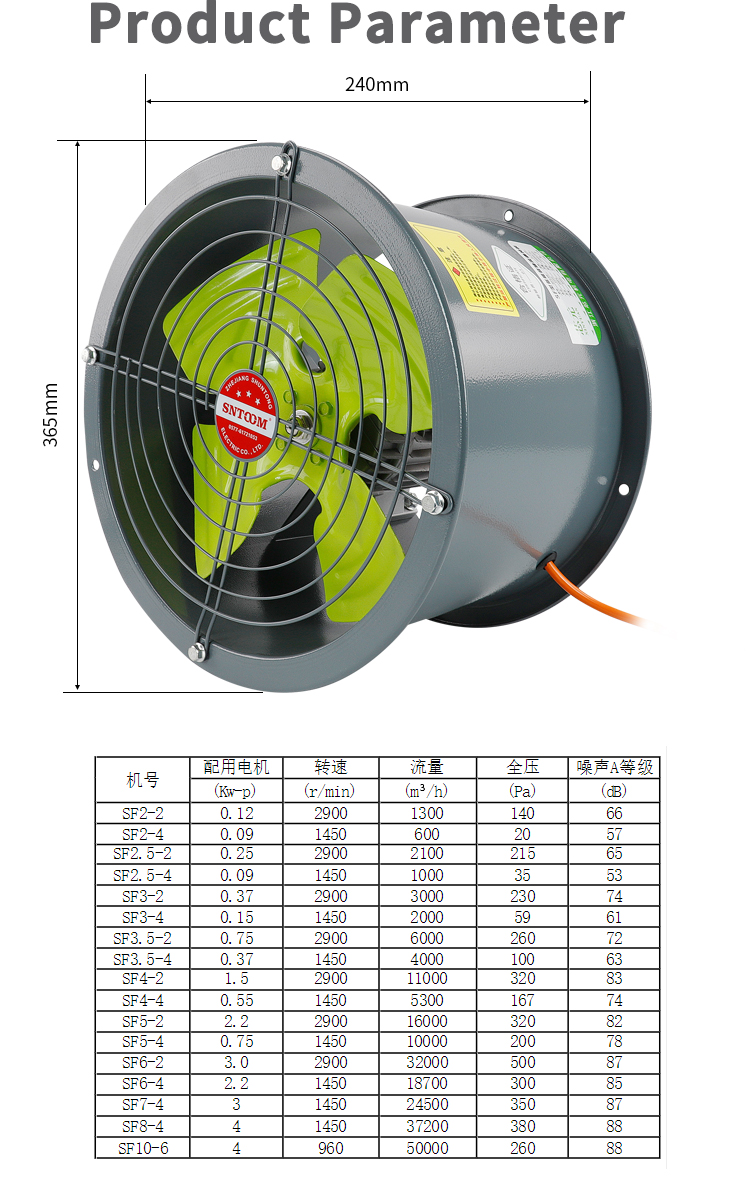

Product parameters
| Model | Electrical machinery (Kw-p) | Rotating speed (r/min) | Wind flow （m³/h) | Total pressure (pa) | Noise level A (dB) |
| SF2-2 | 0.12 | 2900 | 1300 | 140 | 66 |
| SF2-4 | 0.09 | 1450 | 600 | 20 | 57 |
| SF2.5-2 | 0.25 | 2900 | 2100 | 215 | 65 |
| SF2.5-4 | 0.09 | 1450 | 1000 | 35 | 53 |
| SF3-2 | 0.37 | 2900 | 3000 | 230 | 74 |
| SF3-4 | 0.15 | 1450 | 2000 | 59 | 61 |
| SF3.5-2 | 0.75 | 2900 | 6000 | 260 | 72 |
| SF3.5-4 | 0.37 | 1450 | 4000 | 100 | 63 |
| SF4-2 | 1.5 | 2900 | 11000 | 320 | 83 |
| SF4-4 | 0.55 | 1450 | 5300 | 167 | 74 |
| SF5-2 | 2.2 | 2900 | 16000 | 320 | 82 |
| SF5-4 | 0.75 | 1450 | 10000 | 200 | 78 |
| SF6-2 | 3.0 | 2900 | 32000 | 500 | 87 |
| SF6-4 | 2.2 | 1450 | 18700 | 300 | 85 |
| SF7-4 | 3 | 1450 | 24500 | 350 | 87 |
| SF8-4 | 4 | 1450 | 37200 | 380 | 88 |
| SF10-6 | 4 | 960 | 50000 | 260 | 88 |

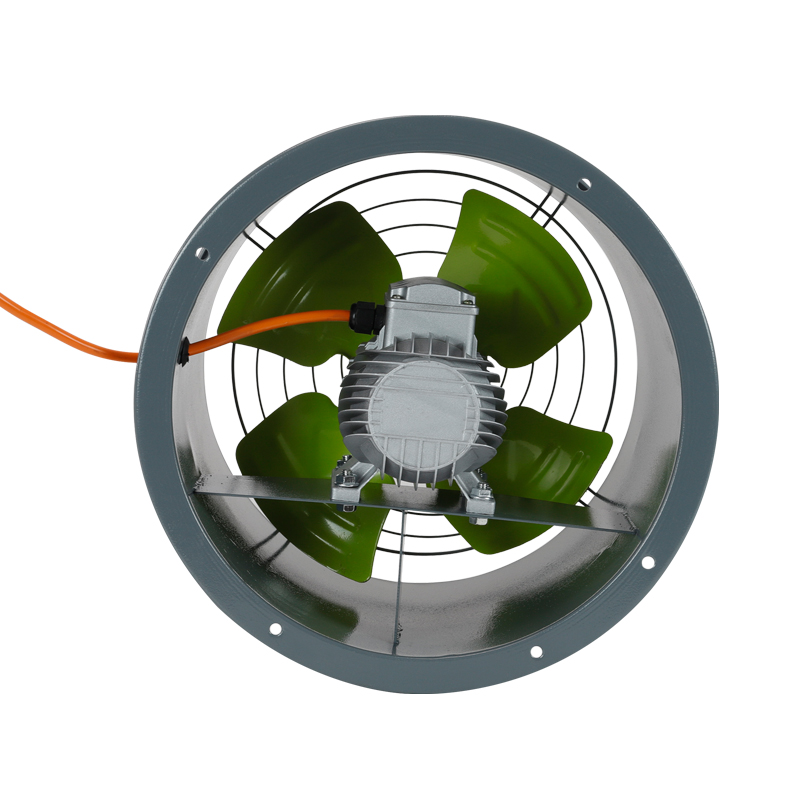

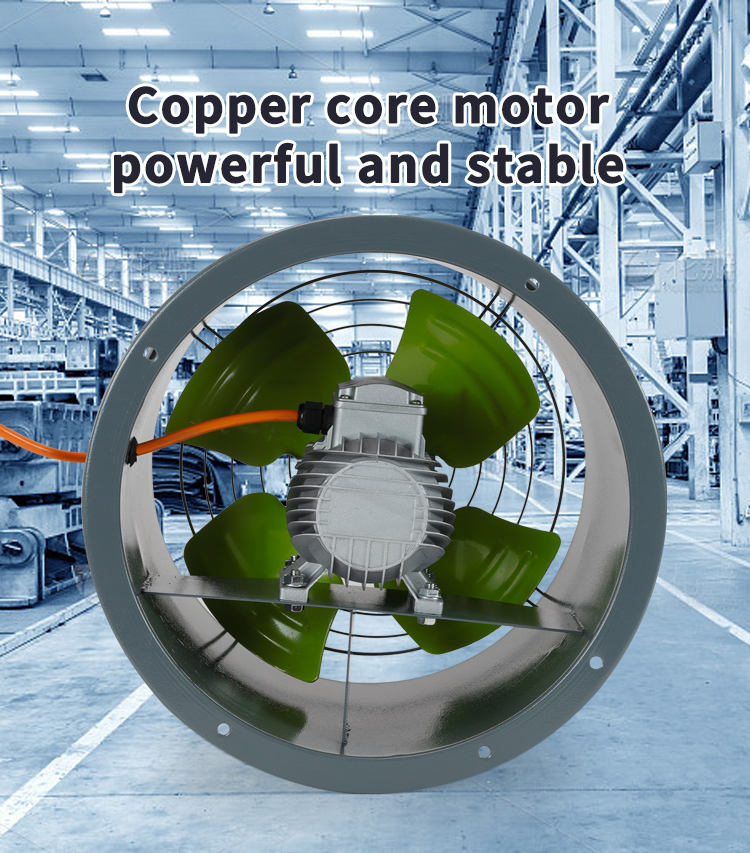

Copper core motor
Large caliber thick and powerful fan blades

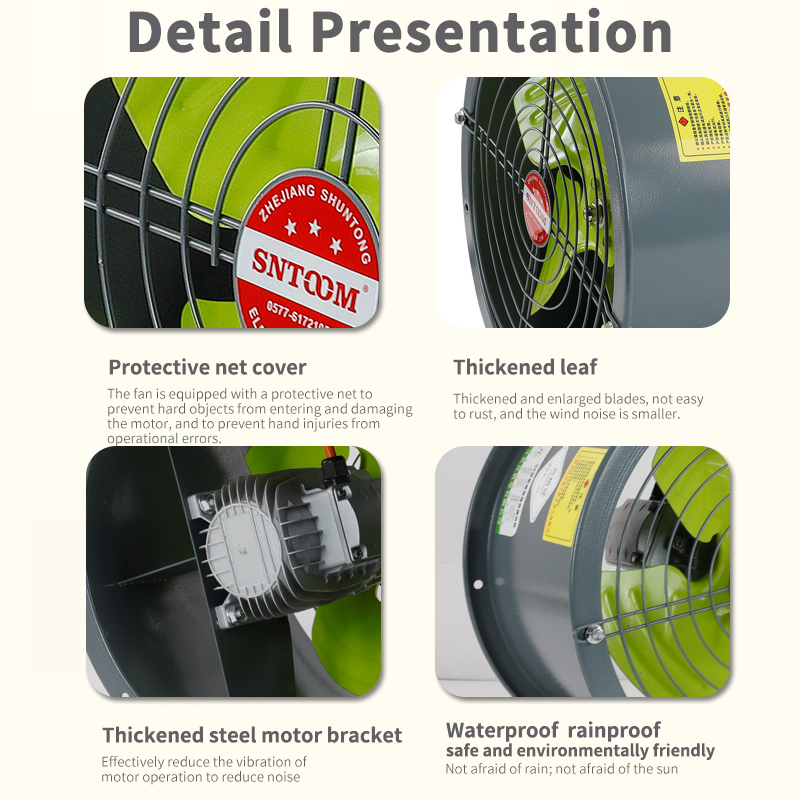

Protective net cover
Thickened steel motor bracket
Waterproof, rainproof, safe and environmentally friendly

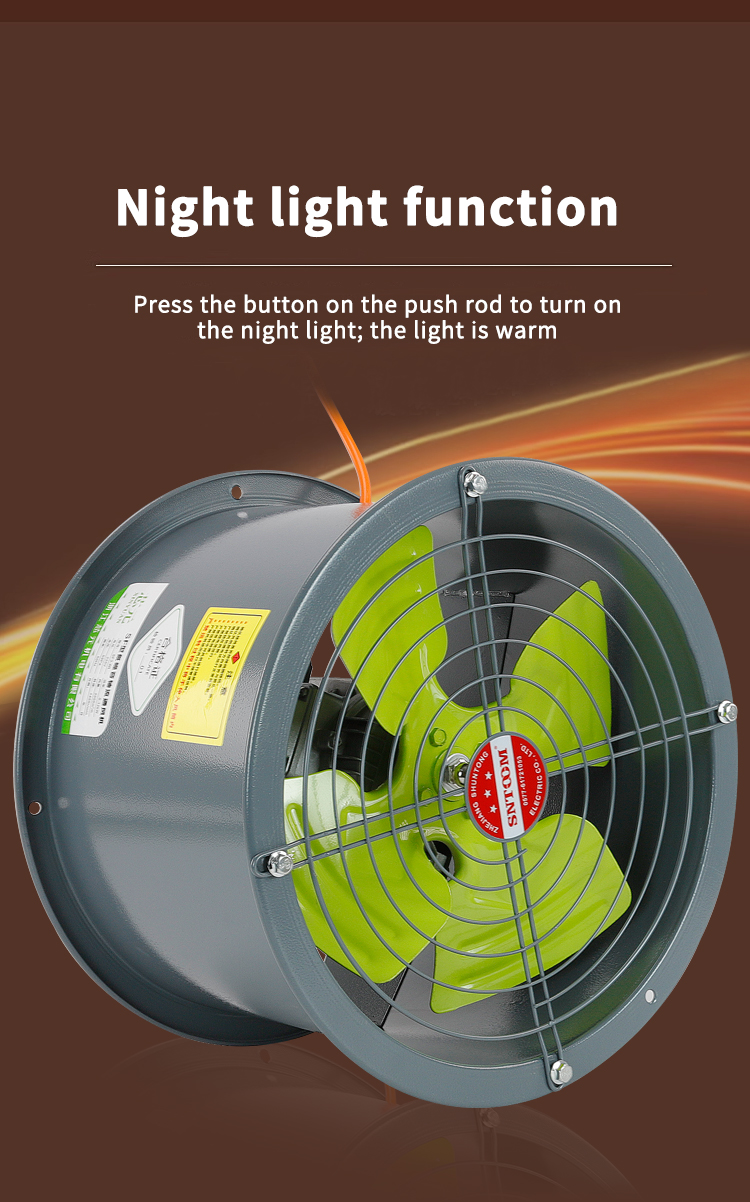

Night light function
Suitable for factories, warehouses, offices, and residential areas
SF series low-noise axial flow fan: a fresh and quiet air
In the field of ventilation solutions, the SF series low-noise axial flow fan stands out as a beacon of innovation and efficiency. These fans are not just mechanical devices; They demonstrate the pursuit of harmony between functional and environmental considerations.
One of the most notable features of the SF series is its ability to provide strong ventilation while maintaining extremely low noise levels. In environments where silence is golden, such as offices, libraries, or residential areas, these fans will operate cautiously to ensure that air circulation does not come at the expense of peace and tranquility.
The design of the SF series is a fusion of aesthetics and engineering excellence. With smooth lines and compact shapes, they seamlessly blend into various architectural environments without compromising visual appeal.
Whether installed on walls or ceilings, they add a touch of modernity while achieving their main purpose.
In addition, the SF series fans are long-lasting. They are made of high-quality materials, have excellent durability, and can withstand the harsh tests of continuous operation. This lifespan not only reduces maintenance costs, but also helps to adopt more sustainable ventilation methods.
In summary, the SF series low-noise axial flow fans represent a significant advancement in ventilation technology. They provide a perfect balance of performance, quiet operation, and durability, making them an ideal choice for various applications. With the SF series, you can breathe easily because you know you have a ventilation solution that truly cares about your needs and environment.
