CBF
SNTOOM

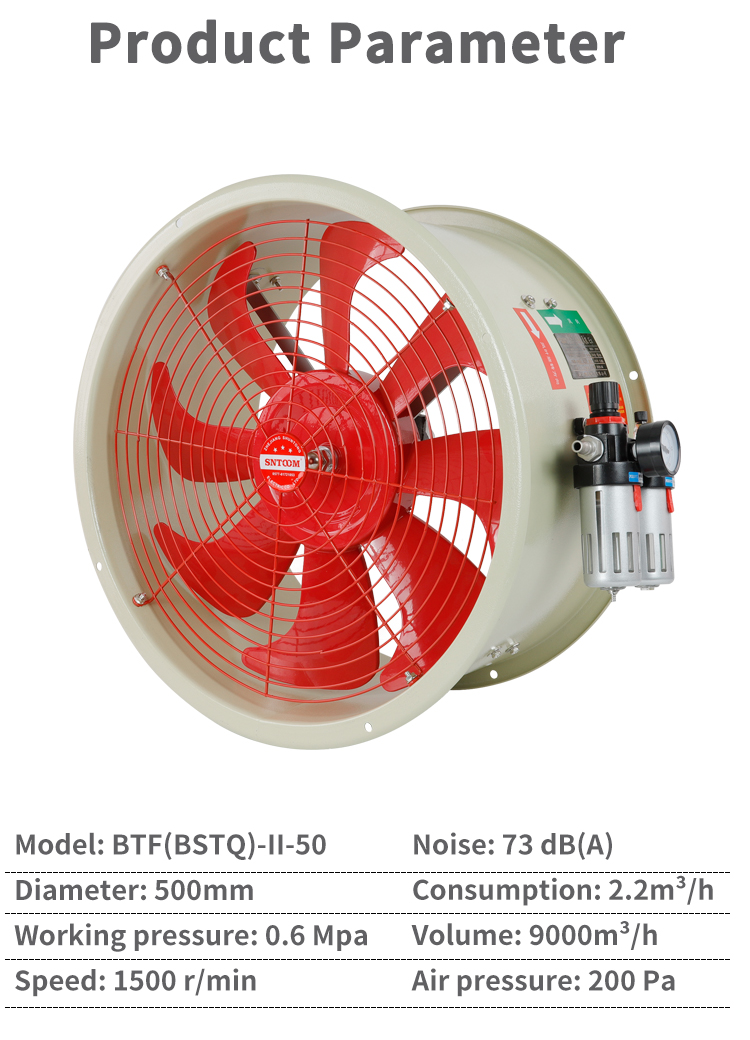

| Model | Noise dB(A) | Consumption (m³/h) | volume （m³/h) | Working pressure (mpa) | speed (r/min) | Air pressure (pa) | Diameter (mm) |
| BTF(BSTQ)-II-50 | 73 | 2.2 | 9000 | 0.6 | 1500 | 200 | 500 |
1. Choose materials with long service life
2. Safe and explosion-proof, with complete certificates

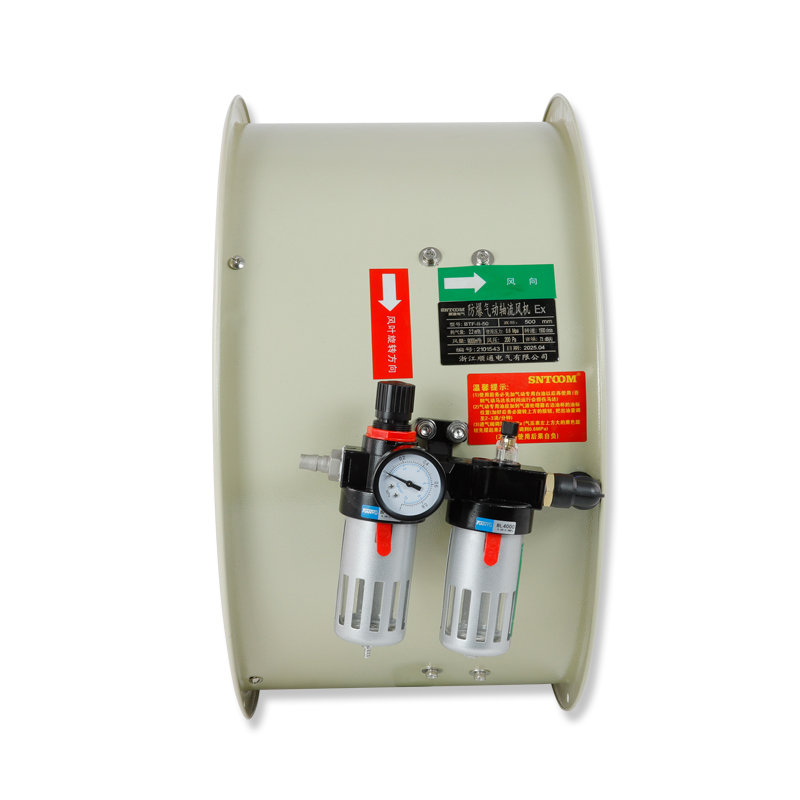

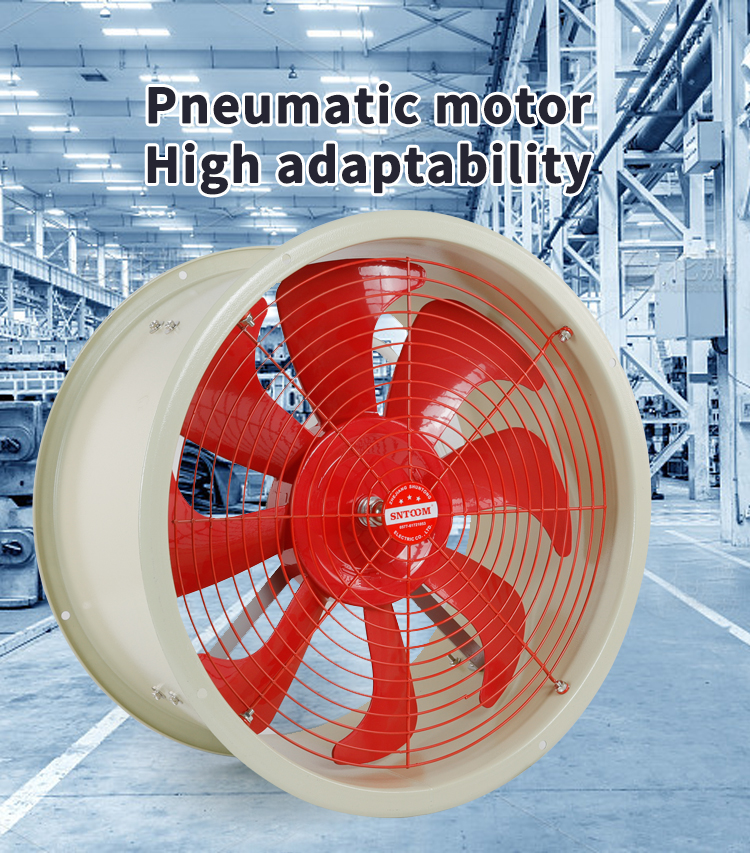

3. Pneumatic motor, doubled air volume, stable performance
4. Carbon steel shell, sturdy and durable

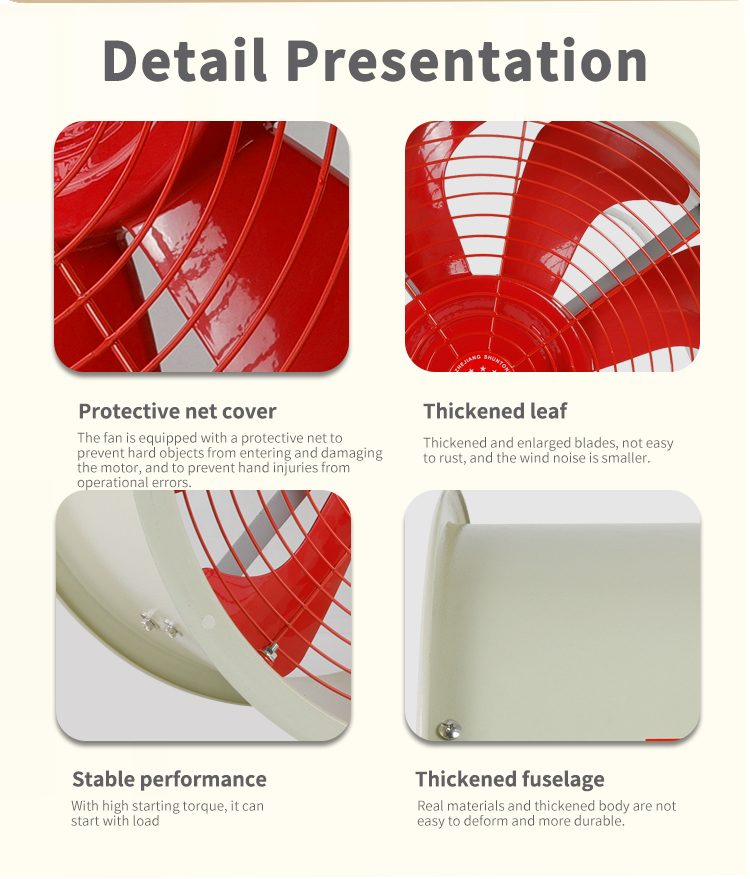

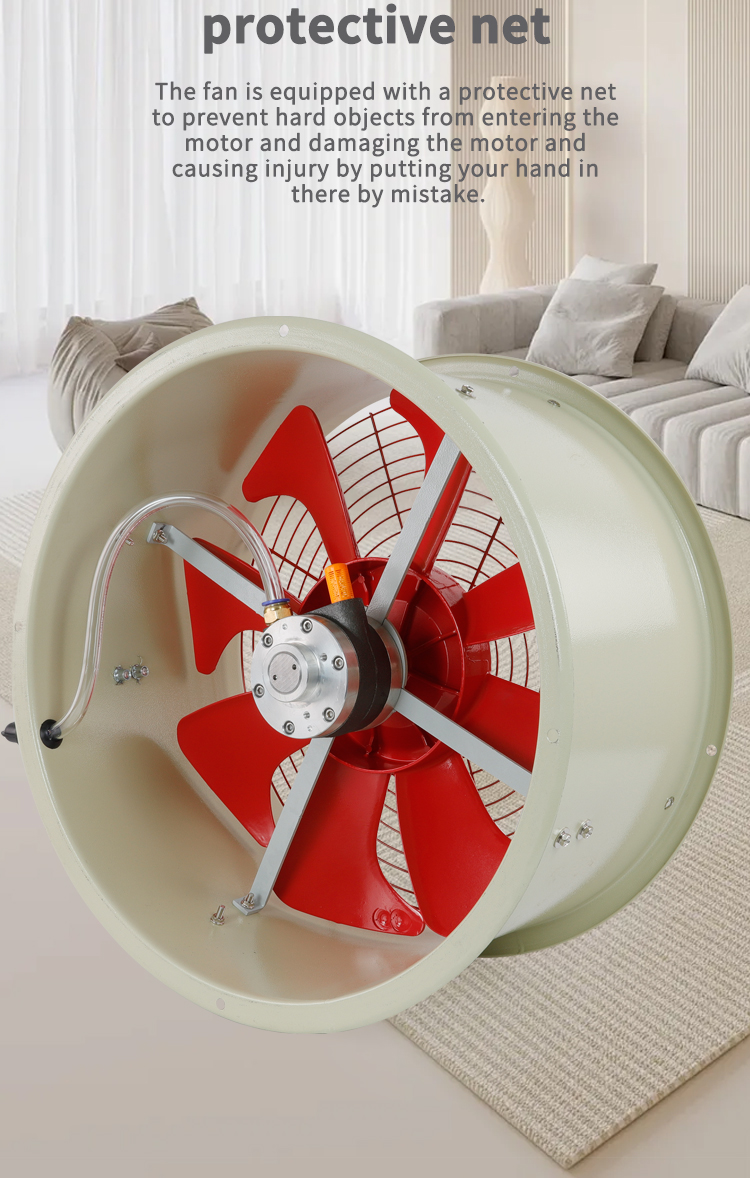

5. Full metal mesh cover safety guarantee
6. Suitable for various scenarios
7. Scientific and reasonable appearance and structure, convenient operation and Application

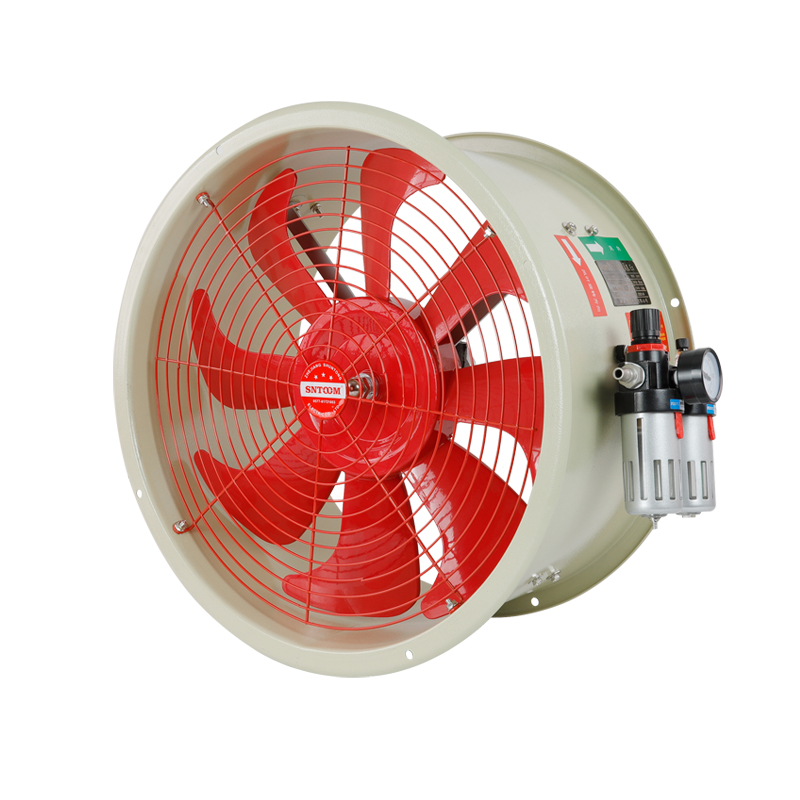

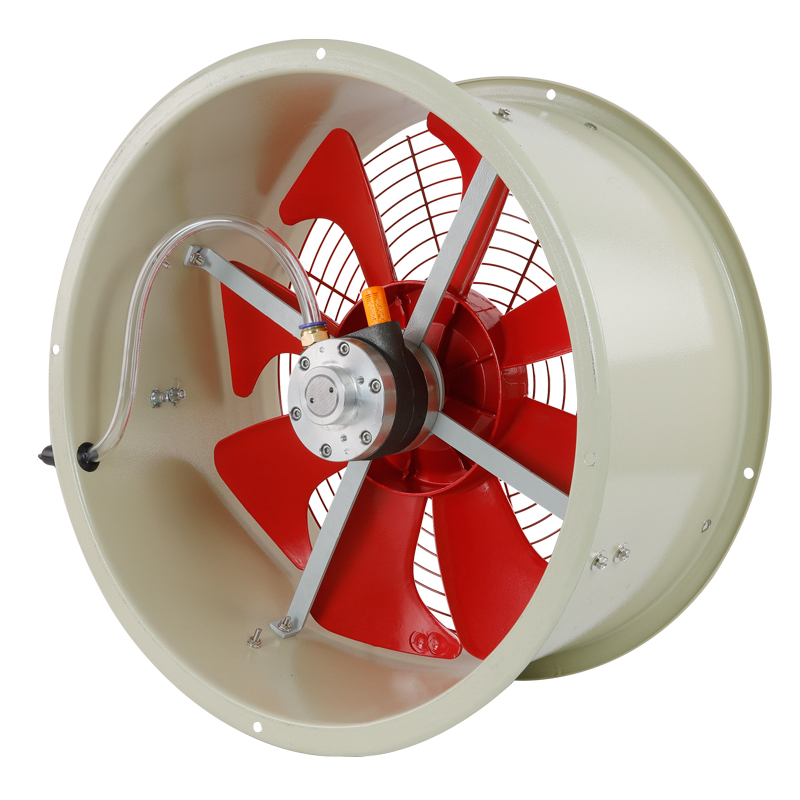

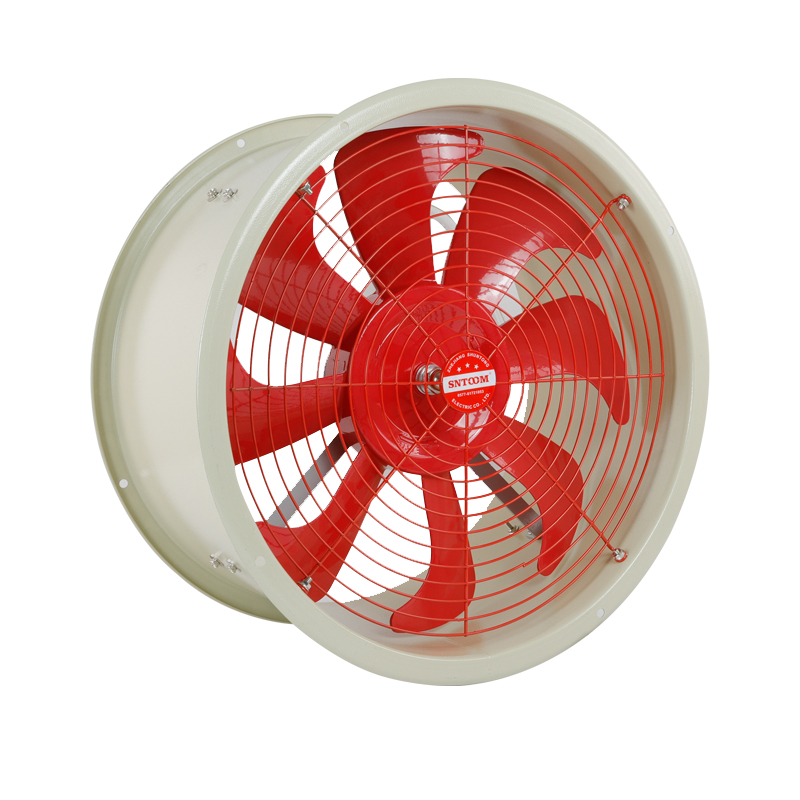

The CBF series explosion-proof axial flow fans are engineered to meet stringent safety standards in industries prone to explosive gas or dust environments, such as petrochemical, pharmaceutical, and military facilities.
Constructed with a corrosion-resistant steel air duct and aluminum alloy blades, the CBF series combines durability with efficiency. Key features include low noise levels, energy-efficient motors, and versatile installation options: wall-mounted, piped, pedestal-mounted, or fixed-frame designs.
Maintenance is simplified by modular components, including replaceable bearings and accessible motor compartments. Regular inspections for loose fasteners, blade alignment, and insulation resistance (≥5 MΩ) are recommended. For longevity, bearings should be lubricated every 1,000 operating hours.
