BTF
SNTOOM
| Model | Biade diameter (mm) | Consumption of gas（m³/h) | Air volume （m³/h) | Air pressure used (mpa) | Rotating speed (r/min) | Wind pressure(pa) | Trachealdiameter |
| BTF-II-30 | 300(12inch) | 1.0 | 3900 | 0.6 | 3000 | 260 | φ10 |
| BTF-II-35 | 350(14inch) | 1.0 | 4500 | 0.6 | 2600 | 220 | φ10 |
| BTF-II-40 | 400(16inch) | 2.2 | 6300 | 0.6 | 2200 | 300 | φ16 |
| BTF-II-45 | 450(18inch) | 2.2 | 7100 | 0.6 | 1800 | 220 | φ16 |
| BTF-II-50 | 500(20inch) | 2.2 | 9000 | 0.6 | 1500 | 200 | φ16 |
| BFT-II-60 | 600(24inch) | 2.2 | 14700 | 0.6 | 1300 | 190 | φ16 |
| BTF-II-70 | 700(28inch) | 2.2 | 17700 | 0.6 | 1200 | 180 | φ16 |
High quality material, lightweight and durable

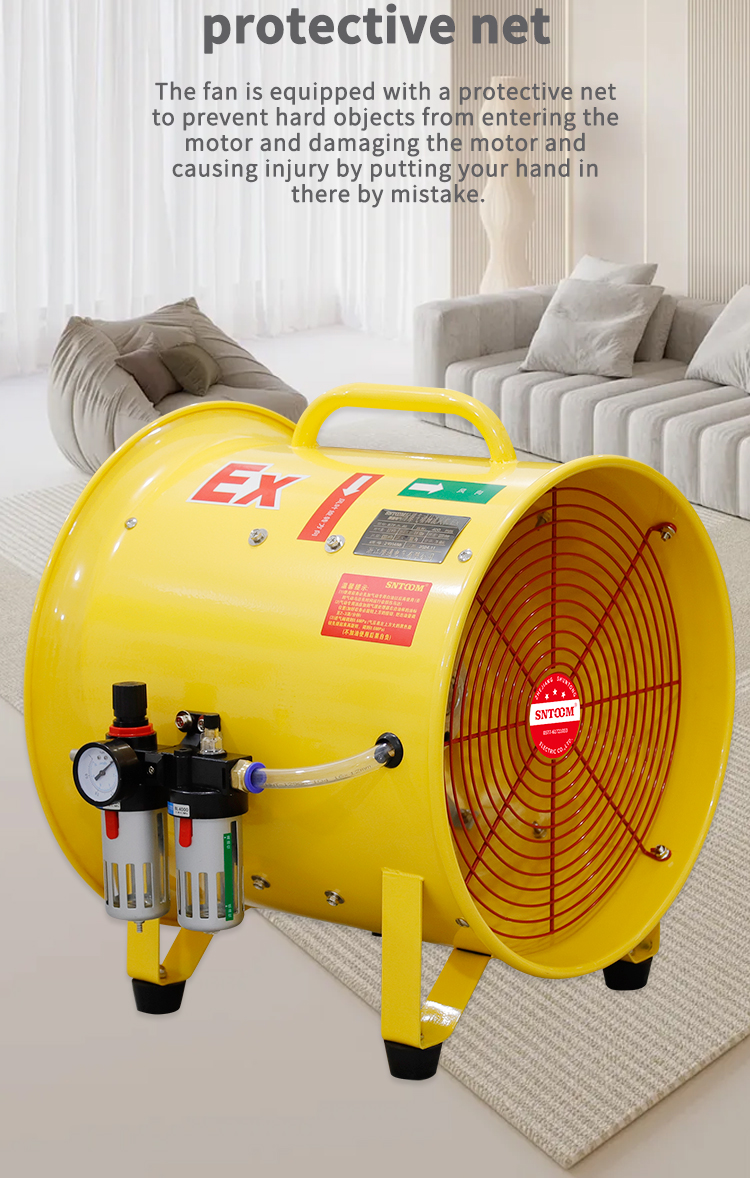

The fan is equipped with a protective net for safe operation
Smooth operation, low noise and high efficiency

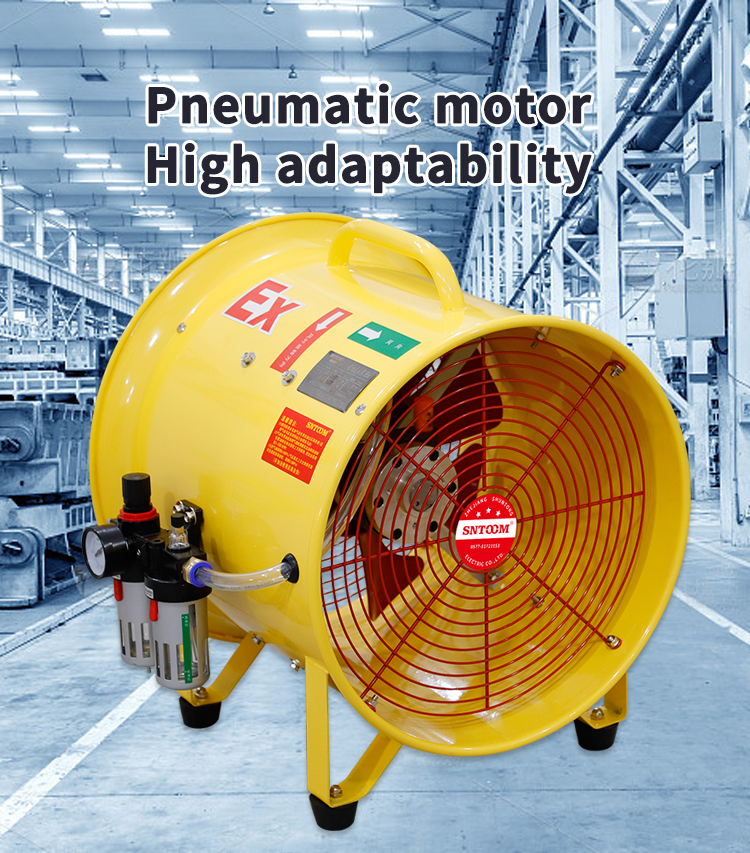

Pneumatic motor, low power consumption
A new fan that efficiently utilizes energy
Efficient operation area is wide and occupies a small area
Long working life and affordable price

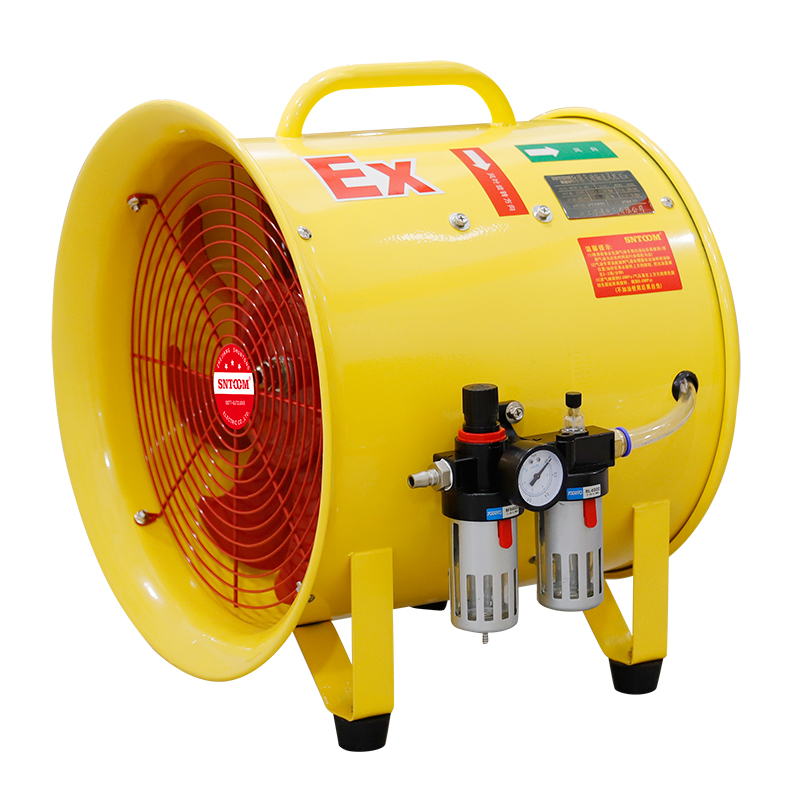

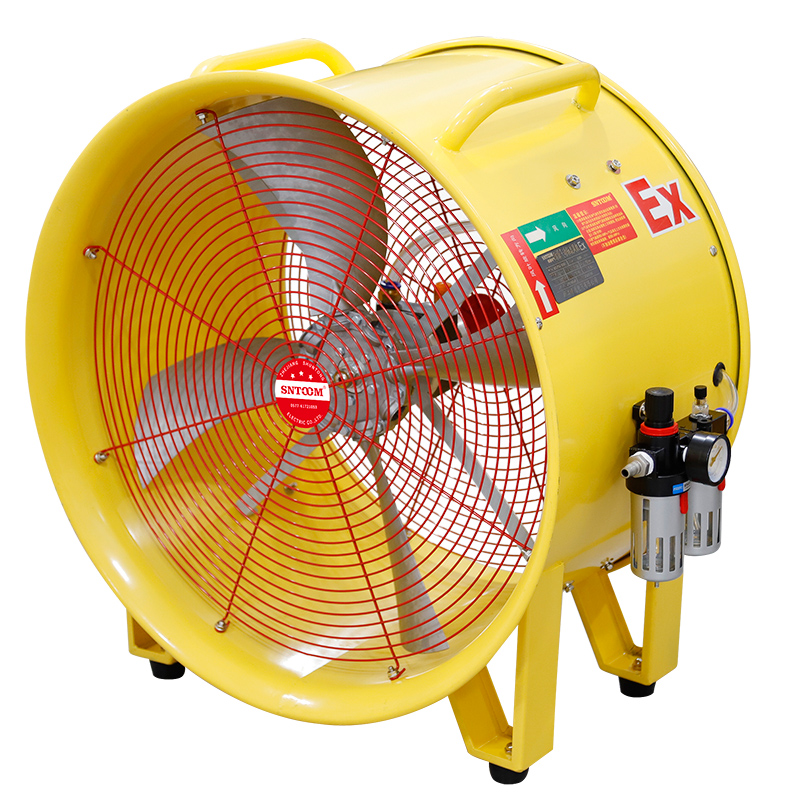

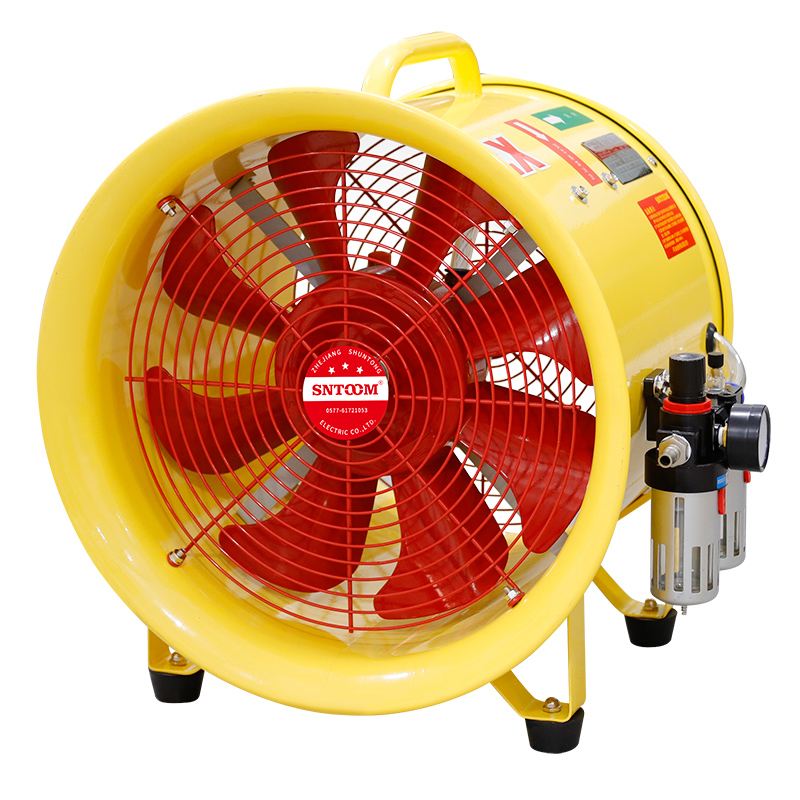

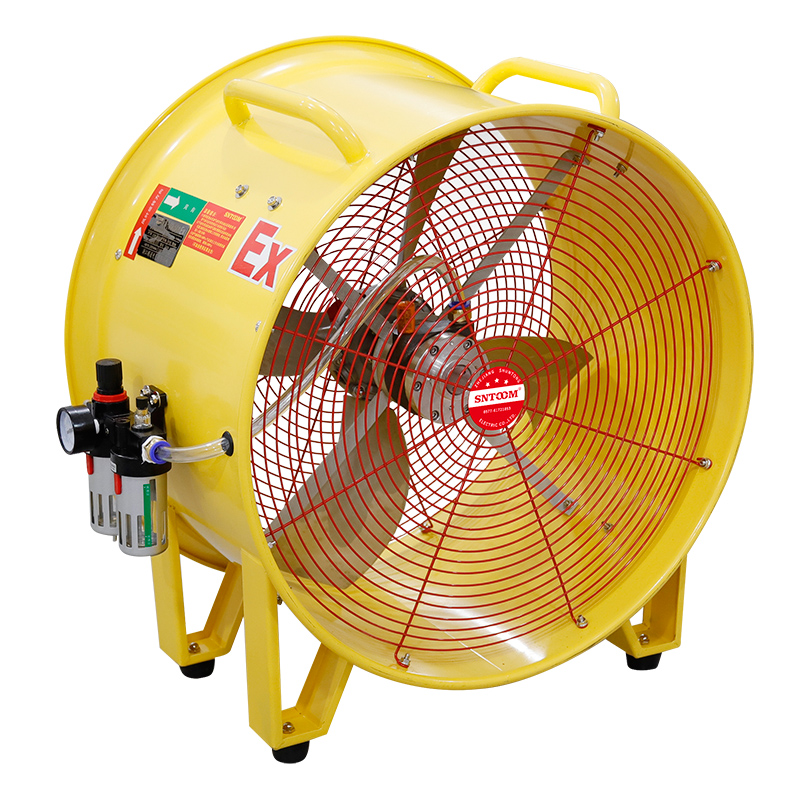

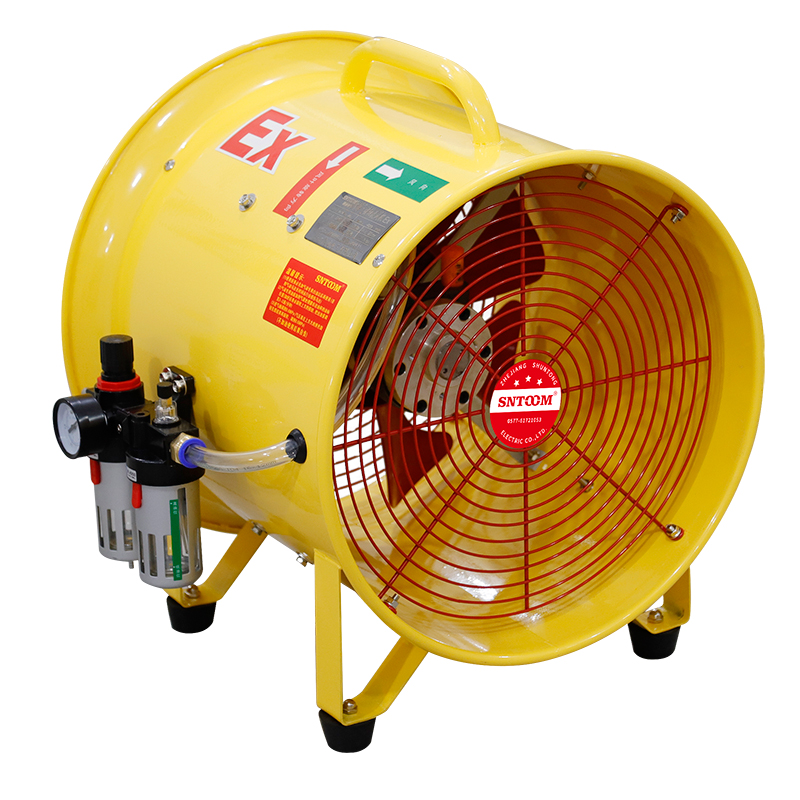

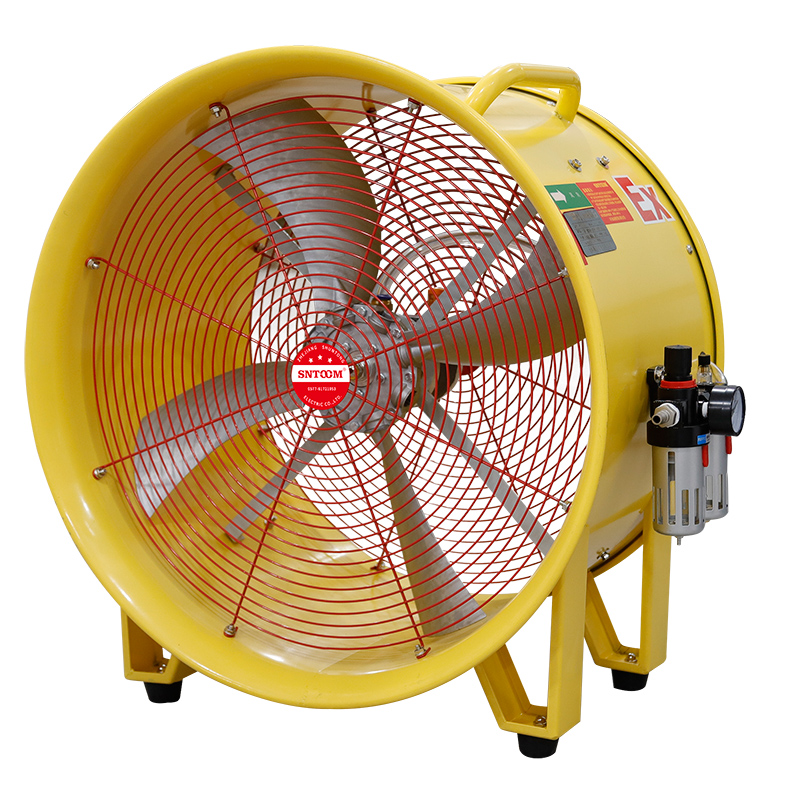

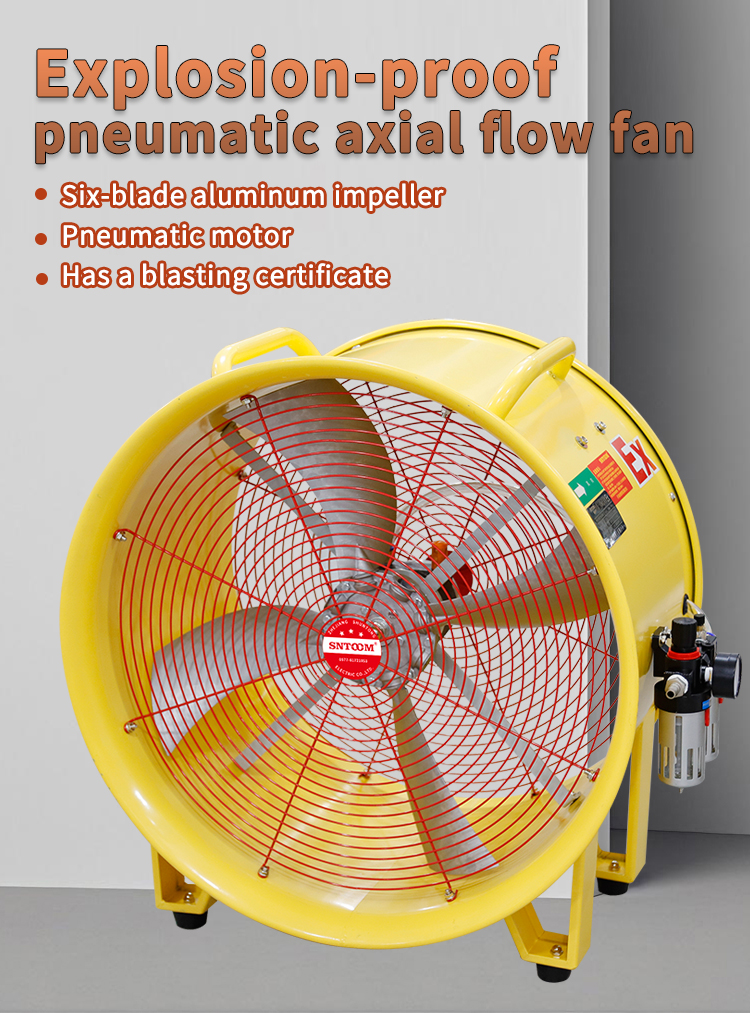

Exploring the BTF Series Explosion-Proof Pneumatic Axial Flow Fans
The BTF series explosion-proof pneumatic axial flow fans, developed by Shanghai Shuangxu Electronics, represent a breakthrough in industrial ventilation technology for hazardous environments. Designed specifically for sectors such as petrochemicals, shipbuilding, warehousing, and coal mining, these fans prioritize safety without compromising performance.
Powered by compressed air, the BTF series eliminates electrical sparks—a critical advantage in volatile settings where flammable gases or dust are present. Their lightweight aluminum bodies and shock-resistant steel casings ensure durability in challenging conditions, while aerodynamically optimized blades minimize noise and vibration. This design not only extends operational lifespan but also maintains stable airflow even under continuous use.

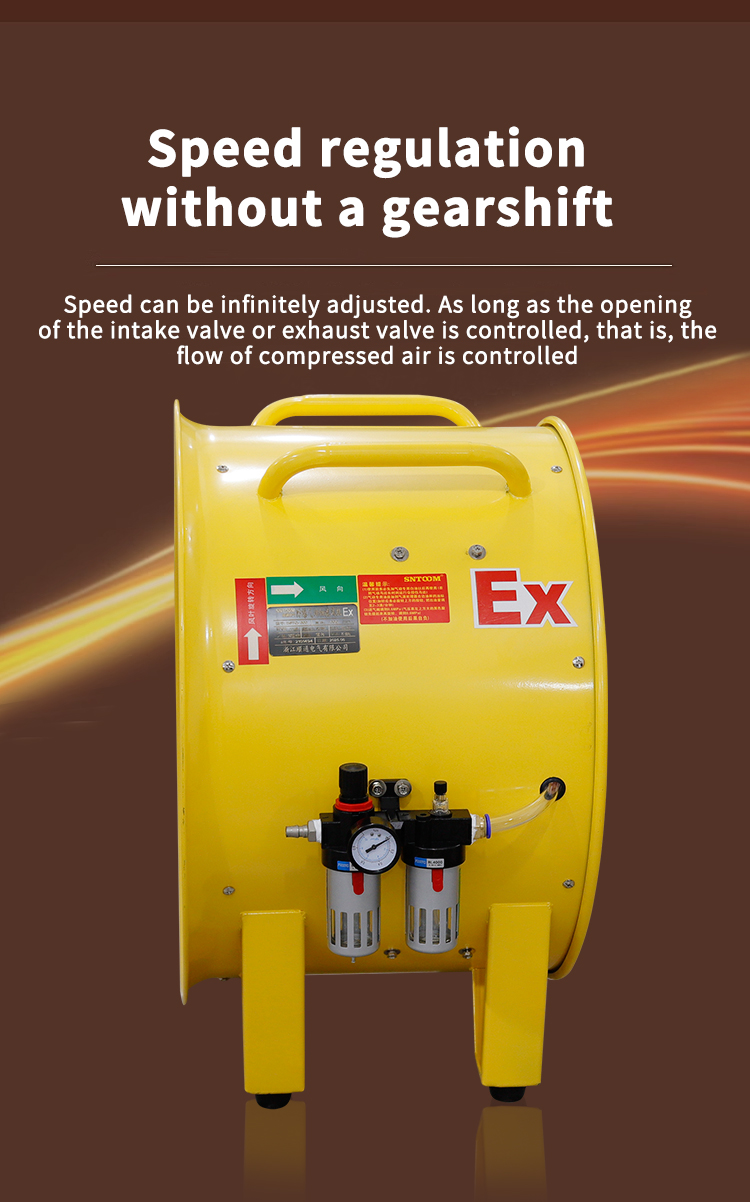

Key innovations include modular construction for easy maintenance, corrosion-resistant coatings for longevity, and adjustable airflow settings to adapt to diverse workspace needs. The fans’ compact design allows rapid deployment in confined spaces, such as underground tunnels or chemical storage areas, where traditional electric fans pose risks.
Industry applications span ventilation in paint workshops, gas stations, and pharmaceutical production facilities. Notably, a mining operation reported a 40% reduction in ambient temperature after installing the BTF-II-70 model, underscoring its efficacy in extreme heat management.
By merging safety, efficiency, and adaptability, the BTF series redefines ventilation standards for high-risk industries, offering a reliable solution to mitigate explosion hazards while enhancing workplace comfort.
