Product introduction

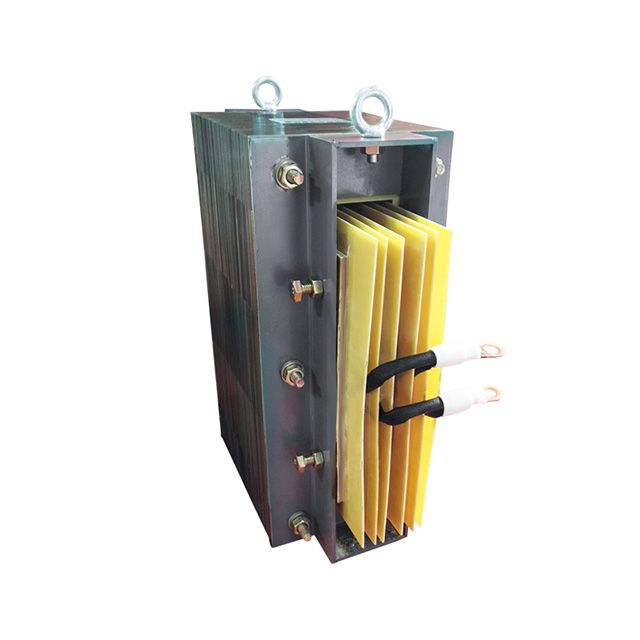

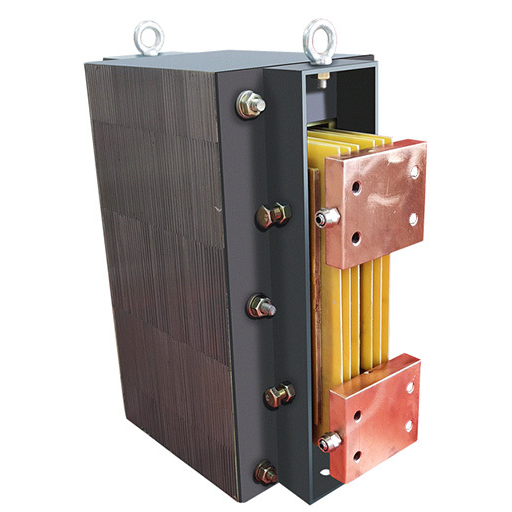

Resistance welding water-cooled transformers can be widely used in industry, such as start spot welding machine, automatic welding machine, butt welding machine, straightening machine, steel wire rolling machine, diffusion welding machine, seam welding, roll welding, touch welding, row welding machine etc.
Normal operating conditions
The Resistance welding water-cooled transformer should be able to work normally under the following conditions:
a) Altitude: not more than 1000m;
b) Ambient temperature: -15 ℃ ~ + 40 ℃
c) The relative humidity of the air does not exceed 95% (at + 25 ℃);
d) In a gas or steam environment without damage to insulation;
e) Used in explosive environment without methane coal dust.
Product parameters
Product name | Resistance welding water-cooled transformer |
Capacity | 50kVA |
Frequency | 50/60Hz |
Input voltage | 220/380V (can be customized) |
Output voltage | 15V(can be customized) |
Ambient temperature | -15 ℃ ~ + 40 ℃ |
Insulation resistance | ≥50MΩ |
Effectiveness | 95% |
Waveform distortion | No additional waveform distortion |
Overload capacity | 2 times rated current, maintain 1min |
Note: Special current and voltage can be customized according to requirements! | |
