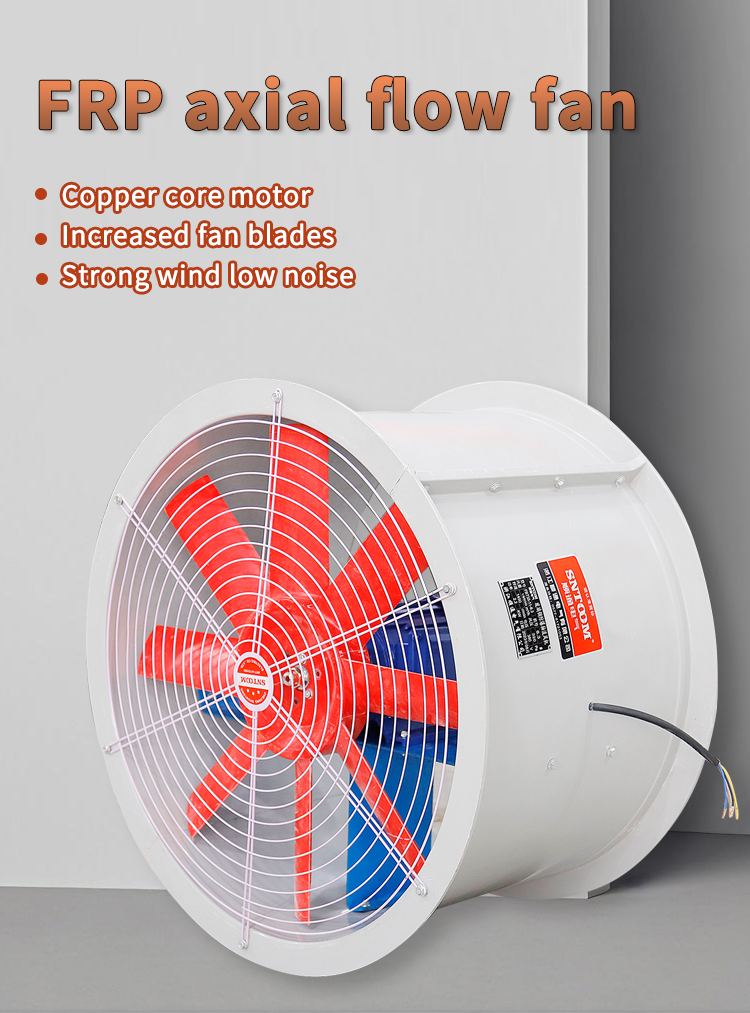

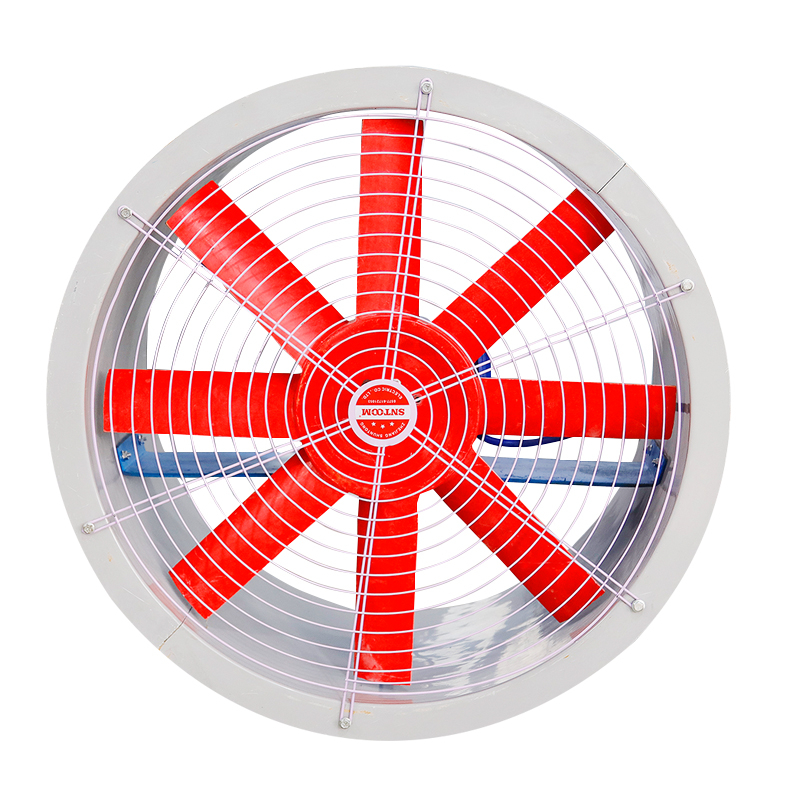

FT35 series FRP axial flow fan

The FT35 series glass fiber reinforced plastic (FRP) axial flow fan features a lightweight yet robust FRP construction, ensuring excellent corrosion resistance. With low noise, high efficiency, and stable operation, it is ideal for ventilation in corrosive environments like chemical plants and laboratories.

Quantity:
Availability:





Inquire Add to Basket

Model:
FT35

Product Description

Strong Wind, Low Noise Wide Applications Reasonable Structure Improved Performance

Product parameters

Product number	Diameter of impeller (mm)	input power (kw)	Rotating speed (r/min)	Air volume (m³/h)	wind pressure (Pa)	Voltage (v)
FT35-11-2.8	280	0.15	1450	2000	60	220/380
FT35-11-2.8	280	0.37	2900	3000	215	220/380
FT35-11-3.15	315	0.55	2900	4200	230	220/380
FT35-11-3.15	315	0.18	2900	2200	70	220/380
FT35-11-3.55	355	0.37	1450	4000	120	220/380
FT35-11-3.55	355	0.75	2900	6500	320	380
FT35-11-4	400	0.55	1450	5900	149	220/380
FT35-11-4	400	1.5	2900	8500	450	220/380
FT35-11-4.5	450	0.75	1450	8800	180	220/380
FT35-11-5	500	0.75	1450	10000	200	220/380
FT35-11-5	500	1.1	1450	11800	260	380
FT35-11-5.6	560	1.5	1450	13900	280
FT35-11-6.3	600	2.2	1450	19500	320
FT35-11-7.1	700	3.0	1450	26000	350
FT35-11-8	800	4.0	1450	33000	380
FT35-11-8	800	5.5	1450	35000	420
FT35-11-10	1000	5.5	960	46500	300

Strong Wind, Low Noise
Smooth, Quiet, Efficient

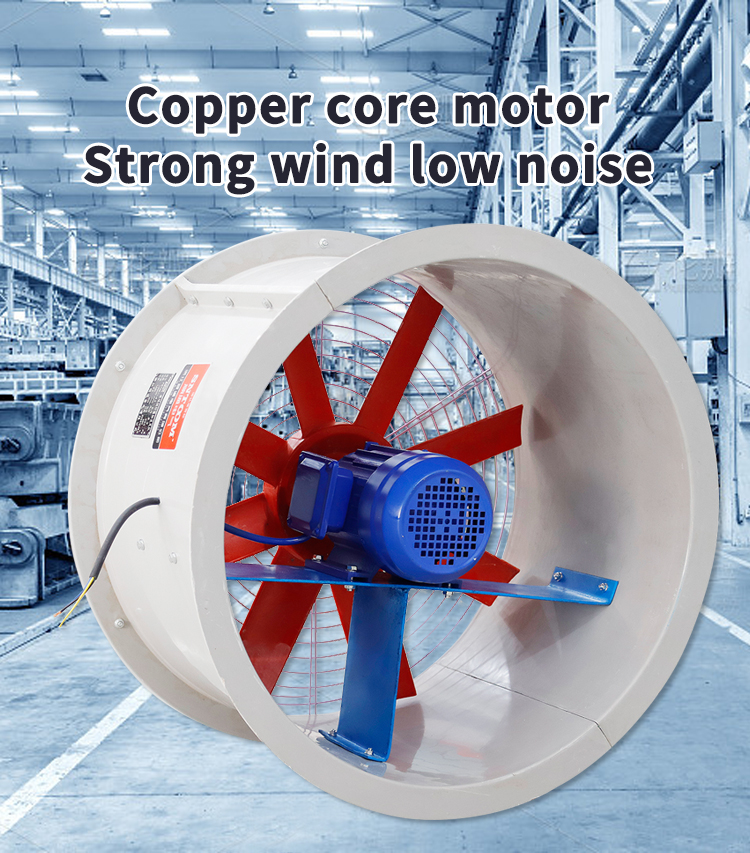

Pure Copper Motor
Wide Applications

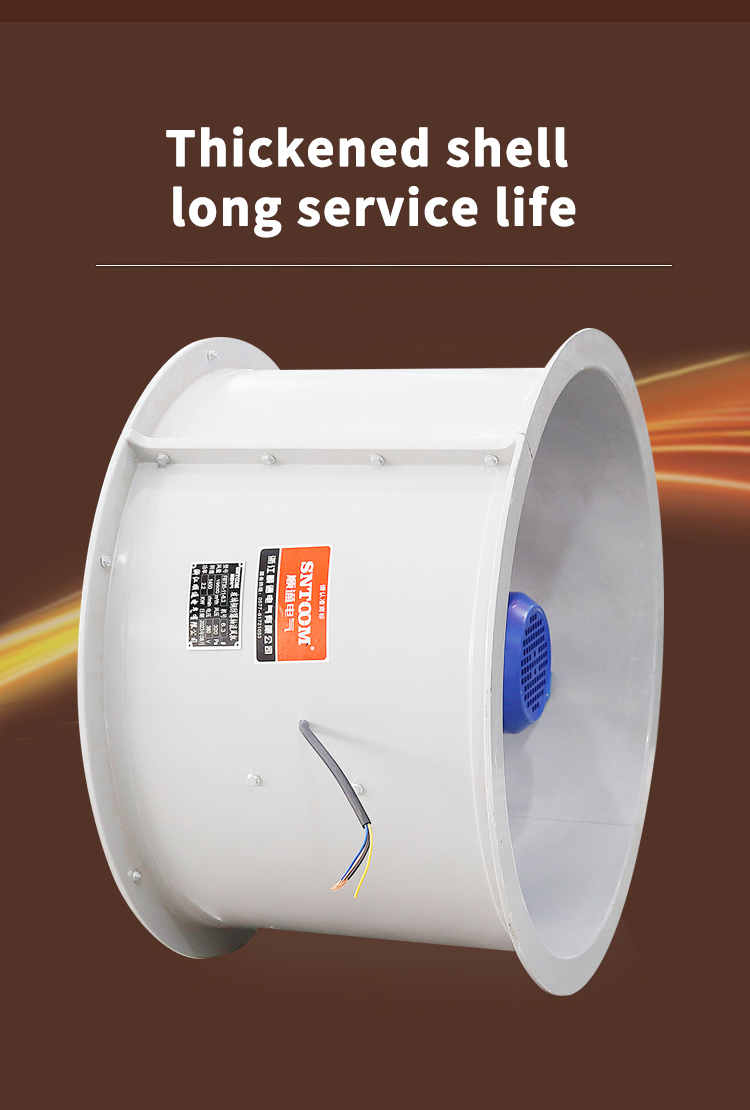

Thickened, Painted Casing
Reasonable Structure
Improved Performance

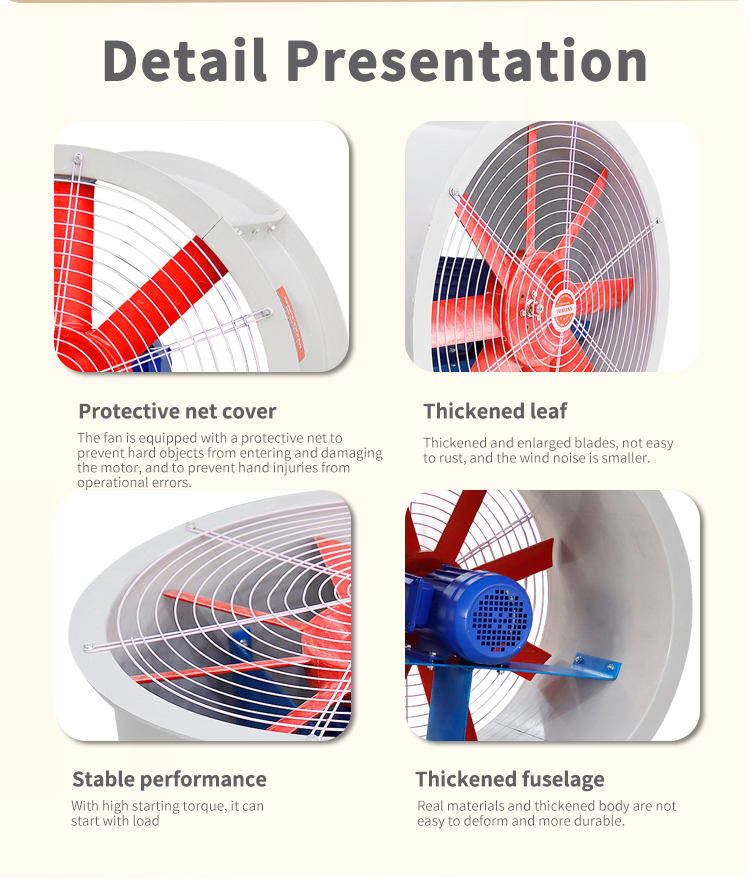

Protective net cover

Protective net cover FT35 series FRP axial flow fan

FT35 Series FRP Axial Flow Fan: Powerful, Efficient, and Versatile

The FT35 series FRP (Fiber Reinforced Plastic) axial flow fan is a remarkable blend of power and tranquility, designed to deliver strong wind while maintaining low noise levels. Equipped with aluminum alloy fan blades, this fan ensures efficient airflow and durability.

This series of fans is your gateway to enjoying fresh air and improved air quality, thereby enhancing your overall quality of life. With high-performance exhaust capabilities, it can easily adapt to any venue, be it factories, warehouses, offices, or residential spaces, providing ventilation or enhancing heating and cooling systems.

Constructed from high-quality materials, the FT35 series is both lightweight and durable. It operates smoothly, with low noise and high efficiency, thanks to its pure copper motor that consumes less power while delivering stable performance. The fan boasts a wide efficient operating area and a compact footprint, making it ideal for spaces where saving space is crucial.

The thickened painted casing, treated with an advanced painting process, is resistant to wear, shockproof, and drop-resistant. Its structure is more reasonable, featuring a cylindrical hub that reduces flow loss, and blade roots with high strength.

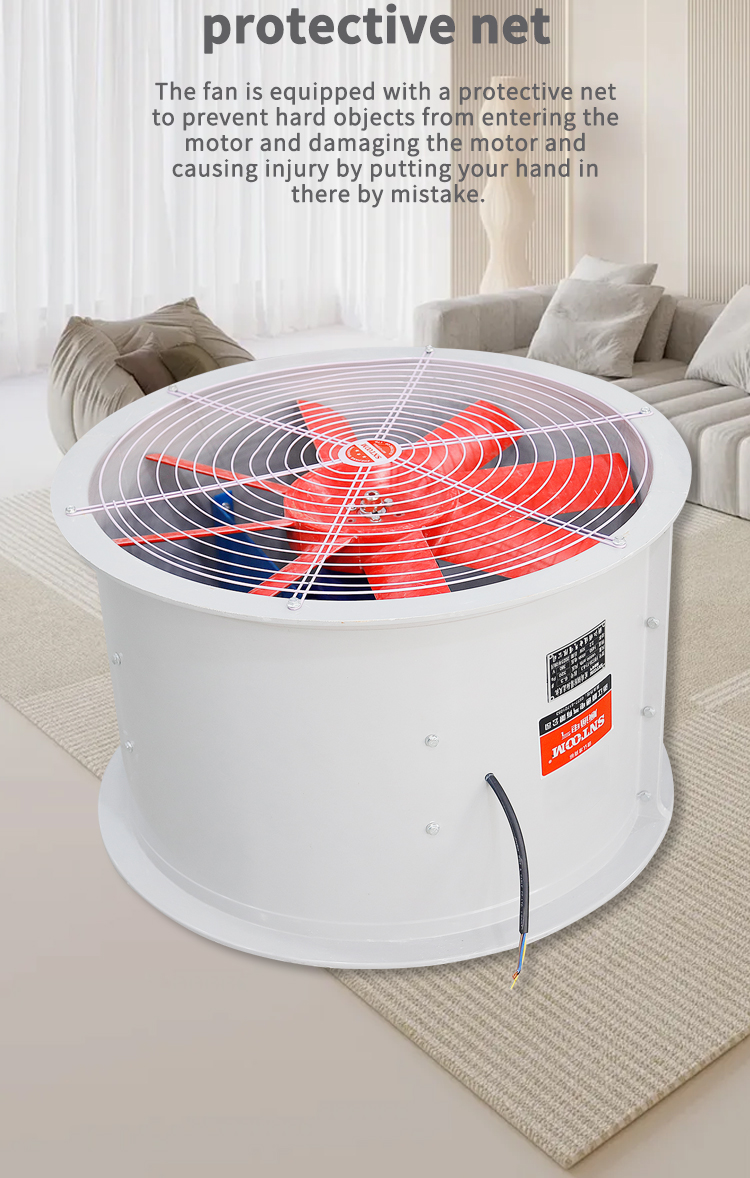

The performance of the FT35 series has been significantly improved, with total pressure efficiency reaching over 80% and noise levels reduced by 3.6dB(A) compared to A-weighted sound levels. Additionally, the fan is equipped with a protective grid to prevent hard objects from entering and damaging the motor, as well as to safeguard against accidental hand insertions during operation.

With its long service life, affordable price, and wide range of applications, the FT35 series FRP axial flow fan is an excellent investment.
