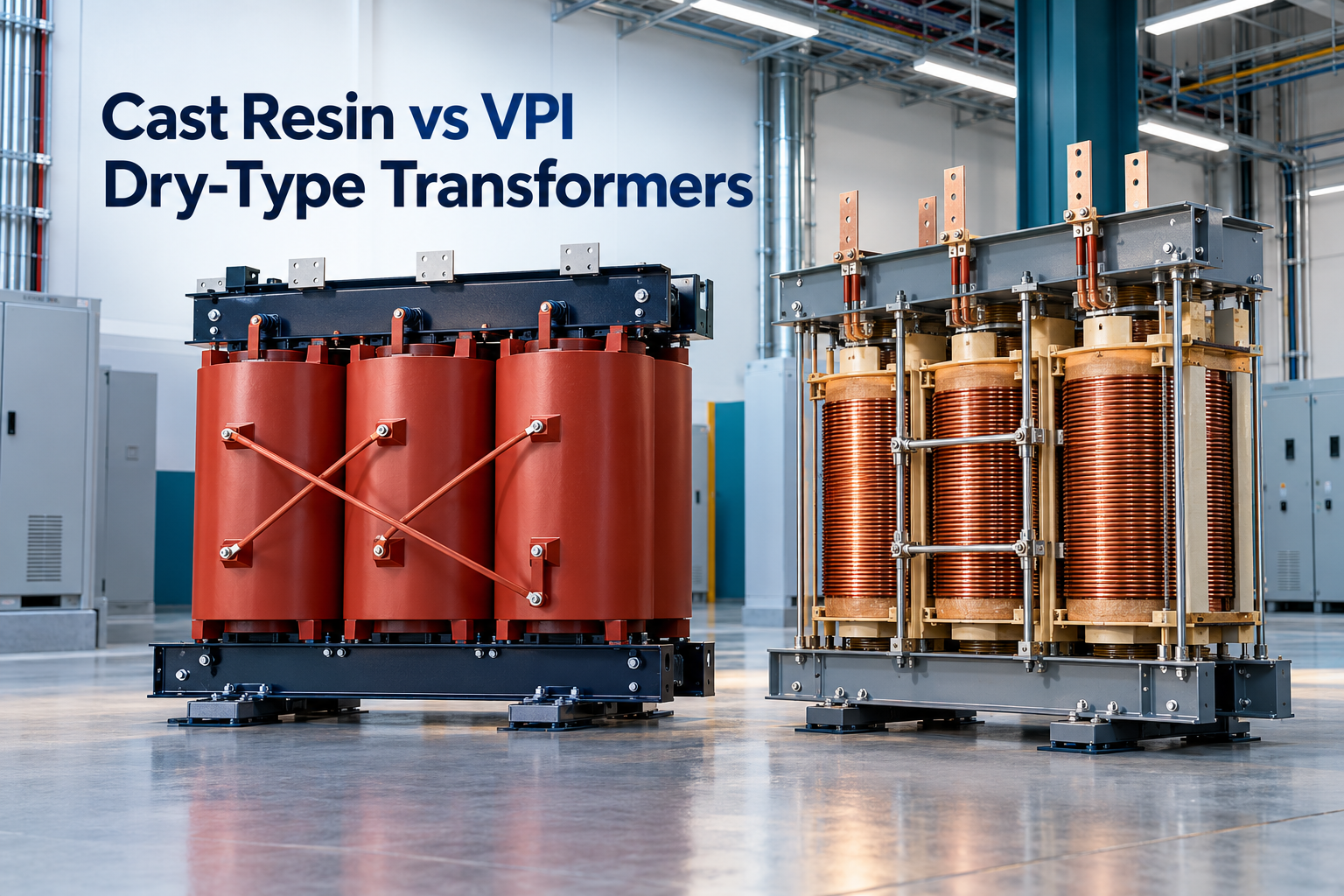

Cast resin and VPI transformers are two different approaches to dry-type transformer insulation. Both are designed without liquid insulation, but their winding treatment, environmental behavior, inspection requirements, and project suitability can be different.
A cast resin transformer uses solid resin encapsulation around the winding. A VPI transformer uses vacuum pressure impregnation to force insulating resin into the winding insulation system. The correct choice depends on the electrical rating, moisture exposure, cooling conditions, maintenance plan, installation environment, and technical requirements.
Neither construction should be selected only because it is described as more advanced or more reliable. Buyers should compare the actual insulation process, test data, operating conditions, and supplier documentation.
Cast resin and VPI are different insulation processes, not simply different product names.
Cast resin windings are enclosed in solid resin, while VPI windings are impregnated with resin under a controlled manufacturing process.
Moisture, condensation, dust, chemicals, cooling, noise, and maintenance access should be reviewed together.
Neither construction is automatically suitable for every industrial environment.
Buyers should compare test conditions, partial-discharge information, thermal performance, and environmental protection.
The final decision should be based on project data and supplier documentation rather than price alone.
The most important difference is how the transformer windings are insulated and protected.
A cast resin transformer has windings encapsulated in solid resin. The resin forms a stable insulation structure around the winding and provides a physical barrier between the winding and the surrounding air.
A cast resin transformer may be considered when the project requires:
Indoor power distribution
Greater protection from humidity
Reduced liquid-insulation management
A compact electrical-room arrangement
Defined surface protection
Easier visual identification of the winding structure
The final result depends on the resin system, winding design, casting process, curing process, cooling arrangement, and quality control.
VPI stands for vacuum pressure impregnation. In this process, the winding insulation is impregnated with resin under controlled vacuum and pressure conditions.
The resin penetrates the insulation system and helps bond the winding materials. Unlike a fully cast winding, the conductor and insulation structure may remain visibly defined after processing.
A VPI transformer may be considered when the project values:
A resin-impregnated winding structure
Specific thermal and mechanical design characteristics
Serviceability of the winding assembly
A process suited to the manufacturer’s established production method
A design that requires detailed evaluation of insulation treatment
VPI is a manufacturing process rather than a universal performance grade. The actual result depends on the winding design, resin system, number of treatment cycles, curing process, and factory quality controls.
The physical insulation structure affects how buyers evaluate the transformer for a specific site.
A cast resin design creates an enclosed winding surface. A VPI design uses impregnated insulation while retaining more of the visible winding structure.
When comparing the two, ask:
How is the winding insulated?
Which resin or insulation system is used?
How is the resin cured?
How is insulation uniformity checked?
How are voids or defects controlled?
What test data is available?
How is the winding protected after manufacturing?
The name of the process is not enough. Two suppliers may use the same general term but apply different materials, process controls, and testing methods.
For medium-voltage dry-type transformers, partial-discharge performance may be part of the project specification.
The buyer should confirm:
Whether partial-discharge testing is required
The test voltage
The acceptance criteria
The measurement method
The test report format
Whether routine or type testing applies
Do not compare partial-discharge values unless the test conditions are equivalent. A number without its test method and voltage condition may be difficult to interpret.
Moisture is one of the most common reasons buyers compare cast resin and VPI dry-type transformers.
A cast resin transformer has a solid resin surface around the winding. This may provide a useful barrier in applications where humidity, condensation, or occasional moisture exposure is a concern.
However, the transformer room, enclosure, terminals, and cable connections still need protection. Solid resin does not remove the need for proper ventilation and moisture control.
A VPI transformer may also be suitable for demanding environments when the winding treatment, enclosure, room conditions, and maintenance plan are properly designed.
The inquiry should identify:
Indoor or outdoor installation
Normal humidity
Condensation risk
Coastal or salt exposure
Dust and chemical vapors
Water spray or cleaning procedures
Ventilation conditions
Enclosure requirements
Avoid making a general statement that one construction is suitable for every humid or coastal environment. The complete design must be evaluated.
Both cast resin and VPI transformers normally rely on air for heat dissipation, but the actual thermal performance depends on the complete design.
Review:
Rated capacity
Load profile
Winding losses
Core losses
Ambient temperature
Airflow
Enclosure arrangement
Installation altitude
Continuous and short-time loading
Harmonic current
Forced-air cooling requirements
Natural-air cooling may be suitable for many standard applications. Forced-air cooling may be considered when the project requires additional loading capability or when the installation has specific thermal conditions.
The supplier should explain:
The normal cooling arrangement
Whether forced air is available
How fans are controlled
What happens if a fan fails
Whether temperature monitoring is included
How overload operation is defined
Whether the cooling information applies to the complete enclosure
Do not compare cast resin and VPI only by the insulation process. The core design, winding arrangement, cooling path, enclosure, and operating duty may have a greater influence on the final thermal performance.
Transformer windings experience mechanical forces during short-circuit events. The winding support structure, clamping arrangement, insulation system, and manufacturing quality all affect the transformer’s ability to withstand those forces.
The technical inquiry should request information about:
Winding support
Clamping structure
Short-circuit withstand
Conductor arrangement
Mechanical reinforcement
Terminal support
Transport conditions
Mounting requirements
A cast resin surface may protect the winding from direct external contact, but it does not replace the need for internal mechanical strength.
A VPI design may also provide strong mechanical bonding when the impregnation and curing process is properly controlled. Buyers should ask for relevant test documentation rather than assuming performance from the process name.
Noise depends on the transformer core, magnetic flux density, loading, mounting structure, enclosure, and surrounding room. It is not determined by cast resin or VPI construction alone.
The project should state whether the transformer is installed near:
Offices
Hospitals
Schools
Residential buildings
Laboratories
Control rooms
Sensitive electronic equipment
Public spaces
The supplier should provide the applicable noise information and test conditions.
Installation design also matters. A rigid foundation, suitable vibration isolation, correct clearances, and proper cable support may influence the actual noise experienced at the site.
Maintenance requirements may differ depending on the winding surface, enclosure, environment, and access arrangement.
For a cast resin transformer, maintenance may focus on:
Dust removal from external surfaces
Inspection of resin surfaces
Checking for cracks or visible damage
Terminal inspection
Temperature monitoring
Cooling-path inspection
Grounding checks
Cable connection checks
Cleaning methods should follow the manufacturer’s instructions. Abrasive tools or unsuitable cleaning agents may damage the surface.
For a VPI transformer, maintenance may include:
Winding inspection
Dust removal
Insulation condition checks
Terminal inspection
Temperature monitoring
Ventilation checks
Connection tightening
Inspection for contamination or visible deterioration
The actual maintenance interval depends on the operating environment and the manufacturer’s instructions.
Neither cast resin nor VPI should be described as maintenance-free. Dry-type transformers still require inspection, cleaning, thermal review, and connection checks.
The application environment should determine which technical features receive the most attention.
For a clean, dry, and well-ventilated electrical room, both cast resin and VPI may be considered depending on the voltage, capacity, insulation system, and project requirements.
The comparison should focus on:
Electrical rating
Noise
Cooling
Cost
Maintenance
Available documentation
Supplier experience
For humid, dusty, or contaminated environments, review:
Winding protection
Enclosure
Ventilation
Condensation control
Cleaning access
Cable-entry protection
Surface protection
Maintenance frequency
SNTOOM’s dry-type transformer range includes cast-resin and epoxy-potted dry-type options for project evaluation. The appropriate construction should still be confirmed according to the actual site conditions and electrical requirements.
Coastal and chemical-processing environments may require additional review of:
Metal coatings
Fasteners
Terminals
Enclosure materials
Air filtration
Salt or chemical exposure
Cleaning procedures
Ventilation
Do not assume that the winding insulation process alone solves every corrosion or contamination issue.
The purchase price is only one part of the comparison.
Evaluate:
Transformer price
Enclosure
Cooling equipment
Monitoring devices
Required testing
Transport
Installation
Spare parts
Cleaning and maintenance
Expected downtime
Replacement access
Documentation
Warranty and service
A lower initial price may not represent a lower project cost if the transformer requires additional room protection, special maintenance, or complex installation.
At the same time, a more expensive insulation process is not automatically better for every project. The buyer should compare the technical benefit with the actual environmental and operating requirements.
A complete inquiry helps suppliers provide comparable proposals.
Include:
Primary and secondary voltage
Rated capacity
Phase and frequency
Vector group
Impedance
Insulation level
Temperature-rise requirement
Cooling arrangement
Ambient temperature
Installation altitude
Indoor or outdoor use
Humidity and condensation
Dust, salt, or chemical exposure
Noise requirement
Enclosure requirements
Partial-discharge requirements
Short-circuit withstand
Required documents
Inspection and testing requirements
Delivery and installation conditions
Ask the supplier to identify the exact insulation process rather than writing only “dry-type transformer.”
Ask:
Is the winding cast resin, epoxy potted, VPI, or another construction?
What resin and insulation system are used?
How is the manufacturing process controlled?
What tests are performed?
What environmental conditions were used for testing?
Is forced-air cooling available?
What maintenance is recommended?
Are drawings and inspection documents included?
Which project requirements still need confirmation?
If the project has unusual voltage, capacity, environmental, or installation requirements, a special transformer solution may need to be reviewed.
Avoid these mistakes when comparing cast resin and VPI transformers:
Treating VPI as a guaranteed performance level
Assuming cast resin is automatically suitable for every outdoor site
Comparing prices without comparing test documents
Ignoring the resin and insulation system
Comparing partial-discharge results from different test conditions
Forgetting ventilation and ambient temperature
Ignoring dust, salt, and chemical exposure
Treating either construction as maintenance-free
Focusing on winding insulation while ignoring the core and cooling system
Selecting a construction before confirming the project’s electrical rating
Assuming the supplier uses a process that has not been confirmed
Requesting technical documents only after placing the order
Cast resin and VPI dry-type transformers use different insulation approaches and should be compared according to the actual project requirements.
Cast resin provides a solid encapsulated winding structure, while VPI uses controlled resin impregnation within the winding insulation system. The final selection should consider moisture, dust, temperature, cooling, noise, mechanical strength, maintenance, testing, and total project cost.
The insulation process is only one part of the transformer design. Buyers should request clear technical documents and compare proposals under equivalent electrical and environmental conditions.
Need help comparing dry-type transformer constructions?
A cast resin transformer uses solid resin to encapsulate the winding. A VPI transformer uses vacuum pressure impregnation to introduce resin into the winding insulation system. The final performance depends on the complete design and manufacturing process.
Not in every application. The better choice depends on voltage, capacity, moisture exposure, cooling, maintenance, noise, cost, testing, and project requirements.
VPI means vacuum pressure impregnation. It is a manufacturing process used to impregnate winding insulation with resin under controlled vacuum and pressure conditions.
They may be suitable for some humid environments, but the enclosure, ventilation, condensation control, terminals, and maintenance requirements must also be evaluated.
No. VPI transformers still require inspection, cleaning, temperature monitoring, ventilation checks, and connection maintenance according to the operating environment and manufacturer’s instructions.
Compare the insulation process, voltage, capacity, impedance, cooling, temperature rise, environmental conditions, partial-discharge requirements, short-circuit withstand, testing, dimensions, maintenance, and documentation.
SNTOOM’s current dry-type transformer range confirms cast-resin and epoxy-potted options. VPI availability should be confirmed directly with the technical team for the specific project.
