SCB-13
SNTOOM

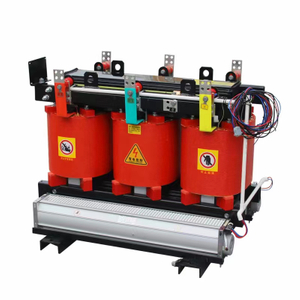

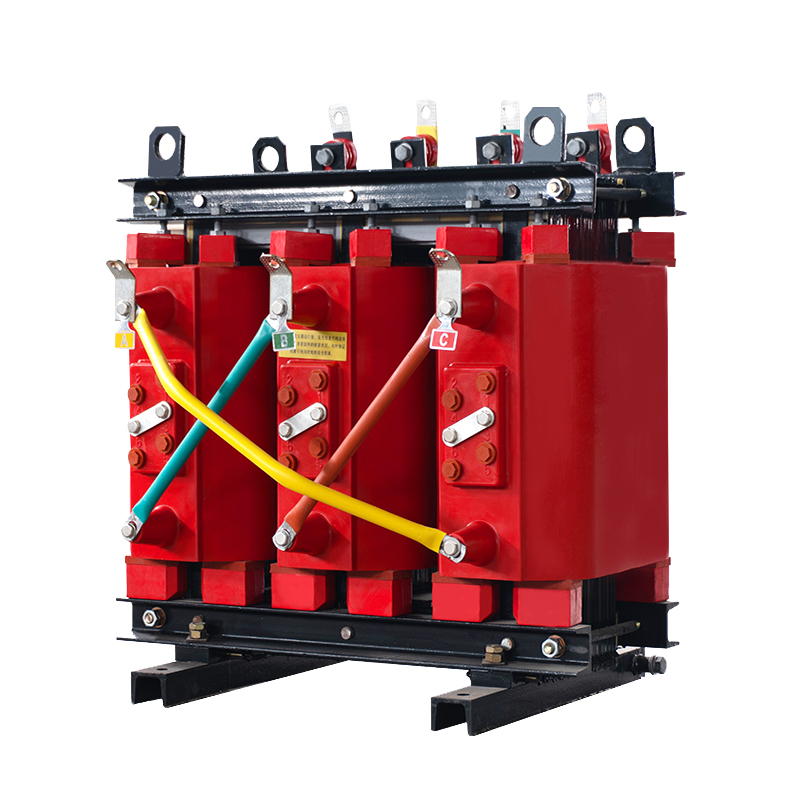

. | Name | SCB13 Series Resin Insulated Dry-type Transformer |
| Rated Capacity | 10KVA-4000KVA |
| High voltage | 6KV-11KV |
| Low voltage | 0.4 KV |
| Connection symbol | Yyn0 / Dyn11 |
| Short circuit Impedance | 4%-8% |
| Tapping range of high-voltage | ±5% ± 2 ×2.5% |
| Phases | Three phase |
| No-load current(%) | 1%-2.6% |
| Insulating level | LI75AC35/L I0AC5 |
Product Introduction
The SCB13 series dry type transformer is a high-quality and reliable transformer designed for various applications. With its unique features and characteristics, this transformer offers efficient and safe power distribution. It is known for its Class F coil insulated copper wire, glass fiber and epoxy resin composite insulation, and precise manufacturing process.
Features
The SCB13 series dry type transformer features Class F coil insulated copper wire as the conductor, providing excellent conductivity and efficiency. The insulation is made of glass fiber and epoxy resin composite materials, which have a coefficient of expansion similar to copper, ensuring stability and reliability. The transformer also exhibits good impact resistance, temperature resistance, and crack resistance. The glass fiber and epoxy resin materials used in the insulation are self-extinguishing, meaning they do not continue to burn and do not produce toxic gases, making it environmentally friendly. The epoxy resin has excellent insulating properties, making it particularly suitable for high-voltage applications.
Common Applications
The SCB13 series dry type transformer finds extensive use in various industries and applications. It is commonly employed in commercial buildings, industrial facilities, and power distribution systems. It is also used in renewable energy systems, such as wind farms and solar power plants, to convert and distribute electricity. The transformer is suitable for both indoor and outdoor installations, providing flexibility in different environments.
Moreover, this transformer is widely used in data centers, hospitals, and other critical infrastructure where reliable and safe power distribution is essential. Its high-quality construction and insulation make it ideal for applications that require high voltage levels and efficient power transmission.
Advantages
The SCB13 series dry type transformer offers several advantages that make it a superior choice for power distribution. Firstly, the Class F coil insulated copper wire and glass fiber-epoxy resin composite insulation provide excellent electrical conductivity and insulation properties. This ensures efficient power transmission and protection against electrical faults.
Secondly, the transformer's self-extinguishing insulation materials and absence of toxic gas emissions make it environmentally friendly and safe for use in various settings. It contributes to a healthier and cleaner working environment.
Additionally, the precise manufacturing process, including the winding on high-accuracy machines and the controlled casting and solidifying process, ensures the absence of bubbles and holes in the winding. This results in a high-quality and reliable transformer with enhanced durability and performance.
Moreover, the SCB13 series dry type transformer is designed for easy installation and maintenance. Its compact and robust construction allows for flexible placement, while the dry type design eliminates the need for oil cooling, reducing maintenance requirements and costs.
In conclusion, the SCB13 series dry type transformer is a reliable and efficient power distribution solution. Its features, such as Class F coil insulated copper wire, glass fiber-epoxy resin composite insulation, and precise manufacturing process, make it ideal for various applications. Choose the SCB13 series dry type transformer for its high-quality construction, environmental friendliness, and reliable power distribution capabilit
