TNS
SNTOOM

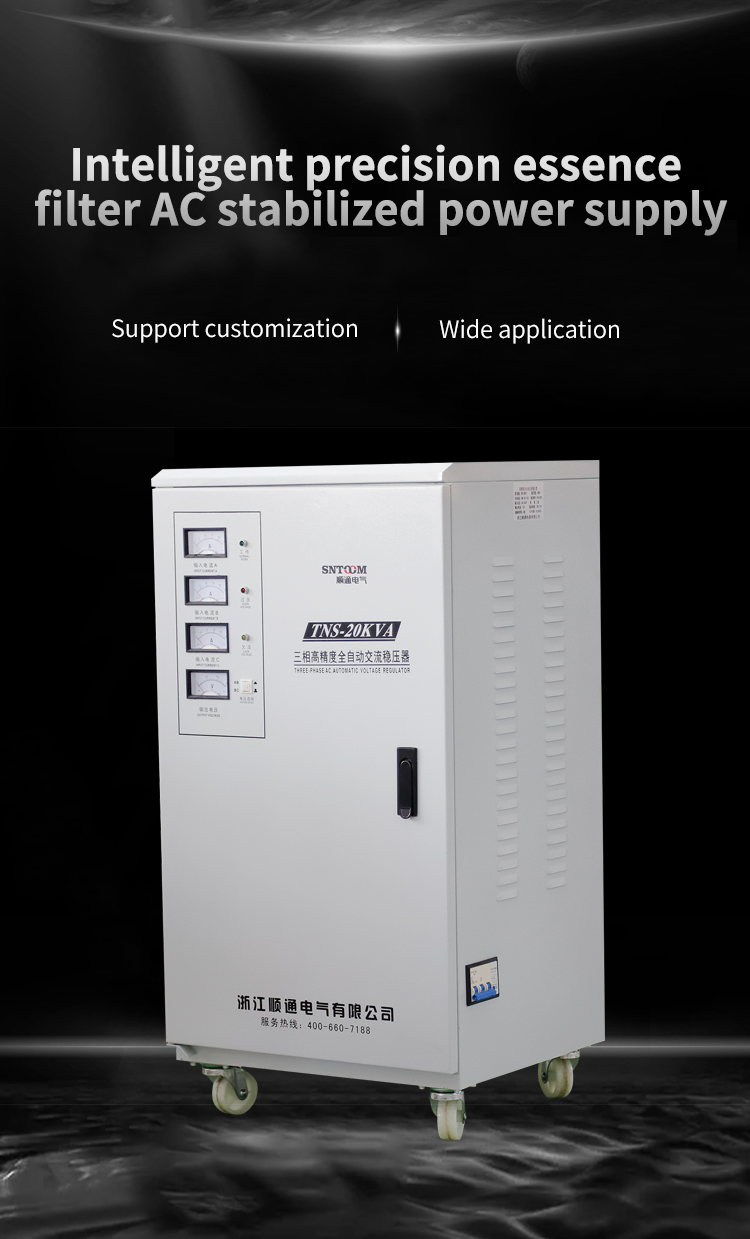

The TNS High-Precision Automatic High-Power AC Intelligent Contact Regulator is a robust and reliable solution designed to maintain stable voltage levels, ensuring optimal performance for a wide range of electrical equipment. With advanced features and exceptional accuracy, it is ideal for environments requiring precise and continuous voltage regulation.
High Precision Voltage Regulation:
Ensures consistent voltage stability with minimal error, making it ideal for sensitive and high-performance equipment.
Achieves high-precision control to keep voltage fluctuations within a very small margin.
Automatic Adjustment:
The regulator adapts automatically to changing input voltage and load variations, providing uninterrupted and reliable power supply across diverse conditions.
Designed to handle different power grid voltages and equipment loads seamlessly.
High Power Output:
Capable of delivering high power output, meeting the needs of various electrical devices and industrial applications.
Suitable for demanding environments that require continuous, stable voltage supply.
Advanced Protection Features:
Equipped with multiple protection functions, including over-voltage, under-voltage, over-temperature, and delay protections, ensuring the safety and longevity of both the regulator and connected equipment.
Prevents damage to sensitive equipment due to electrical instability.
Efficient Performance:
Optimized for high efficiency, reducing energy loss and maintaining power quality.
Ensures minimal waveform distortion, providing clean and stable output.
Versatile Application:
Perfect for use in computer systems, test equipment, lighting systems, industrial automation, medical devices, and other sensitive applications.
Plays a critical role in environments that require stable, continuous power for optimal operation.
Long-Term Reliability:
Built with high-quality components for durability and long service life.
Designed to withstand the rigors of industrial and commercial use.
Input Voltage Range: Adaptable to varying voltage levels within an acceptable range.
Output Voltage Accuracy: Maintains precision output with minimal deviation.
Efficiency: High efficiency, ensuring minimal energy loss.
Waveform Distortion: Minimal, maintaining clean power for sensitive equipment.
Protection Features: Over-voltage, under-voltage, over-temperature, delay, and other safety functions.
Temperature Rise: Controlled, preventing overheating during operation.

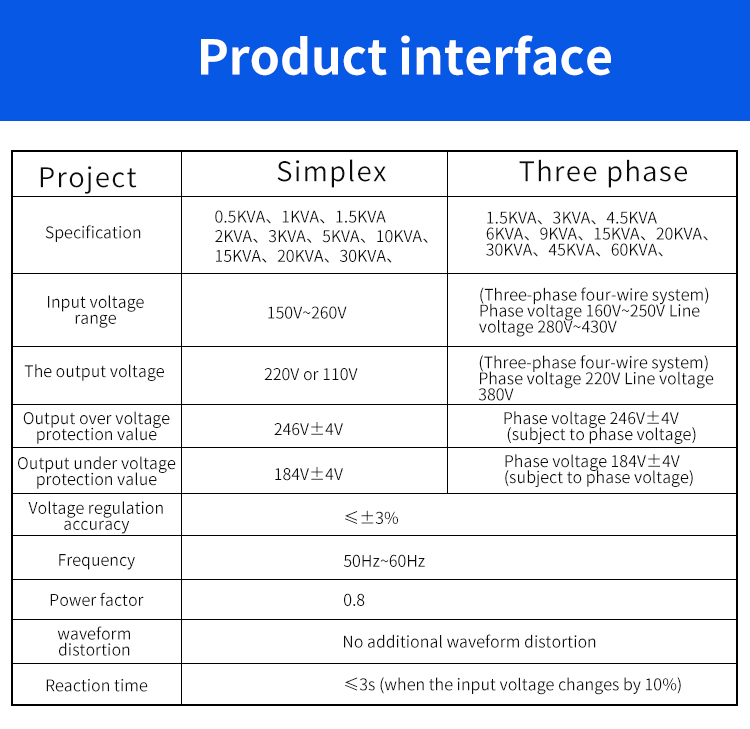

| Project | Simplex | Three Phase |
|---|---|---|
| Specification | 0.5KVA, 1KVA, 1.5KVA, 2KVA, 3KVA, 5KVA, 10KVA, 15KVA, 20KVA, 30KVA | 1.5KVA, 3KVA, 4.5KVA, 6KVA, 9KVA, 15KVA, 20KVA, 30KVA, 45KVA, 60KVA |
| Input voltage range | 150V~260V | (Three-phase four-wire system) Phase voltage 160V~250V Line voltage 280V~430V |
| The output voltage | 220V or 110V | (Three-phase four-wire system) Phase voltage 220V Line voltage 380V |
| Output over voltage protection value | 246V ± 4V | Phase voltage 246V ± 4V (subject to phase voltage) |
| Output under voltage protection value | 184V ± 4V | Phase voltage 184V ± 4V (subject to phase voltage) |
| Voltage regulation accuracy | ≤ ± 3% | ≤ ± 3% |
| Frequency | 50Hz~60Hz | 50Hz~60Hz |
| Power factor | 0.8 | 0.8 |
| Waveform distortion | No additional waveform distortion | No additional waveform distortion |
| Reaction time | ≤ 3s (when the input voltage changes by 10%) | ≤ 3s (when the input voltage changes by 10%) |
Industrial Automation: Ensures stable voltage for equipment in factories and manufacturing plants.
Medical Equipment: Provides reliable and consistent power for sensitive medical instruments.
Test Equipment: Maintains stable voltage levels for testing devices and precision equipment.
Lighting Systems: Guarantees consistent voltage for both indoor and outdoor lighting.
Professional Applications: Ideal for any professional setting that requires high precision and stable power.
The TNS High-Precision AC Voltage Regulator offers industry-leading performance with intelligent design features, ensuring optimal operation for a wide range of electrical equipment. Whether you're dealing with industrial, commercial, or medical applications, this high-power regulator ensures your equipment runs smoothly, safely, and efficiently. Trust in its automatic adjustment, protection features, and high efficiency to maintain operational stability.
I. Product overview
Introduction of automatic AC voltage regulator, the old electrician takes you into the world of voltage regulators, SVC/TND/TNS AC voltage regulator UHZ series
Second, the working principle
Introduction of automatic AC regulator, the old electrician takes you into the world of regulator, contact type and electronic regulator basic voltage regulation principle.
Three, the main characteristics
SVC/TND/TNS AC voltage regulator UHZ series, SVC TNS series high precision automatic AC voltage regulator
1. High precision voltage regulation to ensure voltage stability within a very small error range.
2. Automatic adjustment function to adapt to different power grid voltage and load changes.
3. High power output to meet the needs of various electrical equipment.
4. Safe and reliable, with over-voltage, under-voltage, over-temperature, delay and other protection functions.
4. Technical parameters
TNS,SVC three-phase high precision automatic AC regulator SVC TNS series high precision automatic AC regulator
1. Input voltage range.
2. Output voltage accuracy.
3. Adjust parameters such as time and temperature rise.
4. Efficiency, waveform distortion and other performance indicators.
5. Application fields
TNS high precision automatic AC three-phase voltage regulator TT,TNS,TNC,IT system technical summary
1. Widely used in computer, test equipment, lighting system and other fields.
2. Suitable for industrial automation equipment, medical equipment and other professional places.
3. It plays an important role in various occasions that require stable power supply.
6. Comparison of advantages
Automatic AC voltage regulator introduction, the old electrician to take you into the world of voltage regulators, grounding some knowledge! Features of TN-S system
7. Product details display
Zhejiang Wenzhou supply TND, TNS high precision automatic AC voltage regulator price - Chinese suppliers
SVC(TND, TNS) series single-phase high-precision automatic AC regulator - high-precision regulator
8. Customer cases
TNS-1.5KVA Copper TNS-1.5KVA automatic three-phase AC voltage regulator 380V- Intelligent Manufacturing network
SVC(TND, TNS) series single-phase high-precision automatic AC regulator High-precision regulator
