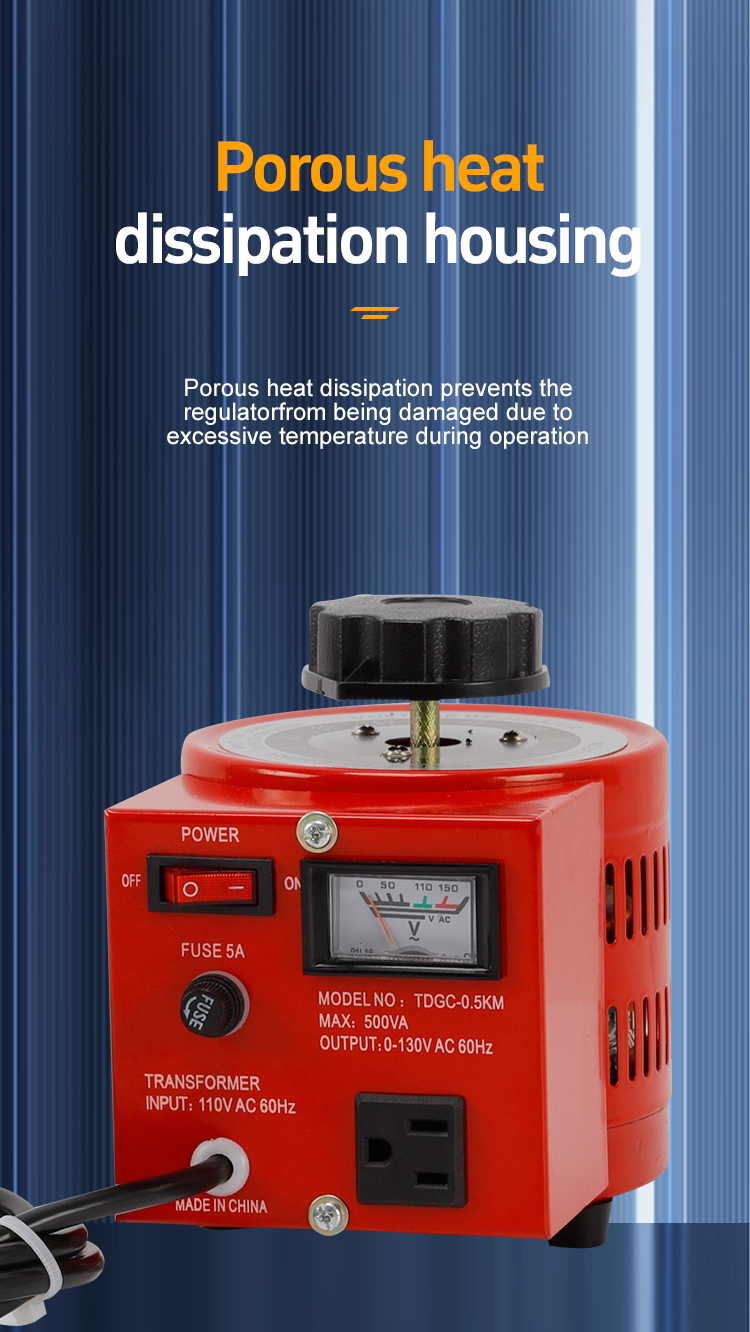

Porous Heat Dissipation Housing
Smart LCD Display
Plug and Play Convenience
Comprehensive Protection Design
Installation and Instructions
Unboxing and Inspection: Carefully unpack the APS voltage regulator and check for any physical damage. Ensure all components and accessories are present as per the manual.
Location Selection: Choose a well-ventilated, dry location away from direct sunlight and heat sources. Ensure there is enough space around the regulator for heat dissipation.
Mounting: Place the regulator on a stable, flat surface. If wall mounting, use appropriate screws and fixings to secure it in place, ensuring it's easily accessible for operation and maintenance.
Wiring Connection: Connect the input power supply to the regulator's input terminals, ensuring correct phase, neutral, and ground connections. For single-phase regulators, connect the load to the output terminals. For three-phase regulators, connect all three phases and neutral as required.
Initial Testing: Turn on the power supply and slowly adjust the regulator's output voltage using the axle or slider potentiometer. Monitor the output voltage on the LCD screen to ensure it stabilizes at the desired level.
Final Inspection and Use: Once the output voltage is stable, conduct a final inspection of all connections and the regulator's operation. Ensure the heat dissipation housing is functioning and the regulator remains cool during operation. The APS regulator is now ready for use.
Note:When using the APS voltage regulator, ensure proper connection to avoid overloading. Place it in a well-ventilated area to prevent overheating and ensure long-term reliability.
Product parameters

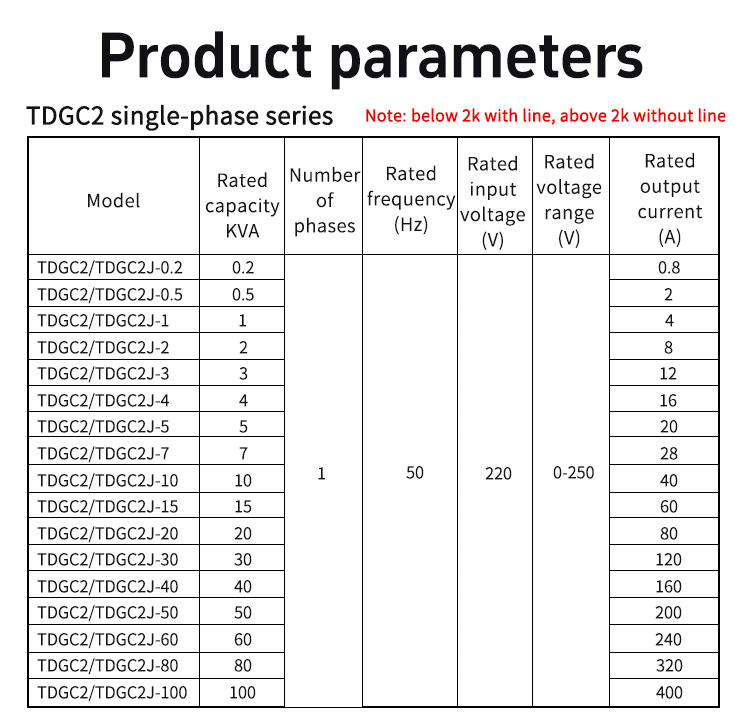

TDGC2 Single - phase Series parameters
| Model | Rated capacity (KVA) | Number of phases | Rated frequency (Hz) | Rated input voltage (V) | Rated voltage range (V) | Rated output current (A) |
| TDGC2/TDGC2J - 0.2 | 0.2 | 1 | 50 | 220 | 0 - 250 | 0.8 |
| TDGC2/TDGC2J - 0.5 | 0.5 | 2 | ||||
| TDGC2/TDGC2J - 1 | 1 | 4 | ||||
| TDGC2/TDGC2J - 2 | 2 | 8 | ||||
| TDGC2/TDGC2J - 3 | 3 | 12 | ||||
| TDGC2/TDGC2J - 4 | 4 | 16 | ||||
| TDGC2/TDGC2J - 5 | 5 | 20 | ||||
| TDGC2/TDGC2J - 7 | 7 | 28 | ||||
| TDGC2/TDGC2J - 10 | 10 | 40 | ||||
| TDGC2/TDGC2J - 15 | 15 | 60 | ||||
| TDGC2/TDGC2J - 20 | 20 | 80 | ||||
| TDGC2/TDGC2J - 30 | 30 | 120 | ||||
| TDGC2/TDGC2J - 40 | 40 | 160 | ||||
| TDGC2/TDGC2J - 50 | 50 | 200 | ||||
| TDGC2/TDGC2J - 60 | 60 | 240 | ||||
| TDGC2/TDGC2J - 80 | 80 | 320 | ||||
| TDGC2/TDGC2J - 100 | 100 | 400 |
| Model | Rated capacity (KVA) | Number of phases | Rated frequency (Hz) | Rated input voltage (V) | Rated voltage range (V) | Rated output current (A) |
| TDGC2/TDGC2J - 3 | 3 | 3 | 50 | 380 | 0 - 430 | 4 |
| TDGC2/TDGC2J - 3 | 6 | 8 | ||||
| TDGC2/TDGC2J - 9 | 9 | 12 | ||||
| TDGC2/TDGC2J - 12 | 12 | 16 | ||||
| TDGC2/TDGC2J - 15 | 15 | 20 | ||||
| TDGC2/TDGC2J - 20 | 20 | 27 | ||||
| TDGC2/TDGC2J - 30 | 30 | 40 | ||||
| TDGC2/TDGC2J - 40 | 40 | 54 | ||||
| TDGC2/TDGC2J - 50 | 50 | 67 | ||||
| TDGC2/TDGC2J - 60 | 60 | 80 | ||||
| TDGC2/TDGC2J - 70 | 70 | 94 | ||||
| TDGC2/TDGC2J - 80 | 80 | 107 | ||||
| TDGC2/TDGC2J - 90 | 90 | 120 | ||||
| TDGC2/TDGC2J - 100 | 100 | 134 | ||||
| TDGC2/TDGC2J - 120 | 120 | 160 | ||||
| TDGC2/TDGC2J - 150 | 150 | 200 | ||||
| TDGC2/TDGC2J - 200 | 200 | 270 | ||||
| TDGC2/TDGC2J - 250 | 250 | 335 | ||||
| TDGC2/TDGC2J - 300 | 300 | 400 |
| Packaging (carton) | Model | Product size (length * width * height cm) | Inner box dimensions (length * width * height cm) | Outer box dimensions (length * width * height cm) | Number of cartons (only) | Net weight of single unit (kg) | Total net weight (kg) |
| cardboard box | APS - 0.5KVA | 24*17*20 | 23*17*20 | 50*35*22 | 4 | 3.8 | 17 |
| cardboard box | APS - 1KVA | 27*21*23.5 | 27*21*24 | 44*29*26 | 2 | 6.8 | 15 |
| cardboard box | APS - 2KVA | 27*21*23.5 | 27*21*24 | 44*29*26 | 2 | 8.3 | 18 |
| cardboard box | APS - 3KVA | 31*26*25 | 31*27*26 | 55*33*28 | 2 | 10.5 | 23 |
| cardboard box | APS - 5KVA | 24*29*26 | 37*28*31 | 37*28*31 | 1 | 16 | 17.5 |
APS Voltage Regulator: Precision and Reliability in Power Regulation
The APS voltage regulator stands as a pinnacle of precision and reliability in the realm of power regulation. As a leading single-phase voltage regulator, it is designed to provide stable and consistent voltage output, ensuring the safety and efficiency of your electrical devices. Whether you need to contact an inverter voltage regulator for renewable energy systems or require a robust solution for industrial applications, the APS series has you covered.
One of the key features of the APS voltage regulator is its low loss operation. This ensures minimal energy wastage, making it an economical choice for both residential and commercial use. For three-phase applications, the APS series also offers three-phase voltage regulators, catering to a wide range of power requirements.
As a regulator factory direct sale, the APS voltage regulator guarantees competitive pricing without compromising on quality. It boasts a pure copper coil and high-quality carbon brushes, ensuring excellent electrical conductivity and durability. The porous heat dissipation housing effectively prevents overheating, enhancing the regulator's lifespan.
Moreover, the APS voltage regulator features an axle design for more accurate adjustments and a slider potentiometer for precise voltage control. With its easy-to-install design and reliable performance, it is the ideal choice for anyone seeking a high-quality voltage regulation solution.
Choose the APS voltage regulator for unparalleled stability and efficiency in your power supply needs.
Product advantages and features

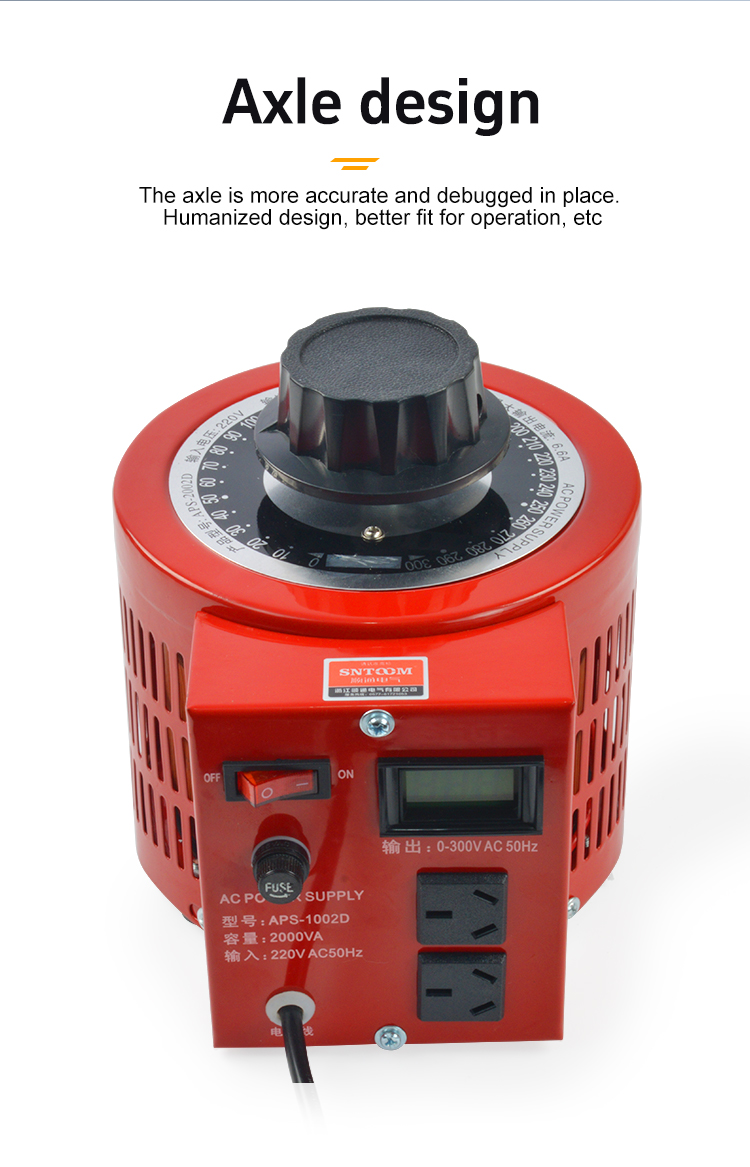

Precision Axle Design
Pure Copper Coil & High-Quality Carbon Brush
Porous Heat Dissipation Housing

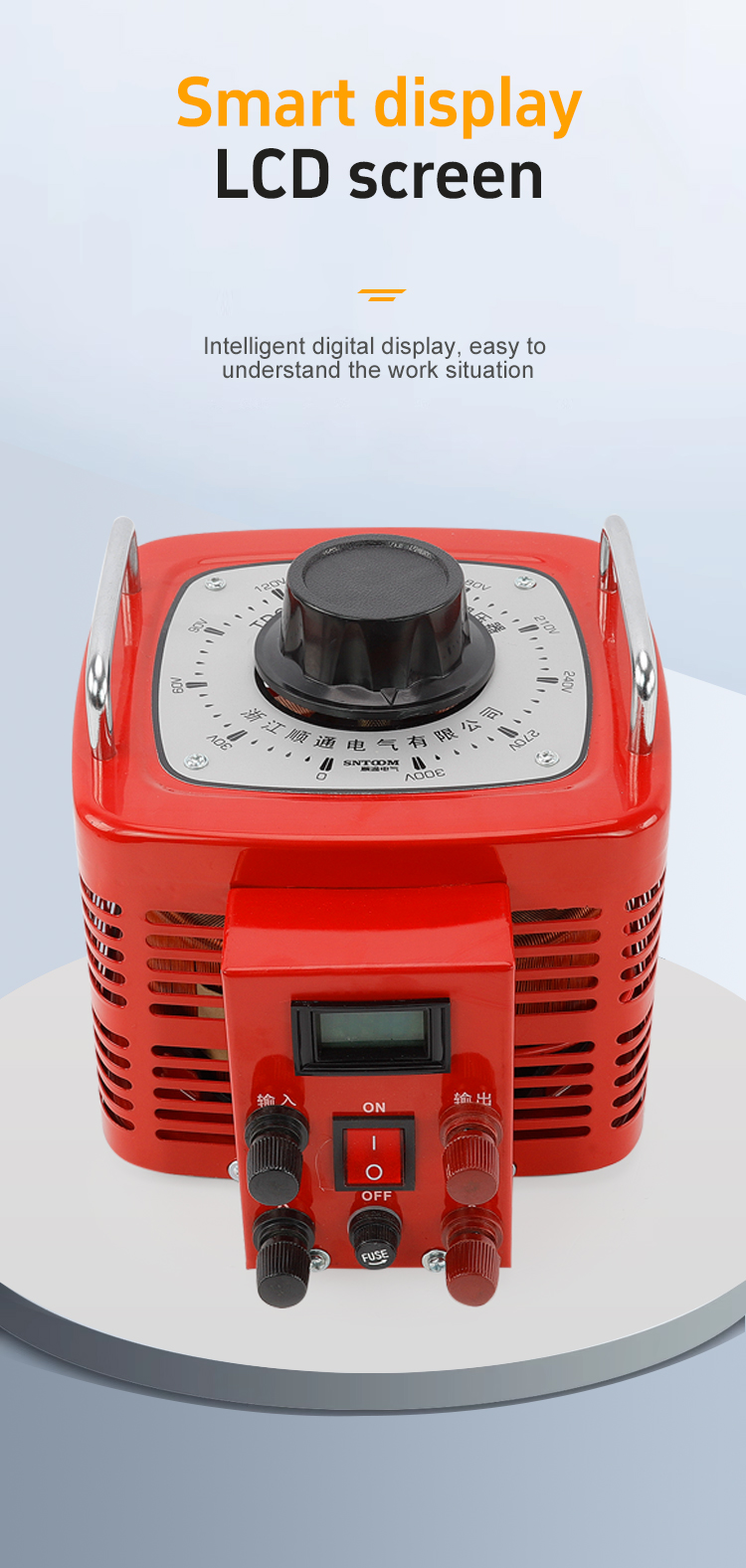

Smart LCD Display
Plug and Play Convenience
Comprehensive Protection Design
Installation and Instructions
Unboxing and Inspection: Carefully unpack the APS voltage regulator and check for any physical damage. Ensure all components and accessories are present as per the manual.
Location Selection: Choose a well-ventilated, dry location away from direct sunlight and heat sources. Ensure there is enough space around the regulator for heat dissipation.
Mounting: Place the regulator on a stable, flat surface. If wall mounting, use appropriate screws and fixings to secure it in place, ensuring it's easily accessible for operation and maintenance.
Wiring Connection: Connect the input power supply to the regulator's input terminals, ensuring correct phase, neutral, and ground connections. For single-phase regulators, connect the load to the output terminals. For three-phase regulators, connect all three phases and neutral as required.
Initial Testing: Turn on the power supply and slowly adjust the regulator's output voltage using the axle or slider potentiometer. Monitor the output voltage on the LCD screen to ensure it stabilizes at the desired level.
Final Inspection and Use: Once the output voltage is stable, conduct a final inspection of all connections and the regulator's operation. Ensure the heat dissipation housing is functioning and the regulator remains cool during operation. The APS regulator is now ready for use.
Note:When using the APS voltage regulator, ensure proper connection to avoid overloading. Place it in a well-ventilated area to prevent overheating and ensure long-term reliability.
Product parameters

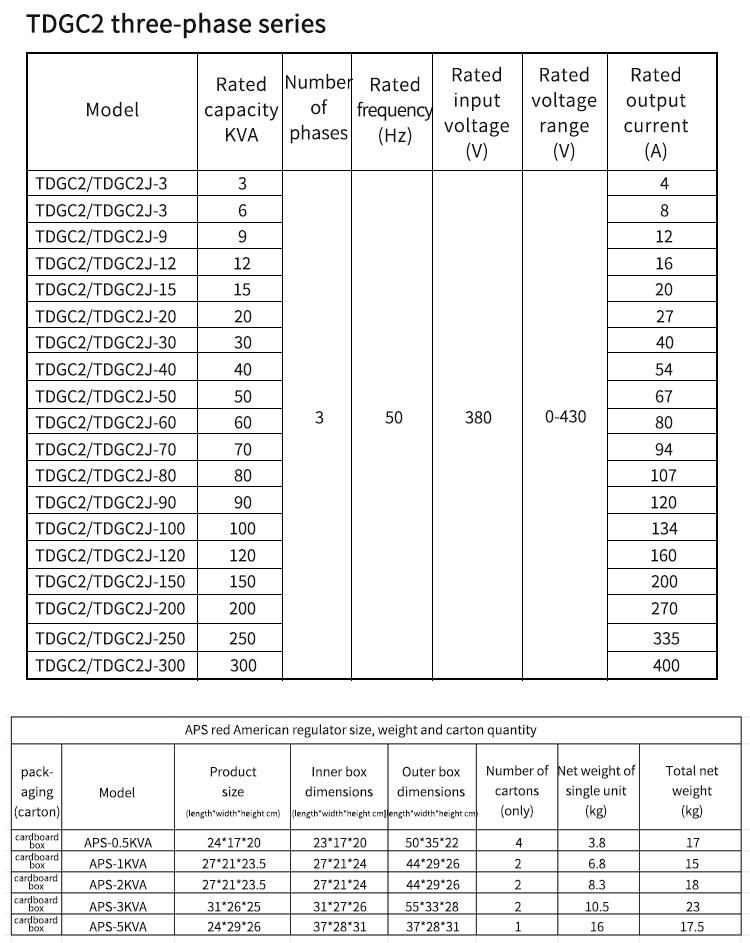

TDGC2 Single - phase Series parameters
