ST-YYD1.8/5.3-14
SNTOOM
Product advantages and features
Powerful Performance

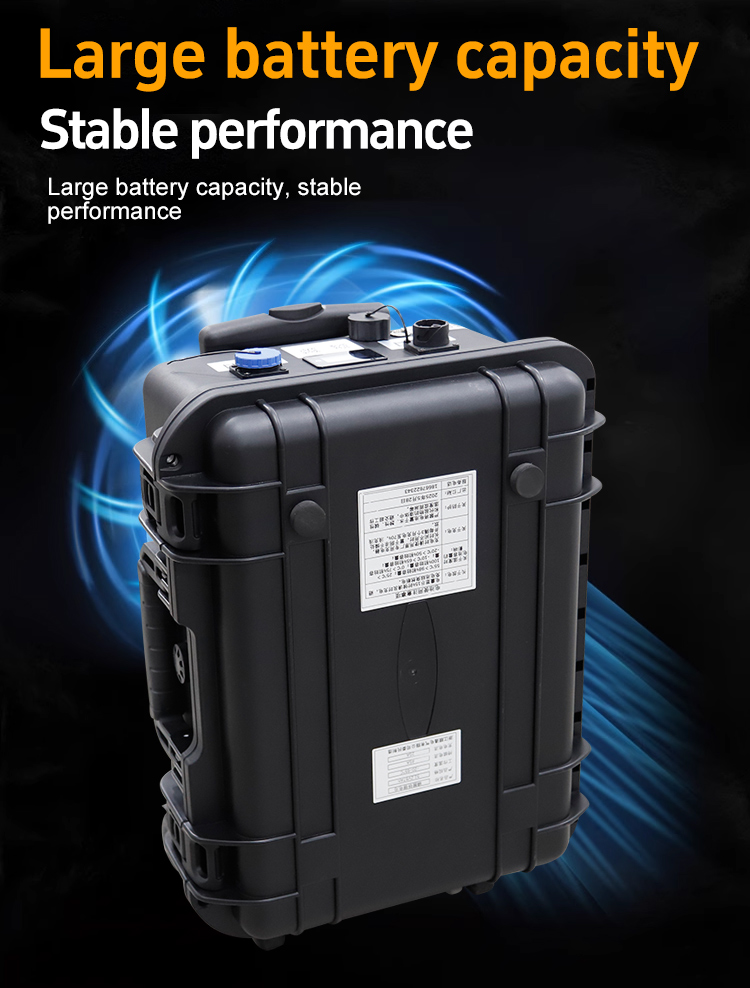

Large Battery Capacity
Portable and Mobile
Adjustable Air Supply

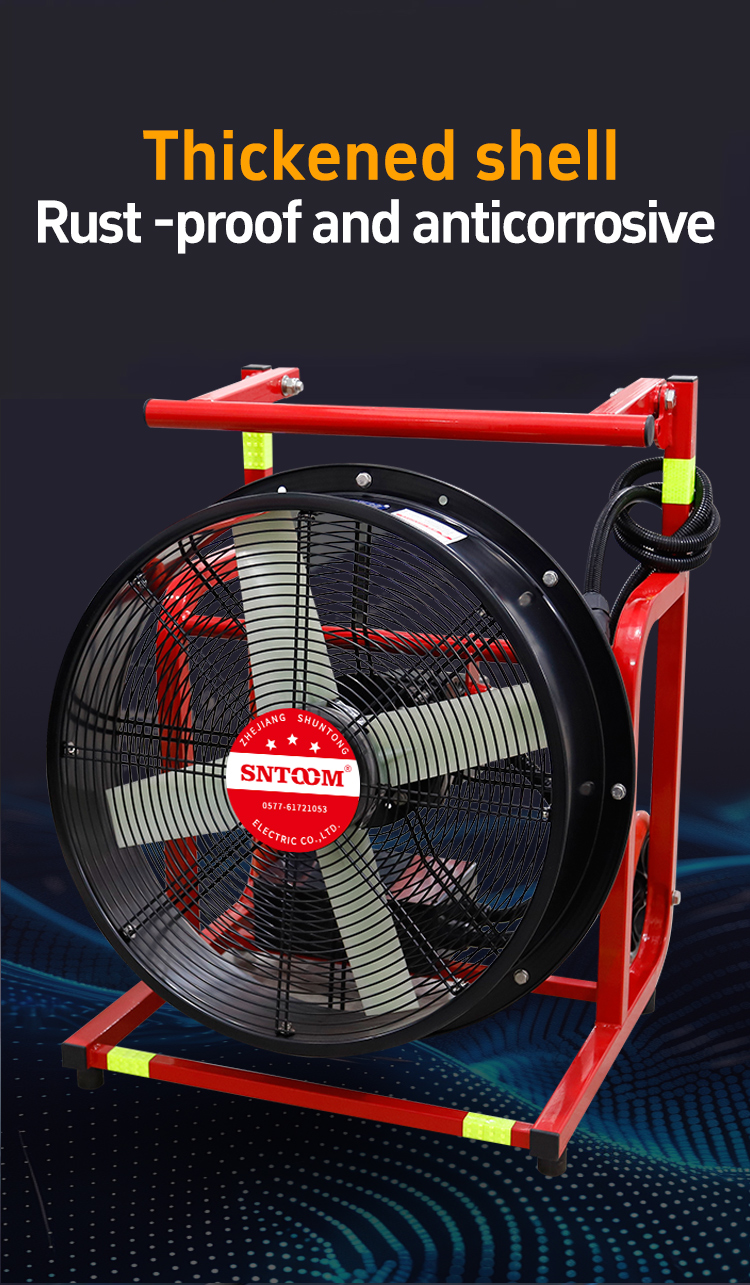

Durable Construction
Versatile Applications
Installation and Instructions
Unpack carefully and check all parts against the manual to ensure nothing is missing before installation.
Assemble the steel frame by firmly connecting the red support bars and tightening all bolts.

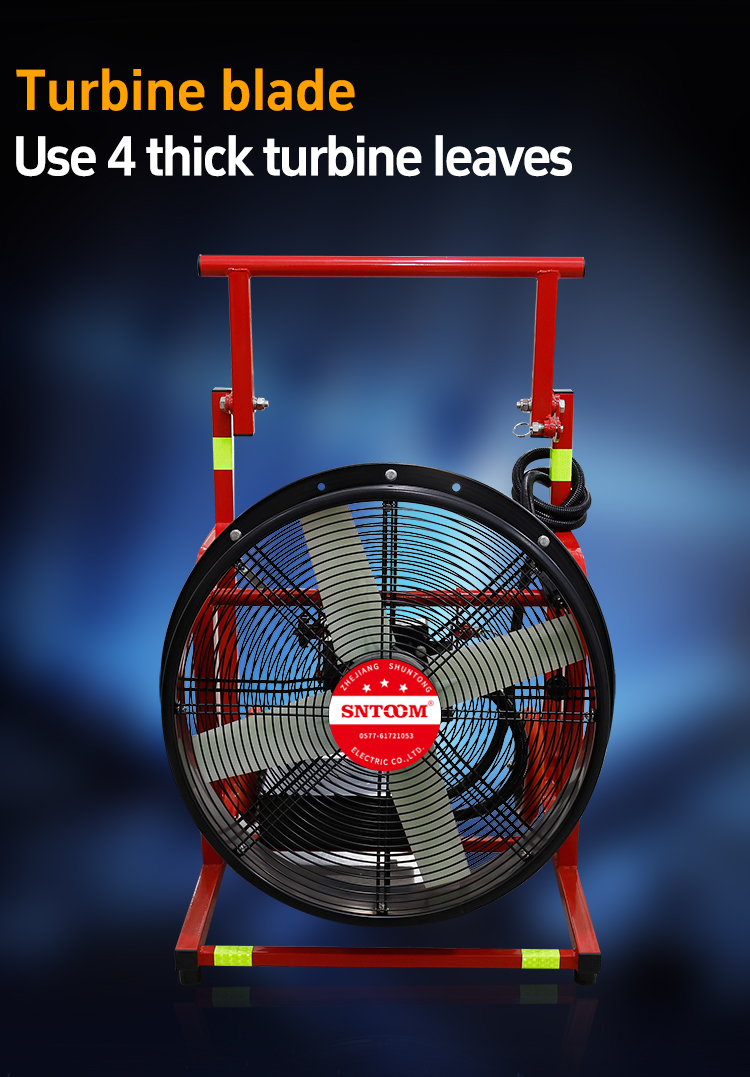

Securely attach the turbine blade unit to the frame with fasteners for stable operation.

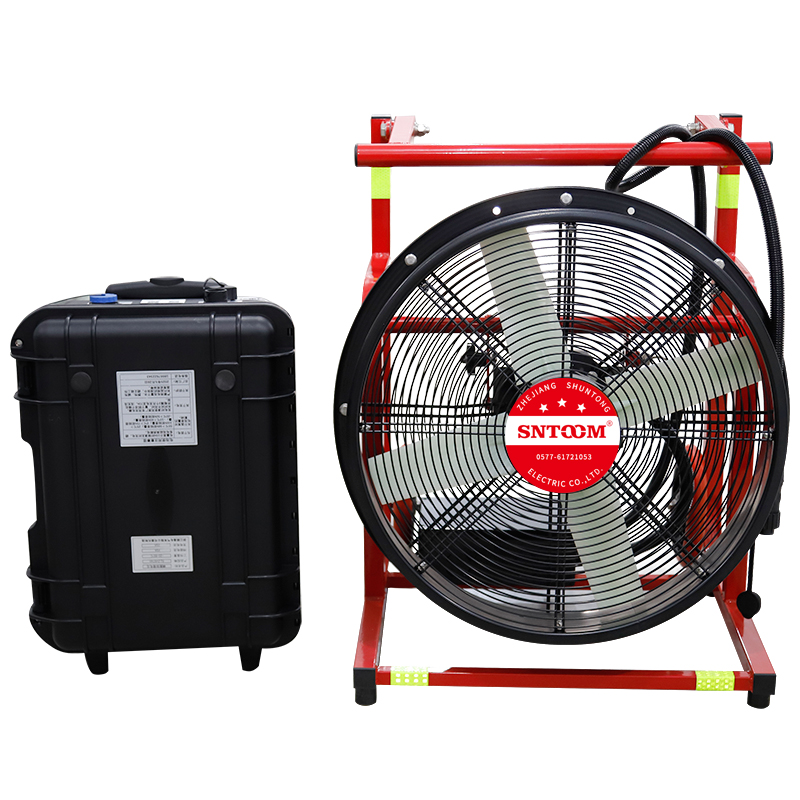

Connect the battery pack to the main unit, matching voltage and polarity to avoid issues.
Adjust the fan swing angle between -20° and 40° for optimal air direction.
Inspect all connections and test the device at low speed to confirm proper function.
Note: When using the ST-YYD1.8/5.3-14 mobile smoke extractor, ensure it's placed on a stable surface. Regularly check the battery and charge as needed. Avoid blocking the fan inlet/outlet. Keep away from water to prevent damage.

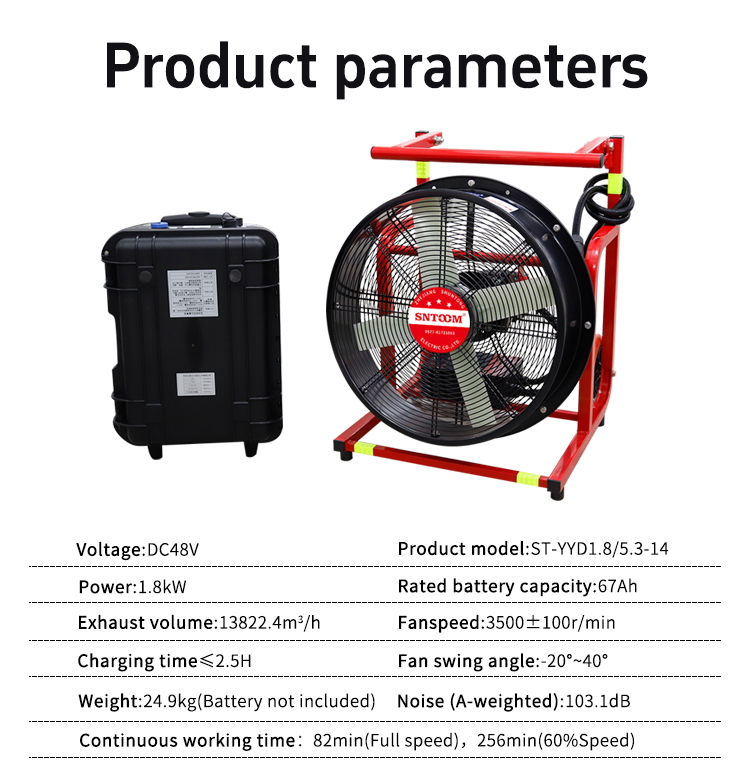

Product parameters
| Product model | Voltage | Power （kW） | Rated battery capacity（Ah） | Exhaust volume（m³/h) | Fanspeed |
| ST-YYD1.8/5.3-14 | DC 48 V | 1.8 | 67 | 13822.4 | 3500±100 r/min |
| Charging time | Fan swing angle | Weight | Noise (A-weighted) | Continuous working time | |
| ≤2.5H | -20°~40° | 24.9 kg (Battery not included) | 103.1dB | 82min (Full speed) 256min (60% Speed) | |
Powerful Airflow Capacity
Energy-Efficient Operation
Low-Noise Functionality
Portable & Durable Design
Versatile Application

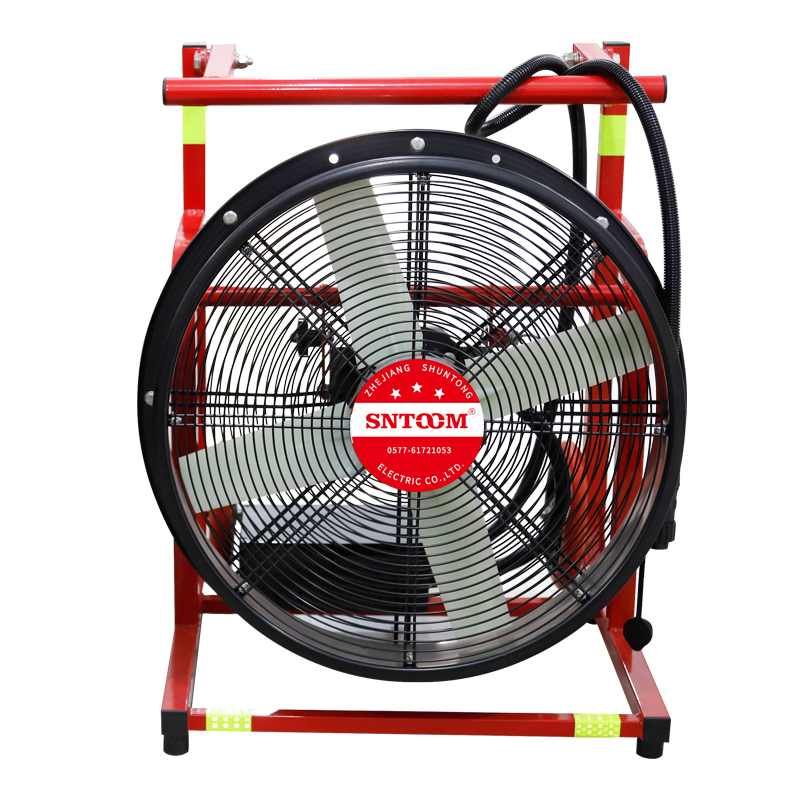

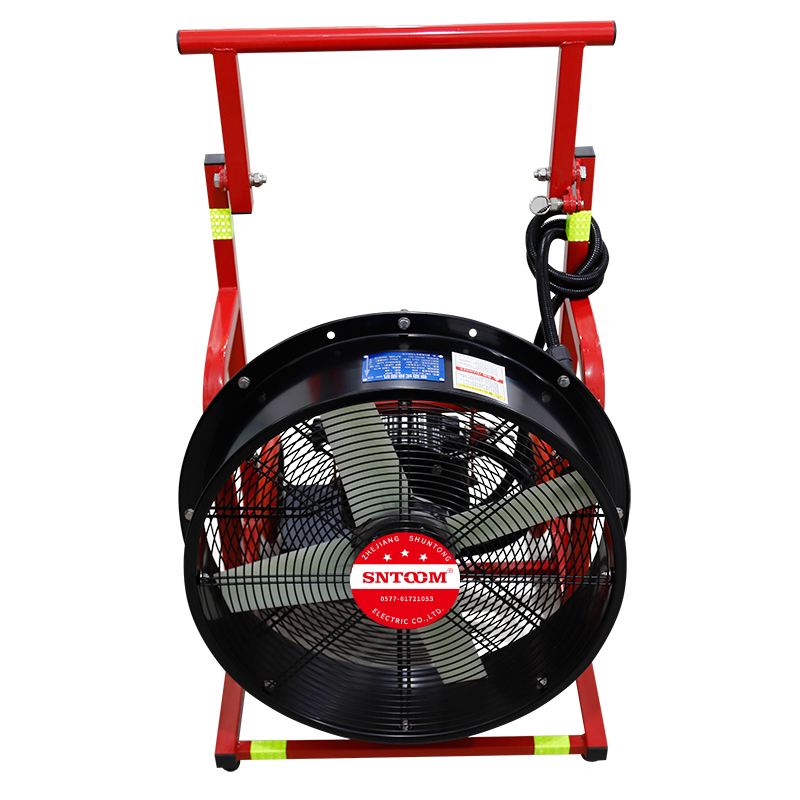

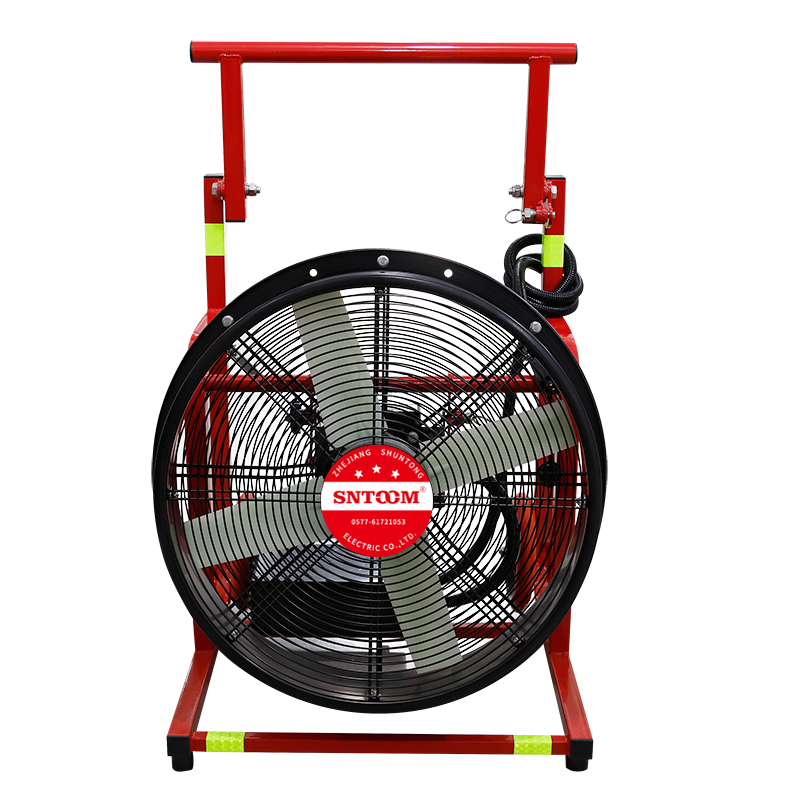

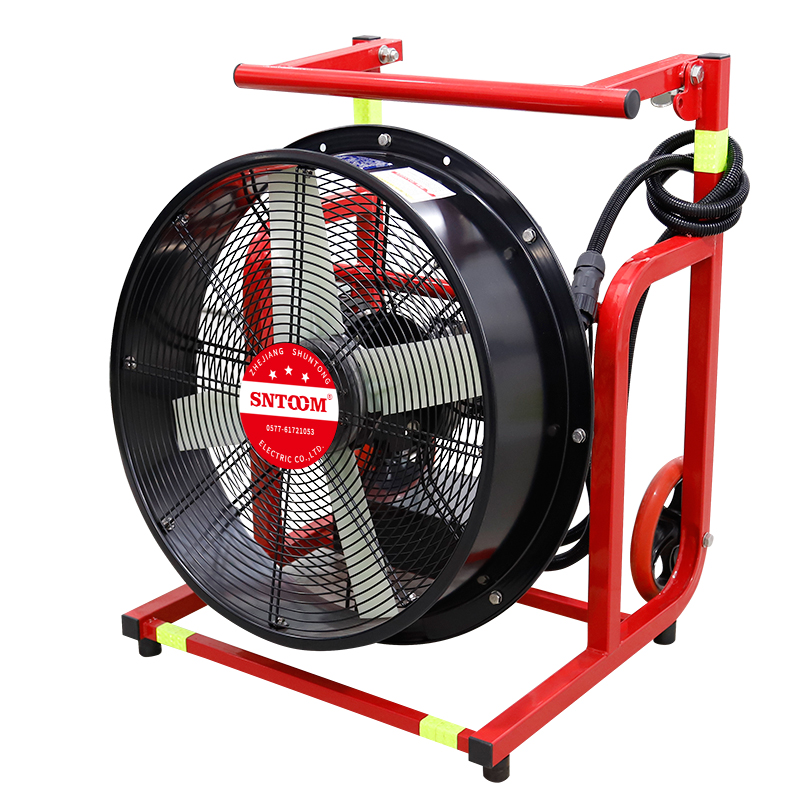

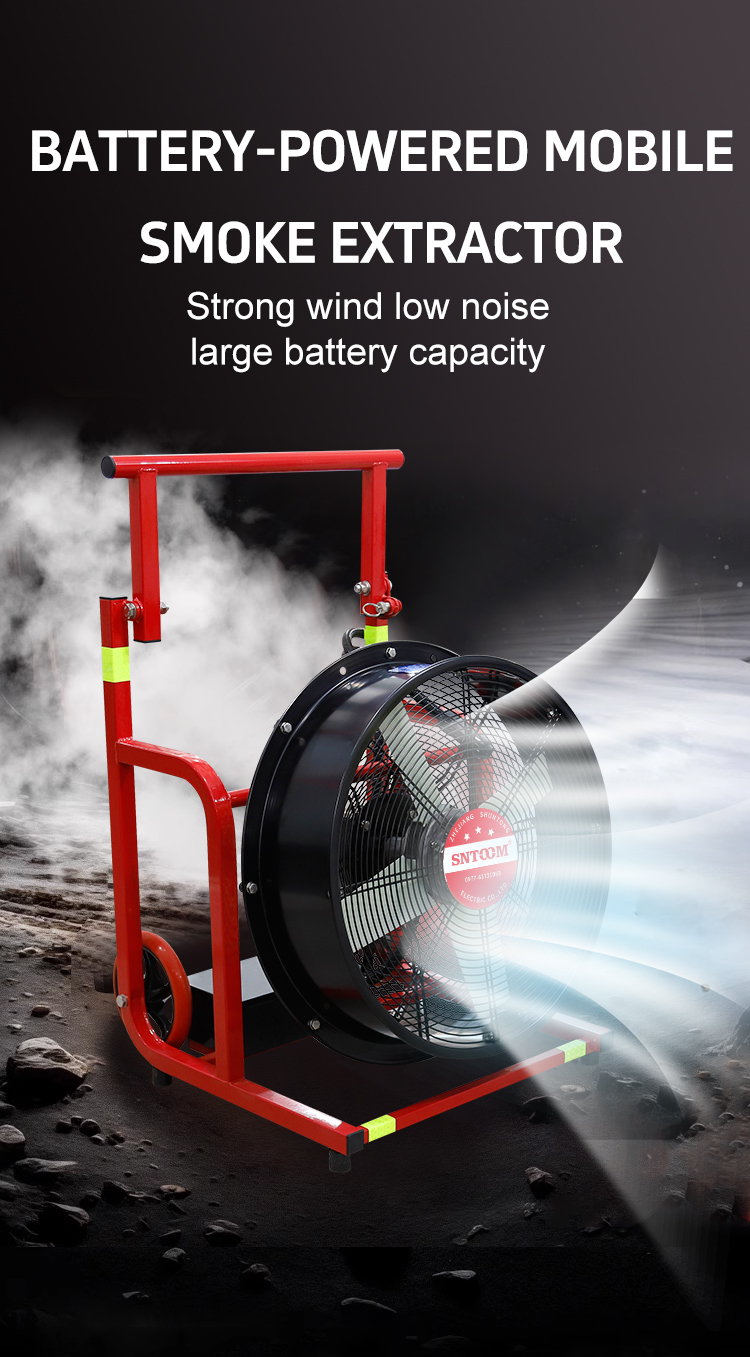

ST-YYD1.8/5.3-14 Mobile Smoke Extractor: The Ultimate Portable Ventilation Solution
The ST-YYD1.8/5.3-14 mobile smoke extractor represents a cutting-edge advancement in industrial ventilation fans, offering powerful performance in a conveniently portable design. This mobile industrial fan is expertly crafted to deliver efficient smoke extraction and air ventilation across diverse environments, establishing itself as an indispensable tool for industries that demand dependable and adaptable airflow solutions.
A key highlight of this portable fan is its exceptional air capacity. Boasting an impressive exhaust volume of 13,822.4 m³/h, it swiftly and effectively eliminates smoke, fumes, and stale air. Remarkably, despite its high-performance output, this industrial fan operates at a minimal noise level of just 103.1dB (A-weighted), rendering it ideal for use in environments where noise is a concern.
The ST-YYD1.8/5.3-14 is driven by a robust 1.8kW motor, powered by a high-capacity 67Ah battery. This setup ensures extended periods of uninterrupted operation, with the battery's stability and durability guaranteeing consistent performance, even under strenuous conditions.

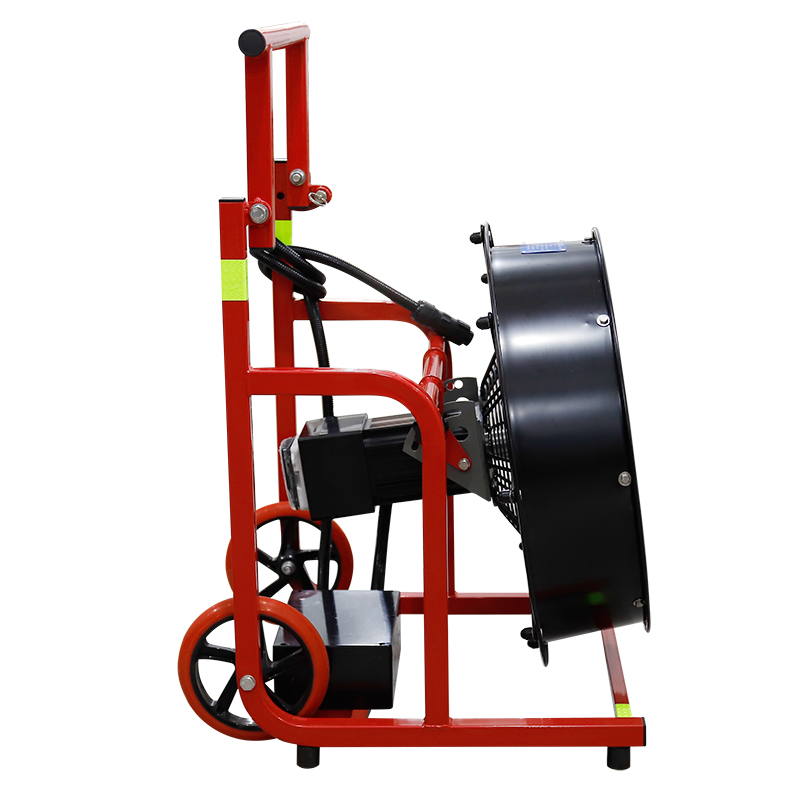

Engineered for both mobility and user-friendliness, this ventilation fan features a sturdy steel frame and a compact build, facilitating effortless movement and positioning. The fan's angle can be adjusted from -20° to 40°, enabling optimal airflow direction tailored to any scenario.
Whether you're tasked with clearing smoke from a fire scene, ventilating a confined space, or managing air quality in an industrial setting, the ST-YYD1.8/5.3-14 large air capacity low noise smoke exhaust fan rises to the occasion. Elevate your air quality and safety standards with this outstanding portable fan.
