SNTOOM
Product advantages and features
Multi-function Integration
Energy Efficiency
User-Friendly Control
Stable and Reliable Performance

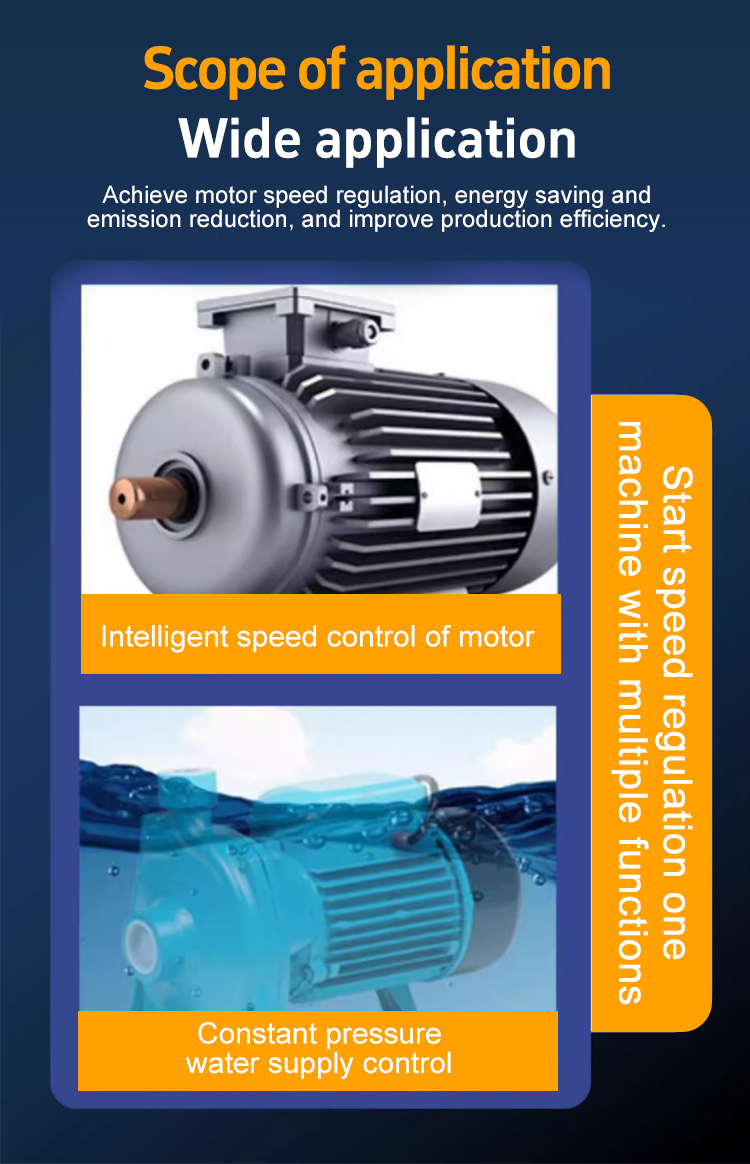

Versatile Applications
Robust Construction
Installation and Instructions
Begin by selecting a suitable location for installation, ensuring it's dry, well-ventilated, and free from excessive dust or corrosive gases. Then, securely mount the变频器 (written as "frequency converter" in English, hereafter replaced by this term) on a stable surface using appropriate fasteners.
First, check the power supply requirements of the frequency converter. Connect the input power cables correctly to the designated terminals, ensuring proper insulation and tight connections. Then, connect the motor cables to the output terminals of the converter.
Prior to installation, disconnect all power sources. Connect the control wires according to the wiring diagram provided, connecting input signals such as start/stop and speed reference to the corresponding control terminals of the frequency converter.
After completing the wiring, double-check all connections for accuracy and tightness. Then, restore the power supply and perform initial setup and testing as per the user manual, adjusting parameters as needed for your specific application.
Note:This variable frequency drive should be operated within specified frequency and load ranges. Avoid using in damp or extreme temperature environments and prevent overvoltage.

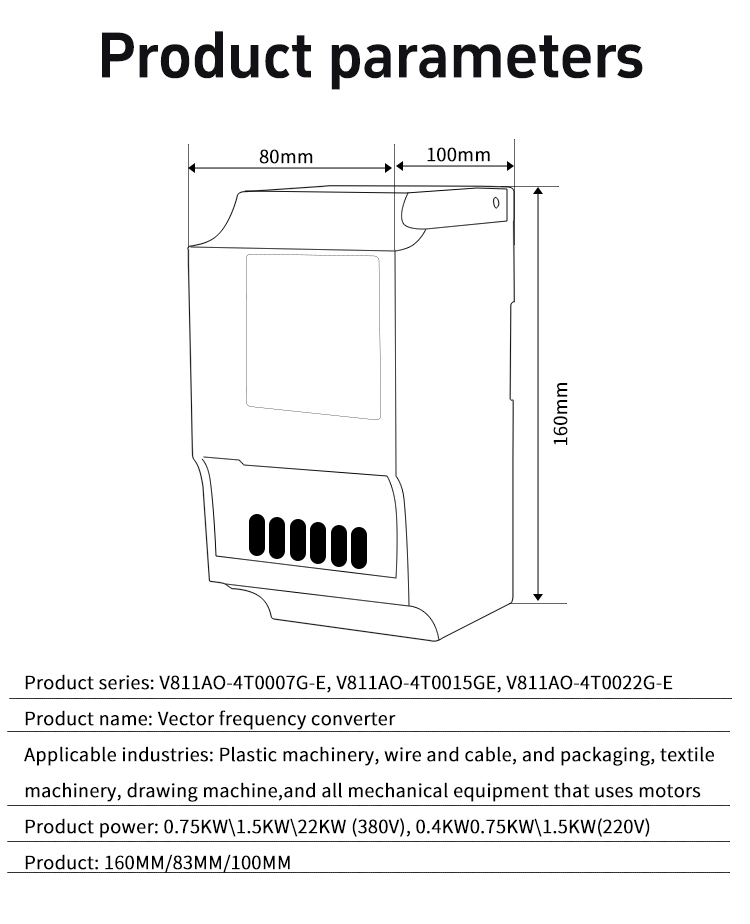

Product parameters
| Product Series | Product Name | Applicable Industries | Product Power | Product Dimensions |
| V811AO-4T0007G-E V811AO-4T0015GE V811AO-4T0022G-E | Vector frequency converter | Plastic machinery, wire and cable, and packaging, textile machinery, drawing machine, and all mechanical equipment that uses motors | 0.75KW, 1.5KW, 22KW (380V) 0.4KW, 0.75KW, 1.5KW (220V) | 160MM / 83MM / 100MM |
Advanced Vector Frequency Converter: Enhancing Efficiency and Longevity

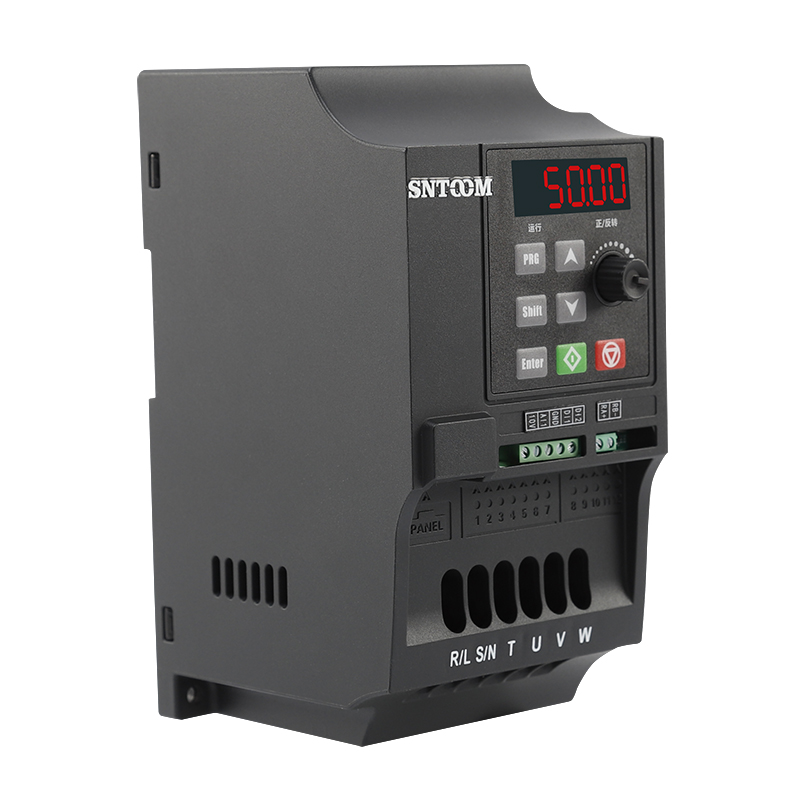

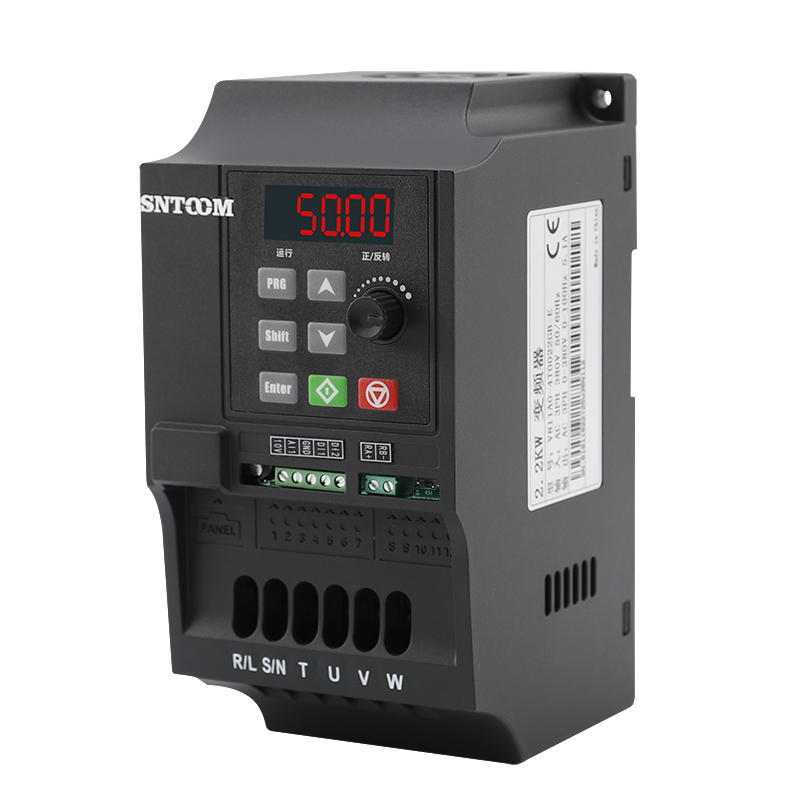

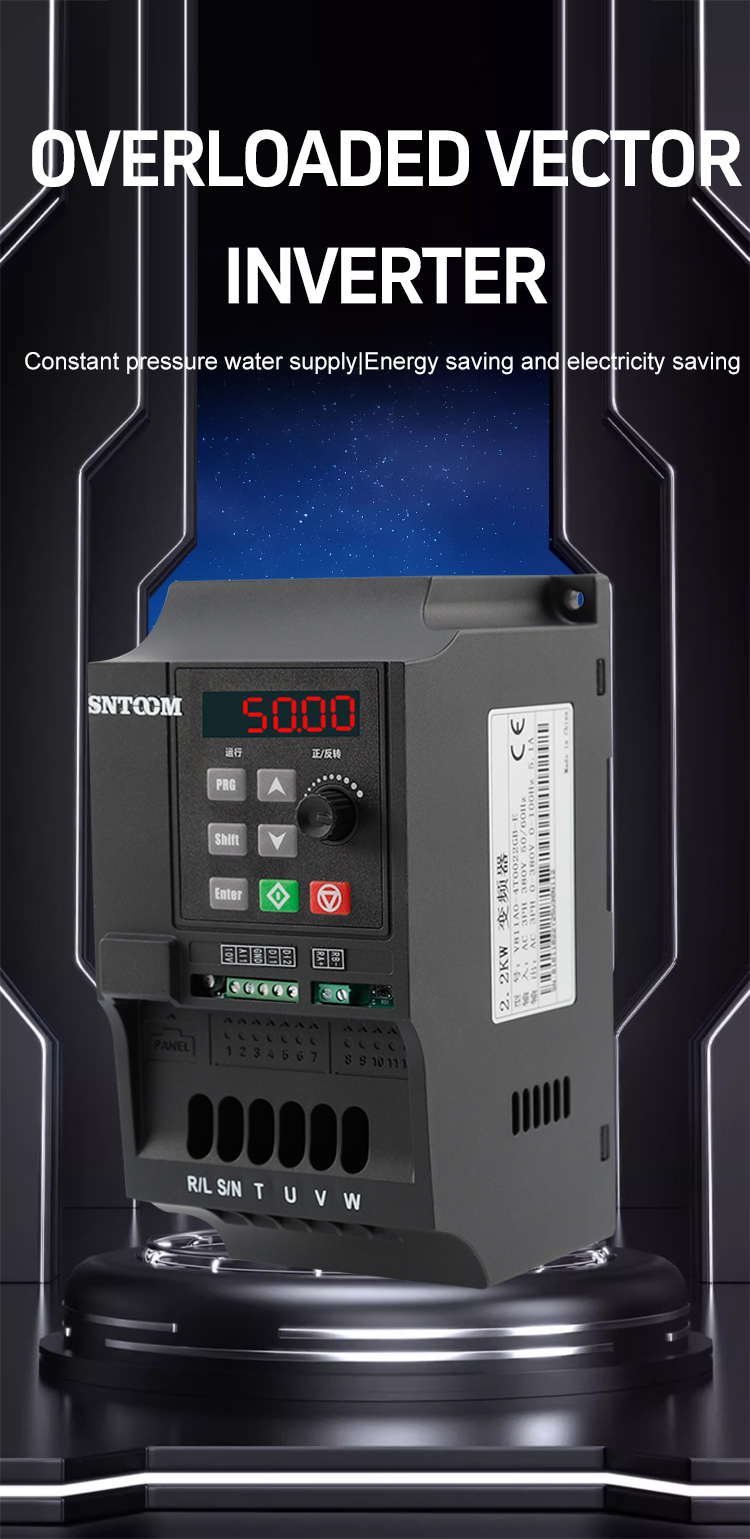

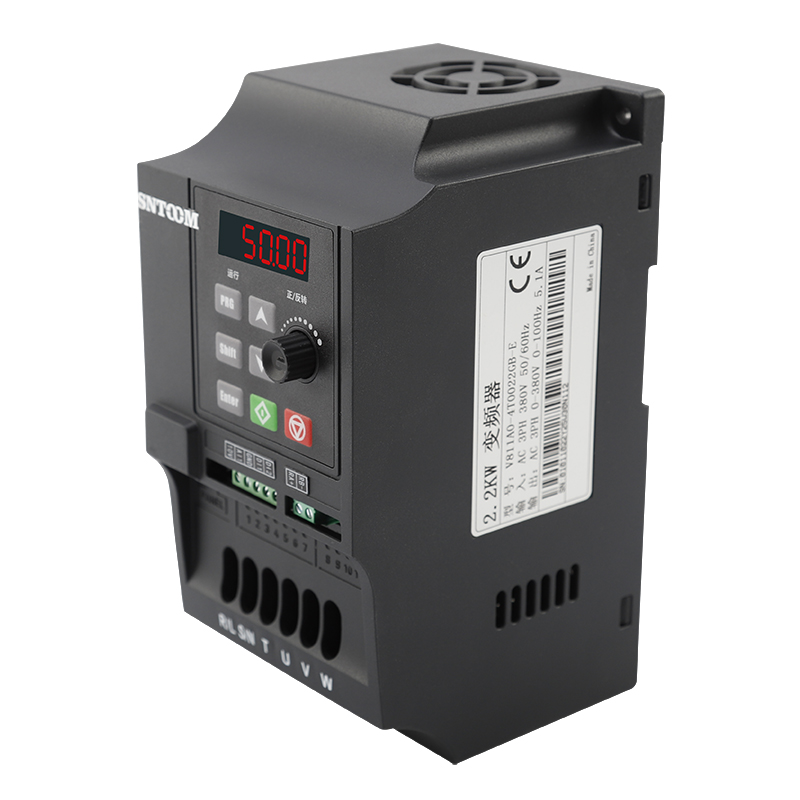

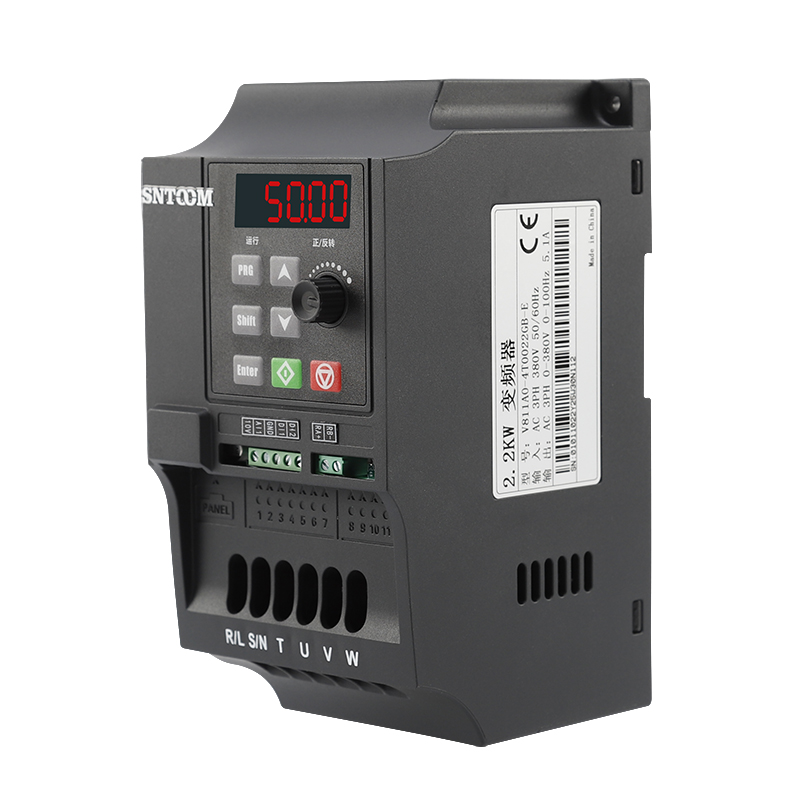

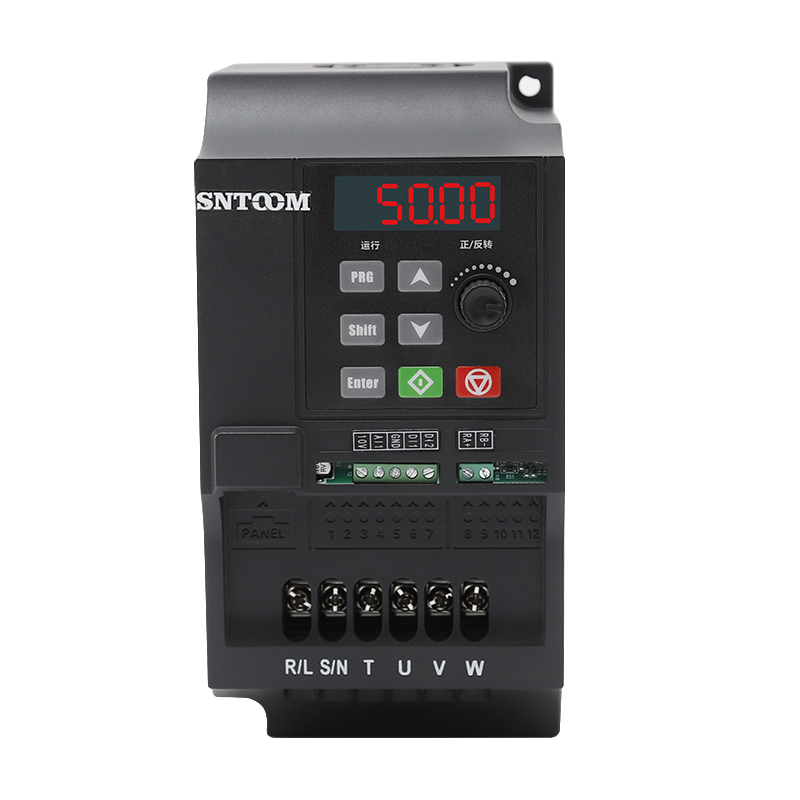

The Vector Frequency Converter from SNTOOM represents a pinnacle in motor control technology, offering unparalleled efficiency and versatility for a wide range of industrial applications. This sophisticated device is designed to regulate motor speed with precision, ensuring optimal performance in sectors such as plastic machinery, wire and cable manufacturing, packaging, textile machinery, and more.

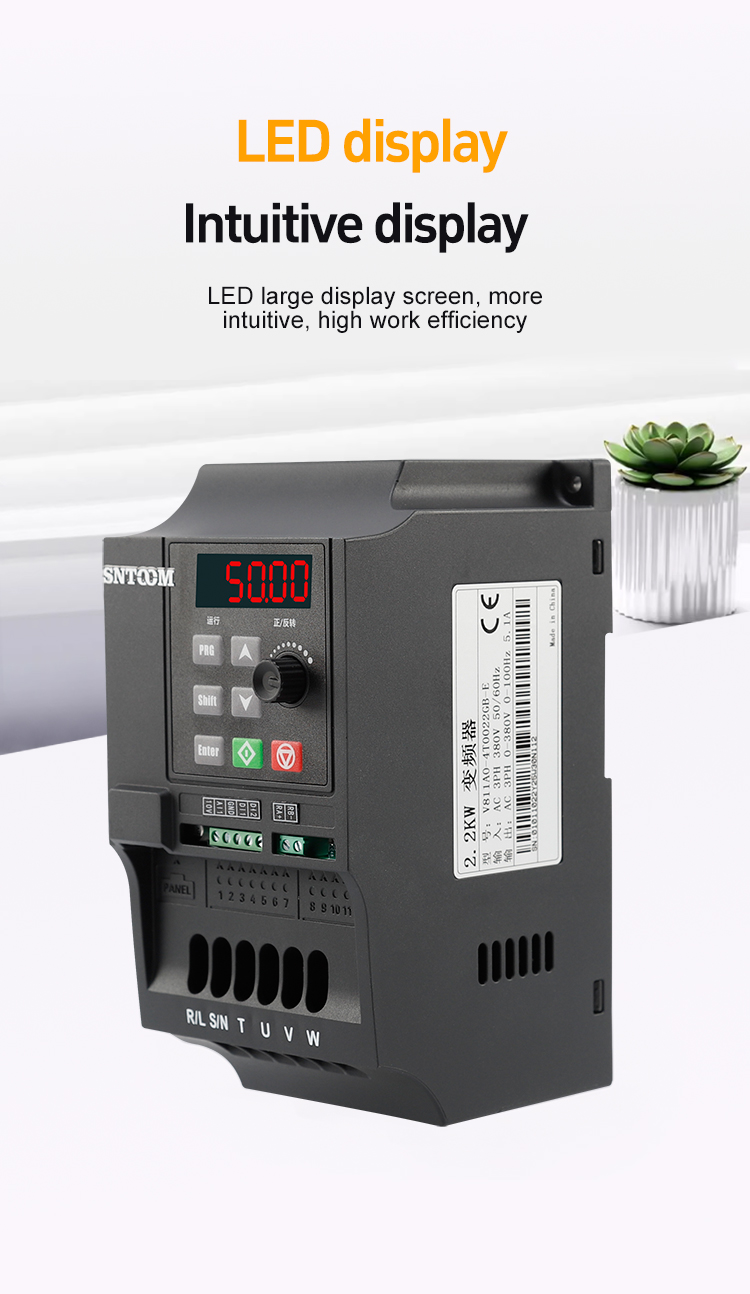

One of the standout features of this converter is its Intelligent LED Display Inverter, which provides a clear and intuitive interface for users. The large LED display allows for easy monitoring and adjustment of parameters, enhancing operational convenience and efficiency.

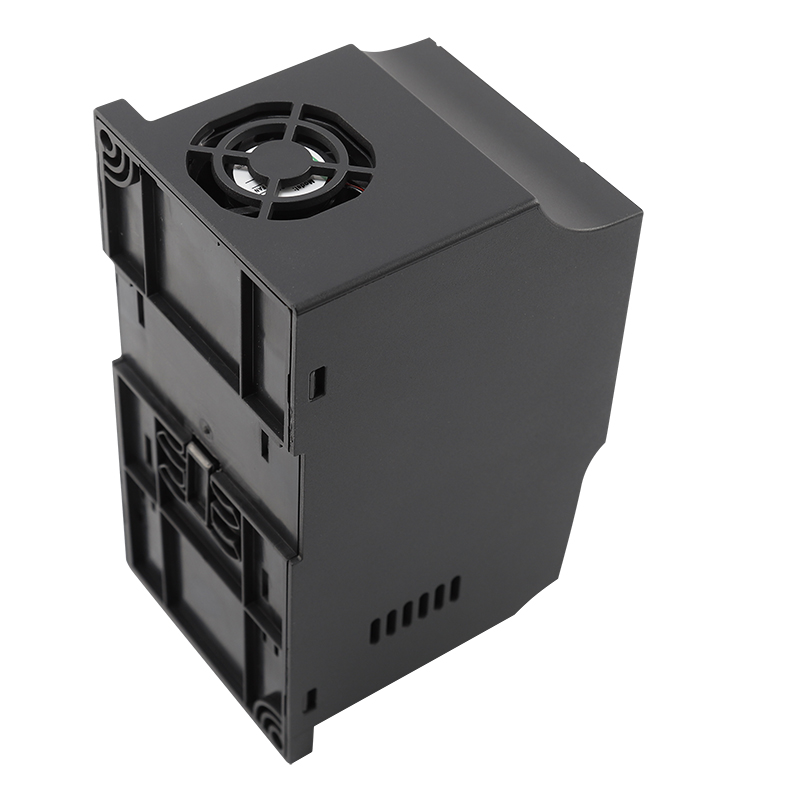

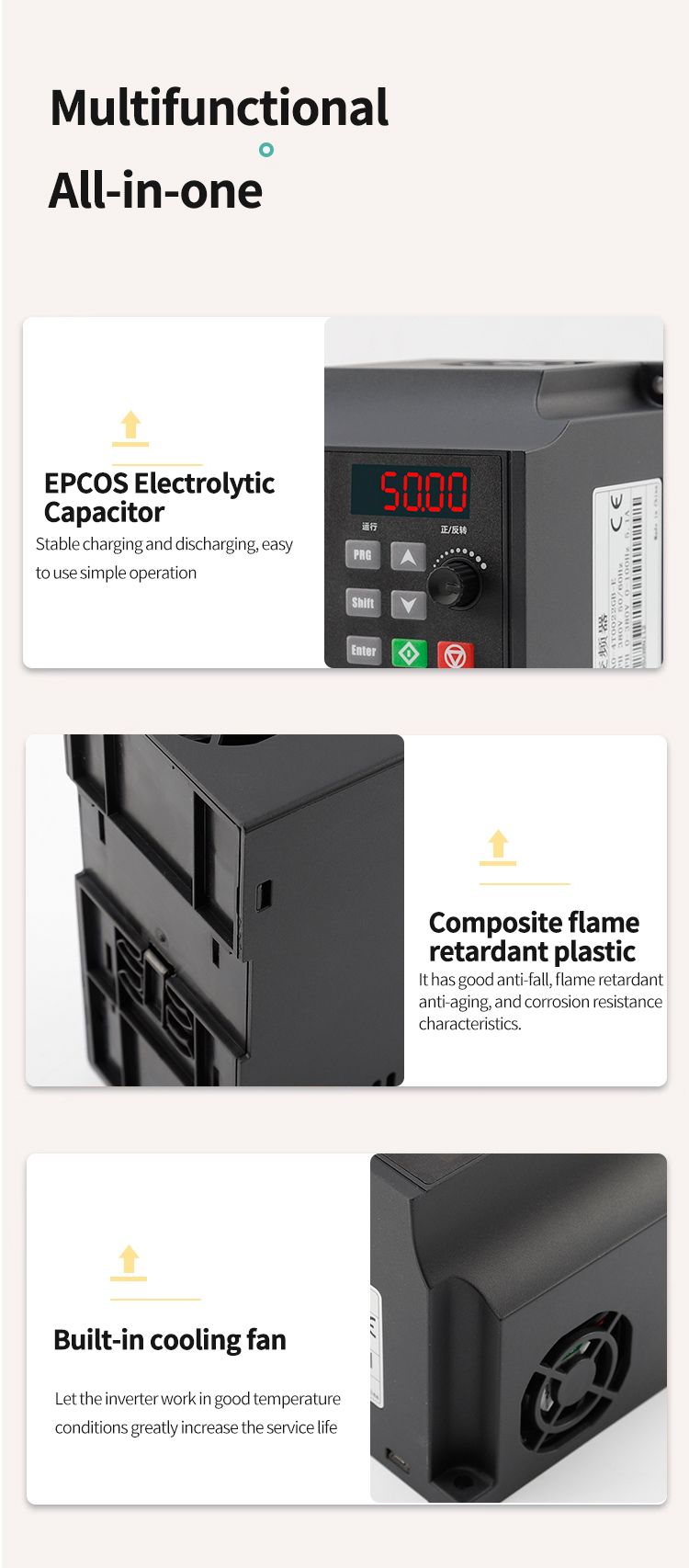

In addition to its intelligent display, the converter boasts a Rapid Heat Dissipation Converter design. This feature ensures that the device operates at optimal temperatures, preventing overheating and maintaining stable performance even under heavy loads. The built-in cooling fan further enhances this capability, significantly Extend[ing] Machine Life Converter by reducing thermal stress on internal components.
The device also functions as a high-performance Liquid Crystal Display Driver, although primarily known as a frequency converter, its multi-functional capabilities make it suitable for diverse control scenarios.

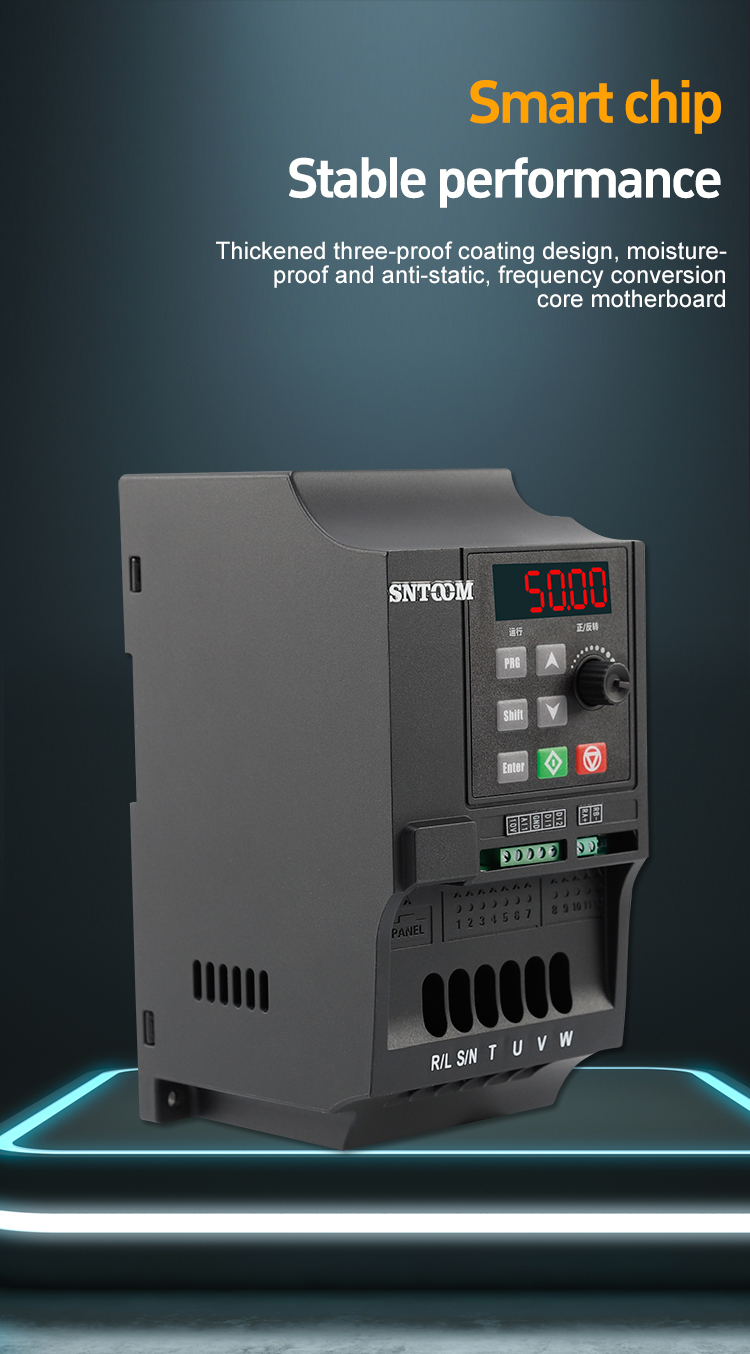

With its robust construction, energy-saving capabilities, and multi-mode regulation, the SNTOOM vector frequency converter is not just a tool but a comprehensive solution for modern industrial challenges, driving progress while ensuring sustainability.
