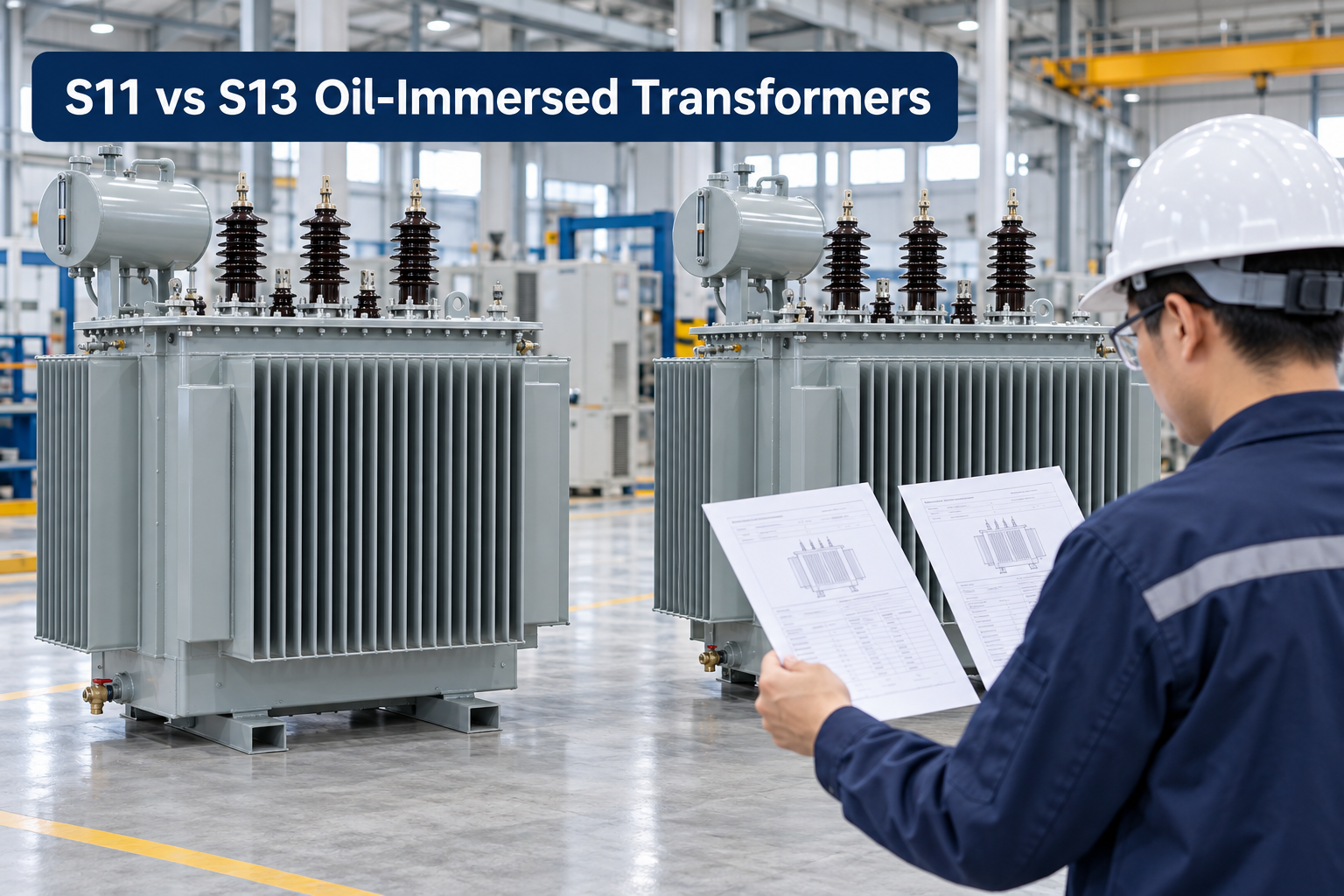

When buyers compare S11 and S13 oil-immersed transformers, the decision should not depend on the model name alone. The correct choice depends on energy efficiency, operating conditions, load profile, installation environment, and long-term project requirements.
Both models may appear suitable for similar power distribution applications. However, differences in design positioning, loss performance, configuration, and supplier documentation can affect the total value of the purchase.
This guide explains what buyers should compare before selecting an S11 oil immersed power transformer or an S13 oil immersed power transformer.
S11 and S13 should be compared using verified technical data.
No model should be selected by name alone.
Load profile and annual operating hours affect the value of efficiency improvements.
Installation conditions influence cooling, protection, noise, and maintenance needs.
A reliable supplier should provide drawings, technical documents, inspection support, and clear project communication.
Final selection should match the project’s voltage, capacity, frequency, environment, and operating requirements.
S11 and S13 are commonly used model designations for oil-immersed transformers. They help buyers identify different product series and design positions within a transformer supplier’s catalog.
However, the designation itself does not provide enough information for a complete purchasing decision. A transformer’s actual performance depends on its rated capacity, voltage ratio, impedance, losses, insulation arrangement, cooling design, and other technical details.
A buyer should therefore treat S11 or S13 as a starting point for comparison. The final decision should be based on the complete datasheet and project requirements.
For buyers reviewing specific equipment, SNTOOM provides both an S11 oil-immersed transformer and an S13 oil-immersed transformer for technical evaluation.
The first comparison should focus on whether the transformer matches the electrical system.
Review the following information:
Rated capacity
Primary voltage
Secondary voltage
Frequency
Phase configuration
Connection group
Tap arrangement
Impedance requirements
A transformer with the correct model name may still be unsuitable if its voltage ratio or capacity does not match the system.
The selected capacity should also consider present demand and expected load growth. Oversizing may increase project cost and reduce operating efficiency under light loads. Undersizing may lead to overheating, voltage instability, or limited expansion capacity.
Efficiency is one of the main reasons buyers compare different transformer series.
No-load losses occur when the transformer is energized, even when the connected load is low. Load losses increase as the transformer supplies more current.
When comparing an S11 and S13 unit, ask the supplier for:
No-load loss
Load loss
Total loss at the reference load
Test conditions
Rated current
Temperature reference
Applicable technical requirements
Do not assume that a newer model always provides the best result for every project. The value of lower losses depends on annual operating hours, load factor, electricity cost, and the expected service life.
A transformer operating continuously at a high load may benefit more from lower load losses. A lightly loaded transformer may make the no-load loss figure more important.
Transformer impedance affects voltage drop and fault current behavior. It should be reviewed together with the power system design.
A lower impedance may help reduce voltage drop, but it can also influence short-circuit current. A higher impedance may limit fault current but create different voltage regulation conditions.
The correct value depends on the system’s protection design, parallel operation requirements, motor starting conditions, and coordination with upstream and downstream equipment.
Buyers should provide the supplier with the relevant system information instead of choosing impedance only from a standard catalog value.
The same transformer may perform differently in different operating environments.
Before selecting an S11 oil immersed power transformer or S13 unit, review:
Average operating load
Peak load
Daily operating hours
Seasonal load changes
Motor starting conditions
Harmonic-producing equipment
Future load expansion
A facility with stable, continuous demand may place greater value on long-term loss performance. A facility with fluctuating loads may need closer review of no-load losses, voltage regulation, and thermal behavior.
Installation location also affects the specification.
An outdoor transformer may require stronger protection against weather, dust, moisture, and temperature changes. An indoor installation may place greater emphasis on footprint, ventilation, access, noise, and fire-safety planning.
The project team should confirm:
Ambient temperature range
Altitude
Humidity
Dust or chemical exposure
Available installation space
Ventilation conditions
Cable entry direction
Maintenance access
Grounding arrangement
These factors should be discussed before production. They may influence the enclosure, accessories, installation method, and supporting documentation.
Some projects require two or more transformers to operate in parallel. In that case, the units must be compatible in key electrical characteristics.
The comparison should include:
Voltage ratio
Impedance
Phase sequence
Connection group
Capacity ratio
Tap position
Polarity
Protection arrangement
If future expansion is expected, buyers should also consider whether the selected transformer can integrate into the planned system architecture.
A professional oil immersed power transformer supplier should provide more than a model name and price.
The datasheet should clearly identify the main electrical and mechanical parameters. It should also explain any optional configuration.
Ask for information covering:
Rated capacity
Voltage ratio
Frequency
Connection group
Impedance
Loss data
Insulation requirements
Cooling method
Dimensions
Weight
Oil volume
Terminal arrangement
Accessories
If a value is not applicable, the supplier should explain why. Unclear or incomplete data can create problems during engineering review and installation.
Drawings help the buyer verify whether the transformer will fit the project.
Important drawings may include:
General arrangement drawing
Foundation or mounting details
Terminal layout
Cable entry position
Lifting points
Grounding points
Nameplate arrangement
Accessory positions
Reviewing drawings early can reduce the risk of cable routing conflicts, insufficient clearance, or installation delays.
Testing requirements should be agreed before the order is finalized.
Depending on the project, buyers may request:
Routine test records
Inspection documents
Dimensional verification
Electrical test results
Nameplate confirmation
Pre-shipment inspection
Factory acceptance support
The exact test scope should match the purchase agreement and project requirements. Buyers should avoid assuming that every supplier includes the same documents or inspection process.
The purchase price is only one part of transformer value.
A better comparison includes:
Initial equipment cost
Expected operating losses
Installation requirements
Maintenance access
Spare parts and accessories
Inspection and documentation
Delivery coordination
Technical support
Warranty conditions
Future replacement difficulty
For a transformer operating for many years, energy losses may have a meaningful effect on the total cost of ownership. However, the calculation should use the project’s actual load profile and electricity conditions.
Buyers should also consider communication quality. A supplier that responds clearly to technical questions can reduce engineering delays and improve project coordination.
The model name alone cannot show the complete efficiency level. Always request the relevant loss figures and test conditions.
A lower initial price may not represent lower total cost. Operating losses, installation changes, and missing documents can create additional expenses.
A transformer selected without considering actual load behavior may operate inefficiently or lack sufficient capacity during peak demand.
Waiting until after the purchase order to confirm drawings, terminals, or accessories can create avoidable project delays.
Not all suppliers provide the same configuration, testing, documentation, or support. Compare the actual offer, not only the product name.
A clear request for quotation should include:
Required capacity
Primary and secondary voltage
Frequency
Phase configuration
Indoor or outdoor installation
Load type and operating profile
Environmental conditions
Required impedance
Cooling and enclosure expectations
Testing and documentation requirements
Quantity and delivery location
Any special accessories or customization
This information allows the supplier to recommend a suitable configuration instead of sending a general catalog quotation.
Buyers can also review the broader oil-immersed transformer range before preparing a project-specific inquiry.
The right choice between an S11 and S13 oil-immersed transformer depends on more than the series designation. Buyers should compare capacity, voltage, losses, impedance, load profile, installation conditions, drawings, testing, and long-term support.
An S11 oil immersed power transformer may be suitable for one project, while an S13 oil immersed power transformer may better match another. The correct decision should come from verified data and actual operating requirements.
SNTOOM supports industrial transformer selection with oil-immersed transformer products and project-focused technical communication. Buyers can contact SNTOOM’s technical team with their voltage, capacity, load, installation, and documentation requirements.
Comparing S11 and S13 for an industrial project?
Not necessarily. The better choice depends on the project’s required capacity, loss targets, operating hours, load profile, and budget. Buyers should compare verified datasheet values rather than relying only on the series name.
The difference should be confirmed through the supplier’s technical documents. Buyers should compare losses, impedance, voltage ratio, configuration, insulation, cooling, dimensions, and applicable project requirements.
Start with the system requirements. Confirm capacity, voltage, frequency, load profile, installation environment, operating hours, and required documentation. Then compare the complete offers from qualified suppliers.
They may be suitable for outdoor projects when the configuration and protection requirements are correctly specified. Confirm environmental conditions, enclosure design, weather exposure, cooling, clearances, and installation requirements with the supplier.
Include capacity, primary and secondary voltage, frequency, phase configuration, load profile, installation location, environmental conditions, impedance, testing requirements, documentation, quantity, and delivery information.
Both should be reviewed together. A lower purchase price may not result in lower lifetime cost if the transformer has higher operating losses or requires additional installation work.
