YT series
SNTOOM
Product advantages and features
Powerful Performance
Adjustable Speed
Durable Construction
Safety Features
Wide Application Scope
Low Noise Operation
Installation and Instructions
Positioning the Fan: Select a suitable location on the wall ensuring it is strong enough to support the fan's weight. Mark the drilling points.
Mounting Bracket Installation: Securely attach the mounting bracket to the wall using appropriate screws and anchors, ensuring it is firmly in place.
Fan Attachment: Lift the YT series black wall-mounted permanent magnet fan and carefully align it with the mounting bracket. Secure the fan onto the bracket using the provided bolts and nuts.
Electrical Connection: Connect the fan's power cable to a suitable power source, ensuring the voltage matches the fan's specifications. Use a qualified electrician if necessary.
Testing: Once installed, turn on the power and test the fan at various speeds to ensure it operates smoothly and quietly. Check for any unusual noises or vibrations.
Note:When using the black wall-mounted permanent magnet fan, ensure it is securely installed to prevent falling. Regularly clean the protective net and blades. Avoid inserting objects into the fan to prevent motor damage and personal injury. Do not modify the fan structure.

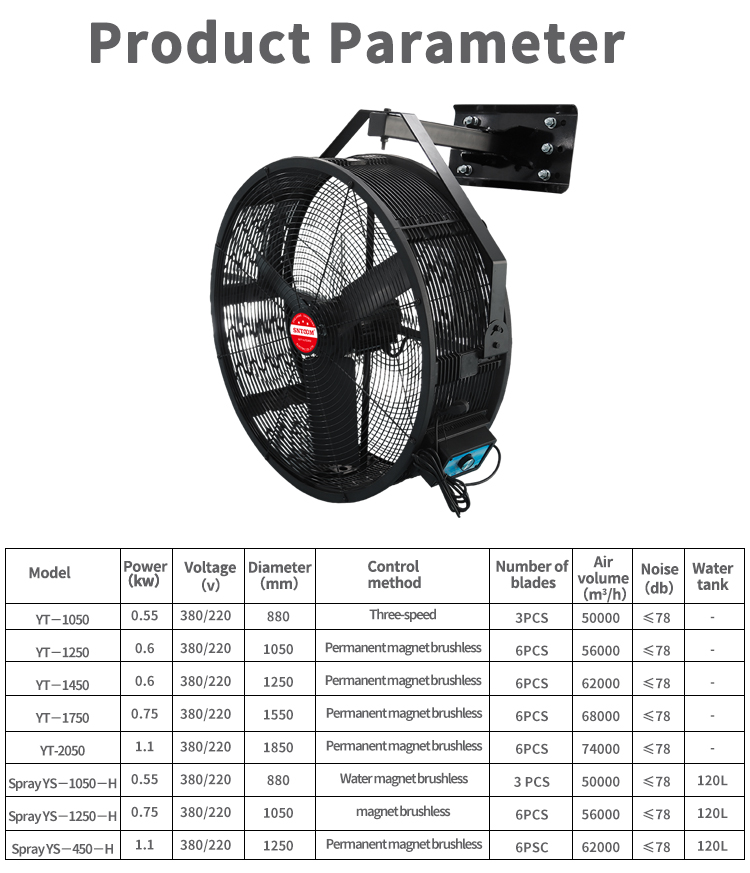

Product parameters
| Model | Power (kw) | Voltage (v) | Diameter (mm) | Control method | Number of blades | Air volume (m³/h) | Noise (db) | Water tank |
| YT-1050 | 0.55 | 380/220 | 880 | Three-speed | 3PCS | 50000 | ≤78 | - |
| YT-1250 | 0.6 | 380/220 | 1050 | Permanent magnet brushless | 6PCS | 56000 | ≤78 | - |
| YT-1450 | 0.6 | 380/220 | 1250 | Permanent magnet brushless | 6PCS | 62000 | ≤78 | - |
| YT-1750 | 0.75 | 380/220 | 1550 | Permanent magnet brushless | 6PCS | 68000 | ≤78 | - |
| YT-2050 | 1.1 | 380/220 | 1850 | Permanent magnet brushless | 6PCS | 74000 | ≤78 | - |
| SprayYS-1050-H | 0.55 | 380/220 | 880 | Water magnet brushless | 3PCS | 50000 | ≤78 | 120L |
| SprayYS-1250-H | 0.75 | 380/220 | 1050 | Magnet brushless | 6PCS | 56000 | ≤78 | 120L |
| SprayYS-450-H | 1.1 | 380/220 | 1250 | Permanent magnet brushless | 6PCS | 62000 | ≤78 | 120L |

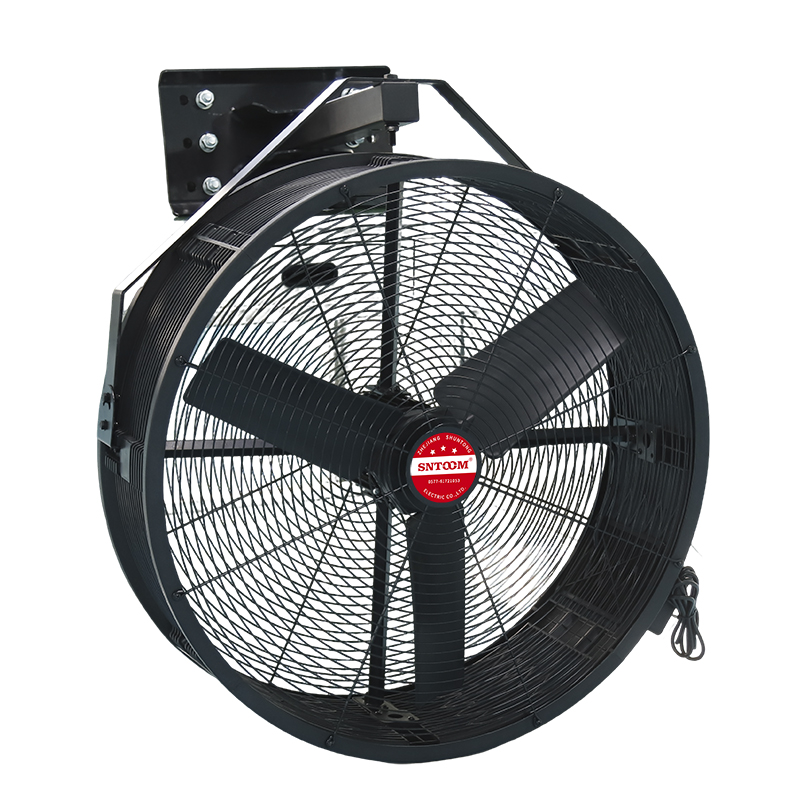

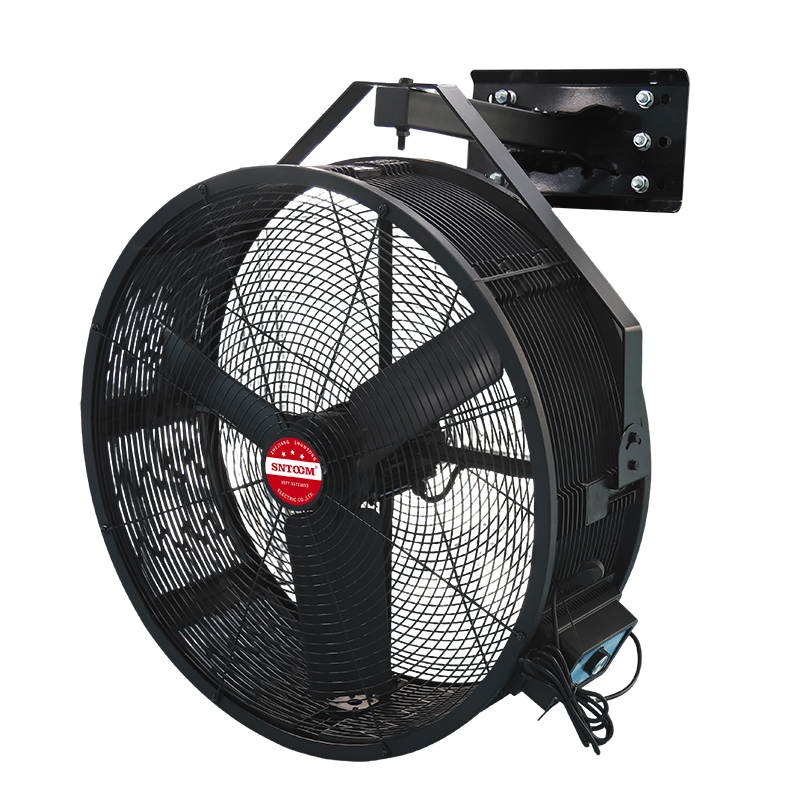

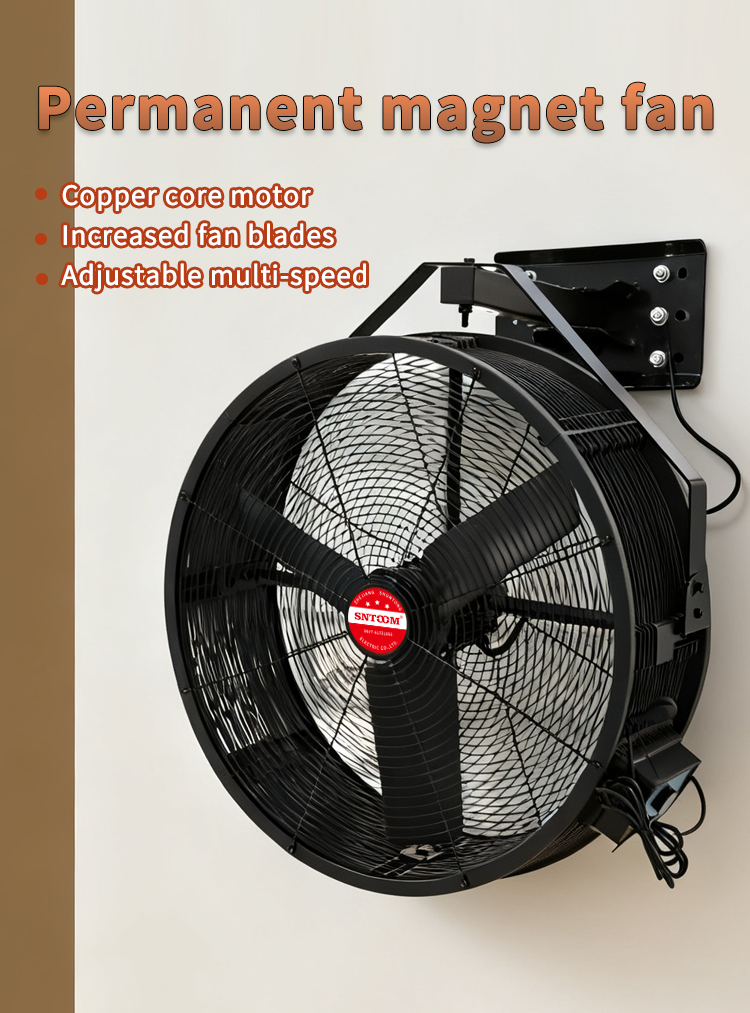

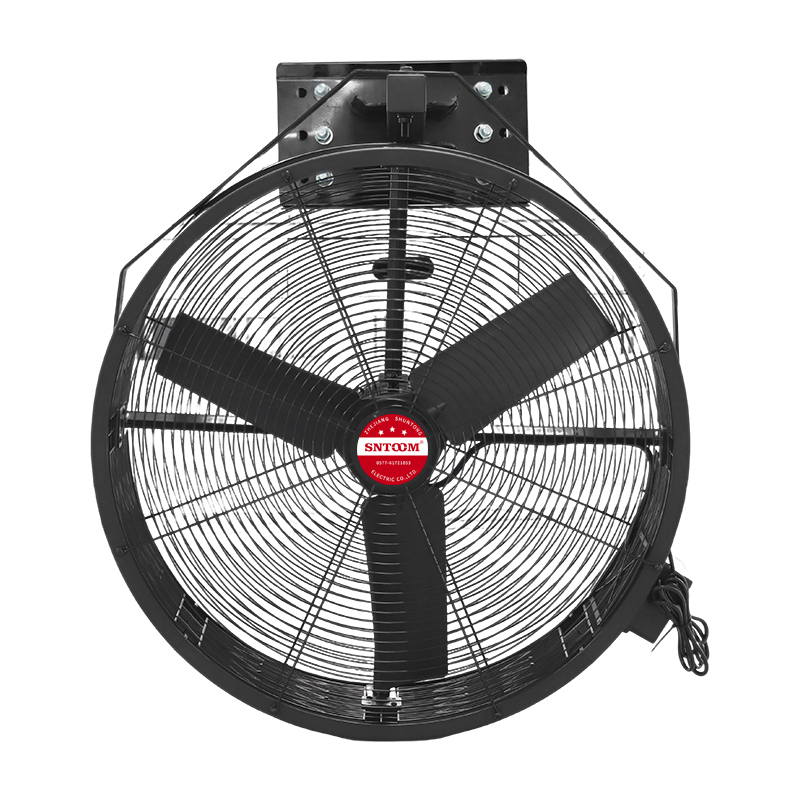

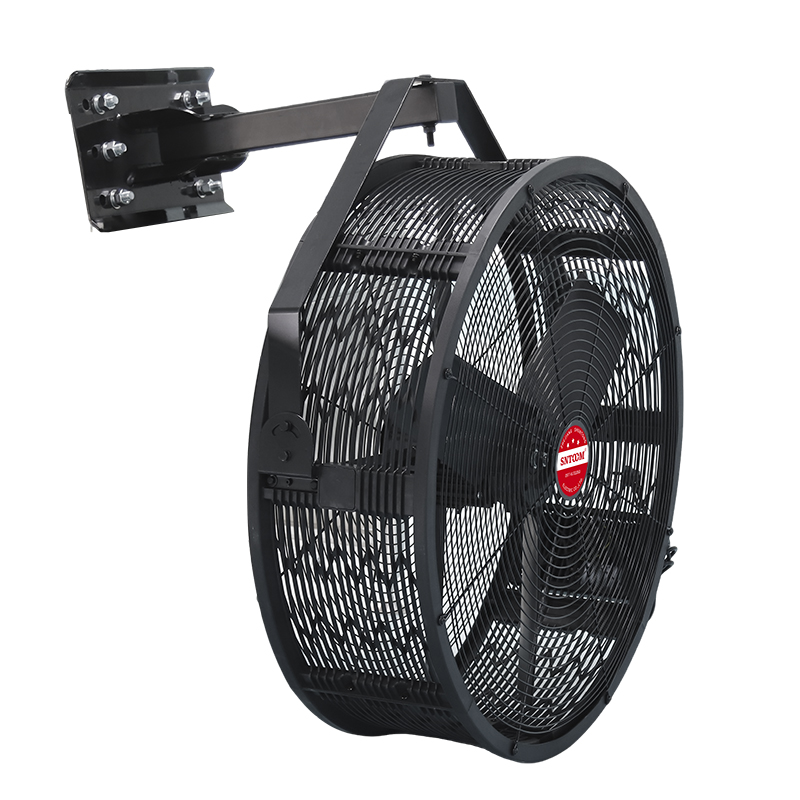

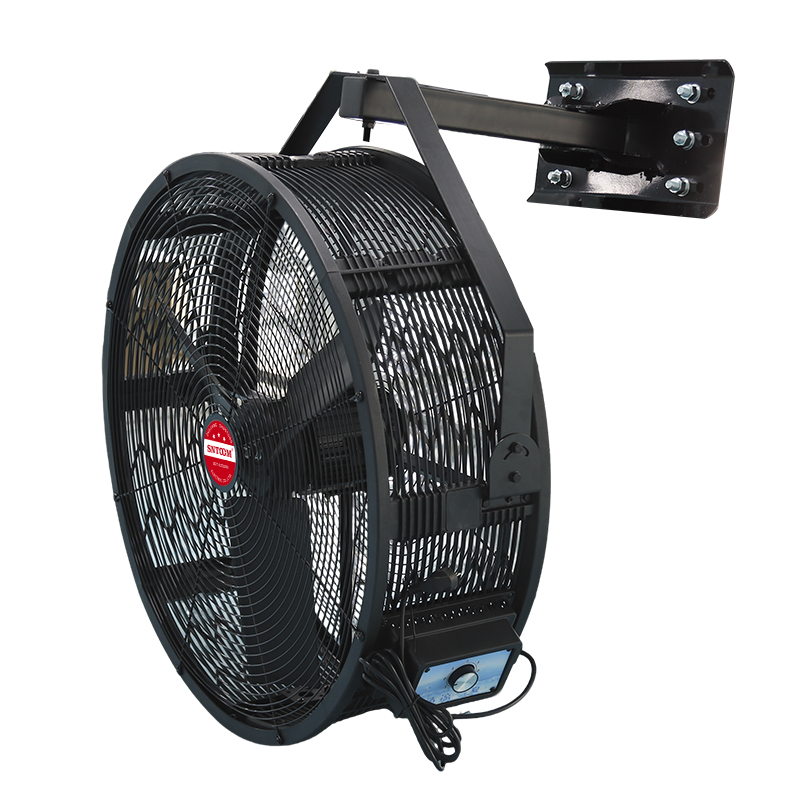

YT Series Black Wall-Mounted Permanent Magnet Brushless Fan

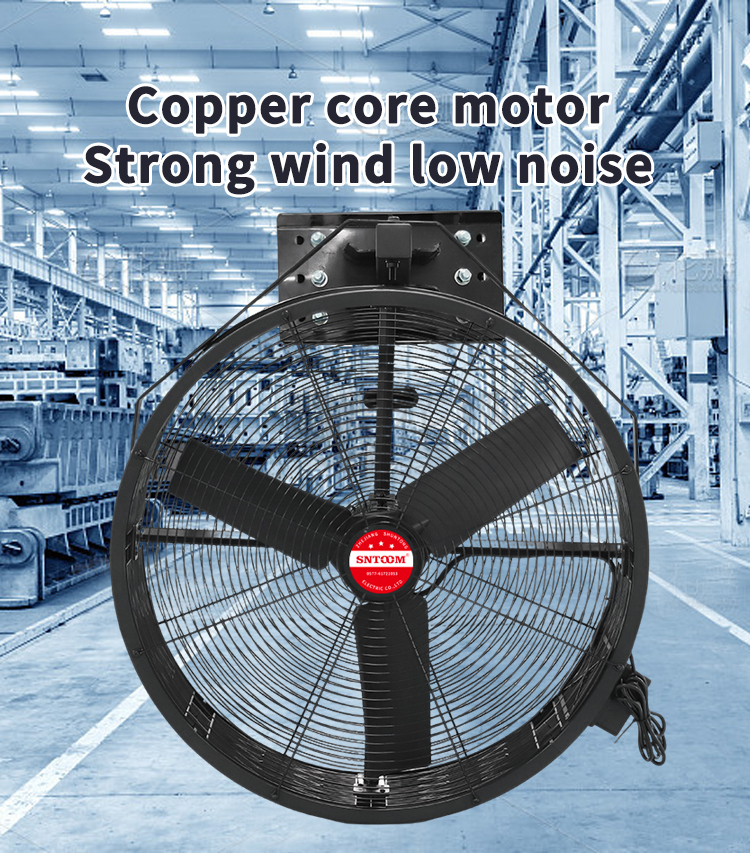

The YT series black wall-mounted permanent magnet Brushless Fan is an innovative solution designed to meet diverse industrial and commercial ventilation needs. This series stands out in the market due to its advanced permanent magnet brushless motor, which ensures high efficiency and low noise operation.

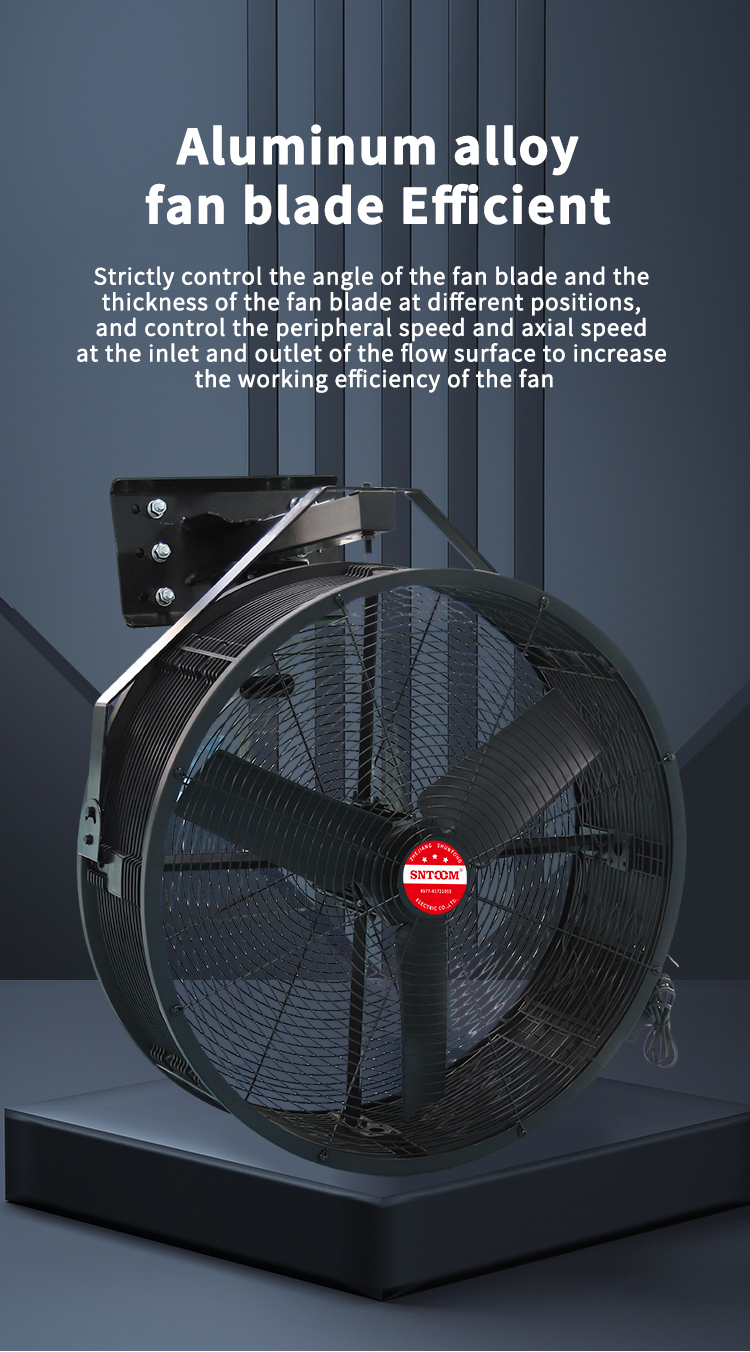

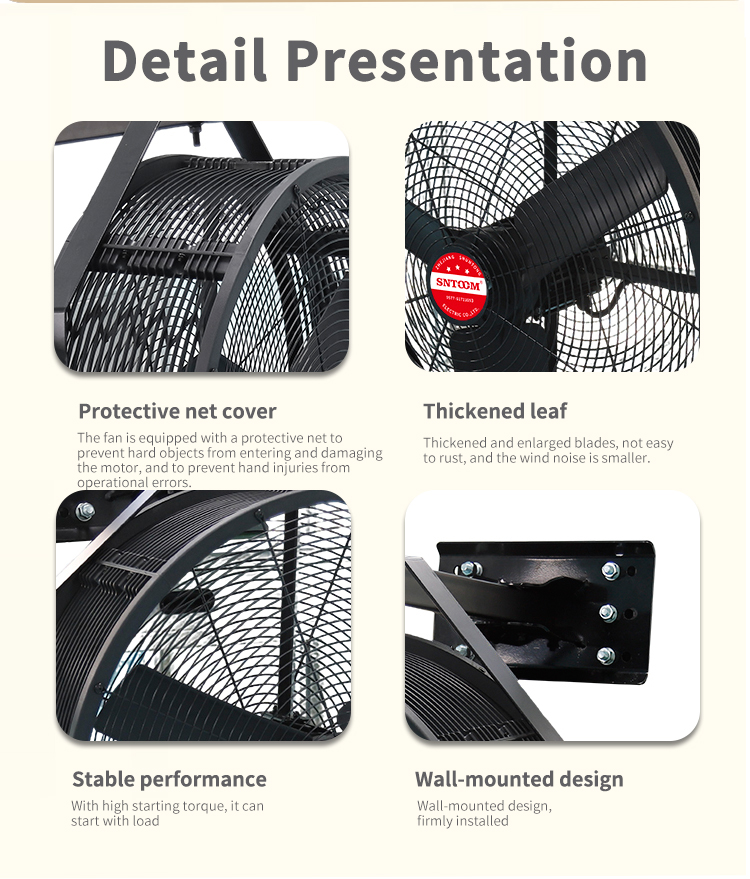

As an Efficient Industrial Fan, the YT series is built to deliver superior airflow while consuming less power. Its design incorporates thickened and enlarged blades that are not only durable but also contribute to a larger wind volume. This makes it an excellent choice for use as a large wind floor industrial fan or an industrial large fan in settings such as factories, warehouses, offices, and residential premises.

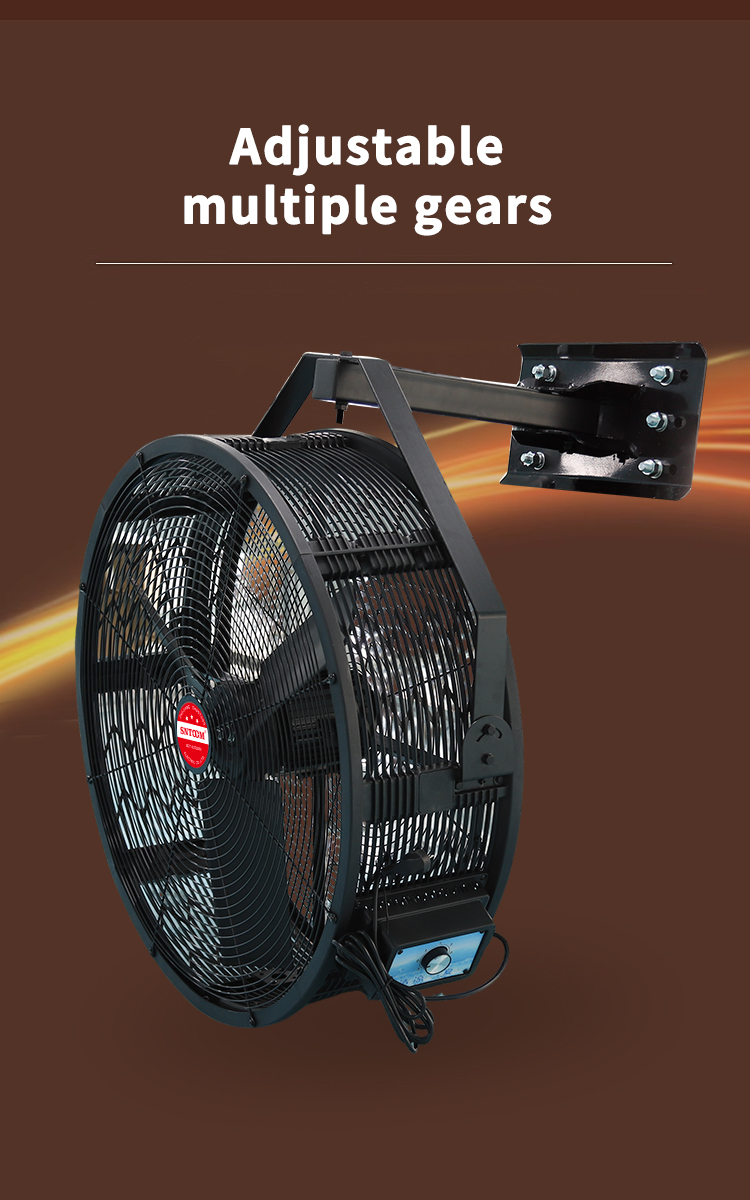

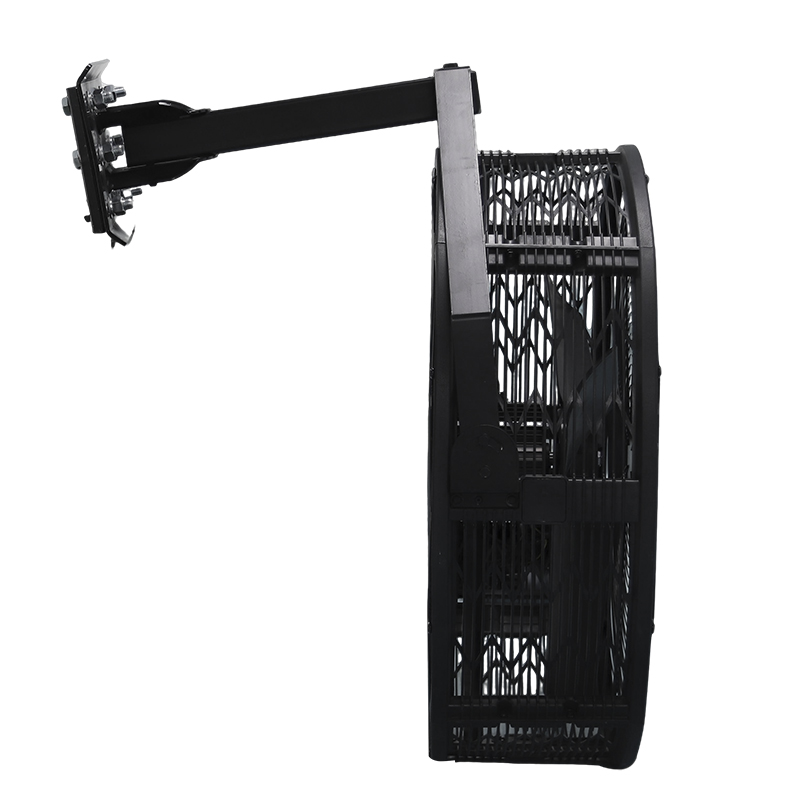

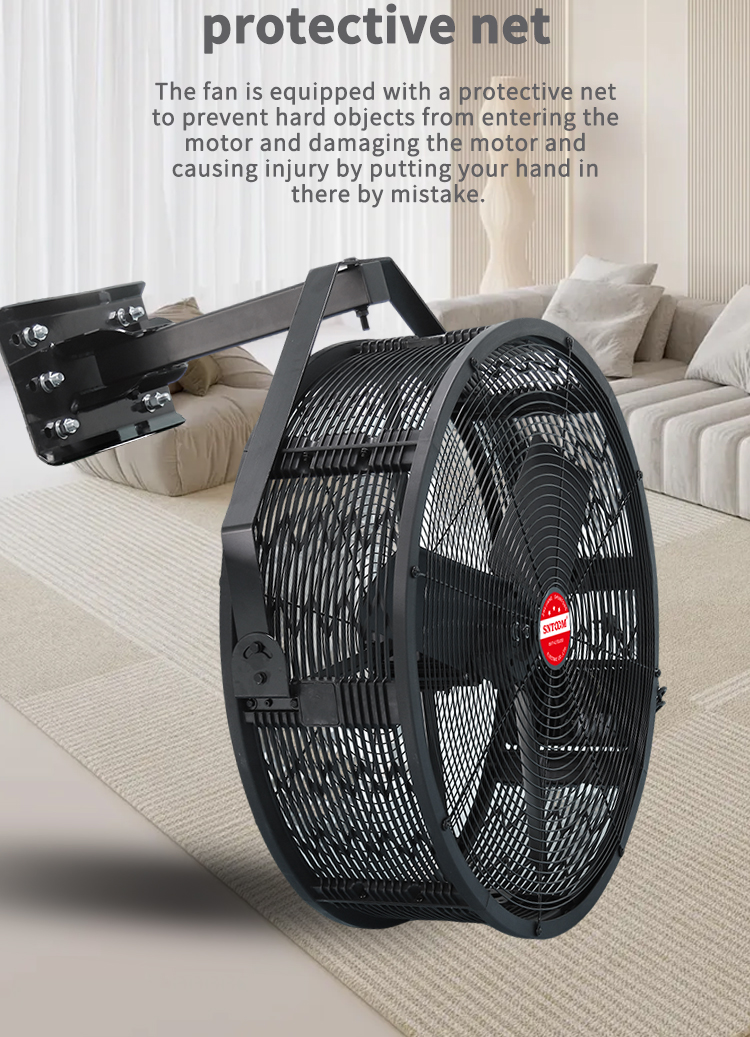

The wall-mounted design allows for easy installation and space-saving, making it a practical Industrial Fan solution. The inclusion of a protective net ensures safety by preventing accidental contact with the moving parts. Additionally, the fan's adjustable multiple gears allow users to select the desired airflow speed, enhancing its versatility.
As a Ventilation Fan, the YT series excels in maintaining optimal air quality and comfort in various environments. Its robust construction and stable performance ensure long-term reliability, even under demanding conditions.
In summary, the YT series black wall-mounted permanent magnet Brushless Fan is a top-tier Ventilation Fan that combines efficiency, durability, and user-friendliness, making it an ideal choice for diverse applications.
