| Quantity: | |
|---|---|
SNTOOM
Product advantages and features
Aluminum Alloy Blades
Copper Wire Motor
Metal Protective Net
Speed Regulation Without Pole
Mobile Design
Stable Performance and Easy Operation
Installation and Instructions
Carefully unpack the fan and check all components against the manual to ensure nothing is damaged or missing.
Attach the stand parts together using the provided screws and tools, ensuring all connections are secure.
Lift the fan unit and carefully place it onto the assembled stand, securing it tightly to prevent movement.
Attach the wheels to the base of the stand, making sure each wheel is firmly locked in place for stability.
Turn on the fan and test all speed settings to ensure it operates smoothly and quietly, checking for any unusual noises.
Note:When using the permanent magnet mobile fan, ensure it is placed on a stable surface. Avoid inserting objects through the protective net. Regularly check the copper wire motor for overheating. Adjust speeds carefully using the control panel to prevent damage.

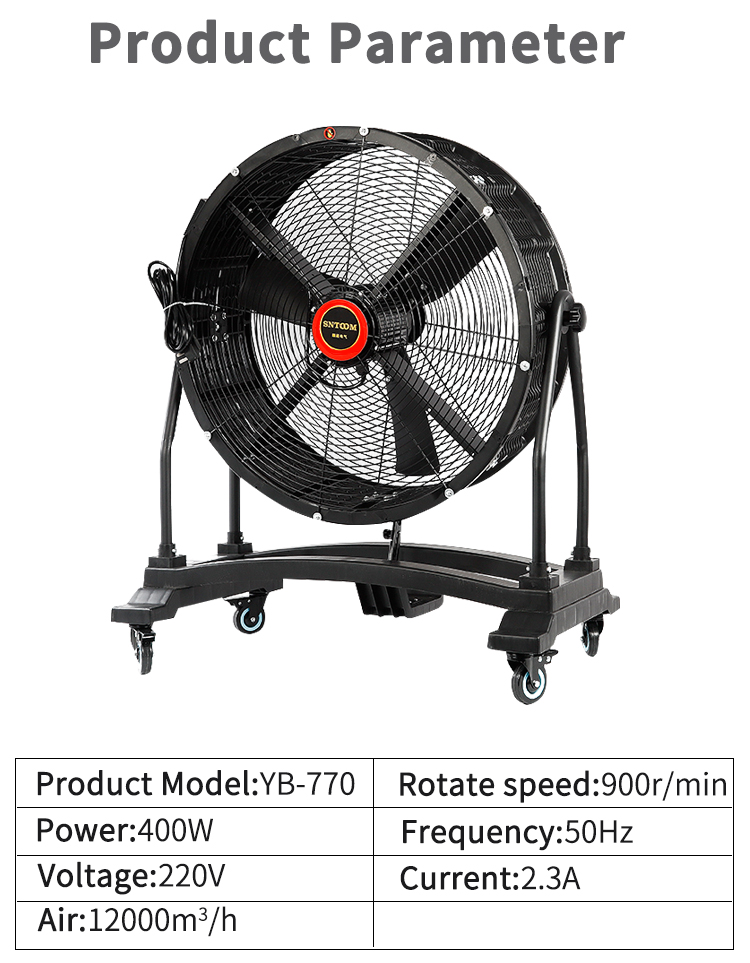

Product parameters
| Product Model | Rotate Speed | Power | Frequency | Voltage | Current | Air |
| YB-770 | 900r/min | 400W | 50Hz | 220V | 2.3A | 12000m³/h |
YT/YS series permanent magnet fan dimensions：
| Model | Power (kw) | Voltage (v) | Diameter (mm) | Control Method | Number of Blades | Air Volume (m³/h) | Noise (db) | Water Tank |
| YT-1050 | 0.55 | 380/220 | 880 | Three-speed | 3 PCS | 50000 | ≤78 | - |
| YT-1250 | 0.6 | 380/220 | 1050 | Permanent magnet brushless | 6 PCS | 56000 | ≤78 | - |
| YT-1450 | 0.6 | 380/220 | 1250 | Permanent magnet brushless | 6 PCS | 62000 | ≤78 | - |
| YT-1750 | 0.75 | 380/220 | 1550 | Permanent magnet brushless | 6 PCS | 68000 | ≤78 | - |
| YT-2050 | 1.1 | 380/220 | 1850 | Permanent magnet brushless | 6 PCS | 74000 | ≤78 | - |
| Spray YS-1050-H | 0.55 | 380/220 | 880 | Water magnet brushless | 3 PCS | 50000 | ≤78 | 120L |
| Spray YS-1250-H | 0.75 | 380/220 | 1050 | Magnet brushless | 6 PCS | 56000 | ≤78 | 120L |
| Spray YS-450-H | 1.1 | 380/220 | 1250 | Permanent magnet brushless | 6 PCS | 62000 | ≤78 | 120L |

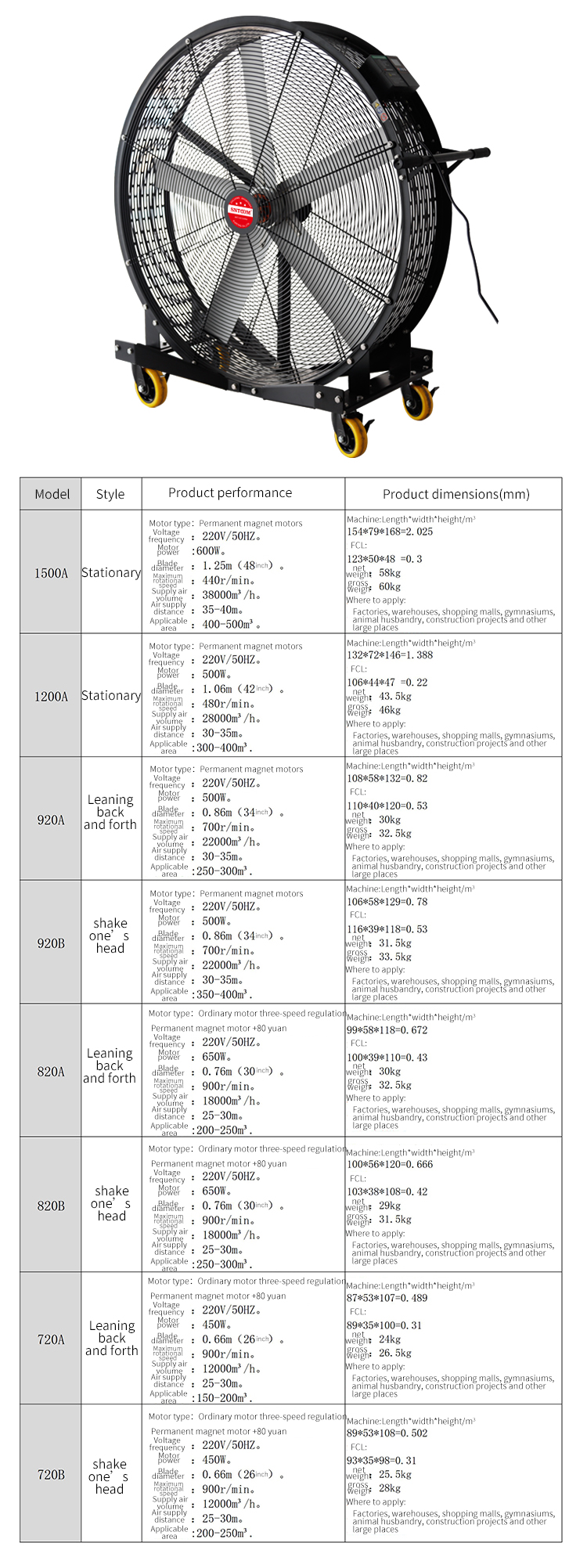

| Model | Style | Product performance | Product dimensions (mm) |
| 1500A | Stationary | Motor type: Permanent magnet motors Voltage frequency: 220V/50Hz Motor power: 600W Blade diameter: 1.25m (48inch) Maxiomum rotational speed: 440r/min Supply air yolume: 38000m³/h Air supply distance:35-40m Applicable area: 400-500m³ | Machine:Length*width*height/m³ 154*79*168=2.025 FCL: 123*50*48=0.3 net weigh:58kg gross weight:60 kg Where to apply: Factories,warehouses,shopping malls,gymnasiums,animal husbandry,constrution projexts and other large plance |
| 1200A | Stationary | Motor type: Permanent magnet motors Voltage frequency: 220V/50Hz Motor power: 500W Blade diameter: 1.06m (42inch) Maxiomum rotational speed: 480r/min Supply air yolume: 28000m³/h Air supply distance:30-35m Applicable area: 300-400m³ | Machine:Length*width*height/m³ 132*72*146=1.388 FCL: 106*44*47=0.22 net weigh:43.5kg gross weight:46 kg Where to apply: Factories,warehouses,shopping malls,gymnasiums,animal husbandry,constrution projexts and other large plance |
| 920A | Leaning back and forth | Motor type: Permanent magnet motors Voltage frequency: 220V/50Hz Motor power: 500W Blade diameter: 0.86m (34inch) Maxiomum rotational speed: 700r/min Supply air yolume: 22000m³/h Air supply distance:30-35m Applicable area: 250-300m³ | Machine:Length*width*height/m³ 108*58*130.82 FCL: 110*40*120=0.53 net weigh:30kg gross weight:32.5 kg Where to apply: Factories,warehouses,shopping malls,gymnasiums,animal husbandry,constrution projexts and other large plance |
| 920B | Shake one's head | Motor type: Permanent magnet motors Voltage frequency: 220V/50Hz Motor power: 500W Blade diameter: 0.86m (34inch) Maxiomum rotational speed: 700r/min Supply air yolume: 22000m³/h Air supply distance:30-35m Applicable area: 350-400m³ | Machine:Length*width*height/m³ 106*58*129=0.78 FCL: 116*39*118=0.53 net weigh:31.5kg gross weight:33.5 kg Where to apply: Factories,warehouses,shopping malls,gymnasiums,animal husbandry,constrution projexts and other large plance |
| 820A | Leaning back and forth | Motor type: Permanent magnet motors Voltage frequency: 220V/50Hz Motor power: 650W Blade diameter: 0.76m (30inch) Maxiomum rotational speed: 900r/min Supply air yolume: 18000m³/h Air supply distance:25-30m Applicable area: 200-250m³ | Machine:Length*width*height/m³ 99*58*118=0.672 FCL: 100*39*110=0.43 net weigh:30kg gross weight:32.5 kg Where to apply: Factories,warehouses,shopping malls,gymnasiums,animal husbandry,constrution projexts and other large plance |
| 820B | Shake one's head | Motor type: Permanent magnet motors Voltage frequency: 220V/50Hz Motor power: 650W Blade diameter: 0.76m (30inch) Maxiomum rotational speed: 900r/min Supply air yolume: 18000m³/h Air supply distance:25-30m Applicable area: 250-300m³ | Machine:Length*width*height/m³ 100*56*120=0.666 FCL: 103*38*108=0.42 net weigh:29kg gross weight:31.5 kg Where to apply: Factories,warehouses,shopping malls,gymnasiums,animal husbandry,constrution projexts and other large plance |
| 720A | Leaning back and forth | Motor type: Permanent magnet motors Voltage frequency: 220V/50Hz Motor power: 450W Blade diameter: 0.66m (26inch) Maxiomum rotational speed: 900r/min Supply air yolume: 12000m³/h Air supply distance:25-30m Applicable area: 150-200m³ | Machine:Length*width*height/m³ 87*53*107=0.489 FCL: 89*35*100=0.31 net weigh:24kg gross weight:26.5 kg Where to apply: Factories,warehouses,shopping malls,gymnasiums,animal husbandry,constrution projexts and other large plance |
| 720B | ake one's head | Motor type: Permanent magnet motors Voltage frequency: 220V/50Hz Motor power: 450W Blade diameter: 0.66m (26inch) Maxiomum rotational speed: 900r/min Supply air yolume: 12000m³/h Air supply distance:25-30m Applicable area: 200-250m³ | Machine:Length*width*height/m³ 89*53*108=0.502 FCL: 93*35*98=0.31 net weigh:25.5kg gross weight:28 kg Where to apply: Factories,warehouses,shopping malls,gymnasiums,animal husbandry,constrution projexts and other large plance |

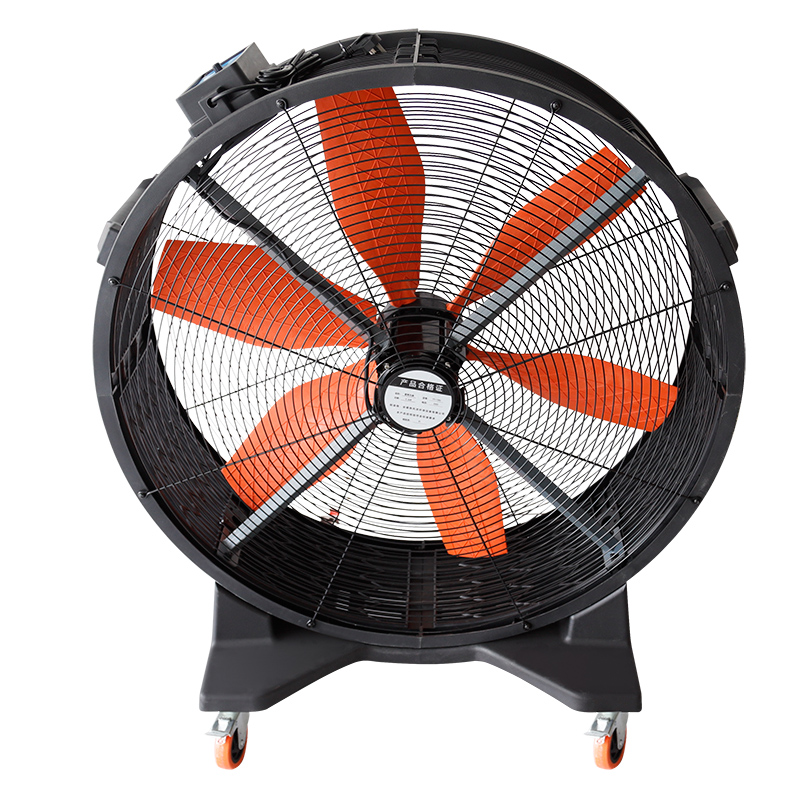

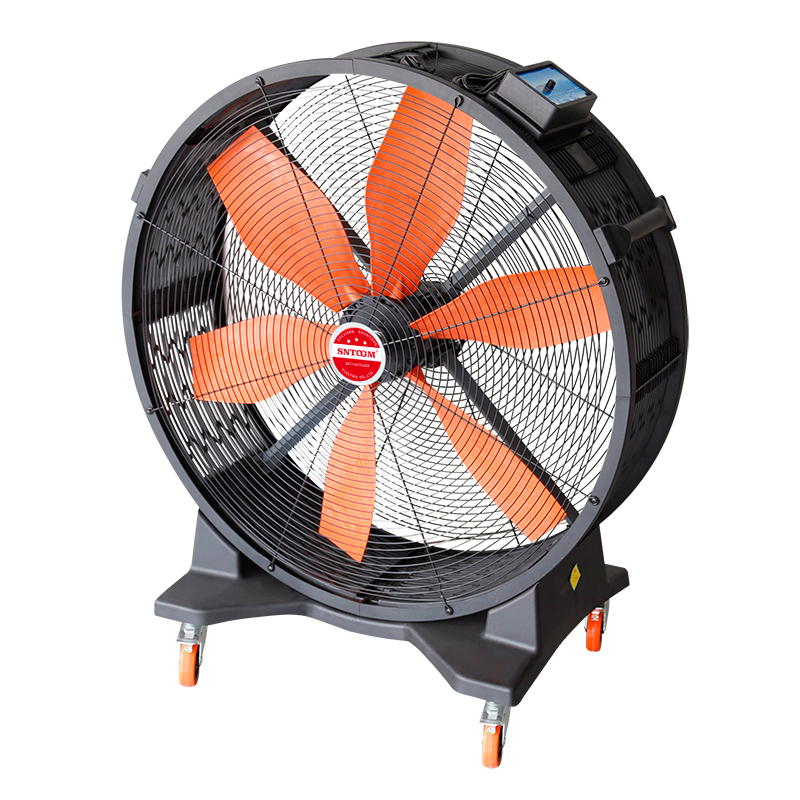

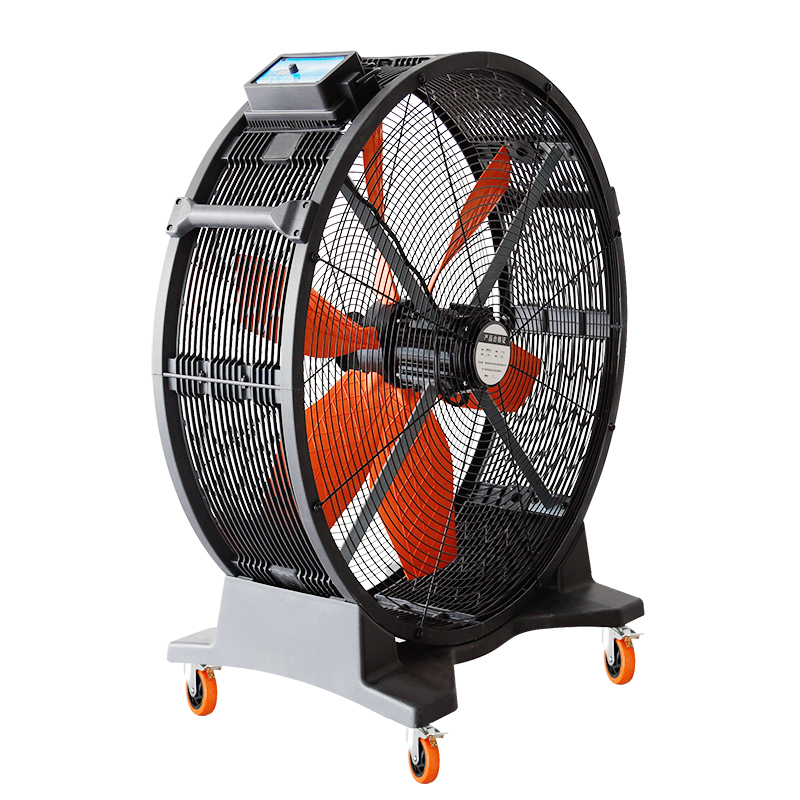

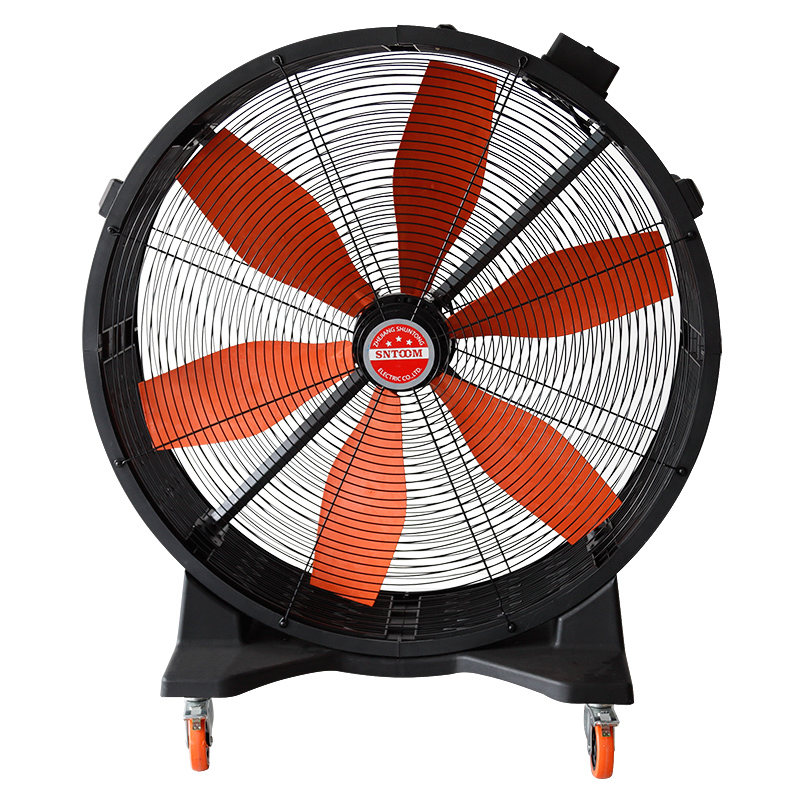

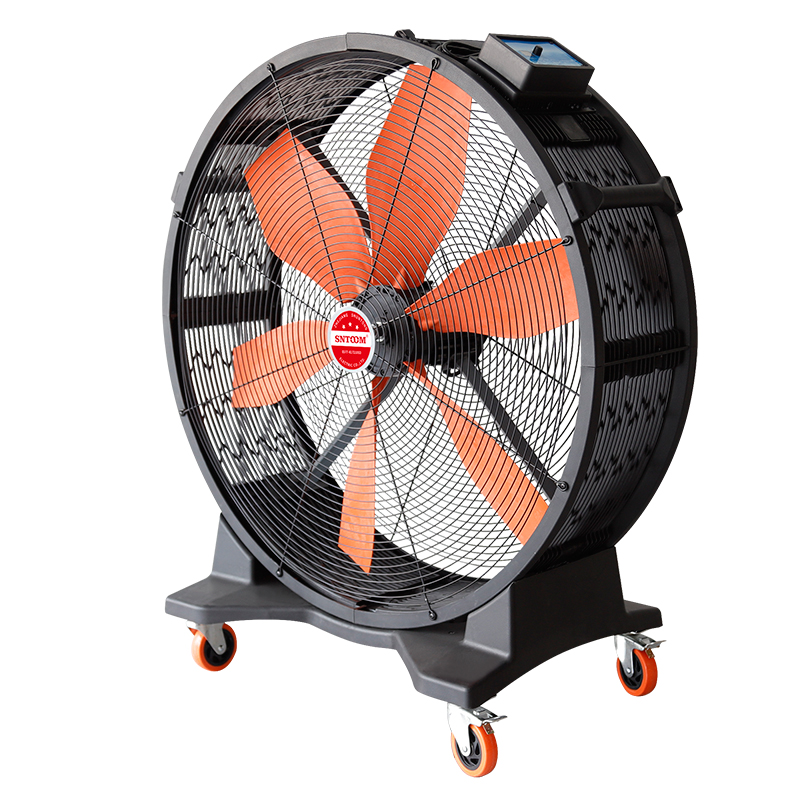

Introduction to Mobile Permanent Magnet Fans: The Future of Efficient Ventilation
The mobile permanent magnet fan represents a significant advancement in ventilation technology. Combining portability with high efficiency, this fan is designed to meet the diverse needs of modern industrial and residential environments. At the heart of this innovative device lies the permanent magnet brushless motor, which ensures remarkable performance and durability.
One of the standout features of this fan is its status as a Direct Current Fan. This allows for more efficient energy use and longer operational life compared to traditional alternating current fans. Additionally, being a Brushless Fan, it eliminates the wear and tear associated with brushes, reducing maintenance costs and enhancing reliability.
As an Axial Fan, it delivers strong wind output while maintaining low noise levels, making it ideal for use in factories, warehouses, offices, and residential premises. The stainless steel fan blades are meticulously crafted to optimize airflow, ensuring high efficiency and effective ventilation.
The fan's mobile design, complete with wheels, allows for easy movement and placement wherever ventilation is needed. Equipped with a protective net, it ensures safety by preventing accidental contact with the blades.
Furthermore, the adjustable multiple gears provide flexibility in controlling airflow, catering to different environmental requirements. Whether you need to cool a factory floor or improve air circulation in a residential building, this Ventilation Fan is up to the task.
In conclusion, the mobile permanent magnet fan sets a new standard in ventilation solutions, offering efficiency, durability, and versatility.
