Transformer Altitude Derating: Why Thin Air Reduces Capacity

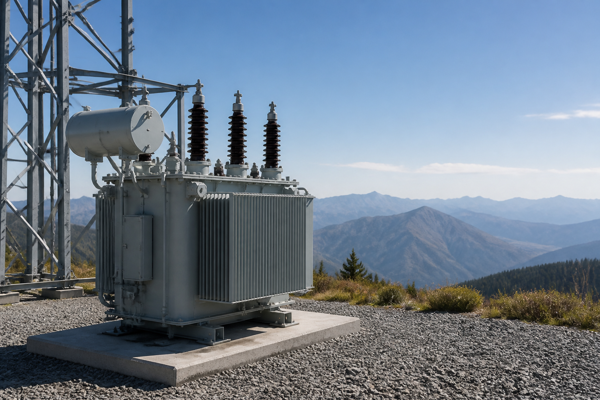

A unit ordered for a coastal plant and the same unit installed at 2,500 m are not the same machine in service, even when the nameplate reads identically. Air density falls with height, and thinner air does two jobs less well: it carries heat away from the windings, and it insulates. Transformer altitude derating is the correction that reconciles a datasheet with a mountain site, and it is one of the few parameters that cannot be repaired after delivery.

Here is the content list:

• What physically changes when equipment operates at height?

• How is the altitude correction factor applied to a rating?

• What should be confirmed before the unit is ordered?

What Changes at Height

Cooling capacity is the first casualty. A transformer rejects heat to the surrounding air, so the rate of rejection depends on air mass flow rather than air volume. At 2,000 m the air holds roughly three quarters of the density found at sea level, which means the same fan or the same radiating surface moves noticeably less heat. Oil-immersed transformer designs lose some of this capacity through the radiators, and a dry-type transformer loses it directly at the winding surface.

Dielectric strength falls as well, because air is the insulation medium in clearances and in the external creepage path. Lower density means a lower breakdown voltage for the same gap, so a design that passed a withstand test at sea level may have less margin at height. This is why high-altitude installations frequently require a larger clearance or a higher insulation level rather than only a smaller load.

How the Correction Factor Is Applied

Standard ratings assume operation up to 1,000 m. Above that elevation the manufacturer applies an altitude correction factor, and there are two accepted ways to spend it. The first reduces the permissible temperature rise, which in practice lowers the usable kVA rating. The second keeps the rating and raises the insulation requirement instead. Both are legitimate; what matters is that the choice is written down and traced to the site elevation.

A practical sequence looks like this.

1. Establish the real site elevation, not the elevation of the nearest town, and use the highest ground the equipment will occupy.

2. Confirm the reference conditions the standard rating was quoted against, because a rating already corrected for a 45 °C ambient temperature has less headroom left for height.

3. Decide whether the correction is taken in rating or in insulation, and record the decision on the enquiry.

4. Re-check the ambient temperature derating separately, since heat and height reduce capability through different mechanisms and the two corrections compound.

What to Confirm Before Ordering

• State the site elevation in metres on the enquiry, and ask for the correction to be confirmed in writing.

• Ask whether the quoted kVA rating is the sea-level figure or the corrected figure, because the two differ and quotations are often ambiguous.

• Confirm the insulation level and the external clearance for the altitude, especially indoors where ventilation is already restricted.

• For a dry-type transformer installed in a plant room, confirm the ventilation design at the corrected load rather than the nameplate load.

• Keep the altitude correction factor result in the project file, because the next engineer to touch the installation will otherwise size the protection against the wrong number.

Conclusion

Altitude is easy to overlook because it never appears on a product page, and expensive to correct because it is fixed at the design stage. A transformer altitude derating review costs one line on an enquiry and prevents the two failures that follow a missed correction: an overloaded unit running hot for its whole service life, and a clearance that passes factory testing yet carries less margin than the design assumed. Zhejiang Shuntong Electric has more than 30 years of experience in electrical equipment and confirms site conditions, including the site elevation, before a transformer is specified. Honest engineering at the specification stage is what keeps a power supply reliable for the decades the equipment is expected to serve.
