An intelligent universal circuit breaker is usually ordered from a short specification: a current rating, a voltage, and a breaking capacity. Those three numbers are necessary, and they are not sufficient. The specification sheet of a W1 (DW45) series intelligent universal circuit breaker carries four figures that look interchangeable and are not, and misreading any of them produces a breaker that either trips when it should hold or fails to clear a fault it was bought to clear.
Here is the content list:
Why the frame size is not the current the breaker will run at
What Icu, Ics and Icw each measure, and which one governs your design
How the trip unit type changes what the breaker can protect
Which operating conditions belong on the enquiry
The frame size is the mechanical platform, not the setting. A 2000 A frame intelligent universal circuit breaker accepts a range of rated currents — in the W1 (DW45) series that range is 630, 800, 1000, 1250, 1600 and 2000 A — and the breaker is built on that platform with the current you specify. Two consequences follow. First, ordering by frame size alone can deliver a breaker set for a current you did not intend. Second, the frame you need is driven by the highest rating you may ever require on that incomer, because the frame cannot be changed later.
Frame size also sets the physical and thermal envelope. A larger frame means more copper, a larger arc chamber and more heat to dissipate in the same switchroom, so oversizing the frame size to gain headroom has a cost that appears in the busbar design rather than on the breaker quotation.
These three ratings are frequently quoted together and treated as one. In practice each carries its own breaking capacity figure, and together they describe three distinct behaviours under fault current. Confusing them is the most common error in breaking capacity specification, and the one that most often survives review.
Rated ultimate short-circuit breaking capacity (Icu) — the highest fault current the breaker can interrupt once, after which it may no longer be fit for continued service.
Rated short-circuit breaking capacity (Ics) — the fault current the breaker can interrupt repeatedly and still remain in service. This is the figure that matters for a breaker that must ride through several faults.
Rated short-time withstand current (Icw) — the current the breaker can carry for a defined short time without tripping, letting downstream devices clear a fault first. It is the basis of selectivity.
On a 2000 A frame, a typical W1 (DW45) rating set is 80 kA Icu at 400 V falling to 50 kA at 690 V, with Ics of 50 kA and 40 kA respectively and an Icw of 50 kA at 400 V for one second. The pattern to notice is that every one of these numbers falls as the voltage rises — the same frame size carries far less fault current at the higher voltage. A specification that quotes a single breaking capacity on a given frame size without stating the voltage is incomplete, not concise.
The frame and the ratings bound what the breaker can survive. The trip unit decides what it will actually detect, and on an intelligent universal circuit breaker the choice of trip unit is a protection decision rather than an accessory.

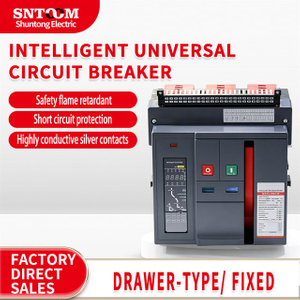

The W1 (DW45) series intelligent overcurrent controller is offered in three grades: an H-type with communication, an M-type ordinary intelligent controller, and an L-type economic controller. What separates the grades is the trip unit, not the frame. Across the range the protective functions are long-time-delay inverse time, short-time delay, definite time and instantaneous, with single-phase ground fault protection, current and voltage display, and overload alarm. The breaking capacity figures and the frame size are identical across the three grades; what the higher grades add is intelligence. On an intelligent universal circuit breaker that difference is the whole point of the purchase. Where several breakers must coordinate, the communication grade is what makes zone selective interlocking and remote settings possible; where they will be set once and left alone, the economic grade does the same electrical job for less.
Two installations with identical load and fault levels can require different breakers because of where they stand.
Ambient temperature — the reference condition is a maximum of 40 °C, a minimum of −5 °C and a 24-hour average not exceeding 35 °C. Both limits are negotiable at the enquiry stage and not afterwards.
Altitude — up to 2000 m is standard, with the impulse withstand adjusted for greater heights.
Enclosure and installation — a protection degree of 30, an installation category of IV for the main circuit and III for auxiliary and control circuits, and a mounting tilt that must not exceed 5°.
Installation method — fixed or draw-out. The draw-out version needs the breaker rotated to the disconnect position before it can be withdrawn, a step that belongs in the maintenance procedure rather than in the operator's memory.
None of these conditions changes the frame size, and every one of them changes whether the quoted breaking capacity is the figure the installation will actually see.
Reading an intelligent universal circuit breaker specification correctly is mostly a matter of refusing to treat four different numbers as one. Frame size sets the platform, Icu and Ics describe two different fault duties, Icw is the foundation of selectivity, and the trip unit grade decides how much of that protection the installation can actually use. Zhejiang Shuntong Electric has more than 30 years of experience in electrical equipment and confirms site conditions with customers before an intelligent universal circuit breaker is specified. Getting the ratings right at the enquiry stage costs a specification review; correcting them afterwards costs a switchboard.
