English
| Quantity: | |
|---|---|

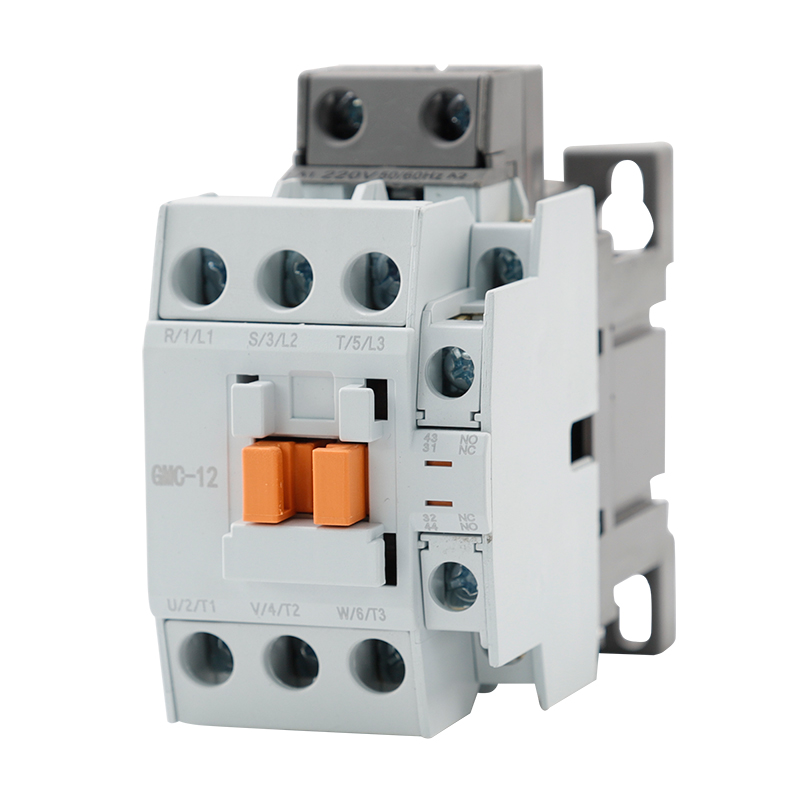

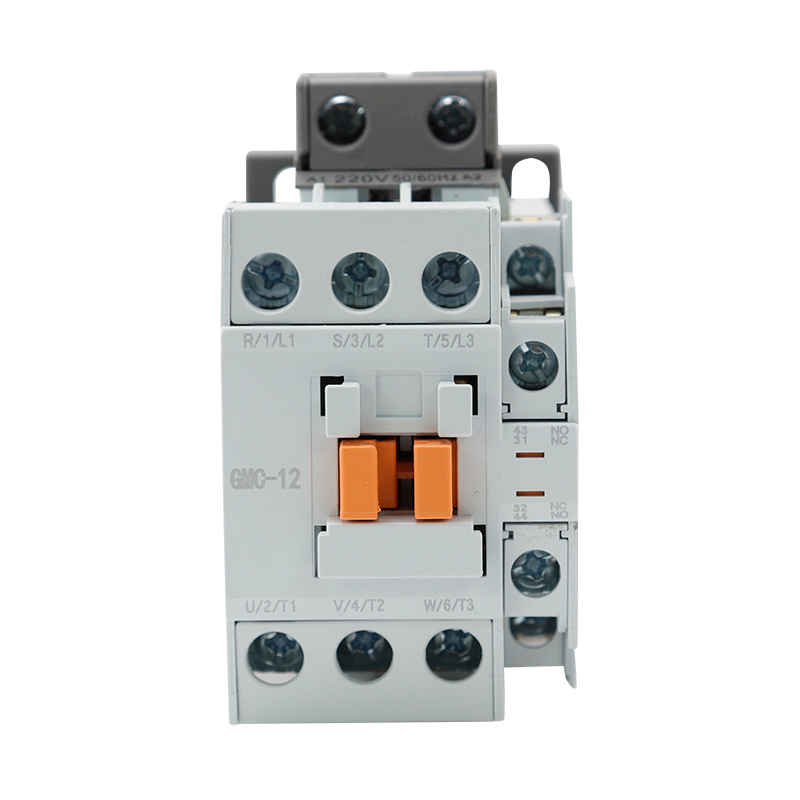

GMC-12
SNTOOM

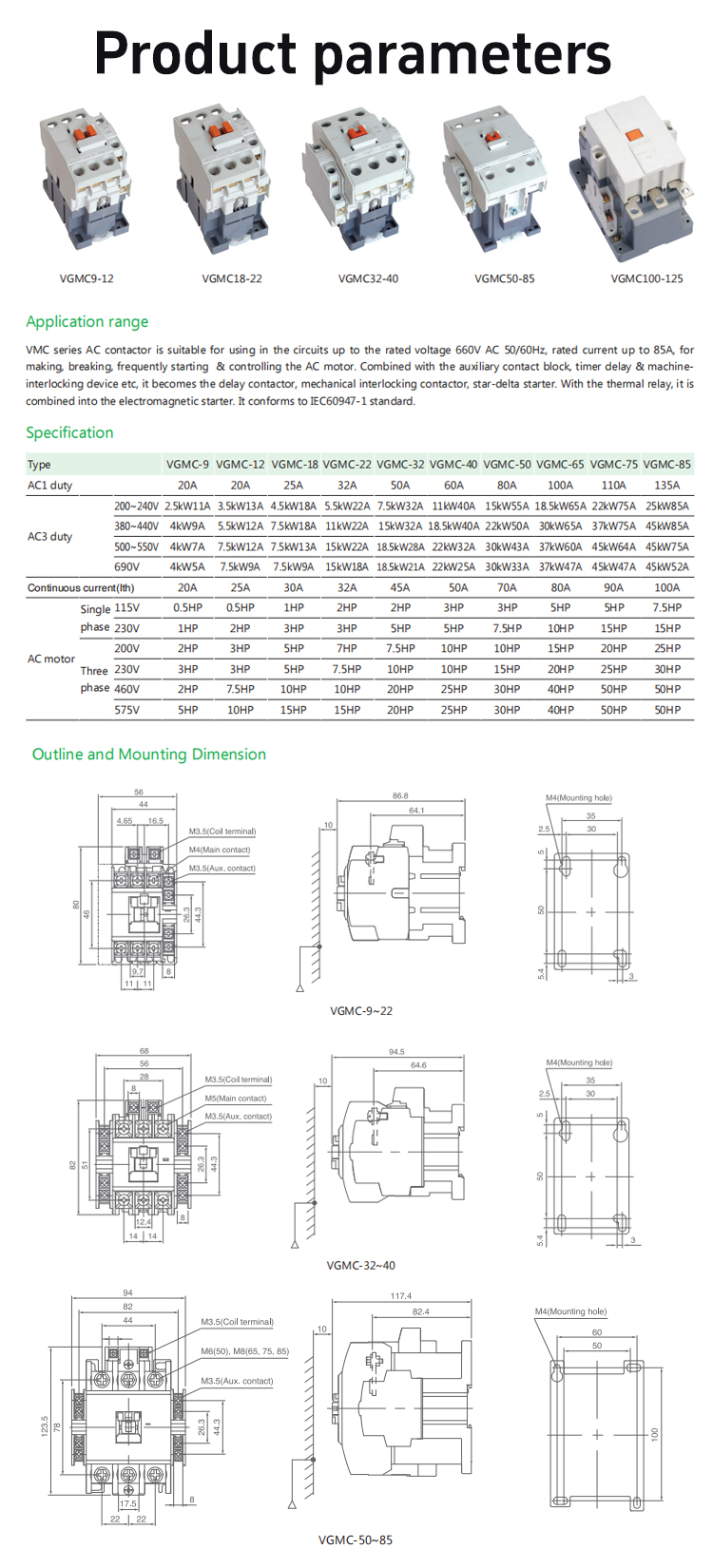

Product parameters
| Type | VGMC-9 | VGMC-12 | VGMC-18 | VGMC-22 | VGMC-32 | VGMC-40 | VGMC-50 | VGMC-65 | VGMC-75 | VGMC-85 | ||
| AC1 duty | 20A | 20A | 25A | 32A | 50A | 60A | 80A | 100A | 110A | 135A | ||
| AC3 duty | 200~240V | 2.5KW11A | 3.5KW13A | 4.5KW18A | 5.5KW22A | 7.5KW32A | 11KW40A | 15KW55A | 18.5KW65A | 22KW75A | 25KW85A | |
| 380~440V | 4KW9A | 5.5KW12A | 7.5KW18A | 11KW22A | 15KW32A | 18.5KW40A | 22KW50A | 30KW65A | 37KW75A | 45KW85A | ||
| 500~550V | 4kW7A | 7.5KW12A | 7.5KW13A | 15KW22A | 18.5KW28A | 22KW32A | 30KW43A | 37KW60A | 45KW64A | 45KW75A | ||
| 690V | 4kW5A | 7.5kW9A | 7.5KW9A | 15KW18A | 18.5KW21A | 22KW25A | 30KW33A | 37KW47A | 45KW47A | 45KW52A | ||
| Continuous current(lth) | 20A | 25A | 30A | 32A | 45A | 50A | 70A | 80A | 90A | 100A | ||
| AC motor | Single | 115v | 0.5HP | 0.5HP | 1HP | 2HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP |
| phase | 230V | 1HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | 10HP | 15HP | 15HP | |
| Three phase | 200V | 2HP | 3HP | 5HP | 7HP | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | |
| 230V | 3HP | 3HP | 5HP | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | 30HP | ||
| 460V | 2HP | 7.5HP | 10HP | 10HP | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
| 575V | 5HP | 10HP | 15HP | 15HP | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
Key Features & Benefits:

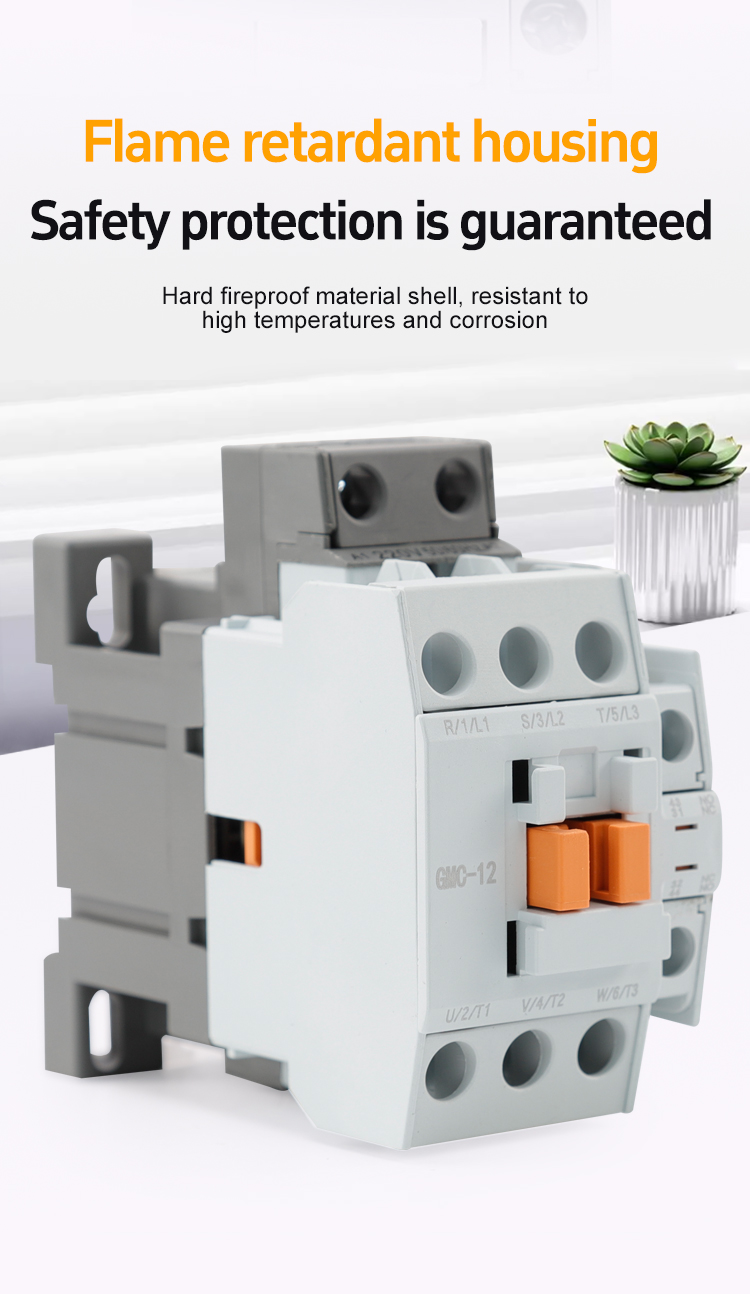

1.Flame retardant housing，Safety protection is guaranteed

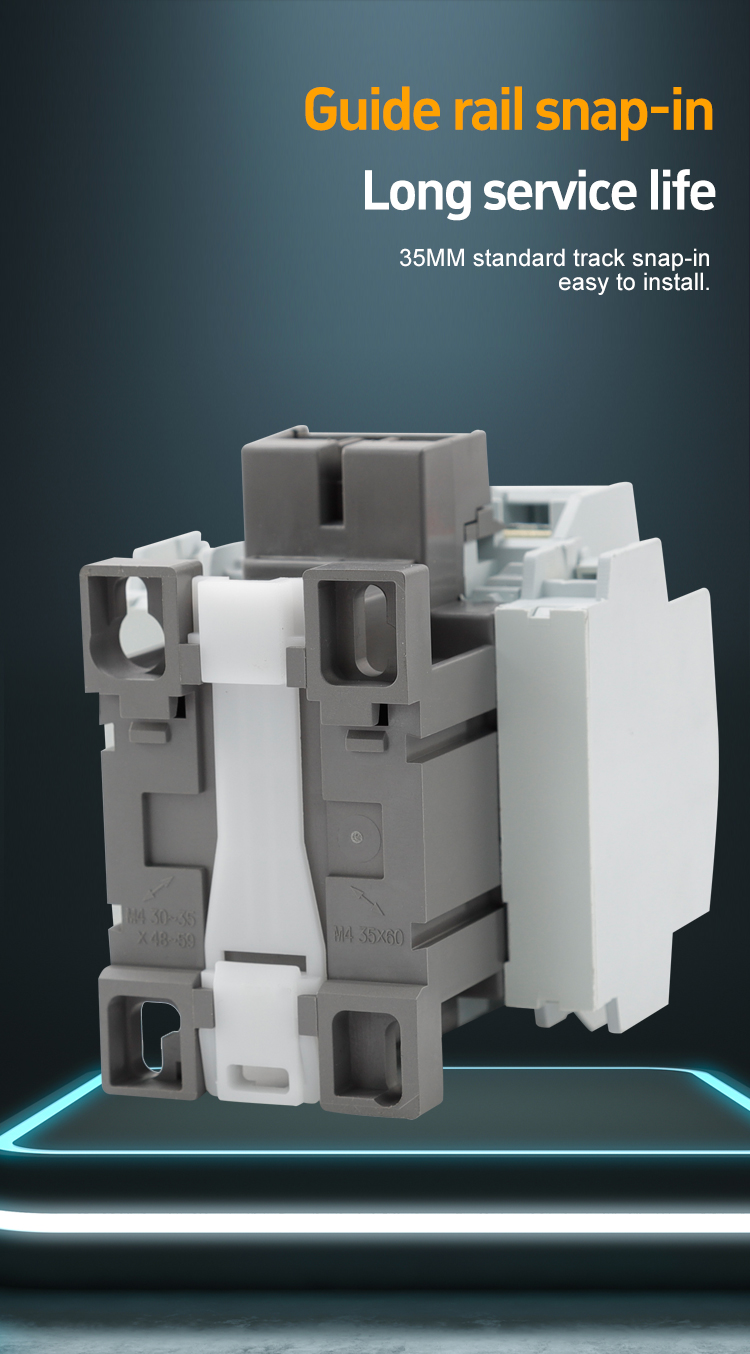

2.Guide rail snap-in，Long service life
3.Overvoltage andundervoltage protection
4.Precision design
5.Cold and heat resistant
6.Pure copper coil stable voltage

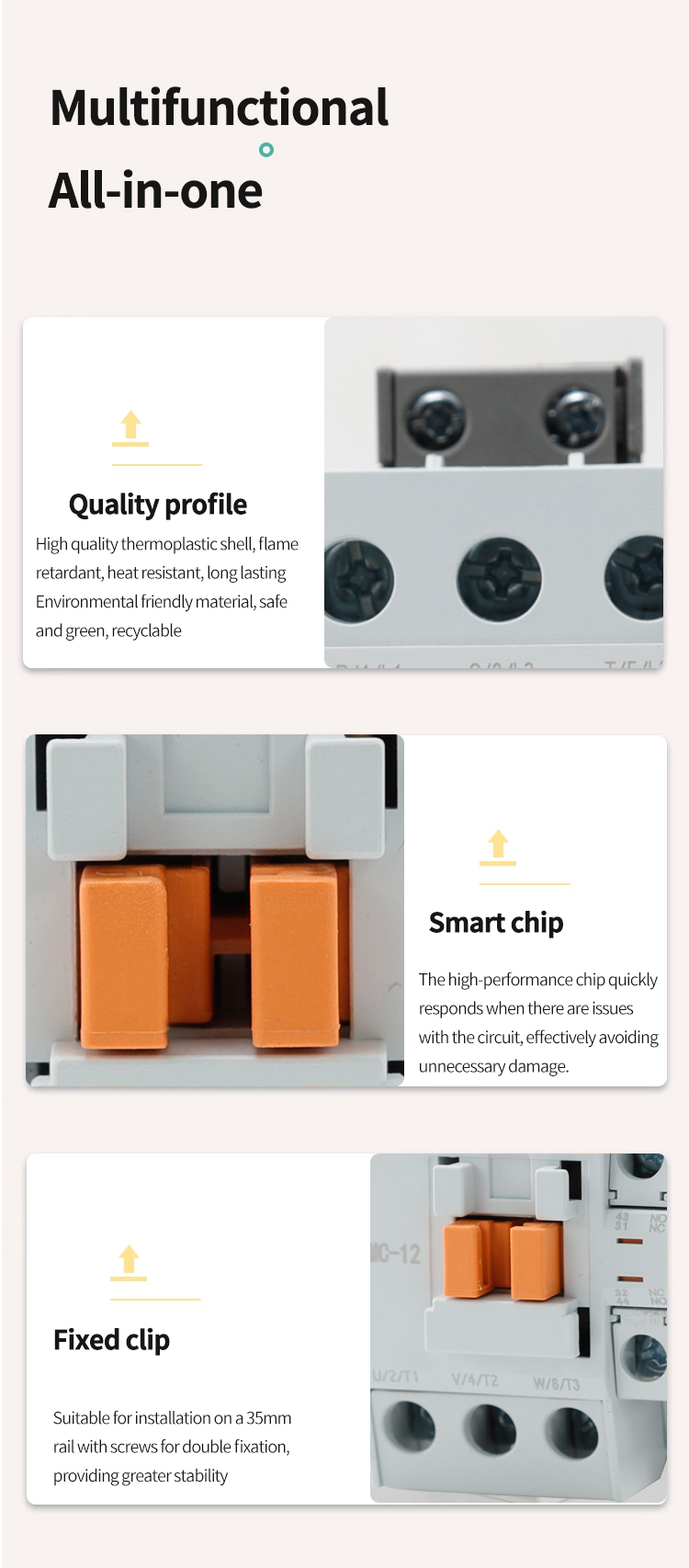

7.Quality profile，High quality thermoplastic shell, flameretardant, heat resistant, long lastingEnvironmental friendly material, safeand green, recyclable
8.Smart chip，The high-performance chip quicklyresponds when there are issueswith the circuit, effectively avoidingunnecessary damage.

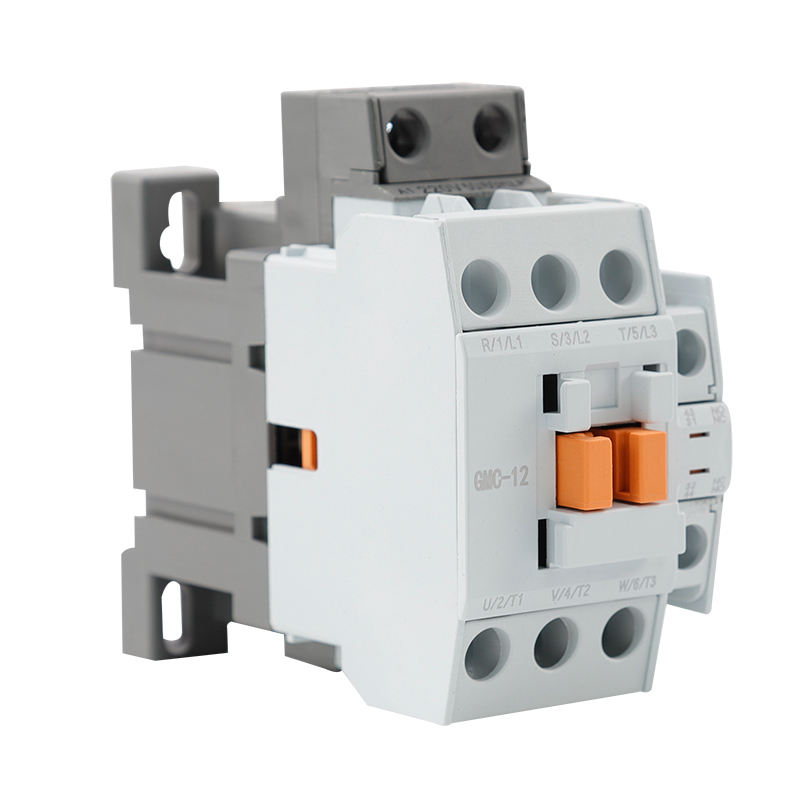

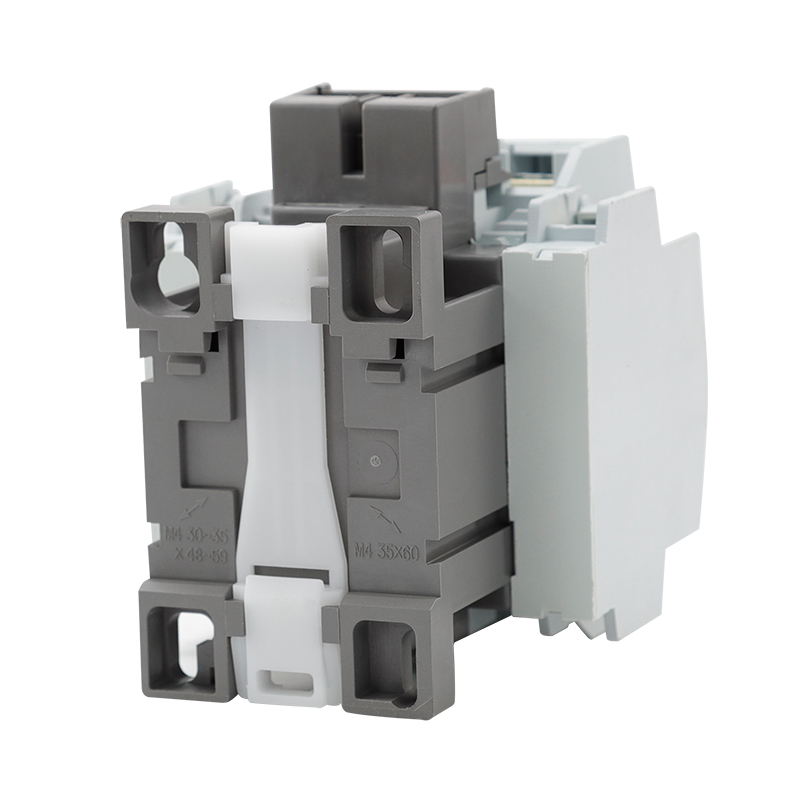

9.Fixed clip，Suitable for installation on a35mmrail with screws for double fixation,providing greaterstability
Why Choose Our GMC-12 AC contactor?
·The GMC AC contactor provides robust protection against fire hazards, ensuring the safety of your electrical systemsy.
·With a precision - engineered design, this contactor is built to last.
·It can withstand both cold and hot temperatures, making it suitable for a wide range of environments.
·Equipped with a high - performance smart chip, it can quickly respond when circuit problems occur, effectively preventing unnecessary damage and reducing downtime and repair costs.
·The use of eco - friendly materials not only ensures safety but also aligns with sustainable practices, allowing you to make a responsible purchasing decision.
GMC - 12 AC Contactor: A Paragon of Safety and Performance
The GMC - 12 AC contactor is a cutting - edge electrical device that excels in a multitude of aspects, making it an ideal choice for various industrial and commercial applications.
Safety is at the forefront of its design. The contactor features a flame - retardant outer shell, providing robust protection against potential fire hazards. This, combined with its high - quality thermoplastic housing made from sustainable and recyclable materials, ensures both safety and environmental friendliness.
Its longevity is guaranteed by the durable guide rail buckle and the use of premium materials. The guide rail buckle extends the service life, while the high - grade profile and pure copper coil contribute to stable voltage operation and reliable performance. Moreover, it can withstand extreme temperatures, being both cold - and heat - resistant.
The precision - engineered design of the GMC - 12 AC contactor is evident in every detail. It comes equipped with over - voltage and under - voltage protection mechanisms, safeguarding the circuit from electrical fluctuations. The intelligent chip inside responds swiftly to circuit problems, preventing unnecessary damage.
For easy and stable installation, it has a fixed clip that allows for double - fixation on a 35 - millimeter rail using screws, offering enhanced stability. In conclusion, the GMC - 12 AC contactor combines safety, durability, and high performance in one package.
Product parameters
| Type | VGMC-9 | VGMC-12 | VGMC-18 | VGMC-22 | VGMC-32 | VGMC-40 | VGMC-50 | VGMC-65 | VGMC-75 | VGMC-85 | ||
| AC1 duty | 20A | 20A | 25A | 32A | 50A | 60A | 80A | 100A | 110A | 135A | ||
| AC3 duty | 200~240V | 2.5KW11A | 3.5KW13A | 4.5KW18A | 5.5KW22A | 7.5KW32A | 11KW40A | 15KW55A | 18.5KW65A | 22KW75A | 25KW85A | |
| 380~440V | 4KW9A | 5.5KW12A | 7.5KW18A | 11KW22A | 15KW32A | 18.5KW40A | 22KW50A | 30KW65A | 37KW75A | 45KW85A | ||
| 500~550V | 4kW7A | 7.5KW12A | 7.5KW13A | 15KW22A | 18.5KW28A | 22KW32A | 30KW43A | 37KW60A | 45KW64A | 45KW75A | ||
| 690V | 4kW5A | 7.5kW9A | 7.5KW9A | 15KW18A | 18.5KW21A | 22KW25A | 30KW33A | 37KW47A | 45KW47A | 45KW52A | ||
| Continuous current(lth) | 20A | 25A | 30A | 32A | 45A | 50A | 70A | 80A | 90A | 100A | ||
| AC motor | Single | 115v | 0.5HP | 0.5HP | 1HP | 2HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP |
| phase | 230V | 1HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | 10HP | 15HP | 15HP | |
| Three phase | 200V | 2HP | 3HP | 5HP | 7HP | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | |
| 230V | 3HP | 3HP | 5HP | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | 30HP | ||
| 460V | 2HP | 7.5HP | 10HP | 10HP | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
| 575V | 5HP | 10HP | 15HP | 15HP | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
Key Features & Benefits:
1.Flame retardant housing，Safety protection is guaranteed
2.Guide rail snap-in，Long service life
3.Overvoltage andundervoltage protection
4.Precision design
5.Cold and heat resistant
6.Pure copper coil stable voltage
7.Quality profile，High quality thermoplastic shell, flameretardant, heat resistant, long lastingEnvironmental friendly material, safeand green, recyclable
8.Smart chip，The high-performance chip quicklyresponds when there are issueswith the circuit, effectively avoidingunnecessary damage.
9.Fixed clip，Suitable for installation on a35mmrail with screws for double fixation,providing greaterstability
Why Choose Our GMC-12 AC contactor?
·The GMC AC contactor provides robust protection against fire hazards, ensuring the safety of your electrical systemsy.
·With a precision - engineered design, this contactor is built to last.
·It can withstand both cold and hot temperatures, making it suitable for a wide range of environments.
·Equipped with a high - performance smart chip, it can quickly respond when circuit problems occur, effectively preventing unnecessary damage and reducing downtime and repair costs.
·The use of eco - friendly materials not only ensures safety but also aligns with sustainable practices, allowing you to make a responsible purchasing decision.
GMC - 12 AC Contactor: A Paragon of Safety and Performance
The GMC - 12 AC contactor is a cutting - edge electrical device that excels in a multitude of aspects, making it an ideal choice for various industrial and commercial applications.
Safety is at the forefront of its design. The contactor features a flame - retardant outer shell, providing robust protection against potential fire hazards. This, combined with its high - quality thermoplastic housing made from sustainable and recyclable materials, ensures both safety and environmental friendliness.
Its longevity is guaranteed by the durable guide rail buckle and the use of premium materials. The guide rail buckle extends the service life, while the high - grade profile and pure copper coil contribute to stable voltage operation and reliable performance. Moreover, it can withstand extreme temperatures, being both cold - and heat - resistant.
The precision - engineered design of the GMC - 12 AC contactor is evident in every detail. It comes equipped with over - voltage and under - voltage protection mechanisms, safeguarding the circuit from electrical fluctuations. The intelligent chip inside responds swiftly to circuit problems, preventing unnecessary damage.
For easy and stable installation, it has a fixed clip that allows for double - fixation on a 35 - millimeter rail using screws, offering enhanced stability. In conclusion, the GMC - 12 AC contactor combines safety, durability, and high performance in one package.
