DR
SNTOOM

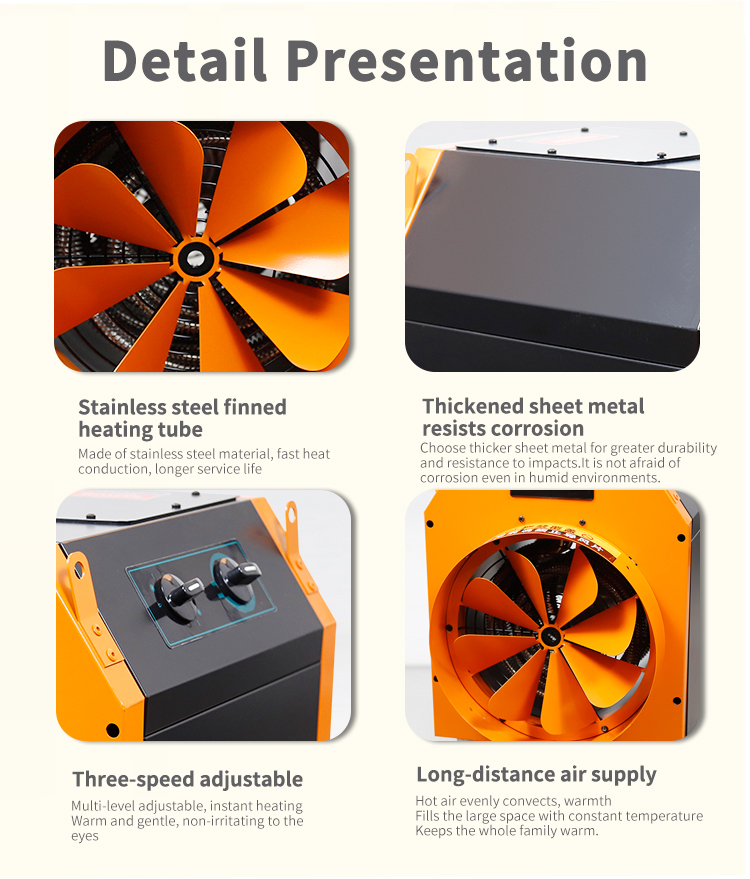

Product advantages and features
Versatile Heating Solutions
Robust & Durable Construction
High Power & Efficient Heating
Wide-Angle & Adjustable Heating

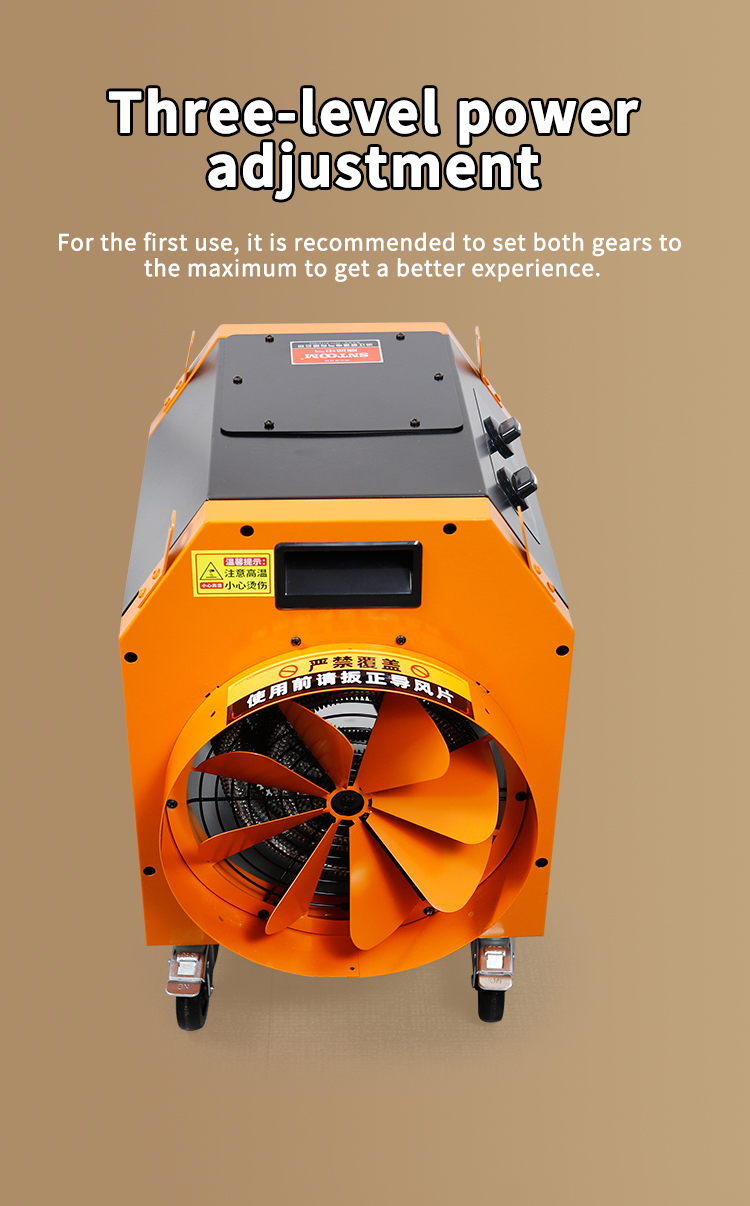

User-Friendly Operation
Safe & Reliable Performance
Installation and Instructions
Unboxing and Inspection: Carefully unpack the heater and check all components against the manual. Ensure no damage during transit before proceeding.
Select Installation Location: Choose a stable, level surface away from flammable materials. Ensure adequate space around the heater for air circulation.
Assemble Components: Follow the manual to attach any necessary parts, such as wheels or handles, securely. Ensure all connections are tight.
Connect Power Supply: Use the specified cable to connect the heater to a suitable power source. Ensure the voltage matches the heater's requirements.
Test Operation: After setup, turn on the heater at the lowest setting to test functionality. Gradually increase power to ensure proper operation.
Note:Ensure the heater is placed on a stable surface to prevent tipping. Avoid covering the device during operation. Regularly inspect the power cord and plug for damage. Never use in damp or wet conditions unless rated as waterproof. Keep away from flammable materials to prevent fire hazards.

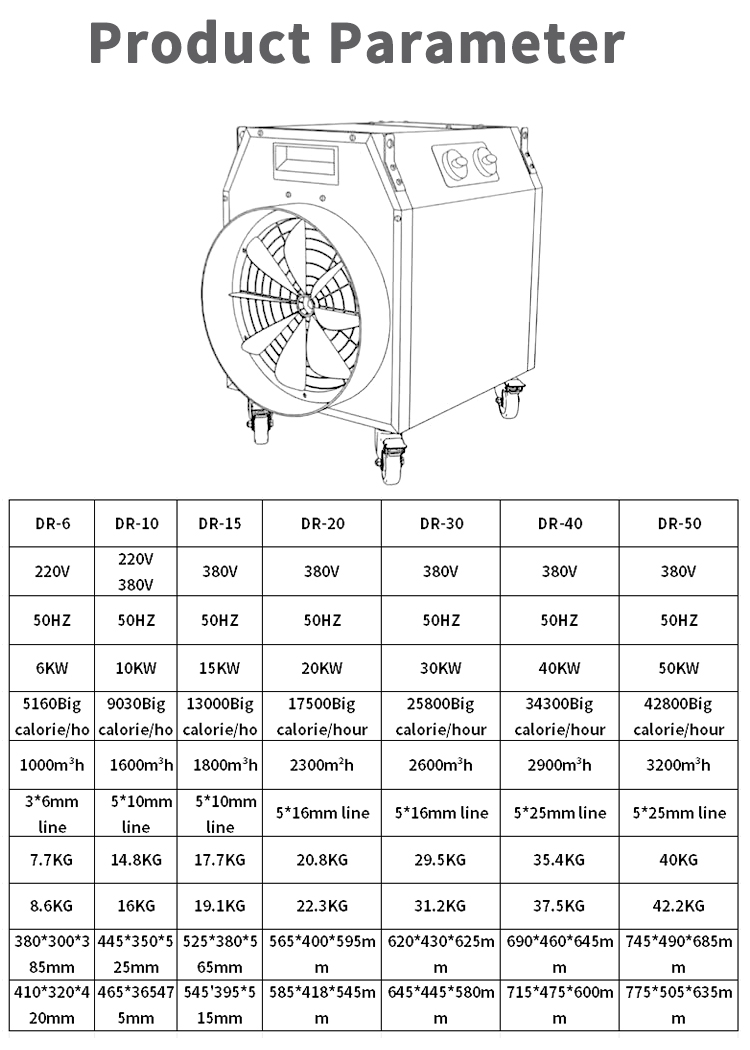

Product parameters
| Model | DR-6 | DR-10 | DR-15 | DR-20 | DR-30 | DR-40 | DR-50 |
| Rated voltage | 220V | 220V/380V | 380V | 380V | 380V | 380V | 380V |
| Rated frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Rated power | 6KW | 10KW | 15KW | 20KW | 30KW | 40KW | 50KW |
| Big calorie/hour | 5160Big calorie/hour | 9030Big calorie/hour | 13000Big calorie/hour | 17500Big calorie/hour | 25800Big calorie/hour | 34300Big calorie/hour | 42800Big calorie/hour |
| Airflow | 1000m³/h | 1600m³/h | 1800m³/h | 2300m³/h | 2600m³/h | 2900m³/h | 3200m³/h |
| Wire diameter | 3*6mm line | 5*10mm line | 5*10mm line | 5*16mm line | 5*16mm line | 5*25mm line | 5*25mm line |
| Net weight | 7.7KG | 14.8KG | 17.7KG | 20.8KG | 29.5KG | 35.4KG | 40KG |
| Gross weight | 8.6KG | 16KG | 19.1KG | 22.3KG | 31.2KG | 37.5KG | 42.2KG |
| Product size | 380*300*385mm | 445*350*525mm | 525*380*565mm | 565*400*595mm | 620*430*625mm | 690*460*645mm | 745*490*685mm |
| Packaging size | 410*320*420mm | 465*365*475mm | 545*395*515mm | 585*418*545mm | 645*445*580mm | 715*475*600mm | 775*505*635mm |

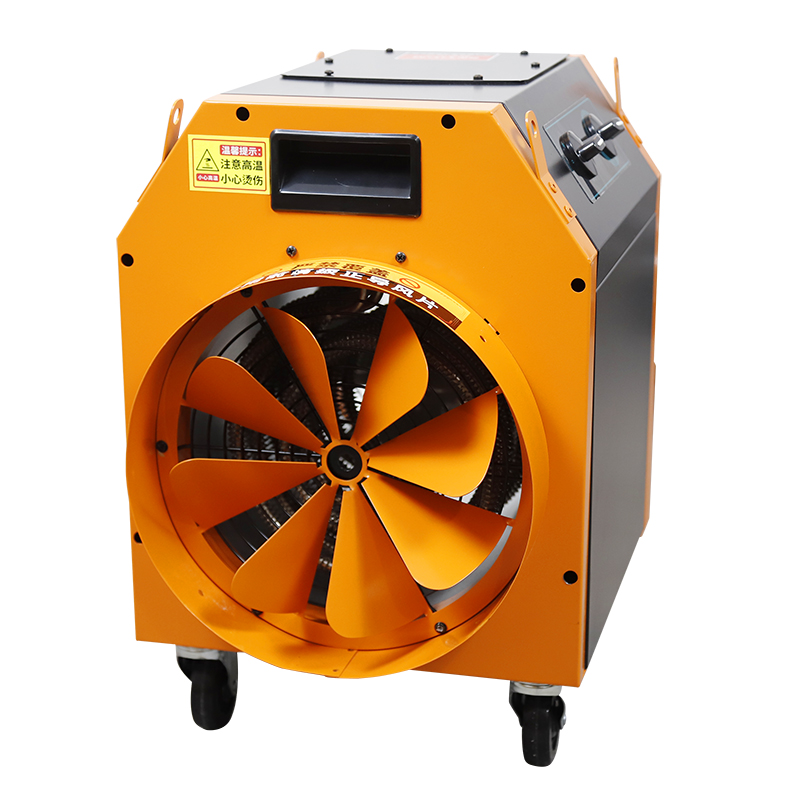

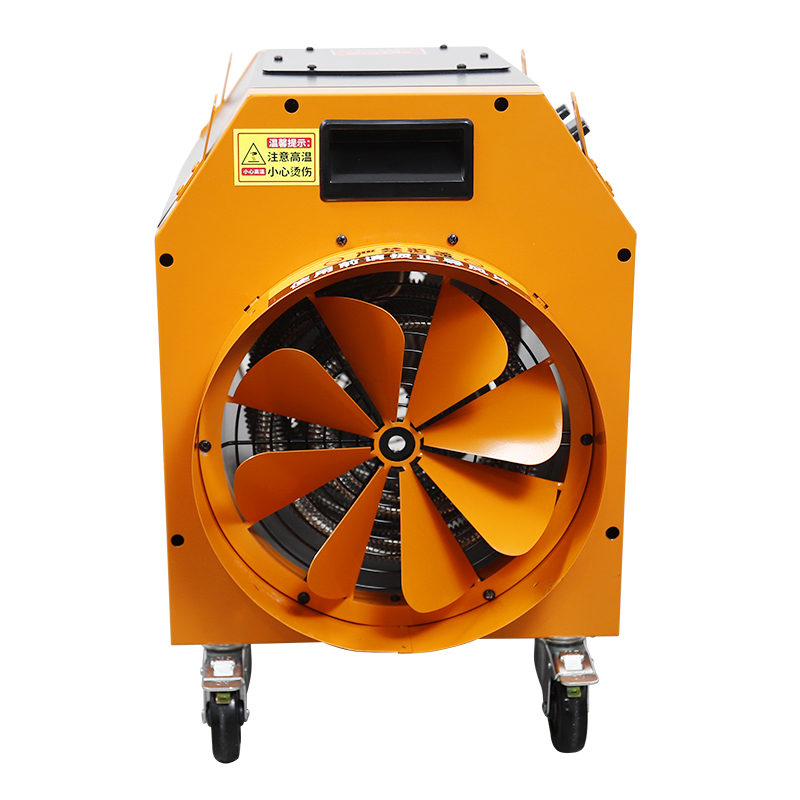

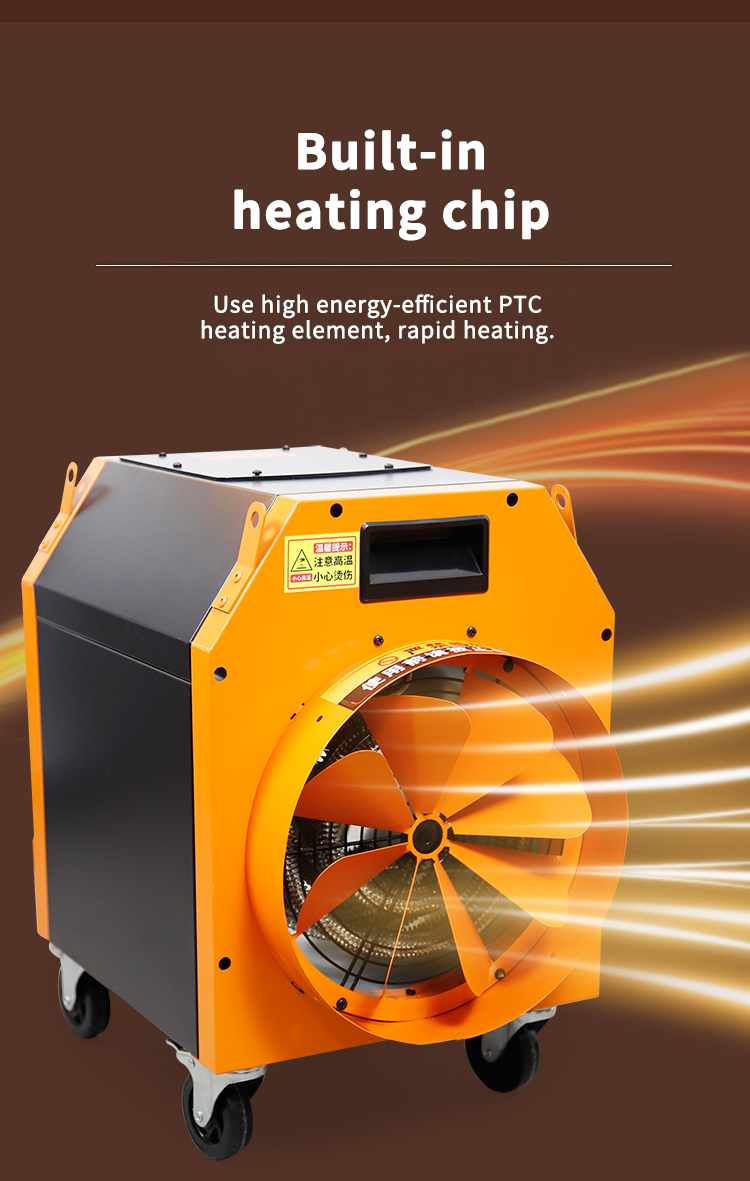

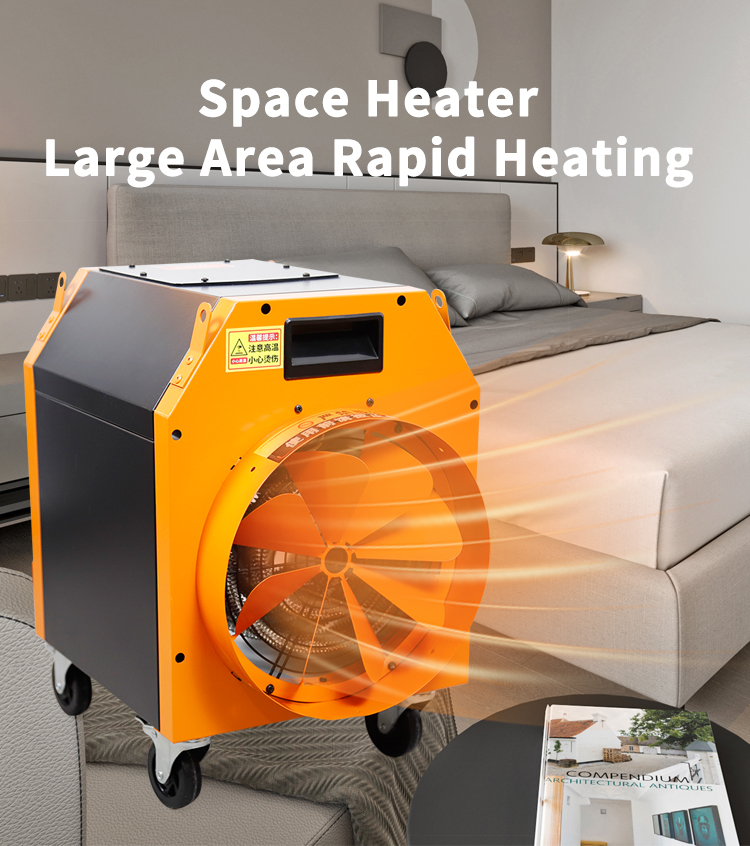

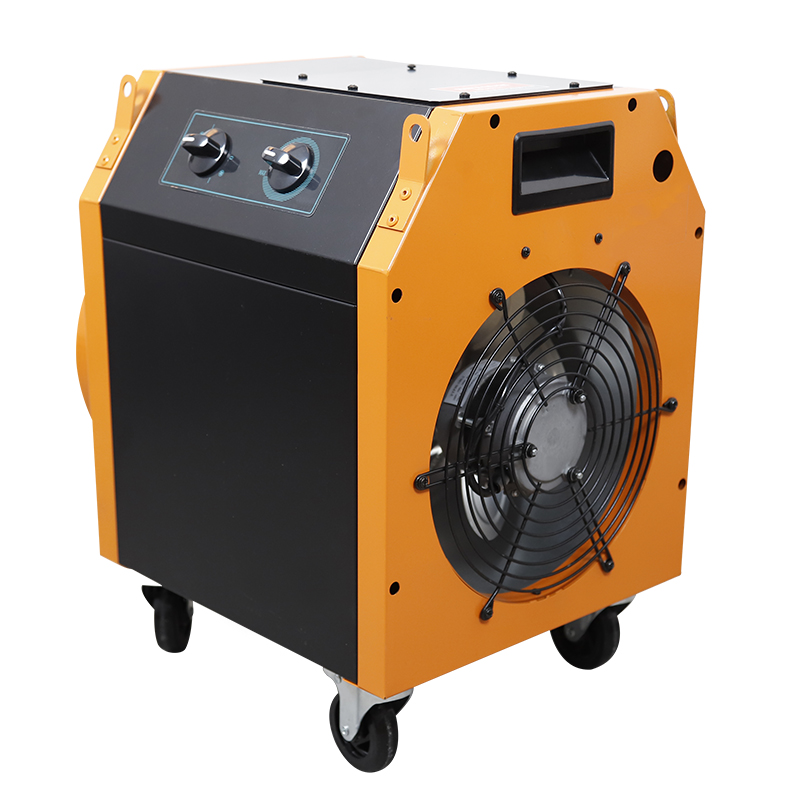

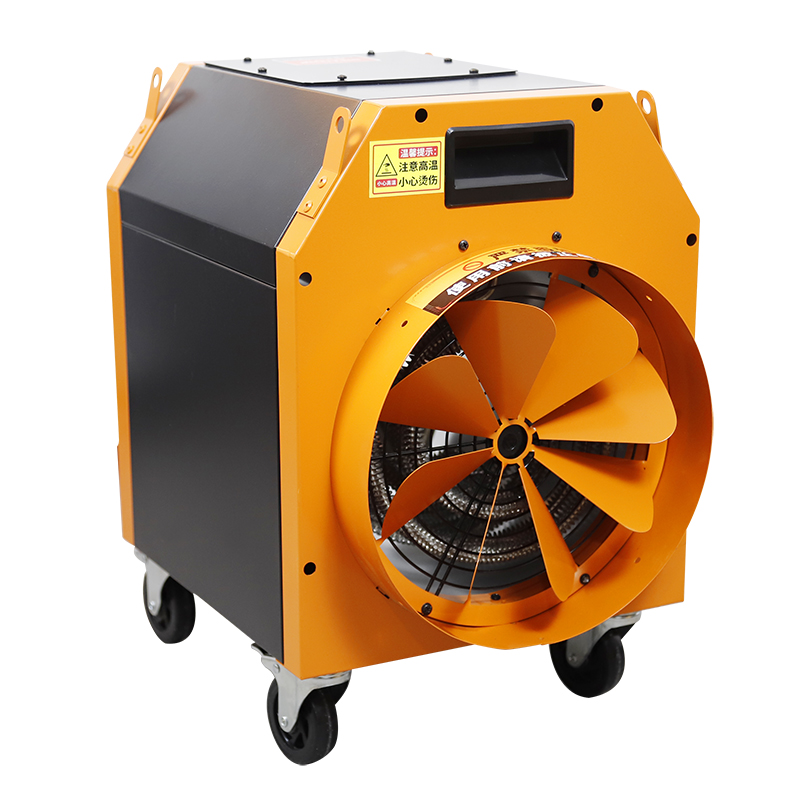

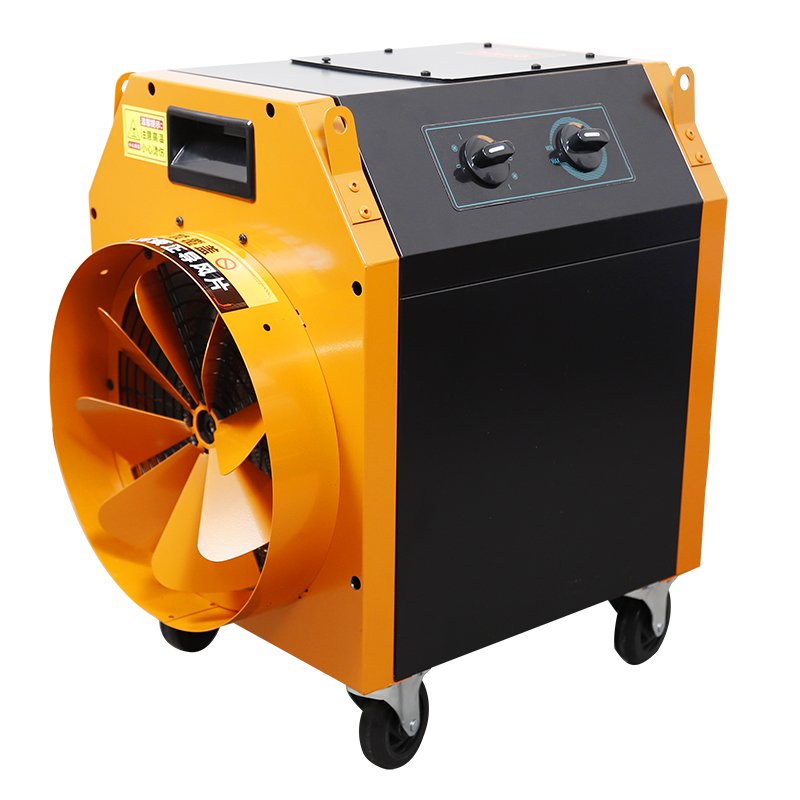

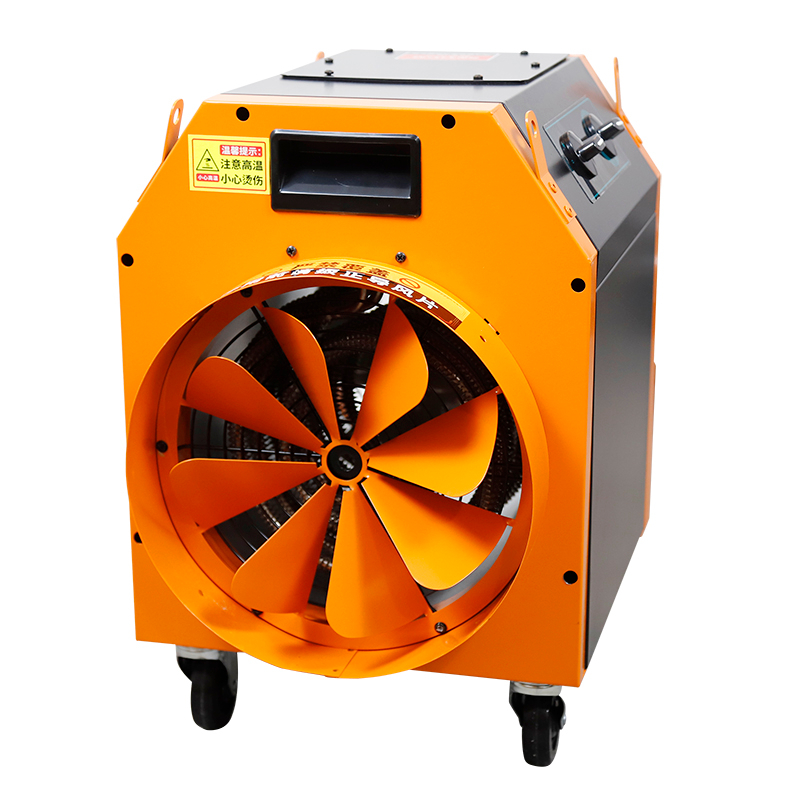

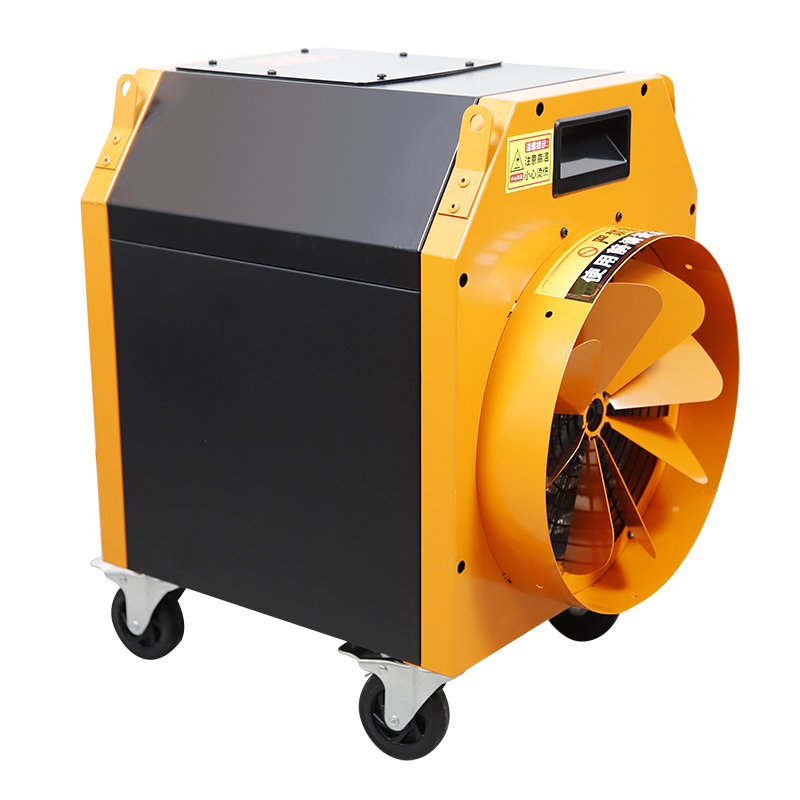

DR Series High Power Industrial Electric Heater: Efficient Warmth for Demanding Environments

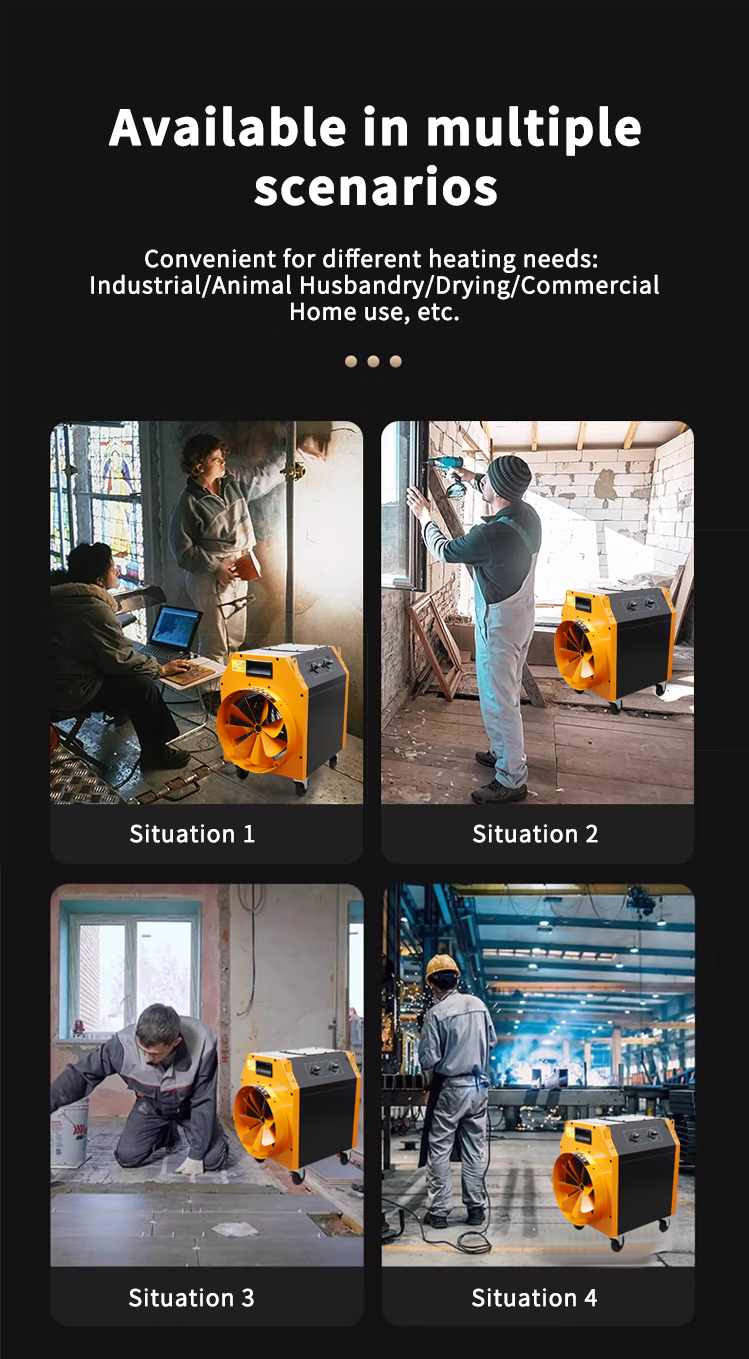

The DR series of High Power Heater stands as a testament to efficient and robust heating solutions tailored for industrial and commercial applications. These Industrial Heater units are designed to deliver rapid and consistent warmth, making them ideal for use in workshops, construction sites, and other large indoor spaces where quick and effective heating is paramount.
As a powerful Electric Heater, the DR series utilizes advanced heating technology to ensure fast heating heater performance. Whether you're looking to heat a vast workshop or a sprawling construction site, these heaters provide the perfect solution with their ability to distribute warm air evenly across large areas.
The DR series is not just a heater; it's a reliable Indoor heater built to withstand the rigors of industrial use. Its sturdy construction and high-quality components ensure long-lasting durability and consistent performance, even in the harshest environments.
For workshop managers or construction site supervisors seeking a dependable and efficient heating solution, the DR series High Power Heater is the ideal choice. It combines power, efficiency, and durability to deliver unparalleled warmth and comfort in any industrial or commercial setting.
Choose the DR series for your heating needs and experience the difference that true industrial-grade heating can make.
