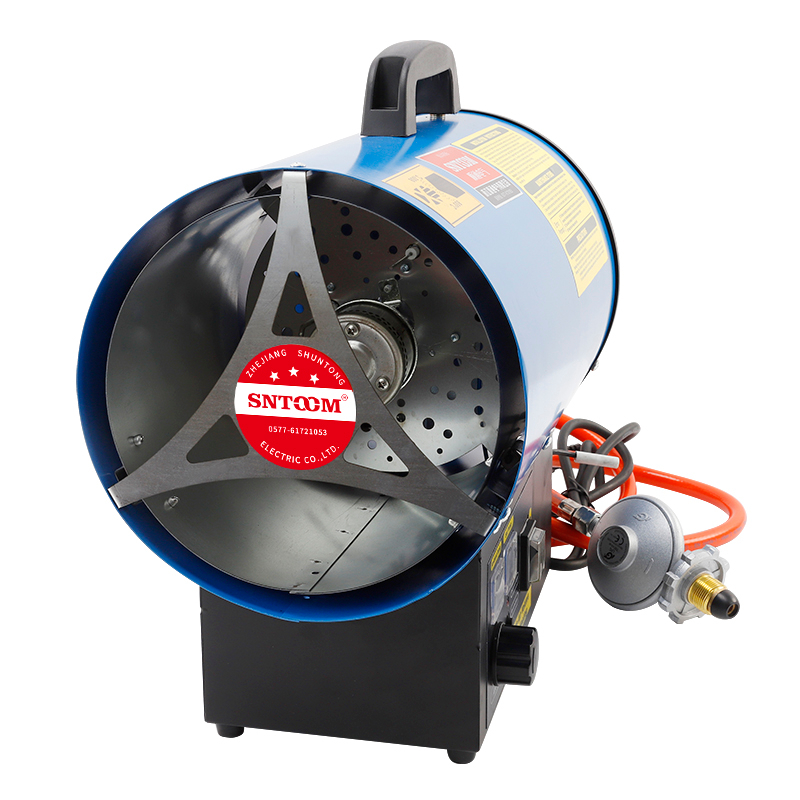

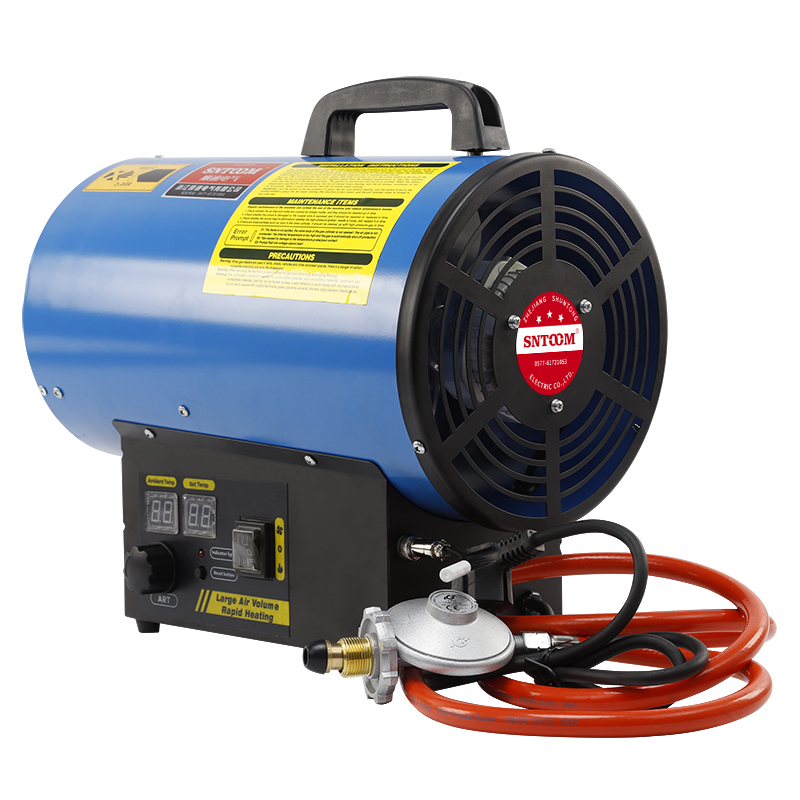

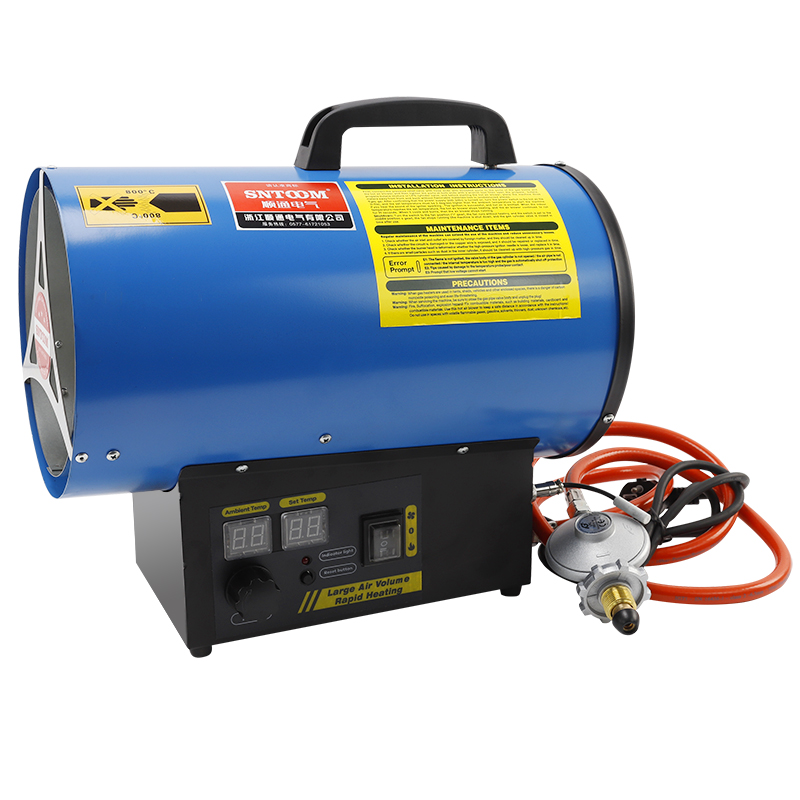

MGQ
SNTOOM

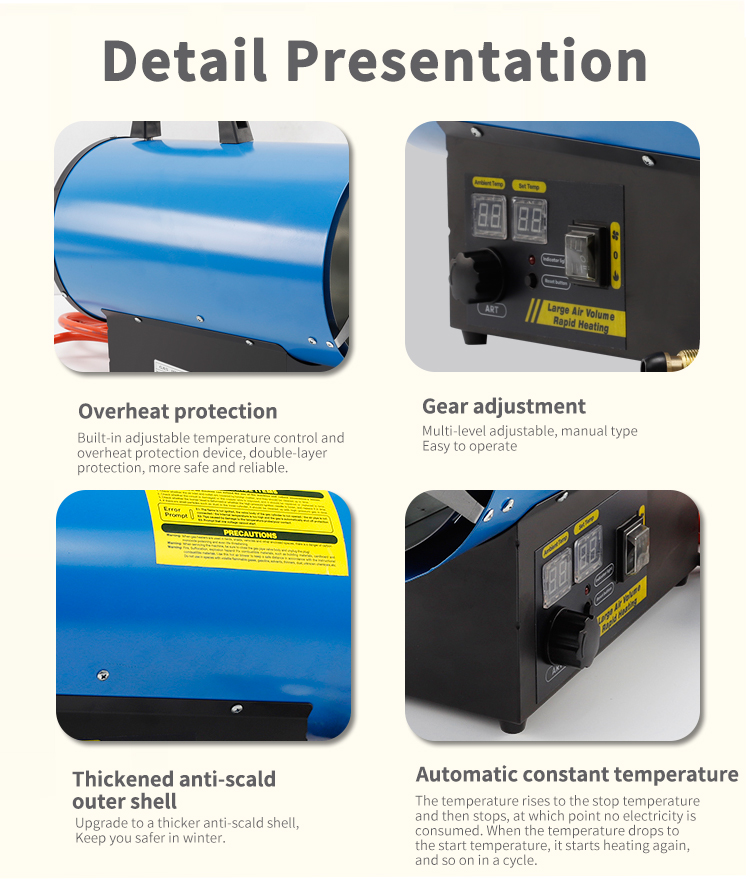

Product advantages and features
Versatile & Safe: Dual cold/hot use with adjustable temperature control and overheat protection for reliable operation in diverse industrial settings.

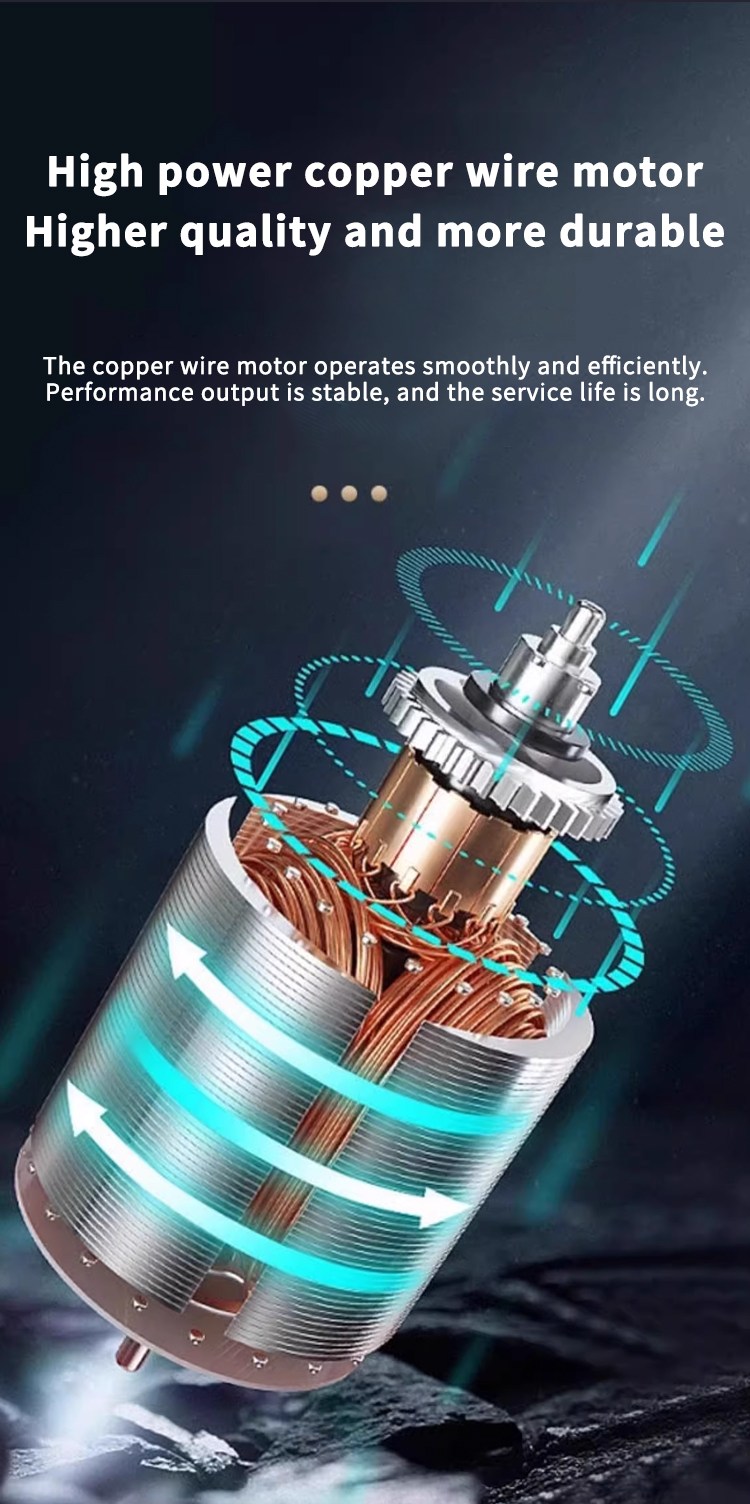

Durable Motor: High-power copper wire motor ensures smooth, efficient performance and a long service life, even under continuous use.
Precise Heat Management: Multi-level adjustable gears and automatic constant temperature function maintain consistent heating without constant monitoring.

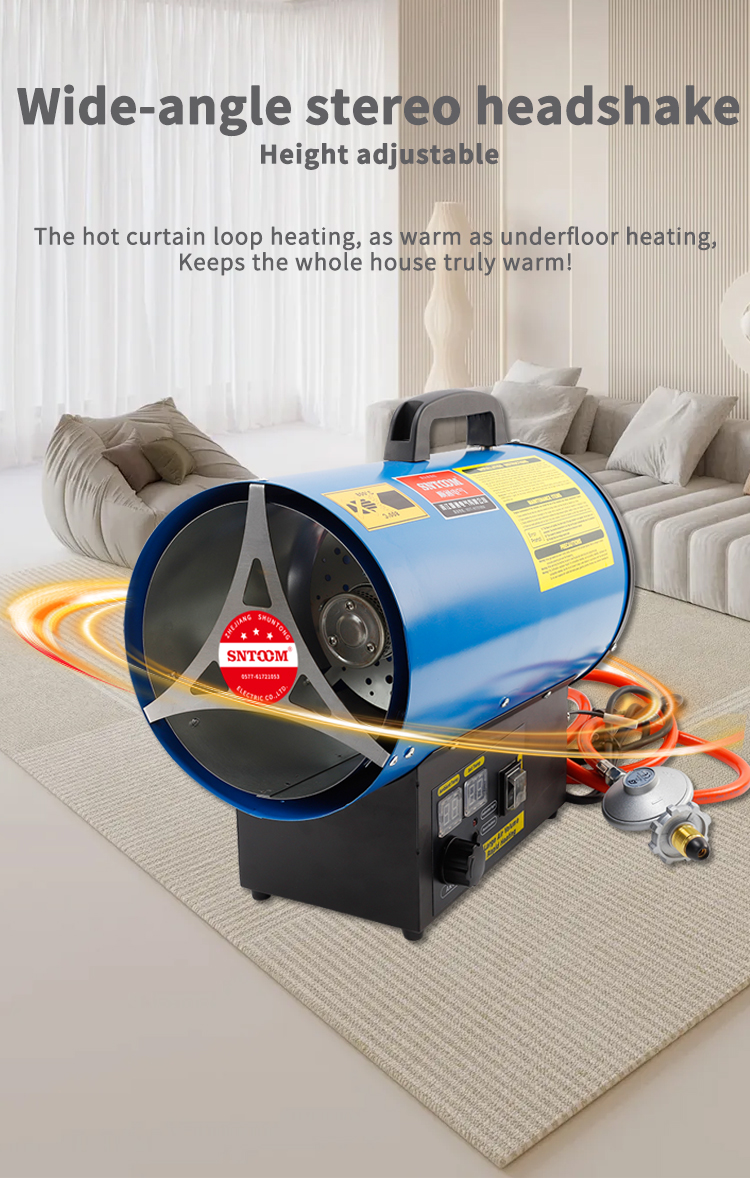

Comprehensive Coverage: Wide-angle stereo headshake and adjustable height ensure even heat distribution in large areas.

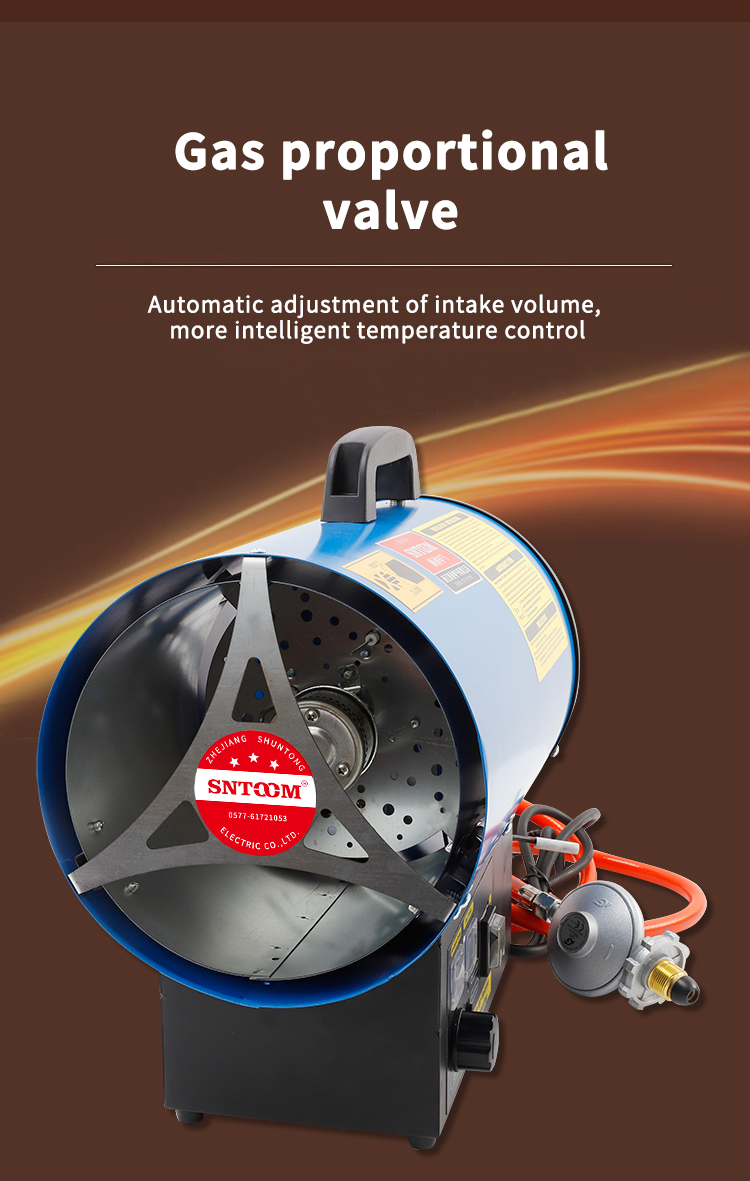

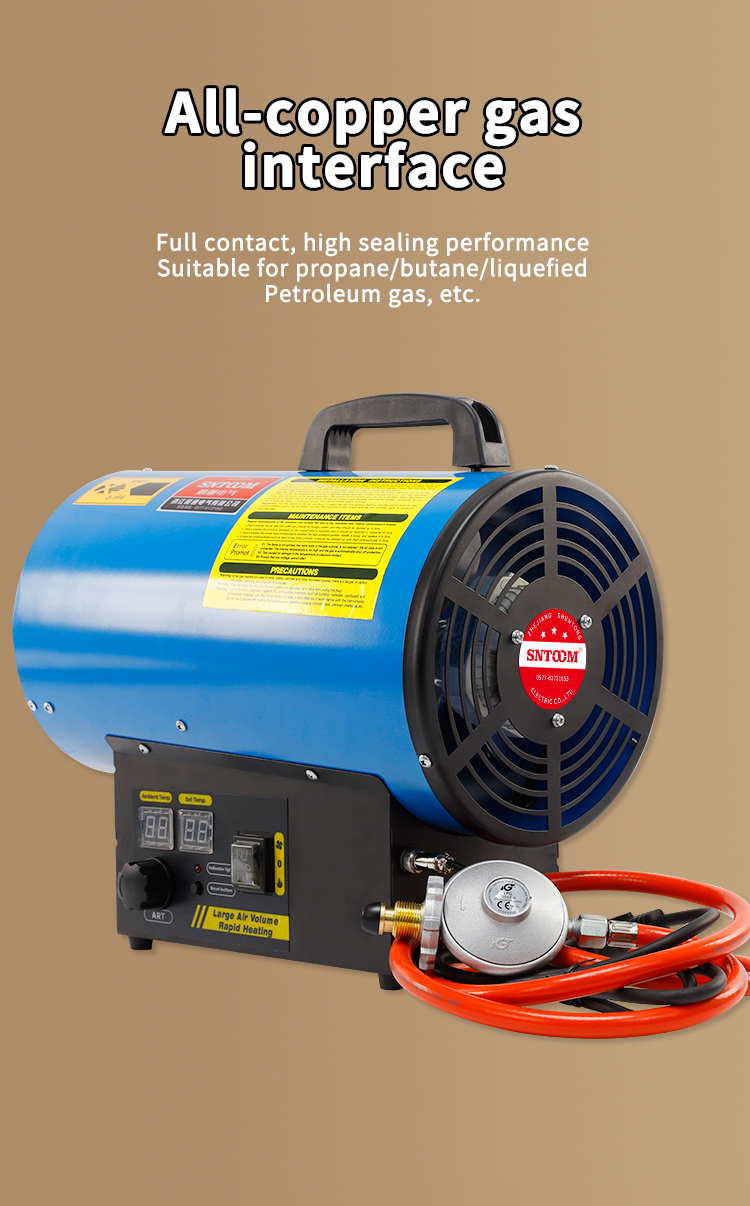

Efficient Gas Utilization: All-copper gas interface and proportional valve enable intelligent temperature control and compatibility with various gases.
Installation and Instructions
Site Selection: Choose a stable, level surface near a gas supply and power outlet. Ensure adequate ventilation to prevent gas buildup.
Gas Connection: Connect the heater's gas inlet to the gas source using a suitable hose. Check for leaks by applying soapy water to joints and observing for bubbles.
Power Setup: Plug the heater into a grounded electrical outlet matching the specified voltage and frequency. Avoid extension cords if possible.
Initial Test: Turn on the gas supply and power. Set the desired temperature using the control knobs. Verify that the heater ignites and heats properly.
Final Checks: Secure all connections, ensure the heater is stable, and position it away from flammable materials. Monitor operation for the first few cycles
Note:For the safe and efficient use of MGQ series industrial heaters, avoid overheating by not covering the heater, ensure proper ventilation, use the correct gas type, regularly inspect for damage, and keep it away from flammable materials.

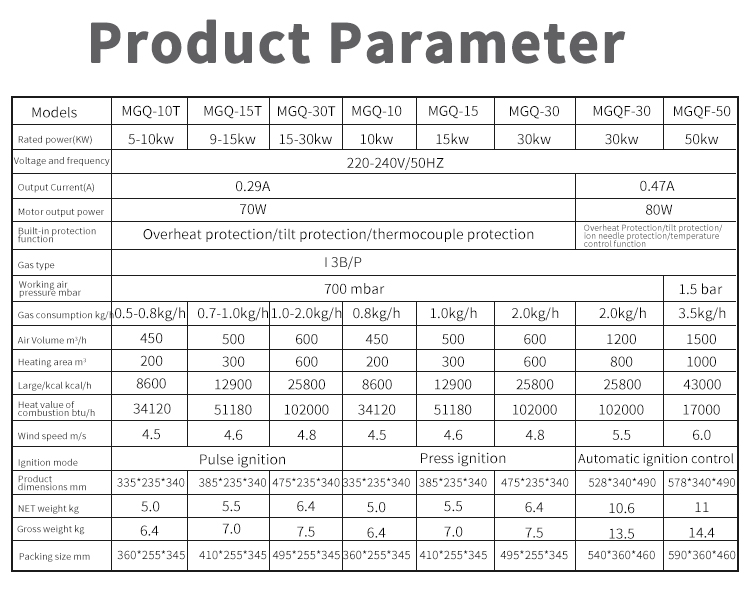

Product parameters
| Models | MGQ-10T | MGQ-15T | MGQ-30T | MGQ-10 | MGQ-15 | MGQ-30 | MGQF-30 | MGQF-50 |
| Rated power(kW) | 5-10kW | 9-15kW | 15-30kW | 10kW | 15kW | 30kW | 30kW | 50kW |
| Voltage and frequency | 220-240V/50HZ | |||||||
| Output Current(A) | 0.29A | 0.47A | ||||||
| Motor output power | 70W | 80W | ||||||
| Built-in protection function | Overheat protection/tilt protection/thermocouple protection | Overheat Protection/tilt protection/flame-out protection/temperature control function | ||||||
| Gas type | 13B/P | |||||||
| Working air pressure mbar | 700mbar | 1.5bar | ||||||
| Gas consumption kg/h | 0.5-0.8kg/h | 0.7-1.0kg/h | 1.0-2.0kg/h | 0.8kg/h | 1.0kg/h | 2.0kg/h | 2.0kg/h | 3.5kg/h |
| Air Volume m³/h | 450 | 500 | 600 | 450 | 500 | 600 | 1200 | 1500 |
| Heating area m³ | 200 | 300 | 600 | 200 | 300 | 600 | 800 | 1000 |
| Large/kcal kcal/h | 8600 | 12900 | 25800 | 8600 | 12900 | 25800 | 25800 | 43000 |
| Heat value of combustion btu/h | 34120 | 51180 | 102000 | 34120 | 51180 | 102000 | 102000 | 17000 |
| Wind speed m/s | 4.5 | 4.6 | 4.8 | 4.5 | 4.6 | 4.8 | 5.5 | 6.0 |
| Ignition mode | Pulse ignition | Press ignition | Automatic ignition control | |||||
| Product dimensions mm | 335*235*340 | 385*235*340 | 475*235*340 | 335*235*340 | 385*235*340 | 475*235*340 | 528*340*490 | 578*340*490 |
| NET weight kg | 5 | 5.5 | 6.4 | 5 | 5.5 | 6.4 | 10.6 | 11 |
| Gross weight kg | 6.4 | 7.0 | 7.5 | 6.4 | 7.0 | 7.5 | 13.5 | 14.4 |
| Packing size mm | 360*255*345 | 410*255*345 | 495*255*345 | 360*255*345 | 410*255*345 | 495*255*345 | 540*360*460 | 590*360*460 |
MGQ Series Industrial Heater:The Ultimate Solution for
Efficient Heating
The MGQ series industrial heater stands out as a top-tier choice for those seeking reliable and powerful heating solutions. Designed for heavy-duty applications, this Industrial Heater is built to deliver consistent and efficient warmth in various environments. One of the key features of the MGQ series is its fast heating capability. Equipped with a high-quality fast heating fan, this High Power Heater ensures quick and even distribution of warm air across large areas. Whether you need to heat a warehouse, workshop, or any other industrial space, this heater guarantees rapid results. The MGQ series is also known for its robust construction and safety features. With built-in overheat protection and a thickened anti-scald outer shell, it provides peace of mind during prolonged use. This heater is not only powerful but also designed with user safety in mind. As a Warm Air Heater, it excels in maintaining a comfortable working environment, boosting productivity by keeping the space adequately heated. The adjustable temperature control allows for precise heat management, catering to different heating needs. For those in search of High power electric heaters, the MGQ series offers an impressive power range, making it suitable for both small and large-scale applications. Its portability and ease of use make it a favorite among professionals. Consider the MGQ series Warm Heater Fan for your industrial heating needs and experience unparalleled efficiency and reliability.
