Transformers are critical components in the transmission and distribution of electrical energy. They function to transfer electrical energy between circuits, often stepping voltage up or down to suit various applications. Transformers are widely used in power systems to ensure efficiency and safety. However, despite their robust designs, transformers can fail, sometimes catastrophically, leading to explosions, fires, or extensive outages. Understanding the causes of these failures is essential for prevention and mitigation. In this article, we delve deep into the causes of transformer failures, the different types of transformers, and actionable steps to avoid these incidents.
The failure of a transformer can often be traced to one or a combination of several factors. These factors include both internal and external issues that disrupt the normal operation of the transformer. Here are the most common causes:
Electrical failures are a primary cause of transformer issues. They arise from overvoltage, insulation breakdown, or power surges. For example:
Overvoltage: Excessive voltage can overwhelm a transformer’s insulation, leading to short circuits and eventual failure.
Insulation Breakdown: Over time, the insulating materials within a transformer degrade due to heat, moisture, and chemical reactions.
Power Surges: Sudden spikes in voltage from external sources, such as lightning strikes or grid fluctuations, can lead to transformer blowouts.
Transformers are designed to handle specific loads. When subjected to loads beyond their capacity, overheating occurs, which can damage internal components and insulation. Overloading often results from:
Rapid industrial growth without adequate infrastructure upgrades.
Faulty planning in power distribution.
Transformers have a finite lifespan, typically ranging from 20 to 40 years. As they age:
Components such as windings and insulation deteriorate.
Efficiency decreases, and the likelihood of failures increases.
Moisture is a significant threat to transformers, particularly oil-immersed transformers. Contamination with water or dirt can:
Reduce the dielectric strength of insulating oil.
Cause rust and corrosion of internal components.
Mechanical issues, such as conductor telescoping or hoop buckling, can arise due to manufacturing defects or inadequate maintenance. Mechanical failures compromise the structural integrity of the transformer.
While transformers are generally reliable, failures are not uncommon. According to studies, approximately 1-2% of transformers fail annually in power systems globally. The probability of failure depends on factors like:
Location: Transformers in areas prone to lightning strikes or flooding are at higher risk.
Age: Older transformers are more likely to experience issues.
Maintenance: Poorly maintained transformers have a significantly higher failure rate.
Several conditions can degrade the performance and lifespan of a transformer, leading to eventual failure:
External factors such as extreme weather conditions, including lightning, floods, and high winds, can damage transformers. Lightning surges are particularly dangerous, causing sudden voltage spikes that overwhelm the system.
Improper installation, such as incorrect wiring or inadequate cooling, can result in operational inefficiencies and eventual failure.
Neglecting regular maintenance can cause minor issues to escalate into significant problems. Maintenance practices such as:
Replacing or replenishing insulating oil.
Cleaning and inspecting components.
Ensuring proper ventilation.
are crucial to the longevity of a transformer.
Defects in components, such as cable distribution boxes, voltage stabilizers, or high-voltage products, can lead to transformer failures. Even a minor defect can compromise the entire system.
Corrosion weakens the structural integrity of a transformer, leading to leaks or reduced performance. Rust often results from prolonged exposure to moisture or air pollutants.

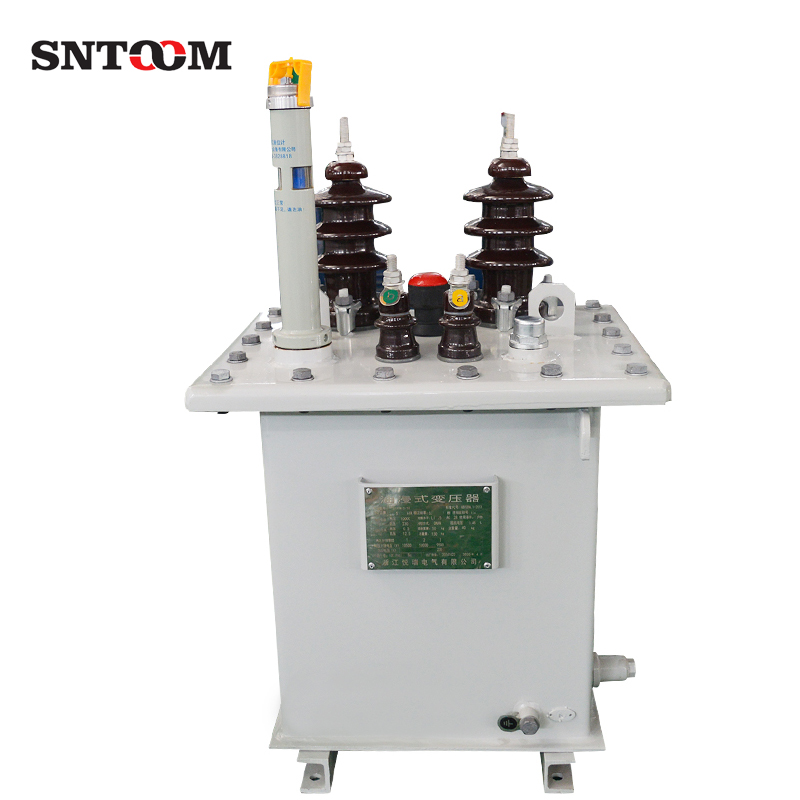

Advantages: High efficiency and excellent cooling properties.
Vulnerabilities: Susceptible to oil leaks, contamination, and fire hazards.
Advantages: Eco-friendly and requires less maintenance.
Vulnerabilities: Prone to overheating and limited in high-voltage applications.
Advantages: Designed for harsh environments like mines.
Vulnerabilities: Susceptible to physical damage and overheating.
Advantages: Provides stable voltage output.
Vulnerabilities: Complex mechanisms make it prone to operational errors.
Applications: Often used in conjunction with frequency inverters and voltage regulators.
Vulnerabilities: Susceptible to electrical failures and overheating.
Advantages: Compact and easy to install.
Vulnerabilities: Vulnerable to environmental factors and mechanical damage.
| Transformer Type | Failure Rate (%) | Common Cause |
|---|---|---|
| Oil-Immersed Transformer | 2.5 | Moisture, overheating |
| Dry Type Transformer | 1.8 | Overloading, insulation |
| Mine Transformer | 3.0 | Mechanical failure |
| Feeding Voltage Regulating Transformer | 2.0 | Electrical failures |
To minimize the risk of transformer failures, consider these best practices:
Routine inspections and servicing are essential. This includes:
Checking oil levels and quality in oil-immersed transformers.
Cleaning dust and debris from dry type transformers.
Testing insulation resistance and dielectric strength.
Protective devices such as circuit breakers, surge arresters, and high-voltage and low-voltage switchgear can mitigate risks.
Modern transformers often incorporate monitoring systems to detect anomalies like temperature spikes or moisture levels early.
Ensure proper installation with certified professionals to avoid initial defects.
Protect transformers from extreme weather conditions by:
Installing lightning arresters.
Constructing enclosures for flood-prone areas.
If a transformer failure occurs, follow these steps:
Do Not Approach: Stay at a safe distance and ensure others do the same.
Report the Incident: Inform the utility company or relevant authorities immediately.
Shut Down Adjacent Systems: If safe to do so, isolate electrical systems connected to the transformer.
Call a Professional: Engage certified engineers to assess and repair the damage.
Transformer failures are complex incidents influenced by multiple factors, including electrical, mechanical, and environmental conditions. By understanding what causes transformers to blow, individuals and organizations can implement measures to minimize risks. Adopting regular maintenance practices, employing protective devices, and ensuring proper installation are key strategies for prolonging transformer life and ensuring system reliability. As transformers play an essential role in modern power systems, their efficient operation is vital for uninterrupted power supply and safety.
