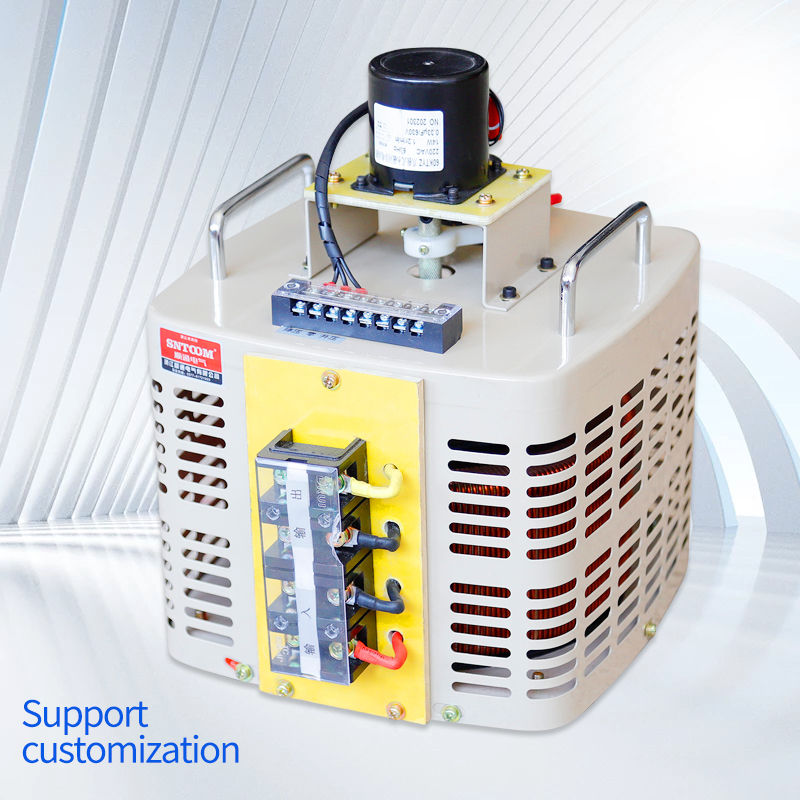

TDGC2/TSGC2J 0.5~60kva copper coil three/single-phase 220V/380V electric voltage regulator

Specification

Automatic A.C voltage stabilizer consists of contact voltage regulator,sampling control circuit and servo motor. When input voltage or load changes,sampilng control circuit will sample and amplify the voltage,and the servo motor will rotate in the desired direction,which turns the arm,adjusting voltage until the output voltage is regulated into the rated output votage.

The product is of small size,light weight,less output waveform distortion and reliable performance.To guarantee its quality,foreign advanced technology and main parts are introduced and imported. It is widely used in eleictrical appliances which need constant voltage power supply,and in fields of industry producing,scientific research and medical hygiene.

The product itself consumes little and can be continuously used for a long time.

The TDGC2/TSGC2J series of electric voltage regulators, featuring copper coils and a capacity range of 0.5 to 60kva, are designed to offer precise and reliable voltage control for both three-phase and single-phase applications. Compatible with input voltages of 220V and 380V, these regulators are ideal for a wide array of industrial, commercial, and domestic settings where stable voltage output is crucial.

Key Specifications:

• Capacity Range: 0.5 to 60kva, providing flexibility to suit various power demands.

• Coil Material: High-quality copper coils ensure efficient heat dissipation and long-term durability.

• Phase Configuration: Available in both three-phase and single-phase versions to cater to different electrical systems.

• Input Voltage: Supports both 220V and 380V, enabling compatibility with a wide range of power sources.

• Output Voltage Regulation: Precisely adjustable output voltage to meet specific requirements and protect connected equipment.

Advanced Features:

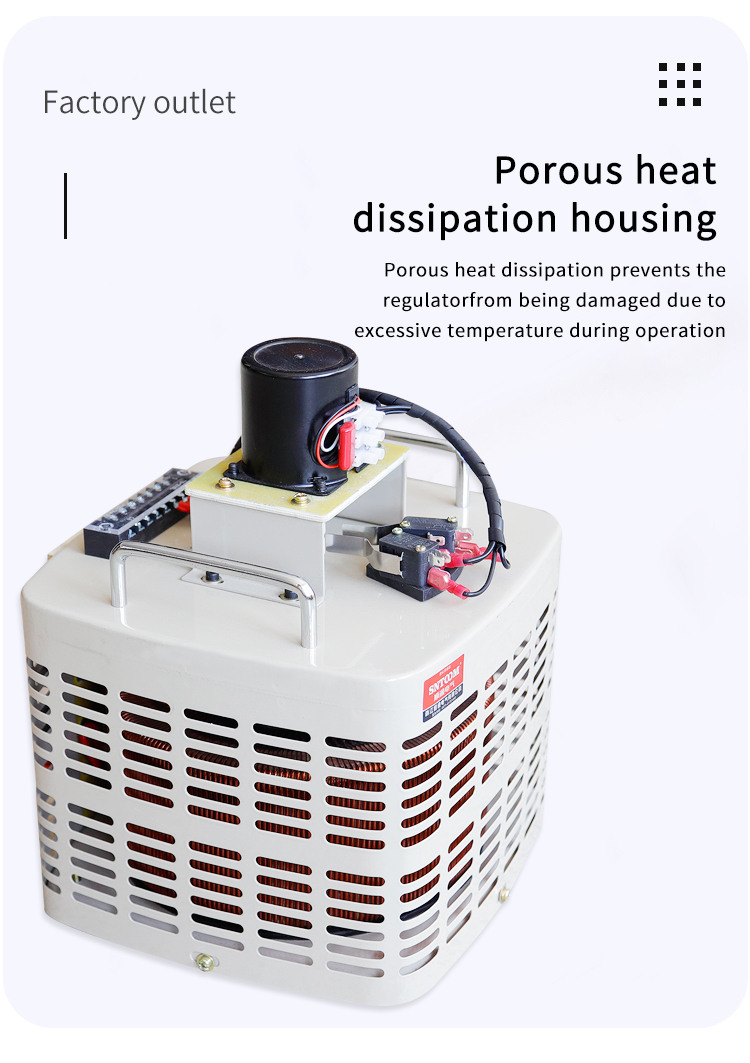

• Efficient Heat Management: The copper coils, along with optimized ventilation design, help maintain low operating temperatures, enhancing performance and extending the regulator's lifespan.

• Intuitive Controls: Easy-to-use controls allow for quick and accurate adjustments of the output voltage, simplifying maintenance and operation.

• Overload & Short-Circuit Protection: Integrated safety features protect against overloads and short circuits, ensuring the safety of both the regulator and connected equipment.

• Compact Design: Space-saving design makes installation and integration into existing electrical setups seamless.

Applications:

• Industrial machinery and automation systems

• Commercial buildings and facilities

• Residential applications requiring voltage regulation

• Power supply for sensitive electronic devices and instruments

• Electrical testing and calibration laboratories

• Renewable energy systems, such as solar and wind power generation

Performance Benefits:

• Stable Voltage Output: Maintains a constant and precise output voltage, regardless of fluctuations in the input voltage or load conditions.

• Improved Equipment Lifespan: Protects connected equipment from voltage spikes and drops, reducing wear and tear, and prolonging equipment lifespan.

• Energy Efficiency: Efficient design minimizes energy loss, contributing to lower operating costs and a reduced carbon footprint.

• Versatility: Suitable for both three-phase and single-phase systems, as well as various voltage requirements, making it a versatile solution for multiple applications.

Conclusion:

The TDGC2J/TSGCS2 series voltage regulators have the characteristics of beautiful appearance, undistorted waveform, small volume, light weight, high efficiency, convenient use, and reliable operation. They have superior performance and can be widely used in industries (such as chemical industry, metallurgy, instrumentation, electromechanical manufacturing, light industry, etc.), scientific experiments, public equipment, and household appliances to achieve voltage regulation, temperature control, speed regulation, dimming, and power control, It is an ideal AC voltage regulating power supply.
