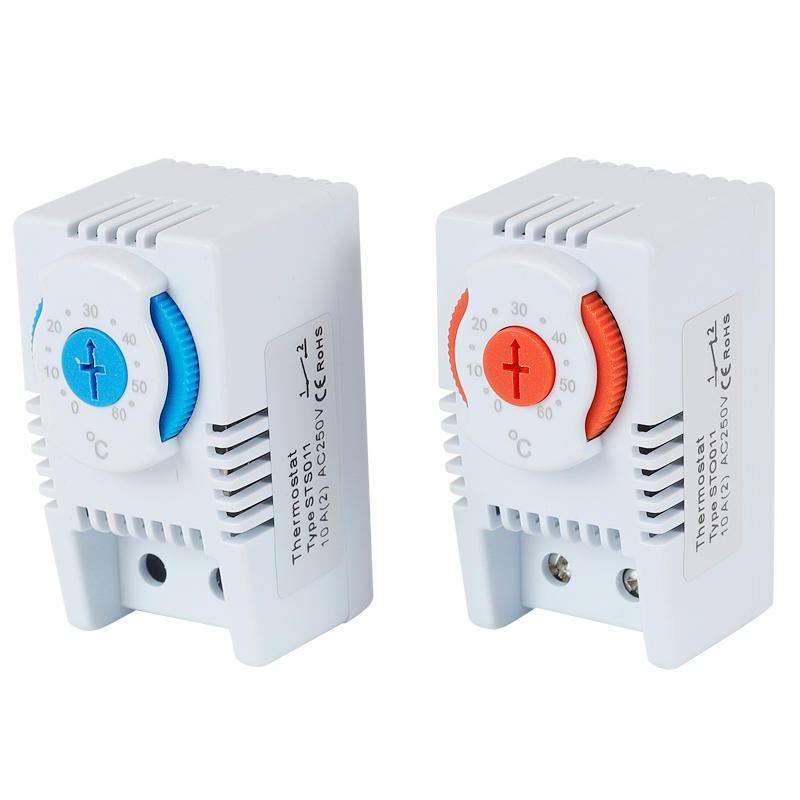

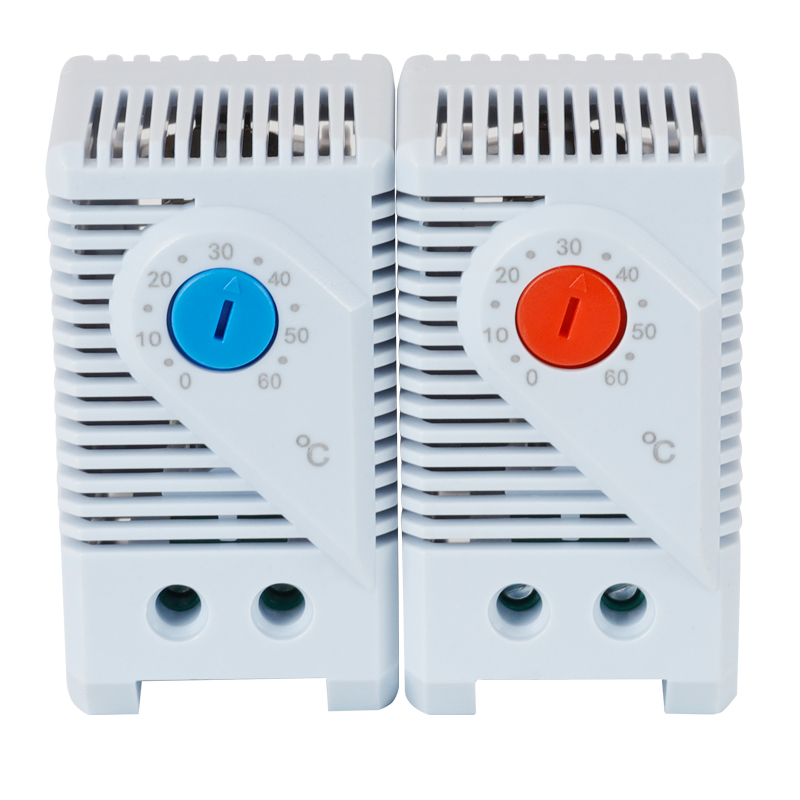

Small Compact Thermostat
SNTOOM
Product advantages and features
Small and Portable Design
Small and Portable Design
Energy Efficient
Easy to Install
Durable Construction
Versatile Applications
Installation and Instructions
Gather all necessary tools and ensure the installation surface is clean and flat. Check the thermostat components for any damage.

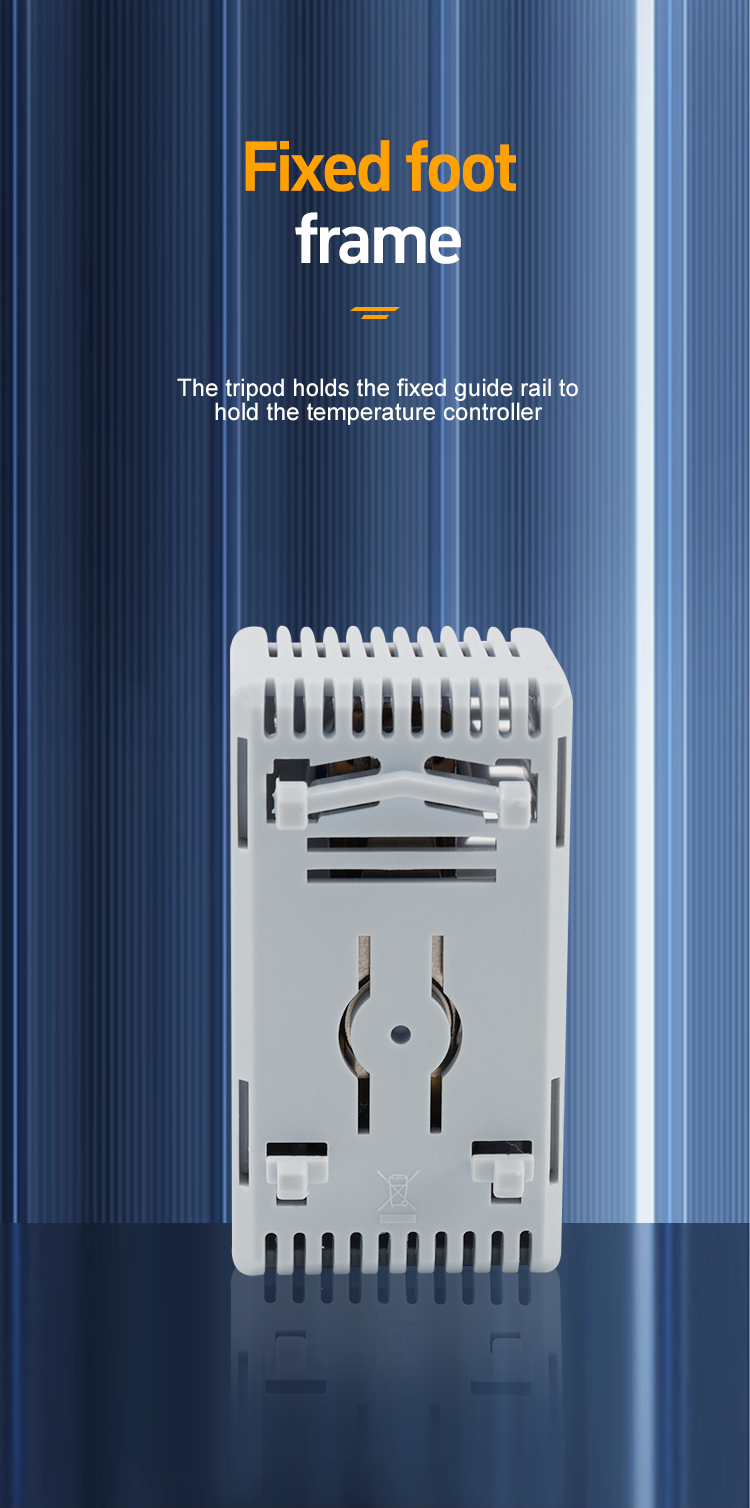

Attach the fixed foot frame to the desired location using screws. Ensure it is securely fastened to support the thermostat.

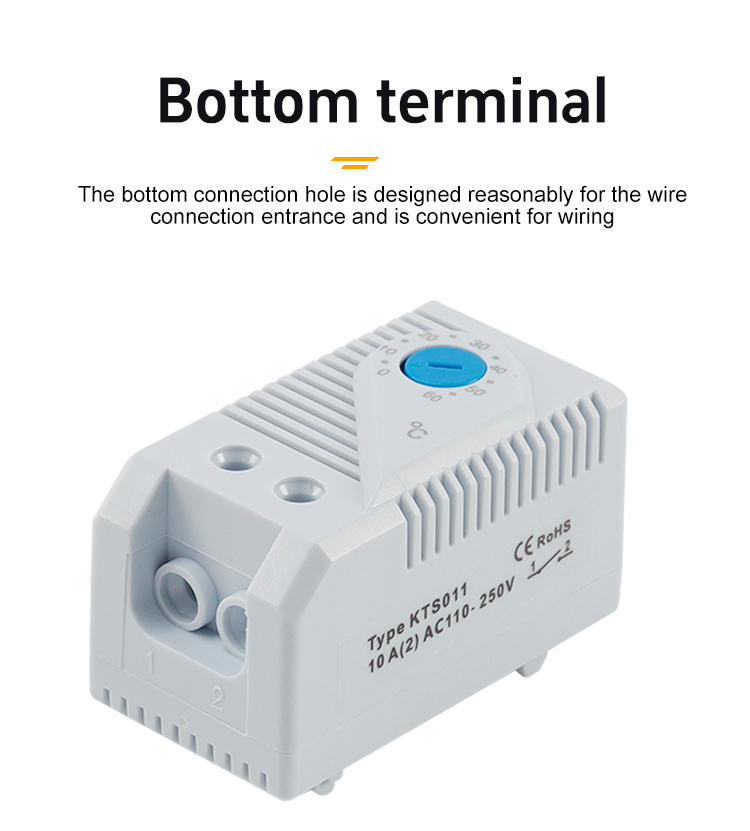

Connect the power wires to the bottom terminal of the thermostat. Follow the diagram for correct wiring, ensuring no loose connections.
Carefully place the thermostat into the fixed foot frame, ensuring it fits snugly and securely without any gaps.
Adjust the voltage settings as per your requirements using the voltage adjustment feature on the thermostat.
Turn on the power and test the thermostat to ensure it operates correctly. Check the temperature control sensitivity and make any necessary adjustments.
Note:Ensure the Small, Compact Thermostat is installed on a flat, stable surface away from heat sources. Avoid moisture and extreme temperatures to ensure accurate operation and longevity.
Product parameters

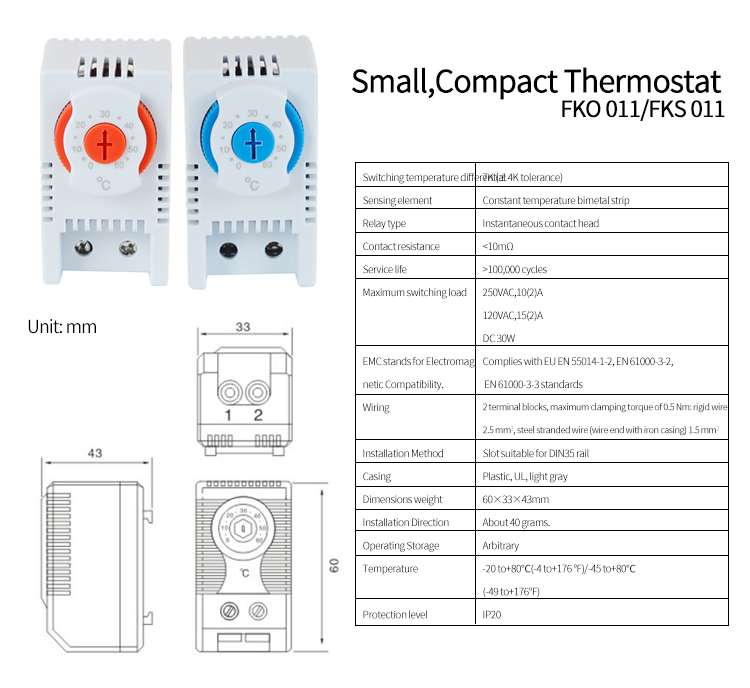

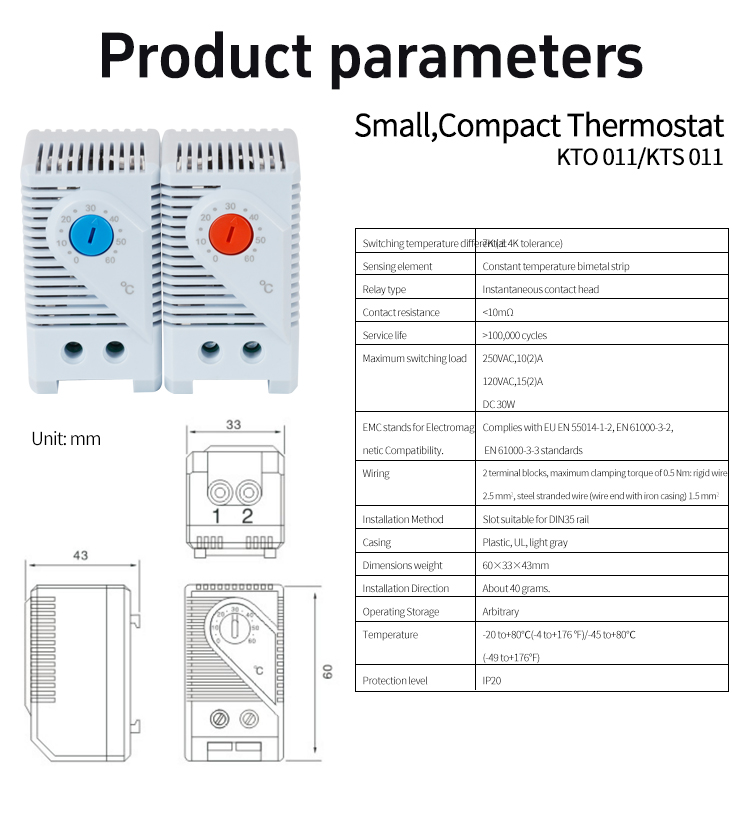

| Switching temperature difference | Sensing element | Relay type | Contact resistance | Service life | Maximum switching load | EMC standards for Electromagnetic Compatibility | |
| 7K (±4K tolerance ) | Constant temperature bimetal strip | Instantaneous contact head | <10mΩ | > 100,000 cycles | 250VAC, 10(2)A 120VAC,15(2)A DC30W | Complies with EU EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 standards | |
| Wiring | Installation Method | Casing | Dimensions weight | Installation Direction | Operating Storage | Temperature | Protection level |
| 2 terminal block, maximum clamping torque of 0.5 Nm; rigid wire 2.5mm², steel stranded wire(wire end iron casing) 1.5mm² | Slot suitable for DIN35 rail | Plastic, UL, light gray | 60×33×43mm | About 40 grams | Arbitrary | -20 to +80°C (-4 to +176°F)/-45 to +80°C (-49 to +176°F) | IP20 |

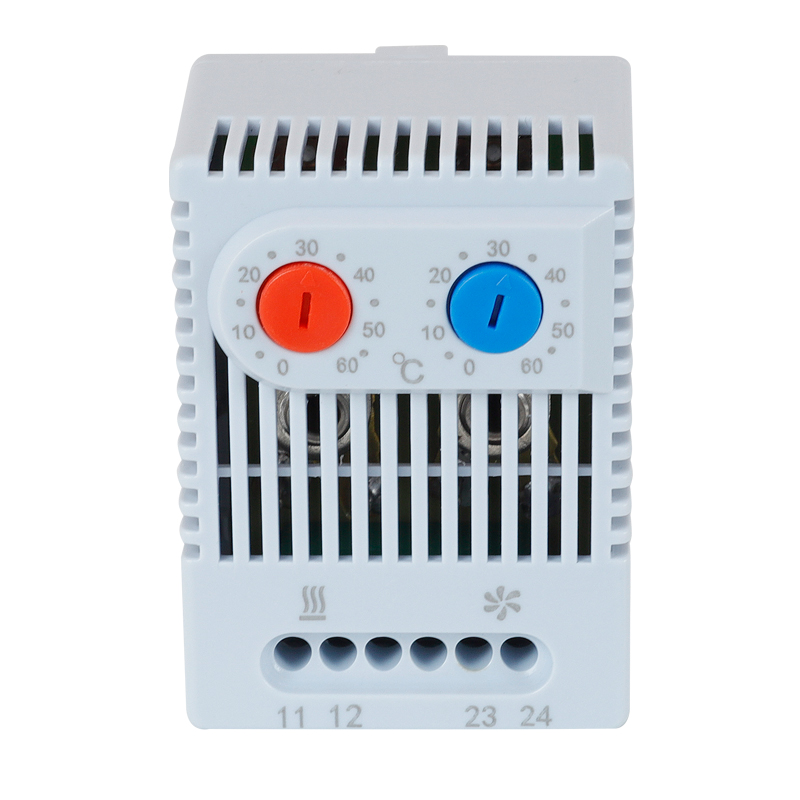

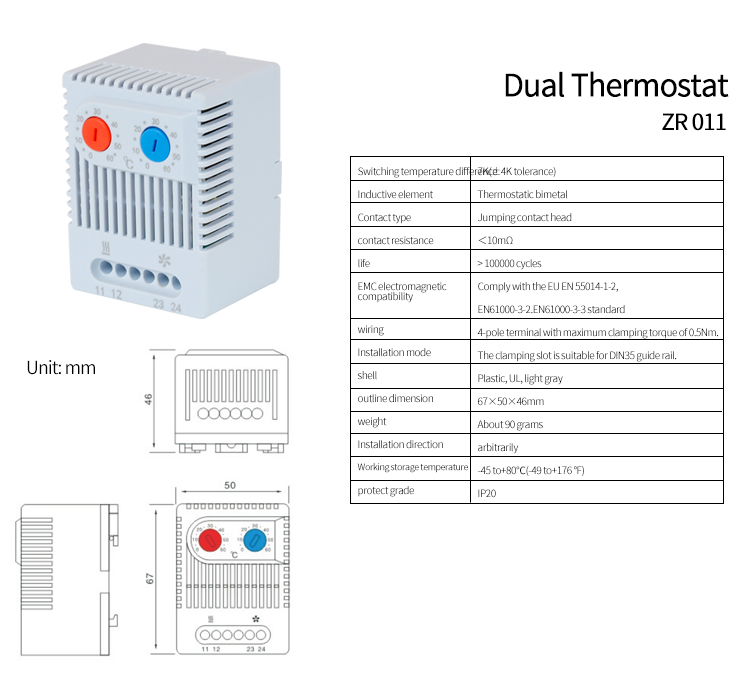

Dual Thermostat ZR 011 parameter table
| Switching temperature difference | Inductive element | Contact type | Contact resistance | life | EMC electromagnetic compatibility | Working storage temperature |
| 7K ±4K(with a tolerance ) | Thermostatic bimetal | Jumping contact head | <10mΩ | > 100,000 cycles | Complies with EU EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 standard | -40 to +80°C (-49 to +176°F) |
| Wiring | Installation Mode | shell | outline dimension | weight | installation direction | protect grade |
| 4-pole terminal with maximum clamping torque of 0.5Nm | The clamping slot is suitable for DIN35 guide rail | Plastic, UL, light gray | 67*50*46mm | About 90 grams | Arbitrary | IP20 |

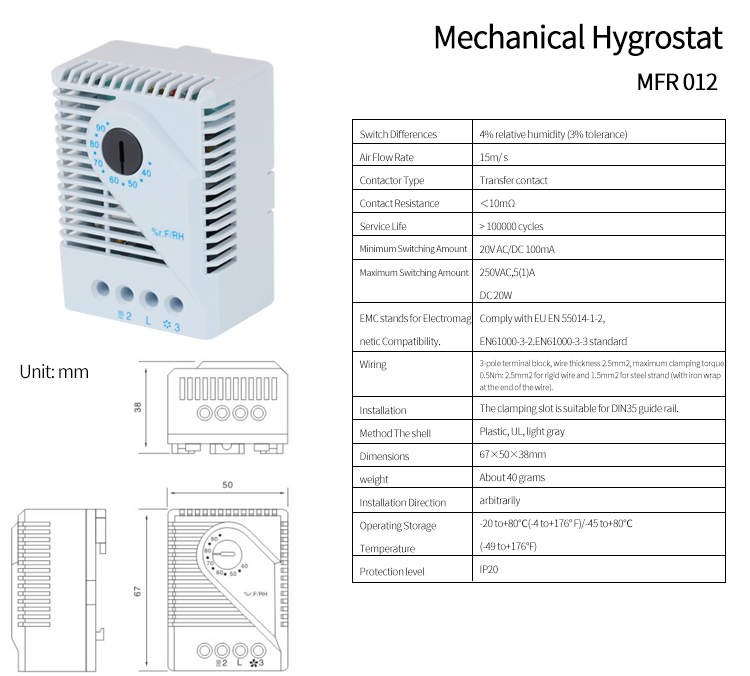

Mechanical Hygrostat MFR 012 parameter table
| Switch Differences | Air Flow Rate | Contactor Type | Contact Resistance | Service Life | Minimum Switching Amount | Maximum Switching Amount | EMC standards for Electromag netic Compatibility |
| 4% relative humidity (3% tolerance) | 15m/s | Transfer contact | <10mΩ | >100000 cycles | 20V AC/DC 100mA | 250VAC,5(1)A DC 20W | Comply with EU EN 55014-1-2, EN 61000-3-2,EN 61000-3-3 standard |
| Wiring | Installation | Method The shell | Dimensions | Weight | Installation Direction | Operating Storage Temperature | Protection level |
| 3-pole terminal block, wire thickness 2.5mm², maximum clamping torque 0.5Nm: 2.5mm² for rigid wire and 1.5mm² for steel strand (with iron wrap at the end of the wire) | The clamping slot is suitable for DIN35 guide rail | Plastic, UL, light gray | 67×50×38mm | About 40 grams | Arbitrarily | -20 to +80°C (-4 to +176°F)/-45 to +80°C (-49 to +176°F) | IP20 |

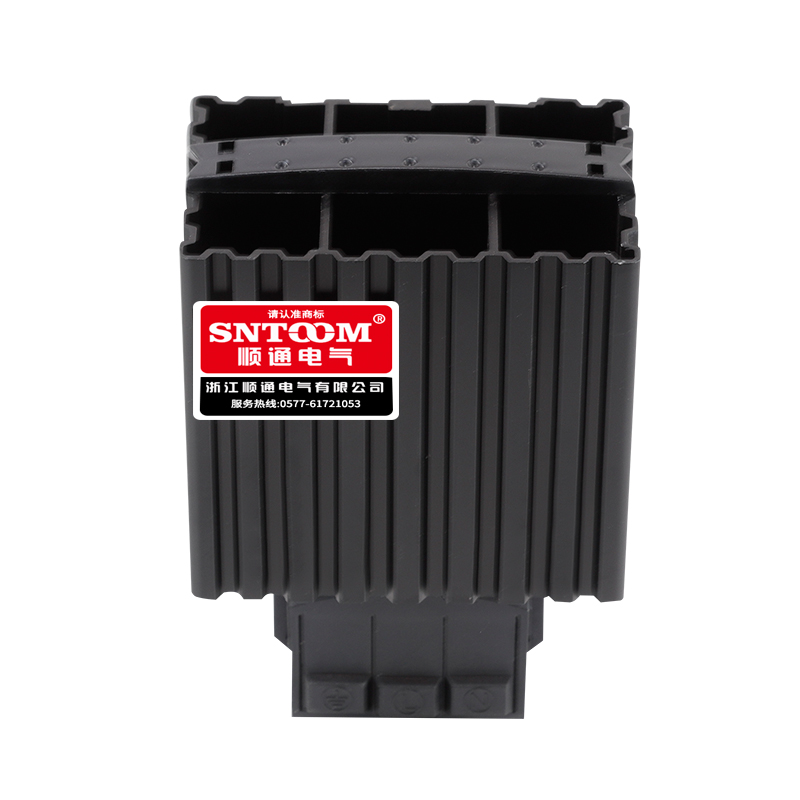

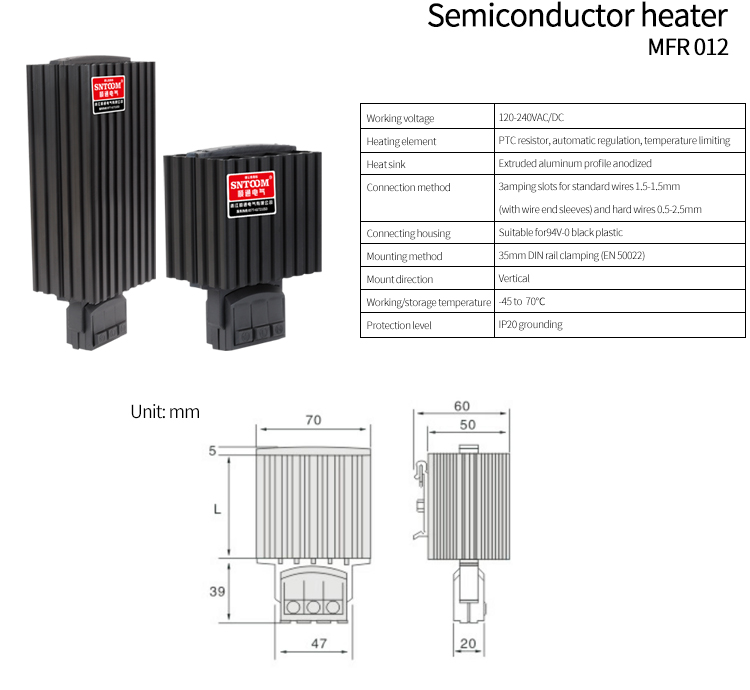

Semiconductor Heater MFR 012 parameter table
| Working voltage | Heating element | Heat sink | Connection method | |
| 120-240VAC/DC | PTC resistor, automatic regulation, temperature limiting | Extruded aluminum profile anodized | 3amping slots for standard wires 1.5-1.5mm (with wire end sleeves) and hard wires 0.5-2.5mm | |
| Connecting housing | Mounting method | Mount direction | Working/storage temperature | Protection level |
| Suitable for 94V-0 black plastic | 35mm DIN rail clamping (EN 50022) | Vertical | -45 to 70°C | IP20 grounding |

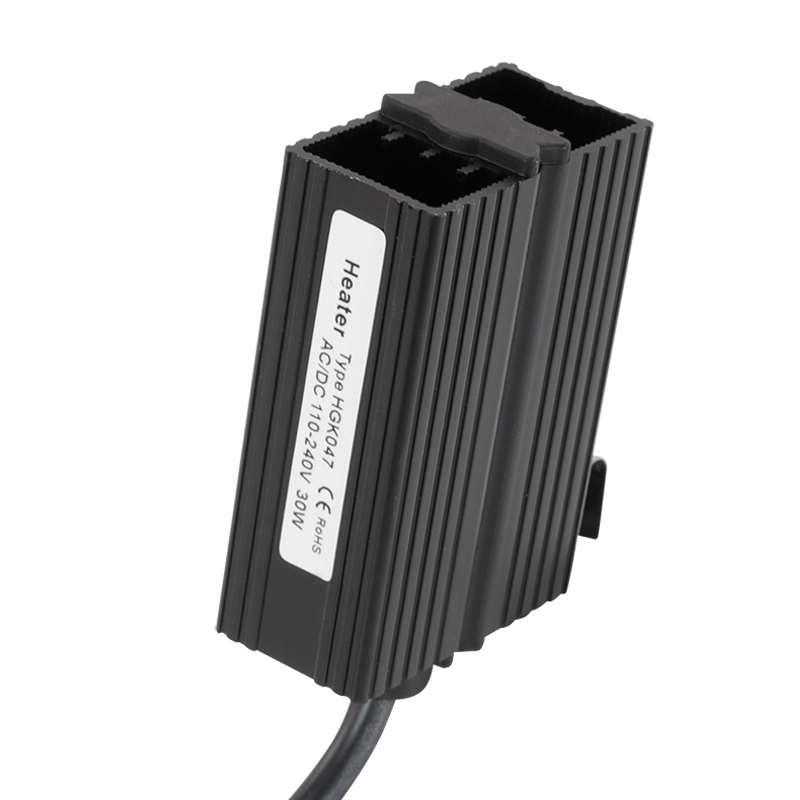

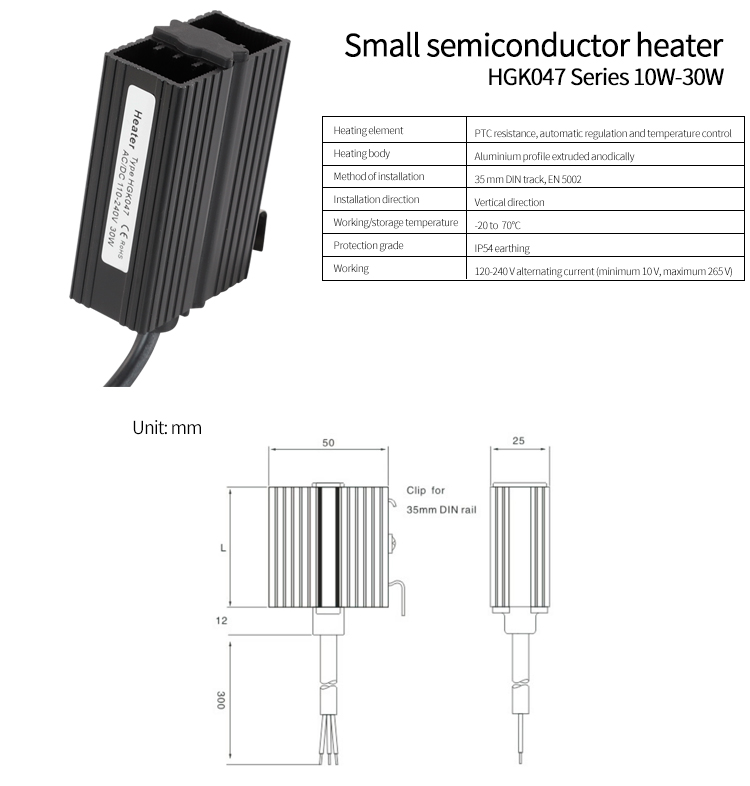

Small Semiconductor Heater HGK047 Series 10W-30W parameter table
| Heating element | Heating body | Method of installation | Installation direction | Working/storage temperature | Protection grade | Working |
| PTC resistance, automatic regulation and temperature control | Aluminum profile extruded anodically | 35 mm DIN track, EN 50022 | Vertical direction | -20 to 70°C | IP54 earthing | 120-240 V alternating current (minimum 10 V, maximum 265 V) |
Introduction to the Small, Compact Thermostat
In the realm of temperature control devices, the Small, Compact Thermostat stands out as an innovative and efficient solution. Also known as a Miniature Temperature Regulator or a Portable Mini Thermostat Controller, this device combines precision, portability, and ease of use into a single, compact package.
At the heart of this Small Thermostat Device is a highly sensitive temperature controller. It ensures accurate and stable temperature regulation, making it ideal for applications that demand precise thermal management. The controller's compact structure and high-hardness outer shell not only protect its internal components but also contribute to its durability and longevity, ensuring it can withstand the demands of daily use.
One of the standout features of this temperature controller is its compact structure. Despite its small size, it packs powerful functionality, offering reliable performance in various settings. The high hardness of its casing ensures resistance to impacts and environmental factors, enhancing its reliability.
This Small, Compact Thermostat boasts several key advantages. Its miniature size allows for flexible placement in tight spaces, making it perfect for applications where space is at a premium. The user-friendly interface ensures easy operation, with simple controls for adjusting temperature settings. Additionally, it features a bottom terminal for convenient wiring, simplifying installation. The fixed foot frame provides stable mounting, ensuring the device stays securely in place.
Moreover, it offers excellent control sensitivity, allowing for precise temperature adjustments. The insulation material used in its construction ensures efficient thermal management, while its robust design guarantees long-term reliability.
In conclusion, the Small, Compact Thermostat is a versatile and reliable temperature control solution. Whether you refer to it as a Temperature controller, a Miniature Temperature Regulator, or a Portable Mini Thermostat Controller, this device delivers exceptional performance in a compact and durable package. Its combination of precision, portability, and ease of use makes it an ideal choice for a wide range of applications.
Product advantages and features
Small and Portable Design
Small and Portable Design
Energy Efficient
Easy to Install
Durable Construction
Versatile Applications
Installation and Instructions
Gather all necessary tools and ensure the installation surface is clean and flat. Check the thermostat components for any damage.
Attach the fixed foot frame to the desired location using screws. Ensure it is securely fastened to support the thermostat.
Connect the power wires to the bottom terminal of the thermostat. Follow the diagram for correct wiring, ensuring no loose connections.
Carefully place the thermostat into the fixed foot frame, ensuring it fits snugly and securely without any gaps.
Adjust the voltage settings as per your requirements using the voltage adjustment feature on the thermostat.
Turn on the power and test the thermostat to ensure it operates correctly. Check the temperature control sensitivity and make any necessary adjustments.
Note:Ensure the Small, Compact Thermostat is installed on a flat, stable surface away from heat sources. Avoid moisture and extreme temperatures to ensure accurate operation and longevity.
Product parameters
| Switching temperature difference | Sensing element | Relay type | Contact resistance | Service life | Maximum switching load | EMC standards for Electromagnetic Compatibility | |
| 7K (±4K tolerance ) | Constant temperature bimetal strip | Instantaneous contact head | <10mΩ | > 100,000 cycles | 250VAC, 10(2)A 120VAC,15(2)A DC30W | Complies with EU EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 standards | |
| Wiring | Installation Method | Casing | Dimensions weight | Installation Direction | Operating Storage | Temperature | Protection level |
| 2 terminal block, maximum clamping torque of 0.5 Nm; rigid wire 2.5mm², steel stranded wire(wire end iron casing) 1.5mm² | Slot suitable for DIN35 rail | Plastic, UL, light gray | 60×33×43mm | About 40 grams | Arbitrary | -20 to +80°C (-4 to +176°F)/-45 to +80°C (-49 to +176°F) | IP20 |
Dual Thermostat ZR 011 parameter table
| Switching temperature difference | Inductive element | Contact type | Contact resistance | life | EMC electromagnetic compatibility | Working storage temperature |
| 7K ±4K(with a tolerance ) | Thermostatic bimetal | Jumping contact head | <10mΩ | > 100,000 cycles | Complies with EU EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 standard | -40 to +80°C (-49 to +176°F) |
| Wiring | Installation Mode | shell | outline dimension | weight | installation direction | protect grade |
| 4-pole terminal with maximum clamping torque of 0.5Nm | The clamping slot is suitable for DIN35 guide rail | Plastic, UL, light gray | 67*50*46mm | About 90 grams | Arbitrary | IP20 |
Mechanical Hygrostat MFR 012 parameter table
| Switch Differences | Air Flow Rate | Contactor Type | Contact Resistance | Service Life | Minimum Switching Amount | Maximum Switching Amount | EMC standards for Electromag netic Compatibility |
| 4% relative humidity (3% tolerance) | 15m/s | Transfer contact | <10mΩ | >100000 cycles | 20V AC/DC 100mA | 250VAC,5(1)A DC 20W | Comply with EU EN 55014-1-2, EN 61000-3-2,EN 61000-3-3 standard |
| Wiring | Installation | Method The shell | Dimensions | Weight | Installation Direction | Operating Storage Temperature | Protection level |
| 3-pole terminal block, wire thickness 2.5mm², maximum clamping torque 0.5Nm: 2.5mm² for rigid wire and 1.5mm² for steel strand (with iron wrap at the end of the wire) | The clamping slot is suitable for DIN35 guide rail | Plastic, UL, light gray | 67×50×38mm | About 40 grams | Arbitrarily | -20 to +80°C (-4 to +176°F)/-45 to +80°C (-49 to +176°F) | IP20 |
Semiconductor Heater MFR 012 parameter table
| Working voltage | Heating element | Heat sink | Connection method | |
| 120-240VAC/DC | PTC resistor, automatic regulation, temperature limiting | Extruded aluminum profile anodized | 3amping slots for standard wires 1.5-1.5mm (with wire end sleeves) and hard wires 0.5-2.5mm | |
| Connecting housing | Mounting method | Mount direction | Working/storage temperature | Protection level |
| Suitable for 94V-0 black plastic | 35mm DIN rail clamping (EN 50022) | Vertical | -45 to 70°C | IP20 grounding |
Small Semiconductor Heater HGK047 Series 10W-30W parameter table
| Heating element | Heating body | Method of installation | Installation direction | Working/storage temperature | Protection grade | Working |
| PTC resistance, automatic regulation and temperature control | Aluminum profile extruded anodically | 35 mm DIN track, EN 50022 | Vertical direction | -20 to 70°C | IP54 earthing | 120-240 V alternating current (minimum 10 V, maximum 265 V) |
Introduction to the Small, Compact Thermostat
In the realm of temperature control devices, the Small, Compact Thermostat stands out as an innovative and efficient solution. Also known as a Miniature Temperature Regulator or a Portable Mini Thermostat Controller, this device combines precision, portability, and ease of use into a single, compact package.
At the heart of this Small Thermostat Device is a highly sensitive temperature controller. It ensures accurate and stable temperature regulation, making it ideal for applications that demand precise thermal management. The controller's compact structure and high-hardness outer shell not only protect its internal components but also contribute to its durability and longevity, ensuring it can withstand the demands of daily use.
One of the standout features of this temperature controller is its compact structure. Despite its small size, it packs powerful functionality, offering reliable performance in various settings. The high hardness of its casing ensures resistance to impacts and environmental factors, enhancing its reliability.
This Small, Compact Thermostat boasts several key advantages. Its miniature size allows for flexible placement in tight spaces, making it perfect for applications where space is at a premium. The user-friendly interface ensures easy operation, with simple controls for adjusting temperature settings. Additionally, it features a bottom terminal for convenient wiring, simplifying installation. The fixed foot frame provides stable mounting, ensuring the device stays securely in place.
Moreover, it offers excellent control sensitivity, allowing for precise temperature adjustments. The insulation material used in its construction ensures efficient thermal management, while its robust design guarantees long-term reliability.
In conclusion, the Small, Compact Thermostat is a versatile and reliable temperature control solution. Whether you refer to it as a Temperature controller, a Miniature Temperature Regulator, or a Portable Mini Thermostat Controller, this device delivers exceptional performance in a compact and durable package. Its combination of precision, portability, and ease of use makes it an ideal choice for a wide range of applications.
