Isolation transformers are essential components in modern electrical systems. These transformers provide galvanic isolation, ensuring no direct electrical connection between the input and output sides. This feature offers numerous benefits, such as improved safety, noise suppression, and specific electrical configurations. When deciding whether to power your load on an isolation transformer, it is crucial to understand its operational aspects, safety features, and applications.
This guide will explore isolation transformers in detail, analyzing their functionality, safety advantages, potential drawbacks, and integration into various electrical setups. Along the way, we’ll address essential questions like “Does an isolation transformer change voltage?” and “What are the disadvantages of an isolation transformer?”

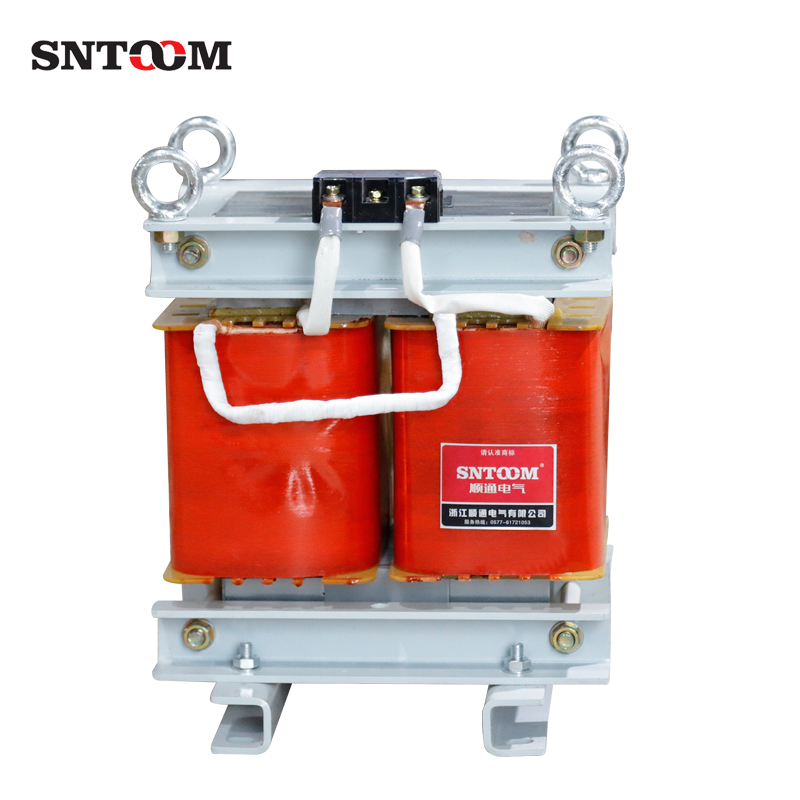

An isolation transformer transfers electrical energy from one circuit to another using electromagnetic induction while maintaining electrical separation. Unlike standard transformers, the primary function of an isolation transformer is not necessarily to step up or step down voltage but to isolate and protect the connected load.
Galvanic Isolation: Prevents direct current flow between input and output circuits.
Voltage Compatibility: Typically operates with input and output voltages of the same magnitude, although voltage adjustment is possible with specific designs.
Enhanced Safety: Mitigates shock risks by isolating live parts.
Noise Suppression: Reduces high-frequency noise, beneficial for sensitive electronic equipment.
Dry Type Transformer: Air-cooled and commonly used in indoor settings.
Oil-immersed Transformer: Cooled using insulating oil, suitable for high-power applications.
Special Converter Transformers: Designed for specific industrial or commercial needs, such as operating with frequency inverters or voltage stabilizers.
Mine Transformer: Engineered for use in underground environments.
By isolating circuits, these transformers ensure safety and reliability in various applications, from industrial systems to residential setups.
In standard electrical installations, power is distributed using a distribution transformer that converts high voltage to usable levels, typically 230-240V for residential or 400V for industrial applications. The electrical arrangement includes:
Live (L): Carries the current to the load.
Neutral (N): Completes the circuit, often grounded at the distribution point.
Earth (E): Provides a safety path to ground.
This arrangement includes safety mechanisms such as:
Circuit Breakers: Interrupts high current during faults.
Residual Current Devices (RCDs): Detects small leakage currents and disconnects the supply to prevent harm.
However, when an isolation transformer is introduced, the neutral and earth connection (N-E bond) is no longer directly linked on the secondary side. This alters the grounding and protective measures, offering distinct advantages in specific scenarios.
Isolation transformers significantly reduce the risk of electrical shock by eliminating direct electrical connections between the input and output circuits. This feature is particularly vital in:
Medical Equipment: Ensures patient safety by isolating sensitive devices.
Industrial Environments: Protects workers and machinery from unexpected faults.
Construction Sites: Prevents shock risks when working in damp or outdoor conditions.
Should an isolation transformer be grounded? While the primary circuit is grounded, the secondary side may or may not be grounded depending on the application. The absence of a secondary ground reference means:
A single fault won’t create a shock hazard.
Safety mechanisms like RCDs may not function as intended.
Grounding requirements must adhere to local regulations and safety standards to ensure system reliability.
While isolation transformers enhance safety, they may introduce risks if improperly used:
Electrical Shock: Touching both output conductors simultaneously can still cause harm.
Improper Grounding: Failure to correctly ground the transformer can lead to unsafe conditions.
One of the primary advantages of isolation transformers is their ability to suppress electrical noise. High-frequency noise and electromagnetic interference (EMI) can disrupt sensitive electronic devices, including:
Computers and Servers
Audio and Video Equipment
Industrial Control Systems
Magnetic Coupling: Only desired frequencies pass through the transformer, while high-frequency noise is attenuated.
Shielding: Many transformers include an electrostatic shield between windings to block noise.
Isolation transformers are commonly used in data centers, hospitals, and laboratories to ensure the stable operation of sensitive systems.
When using an isolation transformer, the neutral-earth (N-E) bond on the secondary side requires careful consideration. The decision to recreate this bond depends on:
System Design: Is the load designed to operate with an isolated or bonded neutral?
Safety Standards: Local regulations often dictate whether the N-E bond must be established.
Maintains standard fault protection mechanisms.
Ensures compatibility with circuit protection devices like RCDs.
Failure to address the N-E bond appropriately can compromise both safety and equipment performance.
Transformer regulation refers to the voltage variation between no-load and full-load conditions. For isolation transformers, good regulation ensures stable performance, especially for critical applications.
Load Characteristics: Inductive or resistive loads may influence regulation.
Transformer Design: High-quality materials and design minimize losses.
Comparison Table:
| Transformer Type | Regulation (%) | Typical Applications |
|---|---|---|
| Dry Type Transformer | 2-4% | Indoor systems, small machinery |
| Oil-immersed Transformer | 1-3% | High-power industrial setups |
| Special Converter Transformer | 0.5-1% | Frequency inverters, voltage stabilizers |
When combined with Uninterruptible Power Supplies (UPS), isolation transformers create a robust power protection system. The UPS ensures continuous power during outages, while the isolation transformer provides additional safety and noise suppression.
Improved Equipment Lifespan: Protects against power surges and noise.
Enhanced Reliability: Ensures uninterrupted operation in critical environments.
Voltage Stabilization: Works with voltage regulators and stabilizers for consistent performance.
Throughout this guide, we’ve highlighted essential aspects of isolation transformers, answering key questions such as:
Does an isolation transformer change voltage? It typically does not, unless specifically designed to step up or step down voltage.
What are the disadvantages of an isolation transformer? These include cost, size, and the need for careful grounding.
Should an isolation transformer be grounded? This depends on the application and safety requirements.
What is the hazard of an isolating transformer? Improper use can lead to shock or system malfunctions.
Isolation transformers also complement advanced systems like prefabricated substations, cable distribution boxes, and high-voltage products. Their compatibility with frequency inverters and circuit voltage regulators makes them versatile in industries ranging from telecommunications to manufacturing.
By understanding the operational principles and applications of isolation transformers, you can make informed decisions about their integration into your electrical systems. Whether for safety, noise suppression, or system stability, these transformers remain indispensable in modern electrical engineering.
